USER MANUAL KARD-18R Chief

Close-up of a black mechanical component with a metallic screw and a small metallic end (no visible text or symbols)

TO INSTALL:PULL PIN ON DOOR ANDINSERT INTO HOLES FOUND ON THE RACK.

GAR HINGE

Close-up of a metallic mechanical component mounted on a vertical rod against a textured dark background (no text or symbols visible)

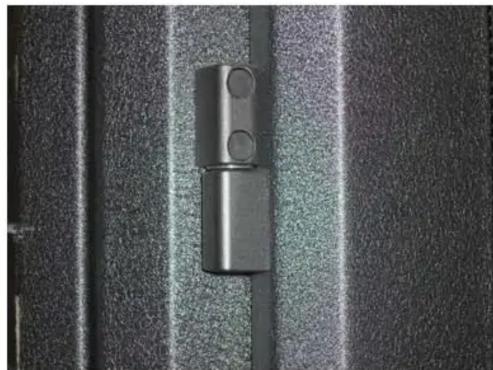

TO INSTALL THE TOP HINGE, THE MALE HALF MOUNTS TO RACK FACING DOWN AND FACING UP ON THE BOTTOM HINGE. FEMALE HALVES MOUNT TO DOOR.

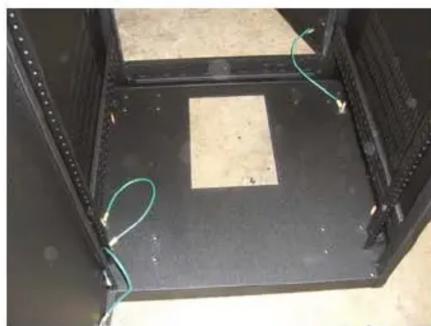

Door Grounding - The door ground stud is located next to the bottom hinge pivot pin. Using the ground wire and kep nut provided, attach one end of the ground wire to the door grounding stud and the other end to the base ground stud located on the inside bottom corner of the rack. (Refer to pictures below)

Rail Grounding - Using the ground wire, kep nut, and bolt provided, attach one end of the ground wire to teh bottom rail hole and the other end of the ground wire to the base ground stud which is located on the inside bottom corner of the rack. (Refer to pictures below)

Close-up of a black metal panel with a green cable and connectors, placed on a textured floor (no text or symbols visible)

Interior view of a server rack with exposed circuitry and wiring (no text or symbols visible)

NOTE: ALL RACK ASSEMBLY AND INSTALLATION IS TO BE DONE BY QUALIFIED SERVICE PERSONNEL.
