Product Type	Basic Rack PDU (Power Distribution Unit)
Form Factor	0U vertical rack mount
Dimensions (H x W x D)	48.3 cm x 4.4 cm x 4.4 cm (19 in x 1.75 in x 1.75 in)
Weight	1.36 kg (3 lbs)
Input Voltage	120 V AC
Input Current	12 A
Input Plug Type	NEMA L5-20P
Output Voltage	120 V AC
Output Current (max)	12 A
Number of Outlets	12
Outlet Type	NEMA 5-15R
Power Cord Length	3.05 m (10 ft)
Mounting Orientation	Vertical, tool-less mounting kit included
Overload Protection	15 A thermal fuse
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage Temperature	-15°C to 65°C (5°F to 149°F)
Relative Humidity	0% to 95%, non-condensing
Certifications	UL, cUL, FCC Class A
Warranty	2 years

Frequently Asked Questions - AR8125 APC

What is the input plug type for the APC AR8125?

The APC AR8125 uses a NEMA L5-20P plug. This is a locking 20A, 120V twist-lock connector.

How many outlets does the AR8125 have and what type are they?

It has 12 NEMA 5-15R outlets, which are standard 15A, 120V receptacles.

Can I mount the AR8125 horizontally?

The AR8125 is designed for vertical (0U) mounting between two posts in a rack. Horizontal mounting is not supported.

What is the maximum load I can plug into the AR8125?

The maximum total load is 12A at 120V (1440 VA). Do not exceed this rating to avoid tripping the thermal fuse.

Is the AR8125 compatible with a UPS system?

Yes, it can be connected to a UPS output, provided the UPS can supply the required 12A load and has a compatible NEMA L5-20R receptacle.

Does the AR8125 provide surge protection?

No, this is a basic PDU with overload protection only. It does not include surge or voltage regulation.

What tools are required for mounting the AR8125?

No tools are required. It comes with tool-less mounting buttons that snap into square holes in the rack.

What is the length of the power cord?

The attached power cord is 3.05 meters (10 feet) long, with a NEMA L5-20P plug.

Can I daisy chain multiple AR8125 PDUs?

Daisy chaining is not recommended as it can exceed the circuit capacity. Connect each PDU to a separate branch circuit.

How do I reset the overload protection?

The overload protection is a thermal fuse that must be replaced if tripped. It is not user-resettable. Contact APC support for replacement.

USER MANUAL AR8125 APC

NetShelter AV Enclosure Fixed Shelf, 18" to 25" (AR8125)—Installation Instructions

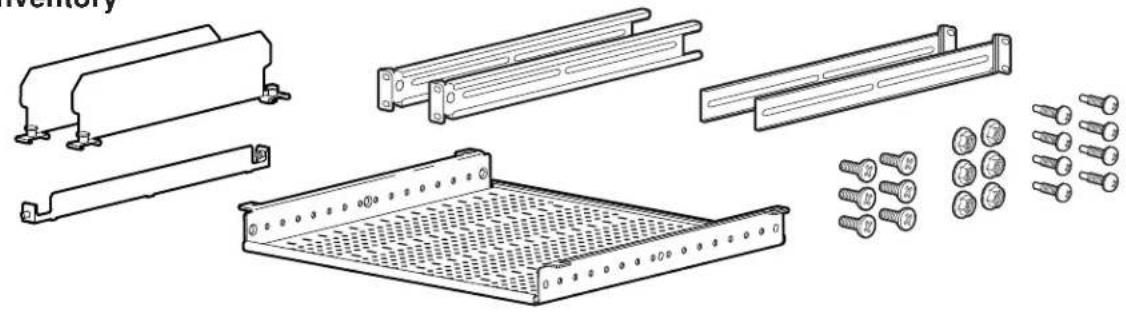

Inventory

Technical line drawings of various electronic components including metal brackets, railings, and screw assemblies (no text or labels)

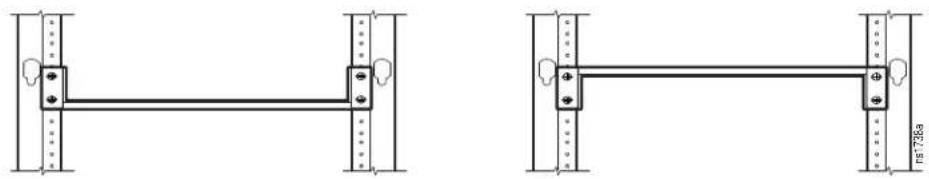

Configurations

Technical line drawing of two mechanical or structural components with vertical supports and mounting holes (no text or symbols)

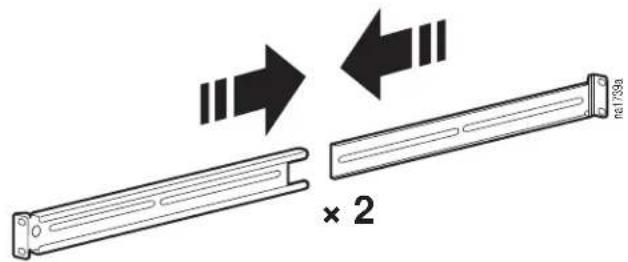

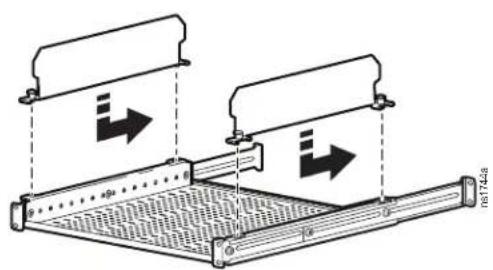

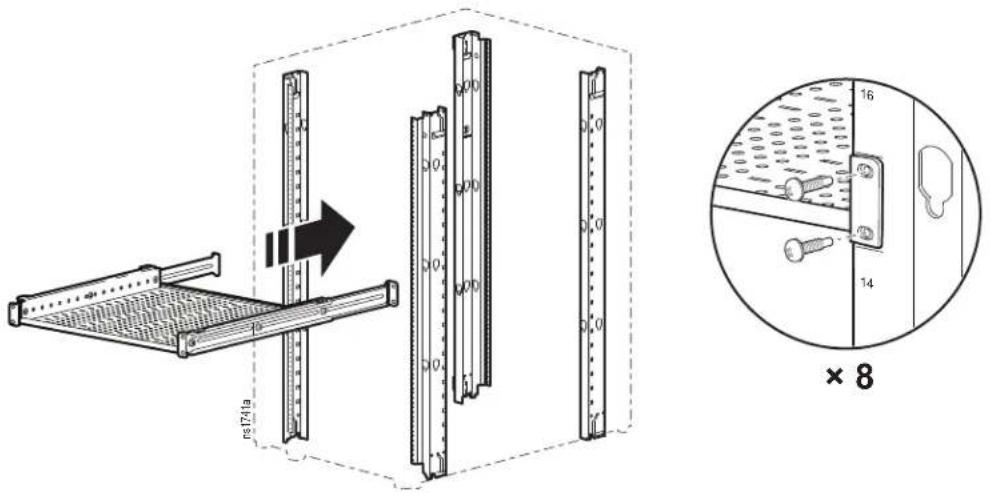

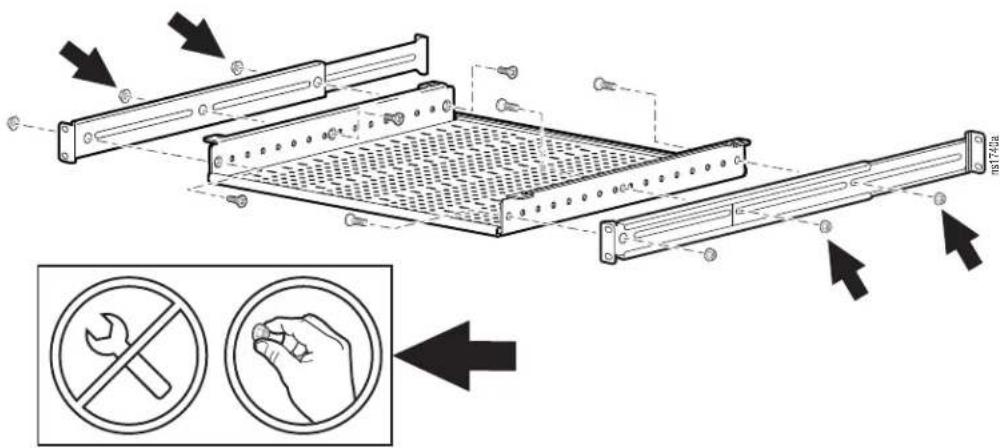

Installation
1

2

3

4

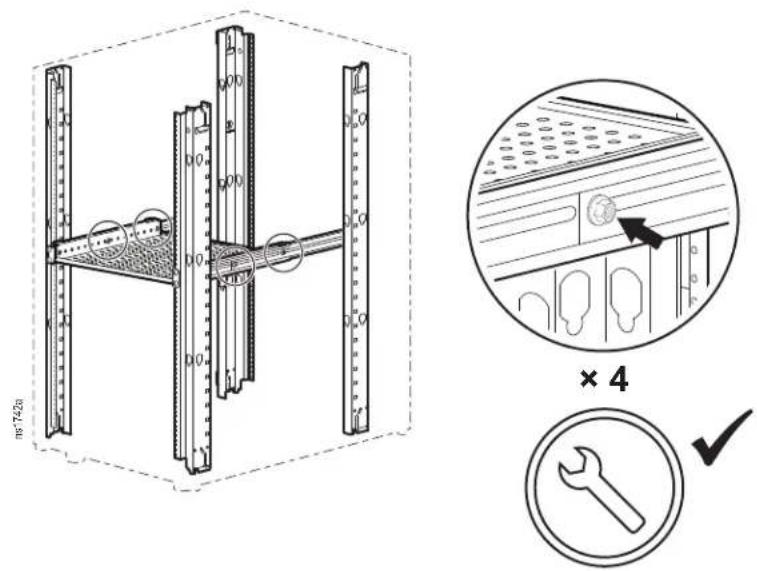

Pure structural diagram of a beam with supports and a checkmark indicating a detail (no text or symbols)

5

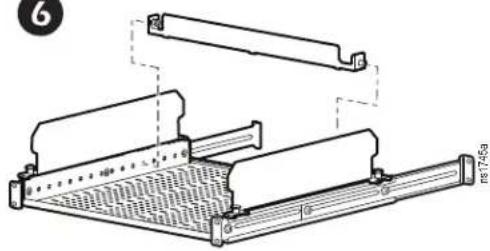

6

Customer support and warranty information is available at the APC Web site, www.apc.com.

© 2010 American Power Conversion. All rights reserved. All APC trademarks are property of American Power Conversion. Other trademarks are property of their respective owners.

990-3700

7/2010
