Product Type	2.1 Speaker System
Brand	Philips
Model	SPA9120B
Speaker Configuration	2 satellites + 1 subwoofer
Total Power Output (RMS)	40 W
Frequency Response	45 Hz - 20 kHz
Impedance	4 ohms (satellites), 8 ohms (subwoofer)
Dimensions (Satellite)	180 x 90 x 130 mm (W x H x D)
Dimensions (Subwoofer)	250 x 220 x 280 mm (W x H x D)
Weight (Total)	4.5 kg
Power Source	AC 100-240 V, 50/60 Hz
Power Consumption	45 W (max), <0.5 W (standby)
Connectivity	3.5 mm stereo input, Bluetooth 5.0
Input Sensitivity	500 mV (AUX)
Controls	Volume knob, power switch, bass adjust
Enclosure Material	Wood (subwoofer), Plastic (satellites)
Color	Black
Cleaning Instructions	Wipe with dry cloth, avoid liquids
Safety Warning	Do not expose to moisture or high volume for extended periods
Warranty	1 year

Frequently Asked Questions - SPA9120B PHILIPS

How do I connect my Philips SPA9120B to a Bluetooth device?

Turn on the speaker, press the Bluetooth button (or switch to BT mode). On your device, enable Bluetooth and select 'Philips SPA9120B' from the list. If pairing fails, ensure the speaker is not already connected to another device.

Why is there no sound coming from the speakers?

Check the volume level on both the speaker and your source device. Ensure the power cable is plugged in and the speaker is switched on. If using AUX, verify the cable is fully inserted. For Bluetooth, confirm the device is connected.

Can I adjust the bass level on the SPA9120B?

Yes, the subwoofer has a dedicated bass control knob on the back panel. Turn it clockwise to increase bass, counterclockwise to decrease.

How do I clean the speakers?

Use a soft, dry cloth to wipe the surfaces. Do not use any liquids or abrasive cleaners. For the grille, gently vacuum with a brush attachment.

What is the maximum power output of the SPA9120B?

The system delivers a total RMS power of 40 watts (20W subwoofer + 2x10W satellites). Peak power may be higher but not recommended for prolonged use.

Does the speaker have a built-in amplifier?

Yes, the subwoofer houses the built-in amplifier that powers both satellites and subwoofer. No external amp is required.

What should I do if the speaker makes a buzzing noise?

Check for interference from other electronic devices. Move the speakers away from routers or power strips. Ensure all cables are properly shielded and not damaged.

Can I wall-mount the satellite speakers?

The satellites have keyhole slots on the back for wall mounting. Use appropriate screws and anchors (not included). Ensure the wall can support the weight.

How do I reset the Philips SPA9120B to factory settings?

There is no explicit reset function. To clear Bluetooth pairing, press and hold the Bluetooth button for 10 seconds until you hear a beep. For other issues, unplug the power for 30 seconds.

Is the SPA9120B compatible with all smartphones?

Yes, it works with any device that has Bluetooth 5.0 or earlier, or a 3.5 mm audio output. Compatibility is universal for music playback.

USER MANUAL SPA9120B PHILIPS

Line drawing of two speakers with sound amplifiers and a microphone, no text or symbols present

User manual

Content

General Information ....3

Safety Instructions

Warnings

Care & Safety Information

Installation

Speaker Placement & Connections ....4

Front Panel Main Unit ....5

Back Panel Main Unit ....5

Remote Control 6

Playing TV Audio ....7

Play from a USB Storage Device ....7

Play From Radio 8

Cordless MIC 8

Playing through Bluetooth 8

Trouble Shooting 9

Specification 10

Warranty ......II

Accessories

Qty.

1. 2 RCA to 2 RCA Cable I

2. Remote Control

3. User Manual

4. Cordless MIC

General Information

Safety Instructions Please read carefully the Safety Mark on the Back side

This mark is intended to alert the users from the non isolated dangerous voltage within the product that may be of sufficient magnitude to constitute a risk of electric shock to persons

This mark is intended to alert the user for important operating and servicing instruction

Warnings

* Avoid sustained periods on high-volume use, and do not turn the volume to maximum level while using high output signal, such as Mobile Phone or DVD, etc., as this will cause distortion and may damage the loudspeaker cones.
* Please switch off the system from the wall socket, when not in use.
* Please unplug the system from the AC outlet when unused for a long time
* Do not open the cover or back panel to avoid electronic shock or any other accidents. No user-serviceable parts are inside.
* Only for indoor use.
* Plug the system to the AC outlet with the right voltage marked on the back panel of the Speaker System.

Installation

Remote

*(Use AAA X 2 Battery)

MIC

*(Use AA X 2 Battery)

*Battery not provided

Care and safety information

Avoid high temperatures, moisture, water and dust

• Apparatus should not be exposed to dripping or splashing of liquid.
• Do not place any sources of danger on the Tower Speaker (e.g. liquid filled objects, lighted candles).
• Do not install near heat sources.

Do not block any ventilation openings

• Place the apparatus in a location with adequate ventilation to prevent internal heat build up. Allow at least 100cm (4 inches) of free space all around the apparatus for adequate ventilation.
• At high volume the back cover of Tower Speaker becomes hot. Do not touch it.

Care of the cabinet

- Use a soft cloth slightly moistened to clean the cabinet. Do not use a solution containing alcohol, spirits, ammonia or abrasives.

Speaker Placement & Connections

A Placement

Line drawing of two speakers connected to a TV, showing sound waves and a monitor (no text or symbols)

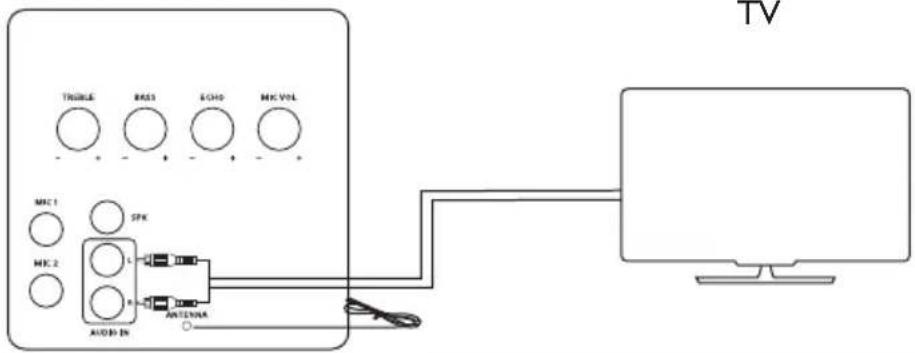

B Connect audio from TV

© Connect Corded MIC*

* Corded MIC not included in the accessories

(D) Connect Speakers

Front Panel Main Unit

Display information of your system

1. SENSOR

Point remote to operate

1. USB*

To play through USB drive.

1. ⏻

Switches system ON and STANDBY

1. ▶|| SCAN

(a) Play and pause in USB/BT

(b) Long press to auto scan in radio mode

(c) Short press to store station manually

1. SOURCE

To select desired input

USB / FM / AUX IN / BLUETOOTH

7.

To stop USB

1. MAIN VOLUME (◀▶)

Adjusts volume of speakers.

9.

(a) Play previous file in USB

(b) Preset down in radio mode

10.

(a) Long press song will rewind

(b) Tunning down in radio mode

11.

(a) Play next file in USB

(b) Preset up in radio mode

12.

(a) Long press song will forward

(b) Tunning up in radio mode

* Available when connected

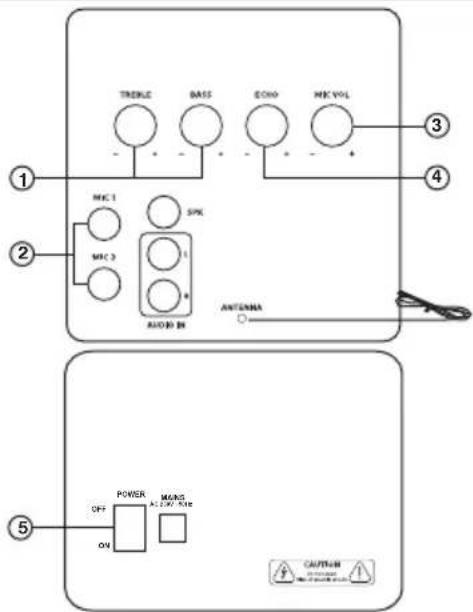

Back Panel Main Unit

1. TONE

To adjust bass / Treble level.

1. MIC

Insert MIC into MIC jack.

1. MIC VOLUME

To adjust MIC volume.

1. ECHO

To adjust ECHO according to your voice.

1. POWER*

To ON/OFF system

* The POWER needs to be put in OFF position, when not in use, to save energy.

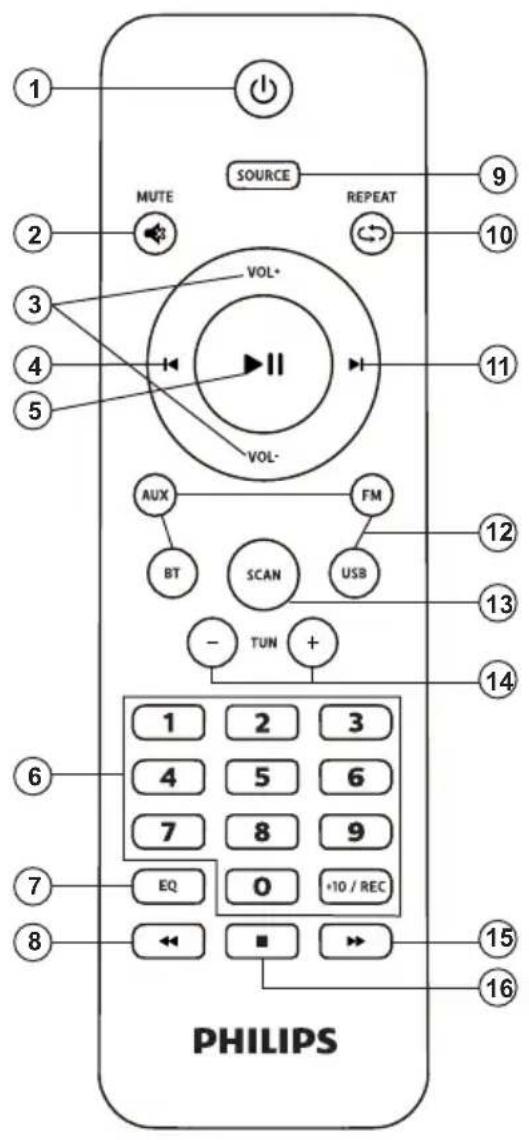

1. Ⓧ

Switches system ON or to STANDBY

1. MUTE

Mute or restore volume

1. VOL+ VOL-

Increase or decrease volume

4.

(a) Play previous file in USB
(b) Tuning down in radio mode

1. ▶||

Play and Pause USB / Bluetooth

1. NUMERIC KEYS

Press number key to play directly MP3 files (Eg. To play 57th song press 5 then 7) In radio mode key in station frequency

1. EQ

Select preset sound modes in USB / Bluetooth

8.

To rewind

1. SOURCE

To select desired input USB/FM/AUX IN/BT

1. REPEAT

Repeats a track or the entire USB

11.

(a) Play next file in USB
(b) Tuning up in radio mode

1. SOURCE KEYS

USB* - Switch to USB storage device

AUX - Select an audio input

FM - Switch to FM radio

BT - Play on bluetooth mode

1. SCAN

Auto Scan & store station in memory

1. TUN - /+

Up and Down preset channel on FM mode

15.

To forward

16.

Stop Play in USB mode

Playing TV Audio

You can enjoy a theatre experience, just attach TV output to your Tower Speaker Audio IN.

I. Select source from you source key on remote.
2. Display shown AUX.

Button Action
Vol – Volume	Decrease
Vol + Volume	Increase
Mute To Mute	/ Unmute Sound

Play from a USB Storage Device

The Speaker System is fitted with a USB connector that allows you to listen music.

I. Connect the USB storage device to the Tower Speaker.
2. It auto shifts to USB mode.
3. Display shows USB.
4. Then song number & running time will appear on display.
(eg. if you listening sixteenth song 016 00:01 will appear).
5. Use number key to select song directly or +10 key.

Button Action
|◀ ▶|	Select previous or next track
▶||	Start, pause or resume Play
◀◀ ▶▶	To rewind and fast forward
Numeric Buttons Select and song to play
Repeat Repeat track or the entire USB
EQ Select a predefined sound effect

Play from Radio

You can store 40 stations in memory.

I. Select FM mode.
2. Press ▶ can key to auto scan & store station in your area.

1. You can also store manually.

Tune desired station. Press ▶II scan key on panel, display starts flicker and then display stops flickering the station will be stored.

Button Action
|◄ ►|	Search for a radio station
- TUN + TUN Select a preset radio station
SCAN Press to auto scan the radio station
Numeric Keys Key in station frequency (i.e. for 104.6 press 1046)

Note - While autoscan turn off your TV/DVD or other radiation source.

For best reception, while listening to radio, turn off TV/DVD or other radiation source.

Cordless MIC

I. Switch MIC to "ON" Position.
2. When switch is turned ON than a blue colour LED glows for 0.5 seconds only. MIC automatically get connected with the Tower Speaker System. Now your MIC is ready for use.
3. You can use MIC in all source (USB / BT / AUX / FM) selections.
4. Adjust MIC Volume & Echo by rotary control given on back panel of the Tower Speaker.
5. Turn switch to 'MUTE' to mute MIC during operation.
6. Turn "OFF" MIC switch when not in use.

Playing through Bluetooth

You can enjoy music wireless with Bluetooth

I. Select source.
2. Display shown BLUE (Flashing).
3. Pair "your Bluetooth device" with tower speaker system name Philips SPA9120B.
4. Display stops flashing, once Bluetooth device is paired.

Now your system is ready to play through Bluetooth. Control all function from your smart phone eg. ◀, ▶, ▶II

WARNING

Under no circumstances should you try to repair the system yourself, as this will invalidate the warranty. Do not open the system as there is a risk of electric shock. If a fault occurs, first check the points listed below before taking the system for repair.

If you are unable to remedy the problem by following these hints, consult your dealer or PHILIPS for help.

Problem	Solution
No power. Check if the AC power cord is properly inserted into the AC mains socket.
No sound or distorted sound. Adjust the volume.	Check the speaker connection.Select the correct source to choose the equipment that you want to hear through the System.
The remote control does not function Reduce the distance between the remote Properly. control and the system.	Replace the batteries with new ones.Point the remote control directly toward the IR sensor (located on front panel of the Tower).
Low hum or buzz sound. Place the product as far away as possible from electrical devices that may be causing interference.Speaker connector not fixed properly
The content of the USB flash drive The USB flash drive format is not compatible cannot be read with the system.	Drive is formatted with a different file system which is not supported by this unit (e.g. NTFS)
Slow operation of the USB Flash Large file size of high memory USB flash drive takes longer time to read and play.
Cannot detect USB flash drive Take out USB drive insert it again properly.
FM not properly tuned Match with local frequency
FM reception not good While listening radio turn off TV/DVD or other radiation source.
MIC not working MIC volume at zero.	While listening radio turn off TV/DVD Antenna wire not attached.
Bluetooth	Replace the batteries with new oneReduce the distance between system and your device.Re-Pair the device.

Total System Power 120W RMS
Separation >40db
SNR >70db
Audio Input Socket RCA Type
Audio Output Socket RCA Type
Power Consumption 70W
Frequency Response 20Hz-20Khz
Bluetooth Range Upto 10 mtrs.
MIC Range Upto 35 mtrs.
MIC Frequency 866MHz
Speaker System 2 x 3 Way
Woofer
Size 10" (250mm)
Impedance 4 Ohm
Speaker
Size 4" (100mm)
Impedance 4 Ohm
Tweeter
Size 2 14 " (57mm)
Impedance 6 Ohm
Dimension	202 x 840 x 348 (WXHXD)
Net Weight 32.1 Kg
USB
Class Support UMS (USB Mass Storage Class)
Capacity	upto 16 GB
Format	MP3 Track

This Philips Tower Speaker is warranted against any defect due to defective materials or workmanship for 12 months from the date of purchase. Should a defect develop during the period of warranty, Gibson Innovations India Private Limited undertake to repair the apparatus FREE OF CHARGE through the dealer from whom it has been purchased or at any of the Philips Authorised Service Centres.

The warranty is not valid in case :

I. Proof of purchase is not accompanied with this warranty card.
2. The warranty card is not completed immediately after purchase.
3. The apparatus is not used according to this manual.
4. Defects are caused by improper or reckless use.
5. Any repairs are done by persons other than Philips Authorised service centre.
7. The serial number is tampered with.
8. Defects due to causes beyond control like lightning, abnormal voltage, acts of God or while in transit to the purchaser's residence.

All consumables and parts susceptible to normal wear and tear are not covered under warranty.

Please fill the following for your reference and warranty validity:-

Week/S. No. Bill No.

Date of Purchase: ____

Dealer's name: ____

Dealers Stamp:

Customer's name & address:

Model No.:

Dealer's Signature:

Gibson Innovations India Private Limited, 4th Floor, Block-1, Vatika Business Park, Sec-49, Sohna Road, Gurgaon-122018, Haryana, India

The Philips trademark and Philips shield emblem are registered trademarks of koninklijke Philips N.V. used under license.

This product has been manufactured by and sold under the responsibility of Gibson Innovations India Private Ltd. and Gibson Innovations India private Ltd. is the warrantor in relation to this product.

Question? Always there to help you Contact Philips Visit us at www.india.philips.com Contact at: 1860 180 1111, 1800 102 2929 Or [e-mail]
