5510-22 - Car speaker MTX Audio - Free user manual and instructions

Product Type	Car Speaker
Brand	MTX Audio
Model	5510-22
Speaker Size	5.25 inches
Type	2-Way Coaxial
Power Handling (RMS)	50 Watts
Power Handling (Peak)	150 Watts
Impedance	4 Ohms
Sensitivity	90 dB @ 1W/1m
Frequency Response	65 Hz – 20 kHz
Cone Material	Polypropylene
Surround Material	Rubber
Tweeter Type	1-inch Balanced Dome
Mounting Depth	2.2 inches (56 mm)
Cutout Diameter	4.6 inches (117 mm)
Magnet Weight	20 oz
Weight	1.6 lbs (0.73 kg)
Recommended Amplifier Power	15 – 75 Watts RMS per channel
Installation	Surface mount or flush mount with included hardware
What's in the Box	2 speakers, mounting hardware, grilles, owner's manual
Warranty	1 year limited warranty

Frequently Asked Questions - 5510-22 MTX Audio

What are the key specifications of the MTX Audio 5510-22 car speaker?

The MTX Audio 5510-22 is a 5.25-inch 2-way coaxial speaker with 50W RMS (150W peak) power handling, 4 ohm impedance, and 90 dB sensitivity. It features a polypropylene cone and rubber surround for durability.

How do I install the MTX 5510-22 speaker in my car?

First, disconnect the battery. Remove the old speaker or panel. Connect the speaker wires to the terminals (observe polarity). Mount the speaker using the included screws or adapters, ensuring a tight seal. Reconnect the battery and test.

What is the mounting depth and cutout diameter required?

The mounting depth is 2.2 inches (56 mm), and the cutout diameter is 4.6 inches (117 mm). Ensure you have sufficient clearance behind the mounting location.

Can I use these speakers with an aftermarket amplifier?

Yes, they are compatible with amplifiers delivering 15-75 watts RMS per channel at 4 ohms. Ensure the amplifier's power does not exceed the speaker's RMS rating to avoid damage.

What is the impedance of the MTX 5510-22?

The impedance is 4 ohms, which is standard for most car audio systems. Make sure your stereo or amplifier supports 4-ohm loads.

Are these speakers weather-resistant?

These speakers are designed for indoor vehicle use and not fully weather-resistant. Avoid exposure to moisture. For marine or outdoor use, consider MTX's marine-grade models.

How do I clean and maintain the speakers?

Gently dust the cone and tweeter with a soft brush or microfiber cloth. Do not apply liquids or cleaning chemicals. Ensure grilles are securely attached to protect from debris.

What is the warranty on MTX Audio 5510-22 speakers?

MTX Audio offers a 1-year limited warranty covering manufacturing defects. Keep your purchase receipt for warranty claims.

Can I replace the tweeter or other parts of this speaker?

The tweeter is integrated into the coaxial design and is not user-replaceable. For repairs, contact MTX customer support or an authorized service center.

What is the recommended break-in period?

Allow 10-20 hours of moderate playback at low to medium volume to let the suspension components loosen. This ensures optimal performance and longevity.

USER MANUAL 5510-22 MTX Audio

Parameters

Les parâmetros, Paramètres, Parameter

Fs: 35 Hz

Qms: 3.684

Cms: 0.109 mm/N

Mms: 190 g

Rms: 11.33 kg/s

Vas: .832 ft ^3 (23.55 liters)

Xmax: 0.6 in (15.24 mm)

D: 8.66 in (219.9 mm)

Sd: 58.92 in² (380.13 cm²)

Vd: 35 in³ (0.573 liters)

Qes: 0.785

Re: 0.85 Ω

BI: 6.726 Tm

Prms: 400 Watts

Qts: 0.647

n0: 0.124%

SPLo: 83.1 dB

SPL 2.83V/1m: 92.8 dB

5510-22 800W Peak Power Subwoofer

Technical line drawing of a mechanical component with concentric rings and mounting holes (no text or symbols)

Specifications
Las especificaciones, Specifications, Spezifikationen

Recommended Power Rating of 200 - 400 Watts RMS

La Potencia nominal recomendada, Le Pouvoir recommandé Evaluant, Empfohlene Kraft Einzuschätze

5510-22 Recommended Enclosures

For the best possible sound quality where space is a premium, MTX recommends using a sealed enclosure. For excellent sound quality with increased output compared to sealed enclosures (3dB or more), MTX recommends using a vented enclosure. All recommended enclosures have been designed and thoroughly tested by MTX.

For additional enclosure designs check the MTX website, the barcode will take you to the box design page.

Sealed Enclosure

Isometric line drawing of a 3D geometric structure with nested cubes and a central circular cutout (no text or symbols)

Net Internal Volume: 0.75 ft ^3

Vented Enclosure

Descargar Corco, Cl ture donnere vent, Vented Einschlie ung

Isometric line drawing of a multi-panel architectural structure with circular cutout (no text or symbols)

Net Internal Volume: 2.00 ft ^3

TEX

AUDIO

M T X . C O M

5510-22

DUAL VOICE COIL SUBWOOFER

50

800W Peak Power

Subwoofer

5510

800W Peak Power

Subwoofer

SPECIFICATIONS

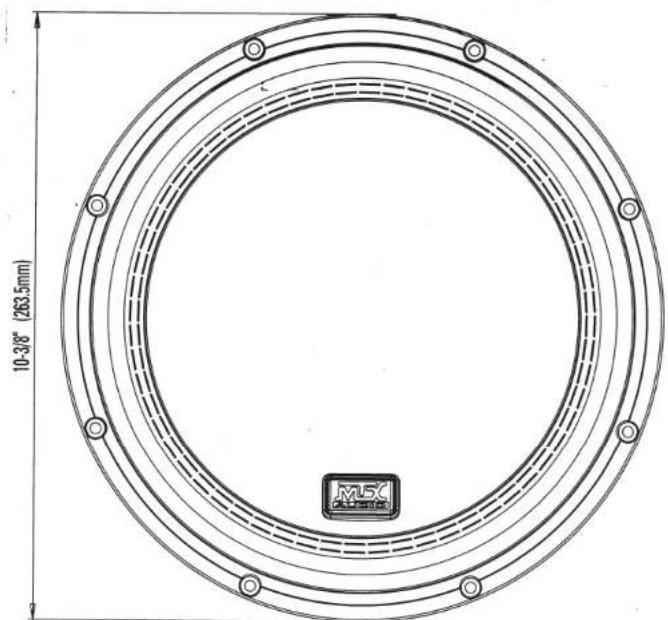

Diameter: 10" (25.4cm)

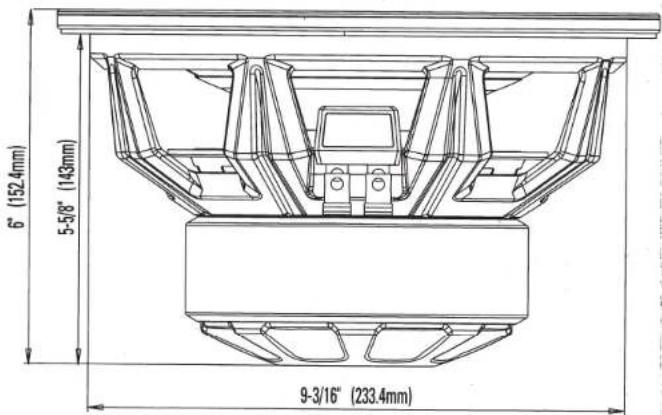

Mounting Depth: 5-5/8" (14.3cm)

RMS Power: 400W

Peak Power: 800W

SPL 1W/1m: (5510-22) 83.1dB

SPL 1W/1m: (5510-44) 83.5dB

SPL 2.83V/1m: (5510-22) 92.83dB

SPL 2.83V/1m: (5510-44) 90.22dB

Impedance: (5510-22) Dual 2Ω

Impedance: (5510-44) Dual 4Ω

Frequency Response: (5510-22) 29Hz - 130Hz

Frequency Response: (5510-44) 28Hz - 130Hz

Cutout Diameter: 9-3/16" (23.34cm)

Overall Diameter: 10-3/8" (26.35cm)

ESPECIFICACIONES

Diámetro: 25,4cm (10")

Impédance: (5510-22) Dual 2Ω

Impédance: (5510-44) Dual 4Ω

Réponse: (5510-22) 29Hz - 130Hz

Réponse: (5510-44) 28Hz - 130Hz

This box contains a highly sophisticated, performance machine.

The enclosed subwoofer is designed to produce extreme bass and high SPL levels that will bring your music to life.

This device should only be used by someone that is looking to take their in-car listening experience to a level others have only dreamed about.

If you are one of these people, congratulations! Use caution when listening to and sharing your system, prolonged exposure to a high performance stereo system may cause jealousy and stereo envy among your friends.

You have been warned.

Now install it, get in, and turn it up.

MTX Audio - Feel the Thunder

© 2013 Mitek Corp. All rights reserved. MTX is a trademark of Mitek Corp. Due to continual product development, all specifications are subject to change without notice. MTX Audio, 4545 East Baseline Road, Phoenix, Arizona 85042 U.S.A. MTX004566 RevA 1/13

This box and its packing materials are all recyclable

DESIGNED AND ENGINEERED IN MONROE, WI U.S.A. MADE IN CHINA
