USER MANUAL TP-105HD Kramer
Kramer Electronics, Ltd.
USER MANUAL
Models:
TP-104, TP-104HD, XGA Line Transmitter/DA
TP-105, TP-105(HD), CAT 5 Line Driver/DA
TP-121, XGA/Audio Line Transmitter
TP-122, XGA/Audio Line Receiver
TP-123, XGA/Audio/Data Line Transmitter
TP-124, XGA/Audio/Data Line Receiver
Contents
1 Introduction 1
2 Getting Started 1
2.1 Quick Start 2
3 Overview 4
3.1 Shielded Twisted Pair (STP)/Unshielded Twisted Pair (UTP) 4
3.2 About the Power Connect Feature 5
3.3 Recommendations for Achieving the Best Performance 5
4 Your TP-104/TP-104HD XGA Line Transmitter/DA 6
5 Your TP-105/TP-105(HD) CAT 5 Line Driver/DA 8
6 Your TP-121/TP-122 9
6.1 Your TP-121 XGA/Audio Line Transmitter 9
6.1.1 The TP-121 Internal Polarity Switches 10
6.2 Your TP-122 XGA/Audio Line Receiver 10
6.2.1 Your TP-122 XGA/Audio Line Receiver (Topside) 10
6.2.2 Your TP-122 XGA/Audio Line Receiver (Underside) 12
7 Your TP-123/TP-124 13
7.1 Your TP-123 XGA/Audio/Data Line Transmitter 13
7.1.1 The TP-123 Internal Polarity Switches 14
7.2 Your TP-124 XGA/Audio/Data Line Receiver 15
7.2.1 Your TP-124 XGA/Audio/Data Line Receiver (Underside) 16
8 Connecting the XGA/Audio Line Transmitter/Receiver 17
8.1 Wiring the CAT 5 LINE IN/LINE OUT RJ-45 Connectors 19
9 Connecting the XGA/Audio/Data Line Transmitter/Receiver 19
9.1 Controlling via RS-232 (for example, using a PC) 22
10 Configuring a 1:4 XGA to TP Transmitter/Receiver/DA 23
11 Configuring a TP-105 CAT 5 Line Driver/DA 25
12 Technical Specifications 27
Figures
Figure 1: TP-104 XGA Line Transmitter/DA 6
Figure 2: TP-104HD XGA Line Transmitter/DA 6
Figure 3: TP-104 (Underside Panel) 7
Figure 4: TP-105 CAT 5 Line Driver/DA 8

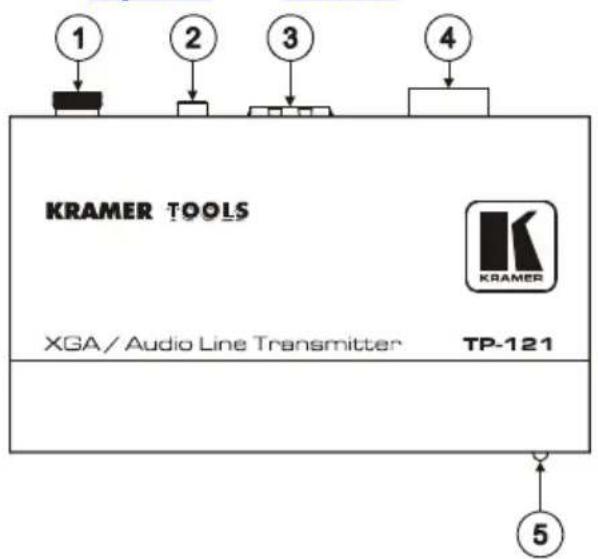

Figure 5: TP-121 XGA/Audio Line Transmitter 9

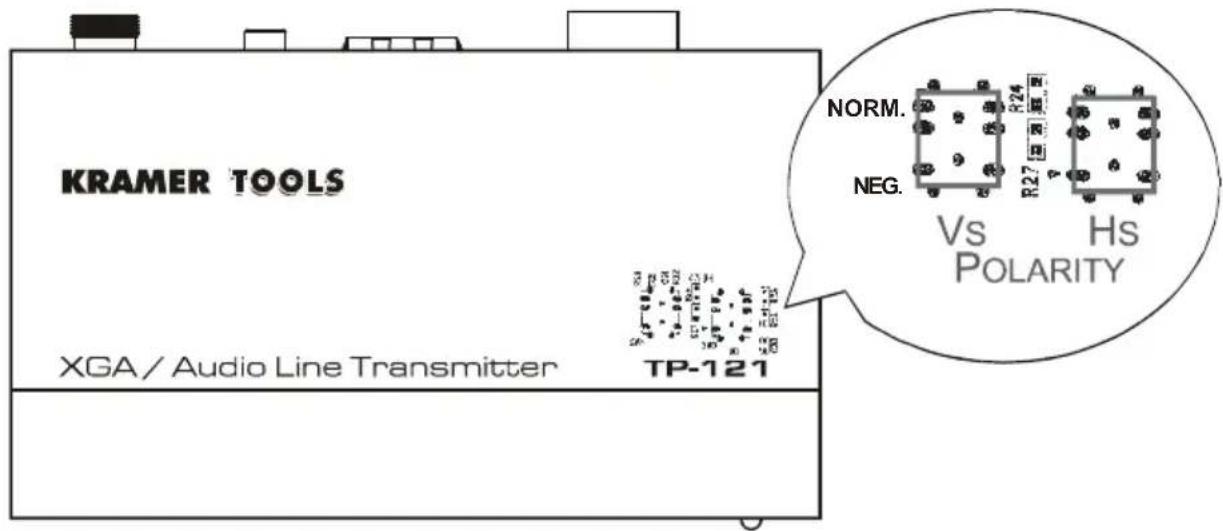

Figure 6: TP-121 Internal Polarity Switches 10

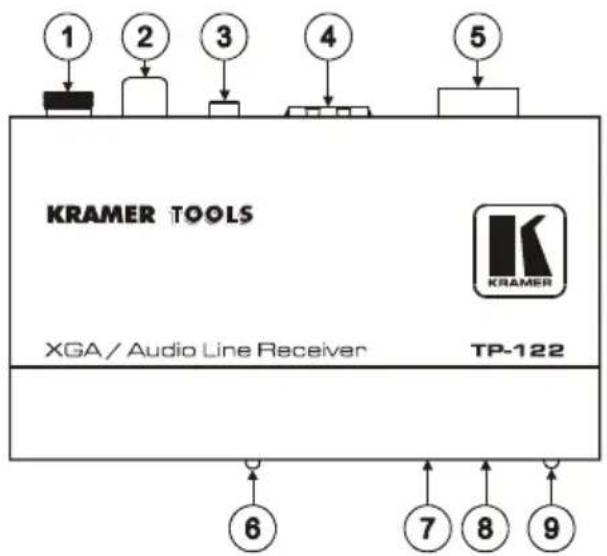

Figure 7: TP-122 XGA/Audio Line Receiver (Topside) 11
Figure 8: TP-122 XGA/Audio Line Receiver (Underside) 12
Figure 9: TP-123 XGA/Audio/Data Line Transmitter 13
Contents
Figure 10: TP-123 Internal Polarity Switches 14

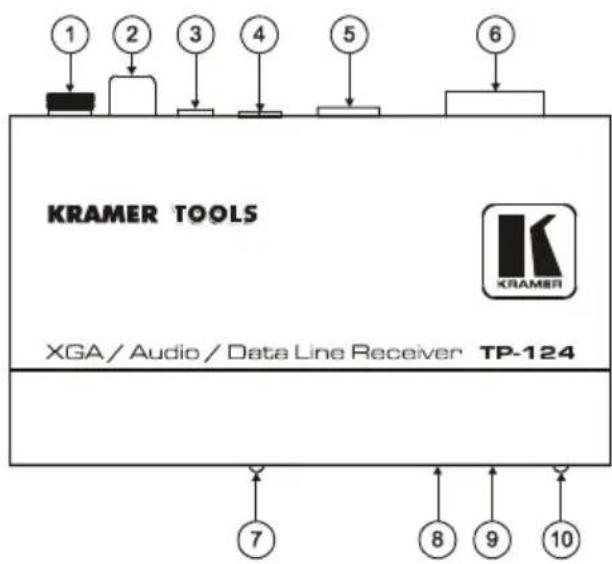

Figure 11: TP-124 XGA/Audio/Data Line Receiver (Topside) 15
Figure 12: TP-124 XGA/Audio/Data Line Receiver (Underside) 16
Figure 13: Connecting the XGA/Audio Line Transmitter/Receiver System 18
Figure 14: CAT 5 PINOUT 19
Figure 15: Connecting the XGA/Audio/Data Line Transmitter/Receiver System 21

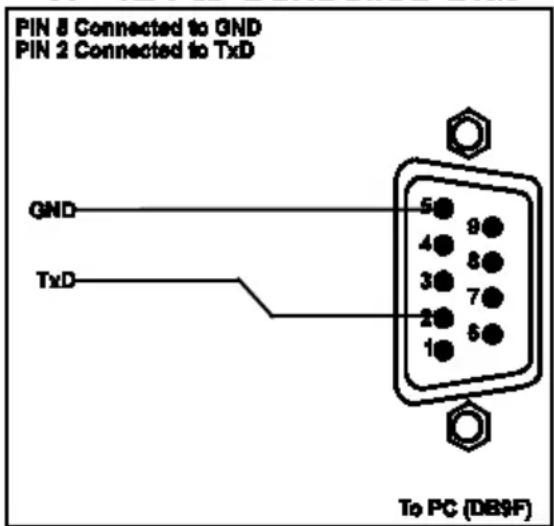

Figure 16: RS-232 PINOUT Connection 22
Figure 17: Configuring a 1:4 XGA to Twisted Pair Transmitter/Receiver/DA 24
Figure 18: Configuring a TP-105 CAT 5 Line Driver/DA 26
Tables
Table 1: TP-104, TP-104HD XGA Line Transmitter/DA Features 7
Table 2: TP-104 (Underside Panel) Features 7
Table 3: TP-105 CAT 5 Line Driver/DA Features 8
Table 4: TP-121 XGA/Audio Line Transmitter Features 9
Table 5: Features of the TP-121 Internal Polarity Switches 10

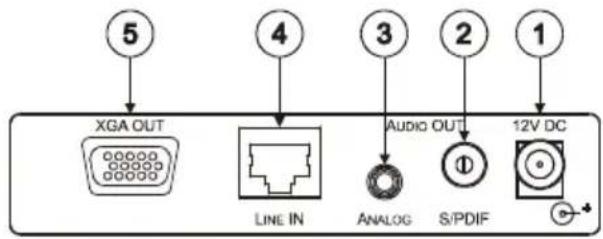

Table 6: TP-122 XGA/Audio Line Receiver (Topside) Features 11

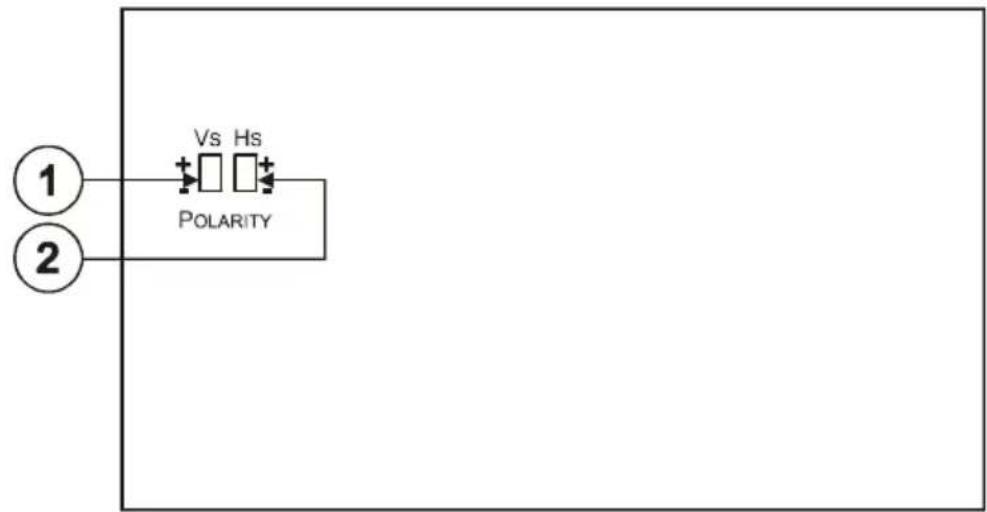

Table 7: TP-122 XGA/Audio Line Receiver (Underside) Features 12
Table 8: TP-123 XGA/Audio/Data Line Transmitter Features 14
Table 9: Features of the TP-123 Internal Polarity Switches 14
Table 10: TP-124 XGA/Audio/Data Line Receiver (Topside) Features 16
Table 11: TP-124 XGA/Audio/Data Line Receiver (Underside) Features 16

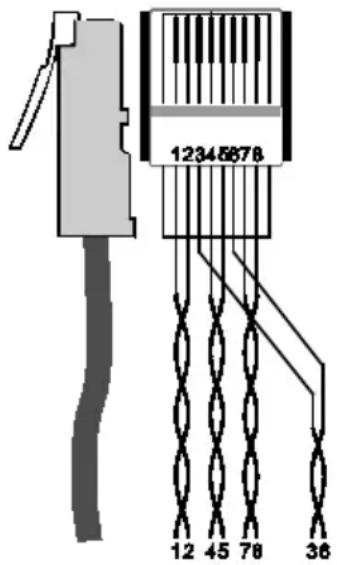

Table 12: CAT 5 PINOUT 19
Table 13: RS-232 PINOUT Connection 22
Table 14: Technical Specifications of the TP-104 and the TP-104HD 27
Table 15: Technical Specifications of the TP-105 and the TP-105(HD) 27
Table 16: Technical Specifications of the TP-121/TP-122/TP-123/TP-124 28
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront the video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we have redesigned and upgraded most of our line, making the best even better! Our 1,000-plus different models now appear in 11 groups ^1 that are clearly defined by function.
Thank you for purchasing your Kramer TOOLS: TP-104, TP-104HD XGA Line Transmitter/DA, and/or TP-105, TP-105(HD), CAT 5 Line Driver/DA, and/or TP-121 XGA/Audio Line Transmitter, and/or TP-122 XGA/Audio Line Receiver, and/or TP-123, XGA/Audio/Data Line Transmitter, and/or TP-124, XGA/Audio/Data Line Receiver, which are ideal for:
- Presentation and multimedia applications
- Long range graphics distribution for schools, hospitals, security, and stores
The package includes one or more of the following Kramer TOOLS:
- TP-104/TP-104HD, TP-105/TP-105(HD), TP-121, TP-122, TP-123, or TP-124
• Power adapter (12V DC)
- This user manual ^2
2 Getting Started
We recommend that you:
- Unpack the equipment carefully and save the original box and packaging materials for possible future shipment
- Review the contents of this user manual
- Use Kramer high-performance high-resolution cables ^3
2.1 Quick Start

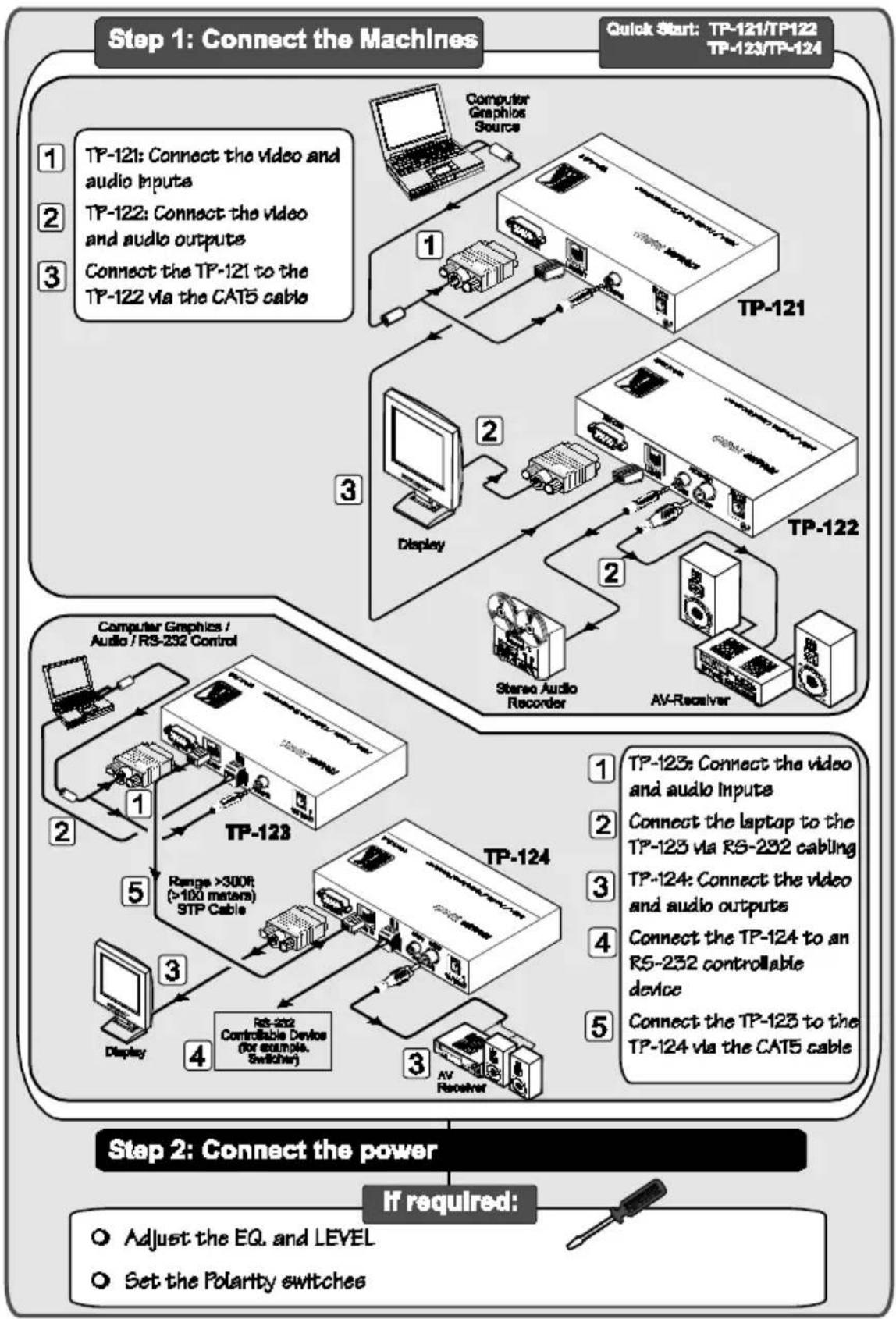

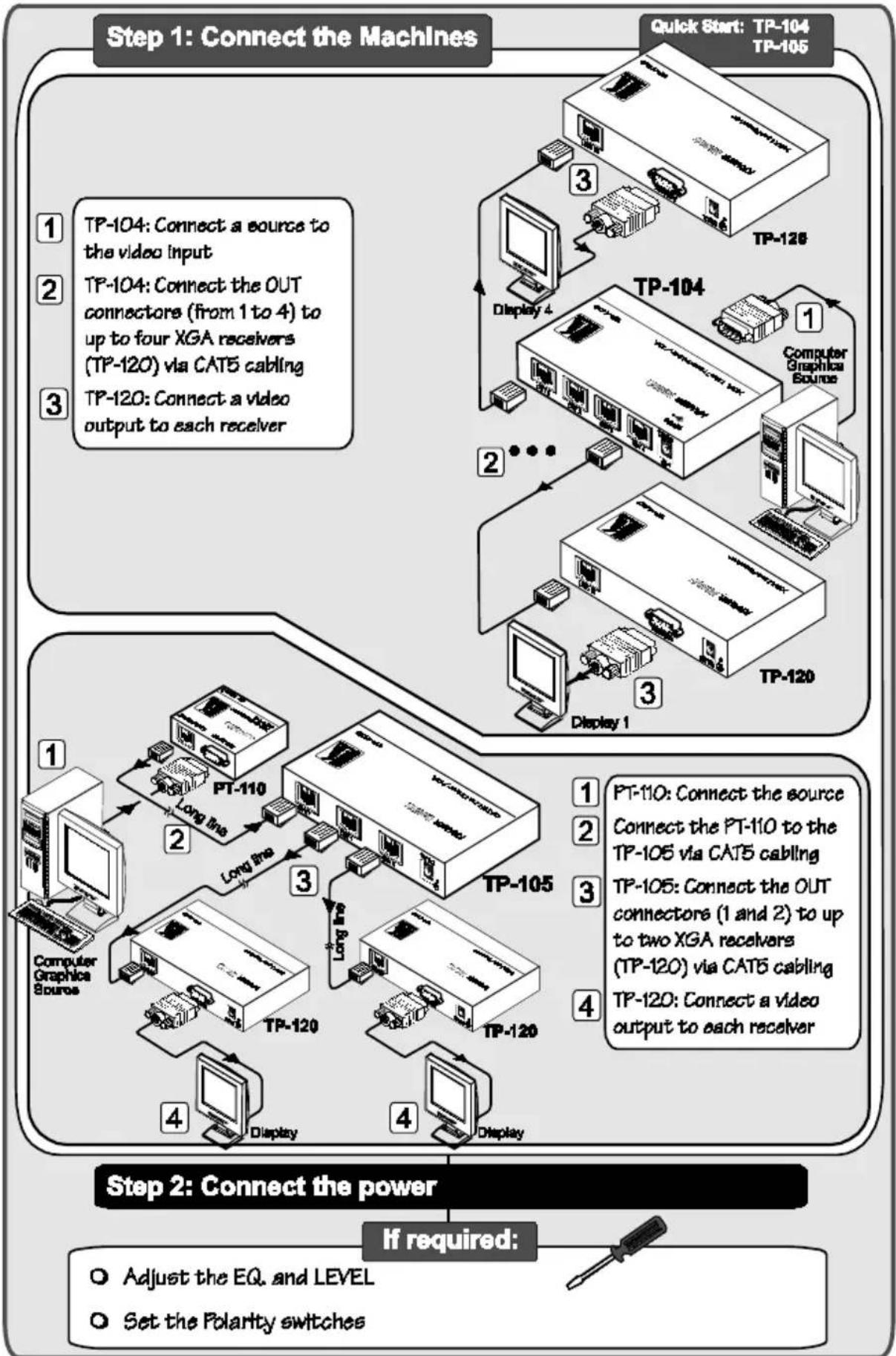

This quick start chart summarizes the basic setup and operation steps.
3 Overview
This user manual describes the following Kramer TOOLS:
- TP-104/TP-104HD XGA Line Transmitter/DA is a line transmitter/1:4 DA that receives an XGA signal and transmits it over four CAT 5 cables to appropriate receivers (see section 4)
- TP-105/TP-105(HD) CAT 5 Line Driver/DA receives a CAT 5 input ^1 and distributes it to two identical outputs (see section 5)
- TP-121 XGA/Audio Line Transmitter and the TP-122 XGA/Audio Line Receiver (see section 6)
- TP-123 XGA/Audio/Data Line Transmitter and the TP-124 XGA/Audio/Data Line Receiver (see section 7)
This section describes:
- Using shielded twisted pair (STP)/unshielded twisted pair (UTP), see section 3.1
• The power connect feature, see section 3.2 - Recommendations for achieving the best performance, see section 3.3
3.1 Shielded Twisted Pair (STP)/Unshielded Twisted Pair (UTP)
We recommend that you use Shielded Twisted Pair (STP) cable. There are different levels of STP cable available, and we advise you to use the best quality STP cable that you can afford. Our non-skew-free cable, Kramer BC-STP is intended for analog signals where skewing is not an issue. For cases where there is skewing, our UTP skew-free cable, Kramer BC-XTP, may be used. Bear in mind, though, that we advise using STP cables where possible, since the compliance to electromagnetic interference was tested using those cables.
Although Unshielded Twisted Pair (UTP) cable might be preferred for long range applications, the UTP cable should be installed far away from electric cables, motors and so on, which are prone to create electrical interference. However, since the use of UTP cable might cause inconformity to electromagnetic standards, Kramer does not commit to meeting the standard with UTP cable.
3.2 About the Power Connect Feature
The Power Connect feature applies as long as the cable can carry power. This feature is available when using STP cable and the distance does not exceed 50m on standard CAT 5 cable. For longer distances, heavy gauge cable should be used ^1 . For units which are connected via RJ-45 connectors, make sure that the shield of the STP cable is connected to the metal casing of the connectors on both ends of the cable. For units which are connected via terminal block connectors, the shield of the STP cable must be connected to a ground terminal on the units at both ends (use the ground terminal of the power supply connection if necessary).
For a CAT 5 cable exceeding a distance of 50m, separate power supplies should be connected to the transmitter and to the receiver simultaneously.
3.3 Recommendations for Achieving the Best Performance
To achieve the best performance:
- Use only good quality connection cables ^2 to avoid interference, deterioration in signal quality due to poor matching, and elevated noise levels (often associated with low quality cables).
- Avoid interference from neighboring electrical appliances that may adversely influence signal quality and position your Kramer product away from moisture, excessive sunlight and dust
Caution:
No operator serviceable parts inside unit
Warning:
Use only the Kramer Electronics input power wall adapter that is provided with the unit
Warning:
Disconnect power and unplug unit from wall before installing or removing the device or servicing unit
4 Your TP-104/TP-104HD XGA Line Transmitter/DA
The TP-104/TP-104HD ^1 is a line transmitter/1:4 DA that receives an XGA signal ^2 and transmits it over four CAT 5 cables to appropriate receivers.
In particular, the TP-104/TP-104HD:
- Has a transmission range of more than 300ft (more than 100m)
- Can power or be powered by the receiver over the same CAT 5 cable and is 12V DC fed

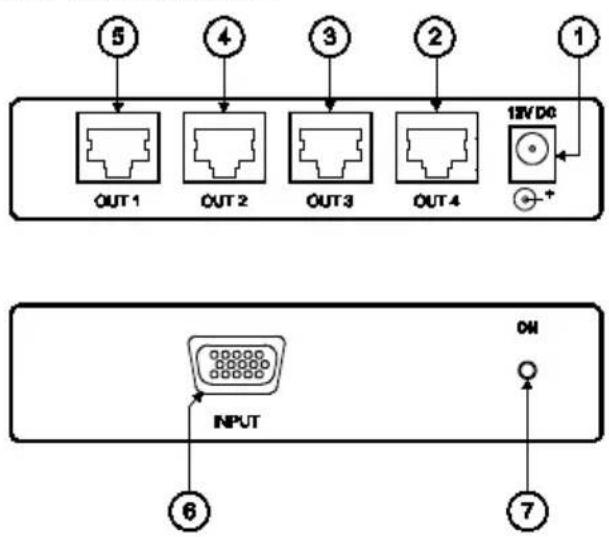

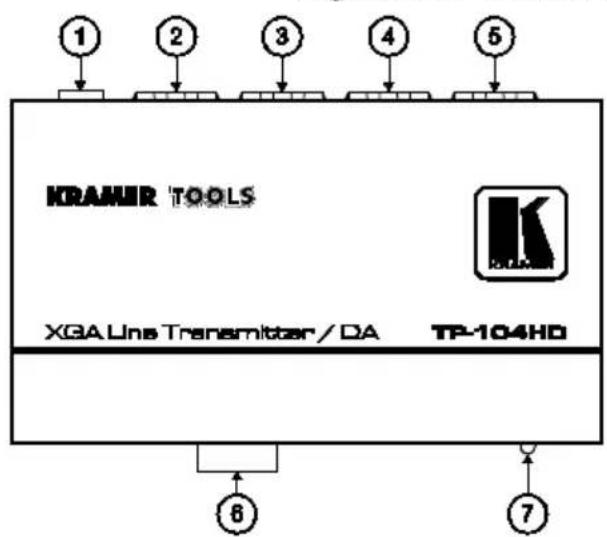

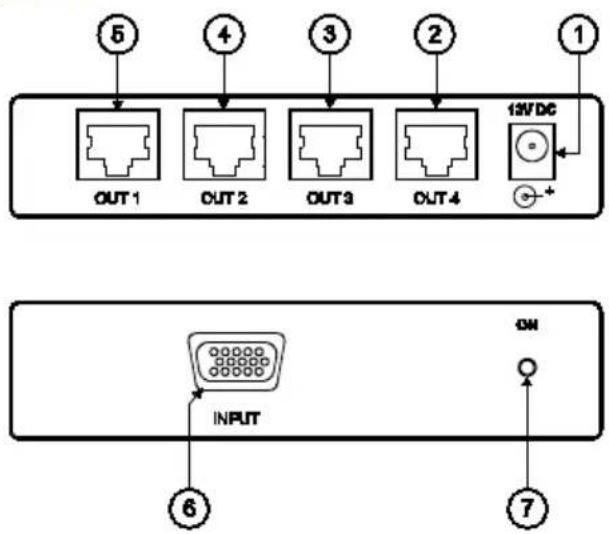

Figure 1 defines the TP-104 and Figure 2 defines the TP-104HD:

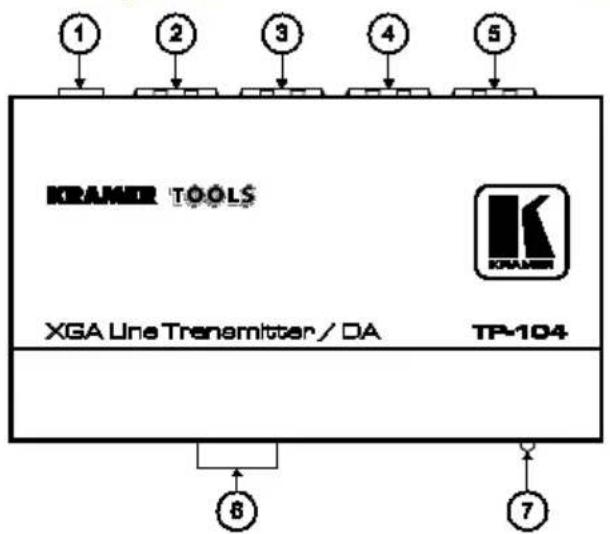

Figure 1: TP-104 XGA Line Transmitter/DA
Figure 2: TP-104HD XGA Line Transmitter/DA
Table 1: TP-104, TP-104HD XGA Line Transmitter/DA Features
| # | Feature | Function |
| 1 | 12V DC | +12V DC connector for powering the unit |
| 2 | OUT 4 RJ-45 connector | Connects to ^1 the LINE IN RJ-45 connector on the TP-122 XGA/Audio Line Receiver or the TP-120 XGA Line Receiver ^2 |
| 3 | OUT 3 RJ-45 connector | Connects to ^1 the LINE IN RJ-45 connector on the TP-122 XGA/Audio Line Receiver or the TP-120 XGA Line Receiver ^2 |
| 4 | OUT 2 RJ-45 connector | Connects to ^1 the LINE IN RJ-45 connector on the TP-122 XGA/Audio Line Receiver or the TP-120 XGA Line Receiver ^2 |
| 5 | OUT 1 RJ-45 connector | Connects to ^1 the LINE IN RJ-45 connector on the TP-122 XGA/Audio Line Receiver or the TP-120 XGA Line Receiver ^2 |
| 6 | INPUT 15-pin HD (F) connector | Connect to the XGA source |
| 7 | ON LED | Illuminates when receiving power |

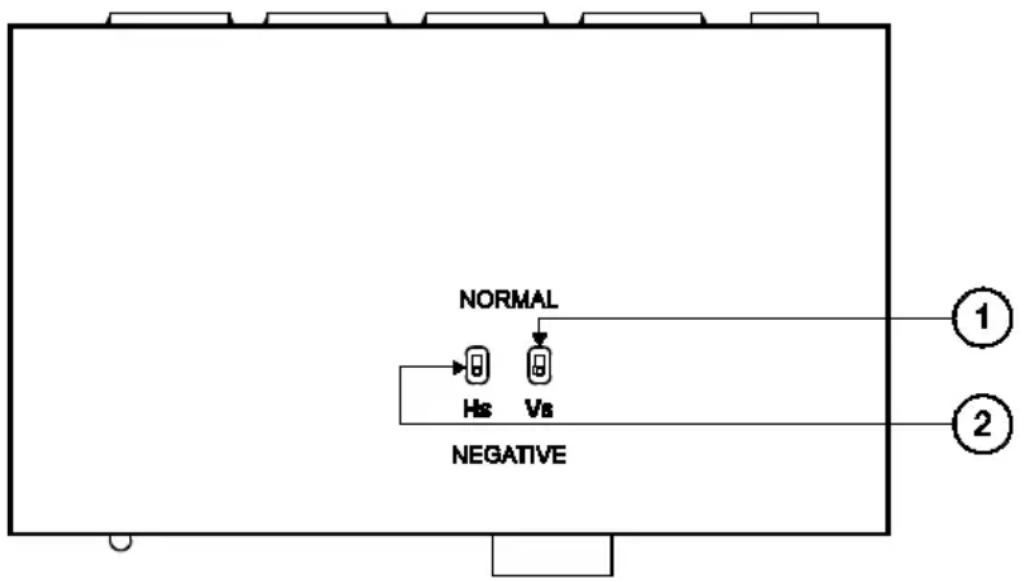

Figure 3 and Table 2 define the TP-104 and TP-104HD underside panel:
Figure 3: TP-104 (Underside Panel)
Table 2: TP-104 (Underside Panel) Features
| # | Feature | Function |
| 1 | VS Switch | Slide the switch up (to NORMAL) to retain the polaritySlide the switch down ^3 to change the VS polarity to NEGATIVE polarity ^4 |
| 2 | HS Switch | Slide the switch up (to NORMAL) to retain the polaritySlide the switch down ^3 to change the HS polarity to NEGATIVE polarity ^4 |
5 Your TP-105/TP-105(HD) CAT 5 Line Driver/DA
The TP-105 ^1 receives a CAT 5 input, and distributes it to two identical outputs.
In particular, the TP-105:
- Has a transmission range of more than 300ft (more than 100m) over UTP cabling
- Includes EQ. and level controls and is 12V DC fed

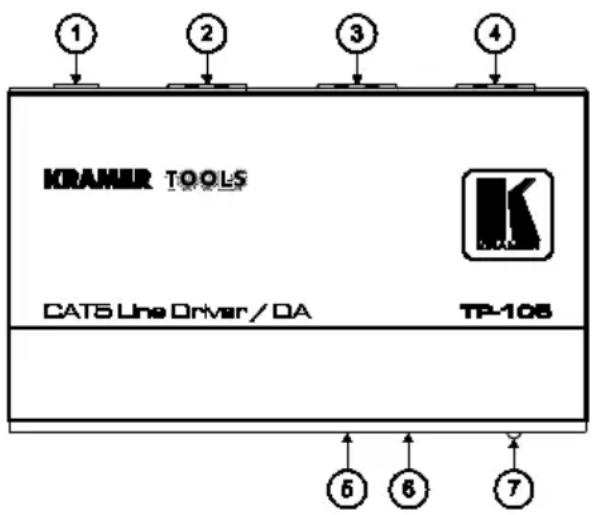

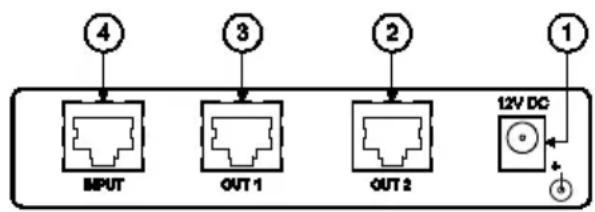

Figure 4 and Table 3 define the TP-105:
Figure 4: TP-105 CAT 5 Line Driver/DA
Table 3: TP-105 CAT 5 Line Driver/DA Features
| # | Feature | Function |
| 1 | 12V DC | +12V DC connector for powering the unit |
| 2 | OUT 2 RJ-45 connector | Connects to ^2 the LINE IN RJ-45 connector on the TP-120 XGA Line Receiver |
| 3 | OUT 1 RJ-45 connector | Connects to ^2 the LINE IN RJ-45 connector on the TP-120 XGA Line Receiver |
| 4 | INPUT RJ-45 connector | Connects to ^2 the LINE OUT RJ-45 connector on the PT-110 XGA Line Transmitter |
| 5 | EQ. trimmer | Adjusts the video EQ. (equalization) compensation |
| 6 | LEVEL trimmer | Adjusts ^3 the video signal level |
| 7 | ON LED | Illuminates when receiving power |
6 Your TP-121/TP-122
This section defines the TP-121 XGA/Audio Line Transmitter (see section 6.1), and the TP-122 XGA/Audio Line Receiver (see section 6.2).
6.1 Your TP-121 XGA/Audio Line Transmitter
The TP-121 is an XGA/audio stereo line transmitter that receives an XGA signal and an unbalanced stereo analog audio signal and transmits them over CAT 5 cable to a TP-122 receiver, converting the unbalanced stereo analog audio signal to digital audio (S/PDIF) stream before transmitting, thus preserving the quality of the audio signal. In particular, the TP-121:
- Has a transmission range of more than 300ft (more than 100m), and a 20kHz audio bandwidth with an S/N ratio that exceeds 80dB on the same transmission range
- Can power or be powered by the receiver over the same CAT 5 cable
- Is 12V DC fed
Figure 5 and Table 4 define the TP-121:

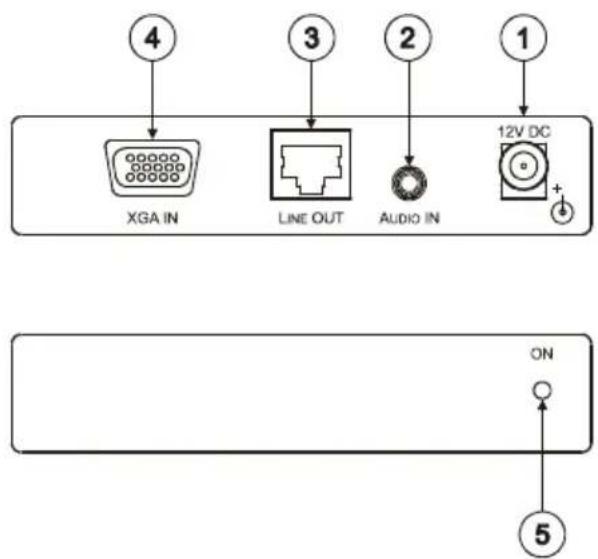

Figure 5: TP-121 XGA/Audio Line Transmitter
Table 4: TP-121 XGA/Audio Line Transmitter Features
| # | Feature | Function |
| 1 | 12V DC | +12V DC connector for powering the unit |
| 2 | AUDIO IN 3.5mm mini jack | Connects to the audio source |
| 3 | LINE OUT RJ-45 connector | Connects to ^1 the LINE IN RJ-45 connector on the TP-122 XGA/Audio Line Receiver |
| 4 | XGA IN 15-pin HD (F) connector | Connect to the XGA source |
| 5 | ON LED | Illuminates when receiving power |
6.1.1 The TP-121 Internal Polarity Switches
Figure 6 and Table 5 define the internal sync polarity switches inside the TP-121.
Note, that you need to open the TP-121 unit to gain access to the Vs and Hs Polarity switches. After setting the switches, close the TP-121 unit.
Figure 6: TP-121 Internal Polarity Switches
Table 5: Features of the TP-121 Internal Polarity Switches
| Feature | Function |
| VS Switch | Slide the switch down ^2 , to set the V SYNC to negative polarity (NEG.); slide the switch up, to set the V SYNC to its input polarity (NORM.) |
| HS Switch | Slide the switch down ^1 , to set the H SYNC to negative polarity (NEG.); slide the switch up, to set the H SYNC to its input polarity (NORM.) |
6.2 Your TP-122 XGA/Audio Line Receiver
This section describes the topside (see section 6.2.1), and the underside ^2 (see section 6.2.2) of the TP-122 XGA/Audio Line Receiver.
6.2.1 Your TP-122 XGA/Audio Line Receiver (Topside)
The TP-122 is an XGA/audio line receiver that receives the coded CAT 5 signal transmitted by a TP-121, decodes it and converts it to XGA, stereo analog and S/PDIF digital audio outputs. The TP-122, with a TP-121, allows an operation range of more than 300ft (more than 100m) over standard CAT 5 cable.
In addition, the TP-122:
- Can power or be powered by the transmitter over the same CAT 5 cable
- Can change the polarity of decoding H and V Sync for video
• Includes EQ. and level controls - Is 12V DC fed
Figure 7 and Table 6 define the TP-122 XGA/Audio Line Receiver topside:


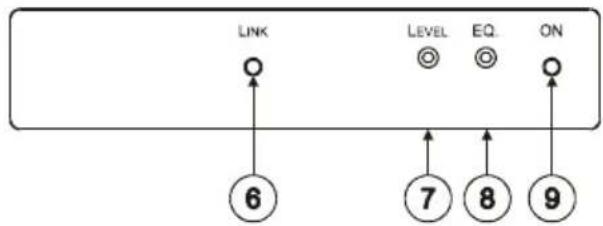

Figure 7: TP-122 XGA/Audio Line Receiver (Topside)
Table 6: TP-122 XGA/Audio Line Receiver (Topside) Features
| # | Feature | Function | |
| 1 | 12V DC | +12V DC connector for powering the unit | |
| 2 | AUDIO OUT | S/PDIF RCA connector | Connects to the digital audio acceptor |
| 3 | m mini jack | Connects to the analog audio acceptor | |
| 4 | LINE IN RJ-45 connector | Connects to ^1 the TP-121 or the TP-104 ^2 | |
| 5 | XGA OUT 15-pin HD (F) connector | Connects to the XGA acceptor | |
| 6 | LINK LED | Illuminates when receiving the correct input signal | |
| 7 | LEVEL trimmer | Adjusts ^4 the output signal level | |
| 8 EQ. | ^3 | Adjusts ^4 thermable compensation equalization level | |
| 9 | ON LED | Illuminates when receiving power | |
6.2.2 Your TP-122 XGA/Audio Line Receiver (Underside)
Figure 8 and Table 7 define the underside ^1 of the TP-122 XGA/Audio Line Receiver:
Figure 8: TP-122 XGA/Audio Line Receiver (Underside ^1 )
Table 7: TP-122 XGA/Audio Line Receiver (Underside) Features
| # | Feature | Function |
| 1 | VS Switch | Slide the switch up^2 to set the V SYNC to positive polarity;slide the switch down to set the V SYNC to negative polarity |
| 2 | HS Switch | Slide the switch up^2 to set the H SYNC to positive polarity;slide the switch down to set the H SYNC to negative polarity |
7 Your TP-123/TP-124
This section describes the TP-123 XGA/Audio/Data Line Transmitter (see section 7.1), and the TP-124 XGA/Audio/Data Line Receiver (see section 7.2).
7.1 Your TP-123 XGA/Audio/Data Line Transmitter
The TP-123 is a high-performance transmitter that accepts a computer graphics input signal, an unbalanced stereo analog audio signal, unidirectional (RxD) RS-232 control commands and 12V DC power, over CAT 5 cable, and transmits to a TP-124 receiver. The stereo analog audio signal is converted to the digital audio (S/PDIF) stream before transmitting, thus preserving the quality of the audio source signals.
The TP-123/TP-124 pair has a transmission range of more than 300ft (more than 100m) over UTP cabling. In addition, the TP-123:
- Can power or be powered by the TP-124 receiver over the same CAT 5 cable and is 12V DC fed
Figure 9 and Table 8 define the TP-123:

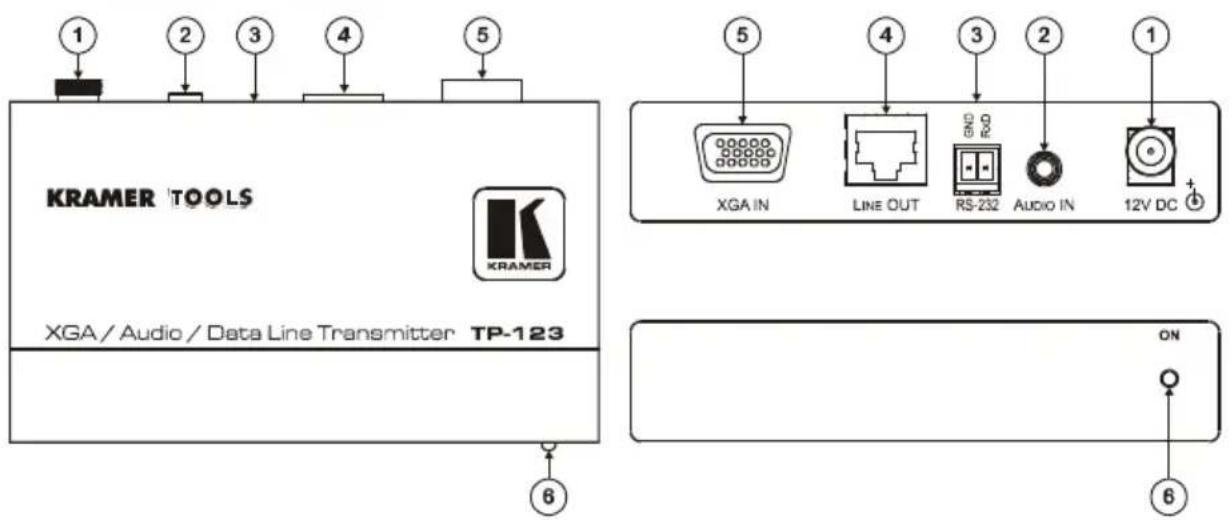

Figure 9: TP-123 XGA/Audio/Data Line Transmitter
Table 8: TP-123 XGA/Audio/Data Line Transmitter Features
| # | Feature | Function |
| 1 | 12V DC | +12V DC connector for powering the unit |
| 2 | AUDIO IN 3.5mm mini jack | Connects to the audio source |
| 3 | RS-232 terminal block connector | Connects to the PC or the Remote Controller (see section 9.1) |
| 4 | LINE OUT RJ-45 connector | Connects to ^1 the LINE IN RJ-45 connector on the TP-124 XGA/Audio Line Receiver |
| 5 | XGA IN 15-pin HD (F) connector | Connect to the XGA source |
| 6 | ON LED | Illuminates when receiving power |
7.1.1 The TP-123 Internal Polarity Switches
Figure 10 and Table 9 define the internal sync polarity switches inside the TP-123.
Note, that you need to open the TP-123 unit to gain access to the Vs and Hs Polarity switches. After setting the switches, close the TP-123 unit.
Figure 10: TP-123 Internal Polarity Switches
Table 9: Features of the TP-123 Internal Polarity Switches
| Feature Function | |
| VS Switch | Slide the switch down ^2 to set the V SYNC to negative polarity (NEG.);slide the switch up to set the V SYNC to its input polarity (NORM.) |
| HS Switch | Slide the switch down ^2 to set the H SYNC to negative polarity (NEG.);slide the switch up to set the H SYNC to its input polarity (NORM.) |
7.2 Your TP-124 XGA/Audio/Data Line Receiver
The TP-124 is a high-performance receiver obtaining the computer graphics signal/audio/control data from the Kramer TP-123 via UTP cabling at its CAT 5 Line input. The TP-124 outputs a computer graphics signal, an unbalanced stereo analog audio signal, a converted digital audio (S/PDIF) signal and RS-232 control commands. The unidirectional (TxD) RS-232 interface makes it possible to control virtually any devices over a transmission range of more than 300ft (more than 100m) over UTP cabling. The TP-124 can power or be powered by the TP-123 transmitter over the same CAT 5 cable.
In addition, the TP-124 features:
• Level and EQ. control for the XGA signals
- The capability to change the polarity of decoding H and V Sync
- 24 bit 48kHz S/PDIF digital audio that supplies the highest quality audio
- Is 12V DC fed
This section describes the topside of the TP-124 XGA/Audio/Data Line Receiver. The underside ^1 of the TP-124 is described in section 6.2.2.
Figure 11 and Table 10 define the topside of the TP-124 XGA/Audio/Data Line Receiver:

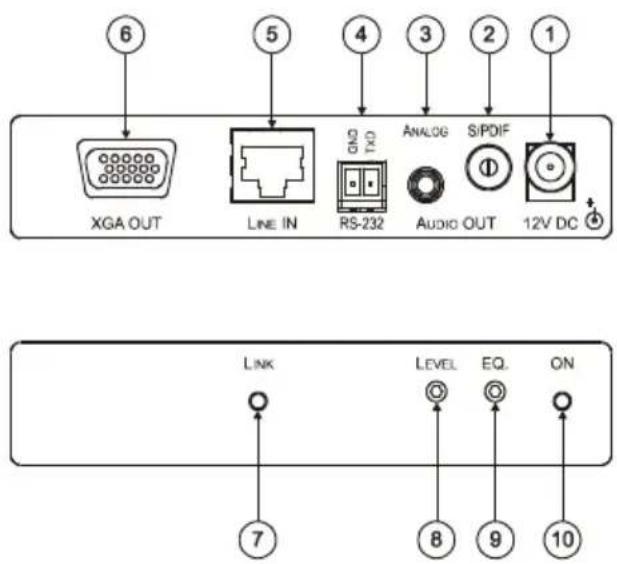

Figure 11: TP-124 XGA/Audio/Data Line Receiver (Topside)
Table 10: TP-124 XGA/Audio/Data Line Receiver (Topside) Features
| # | Feature | Function | |
| 1 | 12V DC | +12V DC connector for powering the unit | |
| 2 | AUDIO OUT | S/PDIF RCA connector | Connects to the digital audio acceptor |
| 3 | ANALOG 3.5mm mini jack | Connects to the analog audio acceptor | |
| 4 | RS-232 Terminal Block connector | Connects to the controlled unit | |
| 5 | LINE IN RJ-45 connector | Connects to ^1 the LINE OUT RJ-45 connector on the TP-123 or the TP-104 ^2 | |
| 6 | XGA OUT 15-pin HD (F) connector | Connect to the XGA acceptor | |
| 7 | LINK LED | Illuminates when receiving the correct input signal | |
| 8 | LEVEL trimmer | Adjusts ^4 the output signal level | |
| 9 EQ. ^3 | Adjusts ^4 thermable compensation equalization level | ||
| 10 | ON LED | Illuminates when receiving power | |
7.2.1 Your TP-124 XGA/Audio/Data Line Receiver (Underside)
Figure 12 and Table 11 define the underside ^5 of the TP-124 XGA/Audio/Data Line Receiver:


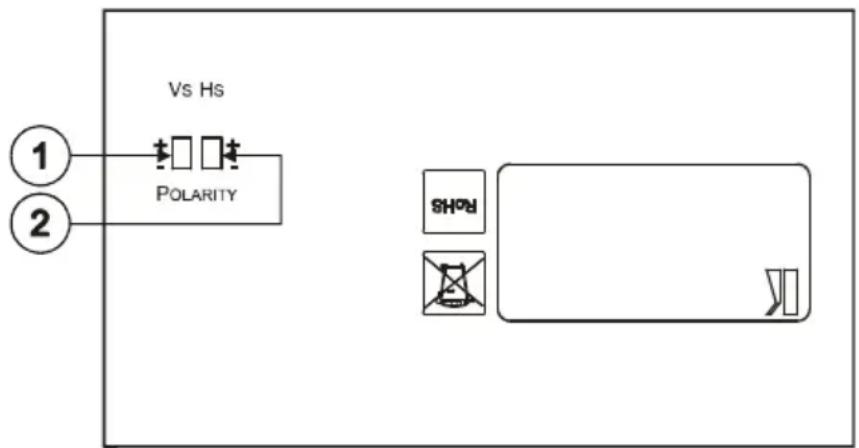

Figure 12: TP-124 XGA/Audio/Data Line Receiver (Underside ^1 )
Table 11: TP-124 XGA/Audio/Data Line Receiver (Underside) Features
| # | Feature | Function |
| 1 | VS Switch | Slide the switch up^2 to set the V SYNC to positive polarity;slide the switch down to set the V SYNC to negative polarity |
| 2 | HS Switch | Slide the switch up^6 to set the H SYNC to positive polarity;slide the switch down to set the H SYNC to negative polarity |
8 Connecting the XGA/Audio Line Transmitter/Receiver
You can use the TP-121 and TP-122 to configure an XGA/Audio Line-to-Twisted Pair Transmitter and Receiver system.
To connect the TP-121 XGA/Audio Line Transmitter with the TP-122 XGA/Audio Line Receiver, as the example in Figure 13 illustrates, do the following:
- On the TP-121, connect the XGA source (for example, a laptop's graphics card) to the XGA INPUT 15-pin HD (F) connector and an audio source to the AUDIO IN 3.5mm mini jack, for example, using a Kramer C-GMA/GMA cable (VGA 15-pin HD (M) +Audio jack to VGA 15-pin HD (M) +Audio jack)1. Alternatively, you can connect an XGA source to the XGA INPUT 15-pin HD (F) connector, and a separate audio source to the AUDIO IN 3.5mm mini jack.
- On the TP-122, connect the XGA OUT 15-pin HD (F) connector to the XGA acceptor (for example, a display), and connect the AUDIO OUT S/PDIF RCA connector to the digital audio acceptor (for example, an AV Receiver), and the ANALOG 3.5mm mini jack to the analog audio acceptor (for example, a stereo audio recorder).
- Connect the LINE OUTPUT RJ-45 connector on the TP-121 to the LINE IN RJ-45 connector on the TP-122, via UTP cabling (with a range of more than 300ft (>100m)), see section 8.1.
- Connect the 12V DC power adapter to the power socket and connect the adapter to the mains electricity on both ^2 the TP-121 and the TP-122. The signal from the XGA source is transmitted via CAT 5 cable, decoded and converted at the XGA OUT 15-pin HD (F) connector to the XGA acceptor.
- On the TP-122:
- Adjust ^3 the video output signal level and/or cable compensation equalization level, if required
- If necessary, set the H SYNC and V SYNC switches ^4 , on the underside


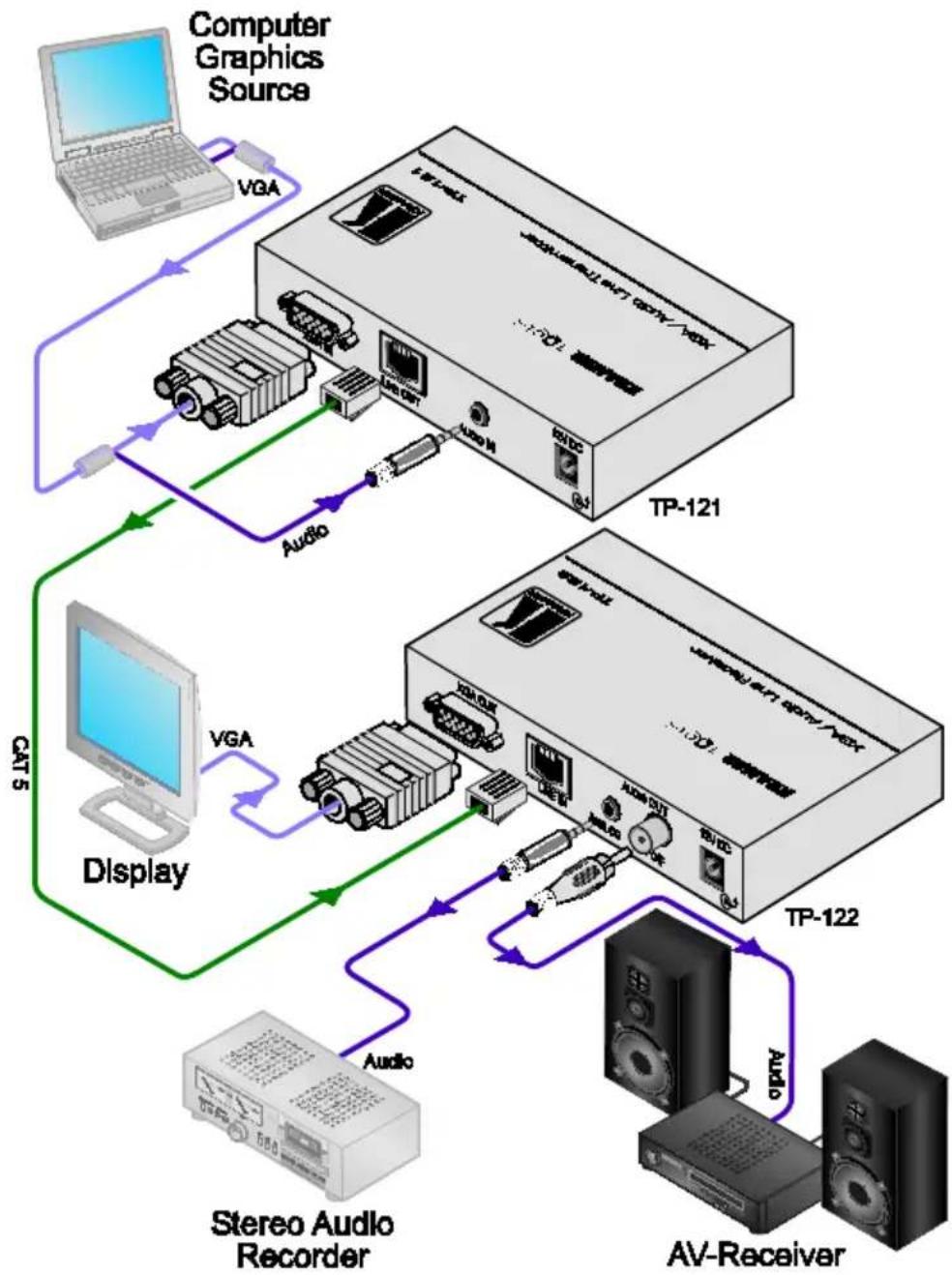

Figure 13: Connecting the XGA/Audio Line Transmitter/Receiver System
8.1 Wiring the CAT 5 LINE IN/LINE OUT RJ-45 Connectors
Table 12 and Figure 14 define the UTP CAT 5 PINOUT, using a straight pin to pin cable with RJ-45 connectors:
Table 12: CAT 5 PINOUT
| EIA /TIA 568A | EIA /TIA 568B | |||
| PIN | Wire Color | PIN | Wire Color | |
| 1 | Green/White | 1 | Orange/White | |
| 2 Green | 2 Orange | |||
| 3 | Orange/White | 3 | Green/White | |
| 4 Blue 4 | Blue | |||
| 5 | Blue/White | 5 | Blue/White | |
| 6 Orange | 6 Green | |||
| 7 | Brown/White | 7 | Brown/White | |
| 8 Brown | 8 Brown | |||
| Pair 1 | 4 and 5 | Pair 1 | 4 and 5 | |
| Pair 2 | 3 and 6 | Pair 2 | 1 and 2 | |
| Pair 3 | 1 and 2 | Pair 3 | 3 and 6 | |
| Pair 4 | 7 and 8 | Pair 4 | 7 and 8 | |
Figure 14: CAT 5 PINOUT
9 Connecting the XGA/Audio/Data Line Transmitter/Receiver
You can use the TP-123 XGA/Audio/Data Line Transmitter and the TP-124 XGA/Audio/Data Line Receiver to configure a twisted pair transmitter and receiver system, to transmit the video, audio and RS-232 control signals via CAT 5 UTP cable. To connect the TP-123 and the TP-124 to configure a twisted pair transmitter and receiver system, as the example in Figure 15 illustrates, do the following:
-
On the TP-123, connect:
-
An XGA source (for example, a laptop's graphics card) to the XGA IN 15-pin HD (F) connector and an audio source to the Audio IN 3.5mm mini jack, for example, using a Kramer C-GMA/GMA cable (VGA 15-pin HD (M) +Audio jack to VGA 15-pin HD (M) +Audio jack) ^1
- An RS-232 cable with a 9-pin D-sub connector at one end to the laptop, and a 2 PIN terminal block connector at the other end to
the TP-123 RS-232 port ^1
- On the TP-124, connect:
■ The XGA OUT 15-pin HD (F) connector to a display
■ The S/PDIF Audio OUT RCA connector to a digital AV Receiver (leave the ANALOG Audio OUT 3.5mm mini jack unconnected)
- An RS-232 cable with a 2 PIN terminal block connector at one end to the TP-124 RS-232 port ^1 , and a 9-pin D-sub connector at the other end to the RS-232 port on an RS-232 controllable device (for example, a switcher)
- Connect the Line OUT RJ-45 connector on the TP-123 to the LINE IN RJ-45 connector on the TP-124, via UTP cabling ^2 (with a range of more than 300ft (>100m)).
- Connect the 12V DC power adapter to the power socket and connect the adapter to the mains electricity on both ^3 the TP-123 and the TP-124.
- On the TP-124:
- Adjust ^4 the video output signal level and/or cable compensation equalization level, if required
- If necessary, set the H SYNC and V SYNC switches ^5 , on the underside


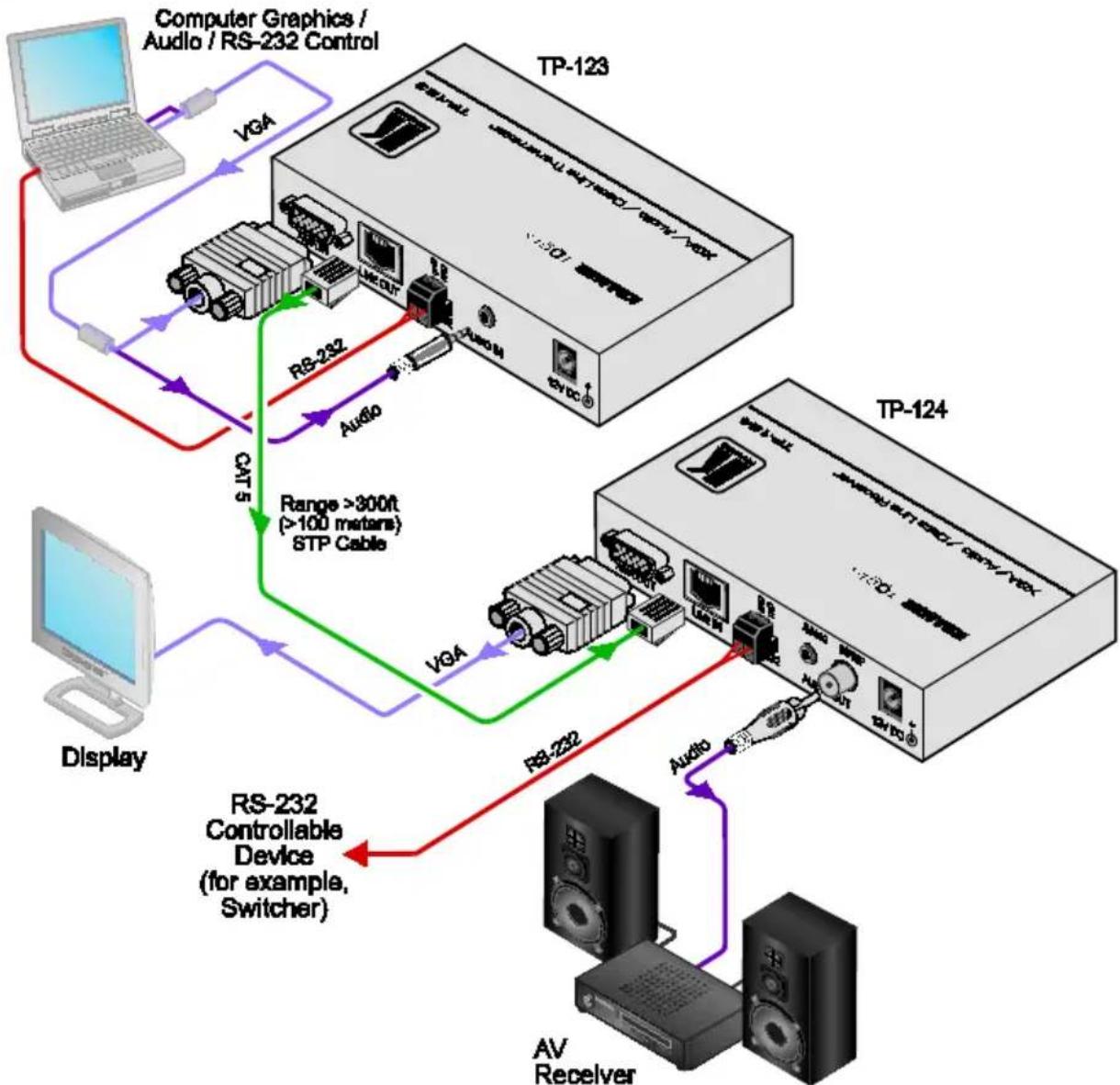

Figure 15: Connecting the XGA/Audio/Data Line Transmitter/Receiver System
9.1 Controlling via RS-232 (for example, using a PC)

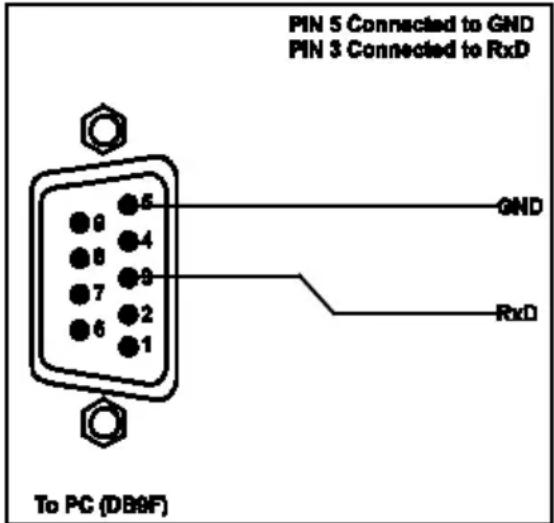

Prepare an RS-232 cable with a 9-pin D-sub connector at one end, and a 2 PIN terminal block connector at the other end, as defined in Figure 16 and Table 13:
PC (Controller) to TP-123
TP-124 to Controlled Unit
Figure 16: RS-232 PINOUT Connection
Table 13: RS-232 PINOUT Connection
| Connect this PIN on the Terminal Block Connector: | To this PIN on the 9-pin D-sub Connector |
| TxD PIN 2 | |
| RxD PIN 3 | |
| GND PIN 5 |
10 Configuring a 1:4 XGA to TP Transmitter/Receiver/DA
You can use the TP-104 XGA Line Transmitter/DA with the TP-120 XGA Line Receiver ^1 to configure a 1:4 XGA-to-Twisted Pair DA system.
To connect the TP-104 to four TP-120 units, as the example in Figure 17 illustrates, do the following:
-
On the TP-104, connect the XGA source (for example, a computer graphics source) to the XGA INPUT 15-pin HD (F) connector, and connect the line output RJ-45 connector ^2 :
-
OUT 1 to the LINE IN RJ-45 connector on the TP-120 Unit I
- OUT 2 to the LINE IN RJ-45 connector on the TP-120 Unit II
-
OUT 3 to the LINE IN RJ-45 connector on the TP-120 Unit III
■ OUT 4 to the LINE IN RJ-45 connector on the TP-120 Unit IV -
On the four TP-120 units, connect the:
-
XGA OUT 15-pin HD (F) connector of Unit I to the XGA acceptor (for example, Display 1)
- XGA OUT 15-pin HD (F) connector of Unit II to the XGA acceptor (for example, Display 2)
■ XGA OUT 15-pin HD (F) connector of Unit III to the XGA acceptor (for example, Display 3) -
XGA OUT 15-pin HD (F) connector of Unit IV to the XGA acceptor (for example, Display 4)
-
On each of the five Kramer TOOLS, connect the 12V DC power adapter to the power socket and connect the adapter to the mains electricity.
The signal from the XGA source is transmitted via the four CAT 5 cables, decoded and converted at the each of the XGA OUT 15-pin HD (F) connectors to the XGA acceptors.
- On each of the five Kramer TOOLS:
- Adjust ^3 the video output signal level and/or cable compensation equalization level, if required
- If necessary, on the TP-120 units, set the H SYNC and V SYNC switches ^4 , on the underside


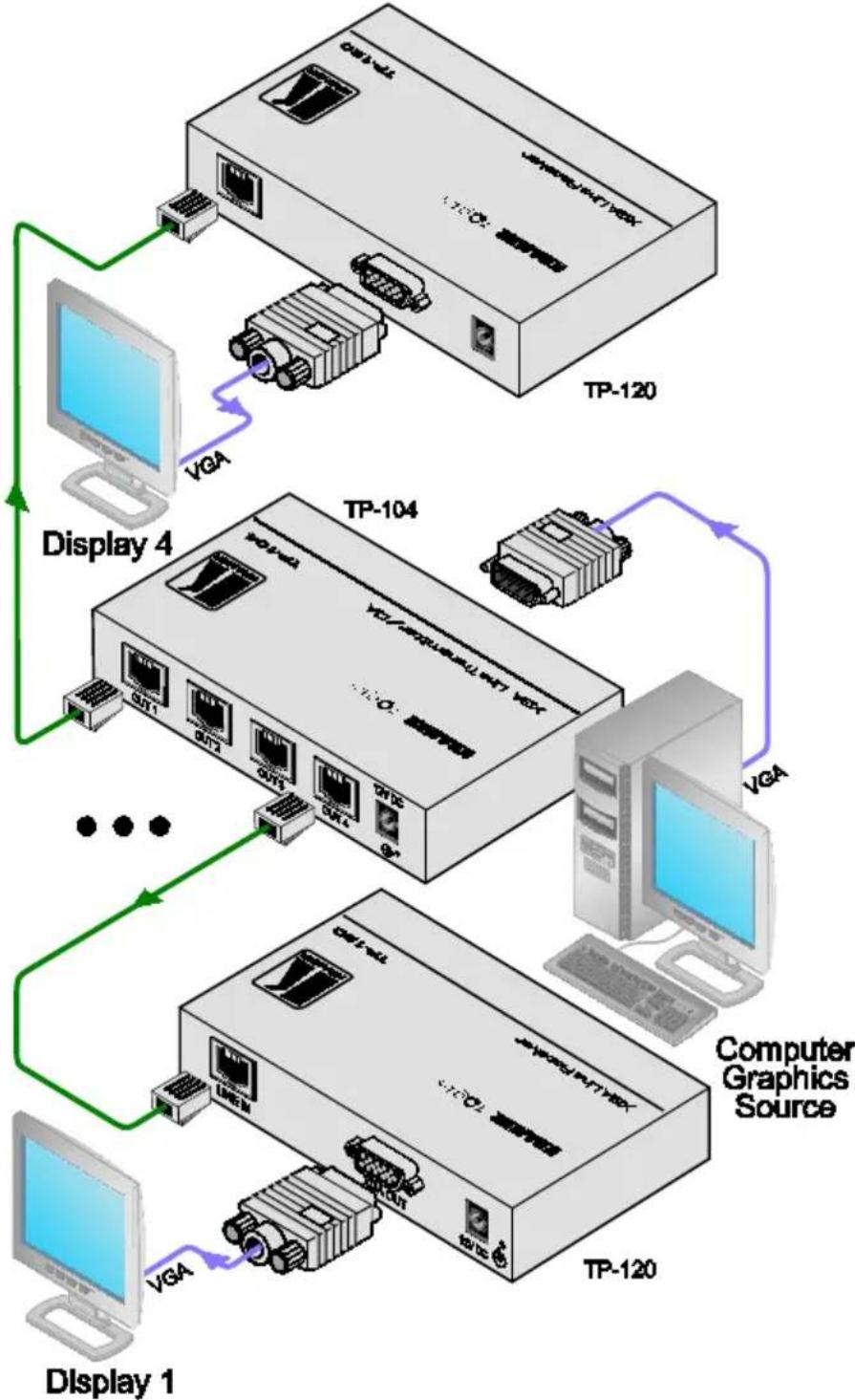

Figure 17: Configuring a 1:4 XGA to Twisted Pair Transmitter/Receiver/DA
11 Configuring a TP-105 CAT 5 Line Driver/DA
You can connect the TP-105 CAT 5 Line Driver/DA—using a PT-110 XGA Line Transmitter and two TP-120 XGA Line Receiver ^1 units—to transmit a computer graphics signal to two displays via long line CAT 5 UTP cabling.
To connect the TP-105, as the example in Figure 17 illustrates, do the following:
- On the PT-110, connect the:
■ Computer graphics source to the XGA INPUT 15-pin HD (F) connector
■ LINE OUTPUT RJ-45 connector ^2 to the INPUT RJ-45 connector on the TP-105
-
On the TP-105, connect the:
-
OUT 1 RJ-45 connector to the LINE IN RJ-45 on the first TP-120
-
OUT 2 RJ-45 connector to the LINE IN RJ-45 on the second TP-120
-
On the two TP-120 units, connect the:
■ XGA OUT 15-pin HD (F) connector on the first TP-120 unit to the XGA acceptor (for example, Display 1)
- XGA OUT 15-pin HD (F) connector on the second TP-120 unit to the XGA acceptor (for example, Display 2)
- On each of the four Kramer units, connect the 12V DC power adapter to the power socket and connect the adapter to the mains electricity.
The signal from the XGA source is transmitted via the two CAT 5 cables, decoded and converted at the each of the XGA OUT 15-pin HD (F) connectors to the XGA acceptors.
-
If necessary:
-
Adjust ^3 the video output signal level and/or cable compensation equalization level on the TP-105 and on both the TP-120 units
- Set the H SYNC and V SYNC switches ^4 on the underside of the TP-120 units


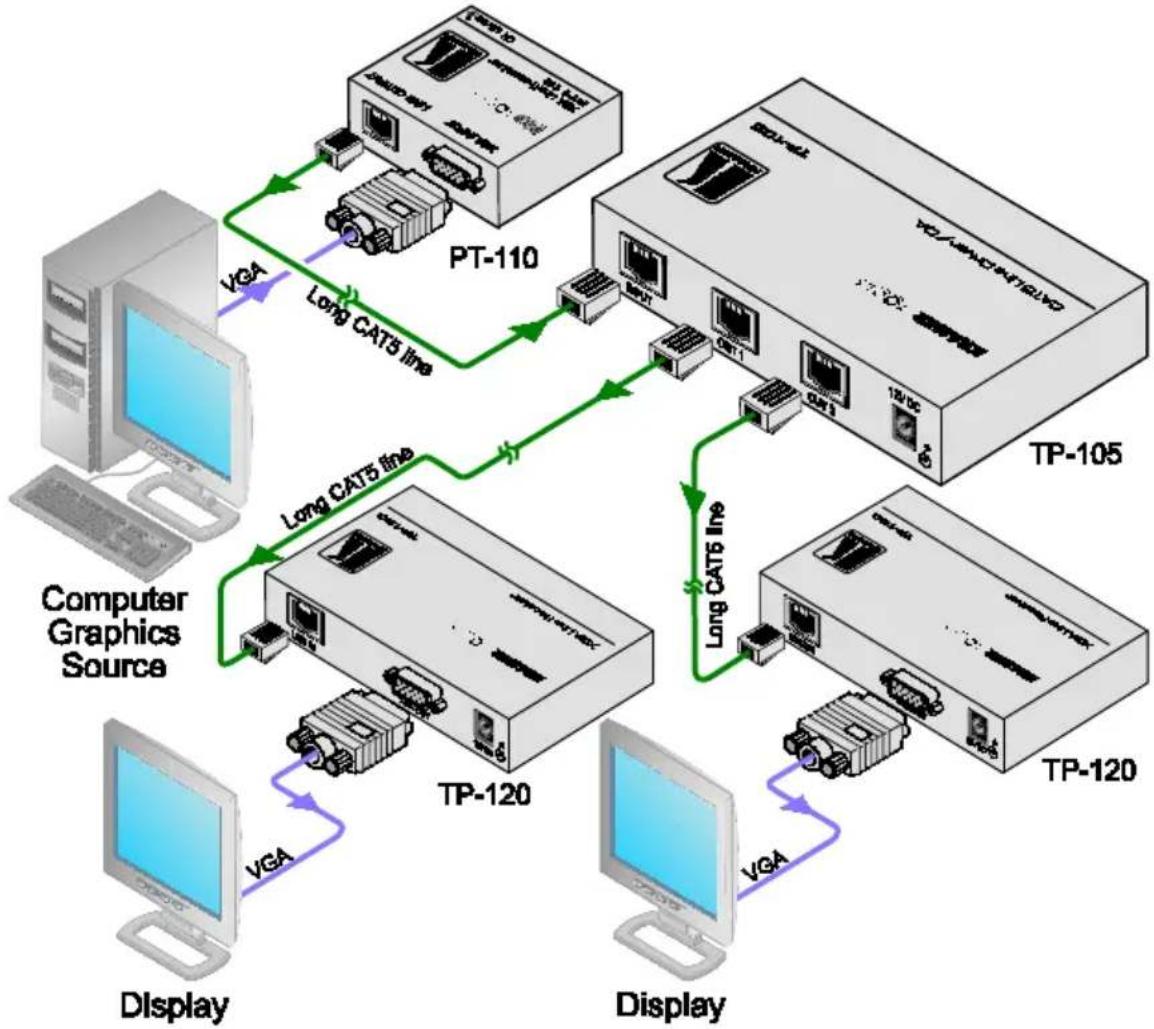

Figure 18: Configuring a TP-105 CAT 5 Line Driver/DA
12 Technical Specifications
Table 14 includes the technical specifications of the TP-104, Table 15 includes the technical specifications of the TP-105, and Table 16 includes the technical specifications of the TP-121, TP-122, TP-123, and TP-124:
Table 14: Technical Specifications ^1 of the TP-104 ^2 and the TP-104HD
| TP-104 | |
| INPUTS: | 1 VGA/UXGA on a 15-pin HD connector |
| OUTPUTS: | 4 RJ-45 OUT connectors |
| MAX. OUTPUT LEVEL: | 1.4Vpp |
| BANDWIDTH (-3dB)^3 | >150MHz, up to 1080p^4 : |
| DIFF. GAIN^3 : 3.2% | |
| DIFF. PHASE^3 : 0.5Deg | |
| K-FACTOR ^3 : <0.05% | |
| S/N RATIO^3 : 80dB | |
| CONTROLS^3 : EQ.: 0 to 33dB; LEVEL: -7.5dB to 4.4dB | |
| COUPLING^3 : AC | |
| POWER SOURCE: 12V | DC 180mA |
| DIMENSIONS: | 12.1cm x 7.18cm x 2.42cm (4.76" x 2.83" x 0.95") W, D, H |
| WEIGHT: | 0.3kg (0.67lbs) approx. |
| ACCESSORIES: Power supply | |
Table 15: Technical Specifications of the TP-105 ^2 and the TP-105(HD)
| TP-105 | |
| INPUTS: | 1 RJ-45 OUT connector |
| OUTPUTS: | 2 RJ-45 OUT connectors |
| MAX. OUTPUT LEVEL: | 1.6Vpp |
| BANDWIDTH (-3dB)^5 : | Appropriate for VGA-UXGA, up to 1080p^4 |
| DIFF. GAIN^5 : 3.7% | |
| DIFF. PHASE^5 : 0.5Deg | |
| K-FACTOR ^5 : <0.05% | |
| S/N RATIO^5 : 69dB | |
| CONTROLS^5 : | EQ.: 0 to 4.4dB @ 50MHz; LEVEL: -5.5dB to 1.4dB |
| COUPLING^5 : AC | |
| POWER SOURCE: 12V | DC 220mA |
| DIMENSIONS: | 12.1cm x 7.18cm x 2.42cm (4.76" x 2.83" x 0.95") W, D, H |
| WEIGHT: 0.3kg (0.67lbs) | approx. |
| ACCESSORIES: Power supply | |
Table 16: Technical Specifications of the TP-121/TP-122/TP-123/TP-124
| TP-121 | TP-122 | TP-123 | TP-124 | |
| INPUTS:VIDEO: 1 | VGA/UXGA on a 15-pin HD connectorAUDIO: 1 audio ANALOG 3.5mm mini jack | 1 RJ-45 LINE IN connector | VIDEO: 1 VGA/UXGA on a 15-pin HD connectorAUDIO: 1 audio ANALOG 3.5mm mini jack | 1 RJ-45 LINE IN connector |
| OUTPUTS: | 1 RJ-45 OUT connector | VIDEO: 1 VGA/UXGA on a 15-pin HD connectorAUDIO: 1 audio S/PDIF RCA connector1 audio ANALOG 3.5mm mini jack | 1 RJ-45 OUT connector | VIDEO: 1 VGA/UXGA on a 15-pin HD connectorAUDIO: 1 audio S/PDIF RCA connector1 audio ANALOG 3.5mm mini jack |
| MAX. OUTPUT LEVEL: | VIDEO: 1VAUDIO: 2.5V | VIDEO: 1VAUDIO: 2.5V | ||
| CONTROLS: | Level: -7.5dB to +4.4dB,EQ.: 0dB to +33dBm (130m) @ 50MHz | RS-232 2 PINTerminal Block | RS-232 2 PINTerminal BlockLevel: -7.5dB to +4.4dB,EQ.: 0dB to +33dBm (130m) @ 50MHz | |
| BANDWIDTH (-3dB)^1 | AUDIO: 20Hz – 20kHz@0.5dB : | |||
| S/N RATIO:VIDEO: 58dB unweighted, 68.3dB @5MHz weightedAUDIO: <–80dB | ||||
| TOTAL GAIN: | AUDIO: Analog/analog: 0dB; Analog/SPDIF: –12dBFS | |||
| COUPLING: AC | ||||
| TND+N: AUDIO: <0.01% | ||||
| POWER SOURCE: | 12V DC 130mA (TP-121)12V DC 190mA (TP-122)12V DC 540mA (TP-121/TP-122 pair when powered from TP-121 via Power Connect)12V DC 390mA (TP-121/TP-122 pair when powered from TP-122 via Power Connect) | 12V DC 130mA (TP-123)12V DC 200mA (TP-124)12V DC 550mA (TP-123/TP-124 pair when powered from TP-123 via Power Connect)12V DC 390mA (TP-123/TP-124 pair when powered from TP-124 via Power Connect) | ||
| DIMENSIONS: | 12.1cm x 7.18cm x 2.42cm (4.76" x 2.83" x 0.95") W, D, H | |||
| WEIGHT: | 0.3kg (0.67lbs) approx. | |||
| ACCESSORIES: | Power supply | |||
| OPTIONS: | 19" rack mount | |||
LIMITED WARRANTY
Kramer Electronics (hereafter R_warrants this product free from defects in material and workmanship under the following terms.
HOW LONG IS THE WARRANTY
Labor and parts are warranted for seven years from the date of the first customer purchase.
WHO IS PROTECTED?
Only the first purchase customer may enforce this warranty.
WHAT IS COVERED AND WHAT IS NOT COVERED
Except as below, this warranty covers all defects in material or workmanship in this product. The following are not covered by the warranty:
- Any product which is not distributed by Kramer, or which is not purchased from an authorized Kramer dealer. If you are uncertain as to whether a dealer is authorized, please contact Kramer at one of the agents listed in the Web site www.kramerelectronics.com.
- Any product, on which the serial number has been defaced, modified or removed, or on which the WARRANTY VOID IF TEMFRE E Psticked has otherwise interfered with.
- Damage, deterioration or malfunction resulting from:
i) Accident, misuse, abuse, neglect, fire, water, lightning or other acts of nature
ii) Product modification, or failure to follow instructions supplied with the product
iii) Repair or attempted repair by anyone not authorized by Kramer
iv) Any shipment of the product (claims must be presented to the carrier)
v) Removal or installation of the product
vi) Any other cause, which does not relate to a product defect
vii) Cartons, equipment enclosures, cables or accessories used in conjunction with the product
WHAT WE WILL PAY FOR AND WHAT WE WILL NOT PAY FOR
We will pay labor and material expenses for covered items. We will not pay for the following:
- Removal or installations charges.
- Costs of initial technical adjustments (set-up), including adjustment of user controls or programming. These costs are the responsibility of the Kramer dealer from whom the product was purchased.
- Shipping charges.
HOW YOU CAN GET WARRANTY SERVICE
- To obtain service on you product, you must take or ship it prepaid to any authorized Kramer service center.
- Whenever warranty service is required, the original dated invoice (or a copy) must be presented as proof of warranty coverage, and should be included in any shipment of the product. Please also include in any mailing a contact name, company, address, and a description of the problem(s).
- For the name of the nearest Kramer authorized service center, consult your authorized dealer.
LIMITATION OF IMPLIED WARRANTIES
All implied warranties, including warranties of merchantability and fitness for a particular purpose, are limited in duration to the length of this warranty.
EXCLUSION OF DAMAGES
The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for:
- Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss; or:
- Any other damages, whether incidental, consequential or otherwise. Some countries may not allow limitations on how long an implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations and exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights, which vary from place to place.
NOTE: All products returned to Kramer for service must have prior approval. This may be obtained from your dealer.
This equipment has been tested to determine compliance with the requirements of:
EN-50081: "Electromagnetic compatibility (EMC);
generic emission standard.
Residential, commercial and light industry"
EN-50082: "Electromagnetic compatibility (EMC) generic immunity standard.
Part 1: Residential, commercial and light industry environment".
CFR-47: FCC* Rules and Regulations:
Part 15: "Radio frequency devices
Subpart B Unintentional radiators"
CAUTION!
Servicing the machines can only be done by an authorized Kramer technician. Any user who makes changes of modifications to the unit without the expressed approval of the manufacturer will void user authority to operate the equipment.
Use the supplied DC power supply to feed power to the machine.
☒ Please use recommended interconnection cables to connect the machine to other components.
* FCC and CE approved using STP cable (for twisted pair products)
For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found.
We welcome your questions, comments and feedback.
Caution
Safety Warning:
Disconnect the unit from the power supply before opening/servicing.
CE
P/N:
2900-000037
Rev:
9
- Kramer Electronics, Ltd.
- USER MANUAL
- Models:
- Contents
- Introduction 1
- Getting Started 1
- Overview 4
- Figures
- Tables
- Introduction
- Getting Started
- Quick Start
- Overview
- Shielded Twisted Pair (STP)/Unshielded Twisted Pair (UTP)
- About the Power Connect Feature
- Recommendations for Achieving the Best Performance
- Your TP-104/TP-104HD XGA Line Transmitter/DA
- Your TP-105/TP-105(HD) CAT 5 Line Driver/DA
- Your TP-121/TP-122
- Your TP-121 XGA/Audio Line Transmitter
- The TP-121 Internal Polarity Switches
- Your TP-122 XGA/Audio Line Receiver
- Your TP-122 XGA/Audio Line Receiver (Topside)
- Your TP-122 XGA/Audio Line Receiver (Underside)
- Your TP-123/TP-124
- Your TP-123 XGA/Audio/Data Line Transmitter
- The TP-123 Internal Polarity Switches
- Your TP-124 XGA/Audio/Data Line Receiver
- Your TP-124 XGA/Audio/Data Line Receiver (Underside)
- Connecting the XGA/Audio Line Transmitter/Receiver
- Wiring the CAT 5 LINE IN/LINE OUT RJ-45 Connectors
- Connecting the XGA/Audio/Data Line Transmitter/Receiver
- Controlling via RS-232 (for example, using a PC)
- Configuring a 1:4 XGA to TP Transmitter/Receiver/DA
- Configuring a TP-105 CAT 5 Line Driver/DA
- Technical Specifications
- LIMITED WARRANTY
- HOW LONG IS THE WARRANTY
- WHO IS PROTECTED?
- WHAT IS COVERED AND WHAT IS NOT COVERED
- WHAT WE WILL PAY FOR AND WHAT WE WILL NOT PAY FOR
- HOW YOU CAN GET WARRANTY SERVICE
- LIMITATION OF IMPLIED WARRANTIES
- EXCLUSION OF DAMAGES
- CAUTION!
- For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found.
- Safety Warning:
Brand : Kramer
Model : TP-105HD
Category : Extendeur AV
