Product Type	AV Extender (Receiver)
Model	671R
Brand	Kramer
Input Connector	DVI (single link)
Output Connector	DVI (single link)
Max Resolution	1920x1200 (WUXGA)
Max Distance	Up to 100 m (328 ft) over CAT5e/6
Signal Type	DVI-D (TMDS)
HDCP Support	Yes (pass-through)
Equalization	Adjustable via controls
Power Supply	5V DC (included)
Power Consumption	1.5W
Dimensions (W x D x H)	12.0 cm x 7.5 cm x 2.5 cm (4.72" x 2.95" x 0.98")
Weight	0.3 kg (0.66 lbs)
Operating Temperature	0° to 40°C
Storage Temperature	-20° to 60°C
Housing	Metal enclosure
Included Accessories	Power adapter, mounting bracket
Certifications	CE, FCC, RoHS

Frequently Asked Questions - 671R Kramer

How do I connect the Kramer 671R extender?

Connect the transmitter (671T) to your source via DVI cable, and link it to the 671R receiver using CAT5e/6 cable. Then connect the receiver to your display via DVI. Ensure both units are powered.

What is the maximum distance the Kramer 671R can extend?

The maximum distance is 100 meters (328 ft) over CAT5e/6 cable. For longer distances, use a signal repeater.

What resolutions does the Kramer 671R support?

It supports resolutions up to 1920x1200 (WUXGA) including 1080p. Lower resolutions like 720p are also supported.

Can I use HDMI with the Kramer 671R?

Yes, you can use an HDMI-to-DVI adapter on both ends, but note that audio will not be transmitted as DVI does not carry audio.

Does the Kramer 671R support HDCP?

Yes, it supports HDCP pass-through, allowing protected content to be displayed on HDCP-compatible screens.

Why is there no signal from my Kramer 671R?

Check all cable connections, ensure the power adapters are plugged in, and verify the CAT5 cable is not damaged. Also try adjusting the equalization controls on the transmitter.

Can I use Cat6 cable with the Kramer 671R?

Yes, Cat6 cable is recommended for better performance and longer distances, though Cat5e also works.

Does the Kramer 671R require external power?

Yes, both the 671T transmitter and 671R receiver require 5V DC power adapters (included). They do not draw power from the source.

Can I extend the signal beyond 100 meters?

For distances beyond 100 m, you can use a Kramer extender with repeaters or a network switch with PoE. Contact Kramer support for solutions.

Is the Kramer 671R plug and play?

Yes, it is plug-and-play with no software required. However, you may need to adjust the equalization for optimal image quality.

USER MANUAL 671R Kramer

DVI Optical Receiver

671T, 671R Quick Start Guide

This guide helps you install and use your product for the first time. For more detailed information, go to http://www.kramerelectronics.com/support/product_downloads.asp to download the latest manual or scan the QR code on the left.

Step 1: Check what's in the box

671T, 671R DVI Optical Transmitter/Receiver 1 Power supply per unit (5V DC)

4 Rubber feet 1 Quick Start sheet

Save the original box and packaging materials in case you need to return your 671T, 671R for service.

Step 2: Install the 671T, 671R

Attach the rubber feet and place on a table or mount the 671T, 671R in a rack (using an optional RK-3T rack mount).

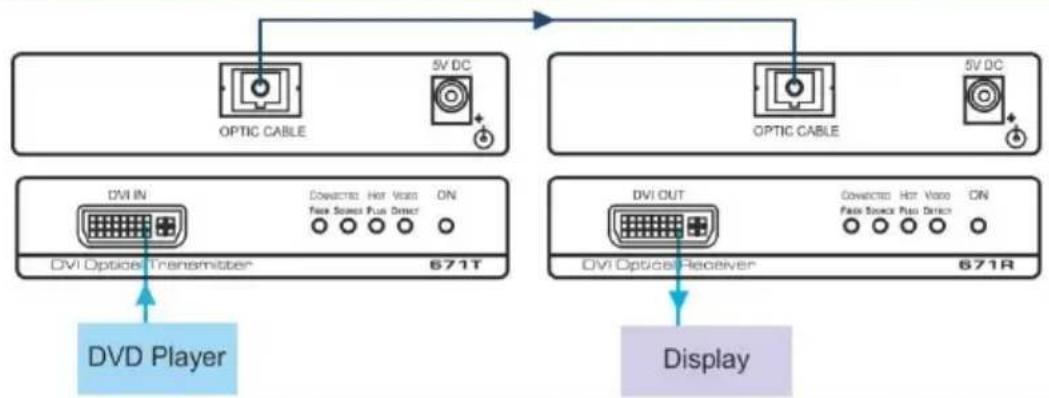

Step 3: Connect the inputs and outputs

Always switch off the power on each device before connecting it to your 671T, 671R.

Always use Kramer high-performance cables for connecting AV equipment to the 671T, 671R.

Step 4: Connect the power

Connect the 5V DC power adapter to the 671T, 671R and plug the adapter into the mains electricity.

Contents

1 Introduction 1
2 Getting Started 2

2.1 Achieving the Best Performance 2
2.2 Safety Instructions 3
2.3 Recycling Kramer Products 3

3 Overview 4

3.1 Defining the 671T, 671R DVI Optical Transmitter/Receiver
4 Connecting the 671T, 671R 7
5 Technical Specifications 9

Figures

Figure 1: 671T DVI Optical Transmitter 5
Figure 2: 671R DVI Optical Receiver 6
Figure 3: Connecting the 671T/671R Transmitter/Receiver System 8

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront video, audio, presentation, and broadcasting professionals on a daily basis. In recent years, we have redesigned and upgraded most of our line, making the best even better!

Our 1,000-plus different models now appear in 11 groups that are clearly defined by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers; GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11: Sierra Products.

Congratulations on purchasing your Kramer 671T, 671R DVI Optical Transmitter/Receiver, which is ideal for the following typical applications:

• Home theater, presentation and multimedia applications
- Long range multimedia distribution for cinemas, stores, and entertainment centers
• Video production and broadcast facilities
• Retail stores and other point-of-sale systems

2 Getting Started

We recommend that you:

• Unpack the equipment carefully and save the original box and packaging materials for possible future shipment
• Review the contents of this user manual

Go to http://www.kramerelectronics.com/support/product_downloads.asp to check for up-to-date user manuals, application programs, and to check if firmware upgrades are available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

• Use only good quality connection cables (we recommend Kramer high-performance, high-resolution cables) to avoid interference, deterioration in signal quality due to poor matching, and elevated noise levels (often associated with low quality cables)
• Do not secure the cables in tight bundles or roll the slack into tight coils
• Avoid interference from neighboring electrical appliances that may adversely influence signal quality
• Position your Kramer 671T, 671R away from moisture, excessive sunlight and dust

This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building.

2.2 Safety Instructions

Caution: There are no operator serviceable parts inside the unit

Warning: Use only the Kramer Electronics input power wall adapter that is provided with the unit

Warning: Disconnect the power and unplug the unit from the wall before installing

Warning: Avoid direct eye exposure into the optic connectors when powered, although this product is regulated strictly enough to operate under the Laser Class 3R for eye safety

2.3 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC aims to reduce the amount of WEEE sent for disposal to landfill or incineration by requiring it to be collected and recycled. To comply with the WEEE Directive, Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer's recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.

3 Overview

The 671T converts the DVI signal to an optical signal, and the 671R converts the optical signal back into a DVI signal. Together, the 671T and 671R form a DVI transmitter/receiver over multimode fiber system.

The 671T and 671R pair features:

• A maximum data rate of 4.95Gbps (1.65Gbps per graphic channel) suitable for resolutions up to UXGA at 60Hz, and for all HD resolutions
• HDCP compliance
• HDTV compatibility
• Transmission of four TMDS video channels as well as one low-speed channel for passing HDCP, EDID and a Hot Plug Detect (HPD) signal over one multimode fiber
  • HDMI support for HDMI Compressed Audio Channels
  • EDID PassThru that passes EDID signals between the source and display
• 3D pass-through
  • A system range of 1700m (more than 5500ft)
• Regulation in accordance with Class 3R Laser Eye Safety in compliance with ANSI Z136 and IEC 60825-1:2007
• Multimode fiber optic OM3 cable with SC connectors
• 5V DC power adapters
• Kramer DigiTOOLS ^ enclosures

3.1 Defining the 671T, 671R DVI Optical Transmitter/Receiver

This section describes the:

• 671T DVI Optical Transmitter, see Section 3.1.1
• 671R DVI Optical Receiver, see Section 3.1.2

3.1.1 Your 671T DVI Optical Transmitter

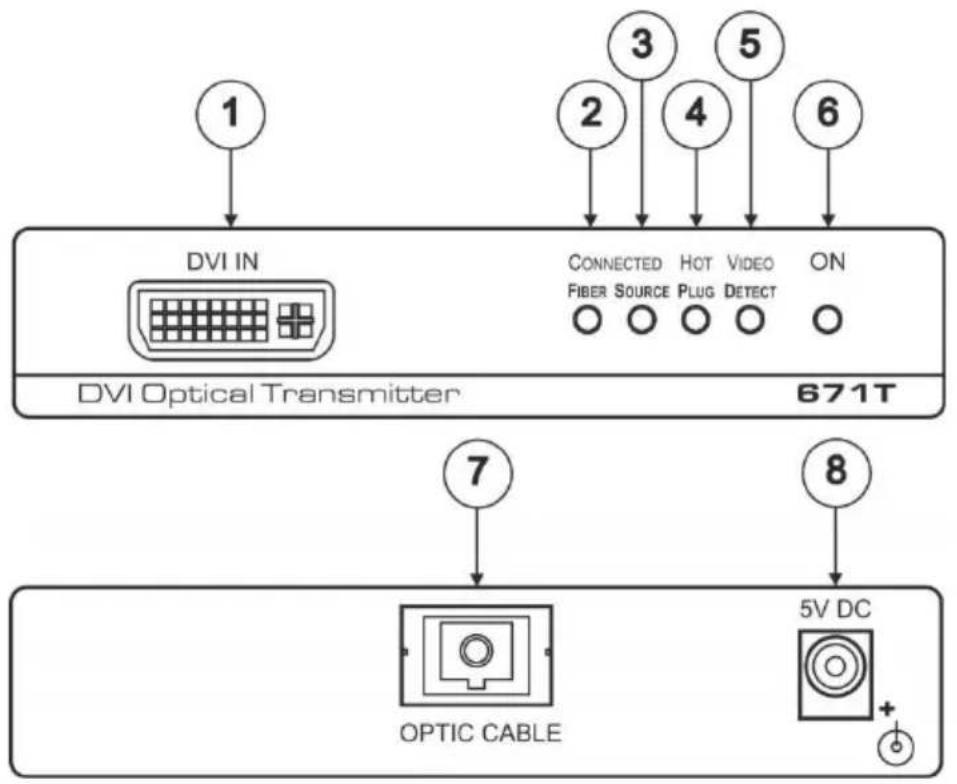

Figure 1 defines the 671T DVI Optical Transmitter:

Figure 1: 671T DVI Optical Transmitter

#	Feature		Function
1	DVI IN Connector		Connects to the DVI source
2	CONNECTED LEDs	FIBER	Illuminates when the fiber optic cable is connected
3		SOURCE	Illuminates when a source is connected
4	HOT PLUG LED		Indicates a connected display on the receiver side
5	VIDEO DETECT LED		Indicates a valid video signal on the transmitter side
6	ON LED		Illuminates when receiving power
7	OPTIC CABLE Connector		Connect to the optical connector on the 671R (remove dust cap prior to use)
8	5V DC		+5V DC connector for powering the unit

3.1.2 Your 671R DVI Optical Receiver

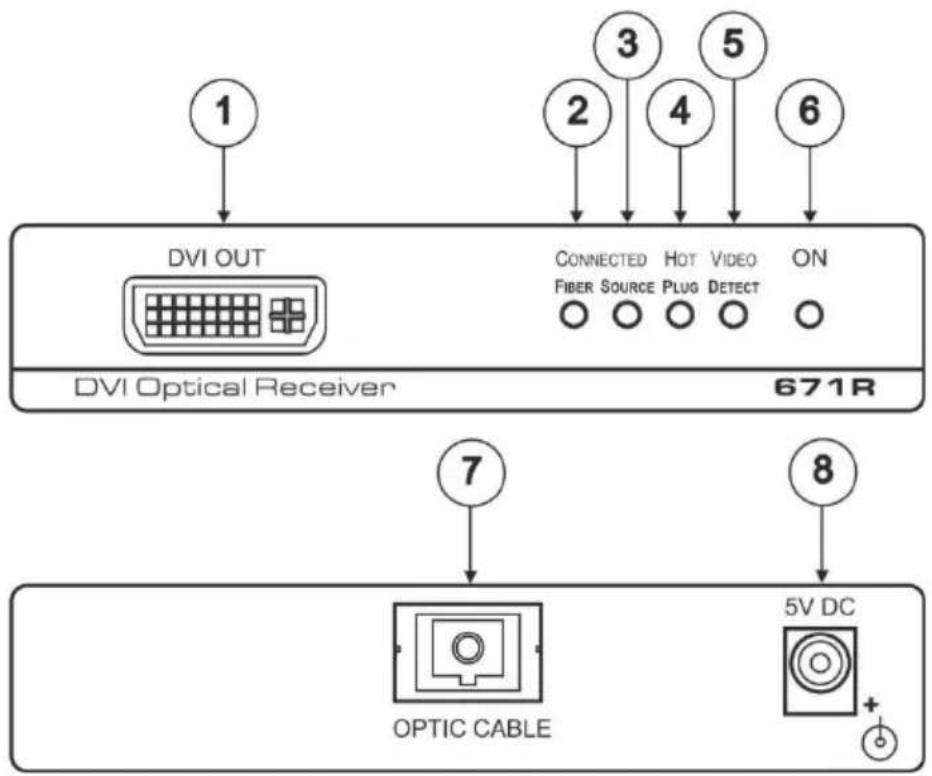

Figure 2 defines the 671R DVI Optical Receiver.

Figure 2: 671R DVI Optical Receiver

#	Feature		Function
1	DVI OUT Connector		Connects to the DVI acceptor
2	CONNECTED LEDs	FIBER	Illuminates when the fiber optic cable is connected
3		SOURCE	Illuminates when a source is connected
4	HOT PLUG LED		Indicates a connected display on the receiver side
5	VIDEO DETECTLED		Indicates a valid video signal on the transmitter side
6	ON LED		Illuminates when receiving power
7	OPTIC CABLE Connector		Connect to the optical connector on the 671T (remove dust cap prior to use)
8	5V DC		+5V DC connector for powering the unit

4 Connecting the 671T, 671R

Always switch off the power to each device before connecting it to your 671T, 671R. After connecting your 671T, 671R, connect its power and then switch on the power to each device.

Avoid direct eye exposure into the optic connectors when powered, although this product is regulated strictly enough to operate under the Laser Class 3R for eye safety

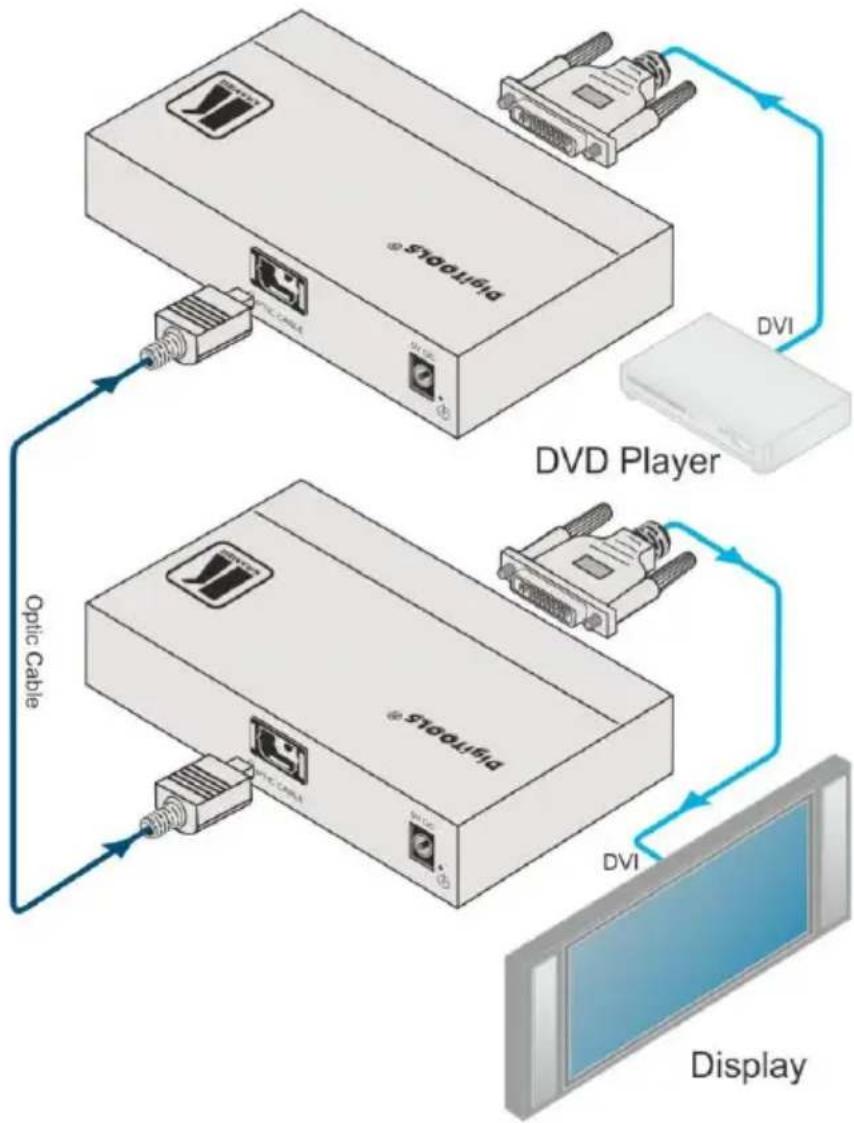

To connect the 671T and 671R, as illustrated in the example in Figure 3, do the following:

1. Connect a DVI source (for example a DVD player) to the DVI IN connector.
2. Connect the DVI OUT connector to a DVI acceptor (for example, an LCD display).
3. Remove the dust caps and connect the OPTIC CABLE connector of the 671T to the OPTIC CABLE connector of the 671R, via optic OM3 cabling with SC connectors (maximum range of 2000 meters (over 6560ft)).
4. Connect the 5V DC power adapter to the power socket on each unit and connect the adapter to the mains electricity (not shown in Figure 3).

Figure 3: Connecting the 671T/671R Transmitter/Receiver System

5 Technical Specifications

	671T	671R
INPUTS:	DVI Connector	1 optical connector
OUTPUTS:	1 optical connector	DVI Connector
MAX. DATA RATE:	4.95Gbps (1.65Gbps per graphic channel)
COMPLIANCE WITH HDMI STANDARD:	Supports DVI using fiber optic communication links and DDC2B
EXTENSION LIMIT:	2000m (>6560 feet) for UXGA (1600x1200) and 1080p
FIBER-OPTIC CONNECTION:	SC connectors for multimode (OM3) fiber cable (not supplied with the unit)
INSERTION LOSS FROM TRANSMITTER TO RECEIVER:	Must not exceed 10dB
INDICATOR LEDs:	Video, source, acceptor fiber and on LEDs
POWER CONSUMPTION:	5V DC, 250mA	5V DC, 400mA
OPERATING TEMPERATURE:	0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE:	-40° to +70°C (-40° to 158°F)
HUMIDITY:	10% to 90%, RHL non-condensing
DIMENSIONS:	12cm x 7.95cm x 2.76cm (4.7" x 3.1" x 1.08") W, D, H
WEIGHT:	0.3kg (0.67lbs) approx. each
ACCESSORIES:	2 power supplies (5V/2A), 2 bracket installation kits
Specifications are subject to change without notice at http://www.kramerelectronics.com
