Product Type	Car Speaker
Model	CSP1200
Brand	Philips
Impedance	4 ohms
Dimensions (W x H x D)	238 mm x 358 mm x 568 mm
Weight	2.5 kg
Power Handling (RMS)	100 W
Power Handling (Peak)	200 W
Frequency Response	50 Hz - 20 kHz
Sensitivity	90 dB
Driver Size	12 inches (30 cm)
Magnet Type	Ferrite
Surround Material	Rubber
Cone Material	Polypropylene
Mounting Depth	150 mm
Mounting Hole Diameter	280 mm
Basket Material	Steel
Voice Coil Diameter	2 inches (50 mm)
Battery Life (if applicable)	2 hours
Connection Type	Parallel
Recommended Enclosure Type	Sealed or Ported
Operating Temperature	-20°C to 60°C
Certifications	CE, RoHS
Cleaning Instructions	Wipe with dry cloth; avoid liquids

Frequently Asked Questions - CSP1200 PHILIPS

How do I install the Philips CSP1200 speaker in my car?

Mount the speaker in a suitable enclosure or directly in the car door/pre-made cutout. Ensure the mounting depth (150 mm) and hole diameter (280 mm) match your vehicle. Connect the 4-ohm voice coil using parallel wiring if using multiple speakers. Secure with screws and check for any air leaks.

What is the power handling of the CSP1200?

The speaker handles 100 W RMS and 200 W peak. Exceeding these values may cause damage. Use an amplifier rated appropriately.

Can I use this speaker without an enclosure?

It is recommended to use an enclosure (sealed or ported) for optimal bass response and to protect the speaker from physical damage. Free-air operation is possible but not ideal.

What type of enclosure is best for the CSP1200?

A sealed enclosure provides tighter bass, while a ported enclosure offers higher efficiency and louder output. Recommended internal volume: 1.5-2.0 cubic feet for sealed, 2.0-2.5 cubic feet for ported (tune to 35 Hz).

How do I clean the speaker?

Use a dry microfiber cloth to gently wipe the cone and surround. Avoid liquids, sprays, or abrasive cleaners as they may damage the materials. Keep the speaker away from moisture and dust.

What is the impedance of the CSP1200?

The speaker has a single 4-ohm voice coil. When wiring multiple speakers in parallel, the total impedance drops (e.g., two 4-ohm speakers parallel = 2 ohms). Ensure your amplifier is stable at that load.

Does the speaker come with mounting hardware?

The package includes mounting screws and a wiring harness. If not, use standard M4 screws and 14-gauge speaker wire.

Can I use this speaker in a home audio system?

Yes, but you will need a suitable enclosure and an amplifier capable of driving a 4-ohm load. It is designed for car use but can be adapted for home use with proper power.

What is the frequency response of the CSP1200?

The frequency response is 50 Hz to 20 kHz. It covers low bass to high treble, but for best results use a subwoofer for frequencies below 50 Hz.

How do I troubleshoot no sound from the speaker?

Check wiring connections for loose or broken wires. Verify the amplifier is on and not in protect mode. Test with a known working source. Inspect the voice coil with a multimeter (should read ~4 ohms). If open or shorted, the speaker may be damaged.

USER MANUAL CSP1200 PHILIPS

Close-up of a Philips speaker with visible grille and textured base (no text or symbols on body)

دليل المستخدم

PHILIPS

2: هام 1

2unders

2 إشعار

Line drawing of a car backseat with seat covers and a lid (no text or symbols)

Simple line drawing of a mechanical component with a cylindrical pin inserted into a circular flange (no text or symbols)

Technical line drawing of a mechanical component with concentric rings and a central hub (no text or symbols)

Line drawing of a car interior showing seats and a speaker block (no text or symbols)

1

أدناه:

العلبة:

CSP1200

358

568 مالطل

238 مالعرض

Diagram of a precision tool interacting with a circular component, no text or symbols present

5

رّة الصوت.

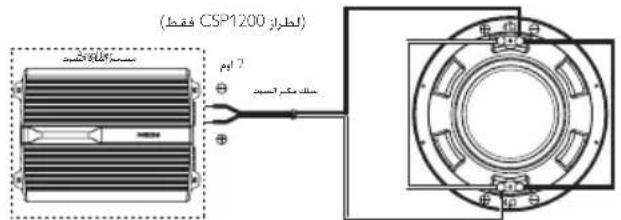

اتصال موازي 2Hours

4Ω

Technical diagram showing a mechanical assembly with concentric rings and mounting holes, no text or symbols present.

Specifications are subject to change without notice

All rights reserved.

CSP1200_00_Arabic_UM_V1.0
