Product Type	Car Stereo
Brand	SoundMAX
Model	SM-CMD3003
Dimensions (1 DIN)	178 x 50 x 160 mm
Weight	0.5 kg
Power Supply	12V DC (vehicle battery)
Maximum Power Output	4 x 50W
Radio Tuner	FM/AM with RDS
Disc Playback	CD, CD-R, CD-RW
USB Port	Front USB for MP3/WMA playback
Auxiliary Input	3.5 mm front AUX
Bluetooth	Hands-free calling and audio streaming
Display	LCD with white illumination
Remote Control	Included (IR)
Security Code	Anti-theft code (programmable)
Detachable Faceplate	Yes
Equalizer	Preset EQ modes (Rock, Pop, Classic, etc.)
Audio Outputs	Front/Rear RCA pre-outs
Subwoofer Output	Yes (RCA)
Steering Wheel Control Compatible	Via adapter (not included)
Operating Temperature	-10°C to 60°C
Accessories Included	Mounting sleeve, trim ring, wiring harness, screws
Language Support	English, French, Spanish, German (user manual)
Maintenance	Clean with soft dry cloth; avoid liquids
Repair and Spare Parts	Contact authorized service center

Frequently Asked Questions - SM-CMD3003 SoundMAX

How do I reset the security code if I don't remember it?

Contact SoundMAX customer support with the serial number and proof of purchase. They can provide a master reset code or procedure.

Can I use an SD card with this unit?

The SM-CMD3003 does not have an SD card slot. Use the USB port or CD for media playback.

How do I pair my phone via Bluetooth?

Enable Bluetooth on your phone, then press the BT button on the radio to enter pairing mode. Select 'SM-CMD3003' from your phone's Bluetooth list and confirm.

Why is there no sound from the speakers?

Check that the unit is properly connected to the vehicle's wiring harness and that the volume is turned up. Also verify that the fader and balance settings are not set to zero.

How do I set the clock?

Press and hold the Clock button (or DISP button, depending on version) until the time digits flash. Use the Volume knob or arrow buttons to adjust hours and minutes, then press Clock again to confirm.

Can I connect a backup camera to this radio?

This model does not have a dedicated video input for a backup camera. An external adapter may be needed.

What is the maximum USB flash drive capacity?

The unit supports USB flash drives up to 32 GB formatted in FAT32.

How do I remove the faceplate for theft prevention?

Press the Release button (usually located on the front panel) and slide the faceplate outward. Store it in the provided case.

The radio display shows 'CODE' after power loss. What do I do?

Enter the four-digit security code using the preset buttons (1-4). If unknown, see the first FAQ about resetting the code.

How do I clean the display and buttons?

Use a soft, lint-free cloth slightly dampened with water. Do not use alcohol, ammonia, or abrasive cleaners.

USER MANUAL SM-CMD3003 SoundMAX

Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future.

Table of contents

Table of contents....2

Important safeguards ....3

Installation/Connections....4

Panel controls 8

General operations....11

Radio operations 13

DVD/CD operations 16

MP3 overview 21

TV tuner operations....23

Bluetooth operations....25

System setup....27

Anti-theft system 30

Handling compact discs....31

Troubleshooting guide 32

Specification 33

Important safeguards

• Read carefully through this manual to familiarize yourself with this high-quality sound system.
• Disconnect the vehicle's negative battery terminal while mounting and connecting the unit.
• When replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse with a higher amperage rating may cause serious damage to the unit.
• DO NOT attempt to disassemble the unit. Laser beams from the optical pickup are dangerous to the eyes.
• Make sure that pins or other foreign objects do not get inside the unit; they may cause malfunctions, or create safety hazards such as electrical shock or laser beam exposure.
• If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.
• DO NOT open covers and do not repair yourself. Consult the dealer or an experienced technician for help.
• Make sure you disconnect the power supply and aerial if you will not be using the system for a long period or during a thunderstorm.
• Make sure you disconnect the power supply if the system appears to be working incorrectly, is making an unusual sound, has a strange smell, has smoke emitting from it or liquids have got inside it. Have a qualified technician check the system.
• The unit is designed for negative terminal of the battery, which is connected to the vehicle metal. Please confirm it before installation.
• Do not allow the speaker wires to be shorted together when the unit is switched on. Otherwise it may overload or burn out the power amplifier.
• Do not install the detachable panel before connecting the wire.
• Do not use the unit in places where it can be exposed to water, moisture and dust.

Installation/ Connections

First complete the electrical connections, and then check them for correctness.

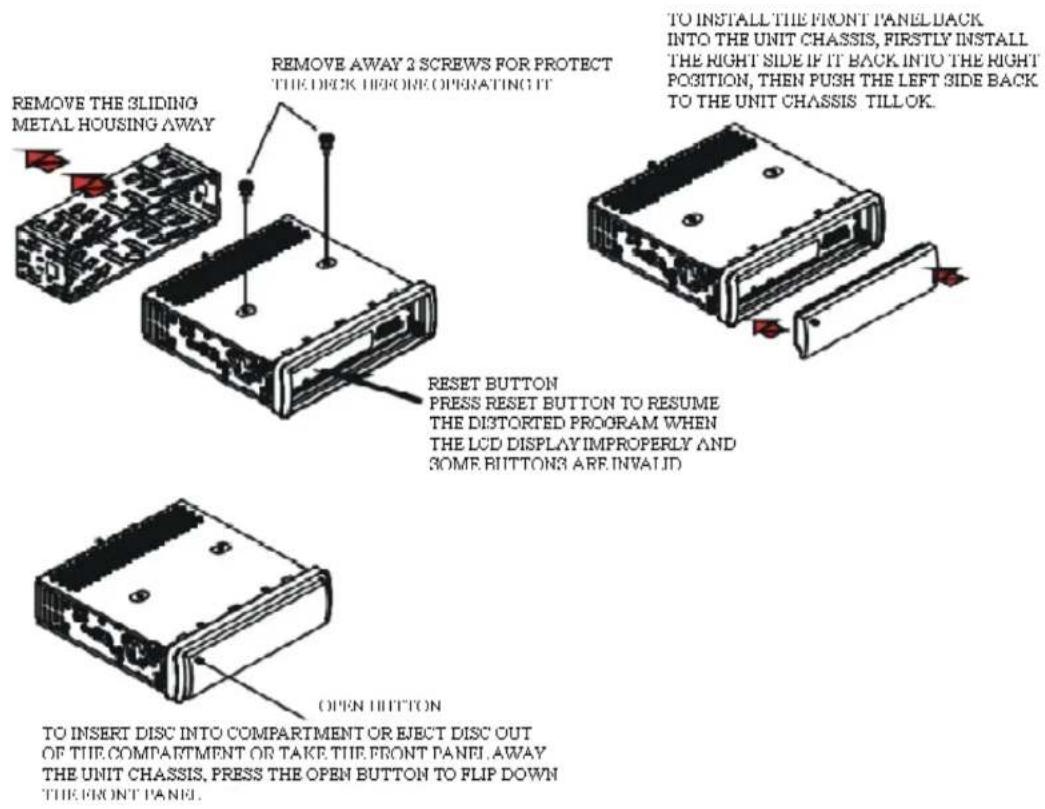

Installation method

It is an anti-theft installation way. The chassis wear a metal sliding housing. Please have the wiring connection of the power supply, speakers and antenna as for the requirement of the manual, and then install the metal sliding housing into the car according to the diagram.

Attaching the control panel

1. Insert the right side of the control panel (pic. 1, A) into the shaft of the main unit (pic. 1, B).
2. Push the panel to the right and insert the left side of it (pic. 2).

Note: the control panel must be attached into the T-Joint.

1. Press the top side of the panel until a heard (pic. 3).

Detaching the front panel

1. Press the REL button on the front panel. The panel will go down.
2. Hold and slide the panel to the left and pull it towards you.

Pic. 3

Caution:

The control panel can easily be damaged by shocks. After removing it, place it in a protective case and be careful not to drop it or subject it to strong shocks.

The rear connector that connects the main unit and the control panel is an extremely important part. Be careful not to damage it by pressing on it with fingernails, pens, screwdrivers, etc.

Note:

If the control panel is dirty, wipe off the dirt with soft, dry cloth only. And use a cotton swab soaked in isopropyl alcohol to clean the socket on the back of the control panel.

Connection diagram

Notes:

• In spite of having any kinds of speaker system, must use 4 ohms impedance of speaker to reduce the distortion during high volume level.
• It is prohibited to make the conductors of auto antenna and ground touch with each other.
• For your driving safety, please link your parking brake wire with low power level, and keep it controlled by manual brake switch. Wire should be high power level and the unit cannot play video disc.

Panel controls

1. PWR button
   Press it to turn the power on. Press again to turn the power off.
2. MENU-VOL knob/SEL button
   Rotate VOLUME knob clockwise to increase the volume level; rotate anticlockwise to decrease the volume level. Briefly press it (the SEL button) to set the volume characteristics. Press and hold it to show the system menu, rotate it to set the item.
3. AMS button (RPT button)
   In RADIO mode briefly press it to start preset station scanning. Press and hold it, the automatic stations searching and saving will start.
   Firstly press it, then press 🐘/µ to select stations.
   During disc playback, press it to active the repeat play function.

4. Infra red sensor

5. 🎨/ 🎨 buttons
   During playback repeatedly press the ⌘/⌘ buttons to go to previous/next track. In RADIO mode press the ⌘/⌘ buttons to search the station manually. Press and hold for 2 seconds to start automatic station searching.

6. PAIR/TA button (loudness/traffic alarm/pair, dial-up, re-dial) Briefly press it to active the TA function. Press and hold it to active LOUD function. During bluetooth, press it to dial-up.
7. REL button
   Press it to flip down the front panel.
8. MOD/MUT button Briefly press it to select the mode: RADIO => DISC (depending on the disc inside the unit) => USB => AUX. Keep pressing it to mute.
9. BND/PLAY/PAUSE/DIAL button In Radio mode press it to select the band. During playback press it to play or pause play. During bluetooth mode, press it to dial.
10. BT/AF button Briefly press it to activate the bluetooth function. Press and hold it to select the corresponding preset modes to adjust the sound quality.
11. LCD (LIQUID CRYSTAL DISPLAY)
12. LOG button During bluetooth mode press it to hang up. During radio mode, press it to select the distant or local station.
13. AUX IN
14. USB socket

Inner panel

1. EJECT button
   Press it to eject the disc.
2. RESET button
   Press to set the unit to initial status.
3. Disc loading slot

Remote control (RC)

1. AF/BT button

2. PWR button

3. GOTO button

4. BAND/TITLE button

5. AMS/MENU button

6. SUB-T button

7. ST/AUDIO BUTTON

8. OSD button

9. PTY/ANGLE button

10. ▶ SLOW button

11. ZOOM button

12. PROG button

13. P/N button

14. VOL +/VOL- buttons

15. MUTE button

16. CLEAR button

17. PAIR/TA button

18. SOURCE button

19. 0\~9 NUMBER buttons

20. ENTER button/CURSOR / / / / buttons / <</ >> FAST

REWINDS/FAST FORWARDS buttons / 📋/

PREVIOUS/ NEXT TRACK buttons

1. SETUP button

2. II PAUSE button

22 ■ STOP button

1. RPT button

2. RDM button

3. SEL button

General operations

Reset the unit

Operating the unit for the first time or after replacing the car battery, you must reset the unit. Press REL button, then press the RESET button to restore the unit to the original factory settings.

Power button

Press the PWR button to switch the unit on. Press and hold it to switch the unit off. Note: After the unit is off, volume level and radio current settings will be memorized, and when you turn the unit on it will resume the stored status you set.

Volume control

Rotate MENU-VOL knob clockwise to increase the volume level; rotate anticlockwise to decrease the volume level. OR press the VOL +/- buttons on the RC to adjust the volume level.

Audio settings adjustment

Press SEL button shortly and repeatedly to select the mode: VOL => BAL => FAD => BAS => TRE. Rotate the MENU-VOL knob or press VOL+/- buttons on the RC to adjust each mode. NOTE: Adjustments to Bass and Treble will override any preset EQ (Preset Equalizer Curves). In each mode, the waiting time is about 3 seconds, and the waiting time is over, it returns to the last display mode of radio or disc playback mode.

Setup menu

1. Press and hold for 2 seconds the SEL button on the panel to enter the setup menu.
2. Rotate the MENU-VOL knob to select the setting: AUDIO => VIDEO => SOURCE SEL => PREFERENCE => EXIT.
   • Audio settings: you can adjust: Balance, Fader, Bass, Treble, Equalizer, Loudness, Back.
   • Video settings: you can adjust: Bright, Contrast, Color, Hue, Wide, Default, Back.
   • Source select: you can select: Radio, USB, DVD, AUX, Back.
   • Preference settings: you can adjust: Clock system, Clock adjustment, Key beep, Back.
3. Briefly repeatedly press SEL button (volume regulator) on the panel or ENTER on the RC to open the setting adjustment window.

4. Rotate the MENU-VOL knob or press ▲/▼ buttons on the RC to adjust the setting.

5. Press SEL or ENTER to confirm.

6. Select BACK to return to settings list.
7. Select EXIT to exit settings list window.

Mode selection

Press the SOURCE button on the RC or briefly press MOD/MUT button on the panel to select the mode: RADIO => DISC (depending on the disc inside the unit) (if it is inserted into the unit) => TV => AUX.

Mute function

Press the MUTE button on the RC or press and hold the MOD/MUT button on the panel to turn off the sound. Press again to resume.

Turning loudness ON/OFF

Press PAIR/TA button to active the function. "LOUD ON" appears. Press again to switch off this function.

Clear

Press CLEAR to clear the mistake input.

Display mode

Press and hold ZOOM button during video playback to select 4:3 (Normal) display mode. Press and hold it again to select 16:9 (Wide) mode.

TV type select

Press the P/N button on the RC to select the TV type: PAL, NTSC, AUTO.

Force disc out

During playback, when a disc was locked or cannot be ejected, press MOD/MUT on the head unit, hold and press the EJECT button for 3 seconds, and disc will be forced out.

Radio operations

Note: RDS (Radio Data System) service availability varies with areas. Please understand if RDS service is not available in you area, the following service is not available, either.

BAND selection

Repeatedly press the BAND/TITLE button on the RC or BND/PLAY/PAUSE/DIAL on the panel to select your desired radio band during RADIO mode: FM1, FM2, FM3, FM4 (OIRT), AM1, AM2.

Auto/Manual tuning

- Manual tuning: Briefly press the «/» buttons shortly to select a station downward or upward step by step.

Automatic tuning: Press the «/» buttons and hold for 3 seconds, the automatic search downward or upward will start. It will play when finds the station.

Programming tuner stations

You can store up to a total of 36 radio stations in the memory (24 FM, 12 AM), manually or automatically.

- To store a station:

- Select a band (if needed).

Select a station.

- Hold a Preset button (1-6) which you want store the station for at least 2 seconds.

- To recall a station:

- Select a band (if needed).

Press the number 1\~6 buttons or ▲/▼ buttons to recall the stored station.

Selecting station directly

Press √GOTO button, the monitor shows "FR". Input the frequency number to receive the station.

Auto memory store

Select a band. Press and hold AMS button to enter auto store mode. The radio will automatically store 6 stations to the 6 preset memories of the current band. To stop auto store, press it again.

Preset scan

Select a band. Press AMS button to scan all preset stations in the memories of the current band and stay on each memory stations for about 7 seconds. To stop preset scan, press the button again.

Number Buttons

During radio mode, number buttons from 1 to 6 can help you store your favorite station. You can follow the Steps below:

When receiving a station, press and hold any Number Button until CH appears on the LCD, which indicates that station is already stored in the corresponding number button. You can store up to 24 FM stations (6 each for FM1, FM2, FM3, FM4), up to 12 AM stations (6 each for AM1/MW and AM2/LW).

Radio setup menu

1. During Radio mode press the SETUP button on the RC to enter the setup menu.
2. Press the ▲▼ buttons to select the desired mode: Stereo => Local => RDS AF => RDS TA => Region => RT scroll => TA volume => Exit.
   • Stereo: you can select: ON, OFF.
3. Local: you can select: ON, OFF.
   • BDS AF: you can select: AF ON, AF OFF.
   • BDS TA: you can select: TA ON, TA OFF.
   • Region: you can select: BEG ON, BEG OFF
4. BT scroll: you can select: SLOW, NORMAL, FAST
   • TA volume: you can select: LOW, NORMAL, HIGH
5. Press ENTER to open the mode settings list
6. Press ENTER to open the mode settings list.
7. Press ▲/▼ buttons to select the setting.
8. Press ENTER to confirm the setting.
9. Select EXIT to exit settings list window.

Stereo/Mono mode

Press the ST/AUDIO button repeatedly on the RC to select Stereo or Mono mode.

Local/ Distant mode

Press the ☑/SUB-T button on RC or LOC button on the panel to select Local or Distant (DX) tuning mode. Local mode improves reception in some areas where the signal is too strong.

TA (Traffic Alarm) function

• Briefly press the PAIR/TA button to turn on or turn off the TA function.
• When TA is enabled (on), the tuner starts searching the traffic announcement.

AF (Alternative Frequencies) function

Briefly press the BT/AF button to turn on or turn off the AF function.

The RDS program will be automatically searched and received. The unit will search another frequency with this RDS program.

Default setting is ON.

PTY (Program Type) function

1. In RADIO mode press the OSD button to enable activating PTY function.
2. Briefly press PTY/ANGLE button on the RC to activate the PTY function and select the program type group by using cursor buttons: NONE => NEWS => ALARM => OTHER M => CLASSIC => LIGHT M => EASY M => ROCK => POP => VARIED => SCIENCE => CULTURE => DRAMA => EDUCATE => SPORT => INFO => AFFAIRS.
3. When the program type is selected press and hold PTY/ANGLE to start PTY searching or searching automatically after 3 seconds.
4. Press PTY/ANGLE button again to switch the PTY function off.

On-screen display

Briefly press the OSD button on the RC to show the RDS menu, press and hold it to display the current mode information.

DVD/ CD operations

Disc glossary

PBC (PlayBack Control)

PBC is a menu recorded on the disc with SVCD or VCD2.0 format. For the discs contained PBC, it can playback interactive software with the menu displayed on TV. And if the disc contains still images, it can playback high definition of still image.

Title

The title is the important part of DVD disc. The memory volume of the disc is rather big, that makes possible to record several films on one disc. For example, if a disc contains three films, they may be divided into Title 1, Title 2 and Title 3. You can easy use the functions of looking-for.

Chapter

A title can be divided into several blocks, so that every block can be operated as a unit, the unit is called chapter. The chapter contains a unit at least.

Track

It is the biggest component of VCD. Generally, every song of karaoke disc is a track.

Discs for playback

• This unit can play disc types: CD/DVD/DVD±R/±RW/CD-R/-RW.
• Compatible with formats: DVD/SVCD/VCD/HDCD/MP3/WMA/CDDA/JPEG/MPEG4/DivX playback.
• The following file types are supported:

Audio files: MP3 (*.mp3)

WMA (*.wma)

Video files: MPEG 2(*.vob)

MPEG 1(*.dat)

Picture file: JPEG (*.jpg)

• ISO 9660 or ISO 9660 + Joliet format - Max. 30 characters.
• Supported sampling frequency for MP3 disc: 8 KHz – 48 KHz (44.1 KHz preferably).
• Supported bit-rates of MP3 disc are: 32 - 320 kbps (128 kbps preferably)
• Following formats are NOT supported *.ACC, *.DLF, *.M3U, *.PLS, MP3 PRO, files with DRM.
• Open session discs are NOT supported.

Inserting the USB device

Insert the USB device into USB jack. Then the playing mode will be changed into USB mode.

The first USB device track playback will start.

Note:

USB functions (flash memory type) MP3 music play
• FAT 12/FAT 16/FAT 32 is possible.
- FAT 12/16 (dir: 200 support, file: 500 support),
- FAT 32 (dir: 200 support, file: 500 support).
- Filename: 32 byte/Dir name: 32byte.
• Tag (id3tag ver2.0)
- Title/Artist/Album: 32 byte support.
• USB format supports 2.0. Capacity: 8 MB \~ 1 Gb.

Loading/eject a disc

- Press the REL button on the panel. Insert the disc with the printed side facing upward into the slot.

Press EJECT button to eject the disc.

Playing/ pausing playback

- When the disc is in the playback will start automatically. Or you can press the SOURCE button to start playback. To ensure good system performance, wait until the unit finishes reading the disc information before proceeding.

- Press the BND/PLAY/PAUSE/DIAL button to pause the playback. Press again to resume the playback.

Stop playback

During MP3/MPEG-4/USB mode, press STOP button on the RC to stop the playback. Press it again to resume the playback.

During VCD/CD mode, press STOP button to pause playing, press BND/PLAY/PAUSE/DIAL to play, and press STOP button twice to stop playing completely.

Using the number buttons

Press the number buttons to insert the track/chapter number.

Select a track by using Number buttons 0\~9. The selected track will be played automatically.

Playing the previous/ next track

During DVD playback, press ≈ to replay the current track, press and hold ≈ within 3 seconds to play the previous track, press ≈ to play the next track.

During MP3/USB playback, press the ▲/▼ buttons to play the previous/next track.

During VCD/CD/MPEG-4 playback, press the 📋 button to replay the current track, press 📋 button within 3 seconds to play the previous track, press the 📋 button to play the next track.

Fast forward and backward playback

Press the «/» buttons on the RC to fast the playing in backward or forward direction as follows: X2 => X4 => X8 => X16.

Slow playback

During playback press SLOW on the RC to start slow forward or backward playback.

The change is a following: 1/2 => 1/4 => 1/8.

Repeat playback

During disc playback, press the RPT button on the RC or AMS button on the panel to repeat the current track/chapter playback: Chapter => Title => Off.

Random playback

During disc playback, press the RDM button on the RC to start random playback of the tracks. Press again to cancel.

Changing angle (for DVD only)

If DVD disc supports multi-angle playback, press the PTY/ANGLE button on the RC to playback images in different camera angles. If discs doesn't support multi-angle playback, this function will not work.

Selecting audio languages (for DVD only)

During DVD disc playback press ST/AUDIO button on RC repeatedly to select the audio language to listen (if the disc supports multi-language mode).

Selecting the channel (for VCD only)

During VCD disc playback repeatedly press the ST/AUDIO button on the RC to select the channel: Left => Right => Stereo.

Selecting subtitle language (for DVD only)

Subtitle language is in disc initiation setting during playback. If DVD disc supports multi-subtitle playback, press the 📄/SUB-T button on the RC repeatedly to switch among languages.

Changing size (for DVD/ VCD)

During playback press the ZOOM button on the RC. The picture will be enlarged accordingly: X2 => X3 => X4 => Normal. When the picture is enlarged use the cursor buttons to see the whole picture.

OSD (OnScreen Display) function

Press the OSD button on the RC repeatedly to show the current track/chapter, current time on the display. Press and hold this button to display the current mode information.

Title playing (for DVD only)

- During DVD mode, press BAND/TITLE button on the panel to activate the disc title list on the screen. - Press the ▲/▼/◄/►/ENTER buttons and Number buttons on the RC to select the desired title.

PBC (Playback Control) function (for VCD only).

If you insert a VCD with PBC, playback starts from the beginning of the 1st track automatically.

1. If the menu consists a list of titles, you can select a desired one using the Number buttons on the RC or digit buttons.
2. The VCD starts playing the selected title automatically or press BND/PLAY/PAUSE/DIAL button to confirm the selected track for playback.
3. Press PBC again to exit menu.

GOTO function

1. During the DVD/VCD playback press the GOTO button on the RC to enter the menu.
2. Press the ▲/▼/◀/▶ buttons to select the desired item: Track => Disc time => Track time => Repeat => Time disp.

3. Press ENTER to highlight the item.

4. Then press Number buttons to input the desired track/chapter number (or use the ▲/▼ buttons to select the setting for Audio or Subtitle mode).

5. After the number is inserted the playback from this chapter/title starts automatically in small window.
6. Press GOTO to start playback in normal window.

Program playing (for VCD/ CD only)

During playback press the PROG button on the RC to open the program menu. Press the Number buttons to select the track number and then press ◀/▶/▲/▼ buttons to move the cursor to START.

Press ENTER to start program playing; move the cursor to EXIT and press ENTER to exit the program playing. Move the cursor to ⌘ and press ENTER to the last page; move the cursor to ⌘ and press ENTER to the next page. To cancel the program playing press STOP button.

Audio/Video/Picture file operations

Insert the CD with mixed files (.mp3, .jpeg, .wma, .mpeg4 files). Category/ Folder/ File list will be displayed on the screen, and file/folder name being played will be displayed on top. Current selected item will be highlighted.

MP3 overview

Notes on MP3

• MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard.
• This product allows playback of MP3 files on CD-ROM, CD-R or CD-RW discs.
• The unit can read MP3 files written in the format compliant with ISO 9660. However it does not support the MP3 data written by the method of packet write.
• The unit can not read an MP3 file that has a file extension other than “.mp3”.
• If you play a non-MP3 file that has the ".mp3" extension, you may hear some noise.
• In this manual, we refer to what are called "MP3 file" and "folder" in PC terminology as "track" and "album", respectively.
• Maximum number of directory level is 8, including the root directory. Maximum number of files and folders per disc is 256.
• The unit may not play tracks in the order of Track numbers.
• The unit plays only the audio tracks if a disc contains both audio tracks and MP3 files.
• When playing a disc of 8 kbps or "VBR", the elapsed playing time in the display window will not be correct and also the intro play may not function properly. "VBR": Variable Bit Rate.

Notes on creating your own CD-Rs or CD-RWs containing MP3 files

• To enjoy high quality sound, we recommend converting to MP3 files with a sampling frequency of 44.1 kHz and a fixed bit rate of 128 kbps.
• DO NOT store more than 256 MP3 files per disc.
• For ISO 9660 - compliant format, the maximum allowable depth of nested folders is 8, including the root directory (folder).
• When CD-R disc is used, playback is possible only for discs, which have been finalized.
• Make sure that when MP3 CD-R or CD-RW is burned that it is formatted as a data disc and NOT as an audio disc.
• You should not write non-MP3 files or unneeded folders along with MP3 files on the disc otherwise it takes a long time until the unit starts to play MP3 files.
• With some CD-R or CD-RW media, data may not be properly written depending on their manufacturing quality. In this case, data may not be reproduced correctly. High quality CD-R or CD-RW disc is recommended.
• Up to 16 characters are displayed for the name of an Album or a Track. ID3TAG version 1.x is required. Note that the unit may not play Tracks in the order that you wrote them to the disc.

TV tuner operations

Press MOD/MUT button several times to turn on activate TV source.

Selecting channel

1. Press numeric buttons from 1-9 on RC to select the needed channel.

Press repeatedly two numeric buttons if you want to select 10 to 29 channels.

1. Or press /GOTO button and then two numeric buttons to select a channel.

2. Press ▲/▼ buttons on the RC to select channels.

Note: This function can only be operated by the RC.

Manual channel adjusting

Press repeatedly ▶/▶ buttons on the RC or ≈/≈ buttons on the unit to adjust the channels.

Auto channel adjusting

Press and hold ◀/▶ buttons on the RC or ⏻/▶ buttons on the unit to adjust the channels.

Briefly press SETUP button on RC or press VOL knob on the unit to open TV setup menu and press cursor buttons on RC or rotate VOL knob on the unit to select needed items, then press ENTER button on the RC or VOL knob on the unit to confirm.

Press ◀ button to exit submenu and select EXIT and press ENTER button on the RC or VOL knob on the unit to exit the menu.

System

Antenna select

Press ▲/▼ buttons to select right or left antenna, then press ENTER button.
Note: Press and hold OSD button it to show the current source.

Bluetooth operations

Using a Bluetooth Wireless Connection

The device can be dialed wirelessly in bluetooth status. Before using the bluetooth function, please turn on your cellphone bluetooth function.

Note: Bluetooth ver2.0 compliant.

Pairing Unit and Bluetooth Phone

The device supports hands-free profile, headset profile, A2DP (Audio Advanced Distribution profile) and AVRCP (Audio Video Remote Control profile). Follow the pairing instruction for the first time use, after that the unit will connect automatically.

Pairing in Handsfree Mode

1. Press BT/AF to activate bluetooth function, the icon will be displayed.
2. Press PAIR/TA, and PAIRING will be displayed.
3. If the cellphone has connected, will be displayed, then PAIRS and SLC CONNECT will be displayed in order.

Cellphone Pairing Mode

1. Browse your cellphone menu and find the connectivity or bluetooth connection section.
2. Select search for a new hands-free device function and allow the phone to find the unit. (Different cellphone has different bluetooth menu, please refer to your phone manual.)
3. When CAR A/ V DEVICE appears, select this item. (If it cannot be connected, please refer to mobile manual, and connect it again.)
4. Enter the password; the password is 1234.
5. Press the connect with the hands-free option on your cellphone, and SLC CONNECT will be displayed.

Bluetooth Connection and Disconnection

When established bluetooth connection between this unit and the cellphone, ⚠ icon will be displayed.

Press BT/AF to turn off bluetooth connection, and will disappear.

Press BT/AF, ⚙ icon will be displayed, then press PAIR/TA button to paring, display shows ⚙ icon, when bluetooth connected; display shows PAIRF-TIMEOUT, when bluetooth disconnected.

Using the Unit as a Hands-free Device

When the unit is ringing, then it appears call from and the phone number ID ***** on the dialing.

To accept call: Press √/GOTO button to answer a call, PICK UP will be displayed.

To reject call: Press ☐/LOC button to reject a call, REJECT CALL will be displayed, then HANG UP will be displayed.

To end call: Press ☐/LOC button to end call, HANG UP will be displayed.

Note

Some of cellphones do not support reject call during bluetooth mode.

Press √/GOTO and √/LOC buttons on the unit performs the same function.

- PROG and RPT buttons on the RC are the * and # respectively.

Last Number Dialing

Press and hold PAIR TA button, last call number will be displayed, then REDIAL will be displayed, and then PICK UP appears on the display during conversation.

To Dial by Cellphone

1. The unit is activated automatically when you make a call by cellphone, and DIAL NUMOK is displayed.

2. When you receive a call, PICK UP is displayed.

To Dial by the Unit

When cellphone is connected, press PAIR/TA button, and PLEASE INPUT PHONE NUMBER is displayed, input the number by pressing number buttons, then press PAIR/TA button again to dial. DIAL NUMOK is displayed, when the call is pick up, and PICK UP is displayed.

Note: Press CLEAR button to delete wrong inputs. Pressing PAIR/TA button on the unit also performs the same function.

Using the Unit as Bluetooth Music

In bluetooth mode, the music on the cellphone switch to the unit for play.

To select music fast: press 🎉 button to play the previous track, press 🔊 button to play the next one.

Pause play: press PAUSE button to pause play.

Stop play: press STOP button to stop play, and press the ENTER button to play the current track again.

Notes:

- Press 🎨/ 🎨 buttons on the head unit to select tracks fast.

Press ∼/GOTO button on the head unit to pause play.

- Stop play is operated by using the RC only.

System setup

1. Press and hold SETUP button on the RC to enter the setup menu. In Setup mode, press SETUP key again to quit the setup page.
2. Use the ◀▶ buttons to choose the setup page: General page, Dolby setup, Preference page, Exit.
3. Press the ▼ button to enter the setup page selected.
4. Use the ▲ and ▼ buttons to select the option you want to adjust.
5. Press ▶ to enter the adjustment list. Use the ▲ and ▼ buttons to select the adjustment and press ENTER or ◀ to confirm and return to options list.
6. To return to setup page list press the ◀ button in the options list.
   Note: The setup is memorized and kept after power off.

General setup page

• TV DISPLAY

Normal/ PS: When the unit connects to the normal TV set, the wide-screen image shows on the full screen, but some part is cut off (4:3). Normal/ LB: When the unit connects to the normal TV set, the wide-screen image shows and black bars appear on the top and bottom of screen (4:3).

Wide: Use this item when the unit is connected with the wide screen (16:9) TV set.

	ITEM
	1	2	3
GENERAL SETUP PAGE
TV DISPLAY	WIDE
ANGLE MARK	ON
OSD LANG	ENG
CAPTIONS	ON
SCREEN SAVER	ON

• ANGLE MARK

It will show the angle mark when playing DVD disc with multi-angle view if selecting On.

- OSD LANG

Select on-screen display language.

CAPTIONS

This function doesn't work when the disc without caption. If the caption is Off, press SUBTITLE key on the RC to make caption on. The default setup is On.

• SCREEN SAVER

If the Screen saver is set On and the unit is switched on without a disc playing for 3 minutes, a moving picture appears on the screen.

Dolby digital setup

• DUAL MONO

Choose the mode of the audio output:

Set stereo: choose this setting, when 5.1-channel sound playing, two channels of signals will be output from the left and right soundtrack; when 2-channel sound playing, stereo signal will be output.

Left mono: the signal will be output from the left speaker.

Right mono: the signal will be output from the right speaker.

Mixed mono: the signal from one channel will be output from left and right speakers.

• DYNAMIC

If adjusting to FULL, the audio signal peak value will be the minimum.

While adjusting to OFF - maximum.

Use the ▲.▼ button to move the scroll and adjust the dynamic range.

Preference setup

• TV TYPE

This unit is suitable for all kinds of TV systems. You can select one of the PAL, NTSC or Multi.

Auto: the TV system is auto switched according to the disc system.

NTSC: this system is used in USA, Taiwan, Japan etc.

PAL: this system is used in China, Europe, Hong Kong etc.

• AUDIO, SUBTITLE, DISC MENU

Set the desired languages for all the settings. If a setting is supported by disc content, it will work. Otherwise the disc default value works. You also can press the ST/AUDIO button on the RC to select the audio language. Press the 📄/SUB-T button on the RC to select the subtitle language.

• PARENTAL

The control level is for parental to control playing content and protect your children from violence and erotic. The disc, the level of which is higher than the setting level can not be played.

Set the control level:

(1) with the least limits when playing.

(8) with the most limits when playing.

Original setting: OFF.

Note: The rating can be selected only under the Password unlocked status, and the limits can be

worked only under the password locked status.

- PASSWORD

The password option is initialized as locked, and you cannot set the ratings limit or change the password. In order to the Parental feature works, the password mode must be turned on. If you want to set the ratings limit, you will need to enter the default password, which is 8888, then press ENTER to confirm. To change the password, enter the Password change submenu. Use the cursor buttons to select the desired field. In the Old password field insert the old password or 8888 (If you change the password, the default password 8888 cannot be used).

In New password field insert the new password.

Insert it again in Confirm password field.

Press ENTER to save the new password.

- DEFAULT

Reset to the initial factory setups.

Exit

Select the Exit page to exit the Setup menu.

Anti-theft system

This unit is equipped with a slide-down detachable and mask panel. Panel can be detached and taken with you, helping to deter theft.

Detaching the front panel

1. Press the PWR button to turn the power off.
2. Press the REL button on the front panel. The panel will go down.
3. Push the panel to the right and pull it towards you.
4. Place the panel into the case and take it with you when you leave the car.

Attaching the control panel

1. Insert the right side of the control panel into the shaft of the main unit.
   Note: the control panel must be attached into the T-Joint.
2. Push the panel to the right and insert the left side.
3. Press the top side of the panel until a "click" sound is heard.

Remove the unit

1. Remove the panel and the trim plate.
2. Insert both T-Keys into hole in front of the set until they lock.
3. Pull out the unit.

Handling compact discs

Dirty, scratched or warped discs may cause skip ping or noise.

Handle the disc only by the edges. To keep clean do not touch its surface.

Discs should be stored in their cases after use to avoid scratches.

Do not expose discs to direct sunlight, high humidity, high temperature or dust.

Prolonged exposure to extreme temperature can wrap the disc (such as leaving the discs in your car during summertime).

Do not stick or write anything on either side of disc. Sharp writing instruments, or the inks used in some felt-tip pens, may damage its surface.

DO NOT touch the unlabeled side. DO NOT attach any seal, label or data protection sheet to either side of a disc.

This unit cannot play 3-inch (8 cm) CDs.

Never insert a 3-inch CD contained in the adapter or an irregularly shaped CD. The unit may not be able to eject it, resulting in a malfunction.

Cleaning

1. Cleaning the cabinet

Wipe with a soft cloth. If the cabinet is very dampen (not dropping wet) the cloth with a weak solution of soapy water, and then wipe clean.

2. Cleaning discs

Fingerprints should be carefully wiped from the surface of disc with a soft cloth. Unlike conventional records, compact discs have no grooves to collect dust and macroscopic dirt, so gently wiping them with a soft cloth should remove must panicles. Wipe in a straight motion from the center to the edge.

Never use thinner benzine, record cleaner or anti static spray on a compact disc. Such chemicals can damage its plastic surface.

Troubleshooting guide

Symptom Cause Solution
GeneralNo power	The car ignition is not on.The fuse is blown.	If the power supply is properly connected to the car accessory switch the ignition key to "ACC".Replace the fuse.
DiscDisc cannot be loaded.	Presence of CD disc inside the player.	Remove the disc in the player then put a new upward.
Disc cannot be read.	Inserting the disc in upside down.Compact disc is extremely dirty or defective.Temperature inside the car is too high.	Insert the compact disc with the label facing upward.Clean the disc or try to play a new one.Cool off until the ambient temperature returns to normal.
No sound Volume is	in minimum.Wiring is not properly connected.	Adjust volume to a desired level.Check wiring connection.
The operation keys do not work.	The built-in microcomputer is not operating properly due to noise.Front panel is not properly fix into its place.	Press the RESET button.Reinstall the front panel.
Sound skips. The inst	stallation angle is more than 30 degrees.The disc is extremely dirty or defective.	Adjust the installation angle to less than 30 degrees.Clean the compact disc/try to play a new one.
The radio does not work,the radio station automatic selection does not work.	The antenna cable is not connected the signals are too weak.	Insert the antenna cable firmly select a station manually.

Specification

General
Power supply	12 V DC
Maximum power output	50 W x 4 channels
Dimensions (L x W x H)	192 x 178 x 50 mm
DSP:	Classic, Pop, Rock, Flat
FM stereo radio
Frequency range	65.0 - 74.0/87.5 - 108.0 MHz
Usable sensitivity	10 μV
Preset memory	24
AM Section
Frequency range	522 kHz-1620 kHz
Usable sensitivity	35 dB
Preset memory	12
Disc player
System:	Compact disc audio system
Usable disc:	DVD± R/ ± RW CD-R/-RW
Usable formats:	DVD/SVCD/VCD/HDCD/MP3/WMA/CDDA/JPEG/MPEG4/DivX
Frequency characteristics:	5 Hz - 20 kHz
Signal to noise CD:	60 dB
Number of channels:	2 stereo
Bluetooth
Bluetooth version	MM310
Compliance	Bluetooth 1.2
Working distance	Up to 10 m
On board flash memory	8 Mb
Supported profiles	A2DP/Headset/Handsfree/AVRCP

Specifications are subject to change without notice. Mass and dimension are approximate.

КНОПКА ОТКРЫВАНИЯ

Примечания:
