XPW2UTRAVEL - Travel adapter Hamlet - Free user manual and instructions

Product Type	Travel Power Adapter / USB Charger
Brand	Hamlet
Model	XPW2UTRAVEL
Dimensions	7.5 x 5.5 x 3.0 cm
Weight	120 g
Input Voltage	100-240V AC, 50/60 Hz
Output	USB: 5V / 2.4A (total)
Number of USB Ports	2
Plug Types	US, EU, UK, AU (interchangeable)
Key Features	Surge protection, compact design, travel friendly
Cleaning Instructions	Wipe with a soft, dry cloth
Safety Certifications	CE, RoHS
Overload Protection	Yes
Short Circuit Protection	Yes
Operating Temperature	0°C to 40°C
Spare Parts Availability	Not applicable
Warranty	2 years (standard)

Frequently Asked Questions - XPW2UTRAVEL Hamlet

What is the Hamlet XPW2UTRAVEL?

The Hamlet XPW2UTRAVEL is a travel power adapter with dual USB ports, designed for charging devices worldwide.

What plug types are included?

It includes interchangeable plugs for US, EU, UK, and AU outlets, covering most countries.

What is the maximum output current?

The total output is 5V / 2.4A, shared between two USB ports.

Can I use it with my laptop?

No, this adapter is designed for low-power devices like smartphones and tablets, not laptops.
It provides up to 12W total.

Is it compatible with fast charging?

It supports standard USB charging but not Qualcomm Quick Charge or USB-PD fast charging protocols.

Does it have surge protection?

Yes, it includes surge protection to safeguard your devices against voltage spikes.

How do I clean the adapter?

Unplug it and wipe with a soft, dry cloth. Do not use liquids or abrasives.

What safety certifications does it have?

It is CE and RoHS certified, meeting European safety and environmental standards.

Can I use it in any country?

Yes, as long as the local voltage is between 100-240V AC. The interchangeable plugs allow physical compatibility.

What is the warranty period?

The standard warranty is 2 years from the date of purchase, covering manufacturing defects.

USER MANUAL XPW2UTRAVEL Hamlet

Black and white photo of a black WTR switch device (no visible text or symbols)

Multi-nation Plug & Wall Outlet

+ Usb Charger 2 x 2100 mA

Black and white photo of a black wired UK-style pl》，无 visible text or symbols on the device body.

User Manual
XPW2UTRAVEL_FC

www.hamletcom.com

Introduction

Hamlet Travel Adapter is an innovative travel adapter that allows you to safely connect your devices in over 150 countries around the world using a system of removable plugs compatible with Europe, Britain, USA, Australia, New Zealand and China. Hamlet Travel Adapter is also equipped with two powerful 2100 mA USB ports ideal for charging smartphones, tablets, cameras, etc.

Features

• Universal 110/230VAC adapter + USB charger
- Multiple plugs to fit wall outlets in more than 150 countries
- Dual USB charger: 5VDC, 2100mA max.
- Compatible with iPad, iPhone, iPod, mobile phone, mp3, gps
• Built-in 8A fuse for overload protection
• Power rating: 100-240VAC 8A max.
(830W max. at 110VAC, 1750W max. at 230VAC)
• Built-in child safety shutters
• LED power indicator

Caution

Before use, please read this instruction carefully.

- Never use the adapter if the casing is damaged.

- This product does not convert voltage; in order to avoid possible damage to your device or other safety hazards, please make sure the power outlet you intend to use has the proper voltage to run your device BEFORE using this adapter.

• Each country has its own regulations regarding the use of travel adapters, please check in each country before use.

- Indoor use only.

- Never expose the adapter to liquids or moisture.

- Keep the adapter out of the reach of children.

- The manufacturer refuses any liability for damages to people or things due to the improper use of the adapter.

Dear Customer,

thanks for choosing an Hamlet product. Please carefully follow the instructions for its use and maintenance and, once this item has run its life span, we kindly ask You to dispose of it in an environmentally friendly way, by putting it in the separate bins for electrical/electronic waste, or to bring it back to your retailer who will collect it for free.

We inform You this product is manufactured with materials and components in compliance with RoHS Directive 2011/65/EU, WEEE Directive 2002/96/CE, 2003/108/CE Italian Legislative Decree 2005/151 and EMC 2014/30/EU, LVD 2014/35/EU Directives for the following standards:

EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011

+ A2: 2013

EN 55032: 2015 / AC: 2016-07

EN 55035: 2017

EN 61000-3-2: 2014

EN 61000-3-3: 2013

The complete CE declaration of conformity of the product can be obtained by contacting Hamlet at [e-mail].

Visit www.hamletcom.com for complete information on Hamlet products and to access downloads and technical support.

Imported by: CARECA ITALIA SPA - Scandiano (RE) . Italy

All trademarks and company names mentioned in this manual are used for description purpose only and remain property of their respective owners.

The material in this document is for information only. Contents, specifications and appearance of the product are indicative and may change without notice.

Instructions for use

Before use, please ensure that each plug must be in backward position.

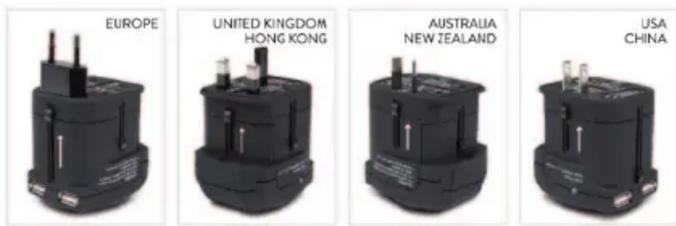

1. Press and slide forward the button to push out the plug corresponding to the required country.
2. Plug the adapter into the wall outlet.
   When the adapter is plugged into the wall socket, the LED indicator lights up to indicate the presence of voltage and operation of the power outlet and USB ports.
3. Connect the device plug or charger to the adapter.

N.B. The adapter is equipped with a fuse (8A) to protect the connected equipment from current overload.

WARNING

• This product does not convert voltage.
- No grounding. This product is for use with unearthed or double-insulated appliance only.
- This product may not work with certain high power appliances such as hair dryers that requires more than 6.3A.
- Disconnect the adapter from the mains when not in use.

USB ports location LED indicator position
