Product Type	3-Light LED Fresnel Kit (Stryder SFB150-3PT-KIT)
Brand	Ikan
Model	SFB150-3PT-KIT
Included Items	3x Stryder 150W Fresnel Lights, 3x Controller Boxes with V-Mount Plate, 3x Cables (6ft), 3x Barn Doors, 3x Yoke w/ Baby 5/8" Adapter, 3x Power Adapters, 3x Light Stands, 1x Light Stand Bag, 1x Rolling Hard Case
Light Source (per fixture)	1 x 150W LED Bi-Color
Color Temperature Range	3200K - 5600K
Beam Angle Range	30° - 65°
Dimming Range	0 - 100% (in 5% increments)
Dimming Control	Onboard knob and DMX (flicker-free)
Focusing Method	Manual push focus
Cooling System	Fanless passive cooling
Control Protocol	DMX In/Out and local knob controls
Power Consumption (per fixture)	98W
Power Input	110-240VAC
Power Output (to light fixture)	12V @ 12.5A (from controller)
Lens Type	4" Acrylic Fresnel
Build Material	Aluminum
Yoke Type	Baby 5/8" (with adapter)
Battery Plate	V-Mount (on controller box)
Safety Features	Barn door locking pins, stable base required
Maintenance	Place on stable dry surface; avoid high humidity, sunlight, and explosive gases; do not cover vent; do not disassemble; store in cool dry place
Warranty	1 year free service for manufacturing defects (conditions apply)
Accessories (optional)	HD-STND-V2 Heavy Duty Light Stand, KCP-703 Stage Clamp w/ 16mm Stud, SW-04 Safety Wire
Support Contact	[e-mail]

Frequently Asked Questions - SFB150-3PT-KIT Ikan

What is included in the SFB150-3PT-KIT?

The kit includes 3x Stryder 150W Fresnel lights, 3x controller boxes with V-Mount plates, 3x cables (6ft), 3x barn doors, 3x yokes with Baby 5/8" adapter, 3x power adapters, 3x light stands, a light stand bag, and a rolling hard case.

Can I power the light with a V-Mount battery?

Yes, each controller box has a V-Mount battery plate allowing use of compatible V-Mount batteries for portable operation. This provides flexibility for locations without AC power.

How do I control the light via DMX?

The fixture has DMX In and Out ports. Connect a DMX controller to the DMX Input, set the DMX channel using the adjustment knob, and control intensity and color temperature remotely. Multiple units can be daisy-chained.

What is the beam angle range?

The beam angle is adjustable from 30° (spot) to 65° (flood) using the focusing knob, giving you versatility in light spread.

How do I adjust the focus?

To adjust focus, rotate the focusing knob (labeled L on the fixture) to push the Fresnel lens forward or backward. This changes the beam angle between 30° and 65°.

Is the light completely silent?

Yes, the Stryder SFB150 uses fanless passive cooling, so it operates silently, making it ideal for studio recording and quiet environments.

How do I attach the barn doors?

Align the barn door frame with the front of the light and secure it using the barn door locking pins (labeled J). The barn doors can be rotated and adjusted to shape the light output.

What is the warranty coverage?

The product comes with a 1-year warranty covering manufacturing defects. The warranty does not cover damage from misuse, unauthorized disassembly, or natural disasters. Contact [e-mail] for service.

Can I use gel filters with this light?

Yes, the fixture is compatible with traditional gel rings. You can attach gel filters to modify the color temperature or create effects.

How should I clean the Fresnel lens?

Use a soft, dry cloth to gently wipe the lens. Avoid abrasive cleaners or liquids that could damage the acrylic. Keep the lens free of dust for optimal light output.

USER MANUAL SFB150-3PT-KIT Ikan

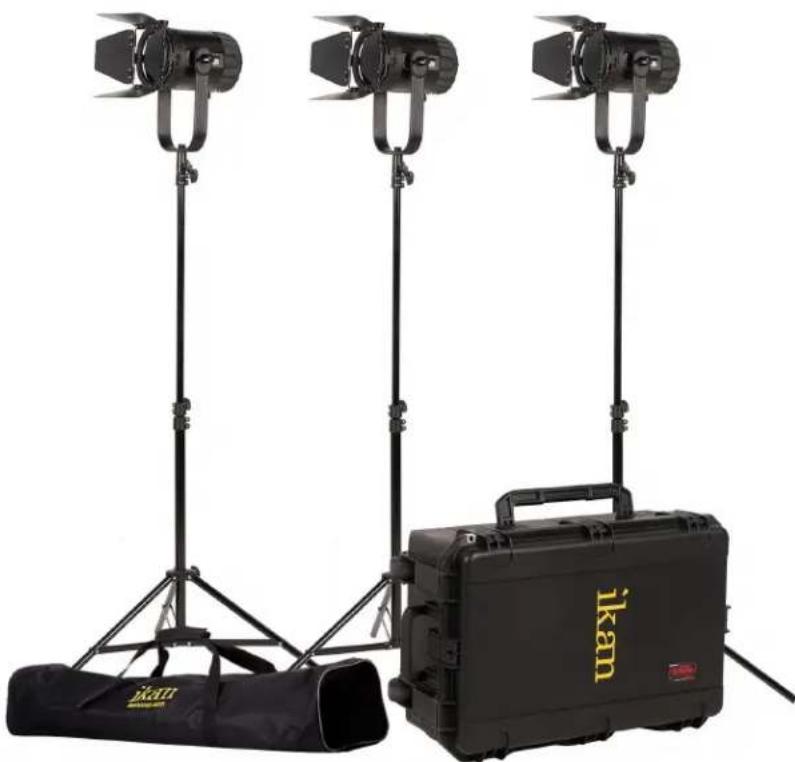

Kit with 3x Stryder 150 Watt Fresnel with Hard Case

Three black professional lighting equipment units including a kikan case and three identical skis, displayed against a white background (no text or symbols visible on the devices themselves).

What's Included

□ 3 x 4" Fresnel Light Fixture
☐ 3 x Controller Box w/ V-Mount Plate
☐ 3 x Cable From Controller to Fixture (6ft)
□ 3 x Barn Doors
☐ 3 x Yoke w/ Baby 5/8" Adapter
□ 3 x Power Adapter
□ 3 x Light Stand
□ 1 x Light Stand Bag
□ 1 x Rolling Hard Case

Getting Started

Thank you for buying the SFB150 Fresnel Light from ikan. Please carefully read the instructions and guide before operating the products. The guide includes product usage and maintenance. When you operate the product, please make sure that you have read the instructions carefully.

All the content of the manual is based on up-to-date information; technical data subject to change without notice.

Overview

Absolute lighting control is right at your fingertips with this Stryder Fanless 150 watt LED Fresnel Light with DMX. The impressive daylight LED features a 4" Fresnel lens with a spot to flood beam range of 30 to 65°. Toss in the ability to accurately shape light with removable barn doors, dimming capabilities between 0-100% (controlled in increments 5), and its ability to use traditional gel rings, mean that this workhorse of a light will undoubtedly become a staple in your kit.

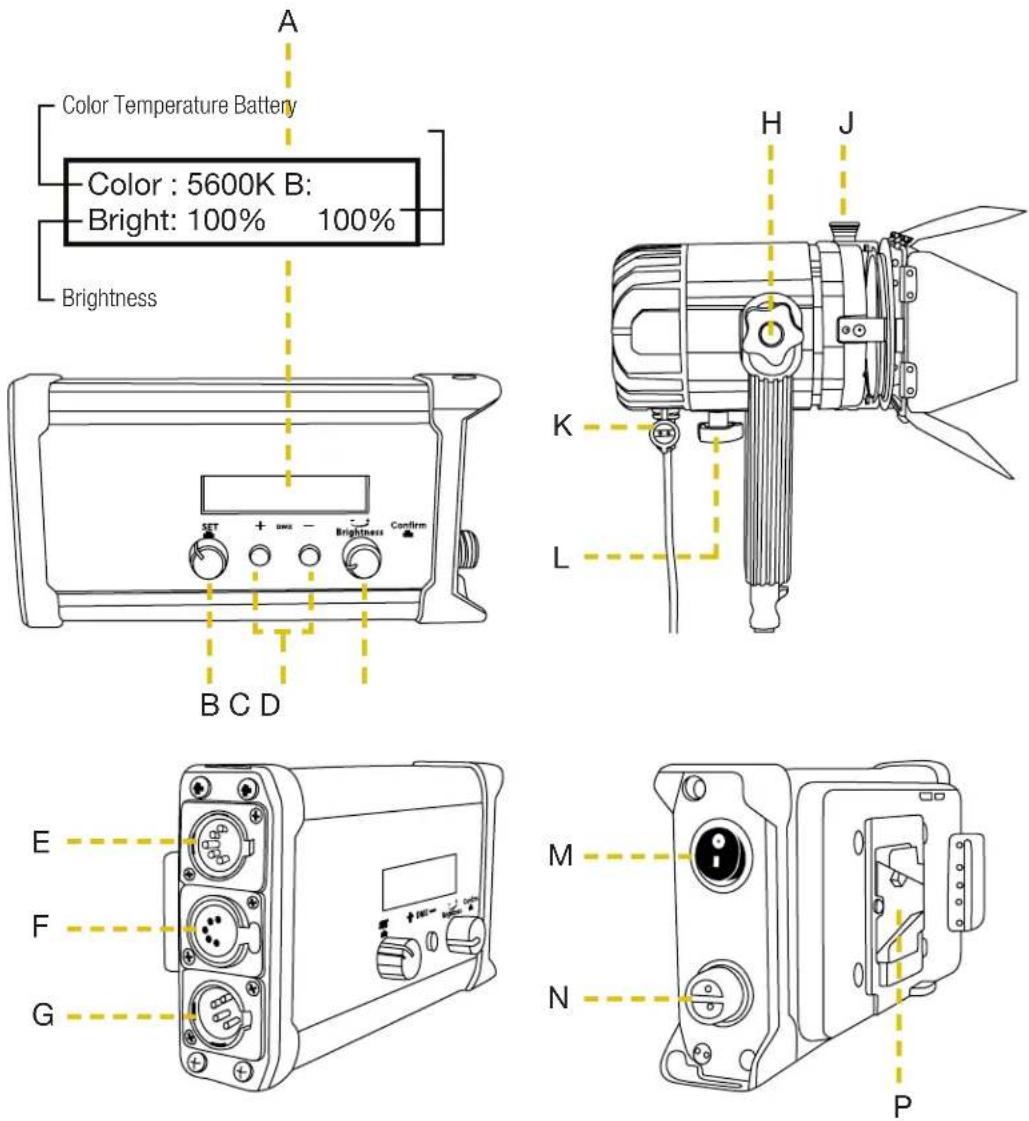

Structure

A. LCD Display

B. Color Temperature/Confirmation Knob

C. DMX Channel Adjustment

D. Brightness Knob

E. DMX Input

F. DMX Output

G. XLR Power Port

H. Yoke Adjustment Knob

J. Barn Door Locking Pin

K. Power Input (from control panel)

L. Focusing Knob

M. Power Switch

N. Power Out (to light fixture)

P. V-Mount Battery Plate

Notice & Maintenance

• Products must be placed on a stable, dry, flat surface. Avoid exposure to sunlight and operating in an environment with high humidity or explosive gas.
• Don't cover the fan vent. It will shorten the working life of the fixture.
• Don't knock or shake the lighting equipment during the operation.
• If the SFB150 isn't working normally, please contact the Ikan repair department. Please don't disassemble/re-assemble by yourself.
• Please place the SFB150 in a cool and dry place when you don't use it for an extended period of time.

Specifications

Beam Angle 30 - 65 degrees
Build Material Aluminum
Control Local Knob Control and DMX In/Out
Cooling System Fanless Passive Cooling
Dimming Flicker Free Dimming, Onboard DimmingKnob 10%-100% (minimal color shift)
Focusing Push Focus from 30 - 65
Head Type 3200K - 5600K
Lens 4" Acrylic Fresnel
Light Source 1 x 150 watt LED Bi-Color
Power Consumption 98W
Power Supply 110-240VAC; Output: 12V@12.5A
Yoke Baby 5/8"

Optional Accessories

Some other products that work well with the Stryder SFB150 available from Ikan include:

HD-STND-V2 Heavy Duty Light Stand

KCP-703 Stage Clamp w/ 16mm Stud

SW-04 Safety Wire

Learn More

More dynamic information at official website: www.ikancorp.com

Support

Contact email: [e-mail]

CONDITIONS OF WARRANTY SERVICE

• Free service for one year from the day of purchase if the problem is caused by manufacturing errors.
• The components and maintenance service fee will be charged if the warranty period is expired.

Free Service will not be Provided in the Following Situations:

(Even if the product is still within the warranty period.)

• Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company.
• Damage caused by natural disaster, abnormal voltage, and environmental factors, etc.

©2020 Ikan International. All rights reserved.
