Product Type	LED Softbox Lighting Kit
Model	SFB150-G-2PT-KIT
Number of Lights	2
Softbox Size	60 x 90 cm (each)
Color Temperature	3200K - 5600K (Bi-color)
Power Consumption	150W (equivalent to 600W tungsten)
Input Voltage	AC 100-240V, 50/60Hz
Dimmer	Continuous dimming from 0-100%
CRI	≥ 95
TLCI	≥ 97
Light Source	LED SMD chips
Stand Height	Up to 2.5 m (each)
Included Accessories	2 softboxes, 2 stands, carry bag, power cables
Cooling System	Passive (fanless)
Mounting Option	5/8" stud with locking knob
Weight (per light)	2.5 kg
Dimensions (softbox)	60 x 90 x 20 cm
Repairability	Modular design; LEDs and power supply replaceable
Maintenance	Wipe softbox with dry cloth; store in dry place
Safety	Overheat protection; CE, RoHS certified

Frequently Asked Questions - SFB150-G-2PT-KIT Ikan

What is the power consumption of the SFB150-G-2PT-KIT?

Each light consumes 150W at maximum output, equivalent to a 600W tungsten light.

Can I adjust the color temperature?

Yes, the lights are bi-color with a range from 3200K to 5600K, adjustable via the built-in dimmer.

Are the softboxes included?

Yes, the kit includes two 60x90 cm softboxes that attach to the LED panels.

Does this kit come with stands?

Yes, it includes two adjustable light stands with a maximum height of 2.5 meters.

Is the lighting fanless?

Yes, the design is fanless (passive cooling) for silent operation during video recording.

What is the CRI rating?

The CRI is ≥ 95, ensuring accurate color reproduction for professional video and photography.

Can I replace the LEDs if they fail?

Yes, the unit is designed for repair; LEDs and power supply can be replaced by a technician.

What type of power input does it use?

It uses standard AC 100-240V power with an IEC cable (included).

How do I clean the softbox?

Use a dry, lint-free cloth to gently wipe the softbox fabric. Avoid water or cleaning solvents.

Does the kit come with a carrying case?

Yes, a carry bag is included for convenient storage and transport of the entire kit.

USER MANUAL SFB150-G-2PT-KIT Ikan

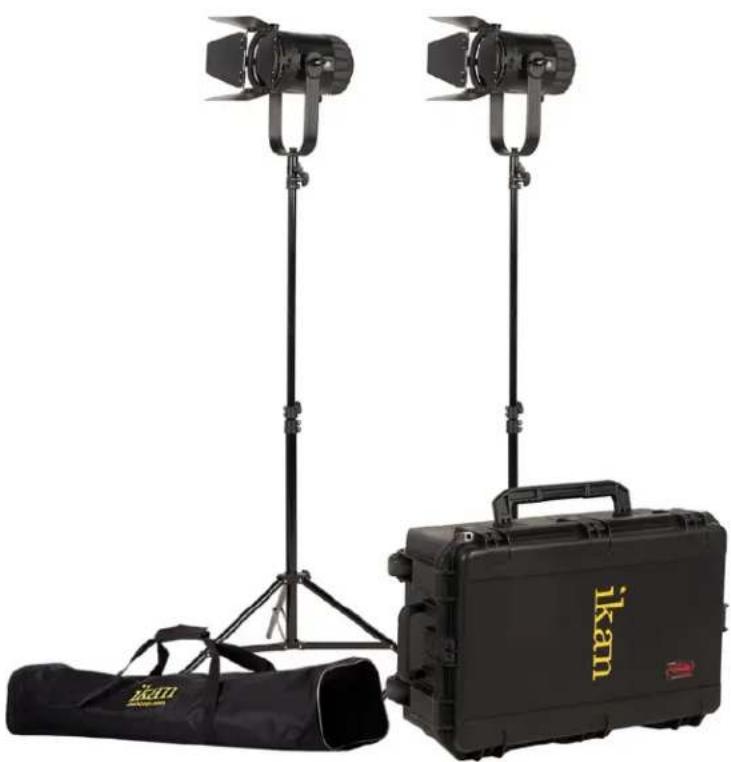

Kit with 2 x Stryder 150 Watt Fresnel with Hard Case (Gold Mount)

Two black professional lighting equipment units with overhead-mounted fans and a branded case (no visible text or symbols)

What's Included

□ 2 x 4" Fresnel Light Fixture
□ 2 x Controller Box w/ Gold Mount Plate
☐ 2 x Cable From Controller to Fixture (6ft)
□ 2 x Barn Doors
□ 2 x Yoke w/ Baby 5/8" Adapter
□ 2 x Power Adapter
□ 2 x Light Stand
□ 1 x Rolling Hard Case
□ 1 x Light Stand Bag

Getting Started

Thank you for buying the SFB150 Fresnel Light from ikan. Please carefully read the instructions and guide before operating the products. The guide includes product usage and maintenance. When you operate the product, please make sure that you have read the instructions carefully.

All the content of the manual is based on up-to-date information; technical data subject to change without notice.

Overview

Absolute lighting control is right at your fingertips with this Stryder Fanless 150 watt LED Fresnel Light with DMX. The impressive daylight LED features a 4" Fresnel lens with a spot to flood beam range of 30 to 65°. Toss in the ability to accurately shape light with removable barn doors, dimming capabilities between 0-100% (controlled in increments 5), and its ability to use traditional gel rings, mean that this workhorse of a light will undoubtedly become a staple in your kit.

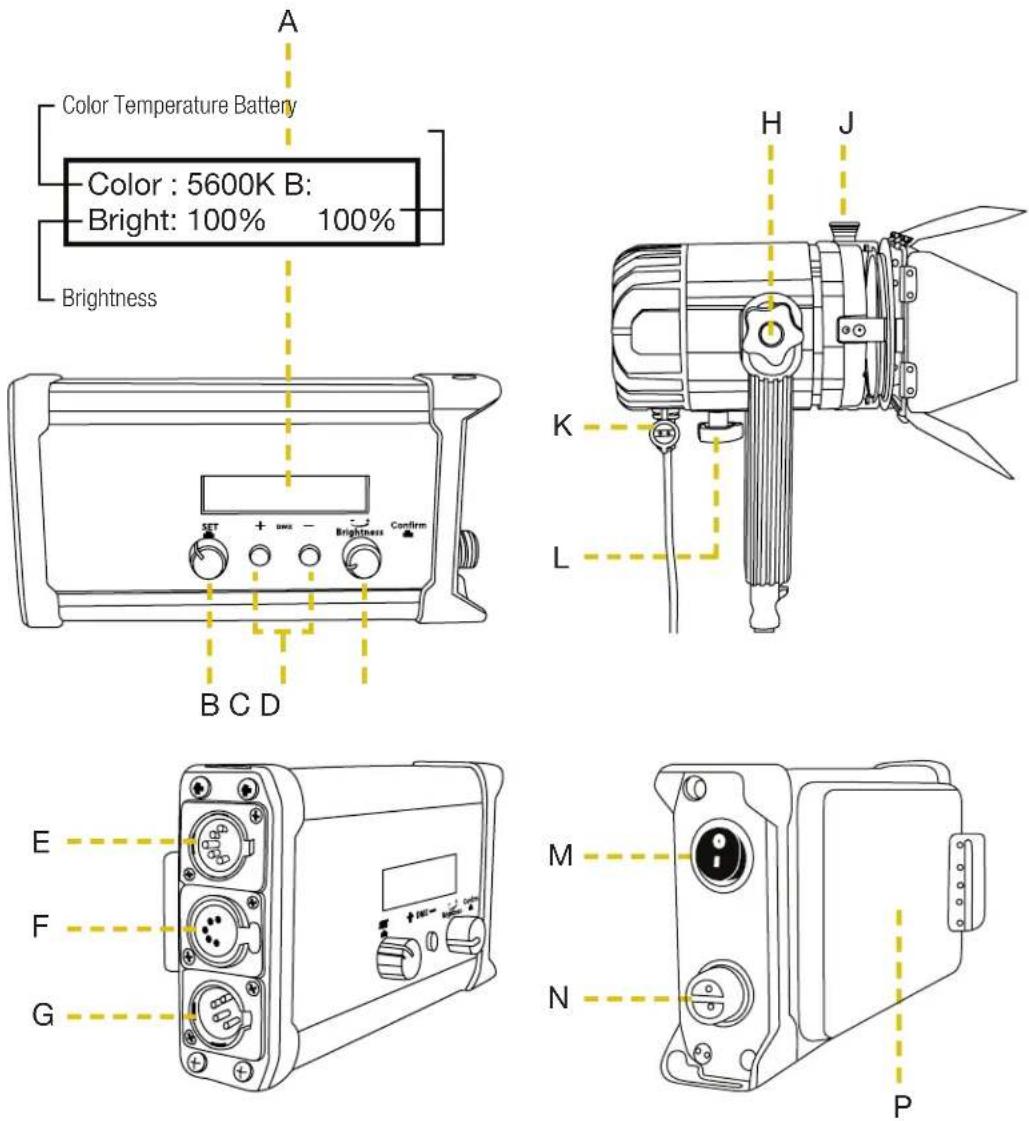

Structure

A. LCD Display

B. Color Temperature/Confirmation Knob

C. DMX Channel Adjustment

D. Brightness Knob

E. DMX Input

F. DMX Output

G. XLR Power Port

H. Yoke Adjustment Knob

J. Barn Door Locking Pin

K. Power Input (from control panel)

L. Focusing Knob

M. Power Switch

N. Power Out (to light fixture)

P. Gold Mount Battery Plate

Notice & Maintenance

• Products must be placed on a stable, dry, flat surface. Avoid exposure to sunlight and operating in an environment with high humidity or explosive gas.
• Don't cover the fan vent. It will shorten the working life of the fixture.
• Don't knock or shake the lighting equipment during the operation.
• If the SFB150 isn't working normally, please contact the Ikan repair department. Please don't disassemble/re-assemble by yourself.
• Please place the SFB150 in a cool and dry place when you don't use it for an extended period of time.

Specifications

Beam Angle 30 - 65 degrees
Build Material Aluminum
Control Local Knob Control and DMX In/Out
Cooling System Fanless Passive Cooling
Dimming Flicker Free Dimming, Onboard DimmingKnob 10%-100% (minimal color shift)
Focusing Push Focus from 30 - 65
Head Type 3200K - 5600K
Lens 4" Acrylic Fresnel
Light Source 1 x 150 watt LED Bi-Color
Power Consumption 98W
Power Supply 110-240VAC; Output: 12V@12.5A
Yoke Baby 5/8"

Optional Accessories

Some other products that work well with the Stryder SFB150 available from Ikan include:

HD-STND-V2 Heavy Duty Light Stand

KCP-703 Stage Clamp w/ 16mm Stud

SW-04 Safety Wire

Learn More

More dynamic information at official website: www.ikancorp.com

Support

Contact email: [e-mail]

CONDITIONS OF WARRANTY SERVICE

• Free service for one year from the day of purchase if the problem is caused by manufacturing errors.
• The components and maintenance service fee will be charged if the warranty period is expired.

Free Service will not be Provided in the Following Situations:

(Even if the product is still within the warranty period.)

• Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company.
• Damage caused by natural disaster, abnormal voltage, and environmental factors, etc.

©2022 Ikan International. All rights reserved.
