| Product Type | 6x9" 2-Way Coaxial Speaker |
| Brand | Phoenix Gold |
| Model | ZX69CXS |
| Speaker Size | 6x9" (166x235mm) |
| Frequency Response | 65Hz - 20kHz |
| Power Handling (RMS) | 80W |
| Power Handling (MAX) | 240W |
| Impedance | 4Ω |
| Sensitivity | 90dB (1W/1m) |
| Voice Coil Diameter | 1" (25mm) |
| Cone Material | Laminated-Treated Paper |
| Tweeter Type | 19mm Balanced Driver Mylar Tweeter |
| Surround Material | Triple-Layer UV Treated Foam |
| Frame Material | Rigid Powder Coated Steel |
| Mounting Depth | 74mm |
| Mounting Diameter | 152 x 220mm |
| Outer Diameter | 166 x 235mm |
| Speaker Grills | Included |
| Unit | Sold as pairs |
| Weight per Speaker | 1.1 kg |
| Warranty | 1 Year Limited Warranty |
Frequently Asked Questions - ZX69CXS PHOENIX GOLD
User questions about ZX69CXS PHOENIX GOLD
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Loudspeaker in PDF format for free! Find your manual ZX69CXS - PHOENIX GOLD and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. ZX69CXS by PHOENIX GOLD.
USER MANUAL ZX69CXS PHOENIX GOLD


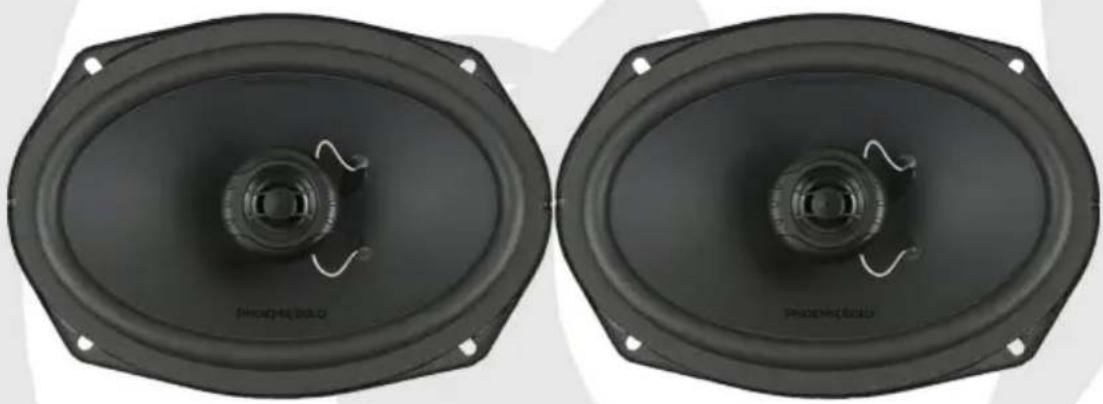

Two black speaker ovens with visible internal components and mounting holes, no text or symbols present.ZX69CXS
6x9" (166x235mm) 2-Way Coaxial Speakers
Features
• Laminated-Treated Paper Cone
• 19mm Balanced Driver Mylar Tweeter
- Polymide Voice Coil
- Triple-Layer UV Treated Foam Surround
• Rigid Powder Coated Steel Frame
240W MAX POWER
80W RMS
SPECIFICATIONS
| Speaker Type: 2-Way Coaxial | Speaker |
| Speaker Size: 6x9" (166x235mm) | |
| Frequency Response: 65Hz - 20kHz | |
| Power Handling (RMS): 80W | |
| Power Handling (MAX): 240W | |
| Impedance: 4Ω | |
| Sensitivity: 90dB (1W/1m) | |
| Voice Coil: 1" (25mm) | |
| Mounting Depth: 74mm | |
| Mounting Diameter: 152 x 220mm | |
| Outer Diameter: 166 x 235mm | |
| Speaker Grills: Included | |
| Unit: Sold as pairs | |
| Weight (Each Speaker): 1.1 kg | |
T/S PARAMETERS
| Re: 3.6 Ohm | |
| Fs: | 68.2 Hz |
| Qms: | 4.954 |
| Qes: | 0.97 |
| Qts: | 0.811 |
| Cms: 441 μM/N | |
| Vas: | 32.28 L |
| BL: | 4.803 Tm |
| Sd: | 227.57 cm2 |
| Mms: | 15.058 g |
| EBP: | 67 |
FREQUENCY RESPONSE
line

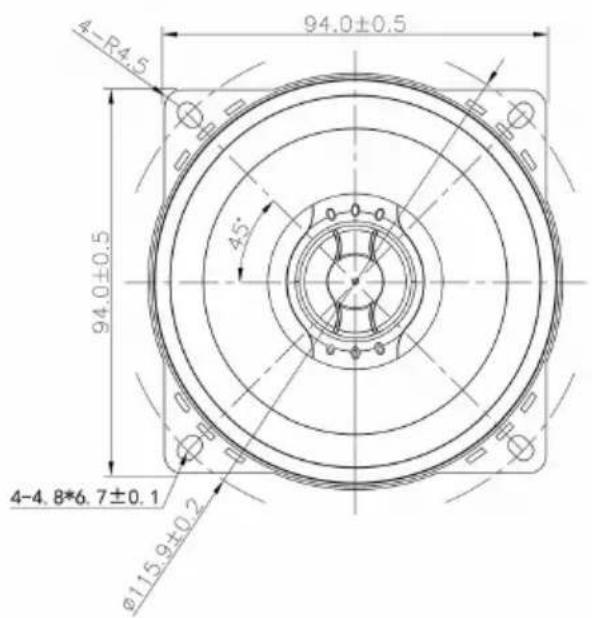

| Frequency | SPL (dB SPL) | | --------- | ------------ | | 20 Hz | 67 | | 50 Hz | 88 | | 100 Hz | 96 | | 200 Hz | 92 | | 500 Hz | 93 | | 1K Hz | 94 | | 2K Hz | 95 | | 5K Hz | 91 | | 10K Hz | 80 | | 20K Hz | 100 |DIMENSION DRAWING
