Product Type	Fire Resisting Record Cabinet
Brand	Godrej
Model	Fire Resisting Record Cabinet (FRRC)
External Dimensions (H x W x D)	1875 x 850 x 783 mm
Internal Dimensions (H x W x D)	1620 x 670 x 589 mm
Net Weight	590 kg
Gross Weight	650 kg
Fire Resistance Temperature	Up to 1010°C (1800°F)
Fire Endurance	2 hours at standard time-temperature curve
Internal Temperature During Fire Test	Below 177°C (350°F)
Fire Test Standard	Tested at Central Building Research Institute (CBRI), Roorkee, India
Lock Type	6-lever Godrej lock (standard); optional 3-wheel combination lock
Bolt Work	Strong bolt-work mechanism
Body Construction	Double-walled, reinforced at vital points
Door Construction	Multibend construction from prime quality steel
Insulation Type	In-situ insulation; tongue-and-groove construction
Finish	Attractive finish for elegant looks
Storage Capacity	Cost-effective storage for bulky ledgers, box files, bound reports, and vital documents
Certification	ISO 9001:2008, ISO 14001:2004, BS OHSAS 18001:2007
Country of Manufacture	India
Contact	Godrej & Boyce Mfg. Co. Ltd., Pirojshanagar, Vikhroli, Mumbai 400 079 Phone: [phone] Email: [e-mail] Web: www.godrejsecure.com

Frequently Asked Questions - Fire Resisting Record Cabinet Godrej

What is the fire rating of the Godrej Fire Resisting Record Cabinet?

The cabinet can withstand temperatures up to 1010°C (1800°F) and maintains an internal temperature below 177°C (350°F) during a 2-hour fire endurance test.

How is the cabinet tested for fire resistance?

It is independently tested at the Central Building Research Institute (CBRI) in Roorkee, India. Tests include heating to 1010°C, dropping from 4 meters, and reheating inverted.

What lock options are available?

The cabinet comes with a 6-lever Godrej lock as standard. An optional 3-wheel combination lock is available at extra cost.

What are the external dimensions and weight?

External: 1875 mm (H) x 850 mm (W) x 783 mm (D). Net weight: 590 kg, gross weight: 650 kg.

Is the cabinet suitable for storing electronic media?

This model is designed for paper records. For electronic media, Godrej offers other fire-resistant products.

What materials are used in construction?

The body is double-walled steel reinforced at vital points, with multibend door construction from prime quality steel. Insulation uses tongue-and-groove and in-situ insulation.

How should I maintain the cabinet?

Clean with a soft, dry cloth. Avoid harsh chemicals. Ensure locks are lubricated periodically. Keep away from moisture.

Does the cabinet come with a warranty?

Warranty details are not specified in the manual. Contact Godrej or an authorized dealer for information.

Can the cabinet be anchored to the floor?

The manual does not mention anchoring. For stability, you may consult Godrej for installation guidelines.

Where can I purchase spare parts or get service?

Contact Godrej's regional offices listed in the manual or visit www.godrejsecure.com for service centers across India.

USER MANUAL Fire Resisting Record Cabinet Godrej

Illustration of a blue industrial machine with flame inside, framed by torn paper (no text or symbols)

Storage just got a whole lot safer.

Fire Resisting Record Cabinets

Be Intelligent. Be Safe.

Independently tested for performance

The Godrej FRRC has successfully withstood severe fire and impact tests conducted at the Central Building Research Institute (CBRI), Roorkee, Uttar Pradesh, India - the only accredited institute of its kind in India for carrying out such tests. The fire impact test involved heating the FRRC in a furnace to 1010°C (1800°F), dropping it from a height of 4 metres and subsequently heating it again in an inverted position to 1010°C (1800°F). The fire endurance test involved heating the FRRC in a furnace at a standard time temperature curve for two hours while constantly

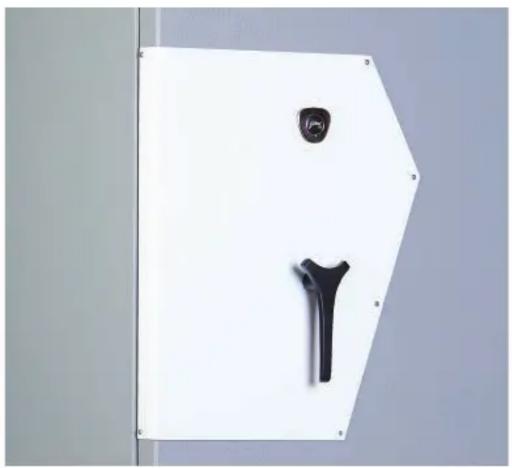

Exterior view of a white door panel with a black plastic object and a circular emblem on top (no text or symbols visible)

monitoring the temperature inside. During this test, the inside temperature remained well below 177^ C ( 350^ F), the temperature at which paper begins to char.

Exterior view of a large metal cabinet with open doors and shelves (no text or symbols visible)

Secure locking with 6 lever Godrej lock and optional 3-wheel combination lock (at an extra cost)

• Strong bolt-work mechanism
• Attractive finish for elegant looks
• Cost-effective storage capacity

Fire Resisting Record Cabinet (FRRC)

An office survives on paper work. Since paper can be destroyed by fire within minutes, a business with unprotected records is vulnerable to the risk of fire.

Surveys indicate that four out of ten business establishments never reopen when their records are destroyed by fire.

Unfortunately, fires don't give an advance warning. They can occur at any place at anytime. An organization need not wait for a disaster to realize the importance of protecting its precious, imeplaceable records.

Abstract geometric design with a white hexagonal shape containing two black symbols on a gray background (no text or labels)

Tongue & groove construction that can withstand temperature upto 1010°C

Recorded protection a new dimension

Godrej has designed its Fire Resisting Record Cabinet (FRRC) to provide valuable fire protection and adequate storage space to keep the bulkiest of ledgers, box files, unwieldily bound reports and other vital documents safely and conveniently.

Solid construction for structural strength

The Godrej FRRC has a sturdy double-walled body, reinforced at vital points, and a door featuring multibend construction fabricated from prime quality steel.

In-situ insulation for reliable fire resistance

Close-up of a metallic door frame with visible structural details and a small inset component (no text or symbols)

Tongue-and-groove construction

Simple line drawing of a rectangular frame with vertical divisions and a dimension label (1875) on the left side, no text or symbols within the diagram itself.

SEC. FRONT VIEW

SEC. PLAN FRONT VIEW

Specifications

	Height	Weight	Depth
Outside (mm)	1875	850	783
Inside (mm)	1620	670	589
Net Weight (Kg)	590
Gross Weight (Kg)	650

Tolerances- Weight: ±5% Dimensions: ±2% All dimensions and weights are in metric system and are approximate.

SECURITY SOLUTIONS

Regd. Office: Pirojshanagar, Vikhroli, Mumbai 400 079.

Tel.: [phone]. Fax: [phone].

E-mail: [e-mail]. Website: www.godrejsecure.com

West: Ahmedabad-079 66060606, Bhopal-0755 4274277, 2761130, 31/32, Mumbai-022 67961242, Pune-020 66267700, East: Raipur-077 6606804, Kolkata-033 6601 3500, 3652, Bhubaneshwar-0674 2374650, Guwahati-0361 2730544, Ranchi-0651 2513892/114, Patna-0612 6451758. North: Delhi-011 6650140/7142/7050, NCR-011 66507261/71, Chandigarh-0172 5032266/5037788, Jaipur-0141 6701520, Lucknow-0522 6754941. South: Bangalore-080 6647 2000/2051, Kochi-0484 6612701-5, Hyderabad-040 66431000/1160, Chennai-044 6654 4444, Vizag-0891 2746511. Coimbatore-0422 6472032, 2545599.

In view of the Godrej policy of continuous development and improvement, the dimensions and specifications may change without prior notice or obligation. The colours of the product in leaflet may not match the actual colours due to printing limitations.

An ISO 9001:2008 & ISO 14001:2004. BS OHSAS 18001:2007

Products Marketed and Serviced by Godrej & Boyce Mfg. Co. Ltd.
