PPM3521 - Massage device PHILIPS - Free user manual and instructions

Product Type	Massage device
Brand	Philips
Model	PPM3521
Power Supply	Rechargeable battery (USB-C)
Dimensions	15 x 10 x 5 cm
Weight	0.5 kg
Massage Modes	Vibration, kneading, heat
Speed Levels	3 adjustable speeds
Heat Function	Yes, low-level heat (approx. 40°C)
Material	ABS plastic, silicone massage heads
Cleaning	Wipe with damp cloth, mild soap
Safety Features	Auto shut-off after 15 minutes
Spare Parts	Replacement massage heads available
Warranty	2 years
Battery Life	Up to 2 hours per charge
Charging Time	Approximately 4 hours

Frequently Asked Questions - PPM3521 PHILIPS

How do I charge the Philips PPM3521 massage device?

Connect the provided USB-C cable to a standard USB power source. Full charge takes about 4 hours.

Can I use the heat function continuously?

The heat function is intended for short sessions. The device has an auto shut-off after 15 minutes to prevent overheating.

How do I clean the massage device?

Unplug the device and wipe the silicone heads with a damp cloth and mild soap. Do not submerge in water.

Is the device waterproof?

No, the device is not waterproof. Avoid contact with water and store in a dry place.

What massage modes are available?

The device offers vibration, kneading, and heat modes with 3 adjustable speeds.

Can I replace the massage heads?

Yes, replacement massage heads are available separately. Follow the manual for removal and attachment.

How long does the battery last?

On a full charge, the battery provides up to 2 hours of continuous use.

Is the device suitable for all body parts?

It is designed for back, shoulders, legs, and arms. Avoid use on sensitive areas like eyes or joints.

Does the device have an indicator for battery level?

Yes, an LED indicator shows charging status: red while charging, green when fully charged.

What should I do if the device stops working?

Check the battery level and ensure it is charged. If the issue persists, contact Philips customer support.

USER MANUAL PPM3521 PHILIPS

There may be certain differences between the content of this manual and your product. Please refer to the actual product. We reserve the right to update the product at any time without prior notice.

© 2023 AquaShield

All rights reserved

Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license.

This product has been manufactured by and is sold under the responsibility of Guangdong Deerma Technology Company Limited and Guangdong Deerma Technology Company Limited is the warrantor in relation to this product.

Rev A MAR 23

PHILIPS

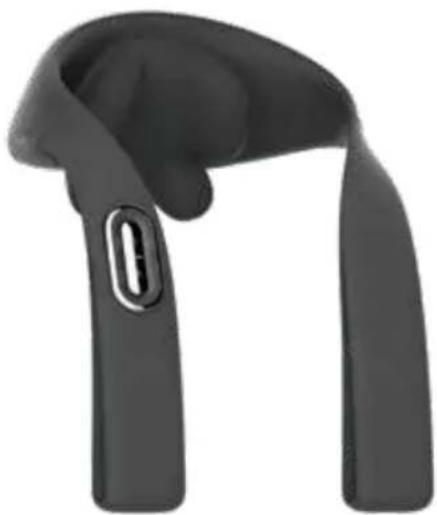

Neck and Shoulder Massager

Massage Shawl

PPM3521

Black VR headset with adjustable grip and handle (no visible text or symbols)

User Manual

Contents

1 Readme

Symbol Description

People Restricted or Prohibited from Use

Precautions for Use

Precautions for Maintenance

2 Product Features

3 Components

4 How to Use

Operation

Charging

Indicator Description

5 Maintenance

Cleaning

Disposal

6 Technical Parameters

7 Troubleshooting

8 Service Guide for Product Warranty

Warranty and Service

Warranty Card

9 Packing List

1 Readme

Please read this manual carefully before using the product.and keep it properly. The manual is available at www.philips.com

Symbol Description

To avoid personal injury or property damage, be sure to observe the contents below.

- The following symbols are used to illustrate what you should observe.

Indicates prohibition

Indicates the actions that need to be subject to instructions

People Restricted or Prohibited from Use

The product should be used with caution by the following groups/ under the following circumstances

For those who are under the treatment at medical institutions or under some of the following conditions, please consult a doctor or a physical therapist for advice before use.

• People who have disturbance of skin sensation.
• People who have metal, silicon or plastic materials injected into their bodies as a result of bone fractures or plastic surgery.
• People who are not sensitive to heat.

• People who have shoulder and neck sequelae due to illnesses or traffic accidents.
• People who have implanted medical electronic devices in their bodies that are susceptible to the electromagnetic failures like heart pacemakers.
  • People identified as having lost temperature sensation.
  • People suffering from skin diseases or infections.
• People suffering from skeletal fragility or whose skeleton is injured, especially in the back.
  • People shortly after surgeries.
  • People who have blood circulation problems or suffered from thrombosis
  • People suffering from malignant tumors.
  • People suffering from heart disease.
  • People who are pregnant or shortly after giving birth.
  • People who have perceptual impairment caused by diabetes.
  • People who have a wound in the shoulders and neck and is unhealed.
  • People who need quietness and people who are in poor health.
• People suffering from osteoporosis, severe fractures, sprain, muscle ache, acute pain (headache).
• People having a body temperature above 38°C (fever).
• People having the acute inflammatory symptoms, feebleness, aversion to cold, blood pressure changes and other symptoms and being in an intense or weak state.
  • People who are under medical treatment at medical institutions.

Precautions for Use

The appliance has a heated surface. Persons insensitive to heat must be careful when using the appliance.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.
This appliance contains batteries that are only replaceable by skilled persons.
Must be only supplied at safety extra low voltage corresponding to the marking on the appliance.
It is recommended to use it for no more than 15 minutes at a time.
! Stop using the product immediately if you feel pain in or around the shoulders and neck.
It is recommended not to overuse the massage function.
Do not use the product immediately after having meals. It cannot be used until at least one hour later.
Do not use the product while sleeping.
Do not use this product while driving or exercising.
Do not cover a quilt or a blanket during use.
Do not lie or sit on the product.
Do not bring huge impact and load to the product.

Do not use the product in a bathroom or a shower.
Do not exercise violently when wearing this product.
Do not use the product when its plug, power cord or product itself is damaged.
Do not use the product in a room with high temperature or near heating objects (such as heaters, stoves, etc.).
Do not apply medical or cosmetic cream on the product or your body before or during the use of the product.
Do not destroy, bend, pull, twist or knot the power cord.

Precautions for Maintenance

! Be sure to unplug the adapter from the domestic power socket before cleaning. Store the product in a cool and dry place away from the sunlight.
Do not clean the product with a steel wool, abrasive cleaner or corrosive liquid (such as gasoline or acetone).
! Please properly dispose of the packaging bag of the product and keep it away from the infants.
Do not disassemble or modify the product by yourself, immerse the product (controller) in water or toss it into the ☒re, otherwise the product is likely to be damaged.
Keep the product out of reach of children and infants. Do not allow them to touch, operate or play with this product, otherwise it is likely to lead to burns, electric shocks or personal injuries.
Do not damage, modify, bend or pull the power cord with force. Do not place heavy objects on the power cord or squeeze the power cord.

Clean the product before packaging and storing if it is not to be for a long time. It is recommended to charge it every other month.
Only the adapter with the output parameter of 12.8V=1.8A can be used to charge the product.
If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.
Must be only supplied at safety extra low voltage corresponding to the marking on the appliance.

2 Product Features

This product can massage neck and shoulder while sitting or standing. It can promote the blood circulation and relieve the muscle soreness and discomfort by imitating hand thumping in combination with its warm compress function. Multiple massage modes and thumping strengths are available for choice.

3 Components

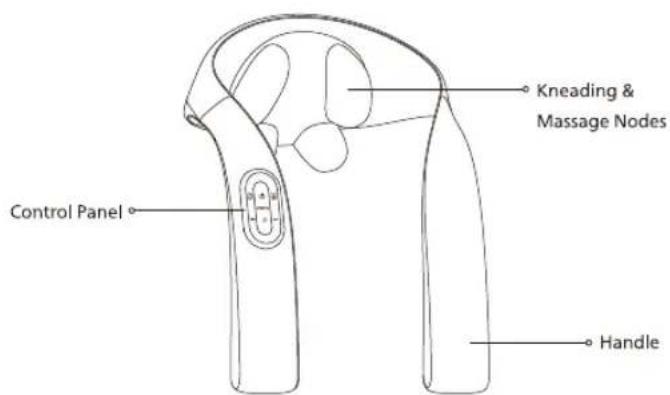

Kneading & Massage Nodes Control Panel Handle

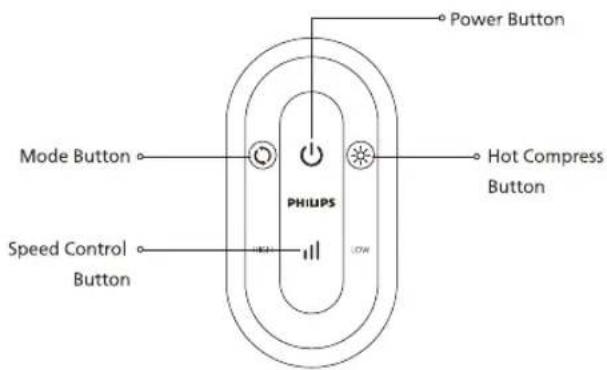

Power Button Mode Button PHILIPS Hot Compress Button Speed Control Button LOW

4 How to Use

Precautions Before Use:

1. Check whether the device and its accessories are complete.

2. Remove the pendants and accessories during use so as to avoid affecting the massage part.

3. If you have long hair, please tie up your hair before using the product.

Operation

1. Press and hold the power button to start the device. The default mode is Mode 1 and Slow Mode. Press the power button again to shut down.

2. In the power-on state, press the mode button to switch the massage modes (Mode 1 / Mode 2 / Mode 3) circularly. During adjustment, each mode will display its corresponding indicator color: Mode 1 (the green indicator is on, the massage nodes are kneading inward); Mode 2 (the red indicator is on, the massage nodes are kneading outward); Mode 3 (the yellow indicator is on, the massage nodes are kneading in both ways).

3. In the power-on state, press the speed control button to switch the rotation speed ("Low" mode / "High" mode) circularly.

4. In the power-on state, press the hot compress button to turn on/off the heating function.

5. The default massage time of the product is 15 minutes. It is set to shut down automatically after 15 minutes of operation.

Charging

1. Use the charging adapter to connect this product and the power socket.
2. The indicator lamp on the massage nodes ✉ashes blue when charging.
3. The blue charging indicator remains on when the product is fully charged.
4. Unplug the charging adapter from the power socket and remove the plug from the product when charging is complete.

Indicator Description

Light Ring of Control Panel	State	Description
Green	Remain on	Massage Mode 1 (The massage nodes rotate inwards)
Red	Remain on	Massage Mode 2 (The massage nodes rotate outwards)
Yellow	Remain on	Massage Mode 3 (The massage nodes rotate in both ways)

Color of Massage Nodes	State	Description
Blue	Breathing light	Charging
Blue	Remain on	Fully charged

5 Maintenance

Cleaning

1. Maintenance of control panel: The control panel with the touch-control function should be properly protected. Please wipe it with a soft cloth when cleaning.
2. Maintenance of the fabric area: The fabric area should not be washed. Sterilize the fabric and remove the sweat stains with alcohol or wipe it with a clean wet towel for cleaning and maintenance.

Do not clean the product with a steel wool, abrasive cleaner or corrosive liquid (such as gasoline or acetone).
During maintenance, be sure to unplug the power cord, but do not unplug the cord with wet hands.

Disposal

The lithium-ion battery used in this product is a resource that can be recycled. Take out the lithium-ion battery when it is used up and discarded, and then hand it over to a professional institution that can recycle the rechargeable batteries for disposal.

Steps to remove the battery:

1. Pry open the upper and lower covers of the battery holder from the side
2. Unscrew the screws on the circuit board and take out the circuit board
3. Shear off the battery connecting wire and wrap its fracture with the insulating tape

It is prohibited to replace the battery by users themselves;
Be sure to remove the battery from the device before disposal;
The product must be powered off before removing the battery;
The battery must be disposed of in a safe manner.

6 Technical Parameters

Product Name	Philips Massage Shawl
Product Model	PPM3521
Operating Voltage	12.8V==
Operating Power	23W
Charging Voltage	12.8V==
Charging Current	1A
Product Size	580×400×200mm
Net Weight	1.96kg
Battery Capacity	2200mAh
Adapter Model	SC24H-128180V

7 Troubleshooting

This chapter lists the most common problems to the product. If the problems you encounter are not included in the following tables, please call our service hotline or contact the authorized service center in your region.

Fault Description	Possible Cause	Solution
Product does not work	Low battery	Charge the product.
	The product has just☒nished a 15-minute massage and automatically stops.	Press the power button again if you want to massage again.
	You have used the product continuously for up to 40 minutes, triggering the overheat protection system. The power supply of the product is cut off.	The product must be cooled down for 60 minutes before using it again.
	The load placed on the product is too heavy.	Remove the excess weight and restart the product.
Abnormal heating of the product	You have continuously used this product for a long time	Turn it off and leave it cooled
There is sound coming from the product	This sound is caused by the mechanical structure of the product	This sound is normal, and does not mean that the product is faulty

If the product has been left unused for a long time, be sure to con × rm that its functions are normal before using it again
Regular check	Check for the following faults
	· Whether the power cord or the plug is hot· Whether the power cord is deeply scratched or deformed, or has a burnt smell· Whether there is abnormal sound or vibration during work· Whether the product can work properly after switch on· Whether there are other abnormalities or faults	In the event of the above faults, stop using the device immediately and cut off the power supply to prevent accidents. Please send it to our maintenance center.

Note:
If the fault cannot be eliminated or the product still cannot operate satisfactorily, contact the after-sale service personnel, and do not disassemble or attempt to repair it by yourself.

8 Service Guide for Product Warranty

Warranty and Service

If you need information or have any questions, please visit www.philips.com/support or contact consumer service center in your country/region. If there is no consumer service center in your country/region, please contact your local distributor.

Within two years from the date of purchase, you will receive free warranty service for any damage caused by manufacturing process problems, or any damage to components under normal use conditions confirmed by our maintenance service personnel.

Warranty service excludes frequently replaced consumables, auxiliary equipment, shipping cost and door-to-door service. Please show proof of purchase to service personnel when servicing.

Malaysia

Consumer Care: [phone]

Email: philips.massage@real☑tmy.net

Singapore

Consumer Care: [phone]

Email: philips.massage@real☒tsg.net

Philippines

Consumer Care: [phone]

Email: [e-mail]

Thailand

Consumer Care: [phone]

Email: [e-mail]

Indonesia

Consumer Care: +021-39715012 / +021-39715013

Email: [e-mail]

Vietnam

Consumer Care: [phone]

Email: [e-mail]

Warranty Card

Product Model			User Name
Sales Agency			Phone Number
Date of Purchase			Serial Number
Special Technical Service Center			User Address
Items of Maintenance		Date		Service Personnel

9 Packing List

Massage Shawl	1×	Power Adapter	1×
User Manual	1×	Quick Start Guide	1×
