Product Type	Multi-purpose transforming utility cart / dolly
Brand	Rock N Roller
Model	R14G
Compact Length	42 inches
Extended Length	60 inches
Width (Frame Bed)	15 inches
Width (Rear Wheels)	20 inches
Height (Folded)	10 inches
Height (Unfolded)	38 inches
Weight	36 lbs
Load Capacity	700 lbs
Front Casters	6" x 3" (150mm x 75mm) swivel casters
Rear Wheels	8" x 3" (200mm x 75mm) wheels
Configurations	8 different configurations including short/long platform, hi-stacker, luggage cart, furniture dolly
Frame Material	Steel (patented design)
Warranty	1 year limited on frame and components; 60 days on casters/wheels
Assembly Required	Yes, with included parts (wheels, casters, hardware) and tools (channel lock pliers recommended)
Key Features	Patented transforming design, extension stop button, foldable sides, release cables, wingbolts for length adjustment
Accessories	Solid deck, cable/headphone hanger, laptop shelf, straps (flex straps)
Maintenance	Periodic lubrication of axles, check lock nut tightness on caster stems

Frequently Asked Questions - R14G Rock N Roller

What is the maximum load capacity of the Rock N Roller R14G?

The R14G has a load capacity of 700 lbs.

How do I assemble the rear wheels?

Gently slide the wheel over the axle (lubricate with light grease if needed), then insert the cotter pins and bend the ends outward. Do not force the wheels onto the axle.

How do I install the front swivel casters?

Attach the casters as shown, tighten the lock nuts while gripping the bearing cap with channel lock pliers to prevent the threaded stem from turning. Tighten firmly but not excessively.

How do I extend the frame?

Loosen the wingbolts 1/4 turn, step on the rear axle, push the extension stop button, pull up on the frame until the button engages, then retighten the wingbolts.

How do I raise the foldable sides?

Firmly press down on the release cable while raising the other end of the foldable side until it locks into place. Repeat for the other side.

What configurations can the R14G be used in?

It can transform into 8 configurations including short/long platform cart, short/long hi-stacker, long nose luggage cart, short furniture dolly, and storage-transport mode. Refer to the manual for each setup.

How should I store the cart when not in use?

Fold the handles in the correct order: first the side over the large wheels, then the side over the swivel casters. Stand the cart on end or place it upside down for storage or transport.

What tools are recommended for assembly?

Channel lock pliers (not included) are recommended for tightening the caster lock nuts. Other tools may be needed but not specified.

What is the warranty on the R14G?

The cart has a 1-year limited warranty on the frame and components, and a 60-day warranty on casters and wheels against defects.

Can I use the cart on inclines or rough terrain?

Yes, but use caution: set the brake on hills/ inclines and block wheels if very heavy. On rough terrain, push the cart with the large wheels forward for better control.

USER MANUAL R14G Rock N Roller

Congratulations on your purchase from RocknRoller Multi-Cart, the most acclaimed and innovative transforming utility carts available. Although very easy to use, RocknRoller Multi-Cart's patented design operates differently than typical carts or dollies. To ensure maximum performance from your RocknRoller Multi-Cart, we recommend reading this instruction and assembly sheet thoroughly. U.S. Patent #'s: 5,228,716; 5,476,282; 6,966,574; 7,437,801; 7,490,847 & Pats. Pend.

LIMITED WARRANTY: RocknRoller Multi-Carts carry a one year limited warranty against defective material or workmanship on basic frame and components. Casters and wheels carry a 60 day warranty against defects. As with any equipment, normal maintenance is required. Caution should be used when moving any load with Multi-Carts or any other dolly.

R14G Model Specifications

Length (Compact) 42" 2 x 12 " lock nuts	2 x	12 " lock nuts
Length (Extended) 60" 2 x 12 " flat washer	2 x	12 " flat washer
Width (Frame Bed) 15" 2 x 12 /8" x 1 14 " cotter pins	1/8" x 1 14 " cotter pins
Width (Rear Wheels) 20" 20"20mm flat washes	2x	20mm flat washers
Height (Folded) 10" 2 x 8"x03" (200mm x 75mm) rear wheels	6" wheel(200mm x 75mm) rear wheels
Height (Unfolded) 38" 2 x36" x 3" (150mm x 75mm) stem casters	stem casters(36mm x 75mm) stem casters
Front Casters 6" x 3" 1 x Flat Wrench	1 x	Flat Wrench
Rear Wheels 8" x 3" 1 x Assembly/instruction sheet	Assembly/instruction sheet
Weight 36 lbs. 36 lbs.
Load Capacity 700 lbs.

Your RocknRoller Multi-Cart shipping box should contain a frame and the following parts:
Recommended Tools For Assembly

Channel Lock Pliers (not included)

Assembly Instructions

Caution: Be careful to not pinch or strike fingers during assembly. Be careful of metal burrs inside tubing.

1. Installing Rear Wheels


Mechanical assembly diagram showing a vehicle chassis with wheels and a fan component (no text or symbols)

Gently slide wheel over axle as shown. Do not force wheels onto axle. It is recommended to lubricate axles with light grease before installing. Install cotter pins and bend ends outward.

1. Installing Front Swivel Casters


Mechanical assembly diagram showing a wheeled cart with tools and a tool holder (no text or labels)

Attach front swivel casters as shown. While tightening lock nuts, grip bearing cap with channel lock pliers or pipe wrench to prevent threaded stem from turning. Tighten lock nuts firmly, but not excessively tight. Check lock nut tightness on caster stems periodically.

Customer Service & Technical Support

ACE PRODUCTS GROUP

Operating your RockNRoller® Multi-Cart®

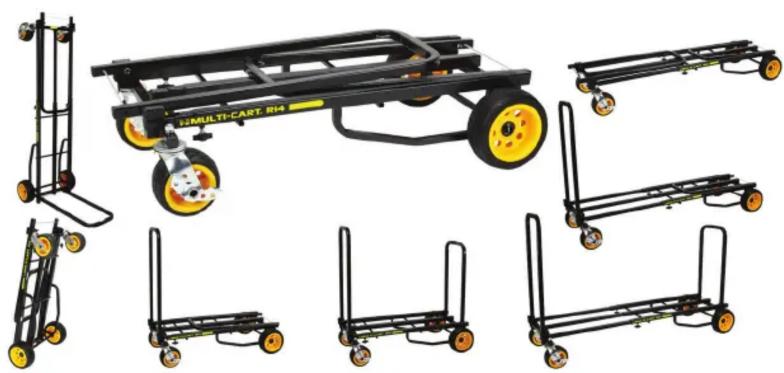

Multi-Carts instantly transform into any of 8 different configurations

Caution: When loading equipment on a hill or incline, set brake. (Block wheels if load is very heavy). Caution should be used when moving any load with Multi-Carts or any other dolly. Over rough terrain it is recommended to push cart with the large wheels forward.

Product lineup of a multi-cart wheeled cart with various wheels and accessories (no visible text or labels)

Extending Frame

Person pushing a wheeled cart with a handle (no text or symbols visible)

Loosen wingbolts 1/4 turn. Step on rear axle and push in extension stop button. Pull up on frame as shown until stop button engages. Retighten wingbolts.

Raising Foldable Sides

Person using a wheeled cart to adjust equipment (no visible text or symbols)

Firmly press down on release cable while raising other end of foldable side as shown.
Repeat with other side.

1. SHORT FURNITURE DOLLY: Place cart on all four wheels with sides folded down as shown. When using Multi-Cart in extended 4-wheel dolly configuration, distribute load evenly over frame bed when possible, placing the heaviest items over the large rear wheels to make rolling easier.
2. LONG NOSE LUGGAGE CART: Extend cart into 4-wheel hi-stacker mode. Set on one end as shown, pull top release cable and lower top foldable side.
3. STORAGE-TRANSPORT: With sides upright, place cart on end, loosen wingbolts under frame 1/4 turn, push in extension stop button, and push down to compact cart to minimum length. Retighten wingbolts. Place cart on all 4 wheels. FOLD HANDLES IN THIS ORDER: 1st, push down release cable over large wheels with one hand and fold down side with the other hand. 2nd, fold side over front swivel casters in the same manner. Cart will not fold down correctly unless done in this order. Stand cart on end to store or place upside down to ride in vehicles or on airport conveyor belts.
4. SHORT PLATFORM CART: Firmly push down on release cable located over swivel casters with one hand while raising the foldable side with the other hand until side locks into place in upright position.
5. SHORT HI-STACKER: Raise both sides as previously described.
6. LONG PLATFORM CART: Take short hi-stacker configuration and set on 2 large wheels (upright). Loosen 2 wingbolts 1/4 turn and pull frame upward until button engages. Retighten wingbolts and set cart back on all 4 wheels.
7. LONG HI-STACKER: Raise folded handle of long platform cart.
8. LONG PLATFORM CART: From long hi-stacker configuration, fold down side over large wheels first, then fold down side over swivel casters.

RocknRoller® Multi-Cart® R14G Accessories

Solid Deck

Black rectangular wheeled cart with two side handles, no visible text or symbols

Cable/headphone hanger

Mechanical bracket assembly with a close-up inset showing a separate view of a bracket (no text or symbols)

Laptop Shelf Fle

Black laptop stand with extended arm, no visible text or symbols on the device or background

Straps Flex Straps

Illustration of a mechanical device with multiple yellow string tied loops, no text or symbols present.
