ACEPRO 4G Bullet - Alarm system Godrej - Free user manual and instructions

Product Type	4G Bullet Alarm System
Brand	Godrej
Model	ACEPRO 4G Bullet
Connectivity	4G LTE (SIM card required), Wi-Fi (2.4 GHz)
Resolution	1080p Full HD
Night Vision	Up to 30 meters with IR LEDs
Motion Detection	PIR motion sensor with adjustable sensitivity
Audio	Two-way audio with built-in microphone and speaker
Storage	MicroSD card up to 128 GB (not included) and cloud storage
Power Supply	12V DC, 2A adapter (included) or Power over Ethernet (PoE) with injector
Operating Temperature	-20°C to 50°C
Dimensions	7.5 cm x 7.5 cm x 20 cm
Weight	500 g
Weatherproof Rating	IP65 (dust-tight and protected against water jets)
Mounting	Wall or ceiling mount bracket included
Mobile App	Godrej Secure App (iOS and Android)
Notifications	Push alerts for motion, tamper, and alarm events
Tamper Protection	Anti-tamper alarm when device is moved or opened
Encryption	Secure data transmission with AES-128
Maintenance	Clean lens with soft cloth; keep vents free of dust
Spare Parts	Mounting bracket, power adapter, screws available from Godrej service centers
Repairability	Serviceable by authorized technicians only; do not disassemble

Frequently Asked Questions - ACEPRO 4G Bullet Godrej

How do I insert a SIM card into the Godrej ACEPRO 4G Bullet?

Locate the SIM card slot under the weatherproof cover. Use a micro-SIM (not included). Ensure the device is powered off before inserting. Push the SIM in until it clicks, then close the cover securely.

Can I connect the camera via Wi-Fi only?

Yes, the camera supports both 4G and Wi-Fi. You can use Wi-Fi as the primary connection or as a backup if 4G is unavailable. Configure this in the Godrej Secure App.

What is the maximum MicroSD card capacity supported?

The camera supports MicroSD cards up to 128 GB. For best performance, use a Class 10 or UHS-I card. Ensure proper formatting via the app before use.

How do I reset the ACEPRO 4G Bullet to factory settings?

Press and hold the reset button (located near the SIM slot) for 10 seconds using a paperclip. The device will restart and restore default settings. You will need to reconfigure via the app.

What should I do if the camera is not connecting to the network?

First, check that the SIM card has an active data plan and is properly inserted. Ensure the 4G signal is strong. Try resetting the device and re-running the setup wizard in the app. If using Wi-Fi, verify the password and router compatibility.

Is the camera suitable for outdoor use?

Yes, the camera has an IP65 weatherproof rating, meaning it is protected against dust and low-pressure water jets. It can withstand rain and snow, but avoid submersion.

Can I share camera access with family members?

Absolutely. In the Godrej Secure App, go to Device Settings > Share Device. Enter the email of the person you want to share with. They will receive an invitation to view the camera stream.

How does the motion detection work?

The camera uses a PIR sensor to detect heat changes. You can adjust sensitivity in the app. When motion is detected, a push notification is sent and recording can be triggered to SD card or cloud.

What is the warranty period for the ACEPRO 4G Bullet?

Godrej offers a standard 1-year warranty against manufacturing defects. Register your product on the Godrej website to activate warranty. Extended warranty may be available.

How to clean and maintain the camera?

Use a soft, lint-free cloth slightly dampened with water to clean the lens and housing. Avoid harsh chemicals. Regularly check and clean vents to prevent overheating. Do not disassemble.

USER MANUAL ACEPRO 4G Bullet Godrej

ACE PRO 4G BULLET USER MANUAL

BLANK

Safety Instructions

Do's

Only use a Class 10 and above micro-SD card

While inserting/removing the memory card, ensure camera is in power OFF condition

Always recycle your product in an environment friendly way

Always use Micro 4G SIM to connect the camera online Godrej ACE PRO 4G Bullet supports all 4G SIM's in india

Place-install your camera on a steady or firm base surface

Switch off the camera if not in use

Godrej ACE Pro 4G Bullet camera can be used in outdoor as well as indoor environment

Don't's

In case of dust accumulation on lens protection glass, use a dry cloth to clean the surface

Do not install camera in front of a bright light

Do not install the camera upside down

Package Content

Bullet Camera - 1 no

Quick Start Guide

Mounting Screws

Know your product

• 3MP Smart ACE Pro 4G Bullet
• Built-in high-sensitivity MIC and speaker, supports two-way audio
- With white light and infrared light, supports 2 Night Vision modes: 1) B/W mode, 2) Full color mode
• Supports human detection - The device can turn on white light when someone is spotted in the monitoring area. And the real-time alarm push information is sent on Godrej ACE mobile app
• Built-in Siren - Siren will be trigger when human movement is detected. The voice/sound of the siren can be customized.
- Unique All-Time-Color Vision
• Supports Micro SD Card Up to 256GB (Micro SD card is not part of package)
• 4G Connection - Scan the QR code to easily connect the camera
• Supports monitoring - PC Client to view via Godrej ACE CMS/Mobile via Godrej ACE app
• IP66 Waterproof Rating - 4000 Lightning Protection

Note: Company reserves the right to change the features/specifications of product without notice.

Product Specifications

Image Sensor	: 1/2.7” CMOS Sensor
Resolution	: 3MP: 2304 x1296
Lens	: 4mm Fixed lens
IR LED	: Array 4 PC
IR Distance	: >20m
White LED	: Array 4 PC
White LED Distance	: >15m
Video Encode Stream	: H.264+/H.265/H.265+ 2048 x 1536 @ 15 fpsH.264+/H.265/H.265+ 640 x 480 @ 15 fps
Audio input\Output	: Supports Two-Way Audio, Built-In Microphone and Speaker
4G Frequency Band	: FDD-LTE : B1/B3/B5/B8;TDD-LTE : B34/B38/B39/B40/B41
Alarm	: 1. Motion Detection, Alarm Picture Push2. Human Detection
Power Input	: DC12V/1A
Power Consumption	: ≤5W
Working Temp	:-10°C ~ +50°C / 30% to 80% RH
Housing Type	: Plastic [IP 66]
Dimension	: 70 x70x135mm (WxHxL)
Net Weight	: 460 g
Gross Weight	: 615 g

Software Installation

A] APP Download and Installation

Users can search for "Godrej ACE" on App store or Google Play.

You can also install the App by scanning the QR code.

Android App iOS App

Note: The app requires iOS version 9.0 or Android version 5.0 or above.

B] Account Login

Account login: On the login interface, enter the account/ phone number/ email, and the corresponding password, click "Confirm" button to log in.

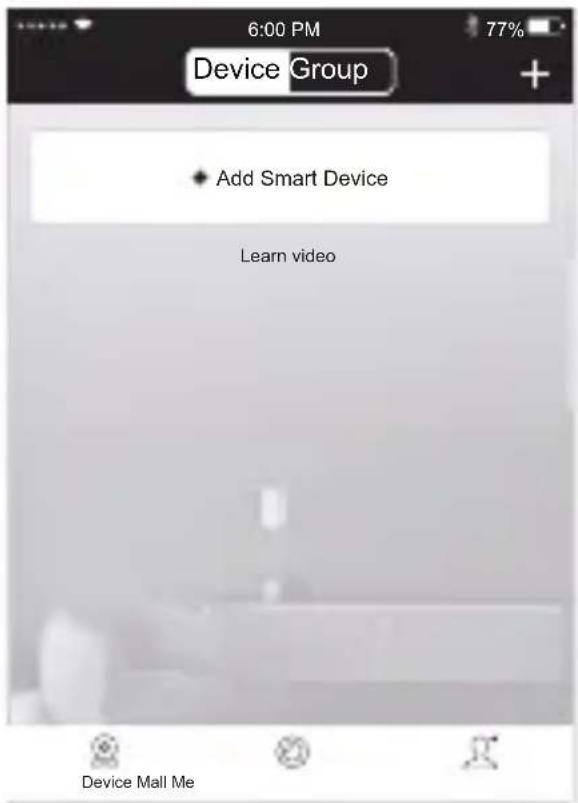

C] 4G SIM Card Installation

When the device is powered off, insert a 4G card that can access the Internet into the device.

1. Connect the device to the power supply. Wait for the successful connection voice prompt.

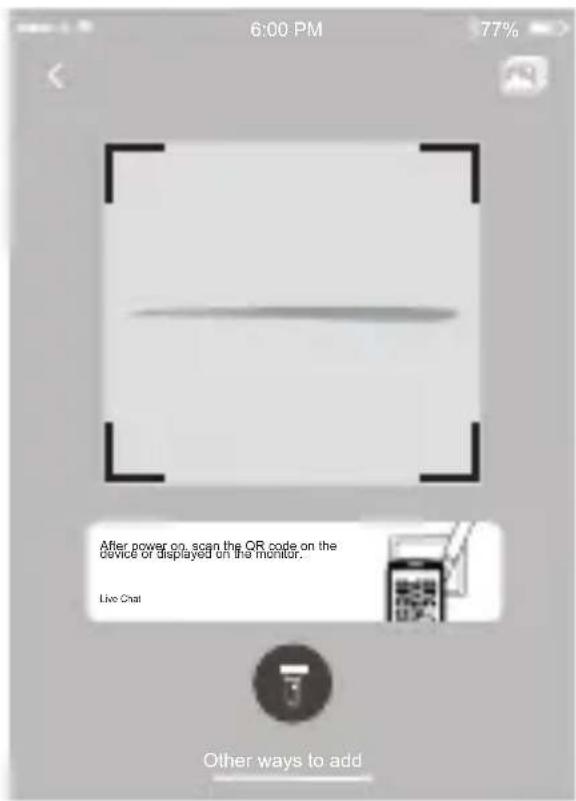

1. Scan the QR code on the device.

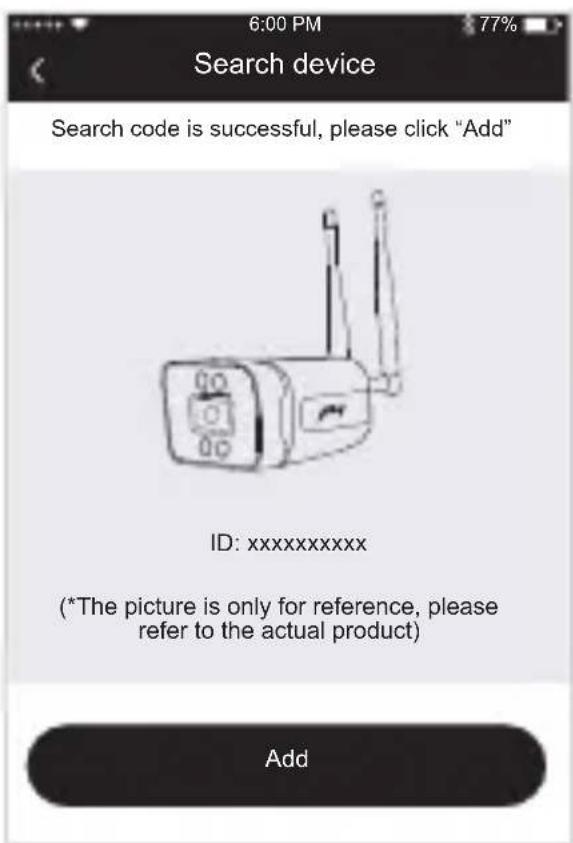

1. In the search device interface, click "Add"

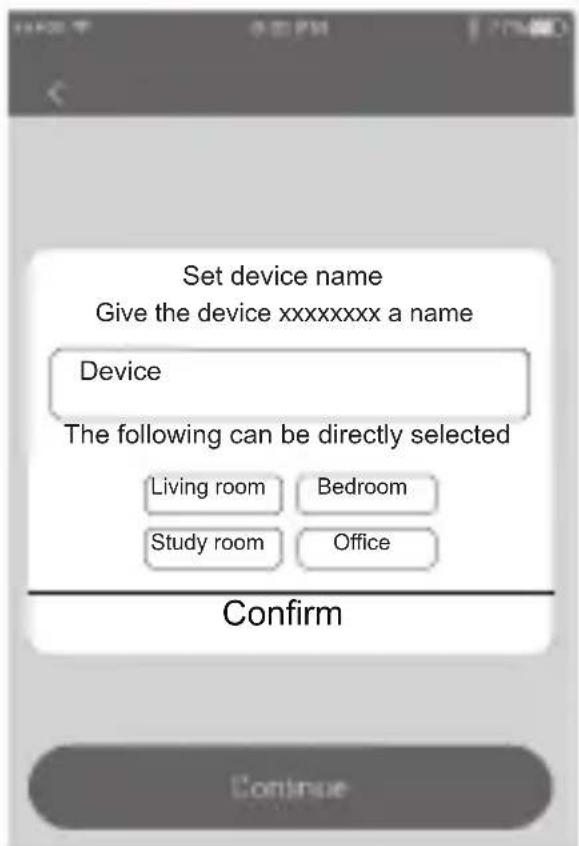

1. After setting the name & password for the device, it will be added successfully.

When the QR code scanning fails (or the scan code is unsuccessful)

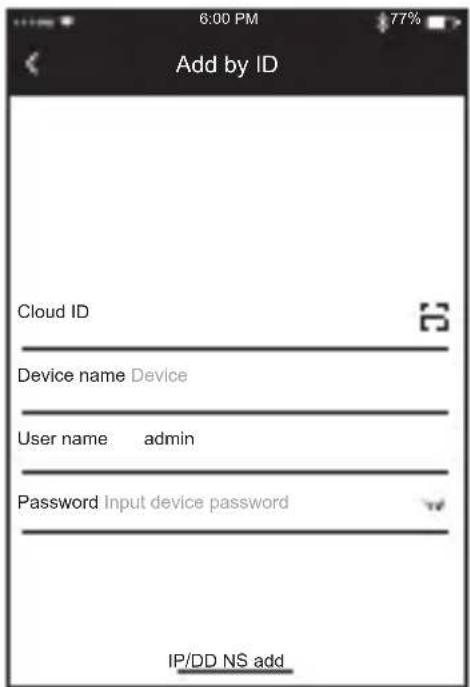

1. Select "Add by ID/IP" under "Other Adding Methods"

1. Enter the device ID and password. Click Finish on the upper right corner to add successfully.

Mounting

Camera installation - For a smooth camera installation process, refer to our camera screw mount guide to accurately position the holes on your wall. When working with cement walls, utilize our sturdy plastic plugs to securely fasten the camera in place.

Note:

- It is crucial to avoid installing the camera in areas with turbulent airflow. Examples include air conditioner outlets, equipment heat dissipation ports, fan sides, or near curtains. Additionally, please refrain from placing the camera directly in front of glass or mirrors.

Process to Reset the Camera

To reset the camera, press the reset button and hold for 10-15 sec in the power on state till you hear acknowledgement from the camera.

Godrej ACE Pro App and Website

To setup your camera's, download the Godrej ACE application and signup. The app will guide you thought the rest. You can view the camera feed using Godrej ACE Mobile application or by login into Godrej ACE CMS via your windows desktop.

Warranty

To avail warranty, please call our customer care number: 1800-209-5511 and produce the invoice details.

Note

We advise buying our products from authorized sellers. Warranty will be void and service will not be provided for products purchased through unauthorized sellers.

Customer shall adhere to all safety norms while installing and operating the product. The company shall not be liable for any damage, personal injury or death caused to the customer or any third party due to the negligence on the part of the customer or such third party, committed by way of improper installation, usage or handling of the product, which is not in accordance with the instructions provided by the company.

Not covered in warranty

Any damage resulting from mishandling or improper usage or lack of maintenance. Gas leakage, fire, burglary, accident, dropping, excessive shock, acts of nature, loss of components or accessories, replacement/repair by anyone other than authorized personnel, consumable parts like lights, batteries, plastic parts and accessories.

Under any circumstances company will not be liable for any damage caused due to power fluctuations / surges, excessive power supply voltage or improper earthing.

Disclaimer

Since the product is an IP based CCTV equipment, the use of the product shall be wholly at your own risk. Godrej & Boyce Mfg Co Ltd will take all reasonable security practices to prevent unauthorised access, damage, misuse or modification of the data stored in the servers in India. Godrej & Boyce Mfg Co Ltd shall not take any responsibility for abnormal operation, privacy leakage or other damages resulting from cyber-attack, hacker attack, virus attack or other internet security risks. However, Godrej & Boyce Mfg Co Ltd will provide timely technical support if required and asked for. In no event will Godrej & Boyce Mfg Co Ltd, its directors officers, employees or agents are liable to you for any consequential, incidental or indirect damages, including among others, damages for loss of business profits, business interruption or loss, damage corruption, recovery of data or documentation, in connection with the use of this product, even if Godrej & Boyce Mfg Co Ltd has been advised of the possibility of such damages.

Godrej & Boyce Mfg Co Ltd disclaims all liabilities connected with and damages arising out of situations wherein the suggested default Passwords or Usernames of all devices like Wi-Fi router to which camera is connected, Camera default password etc, are not changed from their factory default values.

Godrej & Boyce Mfg Co Ltd disclaims camera functionality when android or iOS upgrade their versions. Customer need to upgrade or buy a new camera hardware for availing new features of android / iOS. Under no circumstances Godrej & Boyce Mfg Co Ltd will replace the camera.

Under no circumstances Godrej will take onus to retrieve camera video recordings on cloud or on SD card. Godrej disclaims onus to retrieve cloud or SD card recording.

Important Instructions

• It is advised to power off the camera when not in use to ensure complete privacy. Godrej & Boyce will not be responsible for any unintended recording captured if the camera is powered on.
• All passwords associated directly and indirectly with the functioning of the Wi-Fi Camera system like Wi-Fi router password, Mobile Phone password, Godrej ACE app account password etc must be changed regularly and kept private.
• Do not share your Godrej ACE app account password with anyone.

INFORMATION ON E-WASTE HANDLING AND MANAGEMENT

Dear Customer,

The Ministry of Environment and Forests have published the E-waste (Management and Handling)Rules 2010, which comes in effect from 1st May 2012. E-waste is defined as any electrical or electronic component of products in whole or in part, or rejects from their manufacturing or repair process, which are intended to be discarded. These rules apply to every producer, consumer or bulk consumer involved in the manufacture, sale, and purchase and processing of electrical and electronic equipment or components as specified in Schedule 1 (please refer to our website www.godrej.com in the 'Good & Green' section of CSR module for more details). Under these rules, specific roles and responsibilities are defined for producers, consumers and recyclers handling and managing e-waste.

E-waste is to be managed in an environmentally sound manner, which means taking steps to ensure that health and environment are protected from adverse effects of hazardous substance contained in such wastes.

Rule 6 of the E-waste (Management and Handling) Rules 2010 states that bulk consumers of electrical and electronic equipment shall be responsible for recycling of the e-waste generated by them. Bulk consumer means bulk users of electronic and electrical equipment such as Central Government or State Government Departments, public sector undertakings, banks, educational institutions, multinational organizations, and international agencies, private companies that are registered under the Factories Act, 1948 and Companies Act, 1956. The bulk consumers have to ensure that the e-waste generated by them is channelized to authorized collection centre or is taken back by the producers. They shall maintain records of e-wastegenerated by them in Form 2 and make such records available for scrutiny by the State Pollution Control or the Pollution Control Committee concerned.

All consumers of electrical and electronic equipment, irrespective of their status as bulk consumers or not, shall ensure that e-waste generated by them is channelized to authorizedcollection Centre(s) or registered dismantler(s), or recycler(s) or is returned to the pick-up/take back services provided by the producers. (Please refer to our website www.godrej.com in the 'Good & Green' section of CSR module for more details).

All our products, intended to be recycled under the category of e-waste (as defined above), carry alabel or stamp of the WEEE symbol (A wheelie bin with a cross), which states that it falls under the hazardous waste category and is not to be disposed along with normal garbage. We seek your support in ensuring environmentally sound management of e-waste and aid us in sustaining our earth's natural resources and maintaining the earth's green cover intact for the benefit of our future generations.

NOTE

NOTE

Please fill your details below for future reference:

Date of Purchase: ____

Product Model:

Name & Address of Distributor/Dealer: ____

Distributor Phone Number: ____

FOR SAFETY, PLEASE READ THIS MANUAL PRIOR TO USE.

Toll Free: 1800 209 9955 (Sales & Service)

[phone] (Service)

Email: [e-mail] (Sales), [e-mail] (Service)

www.godrejsecure.com
