Product Type	Laptop Stand
Brand	Chief
Model	Kontour KRA300B
Color	Black
Material	Steel and aluminum
Weight Capacity	15 lbs (6.8 kg)
Platform Size	13.5 x 10.5 inches (34.3 x 26.7 cm)
Height Adjustment Range	7 to 15 inches (17.8 to 38.1 cm)
Tilt Range	-5° to +15°
Swivel	360°
Rotation	180°
VESA Compatible	No (laptop tray only)
Cable Management	Yes, integrated clips
Mounting Type	Desk clamp or grommet mount
Desk Thickness Range	0.5 to 3.3 inches (1.3 to 8.4 cm)
Product Weight	8.5 lbs (3.9 kg)
Package Dimensions	16 x 12 x 4 inches (40.6 x 30.5 x 10.2 cm)
Power	None (manual adjustment)
Maintenance	Wipe with a damp cloth, avoid abrasives
Safety	Do not exceed maximum weight capacity; tighten all bolts securely
Spare Parts	Available from Chief website or authorized dealers
Warranty	10 years limited warranty

Frequently Asked Questions - Kontour KRA300B Chief

How do I install the Chief Kontour KRA300B laptop stand?

Installation requires a desk clamp or grommet mount. Attach the base to the desk using the provided hardware. Then slide the arm onto the base and tighten the set screw. Finally, attach the laptop tray and adjust to your preferred height and angle. Detailed instructions are in the user manual.

What is the maximum weight capacity of the KRA300B?

The KRA300B can support laptops up to 15 lbs (6.8 kg). Do not exceed this limit to ensure stability and safety.

Can it hold a 15-inch laptop?

Yes, the platform measures 13.5 x 10.5 inches, suitable for most 15-inch laptops. Check your laptop's dimensions to ensure a proper fit.

How do I adjust the height and tilt?

Height is adjusted using the gas spring mechanism: lift or push down on the arm. Tilt is adjusted by loosening the tilt knob, setting the angle, and retightening. The stand offers 7-15 inches of height and -5° to +15° of tilt.

Is the KRA300B compatible with a curved desk edge?

Yes, the desk clamp can fit curved edges up to 3.3 inches thick. For grommet mount, ensure the hole diameter is at least 0.75 inches.

How do I manage cables with this stand?

The arm includes integrated cable clips. Route your laptop charging cable along the arm and secure it in the clips to keep your workspace tidy.

Can I mount the stand without drilling holes?

Yes, the clamp mount attaches to the edge of your desk without drilling. If you prefer a cleaner look, you can use the grommet mount if your desk has a pre-existing hole.

What tools are included for installation?

The package includes a hex key and all necessary screws. A Phillips head screwdriver may be needed for some desk types. No power tools required.

How should I clean and maintain the stand?

Wipe the surface with a soft, damp cloth. Do not use abrasive cleaners or solvents. Periodically check and tighten all bolts to ensure stability.

Does the KRA300B come with a warranty?

Yes, Chief offers a 10-year limited warranty against defects in materials and workmanship. Contact Chief support for warranty claims.

USER MANUAL Kontour KRA300B Chief

INSTALLATION INSTRUCTIONS

Laptop Tray

DISCLAIMER

Milestone AV Technologies and its affiliated corporations and subsidiaries (collectively “Milestone”), intend to make this manual accurate and complete. However, Milestone makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed or implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.

Chief® is a registered trademark of Milestone AV Technologies. All rights reserved.

IMPORTANT SAFETY INSTRUCTIONS!

WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the corresponding instructions.

WARNING: Failure to read, thoroughly understand, and follow all instructions can result in serious personal injury, damage to equipment, or voiding of factory warranty! It is the installer's responsibility to make sure all components are properly assembled and installed using the instructions provided.

WARNING: Use this mounting system only for its intended use as described in these instructions. Do not use attachments not recommended by the manufacturer.

WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the combined weight of all components located between the KRA300 up to (and including) the laptop does not exceed 15 lbs (6.8 kg). Use with products heavier than the maximum weight indicated may result in collapse of the mount and its accessories causing possible injury.

WARNING: Never operate this mounting system if it is damaged. Return the mounting system to a service center for examination and repair.

WARNING: Do not use this product outdoors.

--SAVE THESE INSTRUCTIONS--

DIMENSIONS

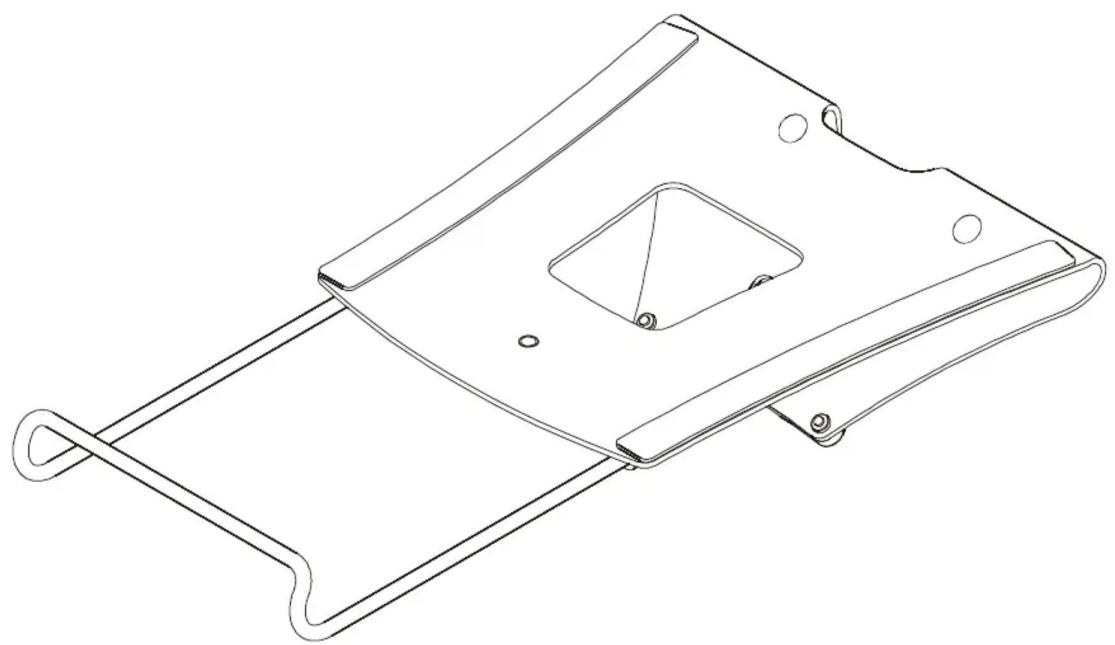

PARTS

ASSEMBLY AND INSTALLATION

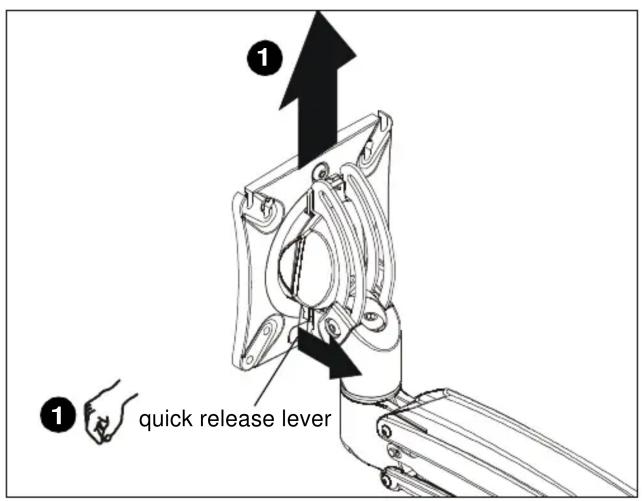

1. Remove existing quick release faceplate from monitor arm by pulling quick release lever and lifting faceplate from arm. (See Figure 1)

Figure 1

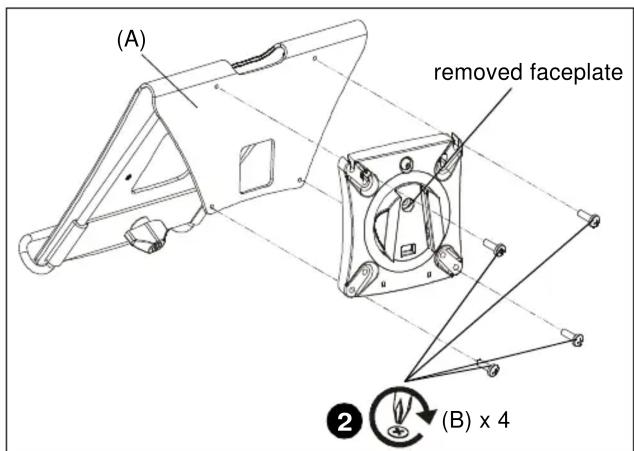

1. Use four M4x12mm Phillips pan machine screws (B) to attach laptop tray (A) to removed faceplate. (See Figure 2)

Figure 2

1. Slide laptop tray (A) onto mounting head until quick release tab clicks into place. (See Figure 3)
2. Adjust mounting arm and tray to desired mounting level. See monitor arm installation instructions for adjustment details. (See Figure 3)

Figure 3

1. Turn extension rod tension adjustment knob counterclockwise to decrease tension. (See Figure 3)
2. Extend laptop extension rod as desired. (See Figure 3)
3. Turn extension rod tension adjustment knob clockwise to tighten extension rod in place.

WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the combined weight of all components located between the KRA300 up to (and including) the laptop does not exceed 15 lbs (6.8 kg). Use with products heavier than the maximum weight indicated may result in collapse of the mount and its accessories causing possible injury.

1. Center laptop on tray and adjust pitch tension as needed to hold tray in desired position. (See Figure 3)
