Product Type	Kitchen Faucet
Brand	Oliveri
Model	Essente SS31670
Material	Stainless Steel (SS316)
Finish	Brushed Stainless Steel
Mounting Type	Deck Mounted
Number of Handles	Single Lever
Spout Height	200 mm (approx.)
Spout Reach	220 mm (approx.)
Swivel Range	360 degrees
Flow Rate	6 L/min at 3 bar
Water Connection	1/2" BSP
Cartridge Type	Ceramic Disc
Includes	Mounting Hardware & Supply Hoses
Warranty	1 Year (Manufacturer)
Net Weight	1.5 kg
Packaged Weight	2.0 kg
Dimensions (L x W x H)	220 x 55 x 200 mm
Care Instructions	Wipe clean with soft damp cloth; avoid abrasive cleaners
Safety	Meets ASME A112.18.1 and CSA B125.1

Frequently Asked Questions - Essente SS31670 Oliveri

What tools are needed for installation?

You will need an adjustable wrench, plumber's tape, and a basin wrench. The installation manual provides step-by-step instructions.

How do I clean the faucet?

Wipe the faucet with a soft damp cloth and mild soap. Avoid abrasive cleaners or scouring pads to prevent scratching the brushed finish.

What should I do if the faucet leaks?

Check the supply connections first. If the leak is from the spout, the cartridge may need replacement. Contact Oliveri support for cartridge replacement instructions.

Is this faucet compatible with an under-sink water filter?

Yes, it uses standard 1/2" connections. You can connect a filter system to the cold water supply line before the faucet.

How do I replace the cartridge?

Turn off water supply, remove the handle screw (possibly under a cap), pull off the handle, unscrew the retaining nut, and replace the ceramic disc cartridge. Tighten and reassemble.

Does the faucet come with a warranty?

Yes, Oliveri provides a 1-year warranty against manufacturing defects. Keep your purchase receipt for warranty claims.

Can this faucet be used with a tankless water heater?

Yes, it is compatible with tankless heaters as long as the flow rate (6 L/min) meets the heater's minimum activation flow.

How can I adjust the water flow?

The single lever controls both temperature and flow. Lift the lever to increase flow, lower to decrease. Rotate left for hot, right for cold.

How do I remove the handle for cleaning or repair?

Locate the set screw under the handle button or cap. Use an Allen key to loosen it, then pull the handle upward. Reinstall by reversing the steps.

What is the spout height and reach?

The spout height is approximately 200 mm and the reach is 220 mm. This allows easy filling of large pots and cleaning.

USER MANUAL Essente SS31670 Oliveri

316 | Marine Grade Stainless Steel

THIS MIXER TAP MUST BE INSTALLED BY A LICENSED PLUMBER IN ACCORDANCE WITH LOCAL REGULATIONS.

This Oliveri tap is manufactured to standard AS/NZS 3718.

This product complies with the Lead Free requirements of the National Construction Code Volume 3.

MAX OPERATING PRESSURE: 5 bar (500kPa)

RECOMMENDED OPERATION PRESSURE: 1.5-5 bar (150-500kPa)

MAX HOT WATER TEMPERATURE: 65°C

RECOMMENDED HOT WATER TEMPERATURE: 50°C

Where water pressure exceeds 500kPa, a pressure reducing device is required to be installed. Note that water pressure overnight can reach 150% of the daytime pressure.

Note: Installation of aerators containing flow regulators.

Upon re-installation, the aerator should be tightened with an aerator key to prevent removal by hand.

Note: Ceramic Cartridges - Warranty claims will not be honoured where the ceramic cartridge has malfunctioned due to the presence in the water supply of;

• Copper tube pieces, sand, dirt or stones

- Thread tape

- Other objects not normally present in potable water supplies.

Do not remove the cartridge from the body as it has been pressure tested and tightened to a specific torque.

Before attempting any work involving mains water supply lines, ensure the water supply is shut off.

Stop valves (preferably with filters) must be used when installing your Oliveri mixer to allow isolation (not supplied with mixer). Failure to do so where required will void warranty.

This mixer tap is already pre-assembled and tested. Do not disassemble, as this may void the warranty.

This mixer tap must be installed in accordance with these instructions.

Oliveri Solutions Pty Ltd ABN 12 007 551 886

51 Nawreena Rd, Regency Park SA 5010 P 08 8348 6444 E [e-mail]

Essente

Stainless Steel Square Goose Neck Mixer SS31670 / SS31670-AU / SS31670-BL / SS31670-GM

CARE & MAINTENANCE

Unscrew and clean the spout aerator periodically - especially if you notice a drop in water pressure. The finish on your Oliveri mixer tap will resist stains and dirt build up.

Clean with a soft cloth and warm soapy water as necessary - rinse and dry after cleaning. Avoid using abrasive or acid based cleaning products.

WARRANTY FOR DOMESTIC USE

This mixer tap is warranted to be free from manufacturing defects for a period of 15 Years: Cartridge: 15 years replacement parts, 1 year labour; Body including handle: 7 years replacement parts and labour; Finish: 5 years replacement parts, 1 year labour; Seals, tails, aerators: 1 year replacement parts and labour.

Where a genuine manufacturing defect arises within the warranty period Oliveri will, at its election, repair the defect or replace the product subject to the terms contained in the full warranty information available at https://oliveri.com.au/service-and-warranty.

This warranty does not cover against normal wear and will be voided if the product is misused or not installed in accordance with these instructions. Note: Fitting spout-attached devices, including water filters, to this mixer will void warranty.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

SERVICE

If the problem represents a danger, or damage to property may occur, immediately shut off the water supply. If the mixer tap requires servicing, please contact your plumber (preferably the one who installed it). Most problems occur due to contaminated supply lines or water pressure exceeding 500kPa. Unscrew and clean the spout aerator periodically - especially if you notice a drop in water pressure.

If the plumber / installer is satisfied that the problem is not due to poor installation, contact Oliveri's nominated Warranty Service Agent for assistance on:

Ph: [phone] (choose the after sales service and warranty option) Email: [e-mail]

For full warranty information visit: https://oliveri.com.au/service-and-warranty

If a warranty service call finds that the product does not have a genuine manufacturing fault, our Warranty Service Agent reserves the right to pass on any call-out fee to the householder.

TF 184d - SS31670 installation instructions.pdf

GENERAL NOTE

This product is to be installed by a licensed plumber, installation must comply with AS/NZS 3500 and local plumbing codes.

B

Technical line drawing of a kitchen faucet with a side view showing internal components (no text or symbols)

C

D

E

F

G

PRESSURES & TEMPERATURES

Maximum Hydrostatic Pressure - 500kPa. (As per AS/NZ S3500)

Note: AS/NZS 3500.1-2003 (Clause 3.3.4) states that "Provision shall be made to ensure that the maximum static pressure at any outlet, other than a fire service outlet, within a building does not exceed 500kPa." Note: Pressures above 500kPa can cause damage from water hammer, reduced life of appliances, taps and fittings, and cause excessive noise in the system. Minimum Hydrostatic Pressure : 100kPa. Note: This Product may not be suitable for use with low pressure/gravity feed water supplies or with some continuous flow/instantaneous hot water systems. The maximum operating temperature for the Mixer Tap is 65°C. The recommended maximum delivery temperature is 50°C.

Please ensure that the lines are flushed prior to installation as contaminates in the water can damage the Ceramic Cartridge, flow regulator and also affect the performance of the Mixer.

Note: This mixer is designed to have the handle to the right hand side of the mixer, doing so will put the cold inlet to the front of the mixer, the purpose is to assist with accidental scalding if a child pulls the handle forward trying to turn on the mixer, installing the handle to the centre will put the cold on the left hand side which is not recommended.

1. Remove product from packaging and check for damage, if the product is damaged do not install and return to store of purchase.
2. The WELS compliant aerator has been pre-assembled into the mixer outlet. To comply with WELS the flow regulated aerator must remain in place.

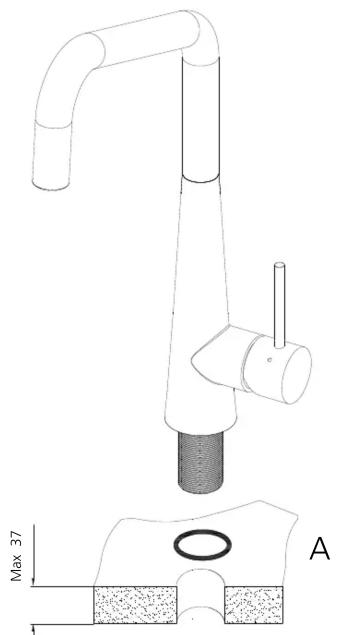

3. Ensure Product is complete as per exploded drawing.
4. A single 35mm hole is required in the mounting surface.
5. The maximum mounting surface thickness cannot exceed 37mm.
6. Ensure bench sealing washer (A) is in place on base of the Mixer.
7. Screw the Mixer tails (B) into base of the Mixer being careful to avoid damage to the o'ring seals, the Mixer inlet ports are colour-coded, red for hot and blue for cold. Hand tighten only.
8. Feed the Mixer tails through the mounting surface, each end alternatively and position the mixer on the mounting surface ensuring the sealing washer (A) is positioned correctly.
9. Feed Mixer tails, each alternatively through Stabiliser Plate (C).
10. Slide Rubber Washer (D) onto Mixer thread followed by Metal Washer (E).
11. Using Fixing Nut (F) tighten Mixer to mounting surface, lock Fixing Nut in place with screws (G)
12. Connect Mixer tails to mains water 1/2 "stop cock. Tighten to 10Nm. Do NOT overtighten.
13. Ensure the Mixer tails are not kinked, bent, stretched or twisted when assembling to the mains water supply. The Mixer Tail connection between the mixer and the water supply must have a natural curve (minimum bend radius 30 mm).
14. Ensure Mixer tails are installed indoors, above-ground, and remain accessible - do not bury, submerge, install behind a wall, floor or ceiling. Do not not expose to abrasions, corrosive agents or the like. Test for leaks: If a leak occurs, retighten slightly.
15. It is recommended that in-line filters be installed to ensure a cleaner flow of water to the mixer.

TO THE CONSUMER

1. The mixer is to only be cleaned with warm soapy water.

2. Under no circumstances should any abrasive, cream or acid based cleaning agents be used as these types of cleaners will damage the tap finish, cartridge, seals and aerators.
