Product Type	Mid Tower Computer Case
Brand	Azza
Model	Guardian Glass
Form Factor	Mid Tower
Motherboard Support	ATX, Micro-ATX, Mini-ITX
Dimensions (L x W x H)	19.7 x 8.3 x 18.5 inches (500 x 210 x 470 mm)
Weight	15.4 lbs (7 kg)
Material	Steel frame, Tempered Glass side panels
Side Panel Type	Tempered Glass (both sides)
Drive Bays (Internal 3.5"/2.5")	2 x 3.5" or 2 x 2.5" (combo)
Drive Bays (External 5.25")	None
Expansion Slots	7
Max GPU Length	14.2 inches (360 mm)
Max CPU Cooler Height	6.3 inches (160 mm)
PSU Support	ATX PSU, up to 7.9 inches (200 mm)
Cooling Support (Front)	3 x 120 mm or 2 x 140 mm fans, up to 360 mm radiator
Cooling Support (Top)	2 x 120 mm or 2 x 140 mm fans, up to 240 mm radiator
Cooling Support (Rear)	1 x 120 mm fan, 120 mm radiator
Pre-installed Fans	None
I/O Ports	2 x USB 3.0, 1 x USB-C 3.1 Gen 2, 1 x HD Audio
Removable Dust Filters	Top, Bottom, Front
Cleaning Instructions	Use a soft cloth and mild glass cleaner for the glass panels; avoid abrasive cleaners.
Safety Instructions	Keep away from heat sources; ensure proper ventilation; handle glass panels with care to avoid breakage.
Spare Parts & Repairability	Spare parts available via manufacturer or authorized resellers; standard screws and components are replaceable.
General Information	Designed for high airflow and aesthetics; supports modern hardware configurations.

Frequently Asked Questions - Guardian Glass Azza

What motherboard sizes are compatible with the Azza Guardian Glass?

The case supports ATX, Micro-ATX, and Mini-ITX motherboards.

How many fans can I install?

You can install up to 3 x 120mm or 2 x 140mm fans in the front, 2 x 120mm or 2 x 140mm on top, and 1 x 120mm at the rear.

What is the maximum GPU length supported?

The maximum GPU length is 360mm (14.2 inches).

Does it come with pre-installed fans?

No, the case does not include pre-installed fans. You need to purchase them separately.

What type of side panels does it have?

Both side panels are made of tempered glass for a showcase build.

Can I install a liquid cooling radiator?

Yes, you can install up to a 360mm radiator in the front and a 240mm radiator on top, and a 120mm radiator at the rear.

How do I clean the tempered glass panels?

Use a soft microfiber cloth with a mild glass cleaner. Avoid ammonia-based cleaners as they may damage the coating.

What ports are available on the front I/O?

The front I/O includes 2 x USB 3.0, 1 x USB-C 3.1 Gen 2, and 1 x HD Audio (headphone/mic combo).

Is the power supply included?

No, the power supply is not included. You need to purchase an ATX PSU separately, with a maximum length of 200mm.

Where can I buy spare parts or replacement glass panels?

Spare parts can be ordered through Azza's official website or authorized resellers. For glass panels, contact customer support.

USER MANUAL Guardian Glass Azza

GUARDIAN GLASS/ GUARDIAN WOOD

USER MANUAL

1. Specifications
   2.Chassis Parts
2. Control Panel Functions
   4.3.5"/2.5" HDD/SSD Installation

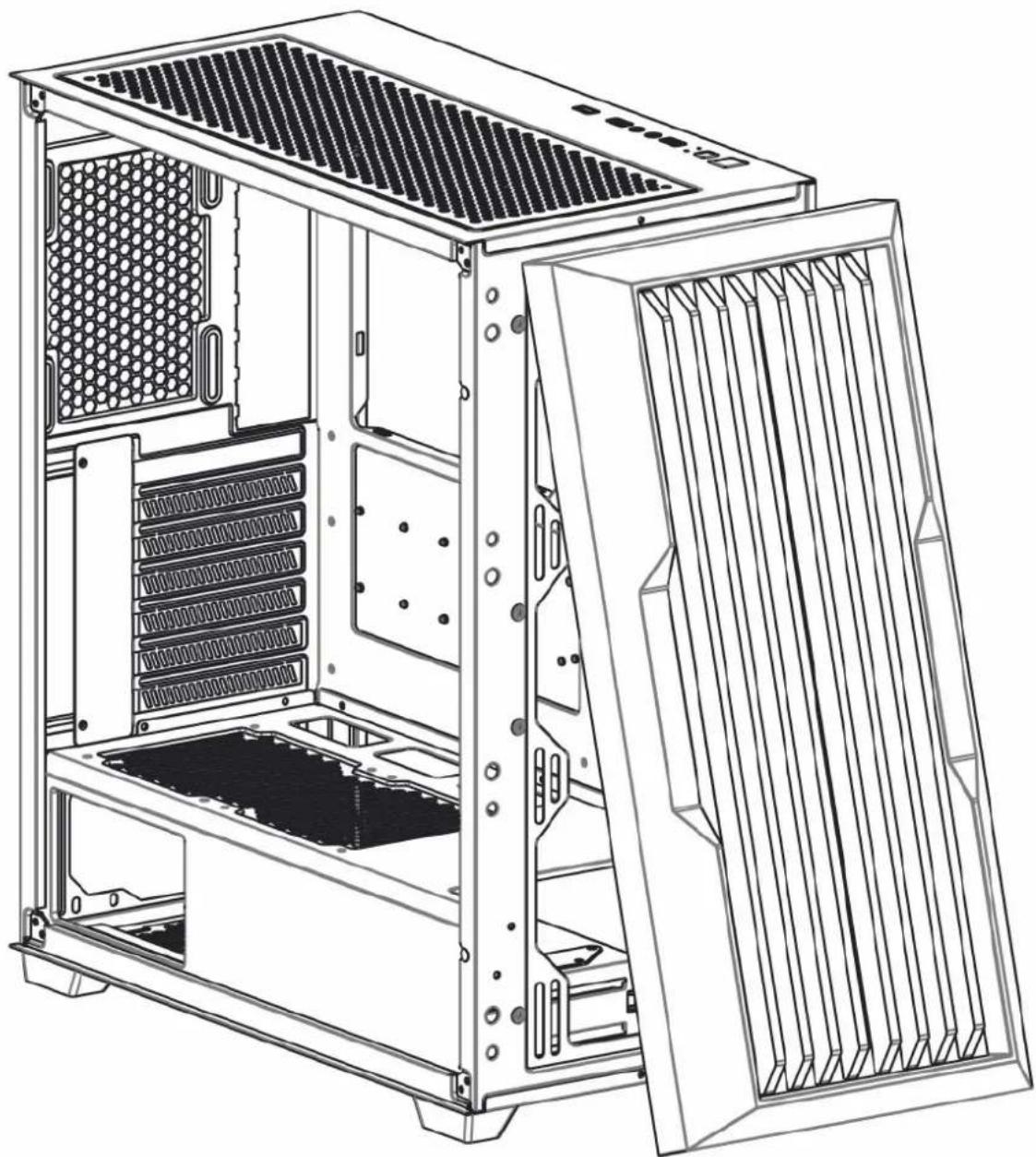

3. Remove the Front panel
4. Remove the left glass side panel
5. Cooling System Installation

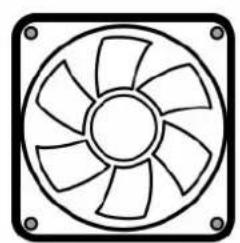

6. Fan Installation
7. RGB Lighting Switching
8. ARGB Control Board

Model
Model Name:	Guardian Glass/ Guardian Wood
Model Number:	CSAZ-520BG/ CSAZ-520BW ; CSAZ-520WG/ CSAZ-520WW
Specifications
Type:	ATX Mid Tower
Color:	White/White(interior)/Black/Black(interior)
Side Panel Window:	Left side panel: Slidable tempered glass panel
Max CPU Cooler Height:	UP to 170 mm
Max Video Card Length:	Up to 400 mm long video card
Power Supply:	Not included
Motherboard Compatibility:	E-ATX<300 · ATX · Micro ATX · ITX
Expansion
External 5.25" Drive Bays:	0
Internal 2.5" Drive Bays:	Up to 4
Internal 3.5" Drive Bays:	Up to 2
Expansion Slots:	7
Top Ports:	Power button,LED button, HD Audio, USB 3.0 x 2,Type C
Physical Specifications
Physical Dimension(HxWxD)	486x220x466mm/19.1x8.7x18.3 inches
Weight:	Guardian Glass:8.1Kg /17.9lbs / Guardian Wood:7.4Kg /16.3lbs
Features
Addressable RGB Light Effects:	All addressable RGB devices can sync with the motherboard, allowing the motherboard software to control lighting directly.
Available Fan Ports:	3x120mm or 3x140mm fan ports in the front3x120mm or 2x140mm fan ports on the top2x120mm fan ports on the mb side1x120mm fan port in the rear (1x120mm LFO-2512D ARGB Fan included)
Water Cooling:	Supports radiators up to 280/360mm in the FrontSupports radiators up to 280/360mm in the Top
Dust Filters:	Removable (magnetic) dustproof net on the top, dust filter on bottom of chassis.
Power Supply Support:	Bottom mounted ATX Power Supply

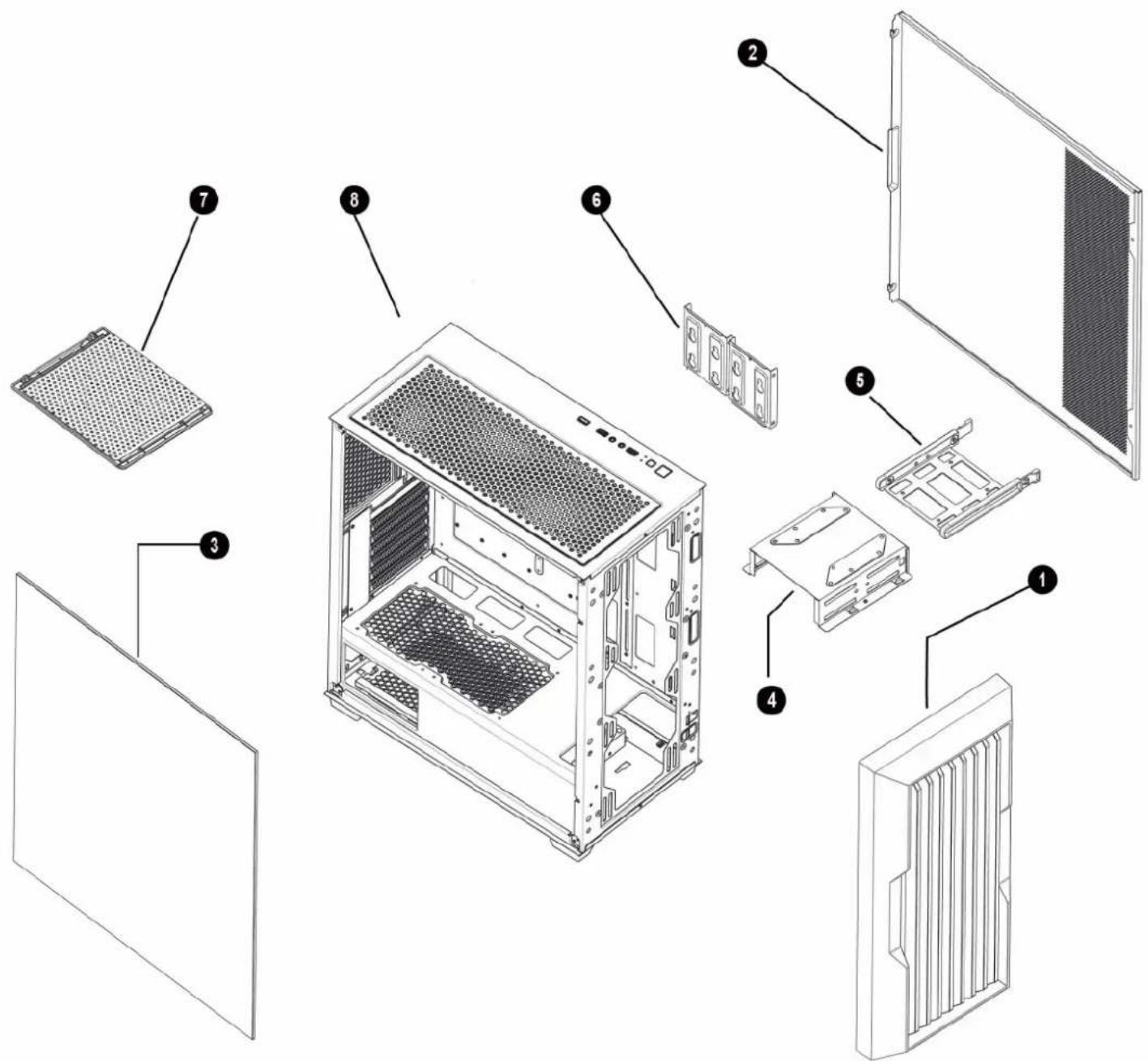

1	Front panel
2	Metal side panel
3	Tempered glass panel
4	Hard disk cage
5	3.5" HDD/ 2.5" SSD brackets
6	2.5" SSD tray x 2
7	Dust filter mesh
8	Chassis

	POWER
	LED
	HD Audio

	USB 3.0
	USB 3.0
	Type-C

- Supports up to 400mm long video cards.

or

• Multifunctional hard disk bracket supports 3.5" HDD or 2.5" SSD x 1 ( A )
  -2.5" SSD metal tray supports 2.5" SSD x 2 ( C )
• Multifunctional hard disk cage supports 3.5" HDD or 2.5" SSD x 1(③)

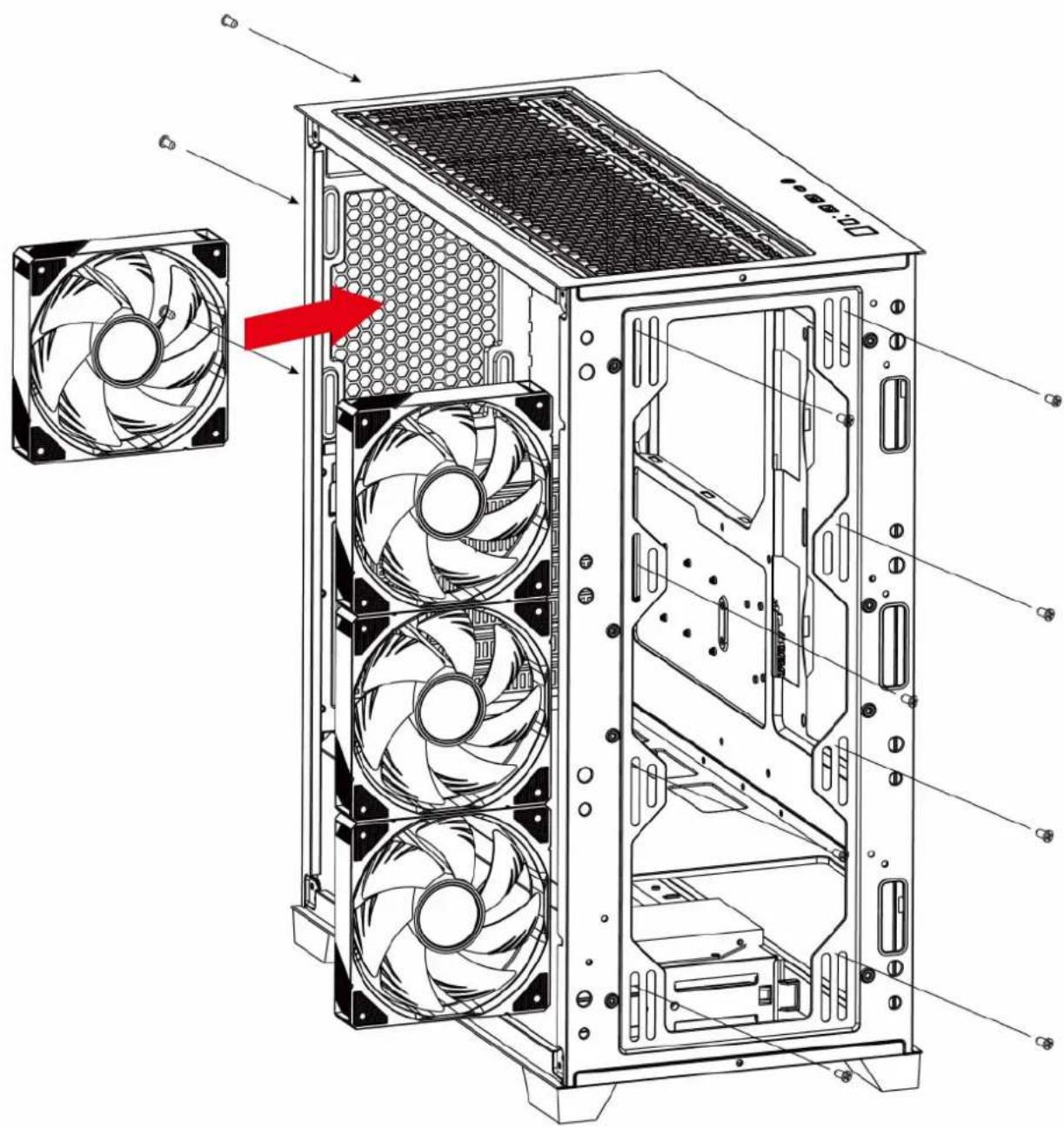

Front

120mm x3

or

140mm x3

Rear

120mm x1

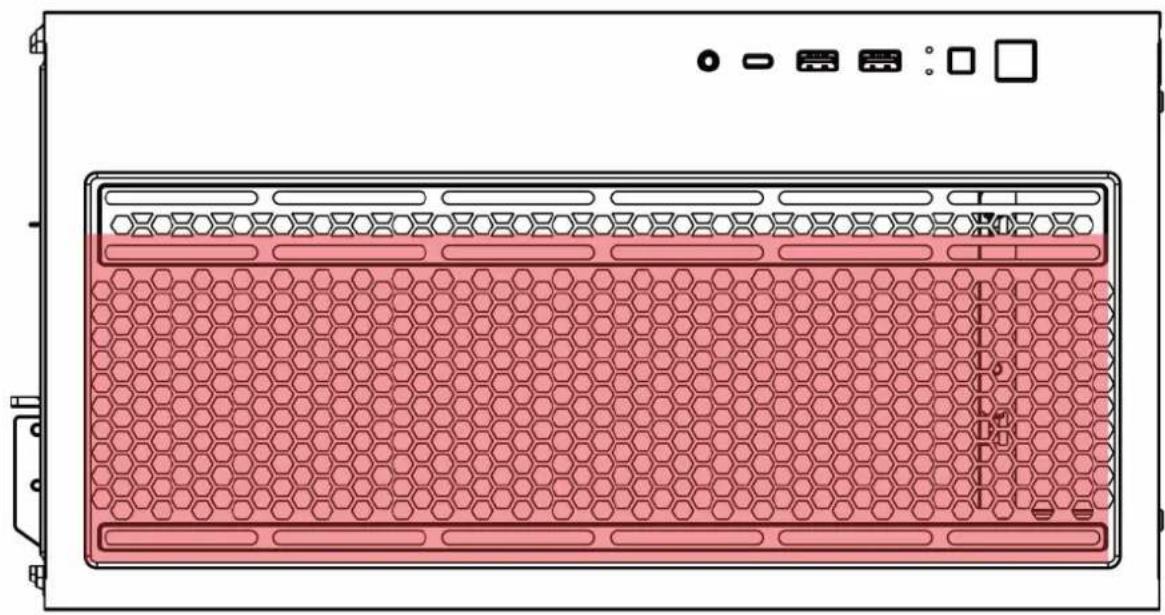

Top

120mm x3

or

140mm x2

Max Length of Radiator
360mm

■ 2x120mm fan ports on the mb side

120mm x2

connect LED botton

※Press LED button to select different ARGB 13 modes

※ If the ARGB control board connected to the mainboard ARGB pin header.

If the ARGB control board connected to the mainboard ARGB pin header,

Press the LED button for 3-6 seconds meanwhile the white light flash twice to switch the control function to the motherboard sync. Software;

Press the LED button for >6 seconds meanwhile the white light flashes four times to turn off the LED lights. When the LED lights are off, press the LED button for 1 seconds to turn on the LED lights.
