Product Type	Car Speaker
Brand	Infinity
Model	Reference 3032CF
Speaker Type	2-Way Coaxial
Size	3.5 inches
Power Handling (RMS)	45 Watts
Peak Power	135 Watts
Frequency Response	100 Hz - 20 kHz
Sensitivity	92 dB
Impedance	4 Ohms
Mounting Depth	45 mm (1.77 in)
Mounting Cutout	95 mm (3.74 in)
Tweeter Type	Silk Dome
Cone Material	Plus One+ Polypropylene
Voice Coil	1 inch
Weight	0.7 kg (1.5 lbs)
Included Accessories	Grilles, mounting hardware, wiring harness
Installation	Replace factory 3.5" speakers in dash or doors
Compliance	CE, RoHS
Warranty	1 year limited

Frequently Asked Questions - Reference 3032CF INFINITY

What is the size of the Infinity Reference 3032CF speaker?

It is a 3.5-inch (8.9 cm) speaker, designed to fit standard 3.5" mounting locations.

What is the RMS power handling of this speaker?

The RMS power handling is 45 watts, with a peak power of 135 watts.

What is the impedance of the Reference 3032CF?

It has a nominal impedance of 4 ohms, compatible with most car audio systems.

How do I install the Infinity 3032CF speaker?

Installation involves removing the old speaker, connecting the wiring harness, and mounting the new speaker using the included hardware. Ensure polarity is correct.

What is the frequency response range?

The frequency response is from 100 Hz to 20 kHz, covering bass to high frequencies.

Does this speaker include a tweeter?

Yes, it is a 2-way coaxial speaker with a built-in silk dome tweeter for clear highs.

Can I use this speaker for marine applications?

No, it is not designed for marine environments. It is intended for indoor car use only.

What is the mounting depth required?

The mounting depth is 45 mm (1.77 inches). Ensure there is enough clearance behind the mounting location.

How do I clean the Infinity 3032CF speaker?

Use a soft, dry cloth to gently wipe the grille and cone. Avoid using water or cleaning solvents.

Does the speaker come with a warranty?

Yes, it comes with a 1-year limited warranty from the manufacturer.

USER MANUAL Reference 3032CF INFINITY

Harman Consumer Group, Inc.

Klaus Leibert

EN 61000-6-1:2001

EN 61000-6-3:2001

manual is in compliance with technical standards:

declare in any responsibility that the product described in this owner's

원리니

72500 Chilean da Lori

1. route de TOURS

We, Harman Consumer Group, Inc.

3D

Declaration of Contormity

H Harman International

intimty is a trademark of Harman International Industries, Incorporated, registered in the United States and/or other countries.

© 2009 Harman International Industries, Incorporated, All Rights Reserved. 105 civil rights reserved. - Part No. RE-302ZUMI.109

Herman Consumer Group, Inc., 250 Crossways Park Drive, Woodbury, NY 11797 USA

Features, specifications and appearance are subject to change without notice.

Designed and engineered in the USA. Convention of design aux E.U.A.

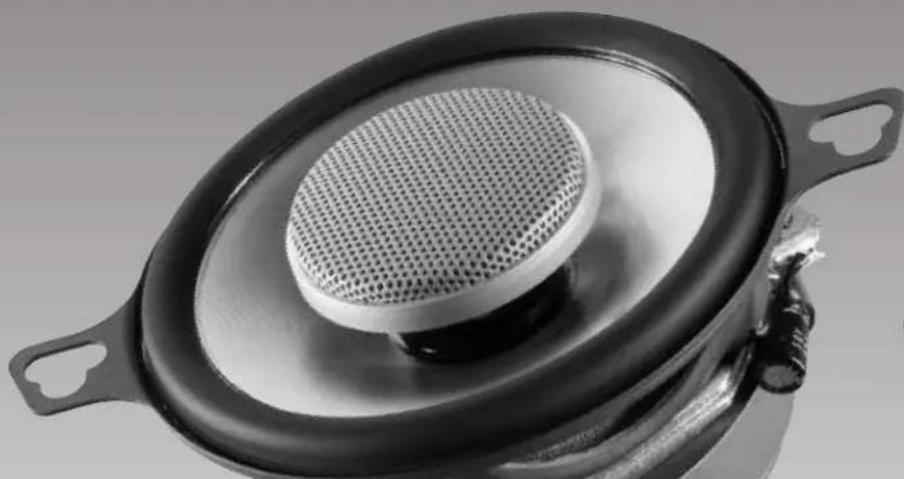

REFERENCE 2020of

3032cf

Close-up of a speaker grille with mesh filter and black plastic casing (no text or symbols visible)

Infinity®

BL (T-m) 2.83 Vas (I) 1.20

DCR (ohms) 2.30 Fs (Hz) 132.3

Mms (g) 3.76 Qes 0.90

Sd (sq cm) 47.2 Qms 6.47

Cms (μm/N) 385 Qt 0.79

SPECIFICATIONS

Type: 3.5" (87mm) 2-Way Custom Fit Power Handling, Peak: 75W

Impedance:	2 Ohms	Frequency Response:	85Hz – 21kHz
Power Handling, RMS:	25W	Sensitivity (2.83V, 1m):	91dB

WARRANTY: Reference Series speakers are warranted against defects. The duration of the speaker's warranty depends on the laws in the country in which it was purchased. Your local Infinity car audio retailer can help you determine the length of your warranty. To register your product, please visit us at www.infinitysystems.com.

SPECIFICATIONS

Type: 3.5" (87mm) 2-Way Custom Fit		Power Handling, Peak:	75W
Impedance:	2 Ohms	Frequency Response:	85Hz – 21kHz
Power Handling, RMS:	25W	Sensitivity (2.83V, 1m):	91dB

WARRANTY: Reference Series speakers are warranted against defects. The duration of the speaker's warranty depends on the laws in the country in which it was purchased. Your local Infinity car audio retailer can help you determine the length of your warranty. To register your product, please visit us at www.infinitysystems.com.

SPECIFICATIONS

Type: 3.5" (87mm) 2-Way Custom Fit		Power Handling,Peak:	75W
Impedance:	2 Ohms	Frequency Response:	85Hz – 21kHz
Power Handling, RMS:	25W	Sensitivity (2.83V, 1m):	91dB

WARRANTY: Reference Series speakers are warranted against defects. The duration of the speaker's warranty depends on the laws in the country in which it was purchased. Your local Infinity car audio retailer can help you determine the length of your warranty. To register your product, please visit us at www.infinitysystems.com.

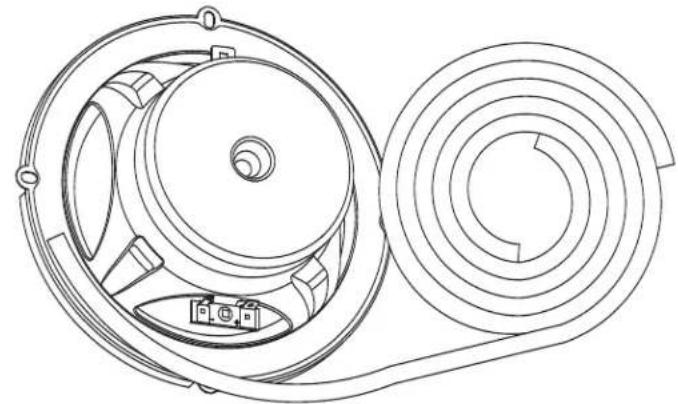

Technical line drawing of a mechanical component with concentric circular and linear features (no text or symbols)

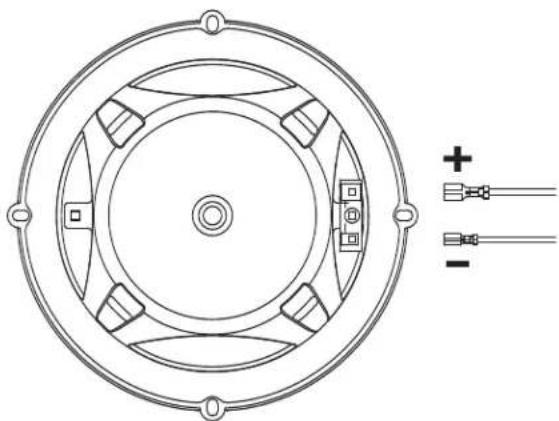

Technical line drawing of a circular mechanical component with mounting holes and internal channels (no text or symbols)

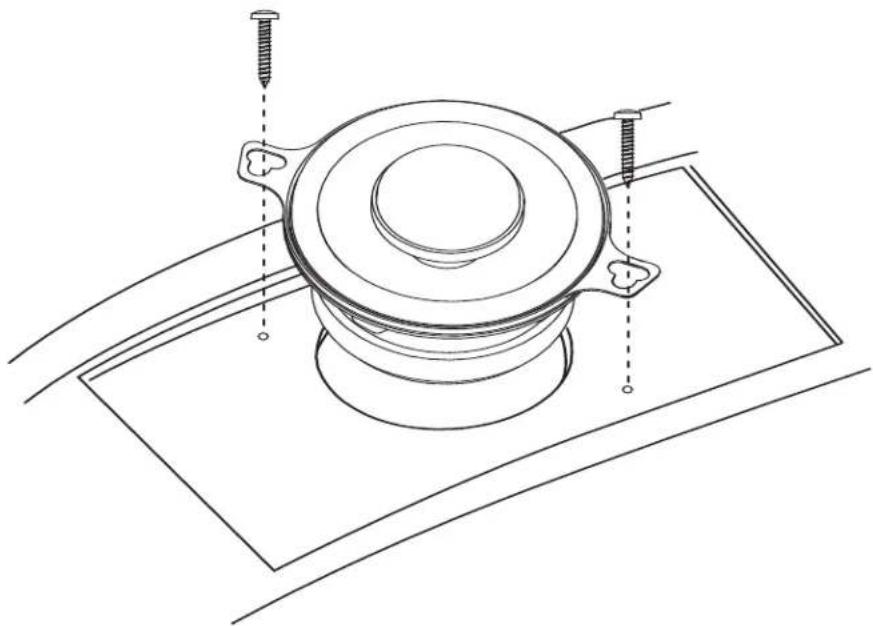

Technical line drawing of a mechanical component with screw fasteners and mounting base (no text or symbols)

3032cf
