Product Type	1-inch Tweeter
Brand	Infinity
Model	Reference 105t
Speaker Impedance	4 Ohms
Power Handling (RMS)	50W
Power Handling (Peak)	150W
Frequency Response	2.5 kHz - 20 kHz
Sensitivity	91 dB
Crossover Frequency	3.5 kHz
Mounting Depth	1-3/16" (31 mm)
Cut-out Diameter	1-3/4" (45 mm)
Mounting Options	Flush-mount (I-Mount) and surface-mount
In-Line Crossover Included	Yes
Installation Type	Car audio component system
Safety Warnings	Hearing loss risk; disconnect battery before installation; wear eye protection
Cleaning	Do not get wet; clean with dry cloth
Spare Parts	Contact authorized Infinity dealer for replacement parts
Repairability	Professional installation recommended; do not attempt disassembly
Usage Tips	Aim tweeter at listening position for optimal sound

Frequently Asked Questions - Reference 105t INFINITY

What is the power handling of the Infinity Reference 105t tweeter?

The Infinity Reference 105t tweeter handles 50W RMS and 150W peak power.

What is the impedance of the 105t tweeter?

The tweeter has an impedance of 4 ohms.

What are the mounting options for the Reference 105t?

The tweeter can be mounted using the I-Mount flush-mount kit or the surface-mount kit. Aim the tweeter at the listening position for best performance.

Does the 105t come with a crossover?

Yes, it includes an in-line crossover with a crossover frequency of 3.5 kHz.

Can I install the Reference 105t myself?

Installation requires experience with mechanical and electrical procedures. If you are not confident, seek professional installation from an authorized Infinity dealer.

What is the frequency response of the 105t?

The frequency response is 2.5 kHz to 20 kHz.

What is the cut-out diameter needed for the 105t?

The required cut-out diameter is 1-3/4 inches (45 mm).

Are there any safety precautions when installing the tweeter?

Always disconnect the negative battery terminal before installation, wear protective eyewear, and avoid mounting where the speaker could get wet. Also, keep volume levels moderate to prevent hearing damage.

What is the sensitivity of the 105t tweeter?

The sensitivity is 91 dB.

Can the 105t be used with any car audio system?

Yes, it is a component tweeter that can be integrated with compatible amplifiers and crossovers. Ensure proper polarity when connecting.

USER MANUAL Reference 105t INFINITY

Completely black image with no visible content or text.

IMPORTANT: Installation of automotive stereo components can require extensive experience with a variety of mechanical and electrical procedures. Although these instructions explain how to install Reference Series speakers in a general sense, they do not show the exact installation methods for your particular vehicle. If you do not feel you have the experience, do not attempt the installation yourself, but instead ask your authorized Infinity car-audio dealer about professional installation options.

WARNING: Playing loud music in an automobile can permanently damage your hearing, as well as hinder your ability to hear traffic. The maximum volume levels achievable with Infinity speakers, combined with high power amplification, may exceed safe levels for extended listening. We recommend using low volume levels when driving. Infinity accepts no liability for hearing loss, bodily injury, or property damage as a result of use or misuse of this product.

INSTALLATION WARNINGS AND TIPS

• Always wear protective eyewear when using any tools.
- Turn off all audio systems and other electrical devices before you start. Disconnect the (−) negative lead from your vehicle's battery.
- Keep speakers in their package until final installation. When moving a speaker, always rest it with the cone or dome facing up. Never use force to install any speaker.
- Check clearances on both sides of a planned mounting surface before drilling any holes or installing any screws. Remember that the screws can extend behind the surface.
- At the installation sites, locate and make a note of all fuel lines, hydraulic brake lines, vacuum lines, and electrical wiring. Use extreme caution when cutting or drilling in and around these areas.
CAUTION: In some cars, fuel tanks may be located directly beneath the rear deck. Check for adequate speaker basket clearance before considering this location!
- Before drilling or cutting holes, use a utility knife to remove unwanted fabric or vinyl, to keep material from snagging in a drill bit or saw.
- For door installations, check the clearance with the windows throughout the range of the window's travel, and verify that a mounted speaker will not interfere with the window crank or power window mechanism.
- If mounting speakers elsewhere, check for clearance around rear deck torsion bars, glove box, or other structural elements.
- Do not mount speakers where they will get wet.

INSTALLATION

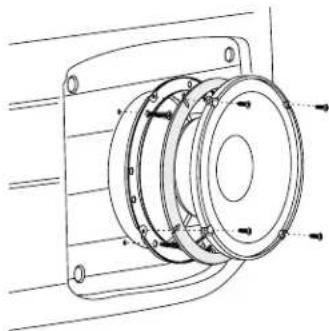

Figure 1. Mounting the 505cs woofer.

Technical diagram of a mechanical assembly with concentric rings and a central component (no text or labels)

INSTALLATION

Figure 2. Mounting the 605cs woofer with the grille.

Diagram of a mechanical component with concentric rings and a textured circular element, no text or symbols present.

INSTALLATION

Figure 3.
Mounting the 605cs woofer in standard speaker locations.

Technical line drawing of a mechanical component with mounting flanges and internal gears (no text or symbols)

Figure 4.

Mounting the 605cs in 165mm speaker locations.

Technical line drawing of a mechanical component with curved flow lines and directional arrows (no text or symbols)

INSTALLATION

Figure 5A.
Mounting the tweeter using the I-Mount (pat. 5,859,917) flush-mounting kit.

Exploded view diagram of a mechanical device showing internal components and flow direction (no text or labels)

Note: Aim the tweeter at the listening position by sliding the stud in the groove on the back of the tweeter cup and rotating the entire assembly in the mounting surface. Lock the tweeter in place, using the small retaining nut and the large plastic mounting nut.

Figure 5B.
3
ROTATE TO AIM ANGLED TWEETER TO LISTENER

INSTALLATION

Figure 6.
Mounting the tweeter using the I-Mount ^™ surface-mounting kit.

Technical diagram of a mechanical assembly with labeled components and wiring (no text or symbols present)

INSTALLATION

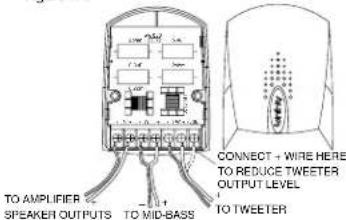

Connect the speakers to the crossover and
the crossover to the amplifier, observing proper polarity.
Note: If you have purchased the 105t as a separate component, connect the tweeter with the in-line crossover to the amplifier, observing the proper polarity.
Figure 7A.

Figure 7B.

SPECIFICATIONS

505cs

Type: 5-1/4" 2-Way Component System

Speaker Impedance: 4 Ohms

Power Handling: 75W RMS, 225W Peak

Frequency Response: 72Hz - 20kHz

Sensitivity: 92dB

Crossover Frequency: 3.5kHz

Mounting Depth: Woofer: 2-1/4" (58mm)

Tweeter: 1-3/16" (31mm)

Cut-out Diameter: Woofer: 4-5/8" (118mm)

Tweeter: 1-3/4" (45mm)

605cs

Type: 6-1/2' 2-Way Component System

Speaker Impedance: 4 Ohms

Power Handling: 90W RMS, 270W Peak

Frequency Response: 54Hz - 20kHz

Sensitivity: 92dB

Crossover Frequency: 3.5kHz

Mounting Depth: Woofer: 2-1/16" (53mm)

Tweeter: 1-3/16" (31mm)

Cut-out Diameter: Woofer: 5° (127mm)

Tweeter: 1-3/4" (45mm)

105t

Type: 1" Tweeter

Speaker Impedance: 4 Ohms

Power Handling: 50W RMS, 150W Peak

Frequency Response: 2.5kHz - 20kHz

Sensitivity: 91dB

Crossover Frequency: 3.5kHz

Mounting Depth: 1-3/16" (31mm)

Cut-out Diameter: 1-3/4" (45mm)

Infinity Systems, Inc. • 250 Crossways Park Drive

Woodbury, NY 11797 USA • [phone] • FAX [phone]

P/N:REFSERCS/TOM

H A Harman International Company
