Type	Car Speaker
Brand	Infinity
Model	Kappa 63.7I
Speaker Size	6.5 inches (165 mm)
Speaker Type	Coaxial 2-way
Power Handling (RMS)	75 Watts
Power Handling (Peak)	225 Watts
Sensitivity	92 dB @ 2.83V
Frequency Response	40 Hz – 25 kHz
Impedance	4 Ohms
Mounting Depth	2.0 inches (51 mm)
Mounting Cutout Diameter	5.5 inches (140 mm)
Weight (each)	1.5 kg
Woofer Cone Material	Plus One® polypropylene
Tweeter Type	Edge-driven soft dome
Grille Included	Yes
Installation Hardware Included	Yes
Recommended Amplifier Power	25 – 150 Watts RMS per channel
Maintenance	Wipe with a soft, dry cloth. Avoid liquid cleaners.
Safety	Disconnect battery before installation. Avoid exposure to moisture.
Spare Parts Availability	Contact Infinity customer service for replacement parts.
Warranty	2 years limited

Frequently Asked Questions - Kappa 63.7I INFINITY

What is the diameter of the Infinity Kappa 63.7I speaker?

The Infinity Kappa 63.7I is a 6.5-inch (165 mm) speaker.

How much power can the Kappa 63.7I handle?

It handles 75 Watts RMS and up to 225 Watts peak power.

What is the impedance of this speaker?

The impedance is 4 Ohms.

What type of tweeter does the Kappa 63.7I use?

It uses an edge-driven soft dome tweeter for smooth high frequencies.

What is the mounting depth?

The mounting depth is 2.0 inches (51 mm).

Do I need an external amplifier for these speakers?

While they can work with head unit power, they perform best with an external amplifier delivering 25-150 Watts RMS per channel.

Are grilles included with the Kappa 63.7I?

Yes, grilles are included with the speakers.

How do I clean these speakers?

Clean them with a soft, dry cloth. Do not use any liquid or abrasive cleaners.

What safety precautions should I take during installation?

Disconnect the car battery before installation to prevent short circuits. Also, avoid exposing the speakers to moisture.

Where can I purchase replacement parts?

Contact Infinity customer service or visit their official website for spare parts and warranty information.

USER MANUAL Kappa 63.7I INFINITY

42.7i,52.7i,62.7i,63.7i,652.7i,653 692.7i,693.7i,32.7cf,462.7cfp,682

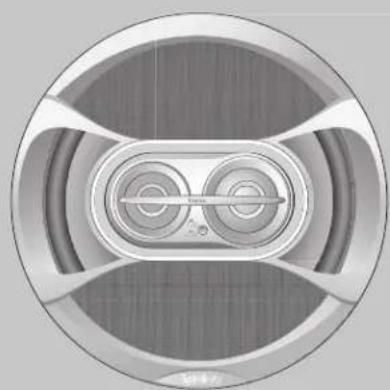

Top-down view of a speaker grille with two speakers and a circular head (no text or symbols visible)

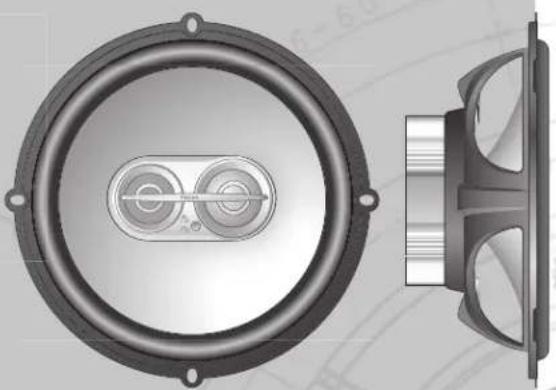

Technical illustration of a speaker with two circular components, shown from front and side views (no text or symbols)

Infinity®

instructions

kappa series

INSTALLATIONWARNINGSANDTIPS

THANK YOU for purchasing Infinity's Kappa Series multielement automotive loudspeakers. We've organized this manual to make their installation as simple and trouble-free as possible. Please read it thoroughly before proceeding.

Remember to keep your sales receipt with this manual in a safe place so both are available for future reference.

ABOUT THESE INSTRUCTIONS

Installation of automotive stereo components can require extensive experience with a variety of mechanical and electrical procedures. Although these instructions explain how to install Kappa Series multi-element speakers in a general sense, they do not show the exact installation methods for your particular vehicle. If you do not feel you have the experience, do not attempt the installation yourself, but instead ask your authorized Infinity car audio dealer about professional installation options.

LOUD MUSIC AND HEARING

Playing loud music in an automobile can hinder your ability to hear traffic as well as permanently damage your hearing. The maximum volume levels achievable with Infinity speakers, combined with high power amplification, may exceed safe levels for extended listening. We recommend using low volume levels when driving. Infinity accepts no liability for hearing loss, bodily injury, or property damage as a result of use or misuse of this product.

REAR DECK PRECAUTION

In some cars, fuel tanks may be located directly beneath the rear deck. Before installation, make sure there is adequate speaker basket clearance before considering this location!

ABOUT THE CROSSOVER

Except for the 462.7cfp, each Kappa Series multi-element speaker includes a crossover for in-line connection to an amplifier output and is required for proper operation (see Figure 8 on the next page). The attached crossover wires are keyed and color-coded to aid in correct polarity connections. Do not omit the crossover or substitute another one - doing so will damage the speaker.

INSTALLATION TIPS

• Always wear protective eyewear when using any tools.

• Turn off all audio components and other electrical devices before you start. Disconnect the (-) negative lead from your vehicle's battery.
• Keep speakers in their package until final installation. When moving a speaker, always rest it with the cone or dome facing up. Never use force to install any speaker.
• Check clearances on both sides of a planned mounting surface before drilling any holes or installing any screws. Remember that the screws can extend behind the surface.
• At the installation sites, locate and make a note of all fuel lines, hydraulic brake lines, vacuum lines and electrical wiring. Use extreme caution when cutting or drilling in and around these areas.
• Before drilling or cutting holes, use a utility knife to remove unwanted fabric or vinyl, to keep material from snagging in a drill bit or saw.
• For door installations, check the clearance with the windows throughout the range of the window's travel, and verify that a mounted speaker will not interfere with the window crank or power window mechanism.
• If mounting speakers elsewhere, check for clearance around rear deck torsion bars, glove box or other structural elements.
• Do not mount speakers where they will get wet.

INSTALLATION

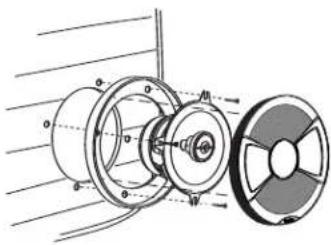

Figure 1. Mounting the 42.7i, 52.7i, 62.7i, 63.7i, 692.7i, 693.7i, 32.7cf or 682.7cf.

NOTE: The 32.7cf, 462.7cfp and 682.7cf speakers are designed to be installed under factory grilles. Consequently, no grilles are packaged with these models.

Technical line drawing of a mechanical assembly with rollers and a pulley (no text or symbols)

Figure 2. Modifying the 42.7i to be installed in locations requiring fewer than 4 mounting "ears". (The 62.7i and 63.7i may be similarly modified.)

NOTE: Grip the tab with pliers and bend to detach it from the speaker.

Line drawing of a hand holding a speaker component with a rotating knob (no text or symbols)

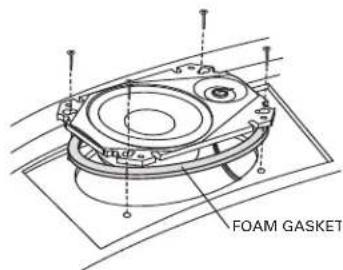

Figure 3. Mounting the 572.7cf or 462.7cfp. The 32.7cf (not shown) is mounted in a similar way.

Figure 3a.

INSTALLATION

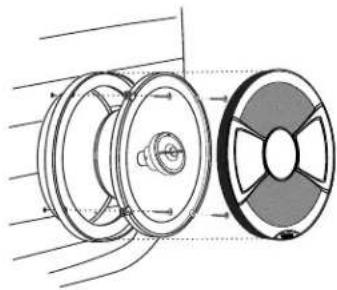

Figure 4. Mounting the 62.5i with the grille.

Technical line drawing of a mechanical pulley system with three wheels and a central hub (no text or symbols)

Figure 5. Mounting the 62.5i in a 165mm speaker location.

Figure 6. Mounting the 62.5i in a standard speaker location.

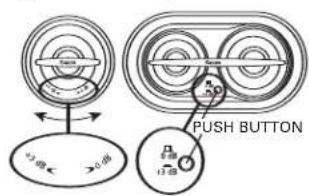

Figure 7. Tweeter level adjustment.

INTERMOUNT III MOUNTING RINGS

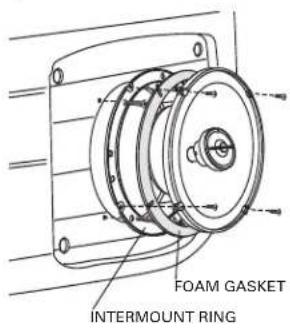

The Kappa 62.7 and 63.7 speakers are packaged with two different speaker adaptor rings. The rings will allow the speakers to be installed into

various factory 6," 6-1/2" and 6-3/4" openings. See Figure 5. The metal ring can be mounted in many European vehicles, Japanese vehicles or vehicles with 6" speaker locations. The plastic ring can be mounted in many vehicles using 6-3/4" speaker locations or three-point mounting frames.

UNIPIVOT ROTATING TWEETER

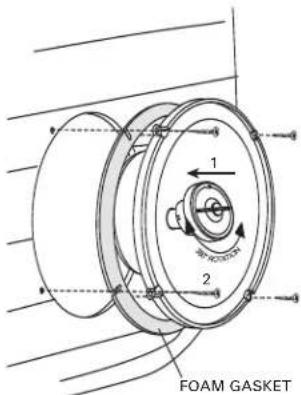

In order to rotate the tweeter on select Kappa speakers, (1) push the tweeter post inward and (2) then rotate. Once in position, release the tweeter to lock in position (Figure 6). This feature is only available on the Kappa 52.7, 62.7, 692.7 and 682.7cf speakers.

TWEETER LEVEL ADJUSTMENT

All Kappa series multielement speakers are equipped with an adjustable tweeter level. On all two-way speakers, slightly twist the tweeter faceplate to either the +3dB or 0dB position (Figure 7). All three-way speakers have a push button to adjust the tweeter level between the +3dB and 0dB setting (Figure 7). Adjust to personal preference.

CONNECTIONS

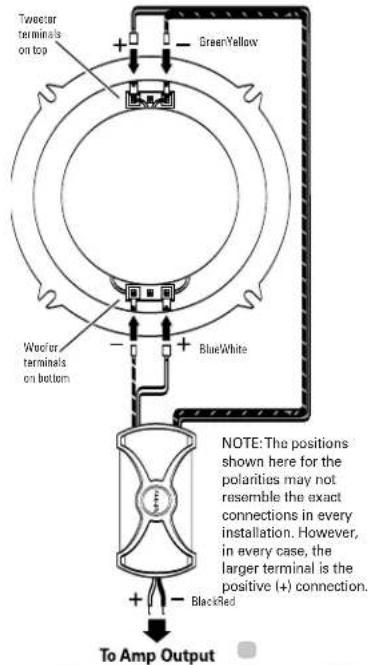

Figure 8. Connecting an in-line crossover to a 62.7i and an amplifier output. Other speaker models are connected in a similar way.

kappa series To Amp Output

SPECIFICATIONS

42.7i

Type: 4" 2-Way

Speaker Impedance: 2 ohms

Power Handling: 50W RMS, 150W Peak

Sensitivity (2.83V, 1m): 93dB

Frequency Response: 75Hz - 25kHz

Mounting Depth: 1-13/16" (47mm

Cut-Out Diameter: 3-7/16" (88mm)

52.7i

Type: 5-1/4" 2-Way

Speaker Impedance: 2 ohms

Power Handling: 55W RMS, 165W Peak

Sensitivity (2.83V, 1m): 94dB

Frequency Response: 55Hz - 25kHz

Mounting Depth: 2-1/16" (53mm)

Cut-Out Diameter: 4-11/16" (120mm)

62.7i

Type: 6-1/2" 2-Way

Speaker Impedance: 2 ohms

Power Handling: 75W RMS, 225W Peak

Sensitivity (2.83V, 1m): 95dB

Frequency Response: 45Hz - 25kHz

Mounting Depth: 2-3'16" (56mm)

Cut-Out Diameter: 5" (127mm)

63.7i

Type: 6-1/2" 3-Way

Speaker Impedance: 2 ohms

Power Handling: 75W RMS, 225W Peak

Sensitivity (2.83V, 1m): 95dB

Frequency Response: 45Hz - 25kHz

Mounting Depth: 2-3/16" (56mm)

Cut-Out Diameter: 5" (127mm)

652.7i

Type: 165mm 2-Way

Speaker Impedance: 2 ohms

Power Handling: 75W RMS, 225W Peak

Sensitivity (2.83V, 1m): 95dB

Frequency Response: 45Hz – 25kHz

Mounting Depth: 2-1/4" (58mm)

Cut-Out Diameter: 5-5/8" (143mm)

653.7i

Type: 165mm 3-Way

Speaker Impedance: 2 ohms

Power Handling: 75W RMS, 225W Peak

Sensitivity (2.83V, 1m): 95dB

Frequency Response: 45Hz – 25kHz

Mounting Depth: 2-1/4" (58mm)

Cut-Out Diameter: 5-5/8" (143mm)

692.7i

Type: 6" x 9" 2-Way

Speaker Impedance: 2 ohms

Power Handling: 110W RMS, 330W Peak

Sensitivity (2.83V, 1m): 95dB

Frequency Response: 35Hz - 25kHz

Mounting Depth: 3-3'16" (81mm)

Cut-Out Diameter: 5-7/8" x 8-11/16"

(150mm x 221mm)

693.7i

Type: 6" x 9" 3-Way

Speaker Impedance: 2 ohms

Power Handling: 110W RMS, 330W Peak

Sensitivity (2.83V, 1m): 95dB

Frequency Response: 35Hz – 25kHz

Mounting Depth: 3-3/16" (81mm)

Cut-Out Diameter: 5-7/8" x 8-1 1/16"

(150mm x 221mm)

32.7cf

Type: 3-1/2" 2-Way,

Custom-Fit

Speaker Impedance: 2 ohms

Power Handling: 35 W RMS, 105W Peak

Sensitivity (2.83V, 1m): 95dB

Frequency Response: 85Hz - 25kHz

Mounting Depth: 1-9/16" (40mm)

Cut-Out Diameter: 3-1/4" (83mm)

462.7cfp

Type: 4" x 6" 2-Way,

Custom-Fit Plate

Speaker Impedance: 2 ohms

Power Handling: 60W RMS, 180W Peak

Sensitivity (2.83V, 1m): 94dB

Frequency Response: 75Hz – 25kHz

Mounting Depth: 1-13/16" (47mm)

Cut-Out Diameter: 3-5/8" x 5-3/8"

(93mm x 137mm)

682.7cf

Type: 6" x 8," 5" x 7" 2-Way

Custom-Fit

Speaker Impedance: 2 ohms

Power Handling: 100W RMS, 300W Peak

Sensitivity (2.83V, 1m): 94dB

Frequency Response: 40Hz - 25kHz

Mounting Depth: 2-1/4" (58mm)

Cut-Out Diameter: 4-7/8" x 7-1/8

(124mm × 181mm)

A valid serial number is required for warranty coverage.

Features, specifications and appearance are subject to change without notice.

Intermount III patent no. 6,505,705.

Infinity Systems, 250 Crossways Park Drive, Woodbury, NY 11797 USA

516.674.4463 • FAX [phone] • www.infinitysystems.com

© 2005 Harman International Industries, Incorporated • Part No. KAPSEROM2/05

H A Harman International Company

Declaration of Conformity

CE

We, Harman Consumer Group International

2, route de Tours

72500 Chateau-du-Loir

France

declare in own responsibility that the products

described in this owner's manual are in compliance

with technical standards.

EN 61000-6-3:2001

EN 61000-6-1:2001

Klaus Lebherz

Harman Consumer Group International

Chateau-du-Loit France 2/05
