Product Type	Freestanding Electric Cooker
Brand	Fratelli
Model	VE29650FEMIX
Dimensions (W x D x H)	600 x 600 x 850 mm
Net Weight	Approx. 50 kg
Power Supply	230 V ~ 50 Hz, 16 A
Total Power Consumption	Approx. 10 kW
Number of Cooking Zones	4 (electric plates)
Hob Type	Radiant rings (2 x 180 mm, 2 x 145 mm)
Oven Type	Electric fan oven
Oven Capacity	65 L
Oven Functions	Convection, grill, defrost, top/bottom heat
Temperature Range	50-250 °C
Energy Efficiency Class	A (oven)
Control Type	Rotary knobs with digital timer
Safety Features	Child lock, automatic shut-off, overheat protection
Cleaning	Enamel interior, catalytic panels (optional)
Spare Parts Availability	Genuine parts available via authorized service centers
Installation Type	Freestanding (not built-in)
Certification	CE, RoHS
Color	Stainless steel / White (check model variant)
Warranty	2 years (standard)
Manual Format	PDF download available

Frequently Asked Questions - VE29650FEMIX Fratelli

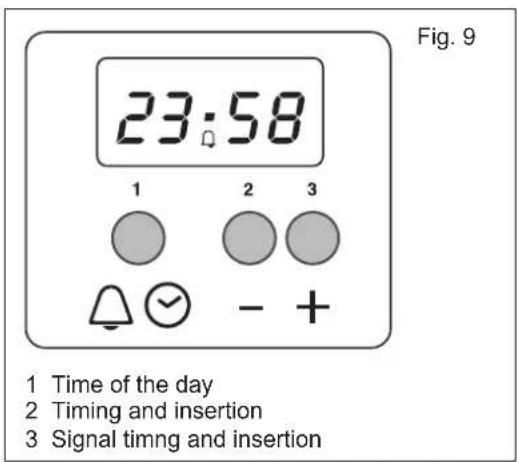

How do I set the clock on the oven?

Press the Timer button until the clock icon flashes, then use the + and - buttons to adjust the time. Confirm by pressing Timer again.

What should I do if the oven doesn't heat up?

Check that the cooker is plugged in and the circuit breaker is on. Ensure the oven function selector is set to a heating mode. If it still doesn't heat, the heating element may be faulty; contact a qualified technician.

How do I clean the glass oven door?

Use a mild glass cleaner and a soft cloth. For tough residue, make a paste of baking soda and water. Avoid abrasive sponges that could scratch the glass.

Can I replace the oven light bulb myself?

Yes, but ensure the cooker is unplugged. Access the bulb from the back of the oven (usually a cover). Use a halogen bulb of the same type (typically 25W, 300°C). Consult the manual for exact specifications.

Why is the hob not heating evenly?

Check that the saucepan is flat and of the correct size for the ring. If using a small pan on a large ring, heat distribution may be uneven. Also ensure the ring is fully engaged (turn the knob to a higher setting).

How do I activate the child lock?

Press and hold the Child Lock button (usually marked with a key icon) for 3 seconds until a lock symbol appears on the display. Repeat to unlock.

What is the maximum loading weight for the oven rack?

Do not exceed 25 kg distributed evenly across the rack. Overloading can damage the rack or cause uneven cooking.

How do I remove the oven door for cleaning?

Open the door fully, then lift the locking levers on both hinges. Slowly close the door halfway and lift it off the hinges. Reverse to reattach. Refer to the manual for detailed instructions.

Can I use aluminum foil in the oven?

Yes, but avoid covering the bottom of the oven or the heating elements. Use foil only on the rack or in a baking dish to prevent drips. Do not use foil to prevent food from sticking.

What should I do if the digital display shows an error code?

Refer to the user manual for error code definitions. Common codes like E01 indicate a temperature sensor fault. Unplug the cooker for 10 minutes, then try again. If the error persists, contact customer support.

USER MANUAL VE29650FEMIX Fratelli

Installation, User and Servicing Guide

Model

Modena F-GAS

RECORD HERE FOR EASY REFERENCE

Model Colour

Serial Number Installation Date

Dealer's Name and Address.

GENERAL INFORMATION

ENVIRONMENTAL WARNING

Waste packaging

Do not throw the packaging of your appliance into the dustbin, but pick out the different materials (for instance foil, paperboard, polystyrene) according to the local rules for rubbish elimination.

This appliance must only be used for the purpose of domestic cooking.

Getting to know your new cooker

Thank you for choosing one of our products.

Our cookers are of simple, rational design. They are constructed to the best standards to ensure good service and outstanding safety.

Please read this manual carefully; it will provide all the advice needed to allow you to obtain the best results from the very first day.

ATTENTION:

- Before using the appliance, do not forget to remove the protecting parts of the appliance.

- WARNING -Accessible parts will become hot when in use. To avoid burns and scalds children should be kept away.

- WARNING -

In order to prevent accidental tipping of the appliance, for example by a child climbing onto the open oven door, the stabilizing means must be installed.

- WARNING

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Young children and infirm persons should not be left unsupervised in the vicinity.

- WARNING

Before you use the appliance for the first time, check that the plastic films protecting some parts (fascia panel, parts in stainless steel, etc.) have been removed.

- WARNING:

A steam cleaner is not to be used cleaning this appliances.

- WARMING

DO NOT place inflammable materials or plastic utensils in the warming drawer.

DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILE IT IS IN OPERATION.

Not for use in marine craft, caravans or mobile homes unless each burner is fitted with a flame safeguard.

WHERE THIS APPLIANCE IS INSTALLED IN MARINE CRAFT OR IN CARAVANS, IT SHALL NOT BE USED AS A SPACE HEATER

DO NOT MODIFY THIS APPLIANCE.

WHEN YOU CALL FOR SERVICE

When you call for service or order parts for your unit, be sure to give:

1. MODEL
2. SERIAL NUMBER
3. COLOUR
4. PART NAME and/or description of problem
5. YOUR FULL NAME, ADDRESS, and HOME TELEPHONE NUMBER and BUSINESS TELEPHONE NUMBER IF APPROPRIATE.

Servicing shall be carried out only by authorised personnel.

SECTION FOR THE QUALIFIED TECHNICIAN

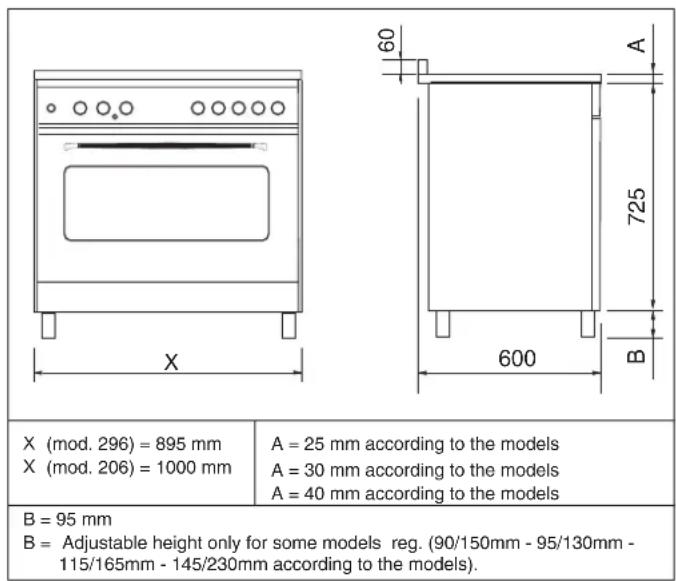

OVERALL DIMENSIONS

X (mod. 296) = 895 mm
X (mod. 206) = 1000 mm
A = 25 mm according to the models
A = 30 mm according to the models
A = 40 mm according to the models
B = 95 mm
B = Adjustable height only for some models reg. (90/150mm - 95/130mm - 115/165mm - 145/230mm according to the models).

Warning:

This appliance is not suitable to be installed on a base.

INSTALLATION

PROVISION FOR VENTILATION

The room where the Cooker is installed should have permanent ventilation as follows:

"Ventilation must be in accordance with AS/NZS 5601 - Gas Installations. In general, the appliance should have adequate ventilation for complete combustion of gas, proper flueing and to maintain temperature of immediate surroundings within safe limits."

Do not install in a bed-sitting room, a bathroom or shower room. If there is another fuel burning appliance in the same room, a higher level of ventilation will be required, you should consults "the safety requirements".

In addition to the above, during prolonged use, opening a window in the same room is recommended. This will avoid the build up of excessive moisture and condensation.

POSITIONING

Important: Fix the chain located next to the gas connection on both sides of the cooker to the wall to prevent the cooker from tilting. Both chains must be securely fixed.

Make sure that the wall surface behind the Cooker is non-combustable (will not catch fire).

Where a painted surface is adjacent, a fire retardant paint surface is recommended. Wallpaper, wood, or fabric should not be used behind or next to the cooker.

Clearances to combustible materials

"Any adjoining wall surface (side or rear) situated within 200mm of any hob burner must be a suitable non-combustible material from the edge for a height of 150mm for the entire length of the cooker.

Any combustible construction above the cooker must be at least 650mm above the maintop." Ensure that a power and gas supply are nearby. The Cooker should be located carefully so that the heat produced by it has plenty of space to escape. The diagram below shows an ideal configuration.

No part of any adjoining wall surface can be made of combustible materials. The protection of combustible materials required by Clause 5.12.1.1 of AS/NZS 5601 is the fixing of 5 mm thick ceramic tiles to the surface or attaching fire resistant material to the surface and covering with sheet metal with a minimum thickness of 0.4 mm.

Clearances to non- combustible materials

"If the cooker is being fitted next to cupboards or adjoining wall surfaces, which are within 200mm from the edge of the hob burner and of a suitable non-combustible material as specified in AS/NZS 5601, then ensure that a distance of at least 6cm is left between the edge of the cooker and the non-combustible material. This gap is to allow plenty of space for the heat produced by the cooker to escape on each side of the cooker.

Note:

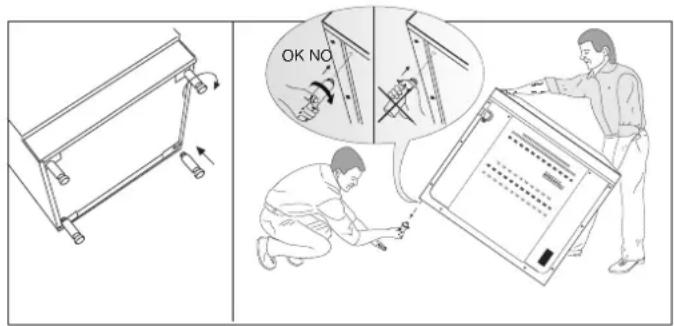

The cooker is fitted with 4 legs for an eventual alignment in height with the furniture (fig. 1 A).

Fig. 1 A

If the cooker is placed on a base, measures have to be taken to prevent it from slipping off the base.

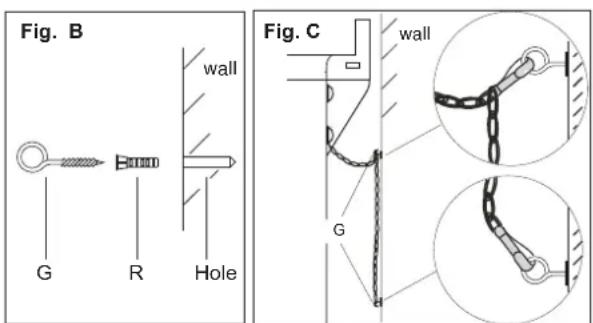

TO FIX THE COOKER TO THE REAR WALL

WARNING - For safety reasons and to prevent tippingf the appliance, these stabilizing means must be installed.

The cooker is equipped with 2 chains fixed on each side at the rear of the cooker near the top (see Fig. A). The chains are fitted with "spring clips" which must be clipped to the "screw eyes" provided with the cooker. Install the "screw eyes" as follows:

1. Drill four 6mm holes (position 1 - 2 - 3 - 4) in the wall as in Fig. A.
2. Insert part "R" into the holes then screw in the "screw eyes" part "G" see Fig. B.

Note: If the part provided is not suitable for the wall material please use an appropriate device to ensure secure holding of the "screw eyes" to the wall.

1. Bring the cooker near the wall and clip the chains on the "screw eyes" as in Fig. C.

IM POR TANT:

If the cooker is moved for any reason (e.g. maintenance) resulting in the cooker being unclipped from the wall, the cooker must be re-clipped to the wall at the completion of the task.

ELECTRICAL CONNECTION

The appliance must be installed by a suitably qualified person in accordance with these instructions and with the requirements of the Australian Wiring Rules AS/NZS 3000.

Fixed wired installations are to be provided with suitable isolation means in accordance with the said rules.

Any plug socket installed for the purpose of connecting the appliance to supply must be readily accessible when the appliance is installed. Before making the connection, make sure that:

1) the safety circuit-breaker and the electrical system are able to withstand the load of the appliance (see nameplate).
2) the power supply system has an earth connection in good working order in accordance with the regulations in force;

IMPORTANT

The wires in the mains lead are coloured in accordance with the following code:

GREEN & YELLOW......EARTH

BLUE......NEUTRAL

BROWN ..... LIVE

Appliance type Single-phase supply 230-240V~
	Section
Gas hob + electric grill (2100 W)	3 x 1.0 mm ^2	Fuse required 10 amp
Gas hob + electric grill (2800 W)	3 x 1.5 mm ^2	Fuse required 15 amp

Should conform to local authority requirements.

Also refer to rangehood manufacturers recommendations.

This appliance is supplied with a plug & cord, simply plug into a 3 pin household socket outlet witch is properly earthed.

WARNING: THIS APPLIANCE MUST BE EARTHED.

The flexible mains lead and plug must not be in contact with hot surfaces.

GAS CONNECTION

Should conform to gas utility regulations e.g. AS/NZS 5601 Gas installations; also refer to rangehood manufacturers recommendations.

Check gas pressure, note the correct setting from the data plate sealed inside the front appliance drawer *.

This appliance can be connected with rigid pipe as specified in AS/NZS 5601 table 3.1 or with an AGA approved, Class B or D flexible hose with 10mm I.D. and 1 - 1.2m long, in accordance with AS/NZS 5601 for a 'high level connection'.

The hose should not be subjected to abrasion, kinking or permanent deformation and should be able to be inspected along its entire length. Unions compatible with the hose fittings must be used and connections tested for gas leaks. The fixed consumer piping outlet should be at approximately the same height as the cooker connection point, pointing downwards and approximately 150mm to the side of the cooker. The hose should be clear of the floor when the cooker is in the installed position.

Ensure that the chain prevents stress on the hose assembly when the cooker is moved out of its normal operating position.

Diagram of a door handle mechanism with a black arrow indicating clockwise motion (no text or symbols)

This appliance from the factory suitable for NATURAL gas but, if necessary, can be adjusted for U-LPG by authorised person.

For the adjustments to U-LPG please operate as specified in the paragraph GAS CONVERSION AND ADJUSTMENT (pag 4).

The Gas Connection is male 1/2" BSP and is situated at the righthand rear of the appliance, approximately 40mm from the side and 695mm from the floor (depends on adjustment of feet). The appliance shall be installed by an authorized person in accordance with the manufacturer's installation instructions, relevant local fitting regulations, municipal building regulations, the AS/NZS 5601 code for gas burning appliances and equipment and other relevant statutory code band regulations. If you have some doubts, please contact the authorities for confirmation concerning the characteristics of the gas and electricity output.

The appliance is generally preset for natural gas (so no other adjustment is necessary) ensure regulator is fitted for N.G. Ensure that all foreign matter has been cleared from the gas supply line and also purge all air from the gas system. Connect to regulator, tighten and check the installation to ensure no gas leaks occur.

IT IS RECOMMENDED THAT A SERVICE TAP AND UNION BE FITTED ADJACENT TO THE APPLIANCE INLET TO FACILITATE FUTURE SERVICING.

5 burner models: set the burner pressure to 1kPa for Natural Gas and 2.75kPa for U-LPG with the wok burner operating a full rate'. For commissioning of the appliance with the Oara 97 regulator for Natural Gas, the test point pressure should be 1.00kPa with all burners operating on HIGH.

Apply a manometer to the test nipple and reset the regulator if necessary. Do not forget to replace the test nipple screw and to leave the instructions book with the user.

VERY IMPORTANT FOR THE INSTALLER

Do not attempt to turn or stress threaded elbow of the manifold: you risk damage to this part of the gas appliance which may void the manufacturers warranty.

Before Leaving – Check all connections for gas leaks. DO NOT use a naked flame for detecting leaks. Ignite all burners to ensure correct operation of gas valves, burners and ignition. Turn gas taps to low flame position and observe stability of the flame.

When satisfied with the cooker, please instruct the user on the correct method of operation.

In case the appliance fails to operate correctly after all checks have been carried out, refer to the authorised service provider in your area.

GAS CONVERSION AND ADJUSTMENT

When used with natural gas all burners have been preset at our factory and further adjustment should not be necessary. Conversion kits to other gases are available from the place of purchase. Do not attempt to fit the conversion kit yourself. Conversion to U-LPG gas should only be carried out by an authorized technician.

GAS ADJUSTEMENTS

- change the injectors

- adjust the minimum flow

'When converting from Natural Gas to U-LPG ensure that the NG regulator is removed and replaced with the Test Point Assembly. A gas regulator suitable for a supply pressure of 2.75kPa should be part of the gas tank supply and should be adjusted with the wok burner operating at maximum.

REPLACEMENT OF THE INJECTORS

When required to operate on other gas replace the injectors in accordance with information referred to in chart below.

TAB.1

Natural Gas 1.00 kPa jet mm ∅ with GC & GE & GP & GL & YP & GU & SL pan support	Burners Power Mj/h
	0.90	Auxiliary	4.0
	1.20	Semi-rapid	7.1
with GC & GE & GP & GL & GU & SL pan support	1.50	Rapid	11.0
with YP pan support	1.35	Rapid	9.1
	1.85	Oven	15.4
with GC & GE & GP & GL & YP & GU & SL pan support	1.63	TC1 / LTC1 Wok	12.7
U-LPG 2.75 kPa with GC & GE & GP & GL & YP & GU & SL pan support	jet mm ∅ Burners Power Mj/h
	0.53	Auxiliary	3.7
	0.73	Semi-rapid	7.0
with GC & GE & GP & GL & GU & SL pan support	0.95	Rapid	11.7
with YP pan support	0.87	Rapid	10.2
	1.00	Oven	13.1
with GC & GE & GP & GL & YP & GU & SL pan support	0.96	TC1 / LTC1 Wok	12.0
Regulator	NG Regulator	LP Test Point Adapter
NOTE:GE = Enameled Steel pan supportsGL = Light Cast Iron pan supportsYP = Light Cast Iron pan supports (evolution)SL = Light cast iron pan supportGP = Heavy Cast Iron pan supportsGC = Flat heavy cast iron pan supportsGU = Flat heavy cast iron pan supports

Adjustments, conversions and gas installations must only be carried out by an authorised person.

SPECIAL NOTE

After installation or any servicing operation, always ensure that the appliance is gas sound and that the components are now operating correctly. Items removed during servicing should be replaced in the reverse order to their removal.

Always isolate the cooker from the electricity supply, turn off the gas supply temporarily and proceed as follows.

TO CHANGE THE WORK-TOP INJECTORS

In order to change the work-top injectors, it is necessary to act as follows: remove the grids, remove burners and flame-spreaders (see fig.A), change the injector (see fig.B) and replace it with another one suitable for the new type of gas (see table 1). Re-assemble everything in the opposite direction, paying attention to place the flame-spreader in the right way on the burner.

MINIMUM FLOW ADJUSTMENT FOR HOB-TOP TAPS

In order to adjust the minimum flame setting proceed as follows: switch the burner on, and set the knob at the minimum position ▲.

Remove the knob from the tap, place a small bladed screwdriver down the centre of the tap shaft (fig. 2A).

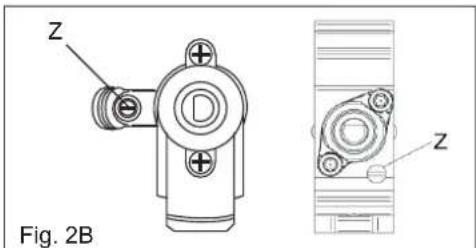

Attention: on taps with a security valve, the minimum adjusting screw «Z» is on the body of the gas tap (fig. 2B).

Line drawing of a hand using a tool to adjust or install a component on a surface, labeled Fig. 2A (no text or symbols on the diagram itself)

Unscrew the adjusting screw in order to increase the flow or screw it to decrease the flow.

The correct adjustment is obtained when the flame has a length of about 3 or 4 mm.

For U-LPG gas, the adjusting screw must be screwed in thigt. Make sure that the flame does not go out turning quickly from the max. flow ▲ to the minimum flow ▲.

Refit the knob again.

TO CHANGE THE OVEN INJECTORS

To change the oven injector, it is necessary to act as follows: open the oven door, remove the lower side of the oven (see fig.C), unscrew screw C and disassemble the oven burner (see fig.D). Change the injector (see fig.E) and replace it with another one suitable for the new gas type (see table 1).

Re-assemble everything in the opposite direction, paying attention to place the burner in the right way on its rear slot.

FIG.D

Technical line drawing of a mechanical assembly with no visible text or symbols

FIG.E

Illustration of a hand using a tool to adjust or install a component on a perforated surface (no text or symbols present)

MINIMUM FLOW ADJUSTMENT FOR OVEN THERMOSTAT

In order to adjust the minimum, act as follows: switch the burner on turning the knob to the maximum position.

Remove the knob and unscrew of some turns the by-pass screw (fig. H).

Assemble the knob and let the oven warm up for 15 minutes; after that turn the knob to the minimum position.

After having removed the knob once again, making sure that the thermostat rod has not been moved, screw slightly the above mentioned by-pass screw, to obtain a flame of 3 or 4 mm of length. For U-LPG gas, the adjusting screw must be tight screwed. Make sure that the flame does not extinguish passing quickly from the maximum flow to the minimum flow, and closing and opening the oven door (the oven door must be closed softly).

Attention: for taps with safety device, the minimum adjusting screw is on the outside of the thermostat rod (fig. H).

Hand holding a small mechanical component with a glass and rod, labeled Fig. H (no text or symbols on the diagram itself)

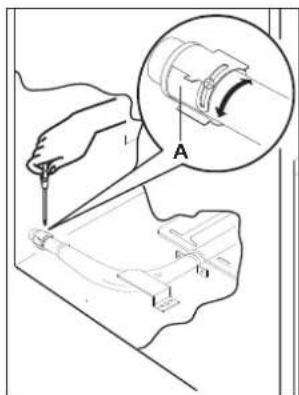

REGULATION OF AIR ADJUSTER (oven burner)

To do this,

- Unscrews the screw (A) in order to rotate the metal ring at the end of the burner (fig L).

In this way, entrance of the air increases or decreases, obtaining a correct flame.

Be sure that the flame does not lift or light back or present a yellow colouration.

Fig. L

Air Adjuster

NG - Australia = 8 mm fully open

NG - New Zealand = fully open

U-LPG = fully open

(Once aeration has been adjusted for U-LPG, the aeration shutter must be locked in place using a rivet).

WARNING:

Children should be kept away while the oven or grill is in use since accessible parts become hot.

Illustration of two children playing with toys, one lying on the floor and the other holding a tablet (no text or symbols present)

• Do not use oven base panel as a shelf, make use of the oven shelves.
• To avoid splattering and smoke, position collecting tray under the grill with some water in it.
• Always turn pan handles to the side or to the back of the hob. If they are left out into the room they can easily be hit or reached by children, this knocking the pan off the hob.
• Don't let children sit down or play with the oven door. Do not use the drop down door as a stool to reach above cabinets.
• Once your cooking is over make sure to close the main gas supply.

WARNING

* This appliance is not intended for use by young children or infirm persons without supervision.
* Young children should be supervised to ensure that they do not play with the appliance.

- WARNING -

In order to prevent accidental tipping of the appliance, for example by a child climbing onto the open oven door, the stabilizing means must be installed.

- 1 Minute Tour -

Be safe

Please read the rest of the instruction book which contains important information to help you use the appliance safely and efficiently.

Gas and Electricity on

Make sure that the gas supply is turned on and that the appliance is plugged in and switched on. The ignitor needs electricity. In case there is no electric current, the burner can also be lighted using a match.

It is recommended that pans suitable to the size of the burner should be used as follows:

BURNERS PANS
	fl min. fl max
AUXILIARY 80 mm 160 mmSEMI-RAPID 120 mm 200 mmRAPIDE 200 mm 230 mmTRIPLE CROWN 230 mm 260 mm

Always use pans with a flat base diameter, which are well balanced and stable in use, a pan which overhangs the hotplate should not be used. Avoid using old, misshapen pans, or pans which are unstable when placed on a flat surface. Do not use "split pans" as they are inherently unstable.

To save gas, always position pans centrally over the burners and adjust the flames so that they do not lick up the sides of the pan and only the base is heated. Always put lids on saucepans and boil only the amount of liquid you use. When the liquid has boiled adjust the setting to maintain a simmer. Do not light the burner until the pan is in position and turn off the burner before removing the pan. In hard water areas, descale kettles regularly. For safety, keep saucepan handles turned to a safe position so they are out of reach of small children and cannot be accidentally knocked.

To tunr the burner OFF, turn the control knob clockwise to the OFF setting (marked with a dot ●)

Automatic electric ignition

To turn on a burner, press the knob corresponding to the selected burner and turn it anticlockwise to the maximum position. Keeping the knob pressed, the electric automatic ignition of the burner will be started up. In case there is not electric current, the burner can also be lighted using a match.

Diagram of a circular mechanical or electrical component with internal structure and directional arrows (no text or symbols)

The small flame indicates the 'low position'.

Turn the knob to it after the contents of a pan have boiled.

Illustration of a cooking setup with a pot, stove, and steam rising (no text or symbols)

The smaller burners are for smaller pans and simmering. Make sure flames are under the pans. Using a lid will help the contents boil more quickly.

WARNING

It is not recommended to press push button for ignition if all the burners are not located in the proper positions. The burner heads, burner skirts and pan supports are removable for better cleaning: Always ensure that the burner skirts and heads are replaced correctly so that the burners function safely and correctly. During the use of the appliance pay attention that water or any liquid does not enter into the appliance through the holes of the burners or around the rods of the valves or the push button electronic lighter.

Water or juice will produce dangerous short-circuits and can seriously damage the working of the Hotplate.

The first time the oven is used, it may give off acrid smells, caused by the first heating of isolating panels glue surrounding the oven (it is necessary to heat up the oven at the maximum temperature for about 30-40 minutes with closed door).

It is something normal, and in case it will occur, wait for the smoke to stop before introducing the food into the oven.

The oven is fitted with: a rod shelf for cooking food contained in oven dishes or placed directly on the rod shelf itself, a drip-tray for cooking sweets, biscuits, pizzas, etc., or for collecting juices and fats from food cooked directly on the rod shelf.

warnings: do not cook foods on the bottom in the base of the oven.

GAS OVEN

MANUAL IGNITION OF OVEN BURNER

To ignite the oven burner, simply insert a match through the opening (fig. 4) and then turn the tap to the maximum setting as shown in figure 3.

Fig. 3

● = CLOSED

120^ = MINIMUM

260^ = MAXIMUM

= GRILL

● = CLOSED
Pos. 1 = MINIMUM
Pos. 8 = MAXIMUM
= GRILL

Fig. 4

Illustration of hands inserting a component into a device (no text or symbols visible)

After making sure that the burner has lit properly, gently close the oven door.

Automatic electric ignition (according to the models)

The oven door must always be completely open, before the burner ignition

To ignite the burner, press the knob and turn it anti-clockwise to the maximum position. Keep it pressed to start up the automatic ignition of the burner.

In case there is no electric current, the burner can also be lighted using a match.

WARNING: Do not operate the ignition for more than 15 seconds. If the burner fails to ignite, leave the oven door open for at least 1 minute before pressing the knob again.

Burner with safety device (according to the models)

For burners fitted with safety device, it is necessary to keep on pressing the concerned knob for about 10 seconds after the ignition (fig. 4A). In this way the safety valve will be started up. If for any reason the burner flame goes out, repeat the procedure as described above.

Line drawing of a kitchen stove with multiple panes and a hand adjusting the top panel (no text or symbols)

Fig. 4A

Indicative cooking table (TAB.C).

TAB. C

FOOD TEMP. °C FOOD TEMP. °C
MEAT PASTRY
ROASTED PORK 185-210 FRUIT	CAKE 220
ROASTED BEEF 250	MARGHERITA CAKE	190
ROASTED VEAL 220 BRIOCHES	175
ROASTED LAMB	220 SCONES 235
ROASTED HARE	230	RING-SHAPED CAKE	190
ROASTED RABBIT	235 PUFF-PASTE	200
ROASTED TURKEY	220 GRAPES CAKE	200
ROASTED GOOSE	235 STRUDEL	180
ROASTED DUCK	225 SAVOIA BISCUIT	290
ROASTED CHICKEN	235 APPLE FRITTER	200
ROAST-BEEF	200-225 PUDDING	200
FISH	200-225 TOAST	250
	BREAD	230

The electric grill can be operated turning the knob clockwise on position ☐ (fig. 5A) and setting the desired temperature by means of the energy regulator (fig. 5B).

The red warning light on the control panel will light up to inform you that the grill is on and the yellow light will stay lit until the temperature is reached, after it will lit intermittently.

Always use the grill with the oven door closed.

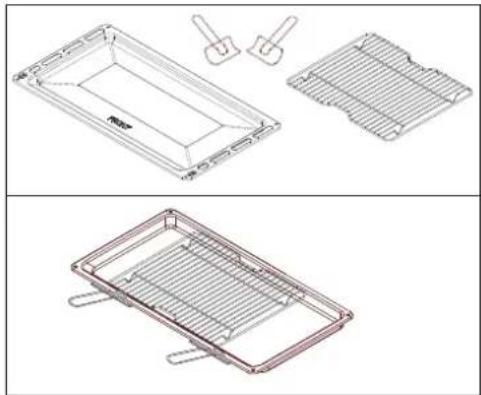

The grill pan should be located on the top oven shelf position and is provided with two detachable grill pan handles which are engaged over the front edge of the pan between the indentations provided. A wire grid is supplied. The grill pan handle should be removed from the grill pan during the grilling operation and only fitted for removal or insertion of the grill pan particularly when hot. Always preheat the grill on full for 3-5 minutes before inserting the food.

Technical line drawings of a rectangular device with internal grating and two hammers, shown from top and side views (no text or symbols)

The user can change the shelves, depending on his personal wishes and on the different food.

Geat the oven 5 minutes before introducing the food.

To remove the shelves from the oven, pull them forward you, tilt front end upward and pull them out.

To replace, ct in the opposite manner as before.

Install shelves by locating them in the horizontal guide rails on the oven walls. The raised portion of the shelf is to be facing the rear wall of the oven.

Some models are fitted with oven fan placed in the central part of the oven cavity. It can be operated turning the knob (fig. 6) on position ✦.

Use of the fan assisted gas oven

The air which is heated by the gas burner is circulated by the fan which distributes the heat on the food.

NOTE: this function must be used with the oven burner and the fan switch both on.

This function must be used with the oven door closed.

Use of the fan assisted electric grill

The air which is heated by the gas burner is circulated by the fan which distributes the heat on the food.

The fan assisted grill replaces perfectly the turnspit. You can obtain very good results also with large quantities of poultry, sausage, red meat.

This function must be used with the oven thermostat in grill position, the energy regulator in position 4 (fig. 6A) and the fan switch on (fig. 6).

This function must be used with the oven door closed.

Defrosting with fan

The air at ambient temperature is distributed inside the oven for defrosting food very quickly and without proteins adulterations.

NOTE: this function must be used with the oven thermostat in position (0) OFF.

Fig. 6

Fig. 6A

INSTRUCTIONS FOR USE OF CONTROL DEVICES (ACCORDING TO THE MODELS)

MINUTES COUNTERS (Fig. 8)

Turn the knob clockwise to set the desired cooking time. The minutes minder can be adjusted from 1 to 60 minutes. A sound signal will inform you that the chosen time is up.

Fig. 8

PCI "Campanil"TR 259 Analogic (Fig. 8A)

Setting the clock

Press the control knob and turn clockwise.

Alarm programme adjustment

Turn the knob clockwise without pressing it in. At the end of the programmed time an alarm will sound. To cancel it, turn the knob to the bell.

Fig. 8A

ELECTRONIC TIMER FOR COOKER (Fig. 9)

Functions

On

The display flashes.

Time setting

Press the left button.

Set the time with buttons "+" and "-"

This function remains activated 7 seconds after the last +/- operation.

Timer setting

This function is permanently activated and it will be immediately set with +/- buttons.

During setting the units are 10 seconds.

During count down the timer takes priority on the display.

The units are seconds.

The maximum time is 99 minutes.

The relay contact (when available) is closed during the count down only.

Reset timer

Press "+" and "-" buttons together and release "+" button first.

Signal

The signal after time out will stay 7 minutes if it has not been reset with the "+" button (one touch only).

Signal frequency

When the display shows the time of day, the signal frequency can be selected by pressing the "-" button. Three different frequencies are selectable.

CLEANING

Before cleaning the appliance, close the gas stopcock and unplug appliance or disconnect power at the main circuit breaker of the electrical system.

Do not clean the appliance surfaces when still hot.

Always clean off spillage as quickly as possible to prevent burning on which will make removal more difficult. Wash with a clean cloth soaked in hot soapy water, rinse and dry with a soft cloth.

DO NOT USE ABRASIVES. CAUSTIC PASTES OR SPRAYS. COARSE CLEANING PADS OR POWDERS. DO NOT USE EXCESSIVE WATER WHEN CLEANING YOUR OVEN IN ORDER TO AVOID WATER PRESSING THROUGH CLEFTS INTO THE BACK OF CONTROLS PANEL OR OF THE UNIT.

NOTE: A steam cleaner is not to be used for cleaning this appliance.

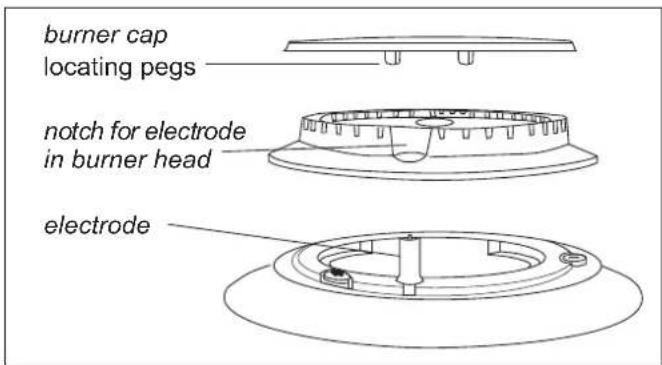

Pan supports and burners

The burner heads can be removed for cleaning.

NB Do not drop hot burner caps in cold water.

Because of the rapid cooling they might get damaged.

Lift off and soak for about 10 minutes in hot water with a little detergent. After having cleaned and washed them, dry them carefully.

Make sure that no burner holes are clogged.

Clean the burners once a week or more frequently if necessary.

Make sure you have reassembled the burners correctly.

Pan supports can be washed by hand or in a dishwasher.

Remember to remove rubber feet (if fitted) prior to washing.

Refit them afterwards.

Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

For a triple crown burner, make sure head "C" and covers "A" and "B" are properly placed on their seats as figure N and not off-centered as in figure P.

Daily

Regular wiping down directly after use prevents dirt from burning on. Clean the appliance with water and a detergent or all purpose cleaner.

Avoid using too much water to prevent it entering the burner or ventilation openings.

Interior: the oven shelf carriers can be removed for easier cleaning. To do this, remove all the shelves and spring off the side carriers (Fig. Q - R). Replace in a similar manner.

Oven accessories (shelves, trays etc) should be washed in mild detergent solution and should not be treated with abrasives. The oven interior panels should be cleaned with mild detergent solution, mild cream cleaners or a moist soap pad.

Install shelves by locating them in the horizontal guide rails on the oven walls.

The raised portion of the shelf is to be facing the rear wall of the oven.

IMPORTANT

Do not use excessive water when cleaning the oven and avoid water passing through the fan grill or ducts in the oven back. Avoid letting grease deposit collect around the upper heating element: it will cause smoking and may start a fire.

Two-panel diagram showing a wall-mounted heating element with arrows indicating direction, labeled Fig. Q and Fig. R (no text or symbols on the diagram itself)

Removal of oven door

In-depth cleaning of the oven becomes more convenient if the door is removed following the instructions below:

1 open the oven door completely.
2 flip the hinge hooks "A" outwards (see fig. 9B).
3 shut the oven door slowly until it reaches hooks "A", making sure these are locked into slots "B" of the oven door, as shown in fig. 9C. Remove the glass Fig. 9A (only for models where present).
4 Using both hands, push the oven door lightly inwards, to enable the door hinges "C" to come away from the slots "D" (see fig. 9D) and pull the door towards you until it is released from the oven.

After cleaning it, reposition it correctly following the abovesteps in the reverse order and flipping hooks "A" inwardsbefore you shut the oven door (fig. 9E).

Technical line drawing of a mechanical device with labeled component A, no readable text or symbols present

CAUTION:

Do not use rough or abrasive materials or sharp metal scrapers to clean the glass doors of the oven since they may scratch the surface and cause the glass to break.

WARNINGS

Before performing any repair or operation, switch the appliance off and close the gas tap.

The manufacturer declines all responsibility for any damage to persons, animals or things caused by failure to observe the rules indicated above. In case it is necessary to repair or replace the inside components, act as follows:

WARNINGS

Isolate the cooker from the electricity supply before attempting to replace the oven lamp.

The oven lamp used is of a special type withstanding high temperatures. To replace it, act as follows: disassemble the protecting glass (A) and replace the burnt lamp with one of the same type. Reassemble the protecting glass.

Disassembly of the worktop must only be done by a qualified service technician

DISASSEMBLE OF WORK-TOP

In case it is necessary to repair or replace the inside components, act as follows:

Remove the grids, remove burners and flame-spreaders (see fig. 13), unscrew the visible screws "V" placed on the work-top (see fig. 14). Disassemble the work-top by unscrewing the rear screws "A" (see fig. 15A or 15 B according to the models). In this way it is possible to lift the work-top and to reach the inside components.

Technical diagram of a mechanical assembly with layered components and directional arrows (no text or symbols)

GREASING OF TAPS

If a tap becomes hard to be turned, grease it using a specific grease withstanding high temperatures. Act as follows: open the work-top and disassemble also the control panel as described on the previous paragraph. Unscrew the two fixing screws from the burner body (see picture) and remove the cone.

Technical line drawing of a mechanical assembly with two views (top and side), no text or symbols present.

TAPS REPLACEMENT

Act as follows: open the work-top and disassemble also the control panel as described on the previous paragraph. Unscrew screw nut D of the gas tube supplying the burner. Unscrew screw V fixing the tap to the bridle and remove it (see picture).

Note: Every time the tap is replaced, it is necessary to replace the seal gasket too check the connection seal by means of soapy water.

Clean the cone and its slot by means of a cloth soaked with solvent. Slightly grease the cone with the relevant grease, put it in its slot, and turn it some times. Remove the cone again, remove the excess grease making sure the gas entries are not obstructed by grease residue. Assemble everything carefully in the opposite direction check the connection seal by means of soapy water.

SOME SAFETY POINT

Do not use the appliance as a space heater.

If you smell gas

Open a window. Do not use any electrical switches. Immediately extinguish naked flames. Isolate appliance from gas mains supplies via the isolation stopcock. Contact local gas authority or emergency services as appropriate. In the event of food fire. Isolate appliance from electric / gas mains supplies if safe to do so. Try to extinguish flames with the appropriate equipment (fire blanket or extinguishing foam). Do not use water on cooking fat / oil fires.

If in difficulty call emergency services.

• Do not store or use flammable products or aerosol containers near the hotplate or burners.
• Never flambe, under an extractor - even if the ventilator is switched off.

The high flames can cause fire.

For your safety and that of your children

• Do not store items that are attractive to children above or near the appliance.
• Keep children well away from the appliance: do not forget that some parts of the appliance or of the pans become very hot and dangerous during use, and will take time to cool down.
• When cooking, do not use clothes that could catch fire and cause serious injury.
• Some “Wok” cooking pots are unstable. Check with the manufacturer before purchasing.
• Avoid using unstable and misshapen pans which may tilt easily and pans with a very small base diameter, e.g. milk pans, single egg poachers. The minimum pan diameter recommended is 125mm (5"). Smaller pans will be unstable.

Very large pans may cause walls or knobs to overheat. Using pans which are too big may deform the control knobs or discolour the walls. This is not covered by the guarantee.

• Carefully place all pans centrally over the burners.
  • Always position pan handles safely away from the front of the hotplate and out of danger, particularly from small children.
• Never leave a chip pan unattended.
• Pans and kettles with down turned base rims should not be used.
• Simmering aids such as asbestos or mesh mats are NOT recommended. They will reduce burner performance and could damage the pan supports.
• Commercially available foil spillage aids are unnecessary on this hotplate.

PROBLEM SOLVER

Any of the following are considered to be abnormal operation and may require servicing:

Yellow tipping of the hob burner flame.

Sooting up of cooking utensils.

Burners not igniting properly.

Burners failing to remain alight.

Burners extinguished by oven door.

Gas valves, which are difficult to turn.

Your Installer should be contacted if you have any problems with the installation.

Before you call a service engineer please check if the problem is something you could fix yourself. The cause of the problem is often a simple one.

THINGS TO TRY BEFORE CALLING FOR AN ENGINEER

Burner does not burn well

Is the burner dirty or damp? Try cleaning and/or drying the burner. Appliance not suitable for your gas type? Check the identification plate on the hotplate base.

Burner does not ignite

Do the burners spark when you press the ignition button? If not is the power on? See 'Checking the power supply' section further on. If the power supply is OK then there is probably something wrong with the ignition system.

Are the electrode or burner slots blocked by debris?

Is the burner dirty or damp? Try cleaning and/or drying the burner. Is the burner trim correctly located?

Are the burner caps correctly located?

Check that there is not a problem with your gas supply. You can do this by making sure that other gas appliances you may have are working.

Pan supports

Aluminium pans may cause a metallic marking on the pan supports which does not affect the durability of the enamel and may be cleaned off with a metal cleaner such as 'Brasso'.

Checking the power supply

First check if the main house fuse or circuit breaker has activated.

If it's OK, test the power socket with another appliance. If the other appliance works, then unplug the cooker and contact the service agent

Power Failure

In the event of a failure in the electrical supply the hotplate burners may be lit using a match.

Ventilation

The use of a gas cooking appliance results in the production of heat and moisture in the room in which it is installed. Ensure that the kitchen is well ventilated: keep natural ventilation holes open or install a mechanical ventilation device, (mechanical extractor hood). Prolonged intensive use of the appliance may call for additional ventilation, for example opening a window, or more effective ventilation, for example increasing the level of mechanical ventilation where present. For more detail see the Installation Instructions.

OVEN DOES NOT WORK AT ALL

First, when the oven is equipped with timer, check appliance is not programmed to turn on later. If it is, turn to manual setting (i.e. hand symbol). If the button or scale on the timer remains in the automatic position after use, the power supply to the oven will be interrupted. Also, check your appliance is switched on at the mains. Next check for an unexpected power strike by switching on adjacent lights etc. Finally, check fuses and plug wiring. If all these prove satisfactory, call engineer.

LIGHT BULB DOESN'T COME ON

Check bulb for looseness or burned out bulb.

Note: bulb replacement is not covered by your guarantee.

SMOKE COMING FROM OVEN

If oven is still relatively new, this problem is invariably due to protective oil on elements. Otherwise, the answer may be oil or fat which has become deposited on the elements during cooking. In either event, continued use should burn away the residues. On future occasions, try to shield food with foil or keep it further away from element, particularly when grilling.

CLOCK/TIMER DOES NOT WORK

Check to be sure range cord is plugged into outlet completely. Check for a blown fuse or tripped circuit breaker. Check for power outage. Check step by step operating Instructions on previous pages.

If, after checking through this section, you cannot resolve your problem please call the number on the warranty page in this manual for service and spare parts.

When ordering please quote the appliance name, the colour variant and serial number.

This information can be found on the data plate sealed inside the front appliance drawer.

Maintenance schedule:

To ensure the appliance continues to operate at peak performance, we recommend a routine service call every 2 years for the life of the appliance.
