| Product Type | Industrial Managed Ethernet Switch |
| Model | EKI-9612G-4FI-AE |
| Brand | Advantech |
| Ports | 8 x 10/100/1000Base-T(X) + 4 x 100/1000Base-SFP |
| Switching Capacity | 24 Gbps |
| Forwarding Rate | 17.9 Mpps |
| MAC Address Table | 8K entries |

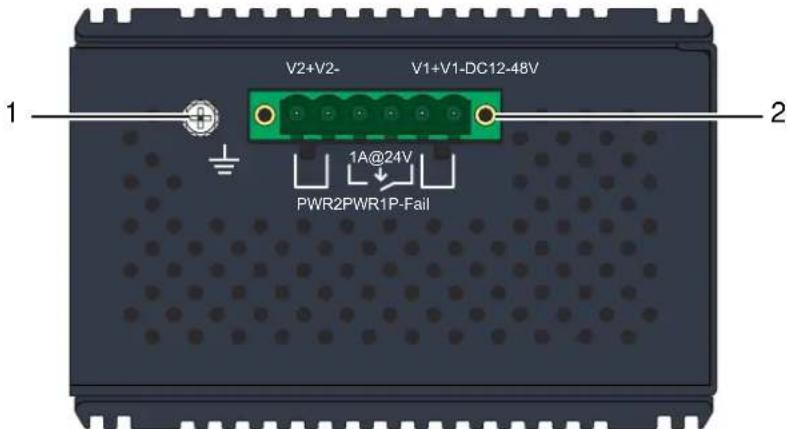

| Power Input | 12-48 VDC redundant |

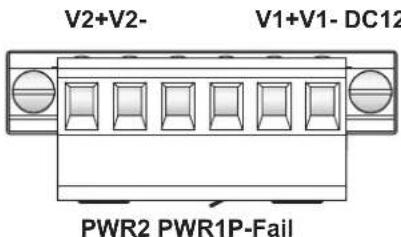

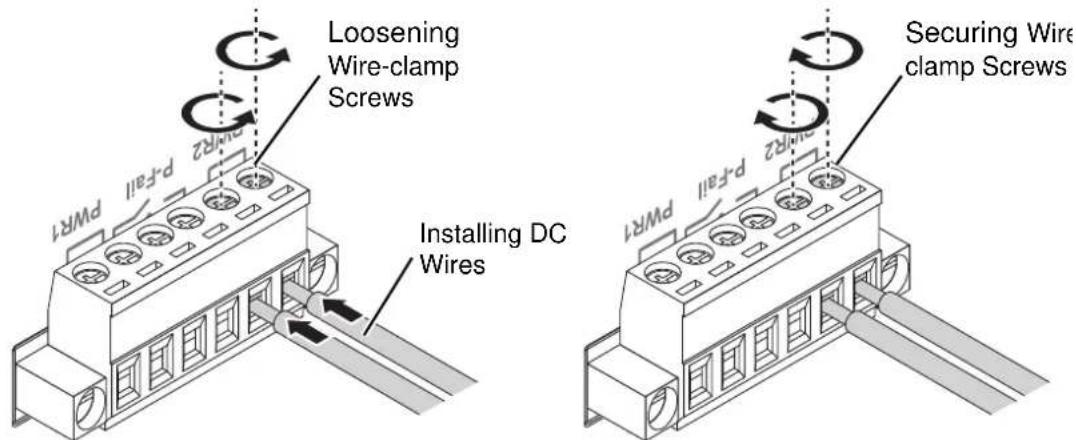

| Power Connector | 6-pin removable terminal block |
| Power Consumption | 15 W (max) |
| Operating Temperature | -40°C to 75°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% (non-condensing) |
| Dimensions (W x H x D) | 74 x 152 x 105 mm |
| Weight | 1.2 kg |
| Mounting | DIN-rail or wall-mount |
| Management | Web, SNMP v1/v2c/v3, Telnet, CLI |
| Layer 2 Features | VLAN, IGMP snooping, STP/RSTP/MSTP, Link Aggregation |
| Layer 3 Features | Static routing, RIP, OSPF |
| Security | 802.1X, ACL, Port security, SSH/SSL |
| Certifications | CE, FCC |
Frequently Asked Questions - EKI-9612G-4FI-AE Advantech
How to reset the EKI-9612G-4FI-AE to factory defaults?
Press and hold the reset button located on the front panel for 10 seconds until the power LED flashes. This restores factory settings.

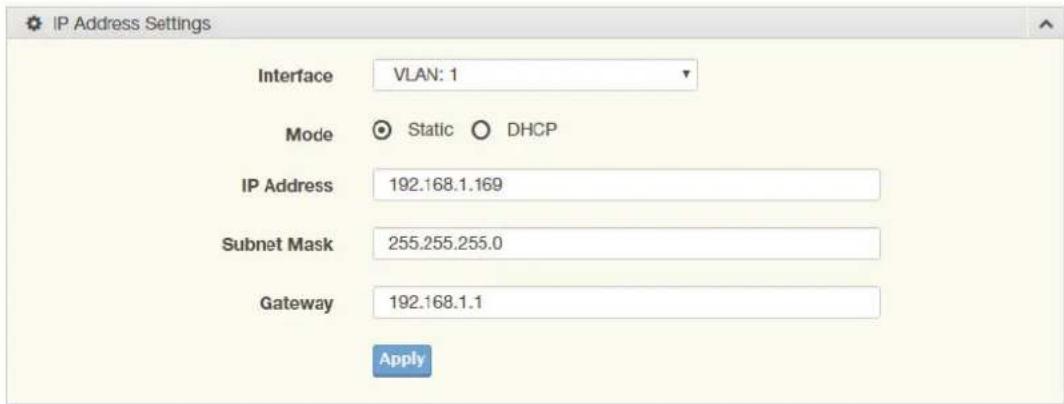

What is the default IP address to access the web interface?
The default IP address is 192.168.1.1 with subnet mask 255.255.255.0. Ensure your PC is on the same subnet.

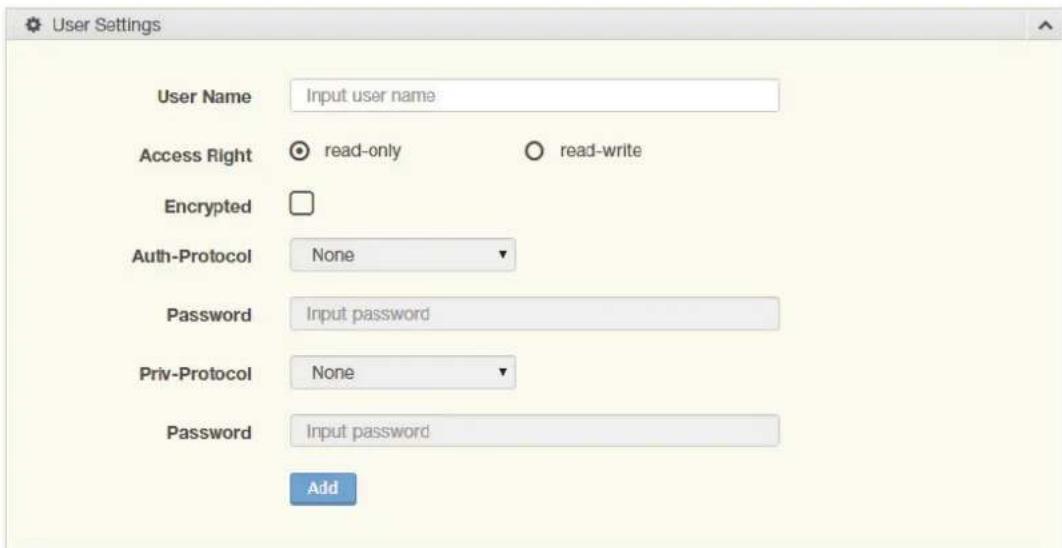

What are the default login credentials?
Default username is admin and password is admin (or leave blank). Change immediately after initial login.
Can this switch support PoE?
No, the EKI-9612G-4FI-AE is a non-PoE switch. For PoE models, consider Advantech EKI-9600 series with -P suffix.
How to mount the switch on a DIN rail?
Attach the DIN-rail clip (included) to the back of the switch, then snap the switch onto a standard 35 mm DIN rail.

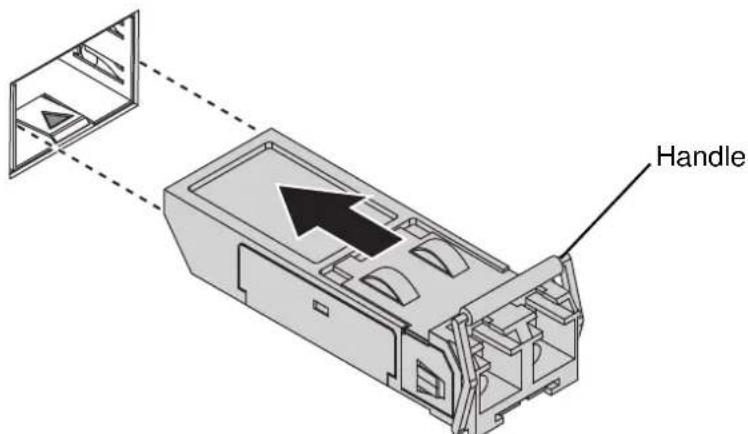

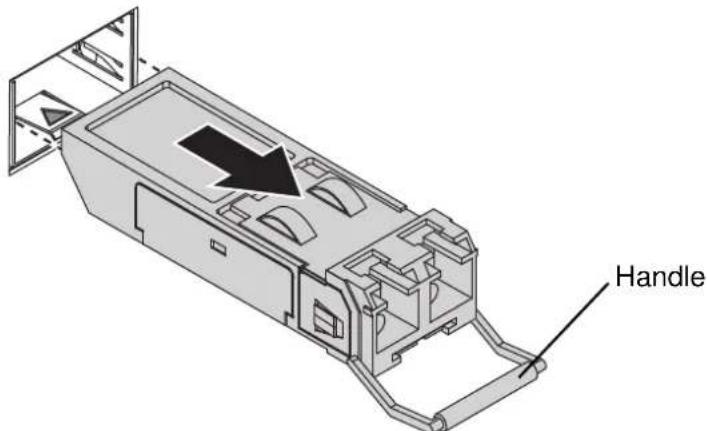

What type of SFP modules are compatible?
Compatible with standard 100Base-FX or 1000Base-X SFP modules, both single-mode and multi-mode, from Advantech or third-party brands.

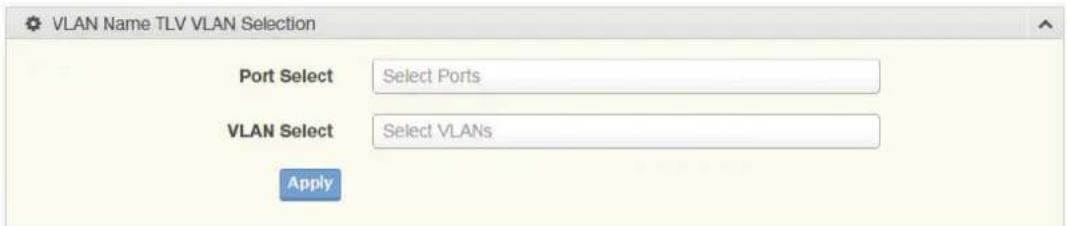

How to configure VLANs?
Access the web interface, navigate to L2 Features > VLAN. Create VLANs and assign ports accordingly. Supported modes include port-based and 802.1Q.
What is the operating temperature range?
The switch operates at -40°C to 75°C, making it suitable for harsh industrial environments.

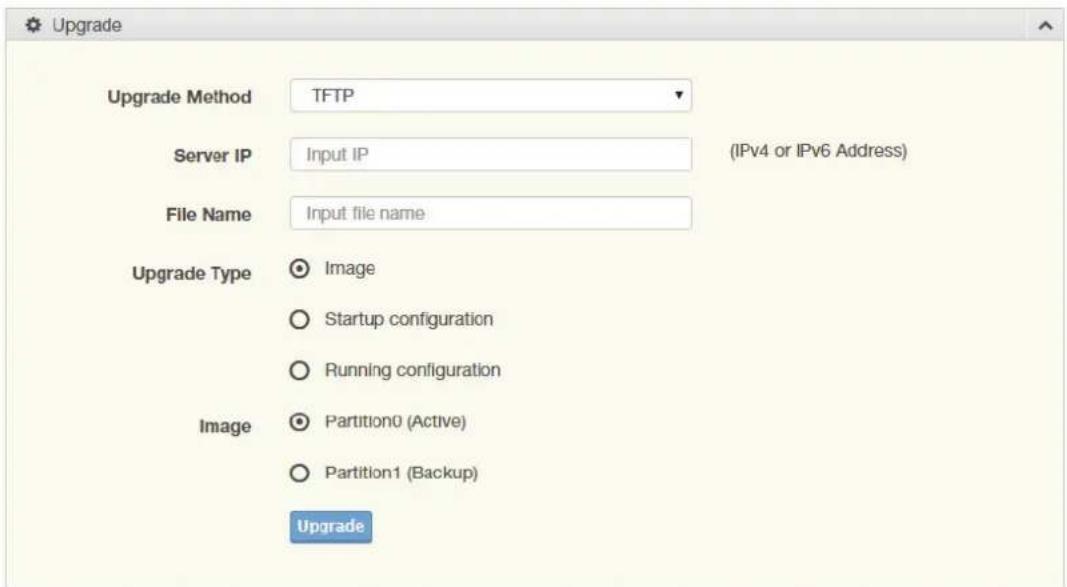

How to update firmware?

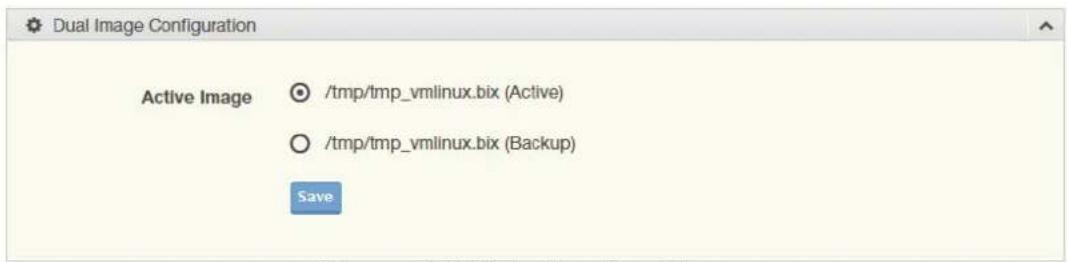

Go to Maintenance > Firmware Upgrade in the web interface. Upload the latest firmware file from Advantech's website and wait for reboot.
Is the switch fanless?
Yes, the EKI-9612G-4FI-AE is fanless, ensuring silent operation and high reliability in dusty environments.
