Shyla SHY-10907-SG - Lighting Crystorama - Free user manual and instructions

Product Type	Chandelier / Pendant Light
Brand	Crystorama
Model	Shyla SHY-10907-SG
Finish	Silver Gold (SG)
Material	Steel and Fabric
Dimensions	Height: 30 in (76.2 cm), Diameter: 24 in (61 cm)
Weight	12 lbs (5.4 kg)
Bulb Type	E12 Candelabra Base (max 60W per bulb)
Number of Bulbs	6
Power Source	Hardwired (120V AC)
Dimmable	Yes (with compatible dimmer switch)
Mounting Type	Ceiling Mount
Canopy Dimensions	Diameter 5 in (12.7 cm), Height 1 in (2.5 cm)
Chain Length	72 in (182.9 cm) adjustable
Sloped Ceiling Compatible	Yes
Usage	Indoor dry location
Cleaning	Wipe with a dry cloth
Safety Rating	UL Listed for dry locations
Warranty	1 year limited warranty
Included Parts	Fixture, canopy, chain, mounting hardware

Frequently Asked Questions - Shyla SHY-10907-SG Crystorama

What type of bulbs does the Crystorama Shyla SHY-10907-SG use?

The fixture uses E12 candelabra base bulbs (max 60W each). It is compatible with LED, incandescent, or CFL bulbs.

Is the Shyla SHY-10907-SG dimmable?

Yes, the fixture is dimmable when used with a compatible dimmer switch and dimmable bulbs.

What is the finish of this chandelier?

The finish is Silver Gold (SG), a brushed silver with gold undertones.

Can the chain be shortened?

Yes, the 72-inch chain is adjustable. You can remove links to achieve the desired hanging height.

Is this fixture suitable for sloped ceilings?

Yes, the canopy and chain design allow installation on sloped ceilings up to a standard angle.

What is the weight of the fixture?

The chandelier weighs approximately 12 lbs (5.4 kg), requiring a ceiling box rated for at least 35 lbs.

How do I clean the Shyla SHY-10907-SG?

Use a soft, dry cloth to dust the fixture. Do not use abrasive cleaners or water.

Does the fixture come with bulbs?

No, bulbs are not included. You need to purchase 6 candelabra base bulbs separately.

What is the warranty period?

Crystorama offers a 1-year limited warranty against manufacturing defects.

Can this chandelier be installed outdoors?

No, this model is rated for indoor dry locations only.

USER MANUAL Shyla SHY-10907-SG Crystorama

ASSEMBLY INSTRUCTION MODEL # SHY-10907-SG

All electrical components must be

installed by a licensed electrician

in accordance with the National

Electric Code and the appropriate

local electrical codes.

You will need 10 -Candelabra Base Bulb

40 Watts Recommended 60 Watts Max.

USE LED BULBS FOR EXTENDED USE

THIS FIXTURE IS DAMP RATED

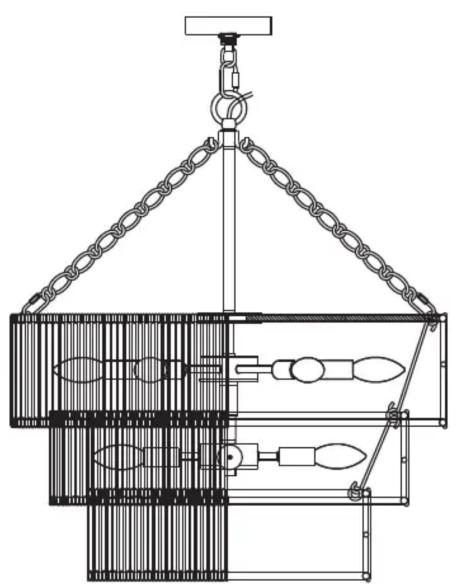

Technical line drawing of a mechanical lifting device with chains and structural components (no text or symbols)

How to Install

1. Slide the center stem kit over the coupler on the top frame and then hook one end of the decorative chain onto the top of frame and the other end onto the hook on the center stem kit.
2. Raise the bottom light cluster up and do the wire connection by inserting the male plug into the female plug. Gently push the wire and plug inside the coupler and screw the bottom light cluster onto the top light cluster by turning the downrod.
3. Hang the middle frame onto the top frame using the long hook stem and then hang the bottom frame onto the middle frame using the short hook stem.

Part Number

A. (1) - Mounting Hardware
B. (1) - Canopy(W4.7", H1") #XRE10907SGCAN4.7IN
C. (1) - Collar Ring
D. (1) - Collar Loop
E. (2) - Quick Link
F. (1) - Hanging Chain(72",4mm) #XRE10907SGCHA4MM
G. (1) - Center Stem Kit
H. (3)- Decorative chain(13.07",3mm) #XRE10907SGDECHA3MM
I. (1) - Bottom light cluster
J. (3) - Long hook stem
K. (3) - Short hook stem
