Product Type	Built-in Dishwasher
Brand	La Germania
Model	DW6062FSE
Width	60 cm
Height	85 cm
Depth	60 cm
Weight	50 kg
Power Supply	220-240 V, 50 Hz, 10 A
Energy Class	A+
Number of Place Settings	14
Number of Programs	6
Noise Level	47 dB
Water Consumption per Cycle	10 L
Annual Energy Consumption	294 kWh
Drying Performance Class	A
Programs	Eco, Intensive, Normal, Quick, Glass, Rinse
Features	Delay Start, Half Load, Child Lock, LED Display
Water Connection	Cold water only
Filter Type	Self-cleaning triple filter
Spare Parts Availability	Available for 10 years
Repairability Index	8.2 / 10

Frequently Asked Questions - DW6062FSE LA GERMANIA

How do I properly install the dishwasher?

Ensure the dishwasher is level and securely connected to the water supply and drain. Refer to the installation manual for detailed steps. It requires a cold water connection and a drain hose with proper height.

How do I clean the filter?

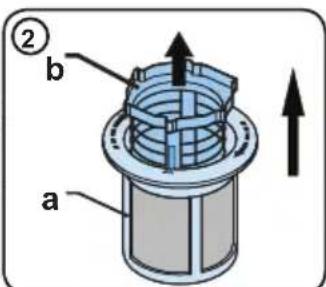

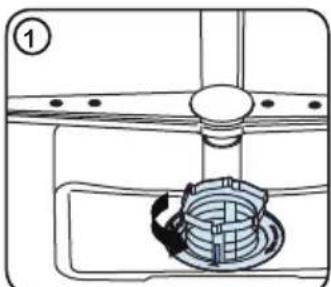

Remove the lower rack and rotate the cylindrical filter counterclockwise to take it out. Rinse under running water and clean with a soft brush if needed. Reinstall by turning clockwise until it locks.

The dishwasher is not starting. What should I check?

Check if the door is properly closed and latched, the power cord is plugged in, and the circuit breaker is on. Also, ensure the child lock is deactivated.

Why is the dishwasher not drying dishes properly?

Use a rinse aid to improve drying. Make sure the rinse aid dispenser is filled. Also, select a program with drying function like Intensive or Eco.

How do I use the salt and rinse aid?

Open the salt compartment cap and fill with dishwasher salt until full. For rinse aid, adjust the setting dial inside the dispenser. Refill when the indicator lights up.

What does the error code E1 mean?

Error E1 indicates a water supply issue. Check if the water tap is open and the inlet hose is not kinked. If persistent, clean the inlet filter.

How do I load the dishwasher for best results?

Place plates facing the spray arms, bowls upside down, and cutlery with handles down. Avoid blocking the spray arms so water can reach all items.

Can I use regular dish soap?

No, only use dishwasher detergent (powder, gel, or tablets). Regular dish soap causes excessive suds and may damage the machine.

How do I clean the spray arms?

Remove the spray arms by unscrewing the top cap or pulling the lower one upward. Rinse under water and use a toothpick to clear clogged nozzles.

What is the recommended maintenance schedule?

Clean the filter after every few cycles. Run a machine cleaner every 2-3 months. Check the inlet hose for leaks annually.

USER MANUAL DW6062FSE LA GERMANIA

1.SAFETY INSTRUCTIONS .... 1

1.1. General Safety Warnings .... 1

1.2. Installation Warnings .... 1

1.3. During Use....2

2.INSTALLATION....6

2.1. Machine Positioning ......6

2.2. Water Connection....6

2.3. Water Inlet Hose 6

2.4. Drain Hose....6

2.5. Electrical Connection ....7

2.6. Fitting the Machine Undercounter 7

3.TECHNICAL SPECIFICATIONS....8

3.1. General Appearance....8

3.2. Technical Specifications ....8

4.BEFORE USING THE APPLIANCE 9

4.1.Preparing your Dishwasher for first use 9

4.2. Detergent Usage 9

4.3. Filling the Detergent 10

4.4. Using Combined Detergents 10

4.5. Rinse-aid Usege....10

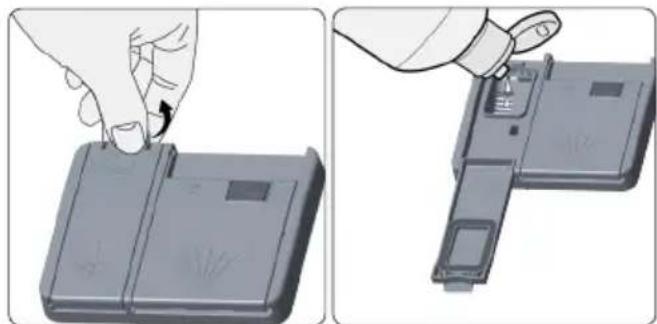

4.6. Filling the Rinse-aid and Setting....10

5.LOADING YOUR DISHWASHER....11

5.1. Recommendations....11

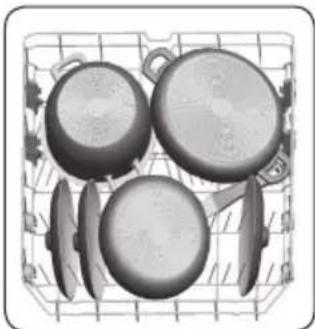

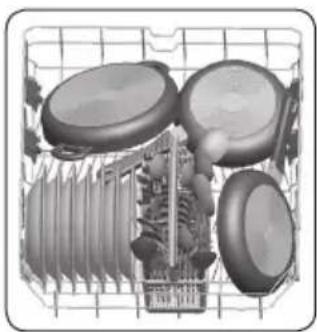

5.2. Alternative Basket Loads....13

6.PROGRAMME TABLE....14

7. THE CONTROL PANEL.... 15

7.1. Changing a Programme 15

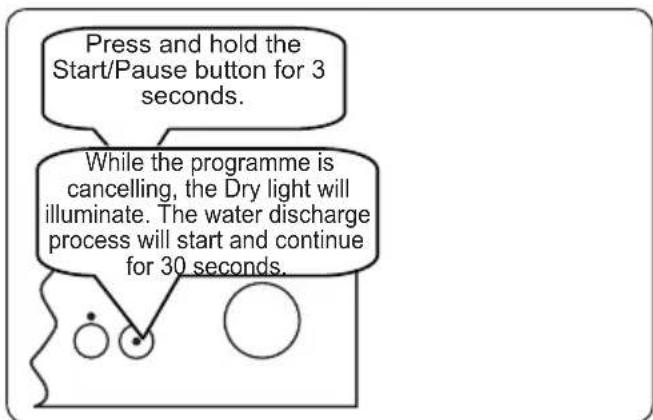

7.2. Cancelling a Programme....16

7.3. Switching the Machine Off....16

8.CLEANING AND MAINTENANCE 17
8.1. Cleaning the Machine and Filters....17
8.2. Spray Arms 17
8.3. Drain Pump 18
9.TROUBLESHOOTING....19
10.PRACTICAL INFORMATION....20

Thank you for choosing this product.

This User Manual contains important information on safety and instructions intended to assist you in the operation and maintenance of your appliance.

Please take the time to read this User Manual before using your appliance and keep this book for future reference.

Icon Type Meaning
	WARNING Serious injury or death risk
	RISK OF ELECTRIC SHOCK Dangerous voltage risk
	FIRE Fire risk
	CAUTION Injury or property damage risk
	IMPORTANT / NOTE Operating the system correctly

1. SAFETY INSTRUCTIONS

1.1. General Safety Warnings

- Read these instructions carefully before using your appliance and keep this manual for future reference.

⚠️ Please check the packaging of your machine before installation and the outer surface of the machine once the packaging has been removed. Do not operate the machine if it appears damaged or if the packaging has been opened.

- Packaging materials protect your machine from any damage that might occur during transportation. The packaging materials are environmentally friendly as they are recyclable. Use of recycled material reduces raw material consumption and decreases waste production.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

⚠️ Remove packaging and keep it out of reach of children.

⚠️ Keep children away from detergents and rinse aids.

There may be some residue left in the machine after washing. Keep children away from the machine when it is open.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

1.2. Installation Warnings

• Choose a suitable and safe place to install your machine.
• Only original spare parts should be used with the machine.

⚠️! Unplug the machine before installation.

⚠️ Your machine must only be installed by an authorised service agent. Installation by anyone other than an authorised agent may cause your warranty to be void.

⚠️ Check that the indoor electrical fuse system is connected in line with safety regulations.

All electrical connections must match the values on the plate.

⚠️! Ensure the machine does not stand on the electrical supply cable.

⚠️ Never use an extension cord or a multiple socket connection.

⚠️ The plug should be accessible after the machine is installed.

• After installation, run your machine unloaded for the first time.

The machine must not be plugged in during positioning.

△! Always use the coated plug supplied with your machine.

△△! If the electrical cable is damaged, it should only be replaced by a qualified electrician.

1.3. During Usege

• This machine is for domestic use only; do not use
• it for other purposes. Commercial use will void the guarantee.

Do not stand, sit or place loads on the open door of the dishwasher.

△! Only use detergents and rinse aids produced specifically for dishwashers. Our company is not responsible for any damage that may occur due to misuse.

⚠️Do not drink water from the machine.

Due to the danger of explosion, do not place any chemical dissolving agents into the machine's washing section.

• Check the heat-resistance of plastic items before washing them in the machine.
  ⚠️ Only put items in the machine which are suitable for dishwashing, and take care not to overfill the baskets.
  ⚠️Do not open the door while the machine is in operation, hot water may spill out. Safety devices ensure the machine stops if the door is opened.
  ⚠️The machine door should not be left open. It may cause accidents.
  ⚠️Place knives and other sharp objects in the cutlery basket in a blade-down position.
  ⚠️! For models with the automatic door-opening system, when the EnergySave option is active, the door will open at the end of a program. To prevent damage to your dishwasher, do not attempt to close the door for one minute after it has opened.

For effective drying, keep the door open for 30 minutes after a programme has ended. Do not stand in front of the door after the auto-open signal sounds.

⚠ In the case of a malfunction, repair should only be performed by authorised service company, otherwise the warranty will be void.

△! Before repair work, the machine should be disconnected from the mains. Do not pull the cable to unplug the machine. Switch off the water tap.

Operation at a low voltage will cause a decline in performance levels.

⚠️For safety, disconnect the plug once a program has finished.

To avoid an electric shock, do not unplug the machine with wet hands.

⚠️! Pull the plug to disconnect the machine from the mains, never pull on the cord.

RECYCLING

• Some machine components and packaging consist of recyclable materials.
• Plastics are marked with the international abbreviations: (>PE<, >PP<, etc.)
• The cardboard parts consist of recycled paper. They can be put into waste paper containers for recycling.
• Material unsuitable for domestic waste must be disposed of at recycling centres.
• Contact a relevant recycling centre to obtain information about disposal of different materials.

PACKAGING AND THE ENVIRONMENT

- Packaging materials protect your machine from damage that may occur during transportation. The packaging materials are environmentally friendly as they are recyclable. The use of recycled material reduces raw material consumption and therefore decreases waste production.

CE Declaration of Conformity

We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced.

Disposal of your old machine

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead, it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product,

please contact your local city office, your household waste disposal service or the shop where the product was purchased.

2. INSTALLATION

2.1. Machine positioning

When positioning the machine, place it in an area where dishes can be easily loaded and unloaded. Do not put the machine in an area where the ambient temperature falls below 0^ C.

Read all warnings located on the packaging before removing the packaging and positioning the machine.

Place the machine close to a water tap and drain. Take into consideration that the connections will not be altered once the machine is in position.

Do not hold the machine by its door or panel.

Leave an adequate distance around the machine to allow ease of movement when cleaning.

Ensure the water inlet and outlet hoses are not squeezed or trapped

and that the machine does not stand on the electrical cable while positioning.

Adjust the feet so the machine is level and balanced. The machine should be placed on flat ground otherwise it will be unstable and the door of the machine will not close properly.

2.2. Water connection

We recommend fitting a filter to your water inlet supply in order to prevent damage to your machine due to contamination (sand, rust, etc.) from indoor plumbing. This will also help prevent yellowing and deposit formation after washing.

2.3. Water inlet hose

Illustration of a hand holding a faucet with a valve, showing fluid flow direction (no text or symbols)

WARNING: Use the new water inlet supplied with your machine, do not an old machine's hose.

WARNING: Run water through the

new hose before connecting.

WARNING: Connect the hose ly to the water inlet tap. The pressure ied by the tap should be a minimum 93 MPa and a maximum of 1 MPa. If pressure exceeds 1 MPa, a pressure valve must be fitted between the ection.

WARNING: After the connections are made, turn the tap on fully and check for water leaks. Always turn off the inlet tap after a wash program has ed.

Diagram of a faucet with a valve and a base component, no text or symbols present

An Aquastop water spout is available with some models. Do not damage it or allow it to become kinked or

2.4. Drain Hose

Connect the water drain hose directly to water drain hole or to the sink outlet spigot. This connection should be minimum 50 cm and maximum 110 cm from flor plane.

IMPORTANT: Items will not wash properly if a drain hose longer than 4 m is used.

2.5. Electrical connection

WARNING: Your machine is set to operate at 220-240 V. If the mains voltage supply to your machine is 110

V, connect a transformer of 110/220 V and 3000 W between the electrical connection.

The earthed plug of the machine must be connected to an earthed outlet supplied by suitable voltage and current.

In the absence of earthing installation, an authorised electrician should carry out an earthing installation. In the case of use without earthing installed, we will not be responsible for any loss of use that may occur.

The indoor fuse current value should be 10-16 A.

2.6. Fitting the machine undercounter

If you wish to fit your machine undercounter, there must be sufficient space to do so and the wiring-plumbing must be suitable to do so (1). If the space under the countertop is suitable for fitting your machine, remove the worktop as shown in the illustration (2).

WARNING: The countertop, which the machine will be placed under, must be stable in order to prevent imbalance.

The top panel of the dishwasher must be removed to fit the machine under the countertop.

To remove the top panel, remove the screws that hold it on, located at the rear of the machine. Then, push the panel 1 cm from the front towards the rear and lift it. Adjust the machine feet according to the slope of the floor (3).

Fit your machine by pushing it under the counter taking care not to crush or bend the hoses (4).

WARNING: After removing the top panel of your dishwasher, the machine should be placed in a space of the dimensions shown in the figure below.

	A	B
	All Products	B_1	B_2
Product's Height (±2 mm) 820 mm 830 mm 835 mm

A: If there is no felt on the top of the product; you should take into account this product's height.

B1: If there is felt on the top of the product with 2nd basket; you should take into account this product's height.

B2: If there is felt on the top of the product with 3rd basket; you should take into account this product's height.

3. TECHNICAL SPECIFICATIONS

Close-up of a mechanical component with a circular component and a numbered arrow pointing to it (no text or symbols visible)

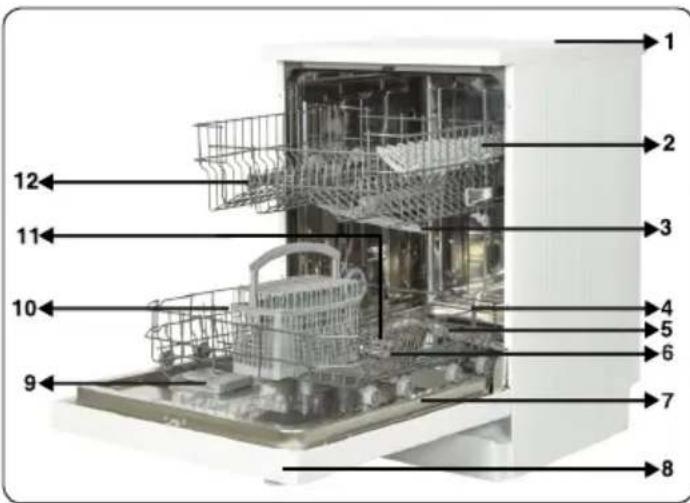

3.1. General appearance

1. Worktop
2. Upper basket with racks
3. Upper spray arm
4. Lower basket
5. Lower spray arm
6. Filters
7. Rating plate
8. Control panel
9. Detergent and rinse-aid dispenser
10. Cutlery basket
11. Salt dispenser

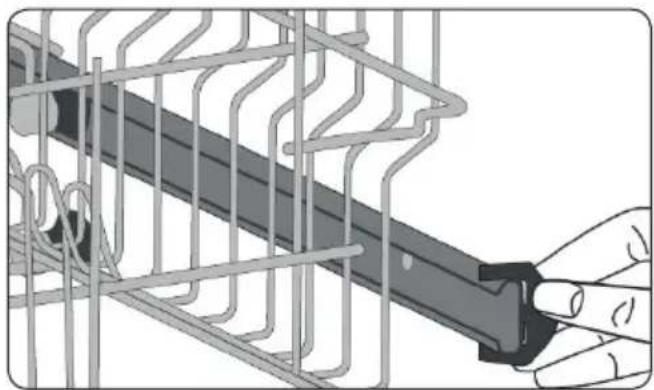

12. Upper basket track latch
13. Super Active Drying Unit: This system provides better drying performance for your dishes.

3.2. Technical specifications

Capacity	13 place settings
Dimensions
Height	850(mm)
Width	598(mm)
Depth	598(mm)
Net weight 49,200 kg
Operating voltage / frequency	220-240V50 Hz,
Total current	10(A)
Total power 1	900(W)
Water supply pressure	Maximum:1 (Mpa)Minimum:0.03 (Mpa)

4. BEFORE USING THE APPLIANCE

4.1. Preparing your Dishwasher for first use

• Make sure the electricity and supply water specifications match the values indicated in the installation instructions for the machine.
• Remove all packaging material inside the machine.
• Set the water softener level.
• Fill the rinse aid compartment.

4.2. Detergent usage

Only use detergents specifically designed for domestic dishwashers.

Add the recommended amount of detergent for the selected programme to ensure the best performance.

Keep your detergents in cool, dry places out of reach of children.

See the detergent manufacturer's instructions for a further information.

4.3. Filling the detergent

Push the latch to open the dispenser and pour in the detergent.

Close the lid and press it until it locks in place. The dispenser should be refilled just before the start of each programme. If the dishes are heavily soiled, place additional detergent in the pre-wash detergent chamber.

4.4. Using combined detergents

These products should be used according to the manufacturer's instructions.

Never put combined detergents into the interior section or the cutlery basket.

Combined detergents contain not only the detergent but also rinse-aid, salt replacement substances and additional components depending on the combination.

We recommend you do not use combined detergents in short programmes.

Please use powder detergents in such programmes.

If you encounter problems when using combined detergents, please contact the detergent manufacturer.

When you stop using combined detergents, make sure that rinse aid setting is set to correct level.

4.5 . Rinse-aid usage

Rinse-aid makes dishes sparkle and helps them to dry without spotting. Rinse-aid is required for stain-free utensils and clear glasses. Use only rinse-aid for domestic dishwashers.

4.6 . Filling the rinse-aid and setting

To fill the rinse aid compartment, open the rinse-aid compartment cap. Fill the compartment with rinse aid to the MAX level and then close the cap. Be careful not to overfill the rinse aid compartment and wipe up any spills.

In order to change the rinse aid level, follow the below steps before turning on the machine:

• Turn the knob to the "off" position
• Push the "Start/Pause" button and hold it down.
• Turn the knob counter clockwise on step.
• Hold down the "Start/Pause" button until the LEDs flash twice and "rA" disappears.
• The machine will display the current setting.
• Set the level by pushing the “+” and “-buttons.
• Turn the knob to the "off" position t save the setting.

The factory setting is "4".

If the dishes are not drying properly or are spotted, increase the level. If blue stains form on your dishes, decrease the level.

Illustration showing a hand inserting a component into a device, with no visible text or symbols

Level Brightener Dose Indicator
1 Rinse-aid not dispensed		r1 is shown on the display.
2 1 dose is dispensed		r2 is shown on the display.
3 2 doses are dispensed		r3 is shown on the display.
4 3 doses are dispensed		r4 is shown on the display.
5 4 doses are dispensed		r5 is shown on the display.

5. LOADING YOUR DISHWASHER

For best results, follow these loading guidelines.

Loading the household dishwasher up to the capacity indicated by the manufacturer will contribute to energy and water savings.

Manual pre-rinsing of tableware items leads to increased water and energy consumption and is not recommended You can place cups, glasses, stemware, small plates, bowls, etc. in upper basket. Do not lean long glasses against one another or they cannot remain steady and may receive damage.

When placing long stem glasses and goblets, lean them against the basket edge or rack and not against other items.

Place all containers such as cups, glasses and pots into the dishwasher with the opening facing downwards otherwise water can collect on items.

If there is cutlery basket in machine, you are recommended to use the cutlery grid in order to obtain the best result. Place all large (pots, pans, lids, plates, bowls etc.) and very dirty items in the lower rack.

Dishes and cutlery should not be placed above each other.

WARNING: Take care not to obstruct rotation of spray arms.

WARNING: Make sure after loading shes do not prevent opening the gent dispenser.

5.1. Recommendations

Remove any coarse residue on dishes before placing the dishes in the machine. Start the machine with full load.

Do not overload the drawers or place dishes in the wrong basket.

WARNING: To avoid any possible es, place long-handle and sharp-ed knives with their sharp points facing or horizontally on the baskets.

Height Adjustable Rack (peg type)

The height adjustable racks enable glasses and cups to be placed on or under the racks. The racks can be adjusted to 2 different heights. Cutlery and utensils can also be placed on the racks horizontally.

Height Adjustable Rack (peg type)

The foldable racks in the upper basket enable the placement of large items such as pots and pans. Each section can be folded separately. The foldable racks can be either raised up or folded down.

3D wireframe diagram of a structural grid with red arrows indicating direction (no text or symbols)

Upper Basket

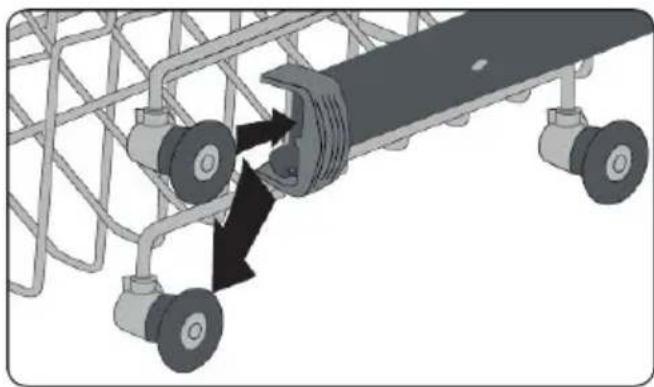

Height adjustment

Turn the Rail Stop Clips, at the ends of the rails, to the sides to open them (as shown in the image below), then pull out and remove the basket. Change the position of the wheels, then reinstall the basket to the rail, making sure to close the Rail Stop Clips. When the upper basket is in the higher position, large items such as pans can be placed on the lower basket.

Illustration of a hand holding a black tool interacting with a wire mesh structure (no text or symbols visible)

Diagram of a mechanical assembly with wheels and a central component, showing directional arrows (no text or symbols)

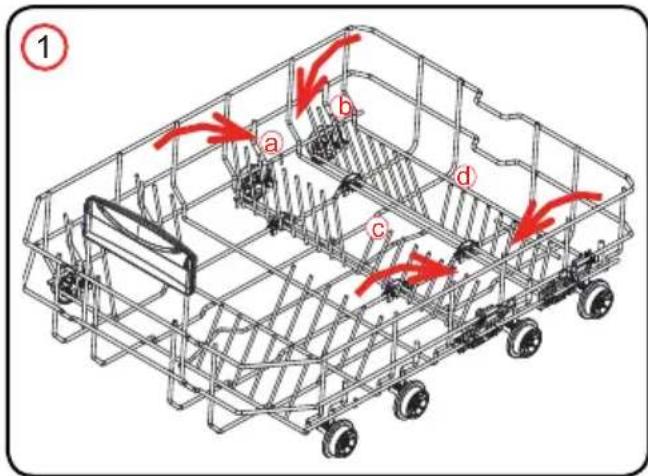

Four Folding Racks (12 ps)

The folding racks are designed so that large items, such as pots and pans, can be easily placed in the dishwasher. Each section can be folded separately. The racks can be folded down or raised up, as shown in the images below.

Isometric view of a car chassis frame with red arrows indicating motion or movement, no text or symbols present.

5.2. Alternative basket loads

Lower basket

Black-and-white illustration of various kitchen appliances and fixtures arranged in a grid (no text or symbols visible)

Illustration of four kitchen utensils arranged in a grid (no text or symbols)

Upper basket

3D rendering of a multi-tiered storage rack with various cylindrical components and a central rod (no text or symbols visible)

Incorrect loads

Black X symbol crossed over a grid of circular objects, no text or symbols present

Technical illustration of a mechanical assembly with no visible text or symbols

Abstract 3D rendered geometric shapes with a black 'X' overlay, no text or symbols present

3D rendered abstract geometric shapes with a black 'X' overlay (no text or symbols)

Unsuitable items for dishwashing

• Cigarette ashes, candle leftovers, polish, paint, chemical substances, iron-alloy materials.

• Forks, spoons and knives with wooden, bone, ivory or nacrecoated handles; glued items, items soiled with abrasive, acidic or base chemicals.
  • Temperature-sensitive plastics, copper or tincoated containers.
  • Aluminium and silver objects.
• Some delicate glasses, ornamental printed porcelains; some crystal items, adhered cutlery, lead crystal glasses, cutting boards, synthetic fibred items.
• Absorbent items such as sponges or kitchen rugs.

IMPORTANT: In future, purchase

dishwasher-proof kitchenware.

Important Note for Test Laboratories

For detailed information required for tests according to EN normatives and a softcopy of the manual, please send the model name and serial number to the following address: [e-mail]

6. PROGRAMME TABLE

Programme	Duration (min)	Description
Prewash 15	To rinse heavily soiled dishes before a wash programme.
Quick 30' 30	Quick wash	programme for lightly soiled dishes.
Eco (Reference)	143 Standard programme for dishes which are used daily but are not heavily soiled.
Super 50' 50	A faster programme for dishes which are used daily but are not heavily soiled.
Intensive 117	For heavily soiled dishes.
Hygiene 127	For heavily soiled dishes which require hygienic washing.

NOTE: PROGRAMME DURATION MAY CHANGE ACCORDING TO THE AMOUNT OF DISHES, TAP WATER, AMBIENT TEMPERATURE AND SELECTED ADDITIONAL FUNCTIONS.

• Only use powder detergent in short programmes.
• Short programmes do not include a drying step.
• To assist drying, we recommend partially opening the door after the programme has finished.

7.. THE CONTR PANEL

Rotate the Programme Selection Knob (4) to switch on the machine and select a suitable programme for your dishes. When the Programme Selection Knob is in the 'Off' position, the machine will not operate.

Press the Start/Pause button (3) to start the selected programme. The Start/Pause light will switch off and the Wash light will illuminate. If the door of your machine is opened during washing, the Start/Pause light will flash and the Wash light will remain illuminated.

The Wash, Rinse, Dry and End lights (6) on the Control Panel indicate the status of the programme in operation. The machine will remain silent for 40 to 50 minutes while the Drying light is on.

The Remaining Time Indicator (1) shows the duration of the selected programme and the time remaining of the programme in operation.

NOTE: Press the Half Load button (2) to shorten the duration of the selecte programme, and therefore reduce the energy and water consumption.

NOTE: If an extra feature has been used, such as Delay or Half Load (1, 2), on the most recent wash programme, this feature will remain active on the next selected programme. To cancel this feature on the newly selected wash programme, turn the Programme Selection Knob to the 'Off' position, then turn it to select a programme. Extra features can be activated with the newly selected programme.

NOTE: Simultaneously press the "+" and "-" buttons for 3 seconds to activate/deactivate the Child Lock. When it is first activated, "CL" will show on the Remaining Time Indicator for 2 seconds. When it is

deactivated, "CL" will flash twice.

NOTE: When there is insufficient rinse aid, the Rinse Aid Lack Warning Indicator (5) will illuminate, indicating the rinse ai chamber needs filling.

Delaying a Programme

Before a programme starts, press the "+" or "-" button on the Remaining Time Indicator to delay the start time of a programme for 1 hour up to 19 hours. To change the delay time, first press the Start/Pause button, then use the "+" and "-" buttons to select a new delay time. To activate the new delay time, press the Start/Pause button. To cancel the delay time, use the "+" and "-" buttons to set the time to '0'.

NOTE: If the Programme Selection Knob is turned to the 'Off' position after the delay time has been selected and the programme started, the remaining delay time is stored. When the knob is turned to a new programme, the remaining delay time will resume.

7.1. Changing a Programme

Follow the steps below to change the programme while in operation.

7.2. Cancelling a Programme

Follow the steps below to cancel a programme while in operation.

7.3. Switching the Machine Off

NOTE: Do not open the door before the programme is complete.

NOTE: Leave the machine door slightly open at the end of a wash programme to speed up the drying process.

NOTE: If the door of the machine is opened or the power is cut off during a wash programme, the programme will continue when the door is closed or when the power returns.

8. CLEANING AND MAINTENANCE

Cleaning your dishwasher is important to maintain the machine's service life. Make sure that the water softening setting (If available) is done correctly and correct amount of detergent is used to prevent limescale accumulation. Refill the salt compartment when the salt sensor light comes on.

Oil and limescale may build up in your Dishwasher over time. If this occurs:

• Fill the detergent compartment but do not load any dishes. Select a programme which runs at high temperature and run the Dishwasher empty. If this does not clean your Dishwasher sufficiently, use a cleaning agent designed for use with dishwashers.
  • To extend the life of your dishwasher, clean the appliance regularly on each month
• Wipe the door seals regularly with a damp cloth to remove any accumulated residue or foreign objects.

8.1. Filters

Clean the filters and spray arms at least once a week. If any food waste remains or foreign objects on the coarse and fine filters, remove them and clean them thoroughly with water.

a) Micro Filter

b) Coarse Filter

c) Metal Filter

Technical diagram of a mechanical assembly with a central component and a circular component, no visible text or symbols

Technical diagram of a mechanical assembly with a central component and base plate (no text or symbols)

To remove and clean the filter combination, turn it counter clockwise and remove it by lifting it upwards (1). Pull the coarse filter out of the micro filter (2). Then pull and remove the metal filter (3). Rinse the filter with lots of water until it is free of residue. Reassemble the filters. Replace the filter insert, and rotate it clockwise (4).

• Never use your dishwasher without a filter.
• Incorrect fitting of the filter will reduce the washing effectiveness.
• Clean filters are necessary for proper running of the machine.

8.2. Spray arms

Make sure that the spray holes are not clogged and that no food waste or foreign object is stuck to the spray arms. If there is any clogging, remove the spray arms and clean them under water. To remove the upper spray arm undo the nut holding it in position by turning it clockwise and pulling it downwards. Make sure that the nut is properly tightened when refitting the upper spray arm.

Technical line drawing of a mechanical assembly with gears and a central shaft (no text or symbols)

8.3 Drain Pump

Large food residues or foreign objects which were not captured by the filters may block the waste water pump. The rinsing water will then be above the filter.

Warning Risk of cuts!

When cleaning the waste water pump, ensure that you do not injure yourself on pieces of broken glass or pointed implements.

In this case:

1. First always disconnect the appliance from the power supply.
2. Take out baskets.
3. Remove the filters.
4. Scoop out water, use a sponge if required.
5. Check the area and remove any foreign objects.
6. Install filters.
7. Re-insert baskets.

9. TROUBLESHOOTING

FAULT POSSIBLE CAUSE TROUBLESHOOTING
The programme does not start.	Your Dishwasher is not plugged in. Plug your Dishwasher in.
	Your Dishwasher is not switched on.	Switch your Dishwasher on by pressing the On/Off button.
	Fuse blown. Check your indoor fuses.
	Water inlet tap is closed. Turn on the water inlet tap.
	Your Dishwasher door is open. Close the Dishwasher door.
	Water inlet hose and machine filters are clogged.	Check the water inlet hose and machine filters and make sure they are not clogged.
Water remains inside the machine.	Water drain hose is clogged or twisted.	Check the drain hose, then either clean or untwist it.
	The filters are clogged. Clean the filters.
	The programme is not finished yet. Wait until the programme is finished.
Machine stops during washing.	Power failure. Check mains power.
	Water inlet failure. Check water tap.
Shaking and hitting noises are heard during a wash operation.	The spray arm is hitting the dishes in the lower basket.	Move or remove items blocking the spray arm.
Partial food wastes remain on the dishes.	Dishes placed incorrectly, sprayed water not reaching affected dishes.	Do not overload baskets.
	Dishes leaning each another.	Place dishes as instructed in the section on loading your dishwasher.
	Not enough detergent used.	Use the correct amount of detergent, as instructed in the programme table.
	Wrong wash programme selected.	Use the information in the programme table to select the most appropriate programme.
	Spray arms clogged with food waste.	Clean the holes in the spray arms with thin objects.
	Filters or water drain pump clogged or filter misplaced.	Check the drain hose and filters are correctly fitted.

AUTOMATIC FAULT WARNINGS AND WHAT TO DO

TROUBLE CODE	POSSIBLE FAULT WHAT TO DO
F5 Insufficient water		Make sure the water inlet tap is open and water is flowing.
		Separate the inlet hose from the tap and clean the filter of the hose.
		Contact for service if the error continues.
F3 Continuous water input Close the tap and contact for service.
F2 Inability to discharge water		Water discharge hose and filters may be clogged.
		Cancel the program.
		If the error continues, contact for service.
F8 Faulty heater Contact for service.
F1 Overflow		Unplug the machine and close the tap.
		Contact for service.
F7 Overheating failure Contact for service.
F6 Faulty temperature sensor Contact for service.
FE Faulty electronic card Contact for service.

10. PRACTICAL INFORMATION

1. When the machine isn't in operation:
2. Disconnect the plug and close the tap.
3. Leave the door slightly open to prevent odour formation.
4. Select the dry option to remove water droplets.
5. Place dishes in the machine properly to achieve the best energy consumption, washing and drying performance. Please see the programme and consumption table for more information.
6. Rinse dirty dishes before placing them in the dishwasher.
7. Only use the Prewash programme when necessary.
8. Do not place the machine near a refrigerator because it will reach high temperatures.
9. If the machine is located in an area that is at risk of freezing, close the tap, disconnect the inlet hose from the tap and drain the water inside the hose and the machine completely.
