Product Type	Bookshelf Speaker
Brand	Phoenix Gold
Model	ZDSKD2
Dimensions (H x W x D)	12 x 7 x 8 inches (305 x 178 x 203 mm)
Weight	7.5 lbs (3.4 kg) each
Power Handling (RMS)	50 watts per channel
Peak Power	100 watts
Frequency Response	50 Hz – 20 kHz
Impedance	8 ohms
Sensitivity	89 dB (2.83V/1m)
Driver Configuration	1 x 5.25" polypropylene woofer, 1 x 1" silk dome tweeter
Enclosure Type	Bass reflex with front-firing port
Cabinet Material	MDF with black vinyl finish
Grille	Removable black cloth grille
Terminals	5-way binding posts
Mounting Options	Bookshelf or wall-mount via keyhole slots
Color	Black
Usage	Home stereo, surround sound, or near-field monitoring
Care Instructions	Wipe with a dry, soft cloth; avoid moisture and direct sunlight.
Safety	Do not expose to water or liquids; keep away from heat sources.
Spare Parts & Repairability	Contact Phoenix Gold customer service for replacement drivers or parts.
Warranty	1 year limited warranty

Frequently Asked Questions - ZDSKD2 PHOENIX GOLD

What is the recommended amplifier power for the Phoenix Gold ZDSKD2?

An amplifier with 30-80 watts RMS per channel is ideal. Ensure the amplifier is stable at 8 ohms.

Can these speakers be used outdoors?

No, they are designed for indoor use only. Exposure to moisture or extreme temperatures may damage them.

How do I connect the speakers to my receiver?

Use speaker wire with banana plugs or bare wire. Connect the positive (+) terminal of the speaker to the positive output on your receiver, and negative (-) to negative. Ensure the receiver is off while connecting.

Are the speakers magnetically shielded for use near a TV?

No, these speakers are not magnetically shielded. Keep them at least 12 inches away from CRT televisions to avoid color distortion.

What is the warranty period for the ZDSKD2?

Phoenix Gold offers a 1-year limited warranty against defects in materials and workmanship. Keep your receipt for proof of purchase.

Can I bi-wire these speakers?

No, the ZDSKD2 has a single pair of binding posts. Bi-wiring is not supported without modification.

What is the recommended placement for best sound?

Place speakers at ear level when seated, at least 6-8 feet apart. Angle them slightly toward the listening position. Avoid placing them directly in corners.

How should I clean the speakers?

Use a soft, dry cloth to gently wipe the cabinet. For the grille, use a lint roller or vacuum with a brush attachment. Do not use any liquids or cleaners.

Does the speaker have a wall-mount option?

Yes, the rear panel includes keyhole slots for wall mounting. Use appropriate screws and anchors rated for the speaker weight (7.5 lbs each).

What type of warranty does Phoenix Gold provide?

The warranty is a 1-year limited warranty covering defects. It does not cover damage from misuse, modifications, or normal wear.

USER MANUAL ZDSKD2 PHOENIX GOLD

Two black speaker heads with visible internal components and wiring, shown from top and side views (no text or symbols)

ZDSKD2

Plug & Play 2-Way Coaxial Speaker Upgrade Kit

100W MAX POWER

50W RMS

2x Speaker 2x Adapter Ring 2x Speaker Harness

Top-down view of a black speaker bowl with central hub and mounting brackets (no text or symbols visible)

Circular black mechanical component with four mounting holes and a central hole, shown against a white background (no text or symbols)

Pure electrical connector diagram without any text, numbers, or symbols

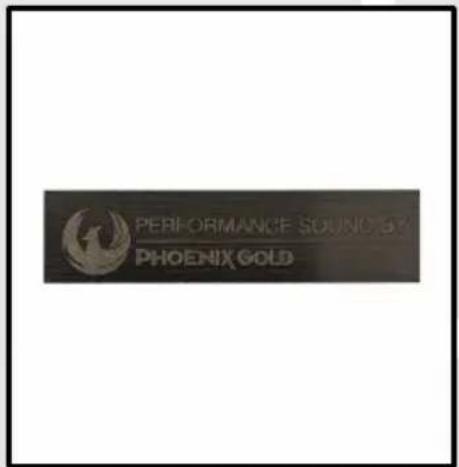

2x PG Badge

Quick Start Guide

1

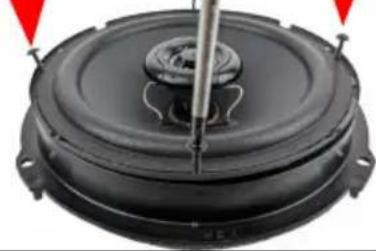

Screw the speaker into the speaker adapter.

↓

Close-up of a black circular speaker or fan device with a central knob and red warning symbols (no text or labels visible)

2

Connect the speaker harness to the speaker.

3

Install the speaker in the vehicle.

Red Daxide car with black roof and white trim, no visible text or symbols on the vehicle body

Specifications

Speaker Type: 2-Way Coaxial	Speaker
Speaker Size: 6.5" (165mm)
Frequency Response: 70Hz -	20kHz
Power Handling (RMS): 50W
Power Handling (MAX): 100W
Impedance: 4Ω
Sensitivity: 88.6dB (1W/1m)
Fs: 68.2Hz
Crossover: Inline Crossovers
0.75" (19mm) Mylar Balanced Dome Tweeter
1" (25mm) Voice Coil
Triple Laminated Cone

Fitment List

Make Model Year Fitment
Dacia Sandero 2021 → Rear Doors
Dacia Sandero StepWay 2021 → Rear Doors

Disclaimer

Always ensure the speaker is securely attached. Phoenix Gold accepts no responsibility for damage or injury in relation to inappropriate securing of this product.

Phoenix Gold Product Warranty

LIMITED WARRANTY ON SPEAKERS

Phoenix Gold warrants this product to be free of defects in materials and workmanship for a period of one (1) years from the original date of purchase. This warranty is not transferable and applies only to the original purchaser from an authorized Phoenix Gold dealer. Should service be necessary under this warranty for any reason due to manufacturing defect or malfunction, Phoenix Gold or it's Country distributor / reseller will (at its discretion) repair or replace the defective product with new or re-manufactured product at no charge. Damage caused by the following is not covered under warranty: accident, misuse, abuse, product modification or neglect, failure to follow installation instructions, unauthorized repair attempts, misrepresentations by the seller. This warranty does not cover incidental or consequential damages and does not cover the cost of removing or reinstalling the unit(s). Cosmetic damage due to accident or normal wear and tear is not covered under warranty.
