ZDSKL1 - Loudspeaker PHOENIX GOLD - Free user manual and instructions

Product Type	2-Way Speaker Upgrade Kit
Brand	Phoenix Gold
Model	ZDSKL1
Woofer Size	6.5" (165 mm)
Tweeter Size	1" (25 mm)
Power Handling (RMS)	75 W
Power Handling (MAX)	150 W
Impedance	4 Ω
Frequency Response	60 Hz - 20 kHz
Sensitivity	89 dB (1W/1m)
Fs	62 Hz
Qts	0.593
Crossover Type	Inline Crossovers (LP4000, HP5000-6)
Cone Material	Polypropylene
Surround Material	Rubber
Voice Coil	1" (25 mm)
Included Components	2x Speakers, 2x Tweeters, 2x Adapter Rings, 2x Tweeter Adapters, 2x Speaker Harnesses, 2x Tweeter Harnesses, 2x LP4000 Filters, 2x HP5000-6 Filters
Fitment	Land Rover Defender (2019+), Discovery (2017+), Range Rover (2012+), Evoque (2012+), Sport (2013+), Velar (2017+) – see manual for details
Warranty	1 Year Limited
Weight (Approx.)	2.5 kg
Maintenance	Wipe with dry cloth; avoid moisture and solvents

Frequently Asked Questions - ZDSKL1 PHOENIX GOLD

What is the power handling of the Phoenix Gold ZDSKL1 speakers?

The speakers are rated at 75W RMS and 150W peak power handling, with an impedance of 4 ohms.

What vehicles are compatible with the ZDSKL1 speaker kit?

The kit is designed for select Land Rover models including Defender (L663, 2019+), Discovery (L462, 2017+), Range Rover (L405, 2012+), Evoque (L538/L551), Sport (L494), and Velar (L560). See the fitment list in the manual for exact year and door locations.

Does the ZDSKL1 kit include crossover filters?

Yes, the kit includes inline crossover filters: ZZF-LP4000 for woofers and ZZF-HP5000-6 for tweeters.

What is the speaker size and type?

The kit includes a 6.5-inch (165mm) woofer with a polypropylene cone and rubber surround, and a 1-inch (25mm) tweeter. It is a 2-way component system.

How do I install the ZDSKL1 speakers?

Screw the speaker into the adapter ring, connect the LP4000 filter to the speaker, then attach the harness. For the tweeter, place it in the tweeter adapter, attach the bottom plate, connect the HP5000-6 filter, and then the tweeter harness. Detailed steps are in the Quick Start Guide.

What is the frequency response of the ZDSKL1?

The frequency response is 60 Hz to 20 kHz, with a sensitivity of 89 dB (1W/1m).

Are the ZDSKL1 speakers weatherproof?

No specific weatherproof rating is provided. They are designed for interior vehicle use and should be kept away from moisture and extreme temperatures.

What is the warranty period for Phoenix Gold ZDSKL1?

The speakers come with a 1-year limited warranty covering manufacturing defects. Damage from misuse or improper installation is not covered.

Can I use the ZDSKL1 with aftermarket head units?

Yes, the speakers have a standard 4-ohm impedance and can work with most aftermarket head units or amplifiers, provided the RMS power does not exceed 75W per channel.

What is included in the ZDSKL1 package?

The package includes: 2 speakers, 2 tweeters, 2 speaker adapter rings, 2 tweeter adapters, 2 speaker harnesses, 2 tweeter harnesses, 2 LP4000 filters, and 2 HP5000-6 filters.

USER MANUAL ZDSKL1 PHOENIX GOLD

ZDSKL1

Plug & Play 2-Way Speaker Upgrade Kit

150W MAX POWER

75W RMS

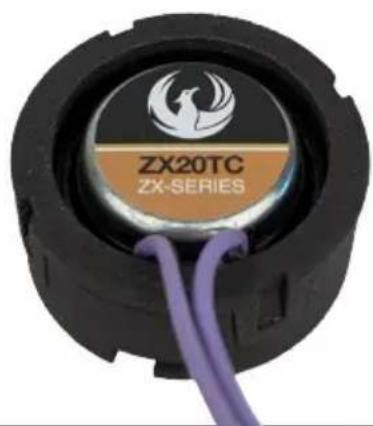

2x Speakers 2x Adapter Rings 2x Tweeters

2x Tweeter Adapters

2x Speaker Harness 2x

2x Tweeter Harness

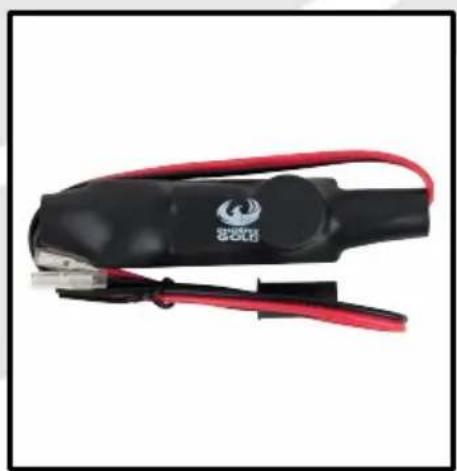

2x ZZF-LP4000 2x ZZF-HP5000-6

Quick Start Guide

1

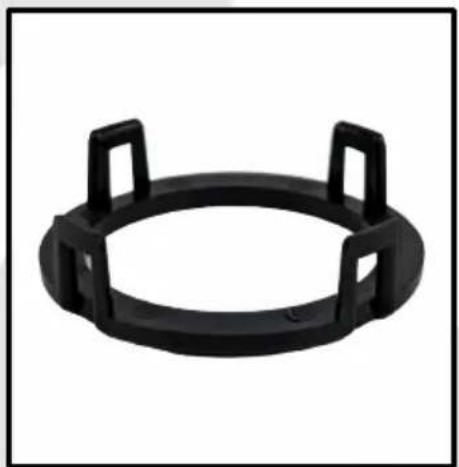

Screw the speaker into the speaker adapter.

2

Connect the ZZF-LP4000 filter to the speaker.

3

Connect the speaker harness to the ZZF-LP4000 filter.

Quick Start Guide

4

Put the tweeter into the tweeter adapter.

5

Attach the bottom plate to the back of the tweeter adapter.

6

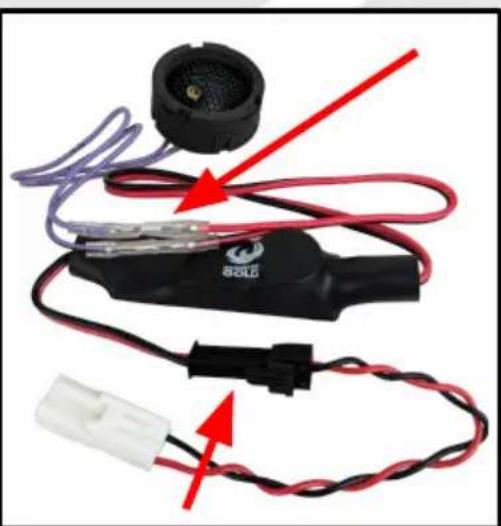

Connect the ZZF-HP5000-6 filter to the tweeter.

Connect the tweeter harness to the ZZF-HP5000-6 filter.

Specifications

Speaker Type: 2-Way Speaker Kit
Speaker Size: 6.5” (165mm) / 0.78”
Frequency Response: 60Hz - 20kHz
Power Handling (RMS): 75W
Power Handling (MAX): 150W
Impedance: 4Ω
Sensitivity: 89dB (1W/1m)
Fs: 62Hz
Qts: 0.593
Crossover: Inline Crossovers
1” (25mm) Voice Coil
Polypropylene cone with rubber surround

Fitment List

Make Model Year Fitment
Land Rover Defender 2019 - 2021 (L663) Front Doors
Land Rover Defender 90 2020 → (L663) Front + Rear Doors
Land Rover Defender 110 2020 → (L663) Front + Rear Doors
Land Rover Defender 130 2022 → (L663) Front + Rear Doors
Land Rover Discovery 2017 - 2020 (L462) Front + Rear Doors
Land Rover Discovery 2021 → (L462) (Facelift) Front + Rear Doors
Land Rover Discovery Sport 2014 - 2019 (L550) Front + Rear Doors
Land Rover Discovery Sport 2020 - 2023 (L550) (Facelift) Front + Rear Doors
Land Rover Range Rover 2012 - 2017 (L405) Front + Rear Doors
Land Rover Range Rover 2018 - 2021 (L405) (Facelift) Front + Rear Doors
Land Rover Range Rover Evoque 2012 - 2016 (L538) Front + Rear Doors
Land Rover Range Rover Evoque 2016 - 2018 (L538) (Facelift) Front + Rear Doors
Land Rover Range Rover Evoque 2019 → (L551) Front + Rear Doors
Land Rover Range Rover Sport 2013 - 2018 (L494) Front Doors
Land Rover Range Rover Sport 2017 - 2023 (L494) (Facelift) Front Doors
Land Rover Range Rover Velar 2017 - 2023 (L560) Front + Rear Doors

Disclaimer

Always ensure the speaker is securely attached. Phoenix Gold accepts no responsibility for damage or injury in relation to inappropriate securing of this product.

Phoenix Gold Product Warranty

LIMITED WARRANTY ON SPEAKERS

Phoenix Gold warrants this product to be free of defects in materials and workmanship for a period of one (1) years from the original date of purchase. This warranty is not transferable and applies only to the original purchaser from an authorized Phoenix Gold dealer. Should service be necessary under this warranty for any reason due to manufacturing defect or malfunction, Phoenix Gold or it's Country distributor / reseller will (at its discretion) repair or replace the defective product with new or re-manufactured product at no charge. Damage caused by the following is not covered under warranty: accident, misuse, abuse, product modification or neglect, failure to follow installation instructions, unauthorized repair attempts, misrepresentations by the seller. This warranty does not cover incidental or consequential damages and does not cover the cost of removing or reinstalling the unit(s). Cosmetic damage due to accident or normal wear and tear is not covered under warranty.
