Product Type	Freestanding or Built-In Undercounter Wine Cellar
Model	L3015UI1WPR-RH
Brand	Landmark
Total Bottle Capacity	30 bottles (standard 750ml)
Dimensions (H x W x D)	34.5 x 15.0 x 22.5 inches
Weight	75 lbs
Power Supply	120V / 60Hz / 1.5A
Temperature Range	41°F to 64°F (5°C to 18°C)
Cooling System	Compressor with fan circulation
Interior Light	Blue LED interior light
Door Type	Full glass door with stainless steel frame
Door Lock	Key lock for security
Reversible Door	Yes, door swing reversible
Number of Shelves	5 slide-out wooden shelves
Noise Level	42 dB
Energy Consumption	120 kWh/year
Climate Class	SN (ambient 50°F to 90°F)
Defrost Type	Automatic defrost
Cleaning Recommendation	Clean interior with mild soap and water; vacuum condenser coils semi-annually
Spare Parts Availability	Contact Landmark customer service or authorized parts distributor
Repairability	Modular compressor and electronic controls; serviceable by qualified technician
Safety Features	Anti-tip bracket, leveling legs, temperature alarm

Frequently Asked Questions - L3015UI1WPR-RH Landmark

What is the ideal temperature for storing wine in this cellar?

The optimal temperature is between 45°F and 55°F (7°C to 13°C). However, the unit allows adjustment from 41°F to 64°F to suit different wine types.

Can the door be reversed to open from the other side?

Yes, the door is reversible. Follow the instructions in the manual to change the handle and hinge positions.

How do I clean the wine cellar?

Unplug the unit. Clean interior surfaces with a mild detergent and water. Avoid abrasive cleaners. Wipe the door seal and vacuum the condenser coils every 6 months.

Why is my wine cellar making noise?

Normal operation sounds include the compressor humming and fan whirring. If noise is excessive, ensure the unit is level and not touching walls or cabinets.

What are the installation clearance requirements?

Leave at least 2 inches (5 cm) of clearance on the back and sides for ventilation. For built-in installation, ensure front grille is unobstructed.

How many bottles can I store?

The wine cellar holds up to 30 standard 750ml bottles when arranged on the 5 wooden shelves.

Can I use an extension cord?

No, plug the unit directly into a grounded outlet rated for 120V/60Hz. Extension cords may cause voltage drop and performance issues.

How do I set the temperature?

Use the touch panel on the front to adjust temperature in increments of 1°F/°C. Wait 24 hours for the temperature to stabilize after adjustment.

What should I do if the interior light does not turn on?

Check if the light switch is pressed or if the door is fully closed. If still off, the LED module may need replacement — contact customer support.

Is this wine cellar suitable for red and white wines together?

Yes, the temperature range accommodates both. Set the unit to 50°F (10°C) for a compromise, or use separate zones if you have a dual-zone unit.

USER MANUAL L3015UI1WPR-RH Landmark

Line drawing of a multi-level refrigerator with visible cooling fins and ventilation grilles (no text or labels)

OWNER'S MANUAL

15 Inch Undercounter Single Zone Series

Model Numbers L3015UI1

Landmark®

Landmark®

IMPORTANT SAFETY INFORMATION

Improper handling can cause serious damage to the Landmark refrigerator and/or injury to the user. This refrigerator is designed for domestic indoor use only. Do not use the unit for industrial or commercial use. Any other use may invalidate the warranty. Please review the rating label located both on the rear panel of the unit and on the inside of the unit for electrical and other technical data related to this unit. The unit must be used in a properly grounded wall outlet. Please read and follow the safety information listed below to reduce the risk of fire, electric shock, or injury.

ELECTRICAL SAFETY

• Do not exceed the power outlet ratings.
• It is recommended the refrigerator be connected on its own circuit.
• The unit must be installed in accordance with state and local electrical codes.
• A standard electrical supply (115 V, 60Hz), that is properly grounded in accordance with the National Electrical Code and local codes and ordinances is required.
• Use outlets that cannot be turned off by a switch or pull chain.
  • Always turn the unit off and unplug it from the outlet when cleaning.
• Unplug the unit if it is not going to be used for an extended period of time.
• Do not operate the unit with a power plug missing the ground plug, a damaged cord, or a loose socket.
• Be sure the refrigerator is properly grounded.
• Never plug or unplug the unit with wet hands.
• Do not bypass, cut, or remove the grounding plug.
• Do not use extension cords or power strips with this unit. You may need to contact your electrician if it is necessary to use a longer cord or if you do not have a grounded outlet. Do not modify the power cord's length or share the outlet with other appliances.
• Do not start or stop the unit by switching the circuit's power on and off.
• If the power cord is damaged, it must be replaced by the manufacturer or a qualified technician.
• Never repair the unit while it is plugged in.
• Immediately unplug the unit if it makes strange sounds, emits smells, or smoke comes out of it, and contact customer service.
• Do not remove any part of the casing unless instructed to do so by an authorized technician.
• You should never attempt to repair the unit yourself. Contact customer service for service options if the unit needs service.

GENERAL SAFETY

• To prevent back and other types of injuries, use at least two people to move and install the refrigerator.
• This appliance is not intended for use by persons, including children, with reduced physical, sensory, or mental capabilities, unless they have been given supervision or instruction concerning the use of the appliance by the person(s) responsible for their safety.
  • Install the refrigerator in a well-ventilated area where the ambient temperature is above 50^ F and below 90^ F.
• The temperature range for this refrigerator is optimized for wine and/or beverage storage. Perishable food items may require a different storage environment.
• Do not place hot or warm items into the refrigerator before they cool down to room temperature.
• This unit is designed to be installed indoors, and protected from rain, sleet, snow, and/or moisture.
• Never allow children to crawl inside the refrigerator. If you are disposing of the unit, remove the door.
• Do not use this appliance near flammable gas or combustibles, such as gasoline, benzene, thinner, etc.
• Do not place the unit near heat sources such as ovens, grills, or direct sunlight.
• Only use in an upright position on a flat, level surface and provide proper ventilation.
• Do not pinch or kink the power supply line between the unit and cabinet.
• Do not place any other appliances on top of the unit.
• Do not turn the unit upside down, on its side, or at an angle off level.
• If your model of refrigerator is equipped with a lock, take care to keep the keys away from children.
• Do not move the unit without removing the contents and securing the door in a closed position.

NOTE: FLAMMABLE REFRIGERANT USED! WHEN HANDLING, MOVING, AND USING THE REFRIGERATOR, MAKE SURE TO AVOID EITHER DAMAGING THE REFRIGERANT TUBING OR INCREASING THE RISK OF A LEAK.

TABLE OF CONTENTS

Important Safety Information....2

Table of Contents 3

First Time Operating Instructions. 3

Introduction 4

Parts Identification 5

Full View 5

Empty View. 5

Installing Your Refrigerator 6

Types of Installation 6

Freestanding Installation 6

Built-in Installation. 6

Installation Clearance Requirements....7

Leveling 7

Recommended Grounding Method....7

Installing Your Door Handle and Shelves 8

Installing the Door Handle 8

Installing the Shelves 8

Removing the Shelves....9

Operation 10

Installation Checklist Before Operation 10

Using Your Control Panel 10

Power Button 10

Increase Temperature 10

Decrease Temperature 10

Interior Light 10

Sabbath Mode 10

Unit of Temperature 10

Interior Lighting 11

Door Ajar Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Temperature Alarms....11

Defrosting 12

Normal Sounds 12

Cleaning and Maintenance 12

Interior Cleaning.... 12

Exterior Cleaning 12

Preparing Your Refrigerator for Storage 13

Troubleshooting.... 13

Specifications 14

Landmark Product Warranty 15

FIRST TIME OPERATING INSTRUCTIONS

Before use, make sure all packaging labels and materials are removed from the unit. Be sure to keep track of all included parts and pieces before discarding packaging materials. It is advised that you keep the original box and packaging materials in case you need to move or ship the appliance in the future. If you experience shipping damage, please contact your retailer.

Allow the unit to stand for at least 24 hours before you use it; this allows the cooling components and compressor oils time to settle from transit. This owner's manual should be read in its entirety before use.

This owner's manual is provided for reference use only. Specifications may change without prior notice. Refer to the product label on the back of your refrigerator for the latest technical information.

Landmark®

INTRODUCTION

Thank you for purchasing your Landmark refrigerator. Landmark is dedicated to developing products that will enhance your lifestyle with superior quality and distinctive features. Please visit landmarkappliance.com for more information on your product and other Landmark products. This manual contains important information regarding the proper installation, use, and maintenance of your refrigerator. Following this manual will ensure that your product will work at its peak performance and efficiency. Please save the original product packaging in case you need to safely transport your refrigerator.

FOR YOUR RECORDS

Please write down the model number and serial number below for future reference. Both numbers are located on the rating labels found on the back of your unit and on the inside of your unit and are needed to obtain warranty service. You may also want to staple your receipt to this manual, as it is the proof of your purchase and is also needed for service under your warranty.

Model Number:

Serial Number:

Purchase Date:

To better serve you, please do the following before contacting customer service:

• If you received a damaged product, immediately contact the retailer or dealer that sold you the product.
• Read and follow this instruction manual carefully to help you install, use and maintain your refrigerator.
• Read the troubleshooting section of this manual as it will help you diagnose and solve common issues.
• Visit us on the web at landmarkappliances.com to download product guides, additional troubleshooting resources, up-to-date information and register your warranty.
• If you need warranty service, our friendly customer service representatives are available via email at [e-mail] or by telephone at 1-866-886-2556.

PARTS IDENTIFICATION

FULL VIEW

Door Handle Seamless Stainless Steel Door Roll-out Shelf Front Vent Door Lock

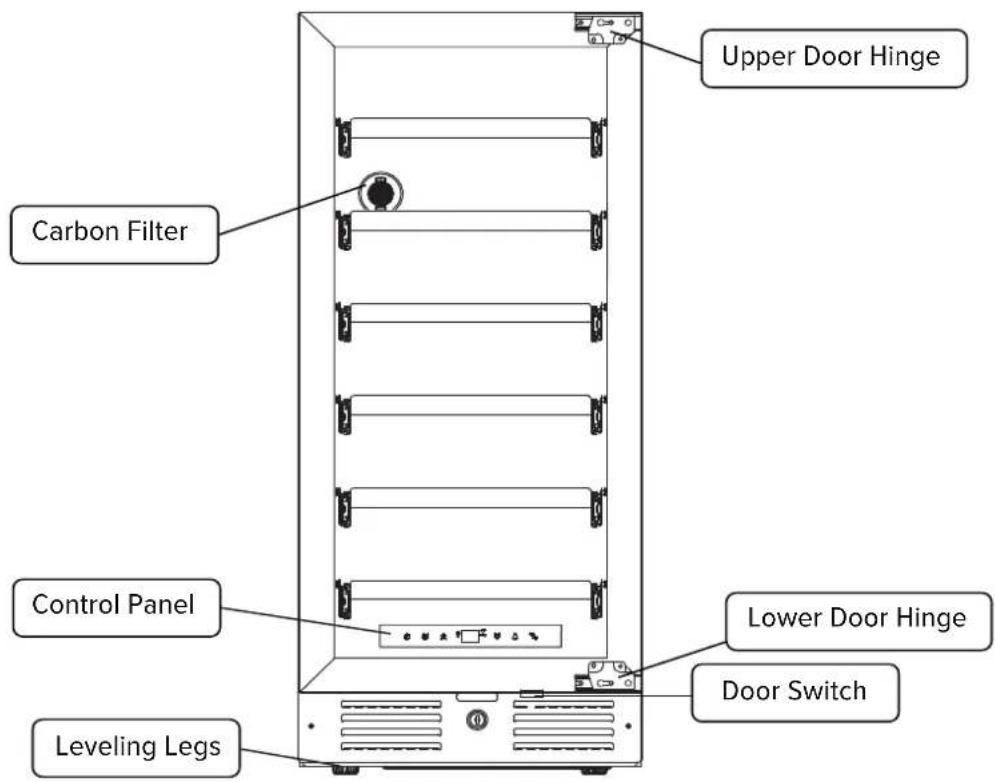

EMPTY VIEW

Upper Door Hinge Carbon Filter Control Panel Lower Door Hinge Door Switch Leveling Legs

NOTE

The number of shelves in your refrigerator varies depending on the wine or beverage refrigerator model that you purchase.

PARTS IDENTIFICATION (CONT'D)

Simple line drawing of a circular grid pattern inside a larger circle (no text or symbols)

CARBON FILTER

This refrigerator includes a carbon filter to protect your wine and beverages from harmful odors. Replace the carbon filter every 3 - 6 months. Contact Landmark for replacements.

INSTALLING YOUR REFRIGERATOR

The refrigerator should be installed in accordance with local electrical code requirements. It should also be placed in a location that is strong enough to support its total weight, keeping in mind that it will weigh substantially more when fully loaded than when empty.

Before you plug the refrigerator into a power supply, be sure to let it stand upright for at least 24 hours to allow the compressor's oils to settle.

WARNING

Use two or more people to move and install the refrigerator. Failure to do so can result in back or other injury. Carefully remove the packaging materials. Remove any shipping tape and glue from your refrigerator before using. Do not use sharp instruments, rubbing alcohol, flammable fluids or abrasive cleaners to remove tape or glue. These products can damage the surface of your refrigerator.

IMPORTANT

Do not remove any safety, warning, or product information labels from your refrigerator.

TYPES OF INSTALLATION

This refrigerator is designed for freestanding or built-in installation. In either case, there must be adequate ventilation and access for service.

FREESTANDING INSTALLATION

A freestanding installation will allow you to install the refrigerator in almost any place you desire. You must follow the stated instructions for electrical requirements and leveling the refrigerator.

BUILT-IN INSTALLATION

A built-in installation will allow you to install the refrigerator under a counter or in a kitchen cabinet provided the clearance space requirements around the refrigerator are followed. It is necessary to allow adequate ventilation space around the unit (make sure there is at least some ventilation room for the back of the unit). The following additional items must be observed:

1. Place the refrigerator in front of the installation location.
2. Adjust the feet and place the unit flat on the floor or on a platform depending on your installation requirements.
3. If the electrical outlet for the refrigerator is behind the cabinet, plug in the refrigerator.
4. Push the refrigerator into position.

IMPORTANT

Warning: DO NOT install the refrigerator behind a closed cabinet door.

INSTALLING YOUR REFRIGERATOR (CONT'D)

INSTALLATION CLEARANCE REQUIREMENTS

When installing the refrigerator under a counter, follow the recommended spacing dimensions shown.

• To ensure proper service access and ventilation, allow at least between 3/4 – 1 inch of clearance at the back as shown in the diagram.
• The installation should allow the unit to be pulled forward for servicing, if necessary.
• A standard electrical supply (115 VAC only, 60 Hz), properly grounded in accordance with National Electrical Code and local codes and ordinances, is required.

3/4" - 1"

TIP

For some installations, an outlet recessed into the wall may allow for smaller rear clearances.

IMPORTANT

Warning: Once you are ready to install the unit in a cabinet or directly on the floor, you must adjust the leveling legs to level the refrigerator. DO NOT remove the leveling legs.

TIP

Gather the model and serial number from the product rating label and write them down before installing the refrigerator.

LEVELING

The refrigerator should be installed on a firm and level surface that will be able to support the entire weight of a fully loaded unit. It is important for the refrigerator to be leveled in order to work properly. It can be raised or lowered by rotating the plastic sheaths around each of the leveling legs on the bottom of the machine. If you find that the surface is not level, rotate the leveling legs until the refrigerator becomes level. You may need to make several adjustments to level it. We recommend using a carpenter's level to check the machine. Turn the leveling legs clockwise to lower that side of the refrigerator. Turn the leveling legs counterclockwise to raise that side of the refrigerator.

RECOMMENDED GROUNDING METHOD

For your personal safety, this appliance must be grounded. It is equipped with a power supply cord having a three-prong grounding plug. To minimize possible shock hazard, the cord must be plugged into a mating three-pronged wall socket, and grounded in accordance with the National Electrical Code and local codes and ordinances. If a mating wall socket is not available, it is the personal responsibility of the customer to have a properly grounded, three-prong wall receptacle installed by a qualified electrician.

ELECTRICAL SHOCK HAZARD

• Plug into a grounded three-prong outlet.
• Never remove the grounding prong from the plug.
• Never use an adapter to bypass the grounding prong.
• DO NOT use an extension cord.
• Failure to follow these instructions can result in fire, electrical shock, or personal injury.

Before you move your refrigerator into its final location, it is important to make sure you have the proper electrical connection. A standard electrical supply (115 V, 60Hz), properly grounded in accordance with the National Electrical Code and local codes and ordinances, is required. It is recommended that a separate circuit, serving only your refrigerator, be provided. Use receptacles that cannot be turned off by a switch or pull chain. The fuse (or circuit breaker) size should be 15 Amps.

Landmark®

INSTALLING YOUR DOOR HANDLE AND SHELVES

INSTALLING THE DOOR HANDLE

1. Open the door and carefully pull the door gasket around the area where the handle is to be installed. It is best to start at one of the corners of the door gasket and work your way towards the screw positioning.
2. Insert each Phillips head screw through the gasket side of the door until the screw passes through the door.
3. Align the handle with the screws and tighten using a Phillips head screwdriver until the handle is flush against the door frame. Caution: Do not over-tighten the screws as this may cause damage to the handle or to the stainless steel door.
4. Carefully press the door gasket into its original position.

Line drawings showing three sequential steps of a hand holding a piece, with no text or symbols present.

VERTICALLY ADJUSTABLE SHELF TRACKS

This series of Landmark refrigerators is equipped with vertically adjustable shelf tracks. Each user's wine and beverage storage needs are unique and change over time as your collection evolves. The shelves included with your refrigerator can be installed at the varying heights of the vertical shelf tracks.

INSTALLING THE SHELVES

1. Open the door completely. The door must be able to open at least 90 degrees for the shelves to properly clear the door gasket.
2. Identify the slots corresponding to your desired shelf height. Ensure that all four (4) track slots - left and right, front and back - are the same height so that your installed shelf will be level.
3. Lift the front of the shelf [closest to you] at a 20 degree angle above the back of the shelf. Insert the rear pegs on both sides of the shelf into the rear vertical track mounting slots as shown in step "A" below.
4. Push the rear pegs in. Then, set the front shelf pegs into the front vertical track mounting slots as shown in step "B" below.

Technical diagram of a refrigerator with labeled parts A and B, showing internal structure and component annotations.

REMOVING THE SHELVES

1. Open the door completely. The door must be able to open at least 90 degrees for the shelves to properly clear the door gasket.
2. Holding both the left and right sides of the shelf you intend to remove, lift the front up out of the key slot on the front vertical tracks. Then pull the shelf out of the cabinet and towards you. See step "A" below.
3. Pull the shelf approximately 1/3 out of the refrigerator cabinet. The rear shelf pegs will disengage from the rear vertical tracks as shown in step "B" below. With the front of the shelf angled 20 degrees above the back of the shelf, pull the shelf forward until it is completely removed from the cabinet.

A B

TIP

To prevent damaging the door gasket, make sure to open the door fully before pulling the shelves out of their track.

NOTE

The refrigerator may experience decreased cooling efficiency if air flow is restricted due to a fully loaded cabinet. Additionally, placing hot beverages into the refrigerator will put extra strain on the cooling system and is not recommended.

Landmark®

OPERATION

INSTALLATION CHECKLIST BEFORE OPERATION

1. Have all packing materials and tape been removed from the interior and exterior of the refrigerator?
2. Have the installation instructions been followed, including connecting the machine to a proper electrical supply?
3. Has proper grounding been installed for the refrigerator?
4. Has the machine been leveled?
5. Is the refrigerator in a site where the ambient temperature is between 50^ F and 90^ F all year round?
6. Is there a clearance of at least 3/4" - 1" at the rear for proper air circulation?

Power Flame Up Sun °C °F °C %F

USING YOUR CONTROL PANEL

Wine refrigerators (models beginning L3015UI1W) have a temperature range from 39°F to 65°F. Beverage refrigerators (models beginning L3015UI1B) have a temperature range from 34°F to 65°F.

POWER BUTTON

Press and hold this button down for two (2) seconds to power your unit on. Once pressed, the "Run" indicator light will illuminate to indicate the unit is on and running. Press and hold this button for two (2) seconds again and the unit will power off and the "Run" indicator light will turn off.

INCREASE TEMPERATURE

Press this button to increase the temperature by one (1) degree increments. 65°F is the highest available temperature for Landmark L3015UI1 refrigerators.

DECREASE TEMPERATURE

Press this button to decrease the temperature by one (1) degree increments. The lowest available temperature will be either 34^ F or 39^ F depending on your refrigerator.

INTERIOR LIGHT

Lightly press this button to cycle between the three (3) interior light colors of your Landmark refrigerator: White, blue, and amber. Press and hold this button for three (3) seconds to switch between Automatic light mode and Display light mode, which are covered on the following page.

SABBATH MODE

This refrigerator is programmed with a Sabbath Mode. In Sabbath Mode, the refrigerator will continue to cool and maintain temperature. However, the refrigerator will no longer respond to user interactions. All lights, display(s), and indicators are turned off, and all alarms are disabled.

UNIT OF TEMPERATURE

Press this button to toggle between controls in degrees Fahrenheit or degrees Celsius.

TIP

If you powered the unit off, please wait at least five (5) minutes before powering it back on.

WARNING

Allow at least 24 hours for your refrigerator to run before storing your beverages. Whether your refrigerator can reach the actual set temperature depends on the ambient environmental conditions.

INTERIOR LIGHTING

AUTOMATIC LIGHT MODE

The internal lights will illuminate each time the door is opened and slowly fade out once the door is closed. This mode is controlled by the door switch located on the front of the unit. The switch enables the refrigerator to recognize when the door is open and when it is closed. Automatic light mode is suggested to mitigate energy consumption of your Landmark refrigerator.

DISPLAY LIGHT MODE

The internal lights will remain illuminated, regardless of whether the door is open or closed. Display mode allows you to showcase the contents of your refrigerator.

NOTE

We run test every unit that we produce in our factory. Because of this, your model may default to any of the above settings out of the box. Simply cycle through the progression of settings until you reach your desired light setting.

TIP

Close the door to determine if the light is currently in Constant Mode or Automatic Mode. In Constant Mode the lights will remain illuminated, and in Automatic Mode the lights will fade out once the door is closed.

DOOR AJAR ALARM

This refrigerator includes a door ajar alarm, which will sound if the door is open for more than three (3) minutes. Leaving the door open for extended periods of time will cause poor cooling performance and may shorten the life of the refrigerator. Keep the door closed as frequently as possible.

TEMPERATURE ALARMS

If the interior temperature reaches higher than 73^ F ( 23^ C), "HI" is shown on the temperature display and the alarm will sound continuously after one hour.

If the interior temperature of your wine refrigerator reaches lower than 30^ F ( -1^ C), or the interior temperature of your beverage refrigerator reaches lower than 25^ F ( -4^ C), "LO" is shown on the temperature display and the alarm will sound continuously after fifteen minutes.

If either of these situations occurs, please reference the troubleshooting section found in this manual or contact Landmark for support.

Landmark®

DEFROSTING

The refrigerator will automatically defrost under most temperature settings and ambient conditions. However, on colder settings, some frost may build up. Additionally, under more humid ambient conditions, more frost may build up. Keep the door closed as much as possible and avoid opening the door unnecessarily to minimize frost build-up. If frost is preventing the door from closing properly, you may need to power the unit off until the frost melts. Use a soft absorbent towel to dry the unit.

WARNING

Never attempt to remove frost with a sharp object.

NORMAL SOUNDS

Your new refrigerator may make sounds that are not familiar to you. Most of the new sounds are normal. Hard surfaces like the floor or walls can make the sounds seem louder than they actually are. The following describes the kinds of sounds that might be new to you and what may be making them.

• Rattling noises may come from the flow of the refrigerant or the water line.
• Items stored on top of the refrigerator can also make noises.
• The high efficiency compressor may make a pulsating or high-pitched sound.
• The internal evaporator fan will run frequently to create a consistent internal temperature environment.
  • Water running from the evaporator to the water bin may make a splashing sound.
• As each cycle ends, you may hear a gurgling sound due to the refrigerant flowing in your refrigerator.
• You may hear air being forced over the condenser by the condenser fan.

CLEANING AND MAINTENANCE

Periodic cleaning and proper maintenance will ensure efficiency, top performance, and long life.

INTERIOR CLEANING

1. Disconnect power to the unit.
2. Open the door and remove the contents and shelves.
3. Wait until the unit defrosts.
4. With a clean cloth, wipe down the interior of the unit.
5. Reinsert the shelves and beverages.
6. Reconnect power to the unit.

EXTERIOR CLEANING

The door and cabinet may be cleaned with a mild detergent and lukewarm water solution such as two (2) tablespoons of baking soda to one (1) quart of water. Do not use solvent based or abrasive cleaners. Use a soft sponge and rinse with clean water. Wipe with a soft clean towel to prevent water spotting.

WARNING

The door panel and cabinet are stainless steel, it can discolor when exposed to chlorine gas and moisture. Clean stainless steel with a cloth dampened with a mild detergent and warm water solution. Never use an abrasive or caustic cleaning agent.

PREPARING YOUR REFRIGERATOR FOR STORAGE

If the refrigerator will not be used for a long time, or is to be moved to another place, it will be necessary to defrost the unit and dry the interior.

1. Disconnect the refrigerator from the power supply by removing the power plug from the wall socket.
2. Leave the door open to allow for air circulation and to prevent mold, mildew, and unpleasant smells.
3. Once the interior is dry and clean the unit will be ready for storage.

CAUTION

Store the unit out of the reach of children. If you have children, you may want to take additional precautions such as removing the door to prevent a child from being trapped inside the refrigerator.

IMPORTANT

Do NOT touch the power plug when your hands are wet. NEVER unplug the unit by pulling the cord.

TROUBLESHOOTING

ISSUE POSSIBLE CAUSE SOLUTION

The refrigerator turns on and off frequently.	The room temperature is higher than the recommended ambient environment.	Run the refrigerator at the appropriate ambient temperature.
	The door is being opened often.	Minimize the number of times the door is opened.
	The door is not completely closed. Make sure the door is completely closed.
	The door gasket is not sealing properly. Make sure the door gasket is properly sealed.
	The refrigerator does not have the suggested ventilation.	Read and follow the “Installation Clearance Requirements” section.
The refrigerator does not turn on.	There is a power failure.	Ensure the refrigerator is plugged in and the outlet has power.
	The refrigerator is not plugged in.	Plug the unit in to a power outlet that has sufficient amperage.
	A house fuse has blown or the circuit breaker is tripped.	Replace the broken fuse in your fuse box or reset the breaker. Make sure the outlet has sufficient amperage.
The refrigerator will not reach the desired temperature.	The refrigerator has restricted air flow due to too much storage.	Open up space in the cabinet to allow air flow.
	The refrigerator is placed too close to a heat source.	Keep the refrigerator away from direct sunlight or other heat sources.
	The refrigerator does not have sufficient ventilation.	Read and follow the “Installation Clearance Requirements” section.
	The door is opened too frequently or for long periods of time.	Close the door tightly and do not open the door too frequently or for long periods of time.
The refrigerator is making strange noises.	Certain sounds are normal Read the “Normal Sounds” section.
	The unit is not level or is touching another appliance.	Check to make sure the refrigerator is level and that it is not in contact with another appliance or furniture.
The body of the refrigerator is electrified.	The unit is not properly grounded.	Contact your local electrician to test your electrical grounding system.

TROUBLESHOOTING (CONT'D)

ISSUE POSSIBLE CAUSE SOLUTION

Frost is forming in the refrigerator.	The environment is humid.	Through the unit uses an “auto defrost” system, under certain conditions, manual defrosting may be required. If frost builds up, you can try running the refrigerator on a warmer temperature setting, minimizing the number of times you open the door, or unplugging the unit to allow the frost to melt.
	The ambient temperature is too low.
	The door is being opened too frequently.
The door will not shut properly.	The refrigerator is not level. Make sure the refrigerator is on a level surface.
	The door gasket is dirty. Clean the door gasket.
	The door gasket is not installed correctly. Make sure the door gasket is properly installed.
	The shelves are incorrectly installed. Install the shelves correctly.

SPECIFICATIONS

Description 15 Inch Single Zone Undercounter Refrigerator
Model L3015UI1***
Color Stainless Steel
Voltage/Frequency 115V / 60Hz
Amperage 1.5A
Refrigerant R600a, 30g / 1.06 Oz
Unit Dimensions (H x W x D)	34" x 14-15/16" x 23-1/4"

NOTE

Technical data and performance information are provided for reference only. Specifications are subject to change. Check the rating label on the refrigerator for the most accurate information.

WARRANTY

THREE (3) YEARS PARTS AND LABOR

Landmark is responsible for all costs for repairing or replacing parts and/or unit which proves to be defective.

SIX (6) YEARS SEALED SYSTEM PARTS

Landmark is responsible for repairing or replacing any compressor which proves to be defective. (Labor not included)

WHAT IS COVERED

Three Year Parts and Labor: For three years from the date of original retail purchase, Landmark will repair or replace any part free of charge including labor that fails due to a defect in materials or workmanship. Landmark will supply new, rebuilt, or refurbished parts free of charge. Landmark may request a defective part be returned in exchange for the replacement part. After the 36 month period, Landmark will no longer be responsible for labor charges incurred or replacement parts.

Six Year Limited Warranty (Compressor– Labor Not Included): In the fourth through six year from the date of original retail purchase, Landmark will replace the compressor free of charge. The consumer will be responsible for all transportation and labor costs. Landmark will supply a new, rebuilt, or refurbished compressor and may request for the defective compressor to be returned in exchange. This limited 6-Year warranty is for the compressor only and does not include labor.

All warranties apply to the original purchaser only, and only covers defects in workmanship experienced during operation of the product under normal service, maintenance, and usage conditions. This warranty applies to the purchase and use of this product in residential settings within the United States of America. All products and parts replaced by Landmark under warranty service become the property of Landmark.

Exceptions: Commercial or Rental Use Warranty: 90 days labor and parts from date of original purchase. No other warranty applies.

You can register your Landmark product at www.landmarkappliances.com

WHAT IS NOT COVERED

The following limitations apply to the coverage of this warranty. This warranty does not cover:

Labor charges for installation, setup or training to use the product. Shipping damage, and any damage caused by improper packaging for shipment to an authorized service center, and any damaged caused by improper voltage or any other misuse, including abnormal service, handling, or usage. Cosmetic damage such as scratches and dents. Normal wear and tear on parts or replacement of parts designed to be replaced, e.g. filters, cartridges, batteries. Service trips to deliver, pick-up, or repair, install the product, or to instruct in proper usage of the product. Damages or operating problems resulting from misuse, abuse, operation outside environmental specifications, uses contrary to instructions provided in the owner's manual, accidents, acts of God, vermin, fire, flood, improper installation, unauthorized service, maintenance negligence, unauthorized installation or modification, or commercial use. Labor, service transportation, and shipping charges for the removal and replacement of defective parts, beyond the initial 36 month period. Products that have been modified to perform outside of specifications without the prior written permission of Landmark. Products lost in shipment, or theft. Products sold AS IS or from an unauthorized reseller. Products that have had their serial numbers removed, defaced, or with serial numbers that have been invalidated. Damage from other than normal household use. Replacement or repair of household fuses, circuit breakers, wiring or plumbing. Damage to personal property from use of product. Damage from service other than from an authorized Landmark repair facility. Hoses, knobs, lint trays and all attachments, accessories and disposable parts. Any service charges not specifically identified as normal such as normal service area or hours. Any special or consequential damages arising out of the use of the product.

OBTAINING WARRANTY SERVICE

If you believe your product is defective, contact Landmark Customer Support for troubleshooting assistance and warranty service at www.landmarkappliances.com or call 1-866-886-2556. Before contacting Customer Support, please locate your model number, serial number and proof of purchase. These items will be required to complete any warranty service. A Landmark authorized representative will verify warranty eligibility and determine appropriate service options. Service will be provided during normal business days and hours.

THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS WARRANTY PERIOD ABOVE. NEITHER THE MANUFACTURER NOR ITS DISTRIBUTORS SHALL BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY NATURE, INCLUDING WITHOUT LIMITATION, LOST REVENUES OR PROFITS, OR ANY OTHER DAMAGE WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. IN NO EVENT AND UNDER NO CIRCUMSTANCE OF ANY TYPE OR KIND SHALL THE SELLER, MANUFACTURER AND/OR DISTRIBUTOR BE LIABLE FOR ANY REASON, UNDER ANY THEORY, FOR MORE THAN THE BASIC COST OF THE PRODUCT TO THE PURCHASER OR END USER. SOME STATES DO NOT ALLOW THE EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.

Landmark®
