USER MANUAL OCS-FAC Vello

Close-up of a black camera module with attached cable, against a black background (no visible text or symbols)

THANK YOU FOR CHOOSING VELLO

The Vello OCS-FAC/ OCS-FAN is a flexible rod with an integrated TTL cable that mounts directly to your camera's hot shoe. Ideal for macro and portrait photography, it allows photographers of all levels to experiment with flash angles while maintaining all of the TTL flash functionality of the camera.

The TTL rod sets your flash off-camera and enables you to achieve a more natural or dramatic look. It also reduces the harsh shadows of a direct, on-camera flash as well as the possibility of red-eye when shooting in dim light. The gooseneck design of this TTL rod makes it possible to be creative with flash angles either from above or the side. But once you've decided on an angle, the sturdy metal construction assures that your flash will stay in place while you shoot.

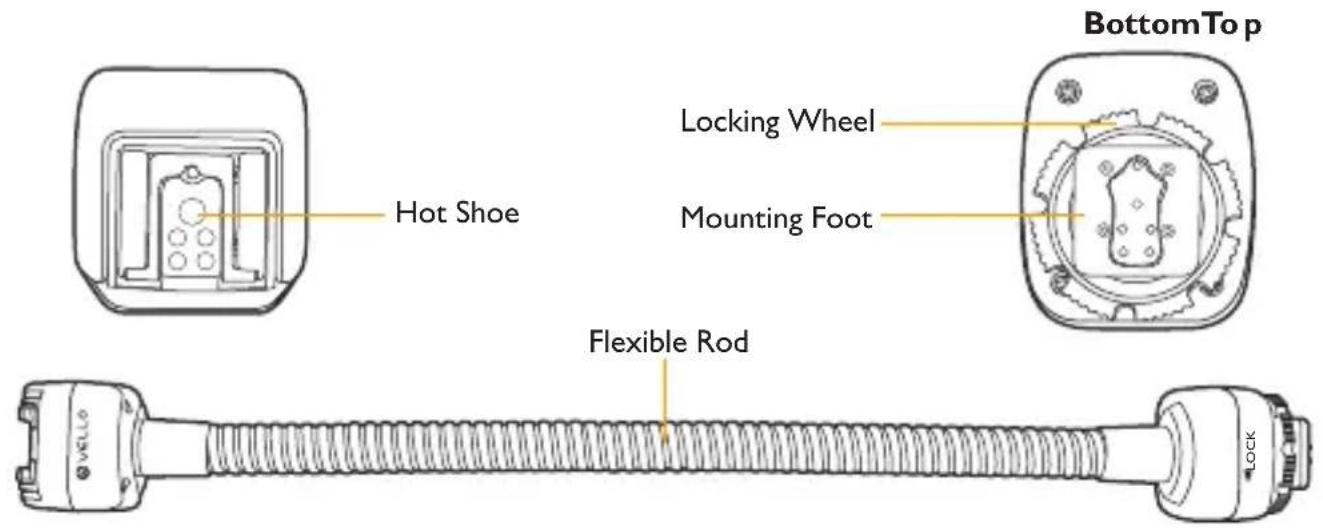

OVERVIEW

PRECAUTIONS

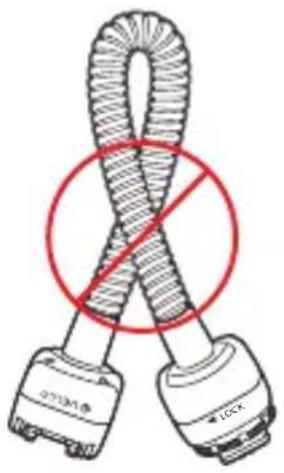

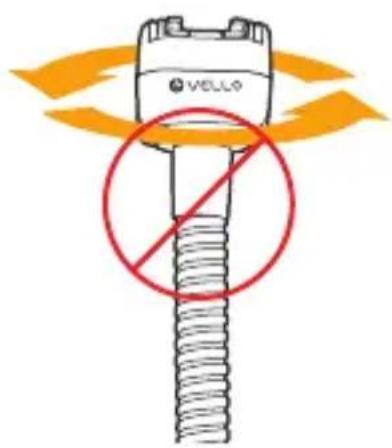

- Exercise caution when using the Flexible TTL Rod. Do not bend the rod more than 180^ or rotate the rod's hot shoe. Doing so may damage the rod.

Diagram of two USB connectors with a red prohibition symbol between them (no text or labels)

• Switch off all devices (camera and flashes) before adding or removing a flash unit.

• Do not attempt to modify or disassemble the rod, shoe, or contacts. Do not attempt to daisy-chain rods.

• This device is not water-resistant. Do not immerse in or expose to water, rain, or snow.

• Do not clean the rod with solvents. Use a soft, dry cloth to clean the rod and connections.

• Do not use the device in conditions of extreme heat, severe cold, or high humidity.
  • Images are for illustrative purposes only.

MOUNTING ON THE CAMERA

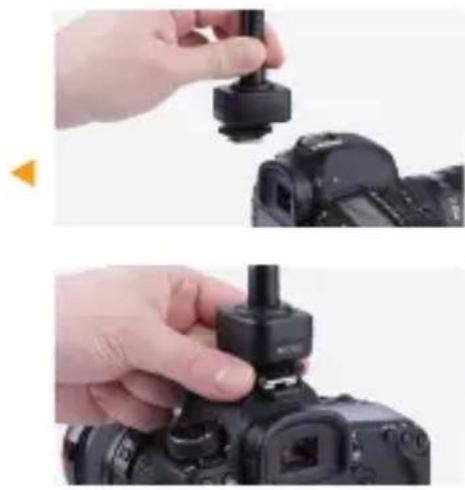

1. Loosen the locking wheel by turning it counterclockwise.
2. Position the TTL rod's mounting foot with the Lock indicator facing the rear of the camera, and insert the mounting foot completely into the hot shoe of your camera.

Two-step photo showing a hand adjusting a camera's adjustment knob, no text or symbols visible

Note: Make sure the TTL rod's mounting foot is facing the right direction, or your flash will not be able to communicate with your camera.

1. Tighten the locking wheel by turning it clockwise until secure.

MOUNTING THE FLASH

1. Make sure that both the camera and flash are turned off.
2. Set the camera and rod assembly onto a flat, stable surface and insert the mounting foot of the flash into the hot shoe of the rod.

Close-up of a hand holding a black mechanical device with a circular head (no visible text or symbols)

Hand holding a black compact camera with a small inset showing a separate device (no text or symbols visible)

1. Use your flash's locking mechanism to secure the flash to the TTL rod.
2. Turn on the flash and the camera.

SHOOTING WITH THE FLEXIBLE TTL ROD

Close-up of hands holding a black handheld device connected to a cable, against a plain white background (no text or symbols visible)

Bend the rod to position your flash at the desired angle. Be careful not to bend the rod beyond 180^ or rotate the rod's hot shoe. Doing so may damage the rod.

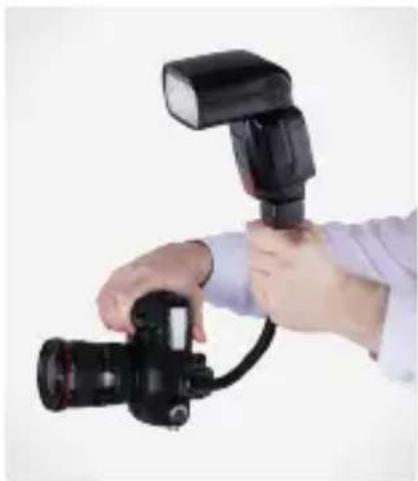

When shooting with the TTL Flexible Rod, hold your camera with one hand while holding the TTL rod with the other.

Person holding a DSLR camera with a black adjustable flash unit (no text or symbols visible)

SPECIFICATIONS

	OCS-FAC / Canon OCS-FAN / Nikon
Length
Weight
Compatible Cameras	EOS DSLR Nikon DSLR
Compatible Flashes	TTL / E-TTL II Nikon i-TTL
