BC-N1 - Uncategorized Vello - Free user manual and instructions

Product Type	Battery Charger
Brand	Vello
Model	BC-N1
Input Voltage	100-240V AC, 50/60Hz
Output Voltage	4.2V DC
Output Current	600mA
Compatible Batteries	Nikon EN-EL14, EN-EL14a, etc.
Charging Time	Approx. 2-3 hours
LED Indicators	Red (charging), Green (fully charged)
Protections	Overcharge, short-circuit, overheat
Dimensions	100 x 60 x 30 mm
Weight	Approx. 90 g
Material	Plastic
Power Cord	Detachable, included
Warranty	1 year

Frequently Asked Questions - BC-N1 Vello

What batteries are compatible with the Vello BC-N1 charger?

The BC-N1 is designed for Nikon EN-EL14 and EN-EL14a rechargeable lithium-ion batteries. It may also work with other similar models, but always check compatibility.

How long does it take to fully charge a battery?

Charging time is typically 2 to 3 hours for a depleted EN-EL14 battery. The LED indicator turns from red to green when fully charged.

Can I use the charger internationally?

Yes, the BC-N1 accepts 100-240V AC input, so it can be used worldwide with the appropriate plug adapter.

What do the LED lights mean?

A red LED indicates charging is in progress. A green LED means the battery is fully charged. If the LED is off, ensure the battery is inserted correctly or check the power connection.

Is the charger safe to leave overnight?

Yes, the charger includes overcharge protection, so it will automatically stop charging once the battery is full. However, it's always good practice to unplug after charging.

What should I do if the charger gets hot?

The charger may become warm during normal use. If it becomes excessively hot or emits a smell, unplug immediately and contact support. Ensure proper ventilation.

Can I charge other brands of batteries?

The BC-N1 is specifically designed for Nikon EN-EL14 series batteries. Do not charge other types or brands, as it may cause damage or fire risk.

Does the charger come with a power cord?

Yes, the package includes a detachable power cord. Use only the provided cord or a compatible replacement.

How do I clean and maintain the charger?

Unplug the charger and wipe with a dry, soft cloth. Do not use liquids or abrasive cleaners. Keep contacts clean and dry.

Is there a warranty on the Vello BC-N1?

Vello typically offers a 1-year warranty against defects. Keep your receipt and contact the retailer or Vello support for claims.

USER MANUAL BC-N1 Vello

Close-up of a black DSLR camera with lens and grip (no visible text or symbols)

BG-N1

BATTERY GRIP

Designed For The Nikon D300,

D300s And D700 SLR Cameras

VELLO™

Introduction

Thank you for choosing Vello and congratulations on your new BG-N1 battery grip purchase. Enjoy the many benefits that a battery grip offers, such as extended shooting time and more control and comfort when shooting in a vertical (portrait) orientation.

The Vello BG-N1 is compatible with the Nikon D300, D300s and D700 DSLR cameras. The BG-N1 accepts one Nikon EN-EL3e, EN-EL4a, or EN-EL4 rechargeable battery, in addition to the camera's internal battery. Eight AA batteries (alkaline, Ni-MH, lithium, or nickel-manganese) can be used instead for added convenience. The BG-N1 is equipped with an alternate shutter-release button, AF-ON button, multi selector, and main and sub-command dials for shooting in a vertical position.

Please read through this entire manual before using the BG-N1 battery grip.

Precautions

I. The BG-N1 should only be used with compatible devices specified in this manual.
2. Only use with batteries and battery holders recommended in this manual. The BG-N1 can not be used with Nikon EN-EL3a/EN-EL3 Li-ion batteries or other battery holders.
3. Cover the power terminals with the contact cap when the BG-N1 is not in use. This electrical shorts caused by metal objects touching the power terminals.
4. When the battery holder is removed from the grip, remove the batteries or place the holder in a container to prevent electrical shorts caused by contact with other metal objects.
5. The memory card access lamp may light up when the BG-N1 is mounted or removed from the camera. This is part of the normal operation.

1. If you notice smoke, an unusual smell or noise from the battery pack, discontinue use immediately. Remove the batteries and take the device to a Vello authorized reseller.
2. The BG-N1 does not have a power switch. Instead, use the camera power switch to turn the power on or off.
   pr8veThe battery level may not display properly if batteries are inserted before mounting the grip.
3. Remove batteries from the grip when not in use.
4. Do not attempt to disassemble.
5. Avoid water or extreme humidity and keep in a dry and cool place.
6. Keep out of reach of children.

Overview

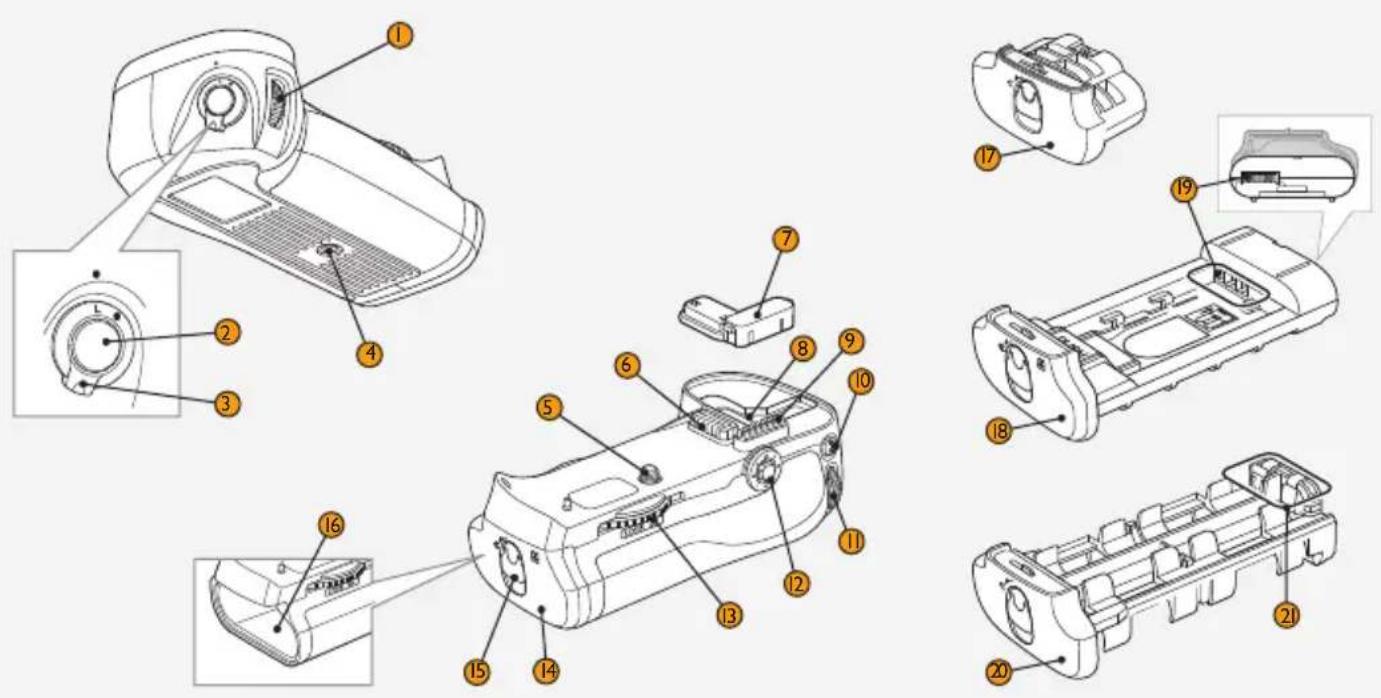

① Sub-Command Dial *

② Shutter-Release Button *

③ Control Lock Switch

To prevent accidental triggering, the control lock switch locks the shutter-release button, AE-ON button, multi selector dial, as well as the main and sub-command dials on the BG-N1. Unlock prior to use by switching to the ● position. The control lock is not a power switch.

④ Tripod Socket

⑤ Mounting Screw

⑥ Power Terminals

⑦ Contact Cap

⑧ Camera Contact Cover Holder

⑨ Signal Contacts

10 AF-ON Button *

⑪ Main Command Dial *

12 Multi Selector *

13 Attachment Wheel

14 Battery Chamber Cover

15 Battery Chamber Latch

16 Battery Chamber

⑰ BC-N1 Battery Holder

For Nikon EN-EL4a or EN-EL4 batteries.

18 EN-EL3e Battery Holder

Holder for Nikon EN-EL3e batteries.

19 Power Terminals (EN-EL3e Holder)

20 AA Battery Holder

Holder for eight AA batteries.

21 Power Terminals (AA Holder)

* These controls perform the same function as their on-camera equivalents and are affected by changes to the Custom Settings menu (Group the AF-ON button, Group f for other controls). See camera manual for details.

Attaching The Grip

Diagram showing two circular components with arrows indicating transformation (no text or symbols)

1. Ensure that the power is turned off on the camera and that the Control Lock on the BG-N1 is in the L position before attaching the grip.

Line drawing of a battery pack with an orange arrow indicating the component (no text or symbols present)

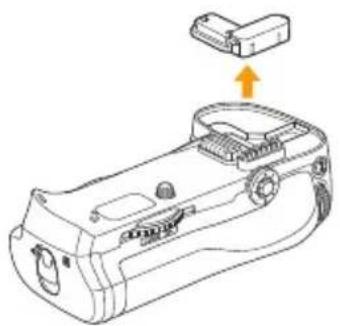

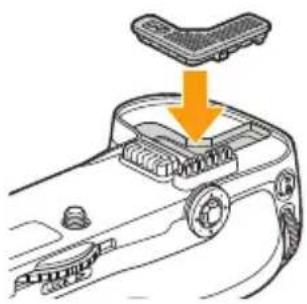

1. Remove the contact cap from the BG-N1 battery grip. Replace the cap when not in use to protect the contacts.

Diagram of a car interior showing a hand gripping a vehicle, with an orange arrow indicating rotation (no text or symbols present)

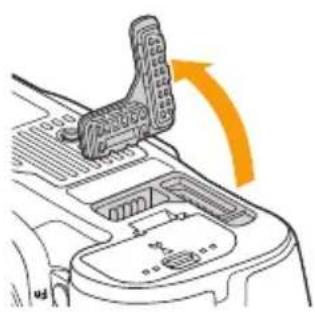

1. The contacts for the BG-N1 are on the bottom of the camera where they are protected by a contact cover. Remove the contact cover before mounting the grip.

Diagram of a device's internal components with an orange arrow indicating a location or operation (no text or symbols present)

1. To prevent loss, place the camera contact cover in the contact cover holder on the BG-N1.

Diagram showing a DSLR camera being inserted into a battery (no text or symbols present)

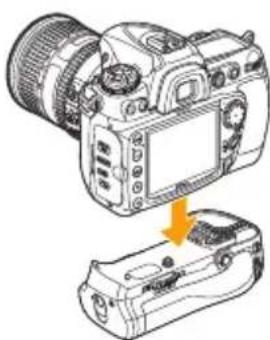

1. Connect the BG-N1 grip to the camera, while aligning the grip's mounting screw with the camera's tripod socket.

Removing the battery from the camera before mounting the grip is not required.

1. Rotate the attachment wheel in the direction shown by the LOCK arrow until it is firmly tightened.

Inserting Batteries

Diagram of a device's front panel with buttons and a stylus, no text or symbols present

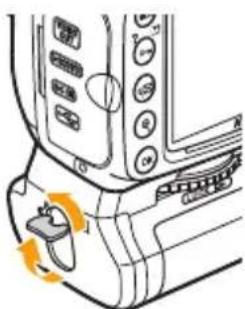

1. Ensure that the power is turned off on the camera and the Control Lock on the BG-N1 is in the L position. Turn the battery-chamber latch counterclockwise to open the battery chamber door.

Diagram of a camera module with an orange arrow indicating motion direction (no text or symbols)

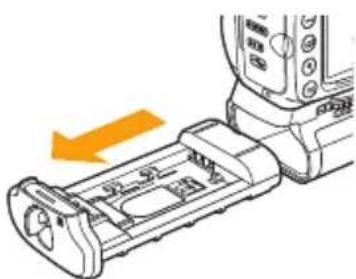

1. Remove the battery holder from the BG-N1 grip. The EN-EL3e battery holder comes pre-installed when shipped.

Diagram showing two views of a battery pack before and after disassembly, with orange arrows indicating process direction (no text or symbols present)

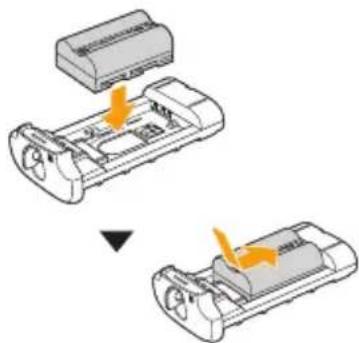

1. Nikon EN-EL3e Batteries: Matching the indentations on the battery with the EN-EL3e holder, press the battery down and slide it in the direction of the arrow until the power terminals click into place.

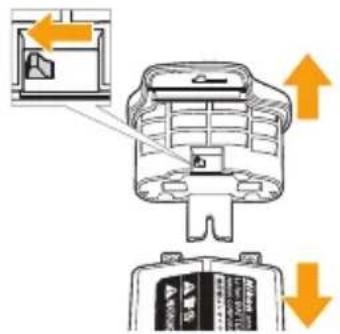

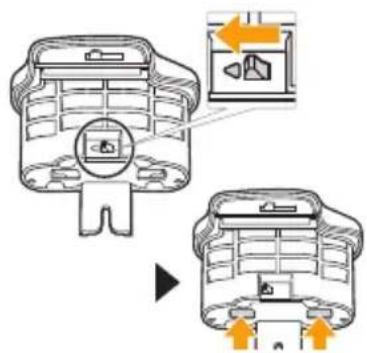

1. Nikon EN-EL4a/EN-EL4: Slide the battery release latch toward the arrow. Insert the two projections from the battery into the matching slots on the BC-N1 holder and slide the release latch to lock.

Three-step diagram showing battery assembly process with arrows indicating direction (no text or symbols)

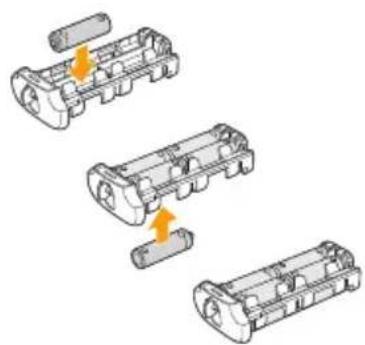

1. AA Batteries: Place eight AA batteries of the same type in the AA battery holder as show ensuring that they are in the correct orientation.

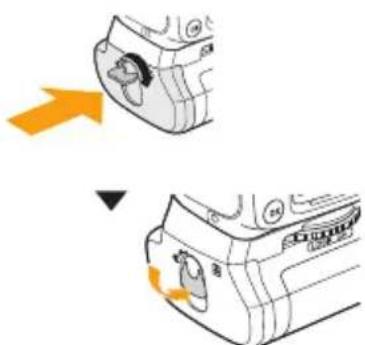

1. Insert the battery holder into the grip. Close the battery chamber and then with little latch clockwise to lock. Turn the camera on and check the battery level in the control panel or viewfinder.

Battery Info

The camera displays the following battery levels.

Nikon EN-EL3e, EN-EL4a, and EN-EL4 Batteries:

Control Panel View	inder Description
	—	Battery fully charged.
	—	Battery partially discharged.
		Low battery.Prepare spare batteries.
(blinking)	(blinking)	Battery exhausted.Shutter release is disabled.

AA Batteries:

Control Panel Viewfinder Description
	—	Battery fully charged.
		Low battery.Prepare spare batteries.
(blinking)	(blinking)	Battery exhausted.Shutter release is disabled.

AA Battery Settings

To ensure that the camera shows the correct battery level when AA batteries are used, choose the appropriate setting in the Custom Settings menu (Group d).

Battery Type Menu Option To Select
AA alkaline (LR6) LR6 (AA alkaline)
AA Ni-MH (HR6)	HR6 (AA Ni-MH)
AA Lithium (FR6) FR6 (AA lithium)
AA nickel-manganese (ZR6) ZR6	(AA Ni-Mn)

Note: The menu screens on this page are from the D300.

Nikon Rechargeable Batteries

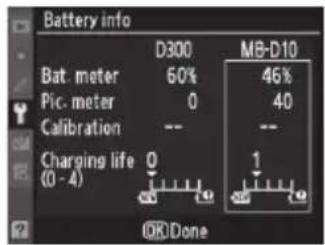

The camera can display information (including calibration information) for Nikon EN-EL3e, EN-EL4a and EN-EL4 batteries via the

Battery Info option in the Setup Menu. Only battery levels are displayed for AA batteries.

Battery Order

Set the order in which the internal camera and BG-N1 batteries are used via the

Custom Settings menu (Group d). When the camera is drawing power from the BG-N1, a BP icon is displayed in the control panel.

Removing The Batteries

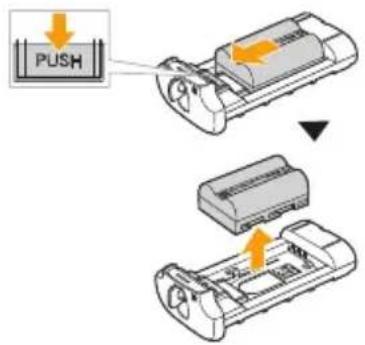

1. EN-EL3e Holder: While pressing and holding the PUSH button on the holder, slide the battery toward the button and lift up to remove.

1. BC-N1 Holder: Slide the battery release in the direction indicated by the arrow and remove the battery.

Two mechanical components with orange arrows indicating force or movement, no visible text or symbols

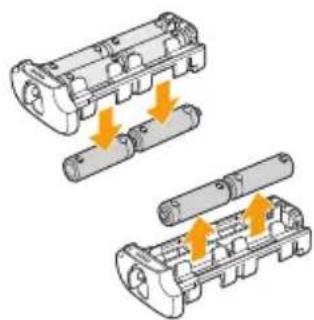

1. AA Holder: Remove the batteries one row at a time (as shown). Ensure that the batteries do not drop during this process.

Battery & Power

EN-EL3e Batteries

At low temperatures of about 50^ F ( 10^ C) and below, the Nikon EN-EL3e batteries will decrease in performance. Warming up a cold battery can recover some of the lost charge. AA batteries have less capacity and lose more performance at low temperatures.

EN-EL4a/EN-EL4/AA Batteries

EN-EL4a/EN-EL4 and AA batteries support higher frame advance rates than the EN-EL3e. See the camera manual for more information on frame advance rates.

AA Batteries

In most cases, Nikon EN-EL4a, EN-EL4, and EN-EL3e batteries will provide better performance than AA batteries when used in the Vello BG-N1. AA LR6 alkaline and ZR6 nickel-manganese batteries have

limited capacity and therefore should only be used when there is no other alternative. Performance of AA batteries decreases signifi cantly at temperatures below 68 °F (20 °C) and is therefore not recommended.

Remove the batteries when the BG-N1 is not in use.

Specifications

Power Source One EN-EL3e, EN-EL4a, or EN-EL4 rechargeable Li-ion battery or eight LR6Alkaline, HR6 Ni-MH, FR6 Lithium, or ZR6 Nickel-Manganese AA batteries

Operating Temperature 32 – 104 °F (0 – 40 °C)

Dimensions Approximately 150.5 × 52 × 75.5 mm/5.9 × 2.0 × 3.0 in.

Weight Approximately 290 g (10.2 oz.), with EN-EL3e battery holder (excluding batteries)

* Approximate measurements.
Specifications and design are subject to change without notice.

Warranty

Vello provides a limited warranty that this product is free from defects in materials and workmanship to the original purchaser under normal use for a period of one (1) year from the original purchase date. Vello's responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at its option, of any product which fails during normal consumer use. This warranty does not extend to damage or failure which results from misuse, neglect, accident, alteration, abuse, improper installation or maintenance. To obtain a replacement during the time of this warranty, please return the defective item with proof of purchase along with an RMA number to the place of purchase. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

VELLO

© Copyright 2010 Vello Inc.

All other trademarks are the property of their respective ownersWWW.v
