Product Type	3-Way Component Speaker Set
Brand	Memphis Audio
Model	VIV603CV2
Series	SixFive Series
Woofer Size	6.5"
Midrange Size	3.5"
Tweeter Dome Material	Silk
Impedance	2Ω
RMS Power Handling	100W
Peak Power Handling	200W
Frequency Response	65Hz - 20kHz
Sensitivity	90dB
Woofer Cone Material	Fiberglass Composite
Woofer Basket Material	Cast Aluminum
Woofer Surround Material	Rubber
Mounting Depth (Woofer)	2.95"
Tweeter Cut Out Diameter	1.75"
Tweeter Mounting Depth	0.53"
Crossover Type	3-Way
Crossover Adjustments	Tweeter level: 0dB/-3dB/-6dB
Warranty	2 Years (US), EU warranty applies
Recommended Use	Car audio component system
Included Items	Woofers, midranges, tweeters, crossovers, wiring, mounting hardware, cut-out template

Frequently Asked Questions - VIV603CV2 Memphis Audio

What is the impedance of the Memphis Audio VIV603CV2 speakers?

The impedance is 2Ω, making them suitable for compatible car audio systems.

What is the power handling of the VIV603CV2?

RMS power handling is 100W and peak power handling is 200W.

What is the frequency response of these speakers?

The frequency response is 65Hz - 20kHz.

What are the tweeter adjustment options on the crossover?

The crossover features a tweeter level adjustment switch with settings at 0dB, -3dB, and -6dB.

What is the mounting depth of the woofer?

The woofer mounting depth is 2.95 inches.

What materials are used in the woofer construction?

The woofer features a cast aluminum basket, fiberglass composite cone, rubber surround, and aluminum bullet dust cap.

Does the VIV603CV2 include a grille for the tweeter?

Yes, the tweeter comes with a grille included.

What is the warranty period for the SixFive Series?

The limited warranty is 2 years for component speakers purchased from an authorized US dealer.

Can I install the crossovers inside the door panel?

It is not recommended as doors may not be watertight. Mount crossovers in a dry location away from moisture.

What is the recommended tweeter mounting position?

Tweeters should be mounted high near ear level and angled toward the listener for optimal imaging.

USER MANUAL VIV603CV2 Memphis Audio

Three Vickers speakers standing beside a Six Five Series audio equipment unit (no visible text or symbols on the devices themselves)

VIV603CV2

3-WAY COMPONENT SPEAKER SET

DESIGNED AND DEVELOPED IN THE UNITED STATES.

SIXFIVE SERIES WARRANTY

Memphis Car Audio offers a limited warranty on Memphis Car Audio products on the following terms:

Length of Warranty

SixFive Series Component Speakers - 2 Year

Ask your installing dealer about warranty extensions that may be available.

What Is Covered

This warranty applies only to Memphis Car Audio products sold to consumers by Authorized Memphis Car Audio Dealers in the United States of America or its possessions.

Who Is Covered

This warranty covers only the original purchaser of Memphis Car Audio product purchased from an Authorized Memphis Car Audio Dealer in the United States. In order to receive service, the purchaser must provide Memphis Car Audio with a copy of the receipt stating the consumer name, dealer name, product purchased, and date of purchase. Products found to be defective during the warranty period will be repaired or replaced (with a product deemed to be equivalent) at Memphis Car Audio's discretion.

What Is Not Covered

1. Damage caused by accident, abuse, improper operation or installation, water, theft, shipping.
2. Any cost or expense related to the removal or re installation of product.
3. Service performed by anyone other than Memphis Car Audio.
4. Any product which has had the serial number defaced, altered, or removed.
5. Subsequent damage to other components.
6. Any product purchased outside the US.
7. Any product not purchased from an authorized Memphis Car Audio Dealer.

Limit on Implied Warranties

Any implied warranties including warranties of fitness for use and merchantability are limited in duration to the period of the express warranty set forth above. Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for Memphis Car Audio any other liability in connection with the sale of the product.

EU Warranty

This product meets the current EU warranty requirements. See your Authorized dealer for details.

How To Obtain Service

Contact the Authorized Memphis Car Audio Dealer you purchased this product from.

If you need further assistance, call 1-800-489-2300 for Memphis Car Audio's Customer Service.

YOU MUST OBTAIN A RETURN AUTHORIZATION (RA#) TO RETURN ANY PRODUCT TO MEMPHIS CAR AUDIO'S WARRANTY FACILITY. NO PRODUCT WILL BE ACCEPTED WITHOUT THIS RETURN AUTHORIZATION!

You are responsible for shipment of product to Memphis Car Audio. Repaired and replaced product will be returned freight prepaid.

FOR MORE INFORMATION, PLEASE VISIT: WWW.MEMPHISCARAUDIO.COM

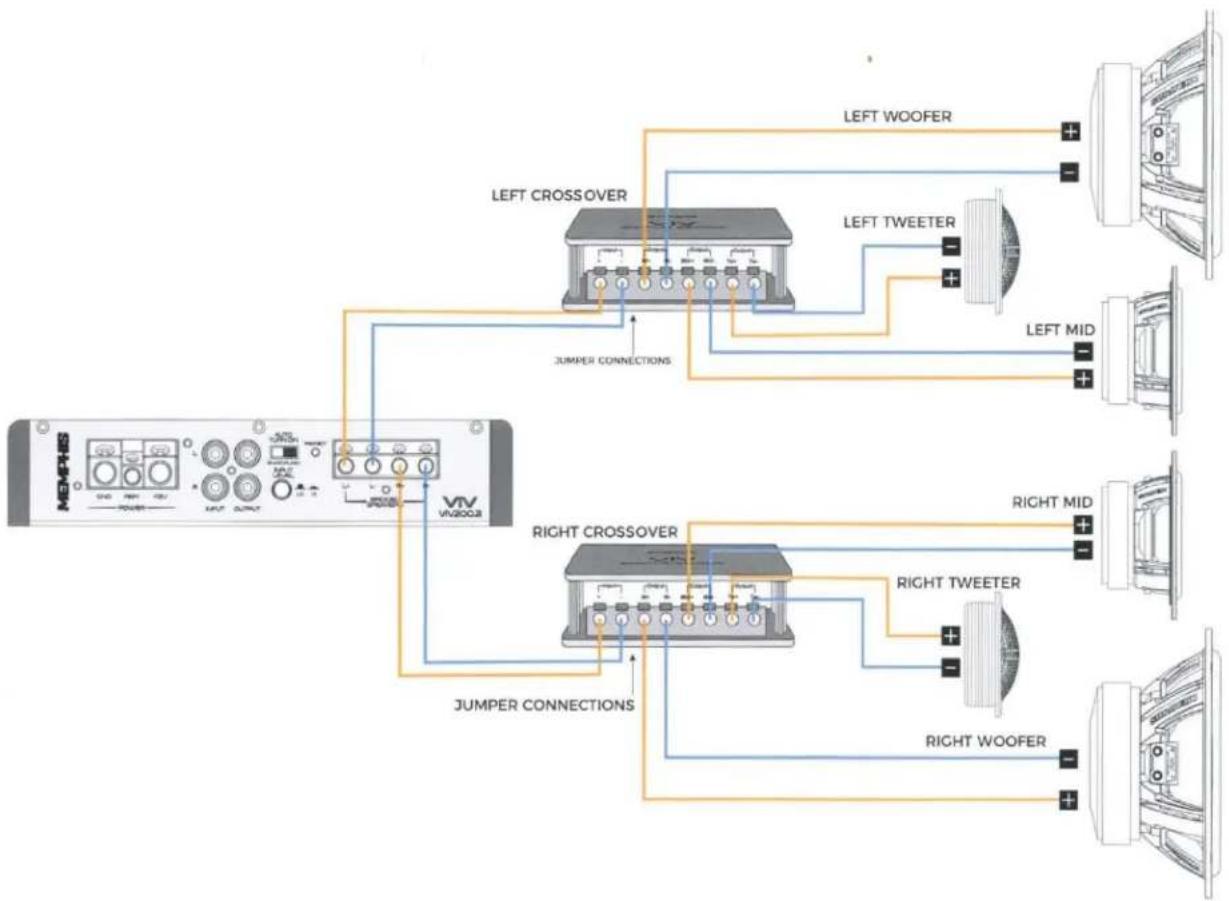

WIRING COMPONENTS


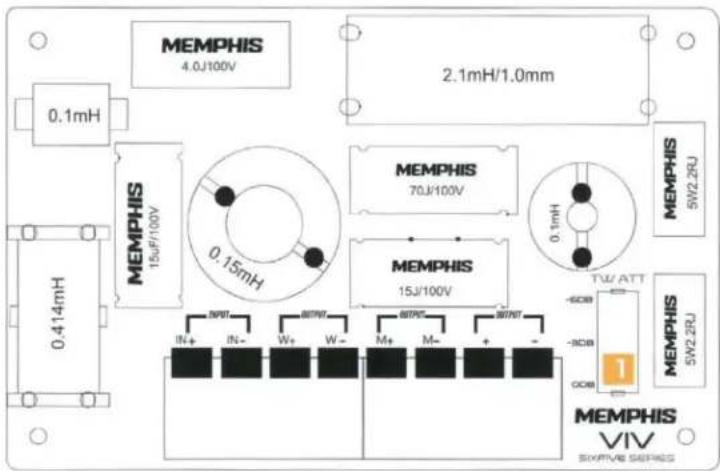

Crossover Adjustments

VIV603CV2 Crossovers uses switches to adjust a variety of features allowing the user to dial in the perfect sound for their audio system.

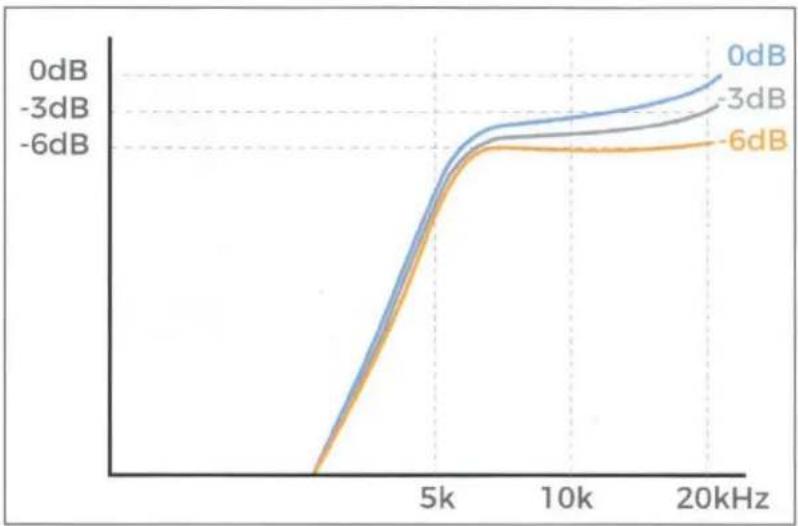

Tweeter Adj. 0dB/-3dB/-6dB Tweeter Adjustment

Features

• Cast aluminum Six Five Series basket
• Dual layer composite fiber cone
- Tuned surround for extra flat response
• Audiophile grade features and performance
• Aluminum housed silk tweeter
- Grill included

Technical Information

WOOFER SPECS

Woofer Size	6.5"
Impedance	2Ω
Magnet Size (oz)	20
Mounting Depth (in)	2.95
Basket Material	Aluminum
Cone Material	Fiberglass Composite
Dust Cap Material	Aluminum Bullet
Surround Material	Rubber

MID SPECS

Size	3.5" Overall, With Grill 3.86 Diameter
Mounting Diameter	3.08
Voice Coil Diameter	.75
Impedance	2Ω
Magnet Size( (Oz)	6
Mounting Depth (in)	1.64
Basket Material	Aluminum
Cone Material	Fiberglass Composite
Dust Cap Material	Aluminum Bullet
Surround Material	Rubber

Tweeter Technical Information

Dome Material	Silk
Dome Diameter	1.45in // 37mm
Voice Coil Diameter	.98in // 25mm

Crossover Technical Information

Crossover Type	3 Way
Woofer Crossover Freq & Slope (Low Pass)	1.5kHz, 18dB
Mid Crossover Freq & Slope (High Pass)	1.5kHz, 12dB
Mid Crossover Freq & Slope (Low Pass)	7kHz, 12dB
Tweeter Crossover Freq & Slope (High Pass)	7kHz, 12dB

System Specifications

Frequency Response	65Hz - 20 kHz
Impedance	2
RMS Power Handling	100W
Peak Power Handling	200W
Sensitivity	90dB

Installation

Prior to setting up your audio system, disconnecting the negative battery terminal from your vehicle is advised. Prior to cutting or drilling screws, please take time to check clearances on both sides of the mounting surface. Be mindful of any potential obstacles such as window tracks and motors. Some vehicles are not symmetrical making it imperative to double check both sides of the vehicle.

Crossover Network

Always mount your crossovers in a location free from moisture and away from moving parts. Crossovers should not be mounted inside door compartments if possible as doors are not always watertight and moisture may damage your crossover. Your Crossover must be connected as shown in this manual, failure to follow these connections may void your warranty and potentially damage your system and vehicle. Failure to properly install the crossovers may void your warranty. If you are uncomfortable with any of the installation steps it is advised that you contact your local Memphis Audio dealer.

Speaker Placement

A properly installed component system will yield the best sound for a vehicle. Failure to properly place your component system can severely hinder your systems performance. A Memphis Audio dealer should be consulted to properly position your vehicles components for the best possible performance. Ideally the tweeter and woofer should be installed free from obstacles impeding sound from freely traveling throughout the vehicle. Woofers should be mounted lower in the vehicle while tweeters typically perform better in a more elevated position. Prior to cutting any holes or making any alterations to your vehicle, test fit the woofers into the factory mounting locations to confirm that they clear any obstacles such as window tracks, wire harnesses etc. If you are mounting the woofers into a non factory location check both sides of the vehicle for obstacles prior to cutting or altering your vehicle in any way. A speaker cut out template is provided in the box along with this product, again do not rely solely on the template, be certain to test fit and measure both sides of the vehicle prior to altering your vehicle. To test the tweeters prior to committing to a mounting location you can simply install the rest of your system and position your tweeters in various locations using double sided tape until you find an ideal location.

Tweeter Installation

Tweeters should be positioned high, preferably near ear level. Optimum performance will be obtained when tweeters are angled toward the listener.

The least conspicuous tweeter mounting option is a flush mount. The recessed design provides superior protection for the tweeter and it blends with the interior of your vehicle.

To mount the tweeter cut a hole in the desired panel. Slide the tweeter into place. Use the included screw and backer bracket to tighten the tweeter into place. The final installation should look like the above image.

TWEETER CUT OUT DIAMETER & DEPTH:

Cut Out Diameter: 1.75"

Mounting Depth: 0.53"

Tweeter

Panel

Bracket

Screw

1.75"
