Product Type	Car Audio Coaxial Speaker
Brand	Memphis Audio
Model	SRX42V
Speaker Size	4 inches (10 cm)
Power Handling (RMS)	50 Watts
Peak Power	100 Watts
Impedance	4 Ohms
Frequency Response	60 Hz - 20 kHz
Sensitivity	90 dB
Woofer Material	Polypropylene Cone
Tweeter Type	1-inch Silk Dome
Magnet Material	Neodymium
Mounting Depth	2.5 inches (6.35 cm)
Mounting Cutout Diameter	3.75 inches (9.5 cm)
Weight	1.2 lbs (0.54 kg)
Color	Black / Silver
Included Accessories	Mounting Hardware, Grille, Instruction Manual
Certifications	CE, RoHS
Warranty	1 Year Limited
Maintenance	Clean with dry cloth; avoid liquids
Safety	Do not expose to moisture; install securely

Frequently Asked Questions - SRX42V Memphis Audio

What is the size of the Memphis Audio SRX42V speaker?

The SRX42V is a 4-inch coaxial speaker, designed to fit standard 4-inch speaker openings in vehicles.

How much power can the SRX42V handle?

It handles 50 watts RMS and 100 watts peak power, suitable for most factory and aftermarket head units.

What is the impedance of the SRX42V?

The speaker has an impedance of 4 ohms, compatible with most car audio systems.

Can I install the SRX42V in my car's door panel?

Yes, it is designed for direct replacement in 4-inch speaker locations such as doors, dashboards, or rear panels. Check mounting depth (2.5 inches) for clearance.

Does the SRX42V come with mounting hardware?

Yes, it includes mounting screws, brackets, and a grille for easy installation.

What type of music sounds best on the SRX42V?

With a frequency response of 60 Hz - 20 kHz, it delivers clear mids and highs, ideal for rock, pop, and vocals. For deep bass, consider adding a subwoofer.

How do I clean the SRX42V speaker?

Use a soft, dry cloth to wipe the grille and cone. Avoid water or cleaning solvents that may damage the materials.

What is the sensitivity rating of the SRX42V?

The sensitivity is 90 dB, meaning it produces decent volume with low power input.

Is the SRX42V compatible with my aftermarket amplifier?

Yes, the 4-ohm impedance and 50W RMS rating make it compatible with most amplifiers. Ensure the amp's power output does not exceed the speaker's RMS rating.

Does the SRX42V have a built-in crossover?

Yes, it includes an integrated crossover network that separates frequencies between the woofer and tweeter for optimal sound.

USER MANUAL SRX42V Memphis Audio

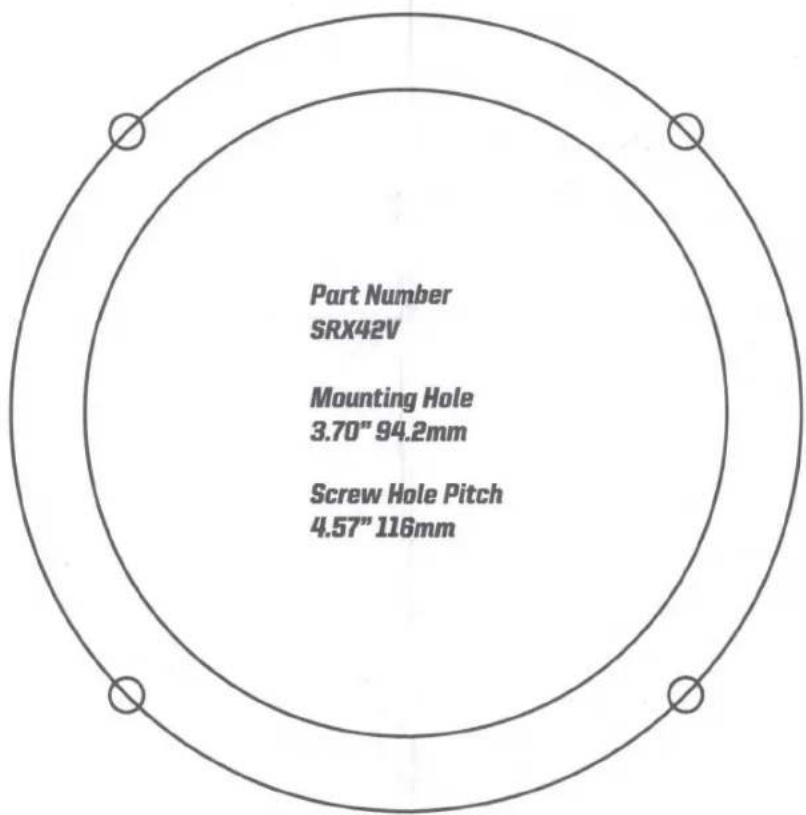

SRX42V Mounting Templates

MEMPHIS

AUDIO SINCE 1965

SRX42V

Size (in) 4"

RMS / Peak [W] 30/60

Sensitivity [dB] 88

Impedance (Ω) 4Ω

Mounting Depth (in) 1.7

Cut Out Diameter (in) 3.67

FEATURES

• Polypropelyne cone
• PEI Tweeter
- Rubber Surround
- Slim mounting depth
- Optional grilles sold separately

702588007739

WARNING: Cancer and Reproductive Harm

www.P65Warnings.ca.gov

#MEMPHISAUDIO

www.memphiscaraudio.com

MADE IN CHINA

4"

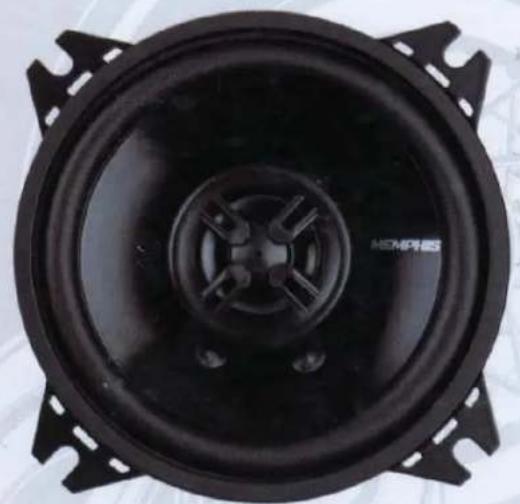

Top-down view of a black speaker bowl with mounting brackets (no visible text or symbols)

SRX42V

[Barcode]

JY012300114

30/60

RMS/PEAK POWER

WATT

MEMPHIS

STREET REFERENCE

LIMITED WARRANTY

Memphis Audio warranties this product for defects in material or workmanship for 1 year from the date of purchase when installed by an authorized Memphis Audio Dealer. If purchased from but not installed by an authorized dealer, the warranty is 90 days. This warranty is void if the product has been physically damaged by improper use or abuse, or if repairs have been attempted outside of a Memphis Audio repair facility.

This warranty is limited to the original retail purchaser and does not cover any expense incurred in the removal or re-installation of the product. This warranty does not apply to product exterior and cosmetics. Memphis Audio disclaims any liability for incidental or consequential damages caused by product defects. Memphis Audio's liability will not exceed the purchase price of the product and the warranty period specified.

What is NOT Covered under this warranty

• Damage due to improper installation
• Damage Caused by exposure to moisture, excessive heat, chemical cleaners and/or UV radiation
  • Damage through negligence, misuse, accident or abuse. Repeated returns for the same damage may be considered abuse.
  • Product damaged in an accident and/or due to criminal activity
  • Service performed by anyone other than Memphis Audio
• Subsequent damage to other components
• Any cost or expense related to the removal or re-installation of product
• Speakers damaged due to amplifier clipping or distortion
• Products with tampered, missing, altered or defaced serial number labels
  • Freight damage
• The cost of shipping product to Memphis Audio
• Return shipping on non-defective items
• Any product not purchased from an Authorized Memphis dealer
• Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific rights and you may have other rights which vary from state to state.

If warranty service is required, a return authorization number is required to return the product to Memphis Audio/AFCO, Inc. Warranty shipments to Memphis Audio are the responsibility of the purchaser. Pack the product carefully in the original carton if possible. Memphis Audio will NOT be responsible for damages incurred in shipment or due to improper packaging materials used by the purchaser.

If determined to be in warranty, product will be repaired or replaced at the discretion of Memphis Audio.

MEMPHIS

THIS CARD MUST ACCOMPANY YOUR SHIPMENT SHOULD SERVICE BE REQUIRED

MODEL# SERIAL#

STREET ADDRESS

DEALER NAME

PURCHASER NAME

CITY STATE ZIP

DATE PURCHASED

DESCRIBE PROBLEM IN DETAIL

EMAIL

PHONE

Visit WWW.MEMPHISCARAUDIO.COM/REGISTER to register your product with Memphis Audio and receive news updates and a chance to win FREE memphis Gear! FOLLOW US:

@MEMPHISCARAUDIOUSA

@MEMPHISCARAUDIO

Please call 800-489-2300 to obtain the required Return Authorization Number and shipping address. Include this number on your package along with a copy of your purchase receipt.
