Product Type	Blender
Brand	Imarflex
Model	ICB-1900PRO
Power Consumption	2000 Watts
Rated Voltage	230V a.c. 60Hz
RPM	30,000 RPM
Unit Dimensions (HxWxD)	225 x 220 x 480 mm
Box Dimensions (HxWxD)	364 x 264 x 476 mm
Gross Weight	7.7 kg
Jar Material	Plastic
Sound Reducer Cover	Yes
Functions	Blending, Pulse, Ice Crush, Smoothie
Pulse Function	Toggle switch with override capability
Ice Crush Function	Pre-set time and speed, always use with liquid
Smoothie Function	Pre-set time and speed
Overload Protection	Automatic shut-off when motor reaches temperature limit
Maximum Continuous Operating Time	1 minute
Cleaning Method	Hand wash jar, lid, and sound reducer cover; wipe motor base with damp cloth
Safety Features	Thermal cutout, do not blend hot liquids, lid must be in place, blade handling caution
Included Accessories	Measuring cup, sound reducer cover, jar lid, blade assembly

Frequently Asked Questions - ICB-1900PRO Imarflex

What is the maximum continuous operating time for the Imarflex ICB-1900PRO?

The maximum continuous operating time is 1 minute. Do not exceed this to avoid damage to the unit.

Can I blend hot liquids in this blender?

No, do not blend hot liquids as this may cause excessive pressure build-up and risk of burns. Always allow liquids to cool before blending.

How should I clean the blender jar and blade assembly?

After use, fill the jar halfway with warm water and a splash of vinegar or dish detergent, then blend on medium speed for about 30 seconds to 1 minute. Rinse thoroughly. For dried-on food, let it soak in warm soapy water before blending. The jar, lid, and sound reducer cover are hand wash only.

What does the overload protection feature do?

The unit is equipped with overload protection. If the motor reaches its temperature limit, the blender will automatically stop. Unplug and let it cool down before resuming use.

How do I use the Pulse function?

Switch the power ON and set the selector to the desired function (e.g., ICE CRUSH). Then toggle the Pulse switch to operate in short bursts. Pulse overrides any set program.

How do I use the Ice Crush function?

Set the selector to ICE CRUSH, then toggle the Pulse switch. Always add water or liquid before ice crushing to ensure safe operation. The function has a pre-set time and speed.

Why did my blender stop suddenly?

The blender may have stopped due to overload protection activating when the motor overheats. Unplug the unit and let it cool down for several minutes before using again.

Can I wash the motor base in water?

No, never immerse the motor base in water or any liquid. Wipe the outside surface with a damp or soft cloth only. Ensure the cloth is wrung out to avoid moisture entering electrical parts.

How do I assemble the blender correctly?

1. Ensure the top housing pad is in place. 2. Place and lock the sound reducer cover. 3. Secure the jar lid with the measuring cup. 4. Place the plastic jar with blade assembly onto the motor base until securely engaged. Always make sure the unit is unplugged during assembly.

What is the warranty registration process?

Fill out the warranty card and send it together with your receipt to [e-mail]. The product is distributed by Evergood Unlimited Corp., Manila.

USER MANUAL ICB-1900PRO Imarflex

Close-up of a kitchen blender with chopped red, yellow, and green pieces inside (no text or symbols visible)

Glass of pink smoothie with a strawberry garnish, no visible text or symbols

ICB-1900PRO

SPECIFICATION:

MODEL NO. : ICB-1900PRO

RATED VOLTAGE : 230Va.c. 60Hz

POWER CONSUMPTION : 2000 Watts

RPM : 30,000 RPM

BOX DIMENSION : 364*264*476mm

UNIT DIMENSION : 225*220*480mm

GROSS WEIGHT : 7.7kg.

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions carefully.
2. Before using the unit, check if the voltage indicated corresponds with the convenience outlet (230Va.c.).

3. Do not use two-way socket with other appliance.

4. Do not abuse the power cord. Never carry the appliance by the power cord or yank it to disconnect from electrical outlet; instead grasp the plug and pull to disconnect.

5. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions, has been dropped or damaged in any manner. Return the appliance to any authorized Imarflex Service Center for examination, repair or adjustment.

6. Do not place the unit near gas stove, electric stove or in a heated oven.

7. Put the unit on flat surfaced; keep it away from the edge of counter to avoid accident.

8. Keep hands, hair, clothing, as well as utensils out of container while processing to reduce the risk of severe injury to persons or damage to the appliance. A scraper may be used but only when the appliance is not running.

9. Children should be supervised to ensure that they do not play with the appliance.

10. This appliance is not intended to be uses by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.

11. Be careful when handing the sharp cutting blades, emptying the bowl and during cleaning.

12. Do not blend hot liquids, doing so may cause excessive pressure build-up, resulting in risk of the user being burned.

13. To reduce the risk of injury, never operate the appliance without the lid in place.

14. Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

15. THIS PRODUCT IS INTENDED FOR HOUSEHOLD USE ONLY.

16. Do not use this appliance for anything other than its intended use.

17. This appliance is not intended for outdoor use.

18. To protect against electric shock, do not immerse the base in water.

19. The maximum continuous operating time of the blender is one minute only. Do not exceed with the maximum operating time. It may cause damage to the unit.

20. Blade is sharp, handle it carefully.

21. Do not put the blade assembly on the base without the plastic jar.

22. Do not use the blender if the plastic jar has a crack.

23. Do not use this unit other than its intended use.

24. Save this instruction manual for future reference.

25. CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

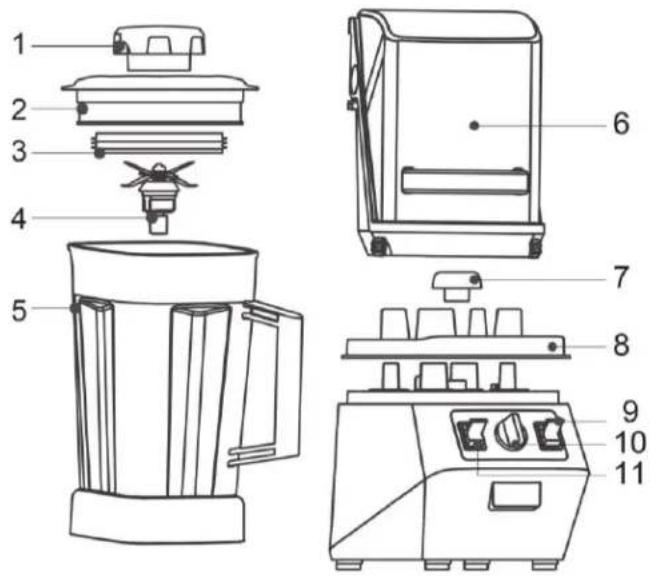

DESCRIPTION OF PARTS:

NO.	DESCRIPTION	NO.	DESCRIPTION
1	Measuring Cup	7	Drive Clutch
2	Jar Lid	8	Top Housing Pad
3	Jar Seal	9	ON/OFF Switch
4	Blade Assembly	10	Speed & Preset Knob Control
5	Plastic Jar	11	Pulse
6	Sound Reducer Cover

HOW TO ASSEMBLE:

IMPORTANT: Your blender jar and blades are subject to wear during normal use. Always inspect the jar for nicks, chips or cracks. Always inspect blades for broken, bent or loose blades. Avoid using the jar or blades if damaged.

Contact the Imarflex Authorized Service Center to obtain evaluation and repair.

Make sure that the blender is unplugged. Place blender base on clean, dry surface to keep foreign particles from being pulled up into motor during operation.

1. Make sure that the top housing pad is properly installed in the motor base.
2. Place the sound reducer cover on the top of top housing pad.
3. Secure and lock the sound reducer cover by turning the sound reducer cover lock clockwise in both sides.
4. Put the Measuring Cup on the Jar Lid.
5. Secure the Lid into the Plastic Jar and press down.
6. Place the Plastic Jar with Blade Assembly on the Motor Base and press down until securely engaged.

HOW TO USE:

1. For initial use, wash plastic jar with blade assembly thoroughly. "Please refer to cleaning and maintenance method".

2. Make sure that the top housing pad is properly installed in the motor base.

3. Place the sound reducer cover on the top of top housing pad.

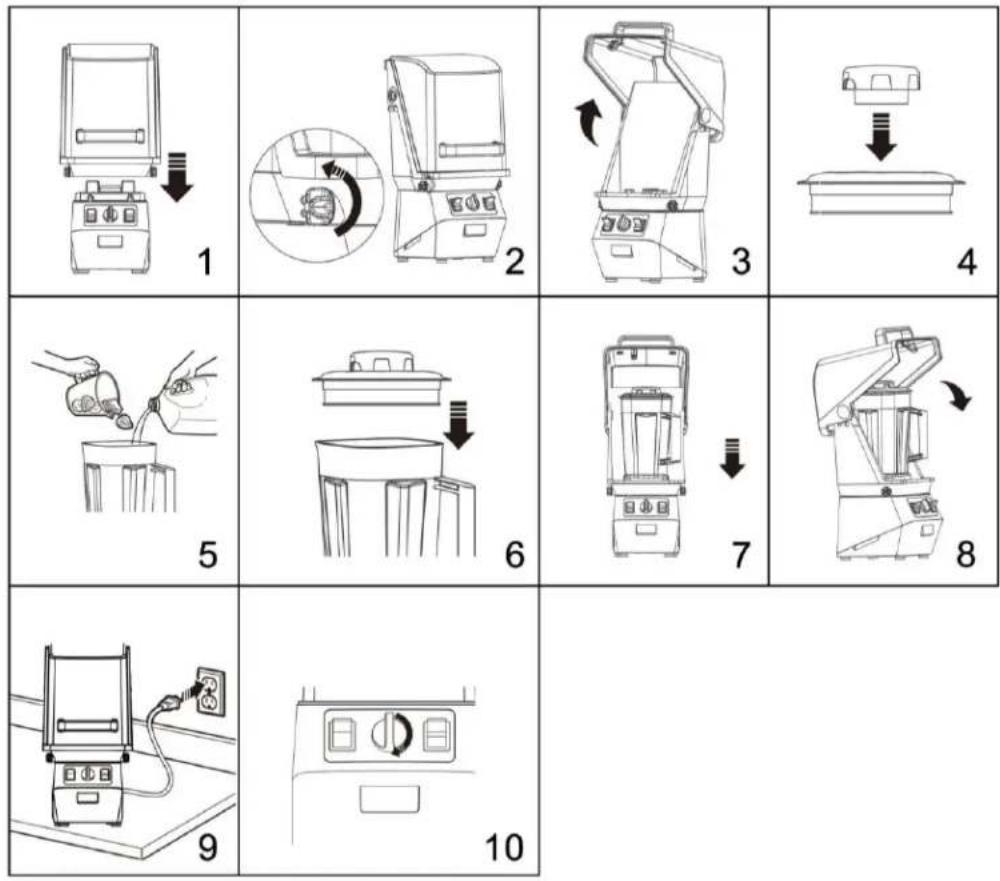

4. Secure and lock the sound reducer cover by turning the sound reducer cover lock clockwise in both sides. (Refer to Photo 1 & 2)

5. Open the sound reducer cover. (Refer to Photo 3)

6. Place the measuring cup into the hole of the Jar Lid and turn it clockwise to lock. (Refer to Photo 4)

7. Put the desired mixture. (Refer to Photo 5)

8. Put the lid on the plastic jar and close securely. (Refer to Photo 6)

9. Place the plastic jar with blade assembly on the motor base. (Refer to Photo 7)

10. Close the sound reducer cover. (Refer to Photo 8)

11. Plug the unit into the convenience outlet. (Refer to Photo 9)

12. Switch Power ON, select Function.

** Note: Pulse Function override the set program.

FUNCTION	INSTRUCTION	STEP 1	STEP 2	STEP 3
BLENDING	Switch Power ON,select Function.			-
PULSE	Switch Power ON,set Selector to ICE CRUSH,Toggle Pulse Switch

1. Select the desired Speed/Function.

- Low Speed – Function is for blending soft vegetables, soft fruits or any light mixture

- Medium & High Speed – Function is for blending hard vegetables and hard fruits or if you desire to blend smoothie or any alike.

- Pulse – It is the function to crush the ice.

- Ice Crush Function – Intended for ice crushing, it has a pre-set time and speed.

- Smoothie - Intended for blending smoothies, it has a pre-set time and speed.

1. Additional ingredients can be added through opening in the lid.

2. Maximum single operation should be up to 1 minute only.

3. In case some mixture is clogged, turn OFF the unit then use the stirring stick. Turn ON the unit again.

4. After use switch OFF and unplug the unit from the convenience outlet.

NOTE:

• THE UNIT IS EQUIPPED WITH OVERLOAD PROTECTION. IT WILL AUTOMATICALLY STOP WHEN MOTOR REACH THE TEMPERATURE LIMIT. UNPLUG THE UNIT THEN LET THE UNIT COOL DOWN
• Some electric smell may be observed on initial use

CAUTION: When using ice, always put water or liquid and use the Ice crush function first before setting to desired speed.

USEFUL TIPS:

• To achieve the best results when pureeing solid ingredients, place small portions through the opening in the lid one by one.
• When mixing solid ingredients, start with a small amount of liquid. Gradually add more liquid through the opening in the lid.
• For stirring solid or very thick liquid ingredients, we recommend that you use the blender in pulse mode to prevent the blades from getting stuck.

CLEANING AND MAINTENANCE:

Motor Base

1. Unplug the power cord.

2. Wipe or clean the outside surface with a damp or soft cloth.

NEVER IMMERSE MOTOR BASE IN WATER OR OTHER LIQUID.

1. Thoroughly clean switches so that they work freely. They will become sticky when in use. Use a damp cloth or sponge to flush and clean the groove around the water shielded switches. You may also lightly spray the surface around the switches with an all-purpose cleaner and work the switches back and forth a few times to loosen any dried residue under switch.

2. Polish with a soft cloth.

3. Always be sure to wring excess water out of cloth or sponge when cleaning around the controls or any electrical part.

Sound Reducer Cover & Lid

Wash in warm soapy water. Rinse under clean running water and dry. Reassemble before use.

Container and Blade Assembly

Method 1:

After use, add warm water and a splash of vinegar to blender jar. Set the variable speed to medium speed. Turn ON and let the blender work the liquid for about a minute. Pour out, rinse the blender jar well.

Method 2:

Fill the blender jar half way (1L) with warm water, add a small amount of liquid dish detergent and turn the unit on MEDIUM speed for about 30 seconds. Repeat if needed. Rinse well.

Method 3:

If blender was left sitting until there is dried, crusty food bits inside: fill with warm, soapy water (or vinegar water) and let sit for about 30 to 60 seconds. Empty water to about half and then blend for 30 second intervals until clean.

REMINDER: Please do not forget to fill up and send the warranty card with receipt to our email address [e-mail]

Distributed By:

Evergood Unlimited Corp.

901 G.Masangkay St., Manila

Made in China
