Product Type	Blender
Model	IB-630G
Brand	Imarflex
Rated Voltage	230V a.c., 60Hz
Power Consumption	500 Watts
Maximum RPM	21,100 RPM (Speed 2, ±15%)
Box Dimensions (WxDxH)	200 x 195 x 450 mm
Unit Dimensions (WxDxH)	200 x 190 x 415 mm
Gross Weight	3.30 kg (approx.)
Unit Weight	2.80 kg (approx.)
Maximum Continuous Operation	1 minute
Speed Settings	2 speeds + Pulse
Functions	Blending soft/hard ingredients, crushing ice (Pulse)
Jar Material	Glass
Jar Capacity	Not specified in manual (typical for this size: ~1.5 L)
Safety Features	Thermal cutout, overload protection, non-slip base
Blade Material	Stainless steel
Cleaning	Detachable jar and blade assembly; motor base wipe only; never immerse base
Maintenance	Inspect jar and blades regularly; replace worn parts
Spare Parts	Glass jar, blade assembly, rubber packing, lid, center lid, measuring cup
Warranty	Register by email ([e-mail]) with receipt
Intended Use	Household only; not for commercial
Country of Origin	China

Frequently Asked Questions - IB-630G Imarflex

What is the maximum continuous operating time?

The maximum continuous operating time is 1 minute. Do not exceed this to avoid damage to the blender.

Why does the motor stop during operation?

This may be due to overload protection activated. Unplug the unit and let it rest for at least 1 minute before restarting.

Can I blend hot liquids?

Extreme caution is needed when blending hot liquids as they can be ejected due to sudden steaming. It is recommended to let hot liquids cool before blending.

How do I clean the blender jar and blades?

After use, fill the jar halfway with warm water and a drop of dish detergent, then blend for 30 seconds. Rinse well. For dried food, soak in warm soapy water before blending. Never immerse the motor base in water.

What should I do if there is a leak at the bottom of the jar?

Check the rubber packing under the blade assembly. Ensure it is properly installed and not damaged. Replace if worn.

Can I crush ice with this blender?

Yes, use the Pulse function to crush ice. Add some water or liquid to the jar first to avoid damage.

What do the speed settings do?

Speed 1 is for soft fruits/vegetables or light mixtures. Speed 2 is for hard ingredients or smoothies. Pulse is for short bursts to crush ice or chop.

Is it normal to smell an electric odor on first use?

Yes, a slight electric smell on first use is normal. If the smell persists or smoke appears, unplug and contact service.

How do I assemble the blender correctly?

Place the rubber packing into the blade assembly, then insert into the jar support. Attach to the glass jar. Put the measuring cup into the lid, then secure the lid onto the jar. Place the jar on the motor base and turn counter-clockwise to lock.

Where can I get spare parts or repair?

Spare parts and repairs are available at the nearest Imarflex Authorized Service Center. Contact them for evaluation and replacement.

USER MANUAL IB-630G Imarflex

Black imarflex blender with colorful fruit being filled in, no visible text or symbols on the device itself.

IB-630G

SPECIFICATION

MODEL NO. : IB-630G

RATED VOLTAGE : 230Va.c. 60Hz

POWER CONSUMPTION : 500 Watts

BOX DIMENSION : 200x195x450mm

UNIT DIMENSION : 200x190x415mm

GROSS WEIGHT : 3.30kg approx

UNIT WEIGHT : 2.80kg approx

RPM : Speed 2 max 21,100RPM (±15%)

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions thoroughly.
2. Before using the unit, check if the voltage indicated corresponds with the convenience outlet (230Va.c.).

3. Do not use the two-way socket with other appliance.

4. Do not use any appliance with a damaged cord or plug. If the cord is damaged it should be replaced with the same type and size or bring the unit to the nearest Imarflex Authorized Service Center.

5. Do not place the unit near a gas stove, an electric burner or in a heated oven.

6. Place the unit on stable surface; keep it away from the edge of counter to avoid accident.

7. Children should be supervised to ensure that they do not play with the appliance.

8. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.

9. The maximum continuous operating time of the blender is one minute only. Do not exceed with the maximum operating time. It may cause damage to the unit.

10. To protect against electric shock, do not immerse the base in water or any other liquid.

11. Extreme caution must be exercised when using an appliance containing hot liquid in the blender when blending as it can be ejected out of the appliance due to sudden steaming.

12. Use of accessories or equipment not supplied by the manufacturer may cause damage or malfunctioning of your appliance or result in injuries.

13. Use on a hard, flat level surface only, to avoid interruption of air flow underneath the appliance.

14. Carry or move the blender's jar only by its handle.

15. Switch off the appliance and unplug the unit before removing glass jar or accessories.

16. Blade is sharp, handle it carefully.

17. Do not put the blade assembly on the base without the tumbler.

18. Do not use the blender if the jar has a crack.

19. This appliance is not intended for outdoor use.

20. Never place the blender near hot surfaces.

21. In case of malfunctions, please bring the blender to the nearest Authorized Imarflex Service Center.
22. Avoid water spillage into the socket, connector, cord and alike.
23. Switch off the appliance before removing the glass jar into the motor base.
24. Do not use this unit other than its intended use.
25. For household use only; not intended for any business purposes
26. Save this instruction manual for future reference.
27. CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

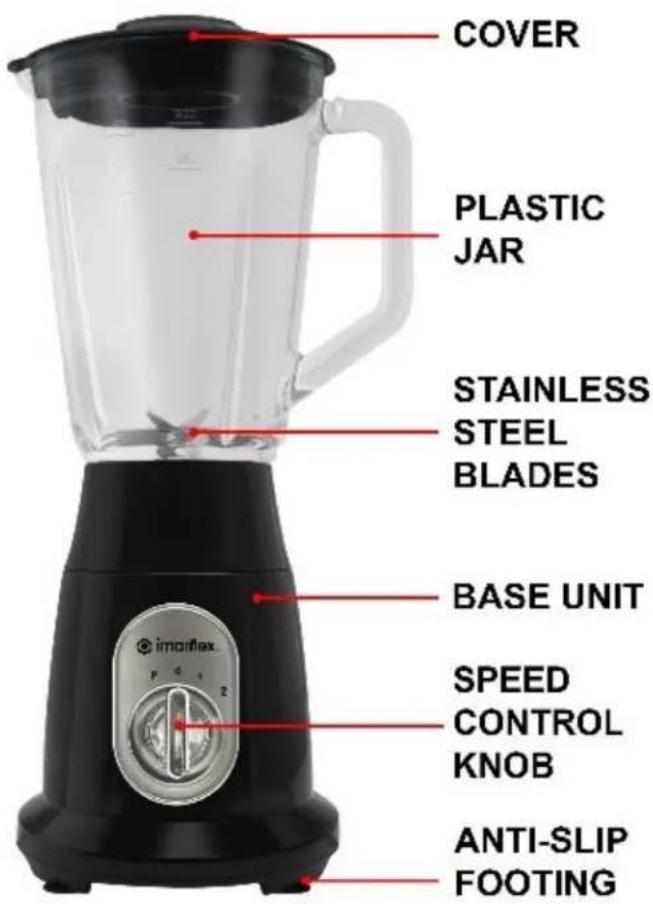

DESCRIPTION OF PARTS:

HOW TO ASSEMBLE:

IMPORTANT: The blender jar and blades are subject to wear during regular use. Always inspect the jar for nicks, chips or cracks. Always inspect blades for broken, bent or loose blades. Avoid using the jar or blades if damaged. Contact the Imarflex Authorized Service Center to obtain evaluation and repair.

Make sure that the blender is unplugged. Place blender base on clean, dry surface to keep foreign particles from being pulled up into motor during operation.

1. Place the rubber packing into the blade assembly and put the assembly into the jar support.
2. Assemble the jar support assembly into the glass jar.
3. Put the measuring cup into the lid.
4. Secure the lid into the glass jar and press down.
5. Put the glass jar on the motor base and press down until securely engaged.
6. Turn it counter-clockwise to lock the jar into place.

HOW TO USE:

1. For initial use, wash glass jar with blade assembly thoroughly. "Please refer to cleaning and maintenance method #2". Wipe it dry.
2. Put the glass jar with blade assembly on the motor base.
3. Plug the unit into the convenience outlet.
4. Be sure to remove the seeds of the fruits/vegetables if needed.
5. Put the desired mixture.
6. Put the lid on the glass jar and close securely. Place the center lid into the hole of the lid and push down to lock.
7. Plug the unit into the convenience outlet.
8. Press the pulse button first to crack the ice.

9. Select the desired speed.

10. Speed 1 – Function is for blending soft vegetables, soft fruits or any light mixture

11. Speed 2 – Function is for blending hard vegetables and hard fruits or if you desire to blend smoothie or any alike.

12. Pulse – It is the function to crush the ice.

13. Additional ingredients can be added through opening in the lid.

14. Turn OFF and unplug the unit after every use.

NOTE:

(1) Some electric smell may be observed on first use.
(2) Maximum continuous operating time is 1 minute only.

CAUTION: Always put water or liquid in the jar to avoid damage to the unit. Use pulse function first, if you are blending with ice.

USEFUL TIPS:

• To achieve the best results when pureeing solid ingredients, place small portions through the opening in the lid one by one.
• When mixing solid ingredients, start with a small amount of liquid. Gradually add more liquid through the opening in the lid.
• For stirring solid or very thick liquid ingredients, we recommend that you use the blender in pulse mode to prevent the blades from being stuck.

CLEANING AND MAINTENANCE:

Motor Base

1. Unplug the unit from the convenience outlet.
2. Wipe or clean the outside surface with a damp or soft cloth.
3. Thoroughly clean speed selector knob so that it works freely. It will become sticky when in use. Use a damp cloth or sponge to flush and clean the groove around the water shielded switch. You may also lightly spray the surface around the switch with an all-purpose cleaner and work the switch back and forth a few times to loosen any dried residue under switch.
4. Polish with a soft cloth.
5. Always be sure to wring excess water out of cloth or sponge when cleaning around the controls or any electrical part.

NEVER IMMERSE MOTOR BASE IN WATER OR OTHER LIQUID.

Lid/Center Lid

- Wash in warm soapy water. Rinse by a running water and dry. Reassemble before use.

Container and Blade Assembly:

Method #1

- After use, add warm water and a splash of vinegar to blender jar. Turn ON and let the blender work the liquid for about a minute. Pour out, rinse the blender jar well.

Method #2

- Fill the blender jar half way with warm water, add a small amount of liquid dish detergent and turn the unit ON for about 30 seconds. Repeat if needed. Rinse well.

Method #3

- If blender was left sitting until there is dried, crusty food bits inside: fill with warm, soapy water (or vinegar water) and let sit for about 30 to 60 seconds. Empty water to about half and then blend for 30 second intervals until clean.

1. Turn OFF the unit and wait for the blade and motor to stop.
2. Always unplug the unit after every use.

3. Remove the blade assembly by turning it counter-clockwise.

4. Wash the rubber packing and jar support with soap and water.

5. Turn the glass jar upside down to remove excess water.
6. Wipe the glass jar and blade with soft cloth to dry. Make sure to reassemble the unit properly before storing it.
7. Never leave food inside the blender jar for a long period of time.
8. Store the blender on a dry cool place.

NOTE: NEVER ALLOW THE BOTTOM OF THE BLADE TO GET WET.
TROUBLE SHOOTING:

PROBLEM	CAUSE	SOLUTION
Motor not working	1. Convenience outlet is not working.2. Damage on the unit	1. Check the outlet where the unit is plug in if it is working.2. Check for any damage.3. Bring the unit to the nearest Authorized lmarflex Service Center
Motor stop during operation	1. Overload protection activated	1. Unplug and let the unit rest for at least 1 minute
Smoke and burnt smell occurred	1. Unit is use for the first time	1. Its normal for the first use
Leak on the bottom of the jar	1. Rubber packing is not properly install2. Rubber was damaged	1. Turn OFF the unit.Remove the jar and check the rubber.Reassemble the unit.2. Replace the rubber with the new one.3. Bring the unit to the nearest Authorized lmarflex Service Center.
Attachment not functioning	1. Not properly install	1. Turn off the unit and check the assembly

REMINDER: Please do not forget to fill up and send the warranty card with receipt to our email address [e-mail]

Distributed By: Evergood Unlimited Corp.

901 G.Masangkay St., Manila

Made in China
