IB-350G - Blender Imarflex - Free user manual and instructions

Product Type	Personal Blender
Brand	Imarflex
Model	IB-350G
Dimensions (H x W x D)	Approx. 30 x 12 x 12 cm
Weight	Approx. 0.8 kg
Power Supply	AC 120V / 60Hz
Power Consumption	Approx. 300 W
Capacity	500 ml
Jar Material	Plastic (BPA-free)
Blade Material	Stainless steel
Main Functions	Blend, Pulse, Grind (for soft ingredients)
Speed Settings	2 speeds + pulse
Non-Slip Base	Yes
Safety Features	Auto shut-off when overloaded, locking lid
Cleaning	Hand wash jar and lid; wipe base with damp cloth
Spare Parts Available	Jar, blade assembly, lid, sealing ring
Repairability	Base motor can be serviced by authorized center
Warranty	1 year

Frequently Asked Questions - IB-350G Imarflex

How do I clean the blender jar?

Pour a little warm water and a drop of dish soap into the jar, pulse for 10 seconds, then rinse thoroughly. Dry all parts before reassembly.

Can I blend hot liquids?

No, the jar is not designed for hot liquids. Let them cool to room temperature before blending to avoid cracking or pressure buildup.

Why does my blender stop suddenly?

It may have overloaded. Unplug, let it cool for 15 minutes, reduce the load, and try again. The auto-shutoff protects the motor.

Can I crush ice with this blender?

Yes, for small amounts. Use pulse mode and add a little water to help the process. Do not overfill.

The blade is stuck. What should I do?

Unplug the blender. Remove the jar and check for food debris under the blade. Use a wooden spoon to gently dislodge. Do not force.

How do I replace the sealing ring?

Twist off the blade assembly from the jar. Remove the old sealing ring and fit a new one. Reattach the assembly tightly.

Can I use the blender without the lid?

No, always operate with the lid securely locked to prevent splashes and accidents. The motor will not start if the lid is not properly in place.

What is the maximum capacity for dry ingredients?

Do not exceed 200 ml for dry ingredients like nuts or coffee beans. Overloading may damage the blades or motor.

Is the jar microwave safe?

No, the plastic jar is not microwave safe. Use only for blending at room temperature or with cold ingredients.

Where can I find spare parts?

Contact Imarflex customer service or visit their website for spare parts. Use only genuine parts for safety.

USER MANUAL IB-350G Imarflex

MULTI

BLENDER

1250cc

CAPACITY

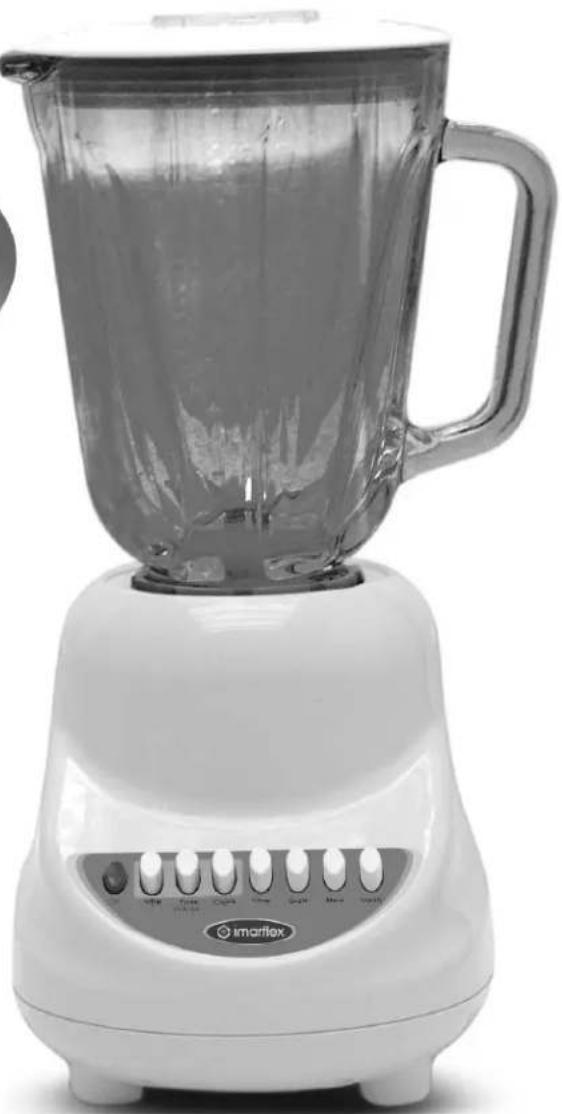

White portable blender with clear glass lid and control panel (no visible text or symbols)

SPECIFICATION

MODEL NO. : IB-350G

RATED VOLTAGE : 230Va.c. \~ 60Hz

POWER CONSUMPTION : 350watts

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions carefully.
2. Before using the unit, check if the voltage indicated corresponds with the convenience outlet (230Va.c.).
3. Do not use any appliance with a damaged cord or plug. If the cord is damaged it should be replaced with the same type and size or bring the unit to the nearest authorized service center.
4. Do not use two-way socket with other appliance.
5. Do not place the blender near gas stove, electric stove or electric burner.
6. Put the blender on flat stable surface, keep it away from the edge of counter to avoid accident.
7. Close supervision is necessary when any appliance is used by or near children.
8. To protect against electric shock, do not immerse the base in water.
9. Blade is sharp, handle it carefully.
10. Do not put the blade assembly on the base without the glass jar.
11. Do not use the blender if the glass jar has a crack.
12. Do not use the blender other than its intended use.
13. In case of malfunctions, please bring the unit to the nearest Authorized Imarflex Service Center.
14. For household use only.
15. Save this instruction for future reference.

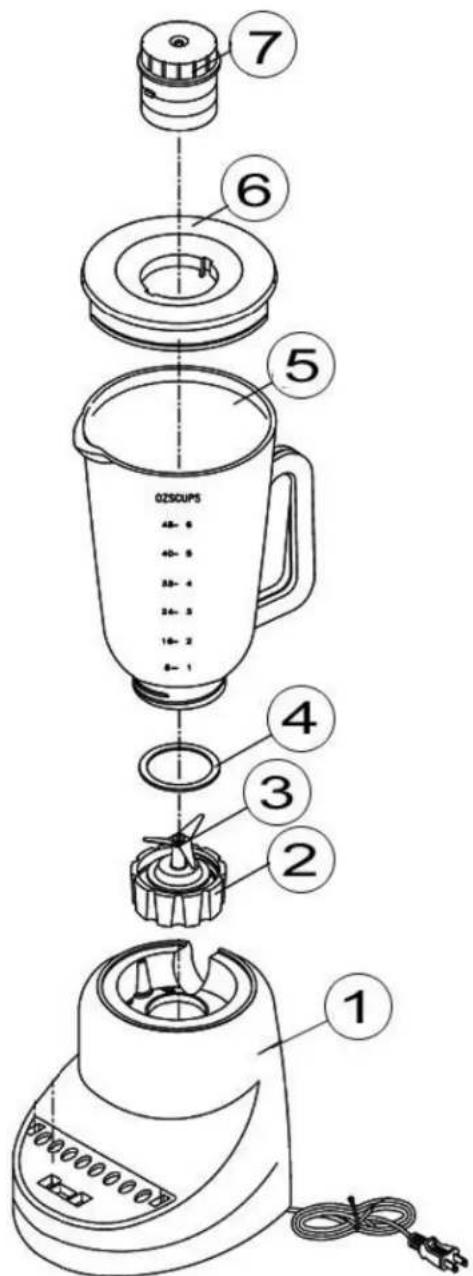

1. Motor Base
2. Blade Holder
3. Blade Assembly
4. Rubber Washer
5. Glass Jar
6. Lid
7. Syrup Cup

HOW TO USE

1. For initial use, wash all parts thoroughly, except the Motor Base (1).
2. Assemble Blade Holder (2), Blade Assembly (3), Rubber Washer (4) and Glass Jar (5); then fit it on top of the Motor Base (1).
3. Plug the unit into the convenience outlet.
4. Put the desired mixture (be sure to remove the seeds of the fruits/vegetables).
5. Insert the Syrup Cup (7) into the opening on the Lid (6), align the slots and turn clockwise to lock then cover the Glass Jar (5).

USEFUL TIPS

• To achieve the best results when pureeing solid ingredients, place small portions through the opening in the lid one by one.
• When mixing solid ingredients, start with a small amount of liquid. Gradually add more liquid through the opening in the lid.
• For blending solid or very thick liquid ingredients, we recommend that you use the blender in pulse mode to prevent the blades from stuck-up.

CLEANING AND MAINTENANCE

1. Unplug the unit from the convenience outlet before cleaning.
2. All parts are washable with soap and water except the Motor Base.
3. Wipe the Motor Base with damp cloth.
4. Wipe it all dry before storing the unit.
5. Do not use abrasive materials to avoid scratches.

REMINDER: Please do not forget to fill up and send the warranty card
