IB-300G - Blender Imarflex - Free user manual and instructions

Product Type	Blender
Brand	Imarflex
Model	IB-300G
Power Consumption	350 W
Power Supply	220-240 V, 50/60 Hz
Capacity	1.5 L (glass jar)
Speed Settings	2 speeds + pulse
Blade Material	Stainless steel
Housing Material	Plastic (BPA-free)
Dimensions (W x D x H)	20 x 18 x 35 cm
Weight	2.5 kg
Cord Length	1 m
Safety Features	Overload protection, non-slip feet
Cleaning	Hand wash recommended; detachable parts easy to clean
Dishwasher Safe Parts	Jar and lid (top rack)
Spare Parts Available	Replacement jar, blade assembly, lid, sealing ring
Reparability	Serviceable by qualified technician; common spare parts
Warranty	1 year
Included Accessories	Blender unit, glass jar, lid, tamper

Frequently Asked Questions - IB-300G Imarflex

How do I clean the blender jar?

For daily cleaning, fill the jar halfway with warm water and a drop of dish soap, then run the blender on pulse for 10 seconds. Rinse thoroughly. The jar and lid are top-rack dishwasher safe, but hand washing is recommended to preserve the seal.

Can I blend hot liquids?

No, do not blend hot liquids (above 60°C) as the pressure buildup may cause the lid to blow off and risk burns. Allow liquids to cool before blending.

Why does the blender stop during use?

The blender has an overload protection feature. If it stops, unplug it and let it cool for 10-15 minutes. Reduce the load or cut ingredients into smaller pieces before resuming.

Is the blender jar made of glass or plastic?

The IB-300G comes with a glass jar (1.5L capacity). Glass is durable and does not scratch easily, but handle with care to avoid breakage.

What is the maximum operating time?

Do not run the blender continuously for more than 1 minute. Allow it to rest for at least 2 minutes between cycles to prevent overheating.

Can I crush ice with this blender?

Yes, the stainless steel blades can crush ice. Use the pulse function and add ice cubes gradually for best results.

How do I replace the jar or blade assembly?

Ensure the blender is unplugged. Remove the jar from the base. For blade replacement, unscrew the retaining nut (counterclockwise) from the jar base. Replace the blade unit and tighten securely. Contact Imarflex for genuine spare parts.

Why is there a burning smell?

A burning smell may indicate overheating or overloading. Stop the blender immediately, unplug it, and allow it to cool. Clean any food residue from the motor base vents. If the problem persists, consult a qualified technician.

Can I use the blender to make dough?

No, this blender is not designed for heavy dough mixing. Use it for liquids, purees, smoothies, and light mixtures only.

Where can I find the user manual?

You can download the PDF manual for the Imarflex IB-300G for free from notice-facile.com or the official Imarflex website. It includes detailed instructions and recipes.

USER MANUAL IB-300G Imarflex

Black-and-white illustration of a imarflex blender with fruit and chocolate pieces inside, surrounded by fresh fruits and grapes (no text or symbols)

imarflex®

In Every Home.

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions thoroughly.
2. Before using the unit, check if the voltage indicated corresponds with the convenience outlet (230Va.c.).

3. Do not use the two-way socket with other appliance.

4. Do not use any appliance with a damaged cord or plug. If the cord is damaged it should be replaced with the same type and size or bring the unit to the nearest Imarflex Authorized Service Center.

5. Do not place the unit near a gas stove, an electric burner or in a heated oven.

6. Place the unit on stable surface; keep it away from the edge of counter to avoid accident.

7. Children should be supervised to ensure that they do not play with the appliance.

8. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.

9. The maximum continuous operating time of the blender is one minute only. Do not exceed with the maximum operating time. It may cause damage to the unit.

10. To protect against electric shock, do not immerse the base in water or any other liquid.

11. Extreme caution must be exercised when using an appliance containing hot liquid in the blender when blending as it can be ejected out of the appliance due to sudden steaming.

12. Use of accessories or equipment not supplied by the manufacturer may cause damage or malfunctioning of your appliance or result in injuries.

13. Use on a hard, flat level surface only, to avoid interruption of air flow underneath the appliance.

14. Carry or move the blender's jar only by its handle.

15. Switch off the appliance and unplug the unit before removing jar or accessories.

16. Blade is sharp, handle it carefully.

17. Do not put the blade assembly on the base without the jar.

18. Do not use the blender if the jar has a crack.

19. This appliance is not intended for outdoor use.

20. Never place the blender near hot surfaces.

21. In case of malfunctions, please bring the blender to the nearest Authorized Imarflex Service Center.

22. Avoid water spillage into the socket, connector, cord and alike.

23. Switch off the appliance before removing the glass jar into the motor base.

24. Do not use this unit other than its intended use.

25. For household use only; not intended for any business purposes

26. Save this instruction manual for future reference.

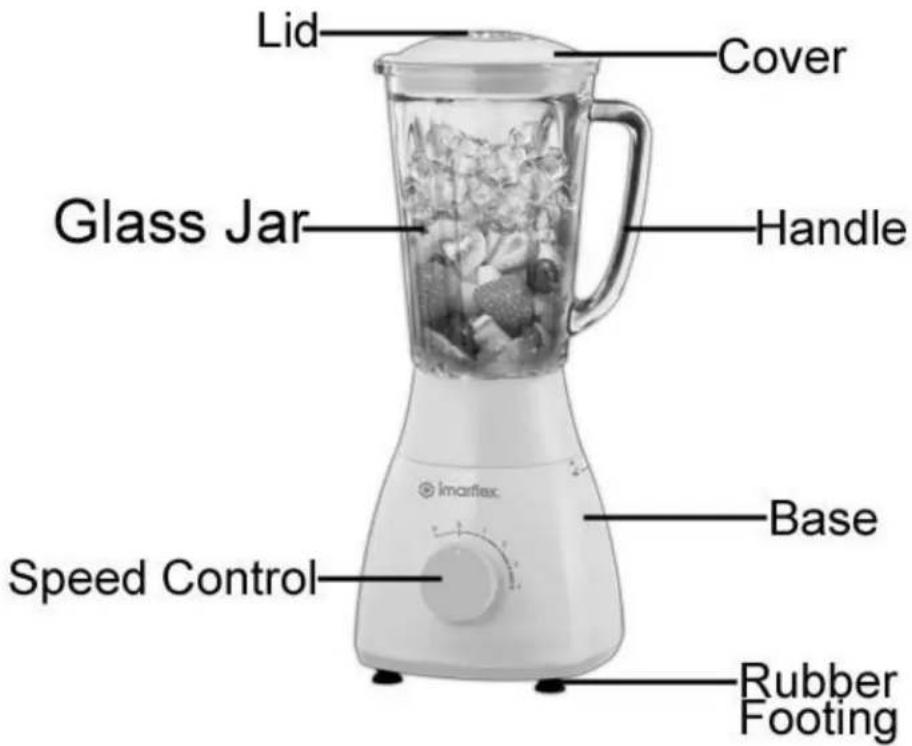

DESCRIPTION OF PARTS:

HOW TO ASSEMBLE:

IMPORTANT: The blender jar and blades are subject to wear during regular use. Always inspect the jar for nicks, chips or cracks. Always inspect blades for broken, bent or loose blades. Avoid using the jar or blades if damaged. Contact the Imarflex Authorized Service Center to obtain evaluation and repair.

Make sure that the blender is unplugged. Place blender base on clean, dry surface to keep foreign particles from being pulled up into motor during operation.

1. Place the rubber packing into the blade assembly and put the assembly into the jar support.
2. Assemble the jar support assembly into the glass jar.
3. Put the measuring cup into the lid.
4. Secure the lid into the glass jar and press down.
5. Put the glass jar on the motor base and press down until securely engaged.

HOW TO USE:

1. For initial use, wash glass jar with blade assembly thoroughly. "Please refer to cleaning and maintenance method #2". Wipe it dry.
2. Put the glass jar with blade assembly on the motor base.
3. Plug the unit into the convenience outlet.
4. Be sure to remove the seeds of the fruits/vegetables if needed.
5. Put the desired mixture.
6. Put the lid on the glass jar and close securely. Place the center lid into the hole of the lid and push down to lock.
7. Plug the unit into the convenience outlet.
8. Select the pulse function first to crack the ice.

9. Select the desired speed.

10. Speed 1 & 2 – Function is for blending soft vegetables, soft fruits or any light mixture

11. Speed 3 & 4 – Function is for blending hard vegetables and hard fruits or if you desire to blend smoothie or any alike.

12. Pulse – It is the function to crush the ice.

13. Additional ingredients can be added through opening in the lid.

14. Turn OFF and unplug the unit after every use.

NOTE:

(1) Some electric smell may be observed on first use.
(2) Maximum continuous operating time is 1 minute only.

CAUTION: Always put water or liquid in the jar to avoid damage to the unit. Use pulse function first, if you are blending with ice.

USEFUL TIPS:

• To achieve the best results when pureeing solid ingredients, place small portions through the opening in the lid one by one.
• When mixing solid ingredients, start with a small amount of liquid. Gradually add more liquid through the opening in the lid.
• For stirring solid or very thick liquid ingredients, we recommend that you use the blender in pulse mode to prevent the blades from being stuck.

CLEANING AND MAINTENANCE:

Motor Base

1. Unplug the unit from the convenience outlet.
2. Wipe or clean the outside surface with a damp or soft cloth.

NEVER IMMERSE MOTOR BASE IN WATER OR OTHER LIQUID.

1. Thoroughly clean speed selector knob so that it works freely. It will become sticky when in use. Use a damp cloth or sponge to flush and clean the groove around the water shielded switch. You may also lightly spray the surface around the switch with an all-purpose cleaner and work the switch back and forth a few times to loosen any dried residue under switch.
2. Polish with a soft cloth.
3. Always be sure to wring excess water out of cloth or sponge when cleaning around the controls or any electrical part.

Lid/Center Lid

Wash in warm soapy water. Rinse by a running water and dry. Reassemble before use.

Container and Blade Assembly:

Method #1

- After use, add warm water and a splash of vinegar to blender jar. Turn ON and let the blender work the liquid for about a minute. Pour out, rinse the blender jar well.

Method #2

- Fill the blender jar half way with warm water, add a small amount of liquid dish detergent and turn the unit ON for about 30 seconds. Repeat if needed. Rinse well.

Method #3

- If blender was left sitting until there is dried, crusty food bits inside: fill with warm, soapy water (or vinegar water) and let sit for about 30 to 60 seconds. Empty water to about half and then blend for 30 second intervals until clean.

1. Turn OFF the unit and wait for the blade and motor to stop.
2. Always unplug the unit after every use.
3. Remove the blade assembly by turning it counter-clockwise.
4. Wash the rubber packing and jar support with soap and water.
5. Turn the plastic jar upside down to remove excess water.
6. Wipe the plastic jar and blade with soft cloth to dry. Make sure to reassemble the unit properly before storing it.
7. Never leave food inside the blender jar for a long period of time.
8. Store the blender on a dry cool place.

NOTE: NEVER ALLOW THE BOTTOM OF THE BLADE TO GET WET.

TROUBLE SHOOTING:

PROBLEM	CAUSE	SOLUTION
Motor not working	1. Convenience outlet is not working.2. Damage on the unit	1. Check the outlet where the unit is plug in if it is working.2. Check for any damage.3. Bring the unit to the nearest Authorized Imarflex Service Center
Motor stop during operation	1. Overload protection activated	1. Unplug and let the unit rest for at least 1 minute
Smoke and burnt smell occurred	1. Unit is use for the first time	1. Its normal for the first use
Leak on the bottom of the jar	1. Rubber packing is not properly install2. Rubber was damaged	1. Turn OFF the unit. Remove the jar and check the rubber. Reassemble the unit.2. Replace the rubber with the new one.3. Bring the unit to the nearest Authorized Imarflex Service Center.
Attachment not functioning	1. Not properly install	1. Turn off the unit and check the assembly

REMINDER: Please do not forget to fill up and send the warranty card with receipt to our email address [e-mail]

Distributed By: Evergood Unlimited Corp.

901 G.Masangkay St., Manila

Made in China
