Product Type	Blender
Brand	Imarflex
Model	IB-350P
Power Consumption	350 W
Capacity	1.5 L
Jar Material	Glass
Blade Material	Stainless steel
Speed Settings	2 speeds + pulse
Functions	Blending, mixing, pureeing, crushing ice
Safety Features	Overload protection, non-slip feet, safety lock
Cleaning	Detachable parts, dishwasher safe jar
Dimensions (H x W x D)	35 x 20 x 25 cm
Weight	2.5 kg
Voltage	220-240 V, 50/60 Hz
Cord Length	1.0 m
Warranty	1 year
Included Accessories	Blender jar, lid, measuring cup

Frequently Asked Questions - IB-350P Imarflex

What is the capacity of the Imarflex IB-350P blender?

The blender has a 1.5 liter glass jar, suitable for preparing smoothies, soups, and sauces for up to 4 people.

Can I crush ice with this blender?

Yes, the stainless steel blades and pulse function allow for efficient ice crushing. Add ice cubes gradually and use the pulse setting for best results.

How do I clean the blender jar?

The glass jar and lid are dishwasher safe. Alternatively, fill the jar with warm water and a drop of dish soap, then blend on high for 30 seconds, and rinse thoroughly.

Is the blender jar made of glass or plastic?

The jar is made of glass, which is more durable and resistant to stains and odors compared to plastic.

What safety features does the IB-350P have?

It includes a safety lock that prevents operation if the jar is not properly attached, non-slip feet for stability, and overload protection to prevent motor burnout.

Can I blend hot liquids?

The glass jar can handle hot liquids up to 80°C, but always remove the filler cap to allow steam to escape and blend in short pulses to avoid pressure buildup.

What is the power consumption of the blender?

The motor operates at 350 watts, providing sufficient power for daily blending tasks like smoothies and purees.

Are replacement parts available?

Yes, you can order spare parts such as the glass jar, lid, blade assembly, and measuring cup from Imarflex customer service or authorized dealers.

How do I use the pulse function?

Press and hold the pulse button for short bursts of power. Release to stop. This is ideal for chopping ingredients or controlling texture.

What is the warranty period?

The Imarflex IB-350P comes with a 1-year warranty against manufacturing defects. Keep your purchase receipt for service.

USER MANUAL IB-350P Imarflex

2 in 1 Ice Crusher & Blender

SPECIFICATION

MODEL NO. : IB-350P

RATED VOLTAGE : 230Va.c. \~ 60Hz

POWER CONSUMPTION : 350 Watts

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions carefully.
2. Before using the unit, check if the voltage indicated corresponds with the convenience outlet (230Va.c.).
3. Do not use two-way socket with other appliance.
4. Do not use any appliance with a damaged cord or plug. If the cord is damaged it should be replaced with the same type and size or bring the unit to the nearest lmarflex Authorized Service Center.
5. Do not place the unit near gas stove, electric stove or in a heated oven.
6. Put the unit on flat stable surface; keep it away from the edge of counter to avoid accident.
7. Children should be supervised to ensure that they do not play with the appliance.
8. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.
9. To protect against electric shock, do not immerse the base in water.
10. Blade is sharp, handle it carefully.
11. Do not put the blade assembly on the base without the plastic jar.
12. Do not use the blender if the plastic jar has a crack.
13. Do not use the unit for outdoor use.
14. Do not use this unit other than its intended use.
15. For household use only.

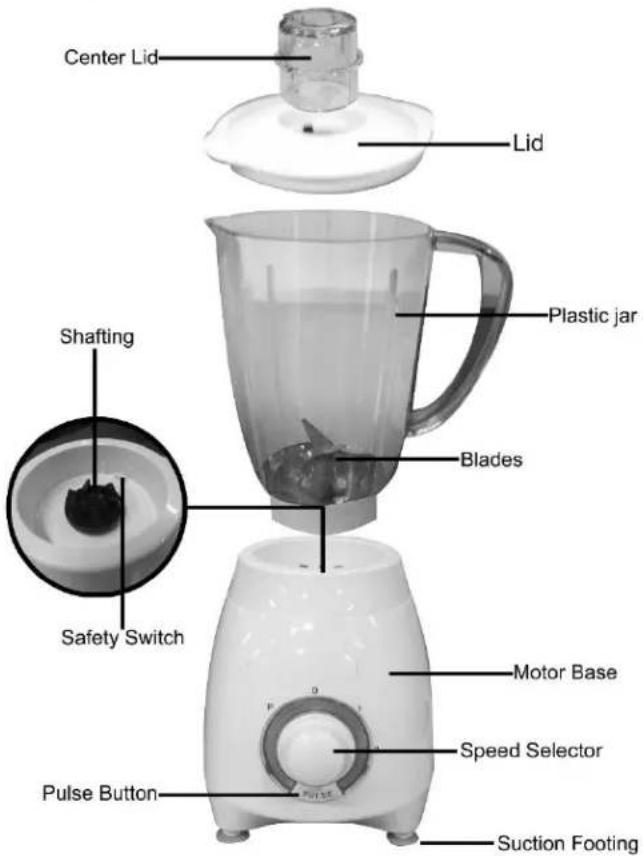

DESCRIPTION OF PARTS

HOW TO ASSEMBLE

1. Make sure that the blender is switched OFF.
2. Place the Plastic Jar with Blade Assembly on the Motor Base and press down until securely engaged.
3. Put the Center Lid on the Lid.
4. Secure the Lid into the Plastic Jar and press down.

HOW TO USE

1. For initial use, wash plastic jar with blade assembly thoroughly.
2. Put the plastic jar with blade assembly on the motor base.
3. Plug the unit into the convenience outlet.
4. Be sure to remove the seeds of the fruits/vegetables.
5. Put the desired mixture.
6. Put the lid on the plastic jar and close securely. Place the center lid into the hole of the lid and turn clockwise to lock.
7. Switch to pulse or press the pulse button, to crack the ice cube or ice tube and then set the desired speed.
8. Additional ingredients can be added through opening in the center lid.
9. Maximum single operation should be up to 1 minute only.
10. After use switch OFF and unplug the unit from the convenience outlet.

Note: This unit is designed with a safety feature. If the Plastic Jar is not properly fitted into the Motor Base, this unit will not function.

NOTE: Maximum continuous operation time is 1 minute.

Some electric smell may be observed on first use.

The unit has an overload protection, motor will automatically stop when it gets hot. Unplug the unit then let it rest for at least 5 minutes.

CAUTION: When using cube ice or tube ice, use the pulse speed first before setting to desired speed.

SPEED SETTING GUIDE

SPEED	USE
Low	for light usage with liquids
High	for more solid consistency – for mixing liquids and solid foodstuffs
Pulse	for ice crushing & short, powerful impulse movements

USEFUL TIPS

• To achieve the best results when pureeing solid ingredients, place small portions through the opening in the lid one by one.
• When mixing solid ingredients, start with a small amount of liquid. Gradually add more liquid through the opening in the lid.
• For stirring solid or very thick liquid ingredients, we recommend that you use the blender in pulse mode to prevent the blades from stuck up.

CLEANING AND MAINTENANCE

1. To remove some remaining food in the jar, put at least 1 cup of water.
2. Switch to pulse function and run the unit for at least 10 seconds or as desired
3. Unplug the unit from convenience outlet.
4. Plastic jar with blade assembly, lid and center lid can be washed using soap and water.
5. Wipe the base of the unit with damp cloth.
6. Do not use abrasive materials to avoid scratches.

REMINDER: Please do not forget to fill up and send the warranty card

Save this instruction manual for future reference.
