08ESK - Ceiling fan KDK - Free user manual and instructions

Product Type	Ceiling Fan
Brand	KDK
Model	08ESK
Installation Height	2.5 m (minimum blade height above floor: 2.3 m)
Power Supply	AC 110 V, 50/60 Hz
Speed Settings	High and Low (2 positions)
Air Direction	Adjustable air direction shift plate
Noise Measurement	Measured in sound-proof room at 45° below air outlet, 1.5 m distance
Outlet Velocity	Maximum value (refer to specification table)
Mounting Plate	Included with M8 bolts, washers, spring washers, nuts (6 sets)
Mounting Holes	8 holes (ø8 mm wood screws) and 6 holes (M8 bolts)
Material	Resin parts, metal mounting plate
Safety Features	Not intended for unsupervised use by young children or infirm persons
Cleaning	Do not use gasoline, benzine, thinner, kerosene, alcohol, or metal brush
Disconnection	Fixed wiring must include a means for disconnection with at least 3 mm contact separation
Installation Requirement	Install on sturdy, vibration-free surface indoor; horizontal; at least 50 mm from ceiling
Operating Temperature Range	-10°C to 50°C
Humidity Limit	Below 95% RH, no steam
Country of Origin	China
Disposal	Recycle materials as per local regulations; consult manufacturer for motor disassembly

Frequently Asked Questions - 08ESK KDK

What is the recommended installation height for the KDK 08ESK ceiling fan?

The recommended installation height is 2.5 m for effective air distribution. The blades should be at least 2.3 m above the floor for safety.

Can I install the fan on a sloped ceiling?

No, the unit must be installed horizontally. Do not install on a sloped ceiling.

What are the speed settings available?

The fan has two speed settings: High and Low, controlled by a switch on the unit.

How do I clean the fan?

Turn off the power before cleaning. Use only a soft cloth and mild detergent. Do not use gasoline, benzine, thinner, kerosene, alcohol, or metal brush.

Is the fan safe for use in bathrooms or kitchens?

No, the fan should not be installed where humidity exceeds 95% or where steam, oil smoke, or corrosive gases are present.

Can I operate multiple fans in parallel?

Yes, multiple units can be installed in parallel. Leave 20-40 mm gaps between units and follow the wiring diagram for parallel operation.

What should I do if the power cord is damaged?

The supply cord must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid hazard.

Does the fan come with mounting hardware?

Yes, the package includes 6 sets of M8 x 60L bolts, washers, spring washers, and nuts for mounting the mounting plate.

How do I adjust the air direction?

Use the air direction shift plate to adjust the airflow direction according to your needs.

What is the warranty period for the KDK 08ESK?

Warranty details are not specified in the manual. Please contact KDK or your retailer for warranty information.

USER MANUAL 08ESK KDK

Operating Instructions

使用說明書

Technical line drawing of a rectangular mechanical part with internal grooves and a central slot (no text or symbols)

Before installing this set, please read these instructions completely.

8 mounting holes (ø8 mm wood screws are used)

8個安裝螺釘孔（使用ø8mm木螺釘）

6 mounting holes (M8 bolts are used)

6個安裝孔（使用MB螺栓）

When discarding this product,

refer to the table as shown on

the left and recycle the

materials as much as possible.

For disassembling of the motor,

consult the manufacturer.

注意

I. Bolt for mounting plate ....6pcs. (M8 x 60L)
2. Washer 6pcs.
3. Spring washer 6pcs.
4. Nut (M8) 6pcs.

附件

1. 固定螺栓 .... 6pcs. (M8 × 60L)
2. 堆圈 6pcs.
3. 弹簧垫圈 6pcs.
   4.螺帽(M8) 6pcs.

ACCESORIOS

• The unit is not intended for use by young children or infirm persons without supervision.

• Young children should be supervised to ensure that they do not play with the appliance.
  * Keep the following points in mind for improving the performance of the air curtain.

• Install the unit in a sturdy place free from vibration. (It may otherwise cause resonance or noise or even damage to the parts.)

• Install the unit on the indoor side. (Fig. 1)

• The installation height is as shown in the table below. If the unit is installed too low or too high, sufficient effects will not be obtained.

• Match the air outlet position with the lowest position of the installation location when installing the unit.

• When the entrance is wider than the air curtain, it is recommended to install two or more units in parallel. In this case, provide 20 - 40 mm gaps between the air curtain units. (Fig. 2)

• Do not allow gaps between the air curtain unit and the wall.

• Do not install and use the unit in places where:

- Temperature may exceed 50°C or lower below -10°C.

• Freezing may occur.

- Excessive humidity is produced (95% or more) and steam is produced.

- Oil smoke is produced.

- Explosive dust and gas is or may be produced.

• Corrosive gas is produced.

- It is splashed by water.

1. Install the unit horizontally.

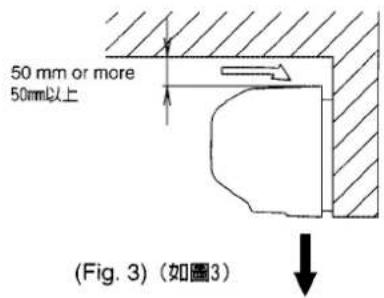

2. Provide 50 mm or more space between the top of the unit and the ceiling. (Fig. 3)

3. The unit should be installed so that the blades are more than 2.3 m above the floor.

(Fig. 1) (如圖1)

Model型號	Installation height有效遮斷距離
08ESK08ELK	2.5m
10ESK10ELK	3.0m
12ESK12ELK	3.5m
14ESK14ELK	4.0m

(Fig. 2) (如圖2)

1. Remove the mounting plate. It can be removed by loosening the setscrews on the back of main body. (Fig. 4)
2. Secure the bolts in the proper positions. Decide the positions on the wall surface by use of the mounting plate and pour cement into the bolt holes. (Fig.5)
3. When the cement has hardened, fit the mounting plate. Use the washer and nut in the way as shown. (Fig. 6)
4. Install the main body. Set the main body onto the upper end of the mounting plate and secure it as shown on the right. (Fig. 7)

A) 安装於牆壁上：

Partition plates (prepared by the customer)

Provide them at four sides.

分隔板（由客戶準備）設在四側

Contact the grille manufacturer for dimension H.

關於尺寸H，請與格栅製造商聯繫

1) Turn ON the power switch.
2) The switch has 2 positions of High and Low.
3) Adjust the air direction shift plate according to the conditions. (Fig. 9)

* Make sure that the supply voltage is the same as the specification before the electric work.

• It is recommended to install a main switch for power supply.
• If a stationary appliance is not provided with a means for disconnection from the supply mains having a contact separation of at least 3mm in all poles, the means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.

A) Individual operation

Connect the power supply cord to an AC outlet.

• The green/yellow wire is provided for grounding.

B) Operation of multiple units in parallel

• One method of electric work for parallel operation is shown in Fig. 10.

1) Be sure to turn OFF the power switch before checking or cleaning the unit.

2) Never use gasoline, benzine, thinner, kerosene, alcohol, fungicide, or metal brush for cleaning the unit.

3) Do not expose electrical parts to water.

4) Do not use household synthetic detergent (alkali) or the one for furniture as it may discolor or deteriorate the resin parts.

5) For removal of parts, refer to Fig. 11.

6) If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

1）檢查和保養清洗前請切斷所有電源。

The values in the specification tables are representative characteristic values at 110 V 50 Hz and an ambient temperature of 20°C.

The noise values were measured in a sound-proof room at angle of 45^ below the air outlet, from a distance of 1.5 meters.

The outlet velocity shows maximum value.

注意

The values in the specification tables are representative characteristic values at 110 V 60 Hz and an ambient temperature of 20°C.

The noise values were measured in a sound-proof room at angle of 45° below the air outlet, from a distance of 1.5 meters.

The outlet velocity shows maximum value.

注意：

KDK Company, Division of PES

Head Office: 4017, Takaki-cho, Kasugai, Aichi, Japan

Printed in China

中國印刷

Impreso en China

C0300-6098 08ESK0412F
