SERIE 5-1500 - Oven Sauber - Free user manual and instructions
Find the device manual for free SERIE 5-1500 Sauber in PDF.
| Product type | Electric built-in oven |
| Brand & model | Sauber SERIE 5-1500 |
| Dimensions (H x W x D) | 85 x 60 x 60 cm |
| Weight | 35 kg |
| Power supply | 220-240 V, 50 Hz |
| Power consumption | 2500 W |
| Energy class | A+ |
| Capacity | 70 L |
| Functions | Conventional, Fan-assisted, Grill, Defrost, Pizza, Slow cooking |
| Cleaning | Easy-clean enamel interior, removable door glass |
| Safety features | Child lock, automatic shut-off, cool-touch door |
| Spare parts availability | Available from manufacturer or authorized service centers |
| Warranty | 2 years |
Frequently Asked Questions - SERIE 5-1500 Sauber
User questions about SERIE 5-1500 Sauber
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Oven in PDF format for free! Find your manual SERIE 5-1500 - Sauber and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SERIE 5-1500 by Sauber.
USER MANUAL SERIE 5-1500 Sauber
Line drawing of a portable oven with three circular vent indicators on the right side (no text or symbols)Please read the manual carefully before use. Keep them for further reference.
HOUSEHOLD USE ONLY
IMPORTANT SAFEGUARDS
When using an electrical appliance, basic safety precautions should always be followed, including the following:
- Read all instructions.
- Do not touch hot surfaces.
- Close supervision is necessary when any appliance is used by or near children.
- To protect against electric shock, do not place any part of the electric oven in water or other liquid.
- Do not let cord hang over edge of table or counter, or touch hot surfaces.
- Do not operate appliance with damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner, return appliance to the nearest Authorized Service Center for examination, repair, or adjustment.
- The use of accessory attachments not recommended by the appliance manufacturer may cause hazard or injury.
- When operating the oven, keep at least four inches of space on all sides of the oven to allow for adequate air circulation.
-
Unplug from outlet when not in use, or before cleaning. Let it to cool before putting on or taking off parts, or before cleaning.
-
To disconnect, return the unit to standby mode, then unplug the plug. Always hold the plug, but never pull the cord.
-
Do not cover any part of the oven with metal foil. This may cause overheating of the oven.
-
Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts, creating a risk of electric shock.
-
Oversized foods or metal utensils must not be inserted in a electric oven as they may create a fire or risk of electric shock.
-
A fire may occur if the oven is covered or touching flammable material, including curtains, draperies, walls, and the like, when in operation. Do not store any item on the oven during operation.
-
Extreme caution should be exercised when using containers constructed if anything other than metal or glass.
-
Do not place any of the following materials in the oven: cardboard, plastic, paper, or anything similar.
-
Do not store any materials, other than manufacturer's recommended accessories, in this oven when not in use.
-
Always wear protective, insulated oven mitts when inserting or removing items from the hot oven.
-
This appliance has a tempered, safety glass door. The glass is stronger than ordinary glass and more resistant to breakage. Tempered glass can break, but the pieces will not have sharp edges. Avoid scratching door surface or nicking edges. If the door has a scratch or nick, contact our consumer relations line before using the oven.
-
Do not use outdoors.
-
Do not use appliance for other than intended use.
-
This appliance is for HOUSEHOLD USE ONLY.
-
The temperature of the door or the outer surface may be higher when the appliance is working.
-
Protect against hurt by sharp edge when action.
-
Temperature of accessible surfaces may be high when the appliance is operating.
-
Do not rest cooking utensils or baking dishes on glass door.
-
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
-
Children should be supervised to ensure that they do not play with the appliance.
-
The weight of the food which is put on the Food Tray/Wire rack can not be over 3.0kg. (just for reference) (The food can not concentrate on one side of the Food Tray/Wire rack, you would better try you best to make the food put on the Food Tray/Wire rack evenly).
-
For appliance with type Y attachment, if the supply cord is damaged, it must be replaced by the manufacturer, its services agent or similarly qualified persons in order to avoid a hazard
-
Rear surface of appliances should be placed against a wall.
-
WARNING: This appliance includes a heating function. Surfaces, other than the functional surfaces may develop high temperatures. Since temperatures are perceived differently by different people, this device should be used with CAUTION. Hold the appliance exclusively to grip surfaces intended to hold and use such heat protection measures as heat protection Gloves or pot holders. Areas which are not intended to grips must be given sufficient time to cool.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
- Turn the timer knob to "off" position to shut off the appliance.
- Appliances are not intended to be operated by means of an external timer or separate remote-control system
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Children shall not play with the appliance.
- Cleaning and user maintenance shall not be made by children without supervision.
- Keep the appliance and its cord out of reach of children less than 8 years.
CAUTION: APPLIANCE SURFACES ARE HOT AFTER USE.ALWAYS wear protective, insulated oven gloves when touching hot oven or hot dishes and food, or when inserting or removing rack, pans or baking dishes.
SAVE THESE INSTRUCTIONS
Before Using Your Electric Oven
Before using your convection electric oven for the first time, be sure to :
- Unpack the unit.
- Remove all racks and pans. Wash the racks and pans in hot sudsy water or in dishwasher.
- Thoroughly dry all accessories and re-assemble in oven. Plug oven into outlet and you are ready to use your new Electric Oven.
- After re-assembling your oven, we recommend that you run it at MAX temperature for approximately 15 minutes to eliminate any packing oil that may remain after shipping.
COMPONENTS:
Please familiarize yourself with the following oven functions and accessories prior to first use:
☐ Wire rack: For toasting, baking, and general cooking in casserole dishes and standard pans.
Food Tray: For use in broiling and roasting meat, poultry, fish, and various other foods.
☐ Rotisserie Fork: Use to roast a variety of meats and poultry.
☐ Rotisserie Handle: Allow you to pick up rotisserie fork.
Food Tray Handle: Allow you to pick up tray or rack.
☑ Crumb tray: For collecting fallen oil or crumb.
☐ Thermostat knob: choose desired temperature from Low-90°C-230°C (Low is cooking at room temperature).
☐ Timer knob: turn control to the left (counter-clockwise) and the oven will STAY ON until manually shut off. To activate timer, turn to right (clockwise) for other use. A bell will sound at end of programmed time.
☑ Function knob: turn the knob to set the desired cooking function ( □ standby mode, 📁 upper and lower heating elements + convection , 📋 upper heating elements + convection, 📄 upper heating elements + lower heating elements , 🌐 upper heating elements + rotisserie , 🌘 upper and lower heating elements + convection + rotisserie)
ROTISSERIE FORK USING TIPS
-
Insert the fork into the rod until near the end of the rod and then secure with thumbscrew
-
Insert the food from the other side of the rod.
-
Place second fort into other side of the rod, and then secure with thumbscrew. Check that the food is in the center of the rod firmly.
-
Insert the rod with food into the oven. Insert the one side of the rod into the support-hole of the oven. And then place the other side of the rod onto the support-bracket of the oven.

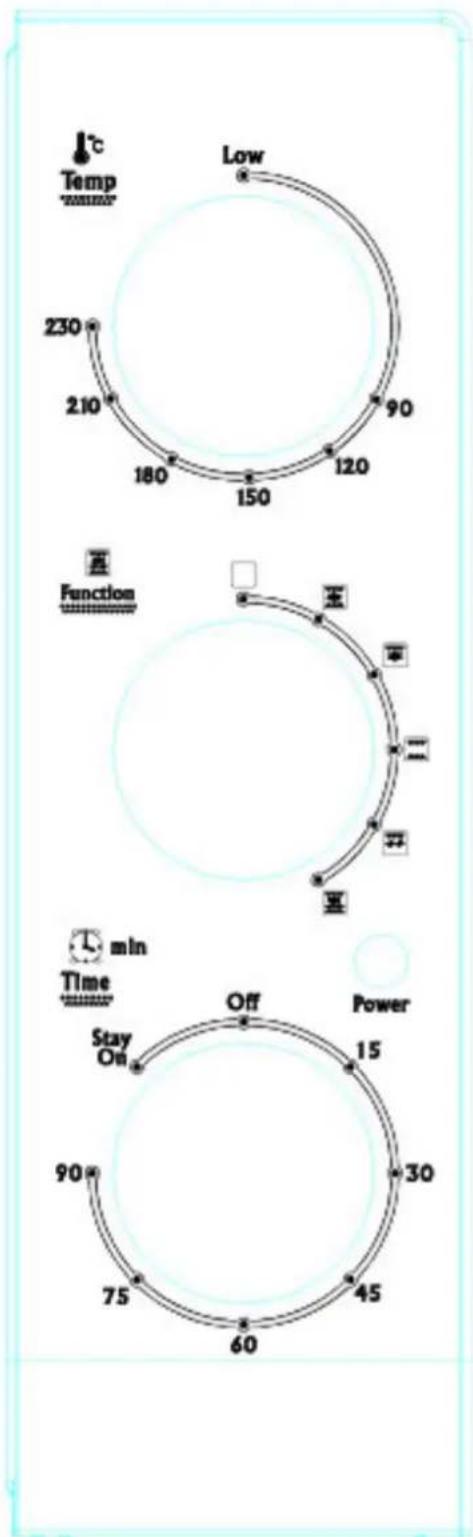

CONTROL PANEL
OPERATION INSTRUCTIONS
1. FUNCTION
This function is ideal for baking pork slice, chicken legs, chicken wings, potato flakes, poultry meat, chops, fish and so on with more evenly heating up.
Note: All toasting times are based on meats at refrigerator temperature. Frozen meats may takes considerably longer. Therefore, use of a meat thermometer is highly recommended.
Operation
(1) Place the food to be cooked on the food tray/wire rack. Insert the food tray /wire rack into the middle support guide of the oven.
(3) Turn the Function knob to ☐ & ☐
(4) Set the Thermostat knob to the desired temperature as needed or recipe.
(5) Set the Timer knob to the desired cooking time.
(6) Check the baked goods for doneness 5\~10 minutes before expected completion.
(7) When toasting is complete, a bell will sound and the Timer knob will back to the Off position automatically. Open the door completely and remove the food, or the heat remaining in the oven will continue to toast and dry out your food.
CAUTION: Cooked food, metal rack/tray, and door can be very hot, handle with care. Do not leave the Oven unattended.
2. FUNCTION
This function is ideal for cooking bread, pizza, and fowl in general.
Operation
(1) Place the food to be cooked on the food tray/wire rack. Insert the food tray /wire rack into the middle support guide of the oven.
(3) Turn the Function knob to
(4) Set the Thermostat knob to the desired temperature as needed or recipe.
(5) Set the Timer knob to the desired cooking time
(6) To check or remove food, use a handle to help side food in and out.
(7) When toasting is complete, a bell will sound and the Timer knob will back to the Off position automatically. Open the door completely and remove the food immediately or the heat remaining in the oven will continue to toast and dry out your toast, or the heat remaining in the oven will continue to toast and dry out your food.
CAUTION: Cooked food, metal rack/tray, and door can be very hot, handle with care.
3. FUNCTION
This function is ideal for cooking whole chickens and fowl in general.
Note: All toasting times are based on meats at refrigerator temperature. Frozen meats may takes considerably longer. Therefore, use of a meat thermometer is highly recommended.
Operation
(1) Place whole chicken on the rotisserie rod and fixed by the fork both side, insert the rod into the rotisserie hole position and close the door.
NOTE: Need put the Food tray at bottom rack slot to collect oil drip during cooking, and put some water in food tray before cooking, it will make good effect for rotisserie.
(2) Turn the Function knob to
(3) Set the Thermostat knob to the desired temperature as needed or recipe.
(4) Set the Timer knob to the desired cooking time.
(5) Check the baked goods for doneness 5\~10 minutes before expected completion.
(6) When toasting is complete, a bell will sound and the Timer knob will back to the Off position automatically. Open door completely and remove the food, or the heat remaining in the oven will continue to toast and dry out your food.
CAUTION: Cooked food, metal tray/rod, and door can be very hot, handle with care. Do not leave the Oven unattended.
MAINTENANCE INSTRUCTIONS
This appliance requires little maintenance. It contains no user serviceable parts. Do not try to repair it yourself. Contact a qualified appliance repair technician if the product requires servicing.
CLEANING INSTRUCTIONS
CAUTION: To protect against electrical shock, DO NOT IMMERSE THE OVEN IN WATER OR ANY OTHER LIQUIDS.
Your toaster oven should be cleaned regularly for best performance and long life. Regular cleaning will also reduce the risk of fire hazard.
- Remove plug from electrical outlet. Allow it to cool.
- Remove the Removable Rack, Tray by pulling out of the oven. Clean them with damp, soapy cloth. Make sure to only use mild, soapy water.
-
To clean inside of oven, wipe the oven walls, bottom of oven, and glass door with a damp, soapy cloth. Repeat with a dry, clean cloth.
-
Wipe outside of oven with a damp cloth.
CAUTION: DO NOT USE ABRASIVE CLEANERS OR METAL SCOURING PADS. Make sure to only use mild, soapy water. Abrasive cleaners, scrubbing brushes and chemical cleaners will damage the coating on this unit. Pieces can break off the coating and touch electrical parts involving a risk of electrical shock.
-
Allow the appliance to cool and dry completely before storing. If storing the oven for long periods of time, make certain that the oven is clean and free of food particles. Store the oven in a dry location such as on a table or countertop or cupboard shelf. Other than the recommended cleaning, no further user maintenance should be necessary.
-
Any other servicing should be performed by an authorized service representative.
TO STORE
Unplug unit, allow it to cool, and clean before storing. Store the Electric Oven in its box in a clean, dry place. Never store appliance while it is hot or still plugged in. Never wrap cord tightly around the appliance. Do not put any stress on the cord where it enters the unit, as it could cause the cord to fray and break.
SPECIFICATION:
| Model | Serie 5-1500 |
| Rated voltage | 220-240V |
| Rated frequency | 50-60Hz |
| Rated power | 1500W |
| Oven capacity | 30Litres |
| Household use only, DO NOT IMMERSEIN WATER | |
| Eelect. Sauber España s.l | |
Brand : Sauber
Model : SERIE 5-1500
Category : Oven
