Product Type	Range Hood (Wall Canopy)
Brand	Eurotech
Model	ED-RHW60WH
Width	60 cm
Installation Height	650-750 mm above cooking surface
Venting Type	Convertible (Ducted or Recirculation)
Duct Direction	Vertical (Ducted) or Recirculation
Grease Filter	Washable
Charcoal Filter	Optional (for recirculation mode)
Maximum Hob Elements	4
Suitable For	Indoor household use
Included Accessories	Damper flap, user manual
Electrical Safety	Disconnect power before cleaning or servicing
Maintenance - Grease Filter	Wash monthly with mild soap
Maintenance - Charcoal Filter	Replace every 3-6 months (cannot be washed)
Safety Warning	Accessible parts may become hot; do not touch light bulb within 30 minutes of use
Safety Warning	Do not flambé under the hood
Safety Warning	Ensure adequate ventilation when used with gas or other fuel-burning appliances
Installation	Must be installed by qualified person according to local codes
Disposal	This product should not be disposed with household waste; recycle responsibly
Compliance	WEEE compliant

Frequently Asked Questions - ED-RHW60WH Eurotech

How to install the Eurotech ED-RHW60WH range hood?

Turn off power before installation. Use two assistants. Tools required: drill, screwdrivers, tin snips, measuring tape. Recommended installation height is between 650mm and 750mm above the hob. Drill 4 pilot holes for keyhole screws and hang the hood. Secure with additional screws in security holes. For ducted mode, connect ductwork; for recirculation, install charcoal filter. Ensure all connections are tight.

What is the recommended installation height for this hood?

The bottom of the range hood should be installed between 650mm and 750mm above the cooking surface (heating elements or burners) for optimal performance and safety.

Can the ED-RHW60WH be used in recirculation mode?

Yes, the hood is convertible for recirculation. You do not need to remove duct knockouts; instead, remove the mode block at the position indicated in the manual and insert it for ducted operation. For recirculation, you must install charcoal filters (sold separately) and ensure the hood is vented back into the kitchen.

How do I clean the grease filter?

Disconnect the hood from power. Remove the grease filter and wash it with mild soap or detergent. Do not use harsh alkalis, abrasives, scouring powders, or dishwasher compounds. Rinse and dry thoroughly before reinstalling. Clean monthly for best performance.

How often should the charcoal filter be replaced?

Charcoal filters cannot be cleaned and must be replaced regularly, typically every 3 to 6 months depending on usage. Replace more often if cooking heavy odorous foods.

What safety precautions should I take when using this range hood?

Always disconnect power before cleaning. Do not touch light bulbs within 30 minutes after use. Do not flambé under the hood. Ensure adequate ventilation when using gas appliances. Keep children supervised. Install the hood at least 650mm above the hob.

Can this hood be used with a gas cooktop?

Yes, but ensure the room has adequate ventilation. The negative pressure in the room must not exceed 4 Pa when the hood and gas appliances are used simultaneously. Follow local regulations for air discharge.

What is the maximum number of hob elements for this hood?

The range hood is designed to be installed over a hob with no more than four hob elements (burners or induction zones).

How do I change the ducting direction from vertical to recirculation?

For vertical ducted mode, open the ducting knockout by prying with a flathead screwdriver and ensure the other knockout remains closed. For recirculation, do not remove any knockouts; instead, remove the mode block at the position indicated in Figure 5 for ducted, or leave it for recirculation (Figure 4). Install charcoal filter for recirculation.

What to do if the range hood is not working?

First, check if the power cord is plugged in and the outlet is working. Ensure the circuit breaker hasn't tripped. Verify that the hood is properly installed and the controls are set. If it still doesn't work, contact a qualified technician. Do not attempt to repair the unit yourself.

USER MANUAL ED-RHW60WH Eurotech

EUROTECH 60CM WALL CANOPY RANGEHOOD

ED-RHW60WH

INSTRUCTION MANUAL

PLEASE READ THIS MANUAL CAREFULLY BEFORE USING YOUR PRODUCT AND KEEP IT FOR FUTURE REFERENCE.

Information and advice

CAUTION: Accessible parts may become hot when used with cooking appliances.

In certain circumstances electrical appliance may be a danger hazard.

A) There must be adequate ventilation of the room when the cooker hood is used at the same time as appliances burning gas or other fuels.
B) Do not check the status of the filters while the cooker hood is operating.
C) Do not touch the light bulb within half an hour after appliance has been use.
D) Do not light a flame under the cooker hood.
E) Avoid opening gasometer when there is no pan on the stove, as it is damaging for the filters and a fire hazard.
F) Constantly check food frying to avoid overheated oil splashing and becoming a fire hazard.
G) Disconnect the electrical plug prior to any maintenance.
H) Regulations concerning the discharge of air have to be fulfilled.
I) When the range hood and appliances supplied with energy Other than electricity are simultaneously in operation. The negative pressure in the room must not exceed 4 Pa ( 4 × 10^-5 bar)

Information and advice

CAUTION: Accessible parts may become hot when used with cooking appliances.

J) If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

K) This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

L) The range hood is intended to be installed over a hob having no more than four hob elements.

M) Indoor use and household use only

N) When the appliance is not in use and before cleaning, unplug the appliance from the outlet.

O) Attention! Observe the warning in the instruction sheet concerning the operation of the appliance when air is discharged from the room

P) There is a fire risk if cleaning is not carried out in accordance with the instructions.

Information and advice

CAUTION: Accessible parts may become hot when used with cooking appliances.

Q) The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room.
I) Children should be supervised to ensure that they do not play with the appliance.
S) Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
T) The installation height of hood shall not be less than 65cm.
U) The filter screen must be cleaned regularly, otherwise there is a danger of fire.
V) The installation must be carried out according to the screws and positions required by the instructions, which will easily damage the connecting wires.

Know your cooker hood

Please read these instructions before using your cooker hood

1. Air duct assembly 2. Main body
2. Filter assembly

Also included:

*Damper flap
*User instructions

i

Information

Congratulations on the purchase of our Cooker hood, which is designed to include many superior features that permit you the fullest expression of your living.

Before installing and/or using the cooker hood carefully read all the instructions.

Selection of Venting Direction

Fully convertible for vertical, ductless operation.

Information

The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels. Regulations concerning the discharge of air have to be fulfilled.

Vertical discharge

Vertical is the most common.

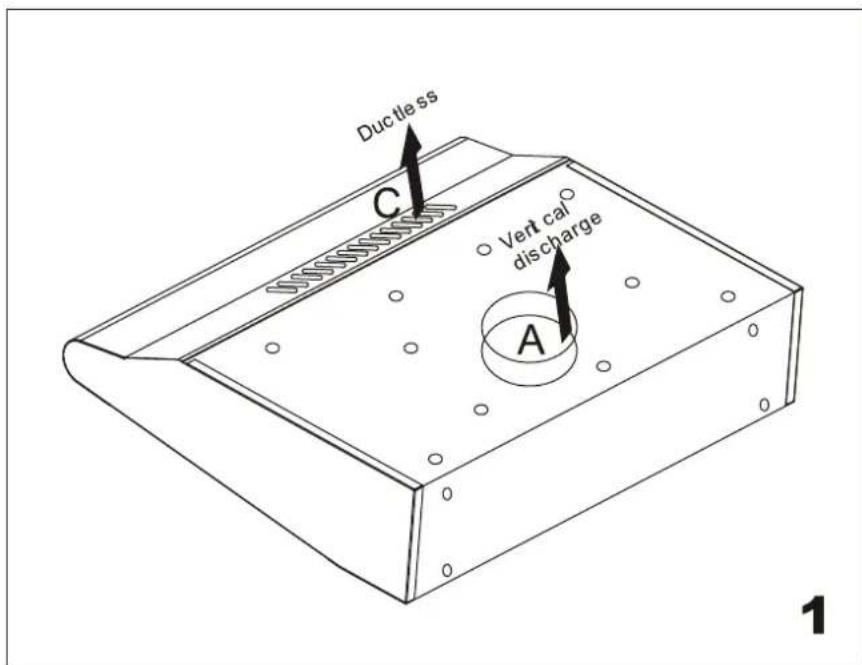

If you select this venting direction, you only need to open the ducting knockout A. Remove the ducting knockout by inserting a Flat head screwdriver under one end and prying it up. Then snip or break the attachment points by tin snips. You must make sure that the ducting knockout B is not removed.

Ductless

In a ductless installation the air is re-circulated back into the kitchen. If you do not anticipate heavy cooking this method will be preferred. It will not be necessary to remove any duct knockouts, you only need chose knockout C. You should use filters to help remove cooking odors. These filter must be washed and replaced at regular intervals.

i

Information

Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back drafting.

4

To select recirculation mode, remove the mode block at the position indicated in fig 5, and to select ducted operation, insert mode block into the position indicated in fig 4.

Information

Ductless fans must always be vented to the outdoors.

5

Know your cooker hood

Please read these instructions before using your cooker hood

6

Only for re-circulation: mount the charcoal filter

Replace the charcoal filter (charcoal filters can be supplied as options)

Installation

Ensure the power has been turned off before beginning this installation.

To install this hood you will require two assistants.

You will need the following tools and material to complete this installation: *Drill*Flat head screwdriver*Phillips head screwdriver or cordless drill and Phillips head bit*Tin snips*3/8" nut driver or ratchet with extension*measuring tape*hand saw or jig saw*electrical tape*duct tape

1. Remove the range hood from the carton.
2. Lay the hood upside down on a table covered with cardboard or paper to prevent scratching of the table or hood.
3. Hood installation should be within 0.8m radius range.

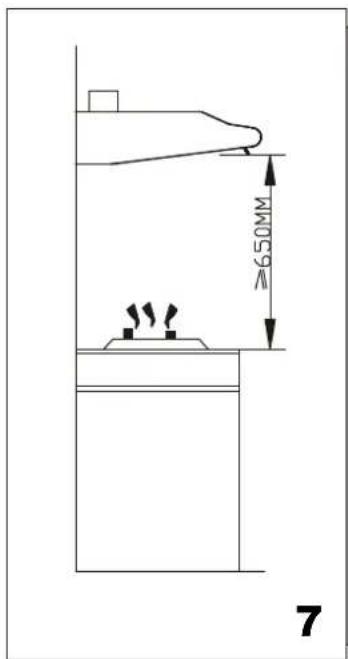

4. We recommend that after installation the bottom of the hood should be no less than 650mm and no more than 750mm above the stove's heating elements and burners.

Information

Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.

8

1. Hang the hood and let it's 4 key holes aim at screws, the 4 screws should be in the narrow parts of key holes. Screws should be fasten firmly, make sure that the installation between the hood and cabinet is enough fasten.

2. According to the figure, make sure the position of hood in the cabinet. The wood strips should be line up with the 4 keyholes slots on the top of the range hood. On the cabinet, install 4 screws (supplied) according to the relative position of 4 key holes on the bottom of hood. The extent of screwing should be convenience to the next installation.

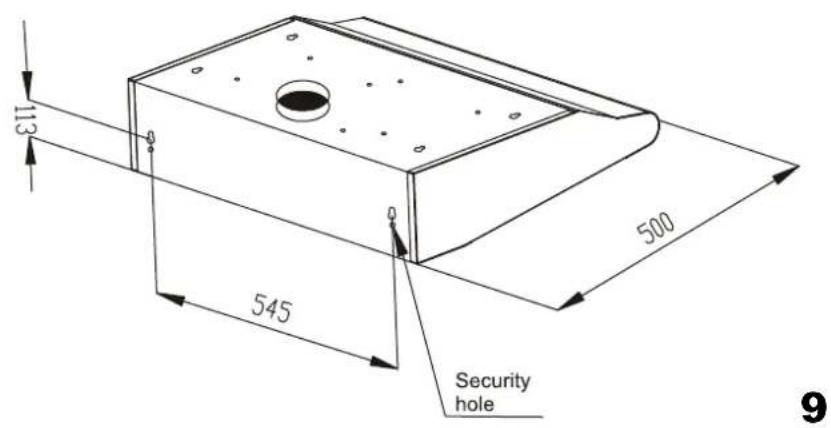

3. Install screws in the security holes, in case of front and back moving of hood, so that the using is safer.

Information

When cutting or drilling into wall or ceiling, do not damage electrical wiring or other hidden utilities.

If the installation surface in cabinet don't adapt to install the cooker hood, then as per FIG. 5, fix the position of cooker hood on the wall. On the wall, install 2 screws (supplied) according to the relative position of 2 key holes on the back of hood. The extent of screwing should be convenience to the next installation. Also install screws in the security holes, in case of front and back moving of hood, so that the using is safer.

Information

The cooker hood must be installed and connected to flues where other appliances are installed and which run off other energy supplied different to electricity (water heaters boiler cookers (range/agas) etc.).

Hood Using Method

Turn the hood ON when cooking at high heat or when cooking flaming foods.

Cleaning Instructions

Disconnect range hood from power supply before cleaning or servicing.

1. Cleaning the surface of hood frequently. Use mild soap or detergent to clean the hood.
2. Do not use harsh alkalis or abrasives.
3. Avoid the use of scouring powers or dishwasher compounds.
4. Grease filter may be washed using mild soap or detergent. (heavy grease build-up may not be cleaned easily and the filter may require replacement)
5. Charcoal filters cannot be cleaned and must be replaced regularly.

Information

When cleaning, water must not inter into motor, control switch etc. electrical parts.

Correct Disposal of this product

This marking indicates that this product should not be disposed with. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

The manufacturer shall decline all responsibility if the foregoing recommendations and instruction regarding installation, maintenance and use are not observed and respected when using the cooker hood.
