CD440B - Residual current circuit breaker HAGER - Free user manual and instructions

Product Type	Residual Current Circuit Breaker (RCCB)
Brand	Hager
Model	CD440B
Rated Current (In)	16 A to 63 A
Rated Residual Operating Current (IΔn)	30 mA (typical for personal protection)
Rated Voltage	230/400 V AC
Frequency	50/60 Hz
Number of Poles	2-pole
Standards	EN 61008-2-1, EN 61009-2-1, DIN VDE 0100-410
Tripping Characteristic	Instantaneous for residual current
Breaking Capacity	10 kA (typical)
Mechanical Endurance	2000 cycles (minimum)
Electrical Endurance	500 cycles (minimum)
Ambient Temperature	-25°C to +40°C
Protection Degree	IP20 (device); IP5x required for enclosure if dusty
Enclosure Material	Thermoplastic
Mounting	DIN rail
Connection Type	Screw terminals
Wire Size	1 - 25 mm²
Tightening Torque	2.0 - 3.0 Nm
Dimensions (Width x Height x Depth)	72 mm x 85 mm x 70 mm (approx.)
Warranty	24 months from date of manufacture
Accessories	CZ001, MZ203, MZ206, CZN005, CZN006

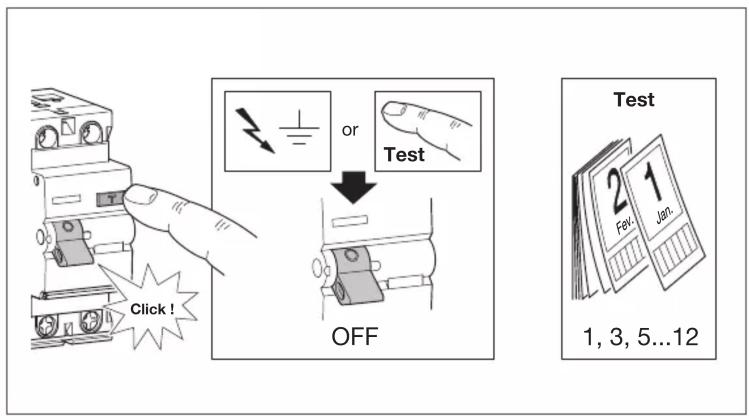

Maintenance	Press test button quarterly; clean with dry cloth

Frequently Asked Questions - CD440B HAGER

What are the tripping times for the RCD?

According to the manual, the RCD trips under a current of 5*IΔn within the times specified in table 41.1 of DIN VDE 0100-410 (2018-10). For example, for 30 mA devices, typical tripping time is less than 40 ms.

How do I protect the installation from dust?

If the enclosure is not IP5x, ensure the installation is protected from dust during nearby work activities. Use enclosures with appropriate IP rating.

What standards does the CD440B comply with?

It complies with EN 61008-2-1 and EN 61009-2-1, and is certified for use according to DIN VDE 0100-410.

What is the warranty coverage?

Hager offers a 24-month warranty from the date of manufacture for material defects. The product must be returned via the installer and supplier.

Why is the warranty voided?

The warranty is voided if the device is installed contrary to IEE wiring regulations or accepted industry practice, or if the return procedure is not followed.

Can I test the RCD manually?

Yes, press the test button (T) to ensure it trips. The manual does not specify frequency, but quarterly testing is standard practice.

What is the meaning of '5*IΔn'?

It means the RCD is tested with a residual current equal to five times its rated residual operating current (IΔn) to verify tripping times.

What are the available accessories?

The manual mentions accessories such as CZ001, MZ203, MZ206, CZN005, and CZN006. These may include auxiliary contacts, shunt trips, etc.

What is the maximum rated current?

The RCCB is rated for 16 A to 63 A, as indicated in the manual.

How should I clean the device?

Use a dry cloth. Do not use solvents or water. Ensure power is off before cleaning.

USER MANUAL CD440B HAGER

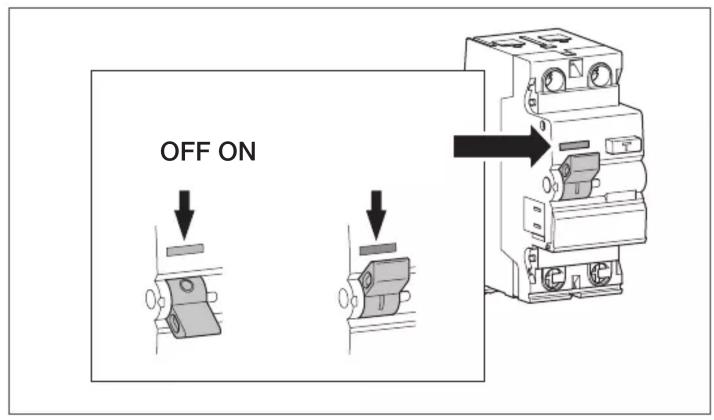

Technical line drawing of two electrical circuit breakers (no text or symbols)

GB For the tripping times verification tests, in an electrical installation, Hager certifies that the RCDs, of the Hager brand, conforming to standards EN 61008-2-1, EN 61009-2-1, trip under a current of 5*IΔn in accordance with the times imposed in table 41.1 of standard DIN VDE 0100-410 (VDE 0100-410) 2018-10.

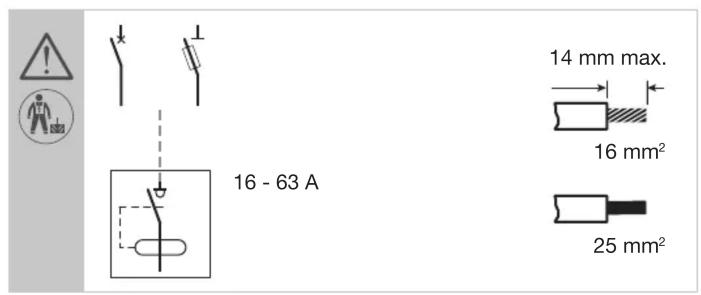

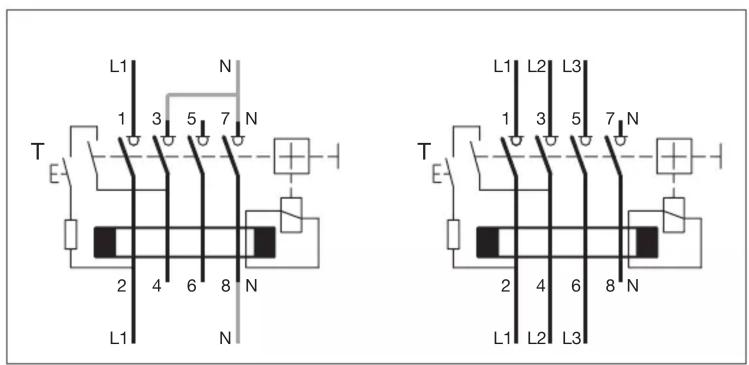

Residual Current Circuit Breaker (RCCB) 16 - 63 A

CZ001 (CA + SD)

MZ203... + CZ001 MZ206 (CA + SD)

16 - 63 A

2 ■CZN005

4 ■CZN006

Warranty

A warranty period of 24 months is offered on Hager products, from date of manufacture, relating to any material of manufacturing defect.

If any product is found to be defective it must be returned via the installer and supplier (wholesaler).

The warranty is withdrawn if, after inspection by Hager quality control dept the device is found to have been installed in a manner which is contrary to IEE wiring regulations and accepted practice within the industry at the time of installation and/or the procedure for the return of goods has not been followed. Explanation of defect must be included when returning goods.

Protection against dust

In case of work activities nearby, make sure that the electrical installation is protected against dust if the enclosure is not IP5x.
