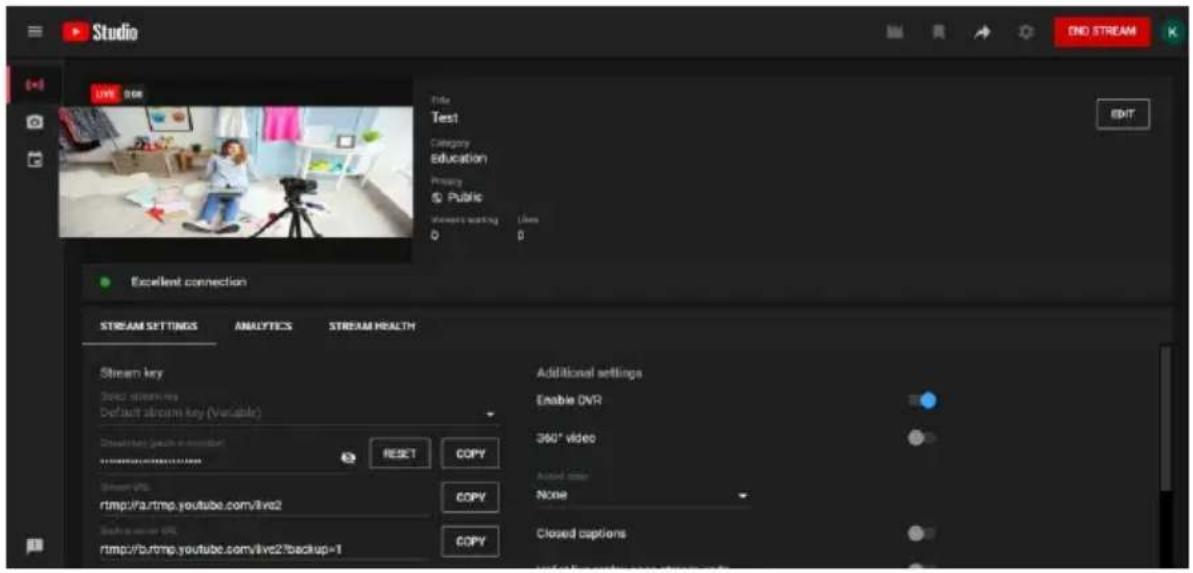

How do I stream to Facebook or YouTube?

In the Web UI, go to Network and enable the First Stream. Copy the Server URL and Stream Key from your Facebook Live or YouTube Live page, then paste them into the MRL field. Ensure Video and Audio checkboxes are checked, click Apply, and reboot the camera.

Why is there no video output?

Check that the power is connected and the camera completes initialization (tally light stops flashing). Verify cable connections (HDMI, SDI, or HDBaseT). If using a browser, ensure the PC is on the same subnet and install the 32-bit VLC media player for IE.

How do I control the camera via mobile app?

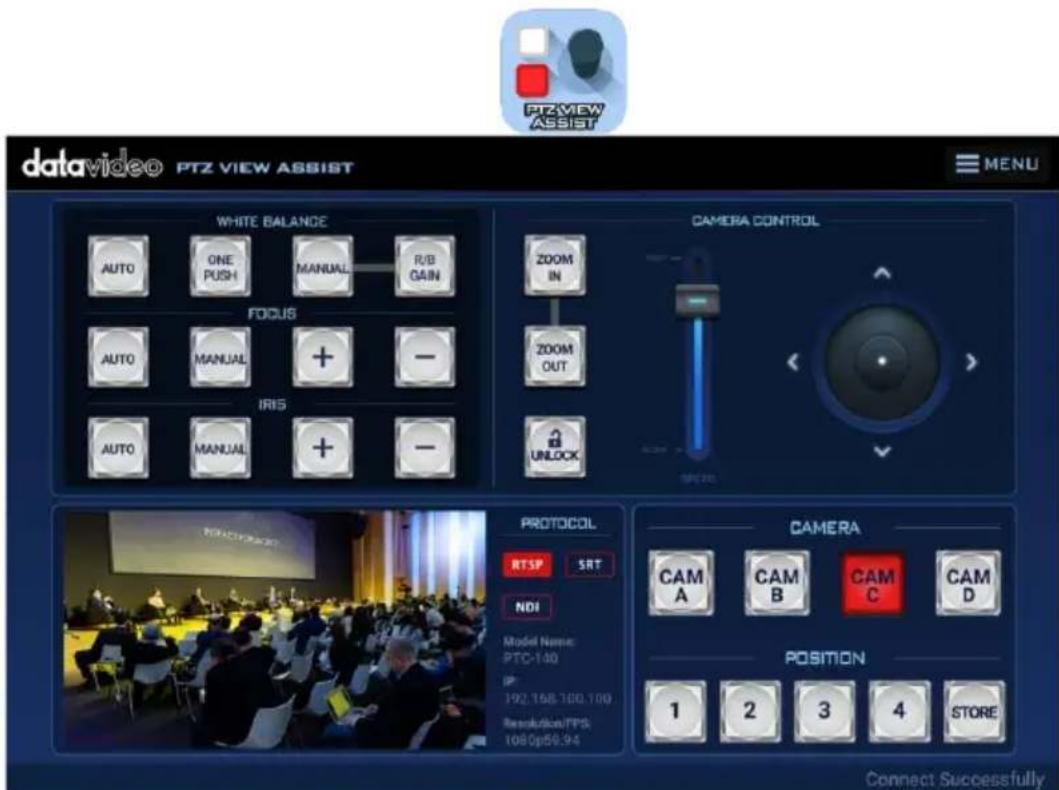

Download the PTZ View Assist app from Google Play or App Store. Connect your mobile device to the same network as the camera (DVIP mode required). Turn off Multicast in the Web UI to avoid congestion. The app can control up to 4 cameras.

User questions about PTC-305T DataVideo

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

No questions yet. Be the first to ask one.

Download the instructions for your Security Camera in PDF format for free! Find your manual PTC-305T - DataVideo and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PTC-305T by DataVideo.

USER MANUAL PTC-305T DataVideo

4K HDBaseT TRACKING PTZ CAMERA

PTC-305T

Instruction Manual

TABLE OF CONTENTS 2

FCC COMPLIANCE STATEMENT .... 5

WARNINGS AND PRECAUTIONS .... 5

WARRANTY 7

STANDARD WARRANTY....7

THREE YEAR WARRANTY....7

DISPOSAL 8

1. PRODUCT OVERVIEW....9

FEATURES....9

2. LOCATION AND FUNCTION OF PARTS 10

2.1 CAMERA....10
2.2 RECEIVER BOX....14

Rear Panel 14

Front Panel 15

3. BASIC SETUP 16

3.1 POWER-ON INITIALIZATION....16
3.2 VIDEO OUTPUT 16

HDMI Video OUT....18

3G-SDI Video Output 18

4.1 REMOTE CONTROL FUNCTIONS....19
4.2 OSD MENU 23
4.3 PROFESSIONAL JARGON EXPLANATIONS OF THE OSD MENU 34

5. INSTRUCTION FOR INSTALLATION.... 36

6. NETWORK CONNECTION 42

6.1 DHCP MODE 43
6.2 STATIC IP....45
6.3 DVIP 46

7. HOW TO USE PTC-305T'S AI AUTO TRACKING 49

7.1 HOW TO TURN ON THE AI AUTO-TRACKING FUNCTION BY THE REMOTE CONTROLLER....49
7.2 HOW TO TURN OFF THE AI AUTO-TRACKING FUNCTION BY THE REMOTE CONTROLLER 49
7.3 HOW TO SET THE AI AUTO-TRACKING FUNCTION BY THE OSD MENU .....50
7.4 HOW TO SET THE AI AUTO-TRACKING (PRESENTER MODE) BY THE WEB UI...50
7.5 HOW TO SET THE AI AUTO-TRACKING BY THE WEB UI (ZONE MODE)....51

8. WEB USER INTERFACE 54

8.1 LIVE 54
8.2 VIDEO....55

8.2.1 How to Connect the PTC-305T to a Datavideo Switcher after a 60FPS/50FPS Video Streaming (Take the HS-1300 as an example) .....59

8.3 AT(AUTO-TRACKING)....62
8.4 IMAGE....64
8.5 AUDIO....65
8.6 SYSTEM....67
8.7 NETWORK....69
8.8 INFORMATION....80
8.9 THE PTZ CONTROL AREA OF THE WEB UI....82

9. HOW TO USE THE WEB UI TO SET AND CALL PRESETS 85

QUICK SETTING AREA FOR THE AUTO-TRACKING.... 86
CONTROL THE CAMERA BY THE PTZ VIEW ASSIST APP 87
DIP SWITCH SETTINGS 88

12.1 DIP SWITCH SW1 88
12.2 DIP SWITCH SW2 (IRID) 89

HOW TO PLAY THE RTSP STREAM BY THE VLC PLAYER.... 90
HOW TO PLAY THE MULTICAST BY THE VCL PLAYER 92
HOW TO STREAM TO FACEBOOK 93
HOW TO STREAM TO YOUTUBE.... 104
HOW TO DO THE SRT STREAMING BY THE VMIX SOFTWARE ...... 108
REMOTE CONTROL PORT PINOUTS 121
19 FIRMWARE UPDATE.... 123

19.1 FIRMWARE UPDATE BY THE PTC-305T FIRMWARE UPDATE TOOL....123

19.2 FIRMWARE UPDATE BY THE USB FLASH DRIVE ....127

FREQUENTLY-ASKED QUESTIONS.... 130
DIMENSIONS.... 132
SPECIFICATIONS.... 133
SERVICE AND SUPPORT .... 136

Disclaimer of Product and Services

The information offered in this instruction manual is intended as a guide only. At all times, Datavideo Technologies will try to give correct, complete and suitable information. However, Datavideo Technologies cannot exclude that some information in this manual, from time to time, may not be correct or may be incomplete. This manual may contain typing errors, omissions or incorrect information. Datavideo Technologies always recommend that you double check the information in this document for accuracy before making any purchase decision or using the product. Datavideo Technologies is not responsible for any omissions or errors, or for any subsequent loss or damage caused by using the information contained within this manual. Further advice on the content of this manual or on the product can be obtained by contacting your local Datavideo Office or dealer.

FCC Compliance Statement

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.

Warnings and Precautions

Read all of these warnings and save them for later reference.
Follow all warnings and instructions marked on this unit.
Unplug this unit from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.
Do not use this unit in or near water.
Do not place this unit on an unstable cart, stand, or table. The unit may fall, causing serious damage.
Slots and openings on the cabinet top, back, and bottom are provided for ventilation. To ensure safe and reliable operation of this unit, and to protect it from overheating, do not block or cover these openings. Do not place this unit on a bed, sofa, rug, or similar surface, as the ventilation openings on the bottom of the cabinet will be blocked. This unit should never be placed near or over a heat register or radiator. This unit should not be placed in a built-in installation unless proper ventilation is provided.
This product should only be operated from the type of power source indicated on the marking label of the AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your local power company.
Do not allow anything to rest on the power cord. Do not locate this unit where the power cord will be walked on, rolled over, or otherwise stressed.
If an extension cord must be used with this unit, make sure that the total of the ampere ratings on the products plugged into the extension cord do not exceed the extension cord's rating.
Make sure that the total amperes of all the units that are plugged into a single wall outlet do not exceed 15 amperes.
Never push objects of any kind into this unit through the cabinet ventilation slots, as they may touch dangerous voltage points or short out parts that could result in risk of fire or electric shock. Never spill liquid of any kind onto or into this unit.
Except as specifically explained elsewhere in this manual, do not attempt to service this product yourself. Opening or removing covers that are marked “Do Not Remove” may expose you to dangerous voltage points or other risks, and will void your warranty. Refer all service issues to qualified service personnel.
Unplug this product from the wall outlet and refer to qualified service personnel under the following conditions:

a. When the power cord is damaged or frayed;
b. When liquid has spilled into the unit;
c. When the product has been exposed to rain or water;
d. When the product does not operate normally under normal operating conditions. Adjust only those controls that are covered by the operating instructions in this manual; improper adjustment of other controls may result in damage to the unit and may often require extensive work by a qualified technician to restore the unit to normal operation;

e. When the product has been dropped or the cabinet has been damaged;

f. When the product exhibits a distinct change in performance, indicating a need for service.

Warranty

Standard Warranty

Datavideo equipment are guaranteed against any manufacturing defects for one year from the date of purchase.
The original purchase invoice or other documentary evidence should be supplied at the time of any request for repair under warranty.
The product warranty period begins on the purchase date. If the purchase date is unknown, the product warranty period begins on the thirtieth day after shipment from a Datavideo office.

- All non-Datavideo manufactured products (product without Datavideo logo) have only one year warranty from the date of purchase.

- Damage caused by accident, misuse, unauthorized repairs, sand, grit or water is not covered under warranty.

- Viruses and malware infections on the computer systems are not covered under warranty.

- Any errors that are caused by unauthorized third-party software installations, which are not required by our computer systems, are not covered under warranty.

- All mail or transportation costs including insurance are at the expense of the owner.

- All other claims of any nature are not covered.

- All accessories including headphones, cables, and batteries are not covered under warranty.

- Warranty only valid in the country or region of purchase.

- Your statutory rights are not affected.

Three Year Warranty

- All Datavideo products purchased after July 1st, 2017 are qualified for a free two years extension to the standard warranty, providing the product is registered with Datavideo within 30 days of purchase.

DataVideo PTC-305T - Three Year Warranty - 1

Certain parts with limited lifetime expectancy such as LCD panels, DVD drives, Hard Drive, Solid State Drive, SD Card, USB Thumb Drive, Lighting, Camera module, PCIe Card are covered for 1 year.
The three-year warranty must be registered on Datavideo's official website or with your local Datavideo office or one of its authorized distributors within 30 days of purchase.

Disposal

DataVideo PTC-305T - Disposal - 1

For EU Customers only - WEEE Marking

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

1. Product Overview

The PTC-305T 4K HDBaseT Tracking PTZ Camera features a large 1/1.8" CMOS sensor, supports high-quality 2160p50/60 UHD video output, features 20x optical zoom, 16x digital zooms and supports versatile outputs, including 3G-SDI, HDMI and IP stream. The PTC-305T series will be the ideal choice for taking your remote camera production to the next level.

Features

• 2160p50/59.94/60 PTZ camera
• 20x Optical Zoom, 16x Digital Zoom
• 4K Video interfaces: HDMI, IP (H.264 & H.265)
• 2160p and 1080p (3G-SDI) Simultaneous video output
• RS-422 Serial Port Control
• External audio input: 3.5mm audio in/line in (switchable on the web UI)
- Friendly web UI
- White color model available.

2. Location and Function of Parts

2.1 Camera

Front of Camera

1	LensBuilt-in 1/1.8” 8.51M Pixel CMOS 4K color camera with white balance control, backlight compensation, automatic gain and etc.
2	Tally LEDTally lamp will be turned ON upon receiving the ON signal.
3	Sensor for Remote ControlRemote control IR receiver

Rear of Camera

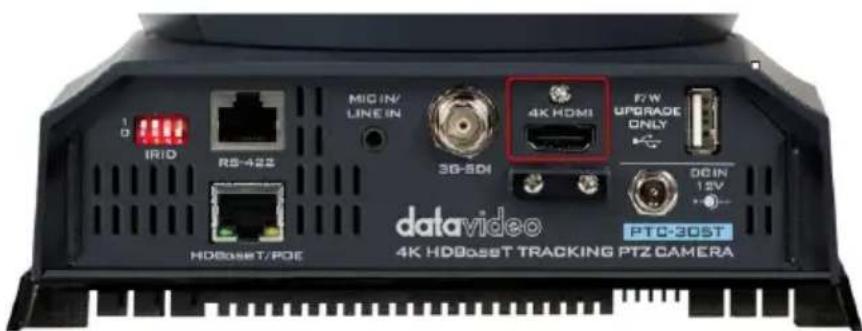

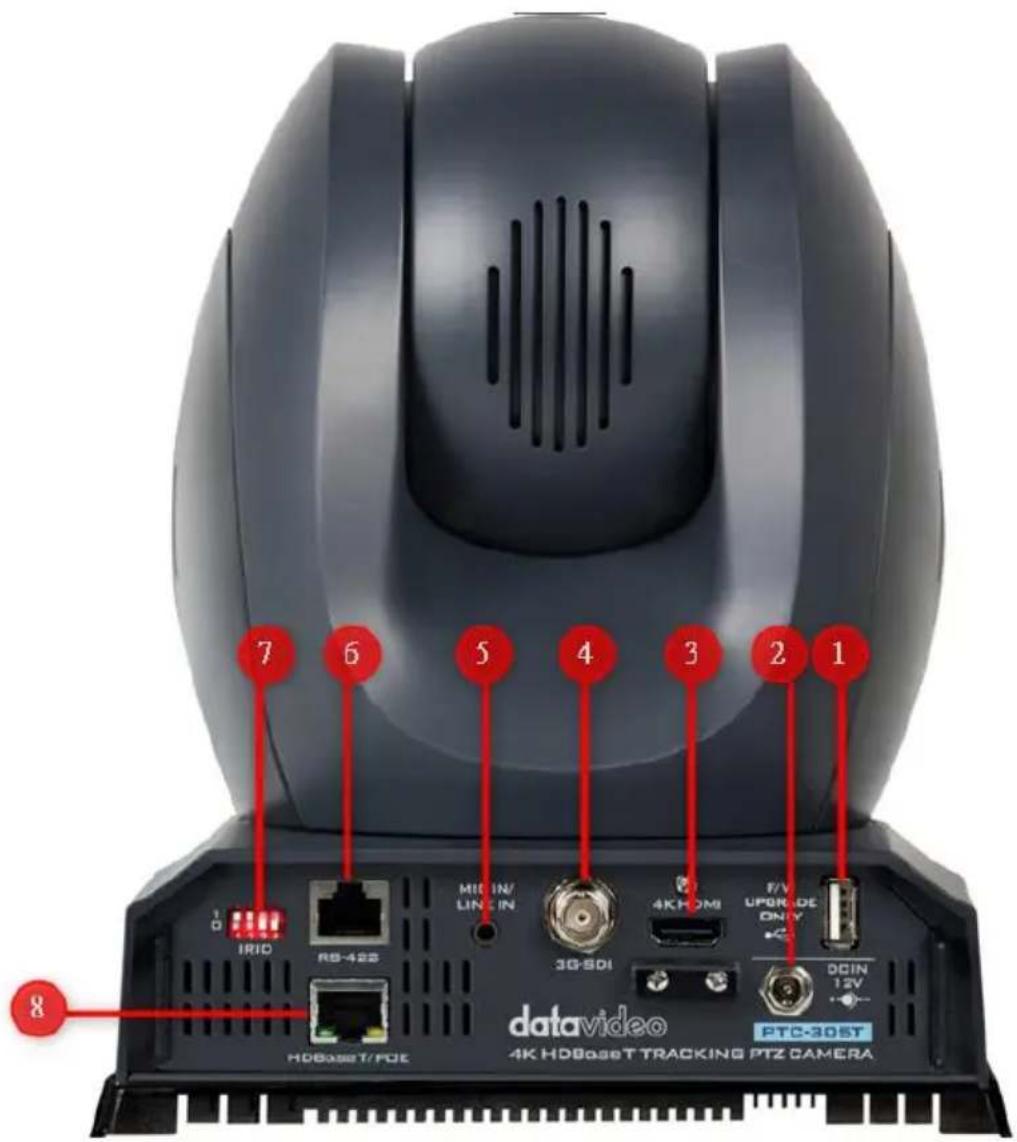

7 6 5 4 3 2 1 0 IRID RB-42S MI IN/ LIN IN 3G SDI 4K HDMI UPGRADE ONLY DCIN 12V HDBaseT/PCI datavideo 4K HDBaseT TRACKING PTZ CAMERA 8 PTC-30ST

1	USB PortThis USB port is used for updating firmware. Users can save the latest version of firmware in a USB flash drive and then insert it into this interface for firmware updating.Note: After inserting the USB flash drive, please remember to turn “ON” the SETUP->USB UPGRADE from the OSD menu of the PTC-305T camera.
2	Power InputDC in socket connects the supplied 12V PSU. The connection can be secured by screwing the outer fastening ring of the DC In plug to thesocket.
3	4K HDMI OUTThe 4K HDMI OUT allows you to connect an external HDMI monitor via an HDMI cable.
4	3G-SDI OUTThe 3G-SDI OUT allows you to connect an external monitor via an SDI cable.
5	MIC IN/LINE INThe 3.5mm audio input receives external audio.

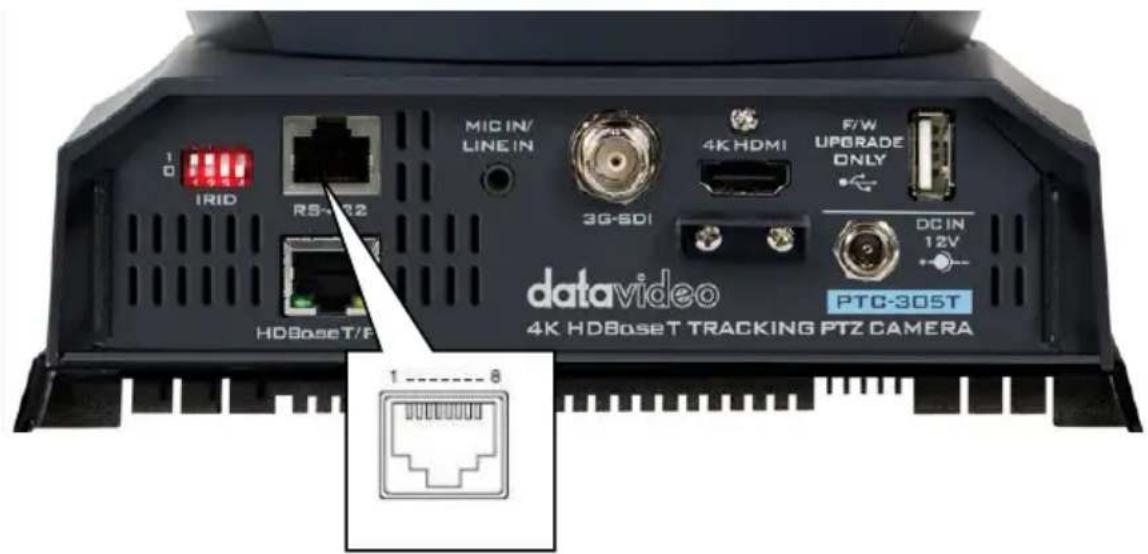

6	RS-422 Interface (RJ-45)The RS-422 interface serves to connect external RS-422 devices. Use an Ethernet cable to connect external RS-422 controllers. See “Section 18 Remote Control Port Pinouts” for making the cable for the RS-422 interface.
7	IRID InterfaceThis interface allows users to use the DVIP Switch to control the numbering of the camera on the remote controller. Users can use this interface to set the camera to any number from No.1 to No. 4 in order to use remote controller to control the camera.
8	HDBaseT/POE InterfaceConnects the camera to the receiver box, thereby extending video transmission up to 100m. Use a CAT5e/6 Ethernet cable to connect this port to the HDBaseT port of the receiver box which in turn outputs the HDMI video to an externally connected monitor. Moreover, this interface can support the PoE (Power over Ethernet) technology.
Bottom of Camera

1	Tripod Screw Hole allows the user to mount the camera on the tripod.
2	Screw HoleScrew holes for ceiling bracket mounting.

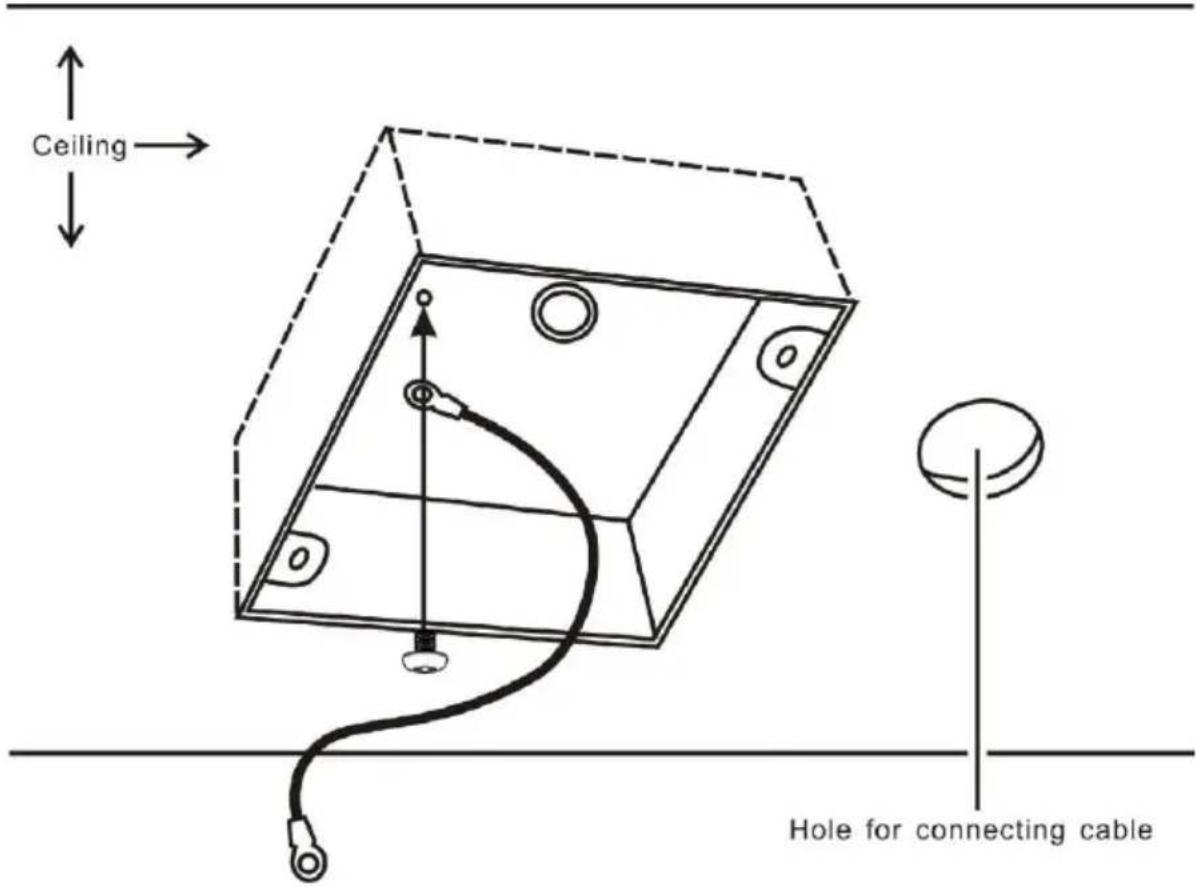

3	For Safety RopeTies safety rope for fixing the camera to the ceiling.
4	DIP SwitchThis DIP Switch allows users to adjust needed parameters such as VISCA ID, resolutions, remote control protocol and video modes.

2.2 Receiver Box

Note: The receiver box is not the accessory of the PTC-305T, users need to purchase by themselves if needed. In this section, we will take HBT-16 as an example.

Rear Panel

HDMI OUT HDMI OUT HDMI port for video output.
DVIP DVIP Port Connects to Ethernet switch or router, serving as a communication port between the network and the HBT-16 receiver.
DC IN 56V DC IN 56V DC power input connection Power LED Indicator ON: Power connected OFF: Power disconnected

Front Panel


HDBaseT	HDBaseT PortConnects between HBT-15 transmitter and HBT-16 receiver using a CAT.6A Ethernet cable.Note: Visithttps://hdbaset.org/hdbaset-recommended-cables/for cable recommendations.
RS-232/RS-422	RS-232/RS-422 InterfaceThe RS-232/RS-422 port connects HBT-16 directly to Datavideo's camera controllers such as RMC-180, RMC-300A or RMC-300C. Use the RS-232 or RS-422 custom cable to connect.SeeRS-232/RS-422 pinoutfor more information about the respective cabling.Use the DIP switch to select between RS-232 (00) and RS-422 (01).

3. Basic Setup

3.1 Power-On Initialization

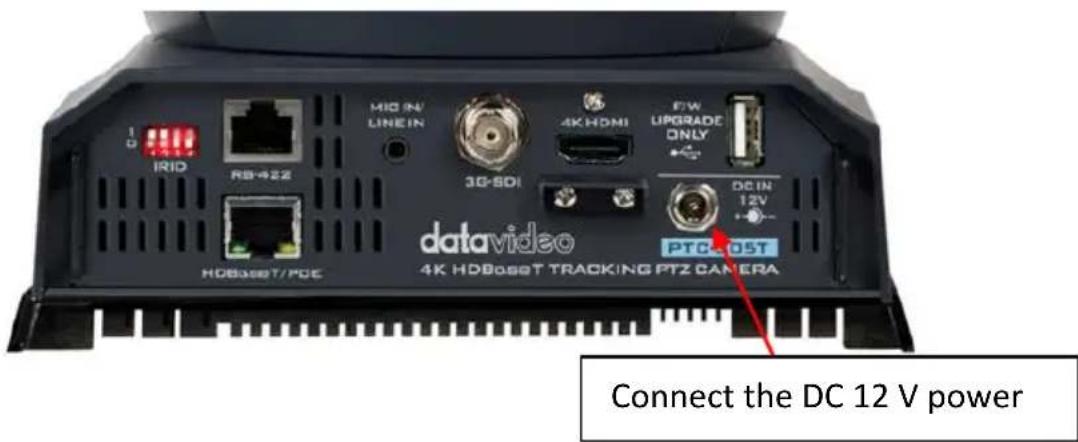

As shown in the diagram below, after you plug in the power cord, the tally light in the front will start flashing red and will be OFF as soon as the power-on initialization is complete. The camera head should be at the HOME position with the lens facing front. If the power is inserted, the camera lens will go back to the position where the camera power is off last time. Note: After powering-on, you need to wait for about 45 seconds, and then the image which is shot by the PTC-305T will be shown on the connected monitor.

I U IRID RB-422 HDBaseT/PGC MID IN/ LINE IN 3G-SDI 4K HDMI FW UPGRADE ONLY DC IN 12V PTC-DST 4K HD860T TRACKING PTZ CAMERA Connect the DC 12 V power

3.2 Video Output

You are allowed to view the camera video via HDBaseT/POE, 4K HDMI OUT and 3G-SDI OUT.

HDBaseT/POE Port

HDBOSSET/PDC DATAVideo 4K HDBOSSET TRACKING PTZ CAMERA PTG-305T 12V DC IN 12V 4K HDMI E/W UPGRADE ONLY 3G-SDI MIC IN/ LINE IN RS-422 10000000000000000000000000000000000000000000000000000000000000000000000000000000000 12V 12V 12V 12V 12V 12V 12V 12V 12V 12V 12V 12V 12V 12V 12V 12V 12V 12V 12V 12V 12V 12V 12V 12V 12V 12A

Please follow following steps for viewing the camera video from the web UI.

- Connect the PTC-305T camera to your PC/Notebook PC by an HBT-16 4K HDBaseT Receiver Box

Please use an Ethernet cable to connect from the HDBaseT/POE interface of your PTC-305T to the HDBaseT interface which is located on the front panel of the HBT-16.
Please use an Ethernet cable to connect from the DVIP interface which is located on the rear panel of the HBT-16 to the Ethernet interface of your laptop or PC. Moreover, please confirm that your PC and PTC-305 are set within the same local area network.
Open the web UI by the connected PC or laptop and then please enter the default IP address into the address bar of the web browser.

Note: The default static IP address of the PTC-305T is 192.168.100.100.

The login page of the web UI will be opened, please enter the user name and password (the default user name and password are admin/admin).

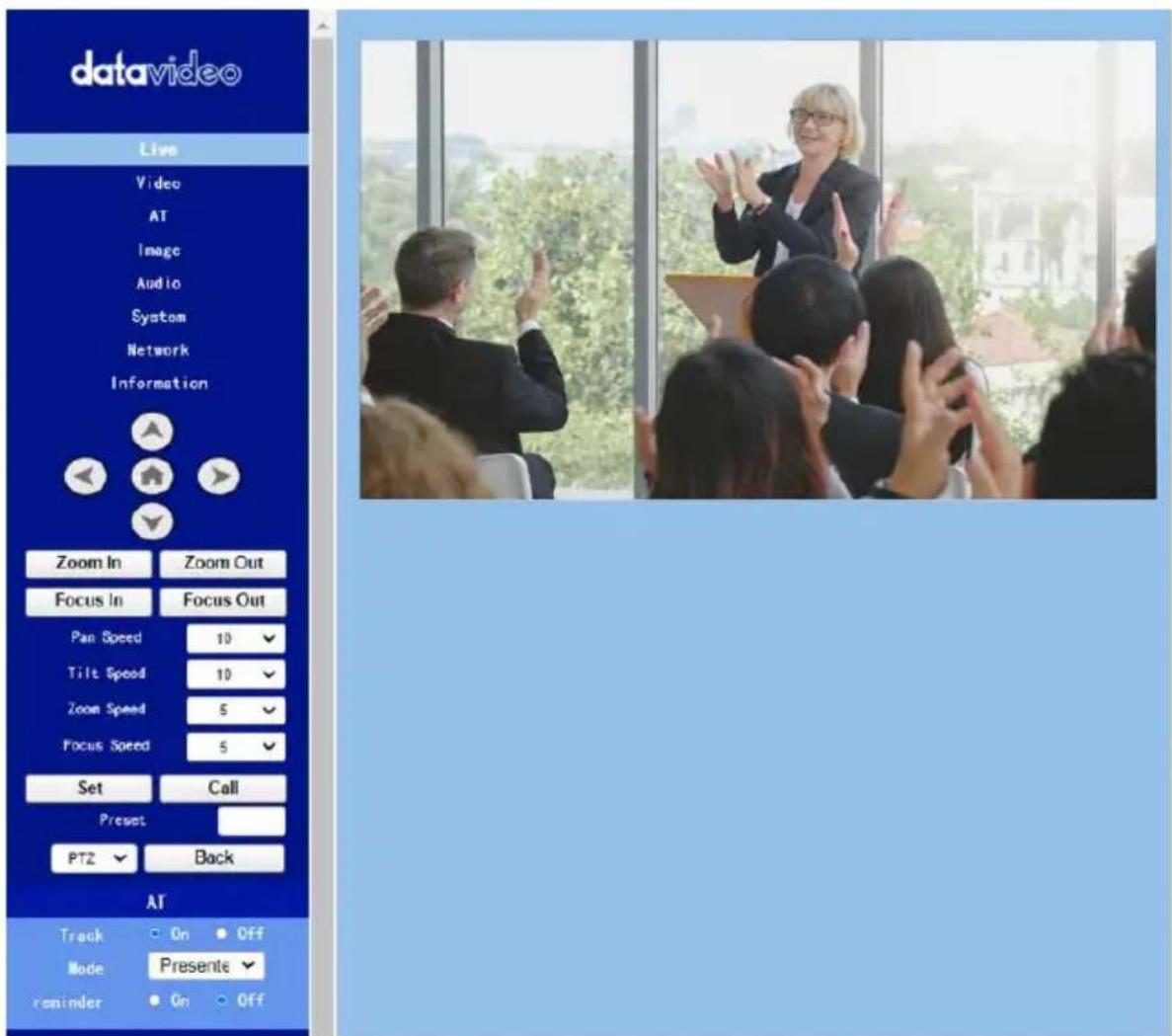

Open the preview window for previewing the video which is shot by the camera.
Connect the PTC-305T camera to your PC or laptop by a router.
Please set the Ethernet IP address of your PC or laptop as 192.168.100.x(x means 0-255) and it will be at the same local area network as the PTC-305T.
Please use an RJ-45 Ethernet cable to connect from the HDBaseT/POE port which is located on the rear panel of the PTC-305T to the HDBaseT port of an HBT-16. After that, please use another Ethernet cable to connect from the DVIP port of your HBT-16 to the LAN interface of your router.
Please use an RJ-45 Ethernet cable to connect from the RJ-45 Ethernet interface of your PC or laptop to the LAN port of the same router.
Please open the web UI from the connected PC or laptop and then please enter the default IP address of the camera into the address bar of the web browser.

Note: The default static IP address of the PTC-305T is 192.168.100.100.

The login page of the web UI will be opened, please enter the user name and password (the default user name and password are admin/admin).
Click into the preview window on which the video will be displayed.

HDMI Video OUT

Connect the 4K HDMI OUT to an external connected monitor using an HDMI cable.

1 D IRID RS-422 MIG IN/ LINE IN 3G-SDI 4K HDMI F/W UPGRADE ONLY DCIN 12V HDBoset/POE datavideo PTC-30ST 4K HDBoset TRACKING PTZ CAMERA

3G-SDI Video Output

Connect the SDI OUT to an external connected monitor using an SDI cable.

1 0 IRID RG-422 MIC IN/ LINE IN 3G-8DI 4K HDMI F/W UPGRADE ONLY DDIN 12V HDBoset/POE datavideo PTC-305T 4K HDBoset TRACKING PTZ CAMERA

The chapter 4 provides an overview of remote control functions and OSD menu.

4.1 Remote Control Functions

1 2 1 2 3 4 3 1 2 3 4 F T N W 3 3 4 AF STR 9 AT AT 12 13 datavideo RMC-1AT

No	Function Keys	Descriptions
1	Power Button	Power ButtonPress this button once to enter Standby Mode, press it again to enter Normal Mode.Note: The power consumption in Standby Mode is approximately half of the power consumption in Normal Mode.
2	Camera 1-4	Camera 1-4The Camera 1 to Camera 4 buttons allow you to press the corresponding number in order for further operation after the IRID number of the camera is set by the IRID DIP Switchwhich is located on the rear panel of your PTC-305T camera.If the DIP Switch 1 & 2 are set as (0,0), the camera IRID number will be 1.If the DIP Switch 1 & 2 are set as (1,0), the camera IRID number will be 2.If the DIP Switch 1 & 2 are set as (0,1), the camera IRID number will be 3.If the DIP Switch 1 & 2 are set as (1,1), the camera IRID number will be 4.Note: In normal situation, the DIP Switch 3 & 4 must be “OFF” (set at 0).
PT	Preset1-4 Buttons	The Preset buttons 1, 2, 3, and 4 allow you to set up to 4 camera preset settings.How to set the Preset: Please adjust your desired camera parameters and camera lens position in advance. After that, please press the “STR” button which is located on the remoter controller. And then please press your desired Preset Number button (Preset 1 to Preset 4) to set your setting as a Preset.How to recall the Preset: Please press the desired “Preset No.” button (Preset 1 to Preset 4) directly and then the presaved Preset settings will be recalled successfully.
4	Focus Far/Focus Near	Focus Far/Focus NearPlease press the “Focus Far” or “Focus Near” button to shift the PTC-305T camera to “Manual” Mode.The “Focus Far” function allows you to focus on the distance.The “Focus Near” function allows you to focus on close distance.
5	Zoom Tele/Zoom Wide Button	Zoom Tale/Zoom Wide ButtonThe Zoom Tale/Zoom Wide button allows you to zoom out and zoom in the subject. “Zoom Tale” allows you to zoom in the subject and “Zoom Wide” allows you to zoom out the subject.
6	Micro Joystick	Micro Joystick: Up/Down/Left/Right/ConfirmPlease move the “Micro Joystick” to the up, down, left and right sides to move the camera lens to the up, down left and right sides. When the OSD menu is turned on, please move the micro joystick to the up side or down side to select different options. Please move the micro joystick to the left or right side to select different setting values. After that, please press the “Micro Joystick” to confirm your selected value.
7	Reset IP Button	Reset IP ButtonPlease long-press this button for 3 seconds. If there is no DHCP Network environment, the IP address of the PTC-305T will be changed to 192.168.100.100 automatically.
8	STR Button	STR ButtonPlease press this button and the “Preset 1 to Preset 4” buttons to save your desired Preset.After you desired setting values and camera lens position are set, please press the “STR” button and then press the button of your desired Preset number from “Preset 1 to Preset 4”. After that, the Preset is set successfully.
9	AF Auto Focus Button	Auto Focus ButtonPlease press this button to turn on the Auto Focus function.
10	Back Button	Back ButtonPlease press the “Back” button to turn the camera head back to the “Home” position. When the OSD menu is opened, you can go back to the previous layer of the OSD menu by pressing the “Back” button.
11	Menu Button	Menu ButtonPlease press the “Menu” button to open the OSD menu of the PTC-305T camera on the external monitor.
12	Auto-Tracking ON/OFF Button	Auto-Tracking ON/OFF ButtonPlease press this button to turn on or turn off the Auto-Tracking function of the camera.
13	Auto-Tracking Mode Selection Buttons	Auto-Tracking Mode Selection ButtonsThese three buttons represent “full Body”, “half Body” and “close-up” from the left side to the right side respectively.

On-Screen Menu allows the user to modify various camera settings. Press [MENU] on the remote control to open the on-screen menu as shown below.

OSD Menu

Exposure

Color


P/T/Z

Tracking Config

Setup

Communication Setup

Information

Restore Default

【Home】Enter

【Menu】Exit

The table below summarizes the main option items and their sub-options.

Main Options
Exposure	Color	Image	P/T/Z	Tracking Config	Setup	Communication Setup
Sub-Options	Mode	WB Mode	Luminance	SpeedByZoom	Tracking	Language
	ExpComp Mode	RG Tuning	Contrast	AF-Zone	Tracking Area	HDMI RGB Mode
	Backlight	BG Tuning	Sharpness	AF-Sense	Figure Size	Video Format
	Gain Limit	Saturation	Flip-H	L/R Set		Audio Select
	Anti-Flicker	Hue	Flip-V	Display Info		SDI-3G Mode
	Meter		B&W-Mode	Image Freeze		USB UPGRADE
	DRC		NR3D-Level	Digital Zoom		VISCA ID
			Style	Pre Speed		Audio Channel
				Pre Zoom Speed

Sub-Options

Information	Restore Default
ARM	Restore? Yes/No
SOC
Date
AF
Format
Model
IP
Gateway
NetMask

Details of all options in the on-screen menu are listed in the table below.

Main Menu	Sub Menu	Options	Options
Exposure	Mode	Auto
		Manual
		SAE
		AAE
		Bright
	ExpCompMode	Off
		On	ExpComp
		On	-7~+7
	Backlight	Off
	Backlight	On
	Gain Limit	0
		1
		2
		3
		4
		5
		6
		7
		8
		9
		10
		11
		12
		13
		14
		15
		16
		17
		18
		19
		20
		21
		22
	Anti-Flicker	Off

	50Hz
	60Hz
Meter	Average
	Center
	Smart
	Top
DRC	0
	1
	2
	3
	4
	5
	6
	7
	8
Iris	F1.8
	F2.0
	F2.4
	F2.8
	F3.4
	F4.0
	F4.8
	F5.6
	F6.8
	F8.0
	F9.6
	F11.0
	Close
Shutter	NTSC Shutter	PAL Shutter
	1/30	1/25
	1/60	1/50
	1/90	1/75
	1/100	1/100
	1/125	1/120
	1/180	1/150
	1/250	1/250
	1/350	1/350
	1/500	1/500
	1/725	1/725
	1/1000	1/1000
	1/1500	1/1500
	1/2000	1/2000
	1/3000	1/3000
	1/4000	1/4000
	1/6000	1/6000
	1/10000	1/10000
Gain	0
	1
	2
	3
	4
	5
	6
	7
	8
	9
	10
	11
	12
	13
	14
	15
	16
	17
	18
	19
	20
	21
	22
Bright	0
	1
	2
	3
	4
	5
	6
	7
	8
	9
	10
	11
	12
	13
	14
	15

		16
		17
Color	WB Mode	Auto
		Indoor
		Outdoor
		OnePush
		Manual
		VAR
	RG Tuning	0
		+1
		+2
		+3
		+4
		+5
		+6
		+7
		+8
		+9
		+10
		-10
		-9
		-8
		-7
		-6
		-5
		-4
		-3
		-2
		-1
	BG Tuning	0
		+1
		+2
		+3
		+4
		+5
		+6
		+7
		+8
		+9
		+10
		-10
		-9
		-8
	-7
	-6
	-5
	-4
	-3
	-2
	-1
	Saturation	60%

	70%
	80%
	90%
	100%
	110%
	120%
	130%
	140%
	150%
	160%
	170%
	180%
	190%
	200%
Hue	0
	1
	2
	3
	4
	5
	6
	7
	8
	9
	10
	11
	12
	13
	14
RG	0~255
BG	0~255
Color Temp	2500K
	2600K
	2700K
	2800K
	2900K
	3000K
	3100K
	3200K
	3300K
	3400K
	3500K
	3600K
	3700K
	3800K
	3900K

		4000K
		4100K
		4200K
		4300K
		4400K
		4500K
		4600K
		4700K
		4800K
		4900K
		5000K
		5100K
		5200K
		5300K
		5400K
		5500K
		5600K
		5700K
		5800K
		5900K
		6000K
		6100K
		6200K
		6300K
		6400K
		6500K
		6600K
		6700K
		6800K
		6900K
		7000K
		7100K
		7200K
		7300K
		7400K
		7500K
		7600K
		7700K
		7800K
		7900K
		8000K
Image	Luminance	0
		1
		2
		3
		4
		5
		6
		7
		8
		9

	10
	11
	12
	13
	14
Contrast	0
	1
	2
	3
	4
	5
	6
	7
	8
	9
	10
	11
	12
	13
	14
Sharpness	Auto
	0
	1
	2
	3
	4
	5
	6
	7
	8
	9
	10
	11
	12
	13
	14
	15
Flip-H	Off
Flip-H	On
Flip-V	Off
Flip-V	On
B&W-Mode	Off
B&W-Mode	On
NR3D-Level	Auto
	Off
	1
	2
	3
	4

		5
		6
		7
		8
	Style	Default
		Norm
		Bright
		PC
P/T/Z	SpeedByZoom	Off
	SpeedByZoom	On
	AF-Zone	Front
		Top
		Center
		Bottom
	AF-Sense	High
		Low
		Normal
	L/R Set	STD
	L/R Set	REV
	Display Info	Off
	Display Info	On
	Image Freeze	On
	Image Freeze	Off
	Digital Zoom	Off
		2x
		4x
		8x
		16x
	Pre Speed	1
		2
		3
		4
		5
		6
		7
		8
		9
		10
		11
		12
		13
		14
		15
		16
		17
		18
		19
		20
		21
		22
		23
		24
	Pre Zoom Speed	0
		1
		2
		3
		4
		5
		6
		7
Tracking Config	Tracking	On
	Tracking	Off
	Tracking Area	Presenter
	Tracking Area	Zone
	Figure Size	Full
		Half-Body
		Close Up
Setup	Language	繁體
		EN
		中文
	HDMI RGB Mode	HDMI	Note: There is NO DVI Mode for 4K50/59/60
	HDMI RGB Mode	DVI	Note: There is NO DVI Mode for 4K50/59/60
	Video Format	1080P25
		720P50
		1080P60
		1080P50
		1080I60
		1080I50
		1080P30
		720P60
		1080P29.97
		1080I59.94
		1080P59.94
		720P59.94
		4KP29.97
		4KP59.94
		4KP25
		4KP30
		4KP50
		4KP60
	Audio Select	MIC
	Audio Select	LINE IN
	SDI-3G Mode	LEVEL-A
	SDI-3G Mode	LEVEL-B
	USB UPGRADE	Off
	USB UPGRADE	On
	VISCA ID	By DIP
	VISCA ID	By OSD
	Audio Channel	Stereo
	Audio Channel	Mono

Communication Setup	Protocol	VISCA
		PELCO-D
		PELCO-P
		Auto
	V_Address	1
	V_AddrFix	Off
	V_AddrFix	On
	Baudrate	38400
		2400
		4800
		9600
Information	ARM
	SOC
	Date
	AF
	Format
	Model
	IP
	GateWay
	NetMask
Restore Default	Restore?

Note: For the “Audio Channel” option in the OSD menu, if the “mono” is selected, the data for the left audio channel will be copied to the right audio channel and they will output together. If the audio source is “mono”, only the left audio channel will output the audio.

4.3 Professional Jargon Explanations of the OSD

There are some professional jargons or nouns which are shown in the OSD menu of the PTC-305T camera, please refer to this section for realizing those jargons.

- Speed by Zoom: When this function is turned “ON”, at the time when the zoom-in/zoom out is beginning or it is about to reach the zoom-in/zoom-out limit or users want to stop zooming in/zooming out, the zoom-in/zoom-out speed of the camera lens will be reduced linearly. When this function is turned “OFF”, the zoom-in/zoom-out speed will be consistent no matter when the camera zoom-in is started or stopped.

Flip-H: This is the “Horizontal Flipping”. When “ON” is selected, the screen which is shot by the camera will flip horizontally. If “OFF” is selected, the screen will be shown in normal direction.
Flip-V: This is the “Vertical Flipping”. When “ON” is selected, the screen which is shot by the camera will flip vertically. If “OFF” is selected, the screen will be shown in normal direction.
L/R Set: If the “REV” is selected for this option, the panning direction of the PTC-305T camera lens will be opposite to the direction which is controlled by the remote controller. If the “STD” is selected for this option, the panning direction of the camera lens will be the same as the direction which is selected by the remote controller.

5. Instruction for installation

Note: Only mount the bracket on formwork or concrete surface. Do NOT mount the bracket on plasterboard.

Step 1 – DIP Switch Setting

Set the Mirror option to H+V mode.

Step 2 – One End of Retaining Wire

Attach the retaining wire to the junction box mounted on the ceiling by screwing one end of the retaining wire into a screw hole in the junction box with a screw (not supplied) as shown in the diagram below.

Ceiling Hole for connecting cable

Step 3 – Ceiling Bracket (B)

Again, as illustrated in the diagram below, screw a ceiling bracket (B) into the junction box mounted on the ceiling.

Make sure the screw holes of the ceiling bracket (B) are aligned with the holes on the junction box.

Ceiling Ceiling Brackel (B) Front of the camera

Step 4 – Ceiling Bracket (A) and Camera

Screw ceiling bracket (A) into the bottom of the camera using three screws.
Position the screws as shown in the diagram below.
Align the screw holes on the bottom of the camera with those in the ceiling bracket.
Insert the screws into the corresponding screw holes in the numbered order.
• The other end of the retaining wire is screwed into the screw hole #3.
Securely tighten all three screws.

Ceiling Ceiling Bracket (A)

Step 5 – Mount Camera to Ceiling
Ceiling Ceiling Bracket (B) Ceiling Bracket (A)

Step 6 – Screw to Fix Camera

Fix the camera by screwing three screws into the corresponding screw holes as shown in the diagram below.

Technical diagram of a device rear panel with labeled components and an inset view showing internal structure.

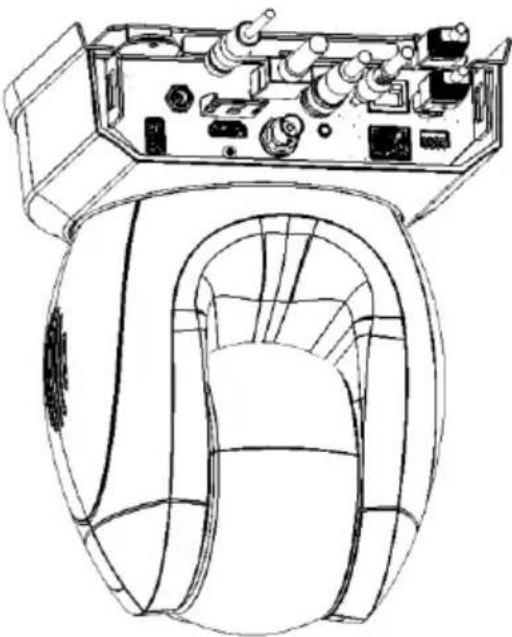

Step 7 – Cable Connection

Connect the cables to the connectors located on the rear of the camera.

DataVideo PTC-305T - Step 7 – Cable Connection - 1

6. Network Connection

The HDBaseT/POE port which is located on the rear panel of the PTC-305T allows you to connect to the camera in static IP mode or DHCP mode by the HBT-16. To access and modify these network settings, you will need to login to the camera's web interface.

If this is your first time using the device, please note that the camera's default IP address is 192.168.100.100.

Set up direct connection between the camera and your PC/laptop through an HBT-16 as depicted in the diagram below; remember to manually assign an IP address of 192.168.100.X to your PC/laptop.

192.168.100.100 192.168.100.x

On your PC/laptop, open a web browser and in the address bar, enter the camera's default IP address, 192.168.100.100 then press the ENTER key which should take you to login page of the web interface.

datavideo

User name admin Password ...... Login

The default login credentials are:

User Name: admin
Password: admin

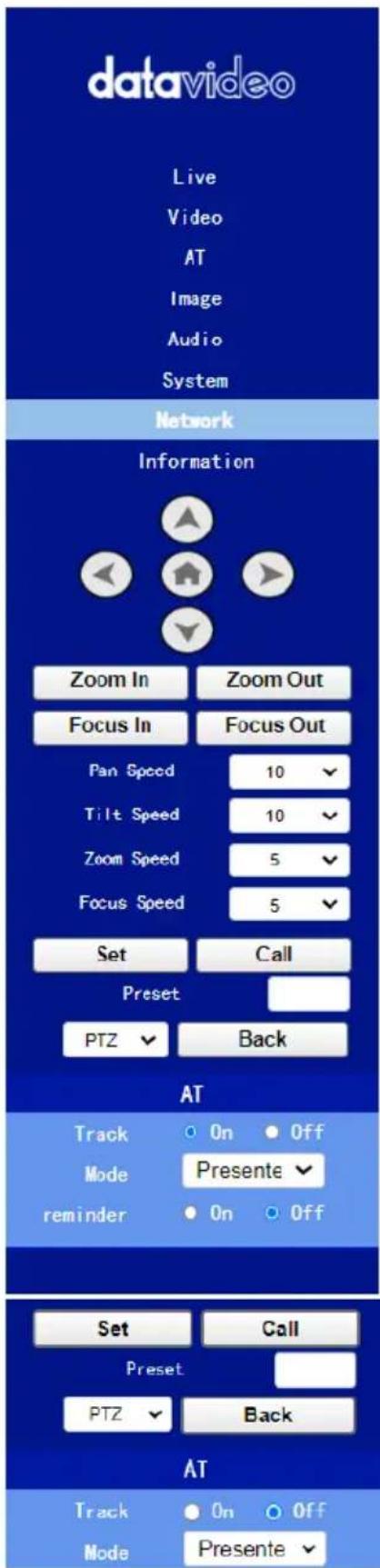

After users login into the web user interface successfully, please click the "Network" option and then please click the "IP Configuration Type" drop-down menu from the "Lan Settings" area to modify the connection type of the camera to DHCP or Fixed IP. If the "Fixed IP Address" is selected, it will be set in fixed IP mode. If the "Dynamic IP Address" is selected, it will be set in DHCP mode. After the setting is finished, please click the "Apply" button for completing the setting.

datavideo Live Video AT Image Audio System Network Information Lan Settings IP Configuration Type Dynamic IP Address IP Address 192.168.100.100 Subnet Mask 255.255.255.0 Gateway 192.168.100.1 DNS Address 8.8.8.8 MAC Address 00:07:36 A5:6D A5 DHOP timeout 30 sec Static fallback address 192.168.100.100 Static fallback Subnet Mask 255.255.255.0 Apply Cancel

In following two chapters, we will show you how to enable DHCP and Static IP modes in two separate sections.

6.1 DHCP Mode

Dynamic Host Configuration Protocol (DHCP) is a network protocol that enables a server to automatically assign an IP address to a network device from a defined range of numbers configured for a given network. The diagram below illustrates a DHCP network connection example.

Diagram showing wireless network device connections with labeled components including a remote port, router, and laptop

In order to enable the DHCP mode of the camera, please select "Dynamic IP Address" from the "IP Configuration Type" drop-down menu for assigning a dynamic IP address to PTC-305T by the router. After that, please click the "Apply" button to save the new settings and then please reboot the PTC-305T.

datavideo Live Video AT Image Audio System Network Information

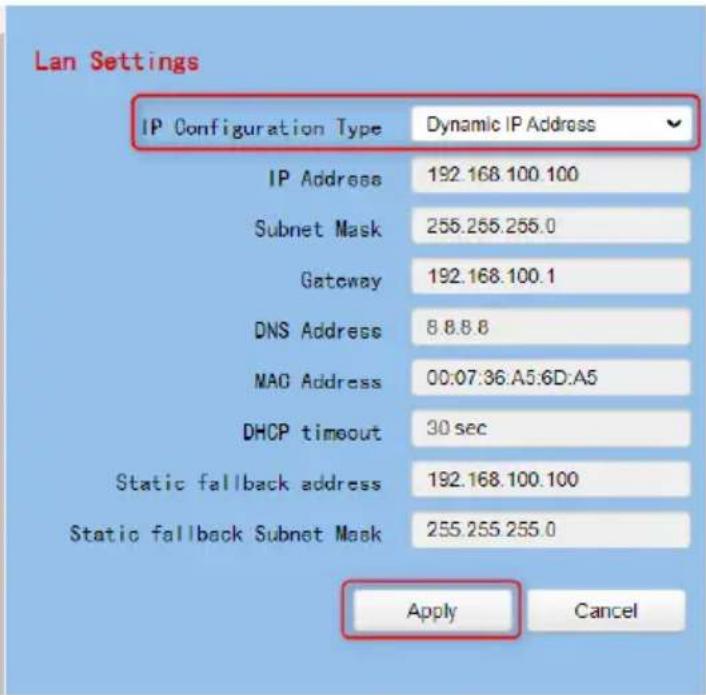

Lan Settings IP Configuration Type Dynamic IP Address IP Address 192.168.100.100 Subnet Mask 255.255.255.0 Gateway 192.168.100.1 DNS Address 8.8.8.8 MAG Address 00:07:36.A5:6D:A5 DHCP timeout 30 sec Static fallback address 192.168.100.100 Static fallback Subnet Mask 255.255.255.0 Apply Cancel

6.2 Static IP

A static IP address is a fixed address manually assigned to PTC-305T. First please select "Fixed IP Address" from the "IP Configuration Type" drop-down menu and then please enter an IP address for the camera, the subnet mask and the gateway IP.

Note: Never assign an address that ends in .0 or .255 as these addresses are typically reserved for network protocols. An address to the very start of the IP pool is also not recommended as it is always reserved for the router.

After the Static IP address is set, please click the "Apply" button for saving new settings and then please reboot the PTC-305T.

datavideo Live Video AT Imago Audio System Network Information Lan Settings IP Configuration Type Fixed IP Address IP Address 192.168.100.100 Subnet Mask 255.255.255.0 Gateway 192.168.100.1 DNS Address 8.8.8.8 MAC Address 00:07:36:A5:6D:A5 DHCP timeout 30 sec Static fallback address 192.168.100.100 Static fallback Subnet Mask 255.255.255.0 Apply Cancel

6.3 DVIP

DVIP is a special network configuration software tool designed for DVIP device search on the same network and configuring device network settings such as Hostname, DHCP mode, IP address, subnet mask, gateway IP, and primary and secondary DNS.

Depending on your operating system, download DVIP Configuration Tool from the respective sites listed as follows:

PC: https://www.microsoft.com/en-us/p/dvip-network-config/9p6gtz839k6s?activetab=pivot%3Aoverviewtab

Android:

https://play.google.com/store/apps/details?id=com.datavideo.dvipnetconfig&hl=en_US

iOS: https://itunes.apple.com/tw/app/dvip-network-config/id1177895983?mt=8

After you've installed the DVIP Network Configuration Tool, follow the steps outlined below to scan for online DVIP devices and configure their corresponding settings.

Step 1: Open the DVIP Network Configuration Tool and then select the connected Ethernet option from the “Network interface” pop-up window. After that please press the “OK” button

datavideo Select N_ ? × Network Interface: [192.168.2.16] 乙水網路 OK Cancel

Step 2: After the Network interface is selected, the DVIP Network Configuration Tool interface will be shown as following diagram.

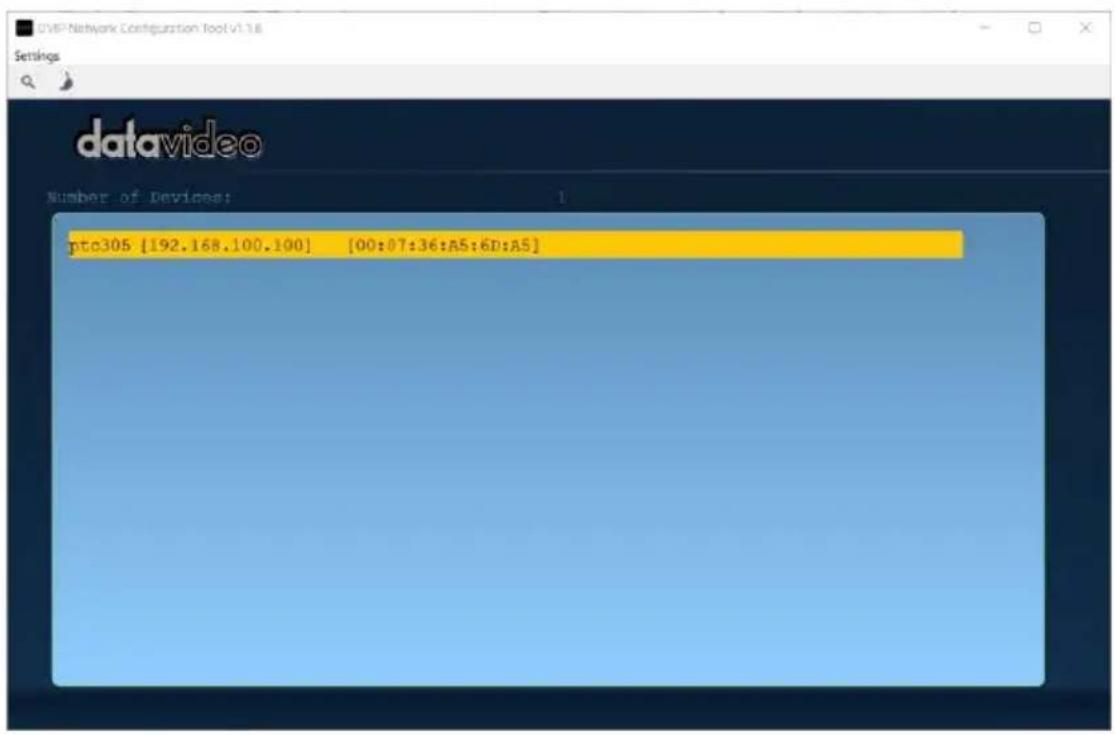

OVMF Network Configuration Tool V1.1.6 Settings datavideo Number of Devices: 1 ptc305 [192.168.100.100] [00:07:36:A5:6D:A5]

Step 3: Please press "PTC-305T" and then the network settings pop-up window will be shown.

DUP Network Configuration Tool v1.1.6 Settings datavideo Number of Devices: ptc30S [192,168,100,100] [00:07:36:A5:60:A5]

Host Name ptc305 Model Name PTC-305 (VID:0103, PID:3019) MAC address 00:07:36:A5:6D:A5 IP address 192.168.100.100 Using Fixed IP Mode Mask 255.255.255.0 Gateway 192.168.100.1 Binary 1925 8.8.8.8 Secondary 1925 8.8.8.8 Default Save

Step 4: users can click "Host Name" column for changing the device name. Users can also click each setting column for changing value if it is needed. After that, please press "Save" for saving those settings. Users can also press "Default" for resuming those settings to factory default value.

Host Name ptc305 Model Name PTC-305 (VID:0103, PID:3019) MAC address 00:07:36:A5:6D:A5 IP address 192.168.100.100 ■ Using Fixed IP Mode Mask 255.255.255.0 Gateway 192.168.100.1 Primary DNS 8.8.8.8 Secondary DNS 8.8.8.8 Default Save

7. How to Use PTC-305T's AI Auto Tracking

The Datavideo PTC-305T is a 4K Tracking PTZ camera. There are two tracking modes for the PTC-305T's AI Auto-Tracking function including "Presenter" and "Zone" Modes. Please refer to the following sections for operating the Auto-Tracking function of the PTC-305T.

7.1 How to turn on the AI Auto-Tracking Function by the remote controller

Please follow the following steps for turning on PTC-305T's AI Auto-Tracking function.

Please use PTC-305T's remote controller to turn on the AI Auto-Tracking

DataVideo PTC-305T - How to turn on the AI Auto-Tracking Function by the remote controller - 1

function. Please press the "AT" button of the remote controller.

At this time, PTC-305T's AI Auto-Tracking function will be turned on. There is a reminder "Start Tracking" that will be shown on the OSD of the external monitor which is connected to the PTC-305T. This means that the AI Auto-Tracking function is turned on successfully.

7.2 How to turn off the AI Auto-Tracking Function by the remote controller

Please follow the following steps for turning off the PTC-305T's AI Auto-Tracking function.

Please use PTC-305T's remote controller to turn off the AI Auto-Tracking

DataVideo PTC-305T - How to turn off the AI Auto-Tracking Function by the remote controller - 1

function. Please press the "AT" button of the remote controller.

At this time, PTC-305T's AI Auto-Tracking function will be turned off.

The PTC-305T allows you to use the remote controller to open the OSD menu for setting the AI Auto-Tracking function. Please follow the steps below to set the AI Auto-Tracking related settings.

DataVideo PTC-305T - How to set the AI Auto-Tracking function by the OSD Menu - 1

At first, please press the "Menu" button from the remote controller to open the PTC-305T OSD menu on the connected monitor.
After that, please use the micro joystick to select "Tracking Config>Tracking" in order to turn on or turn off the AI Auto-Tracking function. Moreover, you can use the micro joystick to select "Tracking Config>Tracking Area" to select your desired Auto-Tracking mode from "Presenter" Mode or "Zone" Mode. You can also use the micro joystick to select "Tracking Config>Figure Size" to select your desired automatic zooming settings from "Full", "Half Body" and "Close Up".

7.4 How to set the AI Auto-Tracking (Presenter Mode) by the Web UI

You can also use the PTC-305T Web UI to set the AI Auto-Tracking function. Please follow the steps below to set the Auto-Tracking function by the Web UI.

The factory default of the PTC-305T is the DHCP mode. Please connect your PTC-305T and laptop or PC to a router and please make sure that they are set within the same IP range.
Please use Datavideo DVIP Network Configuration Tool to get the IP address of your PTC-305T and then please use the web browser to open the PTC-305T Web UI. After that, please click the "AT" option and then you can see that there are two tabs including "Presenter" and "Zone". You can select "Current Location" or "Preset 1" from the drop-down menu of the "Presenter" tab to be the initial position of the camera lens for Auto-Tracking. The "Auto Zoom" and "Auto Tilt" are checked by default. You can also set the automatic zooming level of the camera lens by selecting "Full", "Half Body" or "Close Up" from the "Figure Size" option.

datavideo Live Video AT Image Audio System Network Information Zoom In Zoom Out Focus In Focus Out Pan Speed 10 Tilt Speed 10 Zoom Speed 5 Focus Speed 5 Set Call Preset PTZ Back AT Track On Off Mode Presente Forward On Off Presenter Zone Tracking Start Position Preset 1 Auto Zoom Auto Tilt Figure Size Full Half Close

7.5 How to set the AI Auto-Tracking by the Web UI (Zone Mode)

The “Zone” Mode for the PTC-305T Auto-Tracking allows you to set 1 to 4 tracking areas (Zone A/Zone B/Zone C/Zone D). You have to set at least 2 tracking zones and the maximum is up to 4 tracking zones. Please pay attention that for setting the tracking zone in “Zone” Mode, you have to set your desired tracking zones “from the left side to the right side” and the edge for each zone must be overlapped.

DataVideo PTC-305T - How to set the AI Auto-Tracking by the Web UI (Zone Mode) - 1
    note right of B "From the Left Side to the Right Side"

This section will take the settings for “Zone A” as an example. The way for setting Zone B to Zone D is the same as Zone A. Please refer to the steps below to set the related settings of the Zone Tracking Mode.

At first, please click "AT>Zone" to enter the "Zone" interface.
Please set your desired camera settings and camera lens angle in advance and then please click the "Zone Setting" drop-down menu. After that, please select "Zone A" and then press the "Save" button.

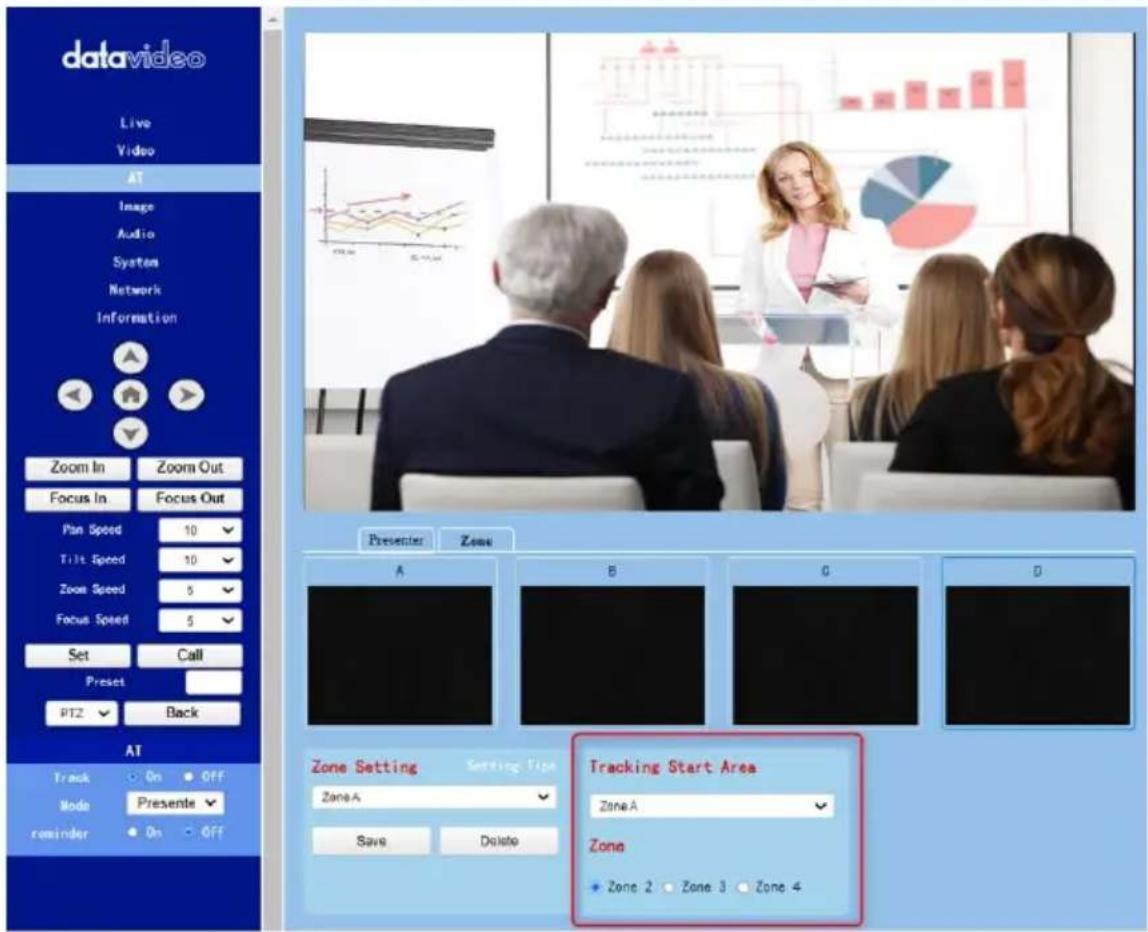

datavideo Live Video AT Image Audio System Network Information Zoom In Zoom Out Focus In Focus Out Pan Speed 10 Fit Speed 10 Zoom Speed 5 Focus Speed 5 Set Cali Present PTZ Back AT Trash On Off Mode Presents reminder On Off

Perimeter Zone A S C D Zone Setting Extension Zone A Save Delete Tracking Start Area Zone A Zone Zone 2 Zone 3 Zone 4

Please select your desired tracking start area from the “Tracking Start Area” drop-down menu’s Zone A, Zone B, Zone C and Zone D. After that, please select “Zone 2”, “Zone 3” or “Zone 4” from “Zone” option. For example, if the Zone 2 is set, the zone tracking area will from “Zone A” to “Zone B”.

datavideo Live Video AT Image Audio System Network Information Zoom In Zoom Out Focus In Focus Out Plan Speed 10 Tilt Speed 10 Zoom Speed 5 Focus Speed 5 Set Call Preset PT2 Back AT Track On Off Mode Presente reminder On OFF Presenter Zone A B C D Zone Setting Setting Time Zone A Save Delete Tracking Start Area Zone A Zone Zone 2 Zone 3 Zone 4

8. Web User Interface

The web based user interface allows you to set and control your PTC-305T devices.

8.1 Live

Live option allows users to preview the image which is shot by the PTC-305T in a real-time basis. Please click the “Live” option and then users can preview the image which is shot by the PTC-305T camera from the preview window.

8.2 Video

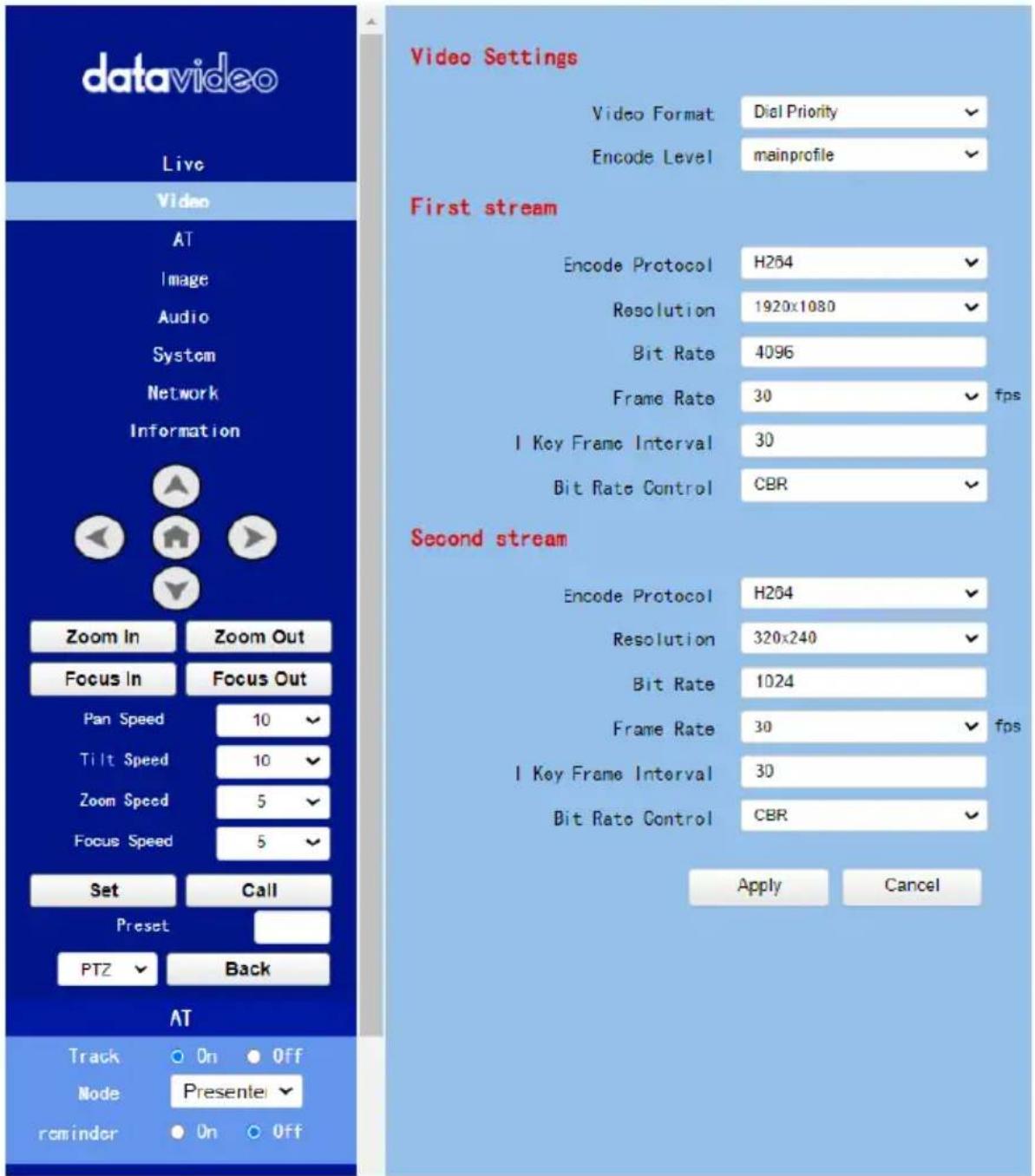

"Video" option allows users to set various parameters including Video Format and Encode Level. Moreover, it also allows users to set the Encode Protocol, Resolution, Bit Rate, Frame Rate, I Key Frame Interval and Bit Rate Control for the First stream and Second stream. The main interface for the Video option is shown in the following diagram.

Please see the following section for realizing the descriptions for each item for the Video option.

Items	Descriptions
	Video FormatIt can support three video formats including 50Hz(PAL), 60Hz(NTSC) and Dial Priority.
50Hz (PAL): If you select this option, the maximum frame rate per second (FPS) for the streaming video will be 50.60Hz (NTSC): If you select this option, the maximum frame rate per second for the streaming video will be 60.Dial Priority: If you select this option, the maximum frame rate per second will be 30, and it is possible that the parameters including the video format and frame rate will be affected by the camera OSD menu settings.Note:1. If you want to use the PTC-305Tcamera to connect to some Datavideo switchers which support the interlace format only such as the HS-1300, SE-120 MU and SE-650, please remember to select the “Dial Priority” option as your video format.2. If the 50Hz or the 60Hz is selected for the PTC-305Tweb UI, the SDI or the HDMI output format of the PTC-305Tcamera will be fixed at 1080p 50/60.
	Encode LevelIt allows users to select needed Encode Level from two Encode Levels including mainprofile and highprofile.
	Encode Protocol (First Stream & Second Stream)It allows users to select three Encode Protocols including H.264, H.265 and MJPEG for the “First Stream” and “Second Stream”.
Resolution for the first stream	Resolution (First Stream & Second Stream)There are two drop-down menus including the resolution for the First Stream and the resolution for the Second Stream for users to select different resolution.When the resolution is higher, the image will become clearer. However, it will occupy more network bandwidth.
Resolution for the second stream
		Bit Rate (First Stream & Second Stream)It allows users to determine the Bit Rate range by themselves. The range for the Bit Rate for the first stream is from 32-51200kbps. The range for the Bit Rate for the second stream is from 32-20480kbps.Note: If the network bandwidth is too narrow and the Bit Rate setting is too high, it will cause that the video streaming can not be transferred normally and it will cause a poor visual effect for viewers.

		Frame Rate (First Stream & Second Stream)Users can set the Frame Rate from the drop-down menu by themselves. The range is from 1 to 60. When the Frame Rate value is higher, the image will be smoother. When the Frame Rate value is lower, it will cause an unsmooth image.
		I Key Frame Interval (First Stream & Second Stream)It allows users to set the interval between two I frames. When the interval is larger, the response speed from the viewing window will be lower.
		Bit Rate Control (First Stream & Second Stream)There are two ways for Bit Rate Control including the CBR and VBR.CBR: The video encoder will encode the video according to the default speed.VBR: The video encoder will encode the video by adjusting the encoding speed according to the default value in order to achieve best image quality.
		Apply KeyAfter all of the options are set, please click the “Apply” key and then all of the changes will be effective.

Items	Descriptions
Cancel	Cancel KeyIf the “Cancel” key is pressed, all of the changes will not take effect.

8.2.1 How to Connect the PTC-305T to a Datavideo Switcher after a 60FPS/50FPS Video Streaming (Take the HS-1300 as an example)

When you select the 50Hz or the 60Hz option from the 「Video」→「Video Settings」 drop-down menu in the PTC-305T web UI for streaming videos, the PTC-305T HDMI/SDI output will be fixed at 1080p 50/60. However, the Datavideo HS-1300 switcher supports the 1080i video format only rather than the 1080p video format. So, when you want to connect the PTC-305T to the HS-1300 switcher, it is necessary for you to set the PTC-305T again in order to make sure that the video formats for the PTC-305T and the HS-1300 are consistent. Moreover, it can assure that the input screen that is received by the HS-1300 can be displayed correctly. Please follow following steps for setting the PTC-305T and the HS-1300.

● Take the adjustment to 1080i59.94 as an example

Step 1. At first, please press the "MENU" button which is located on the PTC-305T remote controller to open the OSD menu.

Step 2. After the OSD menu is opened, please move down the "Microjoystick"

DataVideo PTC-305T - ● Take the adjustment to 1080i59.94 as an example - 1

DataVideo PTC-305T - ● Take the adjustment to 1080i59.94 as an example - 2

to select the "Setup" option, and then please press the "Microjoystick"

to enter the "Setup" option.

Step 3. In "Video Format" option, please move the "Microjoystick" to the left or right side to select 1080i60, 1080i59.94 or 1080i50 video format.

DataVideo PTC-305T - ● Take the adjustment to 1080i59.94 as an example - 3

Step 4. Please press the "MENU" button which is located on the control panel of the HS-1300 switcher to open its OSD menu.

DataVideo PTC-305T - ● Take the adjustment to 1080i59.94 as an example - 4

Step 5. Please use the down arrow button to select the "Setup" option.

Step 6. Please use the right arrow button to select "Standard""1080i59.94", and then please press the "Enter" button to enter this option for further adjustment.

Step 7. If the format for the "Standard" is not 1080i59.94, please use the up

DataVideo PTC-305T - ● Take the adjustment to 1080i59.94 as an example - 5

arrow button and down arrow button / which are located on the control panel to adjust the video format to 1080i59.94.

Step 8. Please select your desired "Standard" value and then press the "ENTER" button again to confirm your selection.

DataVideo PTC-305T - ● Take the adjustment to 1080i59.94 as an example - 6

Step 9. Please press the right arrow button again to select the "Save Setup" option.

Step 10. Please use the left arrow button and the right arrow button to select the "Yes" button and then press the "ENTER" button again to save the setting.

DataVideo PTC-305T - ● Take the adjustment to 1080i59.94 as an example - 7

Step 11. After the setting is saved, please press the "MENU" button to exit to the previous menu and to exit the OSD menu of the HS-1300. The "Standard" option setting for the HS-1300 is finished until this step.

Step 12. Please open the web UI of the PTC-305T.

Step 13. Please click the "Video" option, and then please select "Dial Priority" from the "Video Format" drop-down menu.

datavideo Live Video AT Image Audio System Network Information Video Settings Video Format Dial Priority Encode Level mainprofile First stream Encode Protocol H264 Resolution 1920x1080 Bit Rate 4096 Frame Rate 30 fps I Key Frame Interval 30 Bit Rate Control CBR

Step 14. Please click the "Apply" button Apply

Step 15. Please click the "Reboot" button in the "System" option to reboot the PTC-305T.

Step 16. After the PTC-305T is rebooted, please use an SDI cable to connect from the 3G-SDI interface which is located on the rear panel of the PTC-305T to the SDI IN interface which is located on the rear panel of the HS-1300, or you can use an HDMI cable to connect from the HDMI interface which is located on the rear panel of the PTC-305T to the HDMI IN interface which is located on the rear panel of the HS-1300. After that, you can see the image which is shot by the PTC-305T is displayed in the MULTIVIEW window of the HS-1300 correctly.

For SDI: The SDI IN 1 to SDI IN 4 interfaces which are located on the rear panel of the HS-1300 represent the MULTIVIEW window's Input 1 to Input 4.

For HDMI: The HDMI IN 1 to HDMI IN 2 interfaces which are located on the rear panel of the HS-1300 represent the MULTIVIEW window's Input 5 to Input 6.

Note: Datavideo's SE-650, HS-1200 MU and HS-1300 switchers support 1080i video format only. So, the 1080p video format is not supported by the above-mentioned switchers. If you want to connect the PTC-305Tcamera to the SE-650 or the HS-1200 MU switcher, please remember to select the “Dial Priority” item from “Video→ Video Format” in the PTC-305T web UI. Moreover, please use the OSD menu of the PTC-305T camera and the OSD menu of the above-mentioned switchers to adjust them in the same video standard before

connecting to prevent the video format incompatible issue and the issue that the video that is shot by the PTC-305T can not be displayed normally in the MULTIVIEW window of the above-mentioned switchers.

8.3 AT(Auto-Tracking)

The “AT” option allows you to set detailed settings for PTC-305T’s two tracking modes including “Presenter” and “Zone” modes. For the “Presenter” mode, the “Tracking Start Position” drop-down menu allows you to set the start position of the auto-tracking. The “Figure Size” option allows you to select “Full”, “Half Body” or “Close Up”. For the “Zone” mode, the “Zone Setting” allows you to set 2 to 4 auto-tracking areas. The “Tracking Start Area” allows you to set the start area of the zone tracking. The “Zone” option allows you to set the tracking area within 2 areas to 4 areas. For details of the auto-tracking function, please refer to Chapter 7 How to Use PTC-305T’s AI Auto Tracking.

datavideo Live Video AT Image Audio System Network Information Zoom In Zoom Out Focus In Focus Out Pan Speed 10 Tilt Speed 10 Zoom Speed 6 Focus Speed 5 Set Call Preset PTZ Back AT Track On Off Mode Presente reminder On Off Presenter Zone Traoking Start Position Preset1 Auto Zoom Auto Tilt Figure Size Full Half Close

datavideo Live Video AT Image Audio System Network Information Zoom In Zoom Out Focus In Focus Out Fan Speed 16 Tilt Speed 10 Zone Speed 5 Focus Speed 5 Set Call Present PTZ Back AT Track On Off Mode Presente reminder On Off Presenter Zone A B C D Zone Setting Setting line ZoneA Zone A Save Delete Tracking Start Area Zone Zone 2 Zone 3 Zone 4

8.4 Image

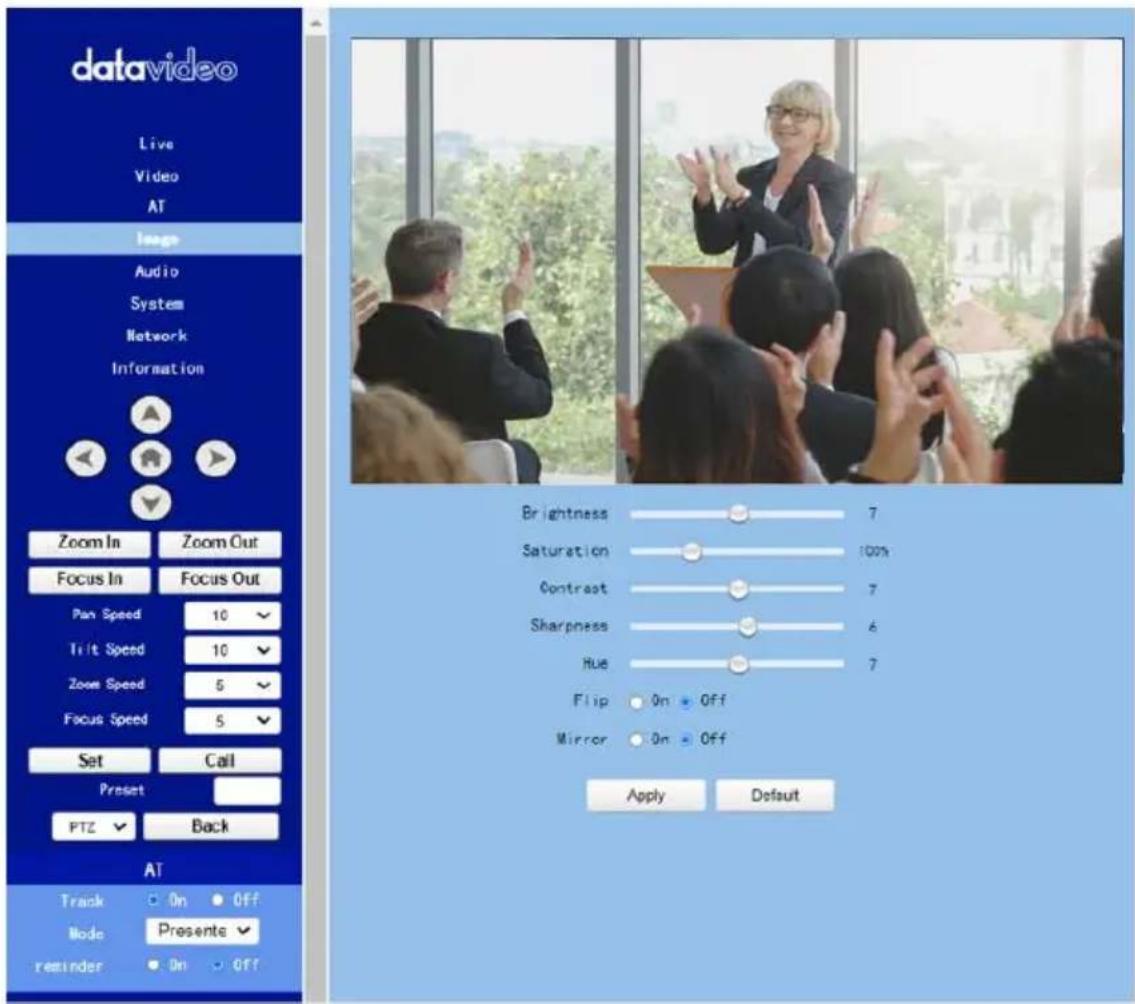

The “Image” option allows users to see the image that is shot by the PTC-305T from the preview window. Moreover, users can adjust many parameters including Brightness, Saturation, Contrast, Sharpness and Hue from this interface by using sliders. The main interface of the Image option is shown as following diagram.

datavideo Live Video AT Image Audio System Network Information Zoom In Zoom Out Focus In Focus Out Pan Speed 10 Tilt Speed 10 Zoom Speed 5 Focus Speed 5 Set Call Preset PTZ Back AT Track On Off Mode Presente reminder On Off Brightness 7 Saturation 100% Contrast 7 Sharpness 6 Hue 7 Flip On Off Mirror On Off Apply Default

● Brightness: This option allows users to adjust the Brightness. Please use the slider for adjusting the Brightness.
Saturation: This option allows users to adjust the Saturation. Please use the slider for adjusting the Saturation. After the adjustment is finished, please click the "Apply" button and then it is set successfully.
- Contrast: This option allows users to adjust the Contrast. Please use the slider for adjusting the Contrast. After the adjustment is finished, please click the "Apply" button and then it is set successfully.

● Sharpness: This option allows users to adjust the Sharpness. Please use the slider for adjusting the Sharpness. After the adjustment is finished, please click the "Apply" button and then it is set successfully.
- Hue: This option allows users to adjust the Hue. After the adjustment is finished, please click the "Apply" button and then it is set successfully.
- Flip: Please check the checkbox of the "Flip On" option and then please click the "Apply" button for flipping the image that is shot by the camera.
Mirror: Please check the checkbox of the "Mirror On" option Mirror ☐ On and then please click the "Apply" button for mirroring the image that is shot by the camera.
Default: Please click the "Default" button for restoring the settings in this page to factory default value.

8.5 Audio

The Audio option allows users to set the audio related parameters. The main interface of the audio option is shown as following diagram.

datavideo Live Video AT Image Audio System Network Information Audio Settings Audio Switch On Audio Type AAC Sample Rate 48K Bit Rate 96K Input Type LINE IN ADTS Options Off Apply Cancel

Please see following section for realizing the descriptions for each item for the Audio option.

Items	Descriptions
	Audio SwitchThis option allows users to turn on or turn off the input of the audio source.
	Audio TypeThis allows users to select the encoding format of the input audio.The default audio type is the AAC format.
	Sample RateThis drop-down menu allows users to select desired sample rate for the input audio source. There are two sample rate including 44.1K and 48K for users to select.
	Bit RateThis drop-down menu allows users to select their desired Bit Rate.
	Input TypeThis option allows users to select the audio signal input way. Users can input the audio by external connected MIC or by LINE IN.
	ADTS OptionThis drop-down menu allows users to turn on or turn off the ADTS.
Apply	Apply KeyAfter all of the options are set,please click the “Apply” key and thenall of the changes will be effective.
Cancel	Cancel KeyIf the “Cancel” key is pressed, all ofthe changes will not take effect.

8.6 System

This System option allows users to select functions including Reboot, Factory default, User/Guest Name and Password. The main interface of the System option is shown as following diagram. Please pay attention that the “Factory Default” option resumes the OSD menu rather than the Web UI to its factory default settings.

datavideo Live Video AT Image Audio System Network Information Initialize Reboot Reboot Factory Default Factory Default User UserName adults Passwd .......... Guest guest Passwd .......... Apply Cancel

Please see following section for realizing the descriptions for each item for the System option.

Items		Descriptions
		RebootPress the “Reboot” button and then a reminder dialogue box will appear, please press the “OK” button for rebooting the camera.
		Factory DefaultPress the “Factory Default” button and then a reminder dialogue box will appear, please press the “OK” button for resuming PTC-305T’s OSD menu to its factory default value.

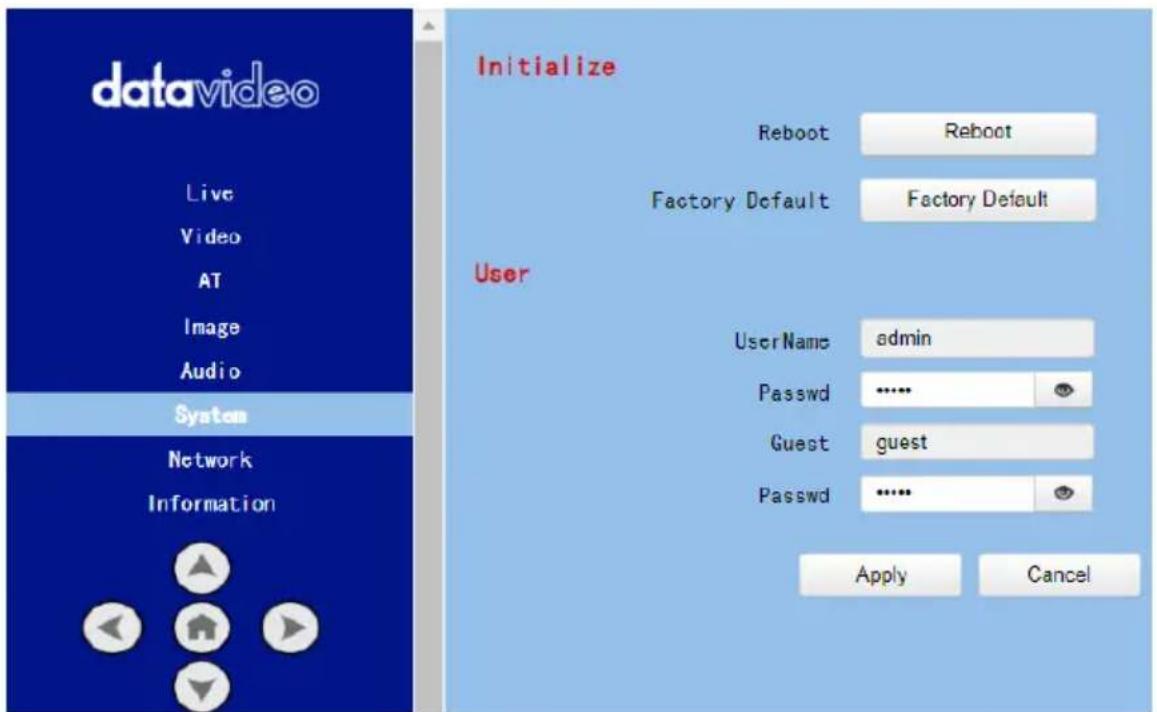

		UserThere are several items including Username, Password, Guest and Password for users to set the username and password for user and guest. After the setting is finished, please press the “Apply” button for applying the setting.The default username/Password for user is “admin/admin”.The default Username/Password for Guest is “guest/guest”.
		Apply KeyAfter all of the options are set, please click the “Apply” key and then all of the changes will be effective.

Items	Descriptions
Cancel	Cancel KeyIf the “Cancel” key is pressed, all of the changes will not take effect.

8.7 Network

The Network option allows users to set many network related functions. The main interface of the Network option is shown as the following diagram.

datavideo Live Video AT Image Audio System Network Information Zoom In Zoom Out Focus In Focus Out Pan Speed 10 Tilt Speed 10 Zoom Speed 5 Focus Speed 5 Set Call Preset PTZ Back AT Track ○ On ● Off Mode Presente▼ reminder ○ On ○ Off Set Call Preset PTZ Back AT Track ○ On ○ Off Mode Presente▼

Please see following section for realizing the descriptions for each item for the Network option.

Items		Descriptions
Lan SettingsIP Configuration Type Dynamic IP AddressDynamic IP AddressIP Address Fixed IP Address		IP Configuration TypeThis drop-down menu allows users to select the Static IP or DHCP mode. If the “Fixed IP Address” is selected, it will operate in static IP mode. If the “Dynamic IP Address” is selected, it will operate in DHCP mode.
IP Address	192.168.100.88	IP Address/SubnetMask/Gateway/DNS AddressIf the fixed IP address is selected, users can set related parameters manually. After the settings are finished, please click the “Apply” button and then those settings will take effect.
Subnet Mask	255.255.255.0
Gateway	192.168.100.1
DNS Address	8.8.8.8
MAC Address	D4:E0:8E:55:FD:60	MAC AddressThis is the MAC Address and it can not be changed by users.
DHCP timeout	30 sec	DHCP timeoutThis option allows you to set the DHCP timeout seconds. If the DHCP mode can not be detected by the PTC-305T within 30 seconds, it will change to static IP mode automatically.
Static fallback address 192.168.100.100		Static fallback addressThis is the default backup static IP address “192.168.100.100”.When the DHCP address can not be detected within default seconds, it will change to this IP address automatically.
Static fallback Subnet Mask 255.255.255.0		Static fallback Subnet MaskThis is the backup Subnet Mask “255.255.255.0”. When the DHCP mode can not be detected within default seconds, it will change to this Subnet Mask automatically.
HTTP Port 80		HTTP PortThis is the HTTP Port and the default port No. is 80.
RTSP Port 554		RTSP PortThis is the RTSP Port and the default port No. is 554.
TCP Port 5678		TCP PortThis is the TCP Port No. and the default port No. is 5678.
UDP Port 1259		UDP PortThis is the UDP Port No. and the default port No. is 1259.
Sony Visca 52381		Sony ViscaThis is the Sony Visca Port No. and the default No. is 52381.
First Stream On Off Video AudioMRL rtmp://192.168 100.138/live/stream0		First StreamThis option allows users to determine whether they want to turn on/turn off the First Stream streaming. Moreover, this option can turn on/turn off the streaming of video and audio separately.MRLPlease copy the RTMP server address and streaming key from the streaming platform and then paste them into this MRL column. After that, please press the “Apply” button for starting the streaming successfully.
		Second StreamThis option allows users to determine whether they want to turn on/turn off the Second Stream streaming. Moreover, this option can turn on/turn off the streaming of video and audio separately.MRLPlease copy the RTMP server address and streaming key from the streaming platform and then paste them into this MRL column. After that, please press the “Apply” button for starting
		the streaming successfully.

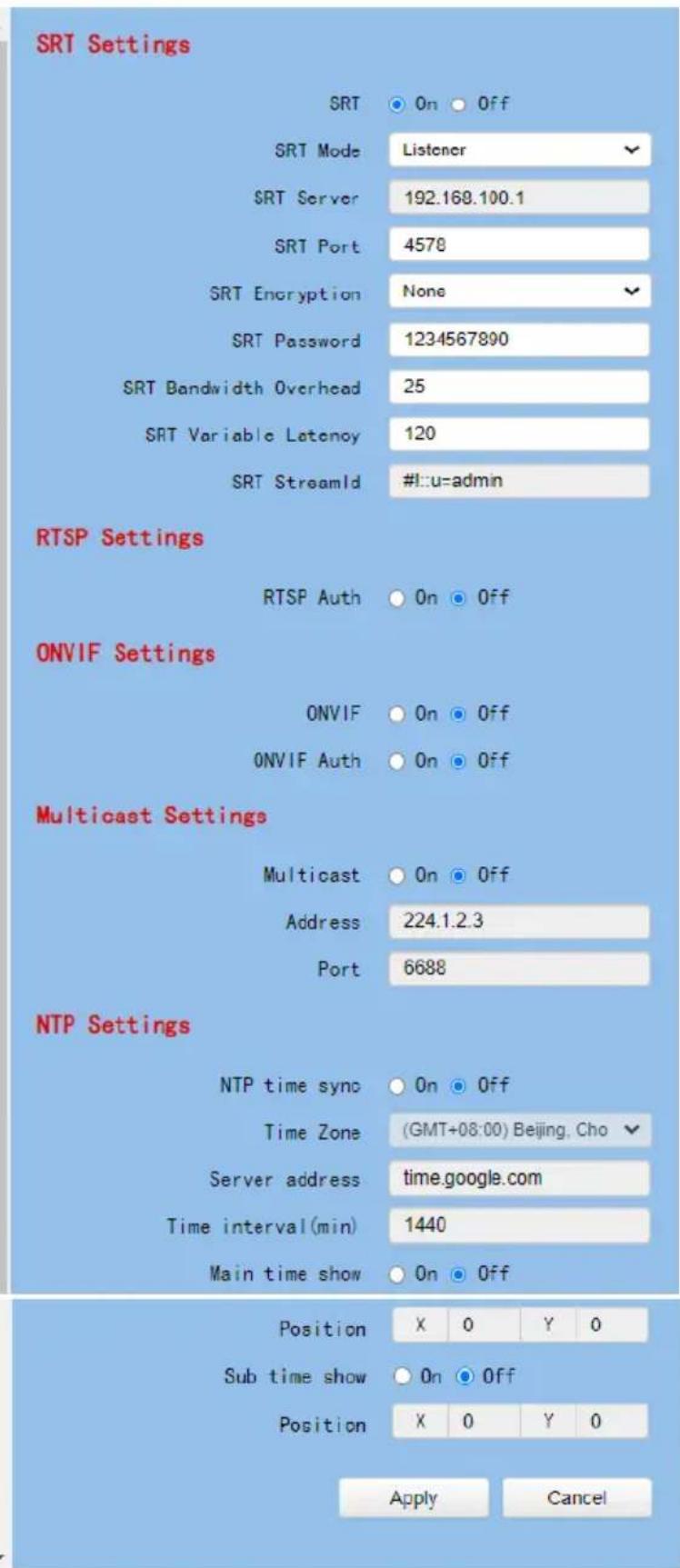

		SRT On/OffThis allows users to turn on or turn off the SRT streaming function.
		SRT ModeWhen the SRT ON/OFF is turned on, you can select “Caller” or “Listener” mode from this drop-down menu.
		SRT ServerThis SRT server provides an IP address for you to enter into your SRT streaming software when you are using the SRT streaming function and the PTC-305T camera is set as Listener mode and the SRT streaming software such as the Vmix is set as the Caller mode.
		SRT PortThis is the SRT port and the default port No. is 4578.

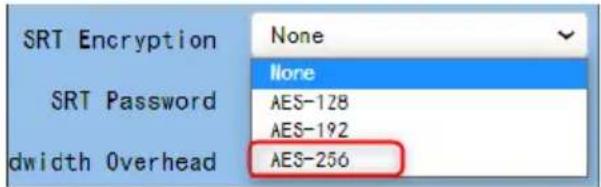

		SRT EncryptionWhen the SRT function is turned on, this option allows users to select their desired SRT Encryption way. There are three encryption ways including AES-128, AES-192 and AES-256 for users to select.
SRT Password 1234567890		SRT PasswordWhen the SRT encryption way is set, it is needed for users to use this password. The default value is 1234567890 and this password can change by users.
SRT Bandwidth Overhead 25		SRT Bandwidth OverheadThe Bandwidth Overhead is a percentage which is set according to the network link. You can multiply this percentage value by the encoder-encoded video and audio total bitrates to get the maximum overhead which is allowed by the Bandwidth overhead. This value plus the total value of the video and audio bitrates is the maximum value of the current SRT transmission bandwidth, which is the maximum bandwidth of this SRT channel. The purpose of the bandwidth overhead is to transfer the control message data packet which accompany the SRT streaming. Moreover, it also includes the retransmission for all of the media packets. If the network link condition is worse,
		more exchanges for the control message data packets and more retransmissions for the media data packets will be needed. And you need to set a higher Bandwidth Overhead value.
SRT Variable Latency 120		SRT Variable LatencyThis column allows you to set the transmission latency of the SRT streaming. You can set the latency within the range of 20 to 8000.
SRT StreamId #!::u=admin		SRT Stream IDThis option allows you to turn on or turn off the SRT Stream ID. The Stream ID is an information which can be exchanged between the SRT Caller and the SRT Listener when the SRT connection is established. This Stream ID information allows the SRT Listener to determine whether the connection from a certain SRT Caller should be accepted or not.
RTSP Auth ☐ On ☑ Off		RTSP AuthThis option allows users to turn on or turn off the authentication of the RTSP streaming.
ONVIF ☐ On ☑ Off		ONVIFThis option allows users to turn on or turn off the ONVIF function.
		ONVIF AuthThis option allows users to turn on or turn off the ONVIF authentication.
		MulticastThis option allows users to turn on or turn off the Multicast function.
		AddressThis option is the address of Multicast. The default value is 224.1.2.3
		PortThis is the Port No. of the Multicast. The default No. is 6688.
		NTP Time SyncThis option allows users to turn on or turn off the NTP Time Sync function.
		Time ZoneThis option allows users to select their time zone.
		Server AddressThis option allows you to set the time calibration server when doing the time calibration and the server can be changed by users.
		Time IntervalThis option allows users to set the time interval for the time calibration.
		Main Time Show/PositionThis option allows users to open or close the time display function for the main time.Moreover, users can enter different X coordinate and Y coordinate positions to determine the position for showing the time on the screen.(The allowable setting range is from 0 to 100).
		Sub Time Show/PositionThis option allows users to open or close the time display function for the sub time.Moreover, users can enter different X coordinate and Y coordinate positions to determine the position for showing the time on the screen.(The allowable setting range is from 0 to 100).
		Apply KeyAfter all of the options are set, please click the “Apply” key and then all of the changes will be effective.
Cancel		Cancel KeyIf the “Cancel” key is pressed, all of the changes will not take effect.

8.8 Information

In the “Information” option, users can change the device name by themselves. Moreover, users can also see the messages including software version and webware version. The main interface of the Information option is shown as the following diagram.

datavideo Live Video AT Image Information Device ID UHD Camera Software Version SOC v1.1.28 - ARM 7.0.19SD Webware Version v1.5.5 Apply Cancel

Please see following section for realizing the descriptions for each item for the information option.

Items		Descriptions
Device ID	UHD Camera	Device IDThis column allows users to determine the device ID by themselves. What they have to do is to enter their desired device ID and then click the “Apply” button.
Software Version	SOC v1.1.06 - ARM 7.0.06SD	Software VersionThis option can show current software version.
Webware Version	v1.5.5	Webware VersionThis is the version of the web-based control UI.
Apply		Apply KeyAfter all of the options are set, please click the “Apply” key and then all of the changes will be effective.
Cancel		Cancel KeyIf the “Cancel” key is pressed, all of the changes will not take effect.

8.9 The PTZ Control Area of the Web UI

PTC-305T camera's PTZ control area in the Web UI allows users to control the directions, Zoom-In, Zoom-Out, Focus Near and Focus Far parameters for the PTZ camera lens. Moreover, users can also adjust the panning, tilting speed, preset setting and preset calling functions. The PTZ control area is shown as following diagram.

Zoom In Focus In Pan Speed Tilt Speed Zoom Speed Focus Speed Set Call Preset PTZ Back Language English

Items		Descriptions
		UP/Down/Left/Right/Home KeysUsers can click the up, down, left and right keys and the PTZ camera lens will rotate to assigned direction. If the Home key pressed, the camera lens will return back to the initial position automatically.If this Home key is used with the “Back” key, when the “OSD” is selected and the Back key is clicked, the OSD menu will be shown on the external connected screen and users can use the up, down, left and right keys on the Web UI to control the camera.

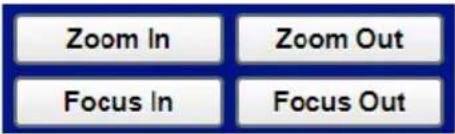

		Zoom In/Zoom Out/Focus In/Focus OutClick “Zoom In” or “Zoom Out” for zooming in or zooming out the camera lens.Click the “Focus In” or “Focus Out” for Focusing Near or Focusing Far the camera lens.
		Pan SpeedThe “Pan Speed” allows users to adjust the rotation speed of the PTZ camera lens. The allowable setting range is from 1 to 24. The larger the number, the faster the PTZ camera lens will rotate.
		Tilt SpeedThe “Tilt Speed” allows users to adjust the vertical rotation speed of the camera lens.The allowable setting range is from 1 to 20.The larger the number, the faster the PTZ camera lens will rotate.
		Zoom SpeedThe “Zoom Speed” allows users to adjust the Zoom In/Zoom Out speed of the PTZ camera lens. The allowable setting range is from 0 to
		7. The larger the number, the faster the PTZ camera lens will rotate.
		Focus SpeedThe “Focus Speed” allows users to adjust the “Focus Near” and “Focus Far” speed of the PTZ camera lens. The allowable setting range is from 0 to 7. The larger the number, the faster the PTZ camera lens will rotate.
		Set and Call PresetsThe PTC-305T provides 255 presets (0-254) for users to set.Users can use “Set” button to set the preset position and users can use the “Call” button to recall the pre-saved presets.
		OSD/PTZ Drop-Down MenuPress the OSD option from the web UI allows camera to call the OSD menu immediately. If the PTZ is selected after the OSD menu is shown, the OSD menu will disappear and the screen will go back to the scene that is shot by the camera.
		Language Drop-Down MenuUsers can use this drop-down menu for selecting four different languages including Traditional Chinese, русский, English and Simplified Chinese.

9. How to Use the Web UI to Set and Call Presets

Please follow following steps for setting and recalling the presets.

● How to Set Preset

Please adjust your desired camera parameters and camera lens positions in advance.
Please enter your desired preset number in the "Preset" column

DataVideo PTC-305T - ● How to Set Preset - 1

Please click the "Set" button and then the preset is set successfully.

● How to Recall Preset

Please enter the preset number that you want to recall into the "Preset"
column.
Please click the "Call" button Call and then the preset is recalled successfully.

DataVideo PTC-305T - ● How to Recall Preset - 1

10. Quick Setting Area for the Auto-Tracking

The quick setting area of the Auto-Tracking function is located below the PTZ control area for you to turn on or turn off the Auto-Tracking function rapidly. Moreover, it also allows you to select the “Presenter” or “Zone” tracking mode from the drop-down menu. You can also turn on or turn off the “reminder”. If the “reminder” is turned on, there is a green frame that will appear when the Auto-Tracking function is activated. If the “reminder” is turned off, the green frame will not be shown. The interface of the Auto-Tracking quick setting area is shown in the following diagram.

AT Track ○ On ● Off Mode Presente ▼ reminder ○ On ○ Off

11. Control the Camera by the PTZ View Assist App

Datavideo provides PTZ View Assist App for you to control up to 4 PTC-305T cameras by using Android or iOS handset. What you have to do is to set your handset or tablet in the same LAN with the PTZ View Assist App by the static IP address, and then you can control various functions of the camera by the Wi-Fi connection. Please download the PTZ View Assist App for the Android or iOS platform by using the following addresses.

Note: The Datavideo PTZ View Assist App can be operated only in DVIP mode. So, please remember to adjust the PTC-305T camera to the DVIP mode before using the Datavideo PTZ View Assist App. Please note that you need to turn off the “Multicast” function from the Web UI to prevent the control issue due to the network congestion.

For the Android device: Please go to "Google Play" and then search for the "PTZ View Assist". Finally, please download and install it.

For the iOS device: Please go to "App Store" and then search for the "PTZ View Assist". Finally, please download and install it.

PTZVIEW ASSIST datavideo PTZ VIEW ASSIST MENU WHITE BALANCE AUTO ONE PUSH MANUAL R/B GAIN FOCUS AUTO MANUAL + - IRIS AUTO MANUAL + - CAMERA CONTROL ZOOM IN ZOOM OUT UNLOCK PROTOCOL RTSP SRT NDI Model Name: PTC-140 192.168.100.100 Resolution/TPS: 1080p56.94 CAMERA CAM A CAM B CAM C CAM D POSITION 1 2 3 4 STORE Connect Successfully

12. DIP Switch Settings

12.1 DIP Switch SW1

The DIP Switch SW1 can be found at the bottom of the camera, where the user is allowed to set the camera's VISCA ID, enable remote control, select the video resolution, and configure how the video mode can be selected.

On Off 1 2 3 4 5 6 7 8

DIP SW 1/2/3	VISCA ID
(1,2,3) = (ON,OFF,OFF)	VISCA-ID 1
(1,2,3) = (OFF,ON ,OFF)	VISCA-ID 2
(1,2,3) = (ON ,ON ,OFF)	VISCA-ID 3
(1,2,3) = (OFF,OFF,ON)	VISCA-ID 4
(1,2,3) = (ON ,OFF,ON)	VISCA-ID 5
(1,2,3) = (OFF,ON ,ON)	VISCA-ID 6
(1,2,3) = (ON ,ON ,ON)	VISCA-ID 7
DIP SW 4	Remote Control Protocol
(4) = (ON or OFF)	System will detect automatically
DIP SW 5/6/7	Resolution
(5,6,7) = (OFF,OFF,OFF)000	1920 x 1080i 59.94
(5,6,7) = (ON,OFF,OFF)100	1920x1080i50
(5,6,7) = (OFF,ON,OFF)010	1920 x 1080p 59.94
(5,6,7) = (ON,ON,OFF)110	1920 x 1080p 50
(5,6,7) = (OFF,OFF,ON)001	3840 x 2160p 29.97
(5,6,7) = (ON,OFF,ON)101	3840 x 2160p 25
(5,6,7) = (OFF,ON,ON)011	3840 x 2160p 59.94
(5,6,7) = (ON,ON,ON)111	3840 x 2160p 50
DIP SW 8	Video Mode Selection Method
ON	Video mode selectable by DIP switch only
OFF	Video mode selectable by menu

12.2 DIP Switch SW2 (IRID)

The IRID DIP Switch can be found on the rear panel of the PTC-305T camera. This DIP switch allows the user to assign an ID number to the camera so that the user can navigate between the cameras by pressing the CAMERA SELECT buttons.

1 0 1 2 3 4

DIP SW 1/2	Camera Select Function (IR Remote Control) – Camera ID Assignment
(1,2) = (0,0)	CAM1 (IR)
(1,2) = (1,0)	CAM2 (IR)
(1,2) = (0,1)	CAM3 (IR)
(1,2) = (1,1)	CAM4 (IR)
* DIP SW 3/4 should be always OFF.

13. How to Play the RTSP Stream by the VLC Player

Please follow following steps for playing the RTSP streaming by using the VLC Player.

Please open the VLC Player.

VLC media player Media Playback Audio Video Subtitle Tools View Help Open File... Ctrl+O Open Multiple Files... Ctrl+Shift+O Open Folder... Ctrl+F Open Disc... Ctrl+D Open Network Stream... Ctrl+N Open Capture Device... Ctrl+C Open Location from clipboard Ctrl+V Open Recent Media Save Playlist to File... Ctrl+Y Convert / Save... Ctrl+R Stream... Ctrl+S Quit at the end of playlist Quit Ctrl+Q

Please click "Media->Open Network Stream".
Please enter the RTSP address.

rtsp://ip address: port No./1 (first stream).

rtsp://ip address: port No./2 (second stream).

Open Media File Disc Network Capture Device Network Protocol Please enter a network URL: rispc/192.168.100.100:554/1 http://www.example.com/team.avi stp.#@ 1234 mms//mms.example.com/mosma.uni stp//service.example.org/8080testadp http://www.youtube.com/read/?e=gg64s Show more options Play Cancel

4. Please click "Play" button.

Note: The default port No. of the RTSP is 554, if the default http port of the camera is 80, it is no need for users to enter the port No.

Open Media File Disc Network Capture Device Network Protocol Please enter a network URL: rstp://192.168.100.100/1 http://www.example.com/stream.avi rtp/@-1234 rms:/mms.example.com/stream.act rsp://server.example.org/80804est.sdp http://www.youtube.com/watch?v-zg64t Show more options Play Cancel

14. How to Play the Multicast by the VCL Player

The RTP Multicast allows users to view the camera image remotely by specific video player such as the VLC Player.

Multicast Settings Multicast On Off Address 224.1.2.3 Port 6688

Please follow following steps for playing the RTP Multicast in the VLC Player.

Download VLC media player from the link https://www.videolan.org.
Open VLC, click "Media" → "Open Network Stream" then enter rtp://224.1.2.3:6688 to view the video streaming.

Open Media File Disc Network Capture Device Network Protocol Please enter a network URL: http://224.1.2.3:6688 http://www.example.com/team.avi http://@.1234 runs://omos.example.com/team.aci http://server.example.org 8080test.sdp http://www.youtube.com/watch?v-gg64x Show more options Play Cancel

Click the "Play" button to start viewing the video stream.

15. How to Stream to Facebook

Please follow following steps for streaming to Facebook Streaming platform.

● Use Facebook Live Producer for Streaming

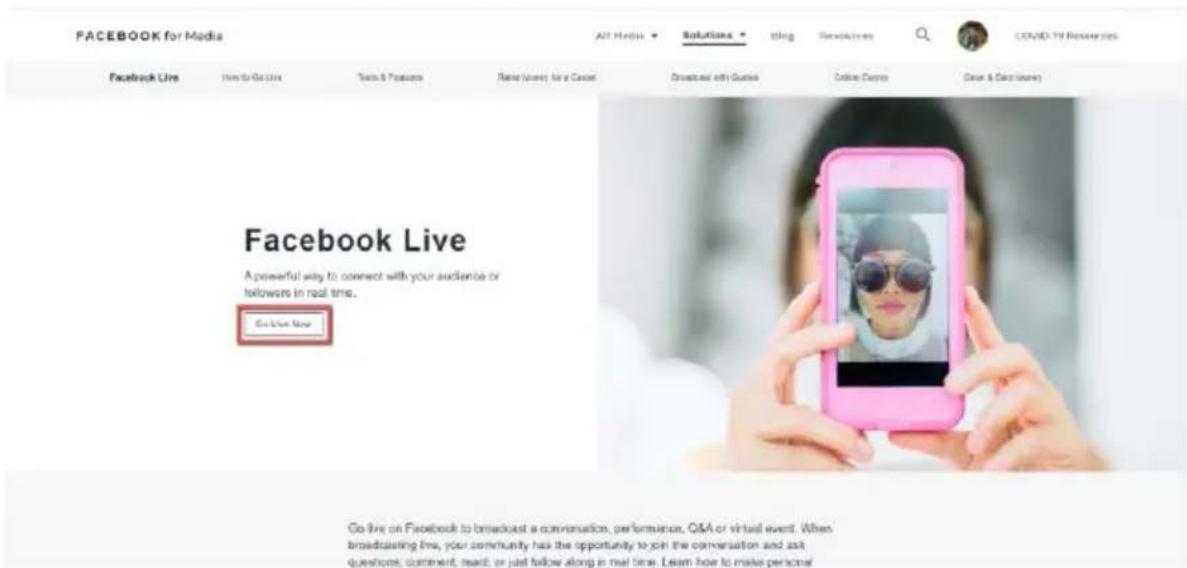

1. Please go to Facebook Live website

https://www.facebook.com/formedia/solutions/facebook-live , and thenplease click “Go Live Now” button which is shown in the following diagram.

Note: Facebook Live limits each stream to 8 hours.

Please click the "Select" button from the "Go live" option which is shown in the following diagram.

Create Live Video Welcome Cheese Video Type Import - Your Website Choose where to join Find On Situaries Go live Go live by yourself or with others Add interactivity tools to keep your audience engaged Cancel Create live video event People can respond to your event Your live video will be available in more places We'll remind you about your event Cancel

Please select the "Streaming Software" option, and then please enter the title and description of your live-streaming video in the "Title" and "Description" columns. Moreover, you can determine whether you want to share your live-streaming video to your Facebook Story.

Create Live Video Show a video session Remove Adding website Smearing Software Help Keep and press the interaction with any missing sessions. Browse Add the new sites Show a video session Show a video session with the original video session This session is available. Advanced Settings Add Connect Smearing without to get the

Please select "Advanced Settings", and then you can see the "Server URL". You need the "Server URL" and the "Stream Key" which are on the page for live-streaming videos on the Facebook page.

Create Use Video 1

Please click the "Copy" buttons which are located next to the "Server URL" and "Stream Key" columns respectively. After that, please paste them to the "First Stream MRL" column in the "Network" option of the PTC-305T web UI.

Note: Please make sure that the "ON" is selected for the First Stream MRL. Moreover, please make sure that the "Video" and "Audio" checkboxes are checked.

Please click the "Apply" button

DataVideo PTC-305T - Please go to Facebook Live website - 6

Please click the "Reboot" button in the "System" option to reboot the PTC-305T.

datavideo Live Video AT Image Audio System Network Information Initialize Reboot Reboot Factory Default Factory Default User User Name adults Passed ****** Guest guest** Passed ****** Apply Cancel

Notice Please press OK to reboot the camera. Ok Cancel

After the PTC-305Tis rebooted, you can see the real-time preview which is shot by the PTC-305T camera from the "Video" option of the Facebook Live page.

Please set related settings including "Choose where to post" and "Select audience". After that, please press the "Go Live" button for live-streaming the real-time image which is shot by the PTC-305T immediately.

Choose where to post Post on timeline Post on timeline Post to Page you manage Post in group

Select audience Public Anyone on or off bookbooks Friends Your friends on Facebook Friends except... Don't plan to some friends Specific friends One group is some friends Only new Custom Includes and exclude friends and files Close friends New Categorized

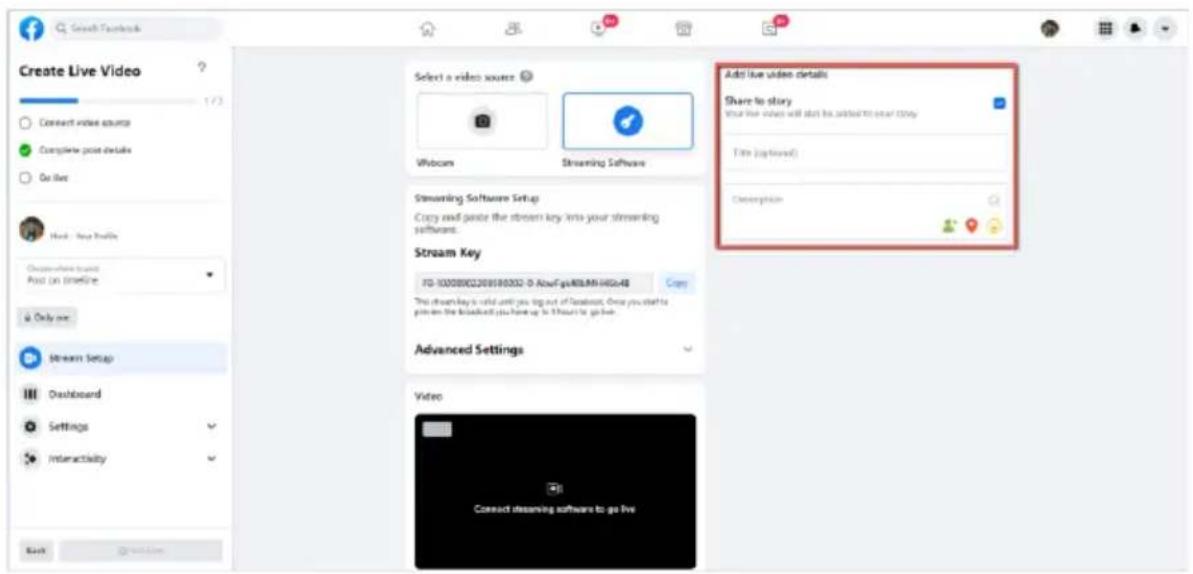

Create Live Video Connect video source Complete post details Go Live Host: True Profile Create video to your Host on timeline All Friends Stream Setup Dashboard Settings Interactivity Select a video source Add live video details Share to story Your live video will also be added to your projectivity Title (figuration) Compressor Advanced Settings Video Expand Video

And then you can see that the live-streaming is done successfully. If you want to stop the live-streaming, please click the "End Live Video" button for stopping the live-streaming immediately.

- Use the Personal Facebook Page or the Facebook Fan Page for Streaming

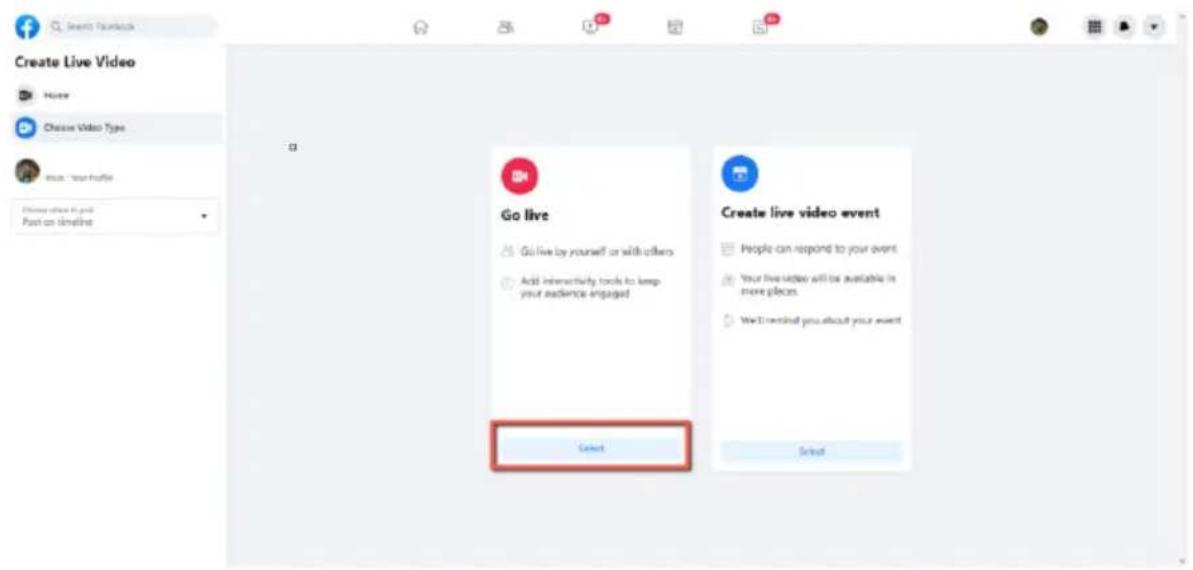

Please click the "Select" button from the "Go live" option which is shown in the following diagram.

Create Live Video Home Choose Video Type Add: Your Profile Choose video in job Past on timeline Go live Go live by yourself or with others Add interactively tools to keep your audience engaged Select Create live video event People can respond to your event. Your live video will be available in more places. We'll remind you about your event Select

Please select the "Streaming Software" option, and then please enter the title and description of your live-streaming video in the "Title" and "Description" columns. Moreover, you can determine whether you want to share your live-streaming video to your Facebook Story.

Please select "Advanced Settings", and then you can see the "Server URL". You need the "Server URL" and the "Stream Key" which are on the page for live-streaming videos on the Facebook page.

Please click the "Copy" buttons which are located next to the "Server URL" and "Stream Key" columns respectively. After that, please paste them to the "First Stream MRL" column in the "Network" option of the PTC-305Tweb UI.

Create Live Video Current Video Search in video content Add the other content Show to change Remove the video content from 2000 to 2001

datavideo Live Video AT Image Audio System Network NDI® Config Information Zoom In Zoom Out Focus In Focus Out Pan Speed 10 Tilt Speed 10 Zoom Speed 5 Focus Speed 5 Set Call Preset PTZ Back

Note: Please make sure that the "ON" is selected for the First Stream MRL. Moreover, please make sure that the "Video" and "Audio" checkboxes are checked.

Please click the "Apply" button. Apply
Please click the "Reboot" button in the "System" option to reboot the PTC-305T.

datavideo Live Video AT Image Audio System Network Information Initialize Reboot Rabout Factory Default Factory Default User User Name admin Passed **** Guest guest Passed **** Apply Cancel

Notice Please press OK to reboot the camera. Ok Cancel

After the PTC-305T is rebooted, you can see the real-time preview which is shot by the PTC-305T camera from the "Video" option of the Facebook Live page.

Please set related settings including "Choose where to post" and "Select audience". After that, please press the "Go Live" button for live-streaming the real-time image which is shot by the PTC-305T immediately.

Choose where to post Post on timeline Post on timeline Post to Page you manage Post in group

Select audience Public: Anyone on or off Facebook Friends Your friends on Facebook Friends except... Don't show for some friends Specific friends Only show for some friends Only use Custom Include and include friends and tails Close friends Your Custom list

And then you can see that the live-streaming is done successfully. If you want to stop the live-streaming, please click the "End Live Video" button for stopping the live-streaming immediately.

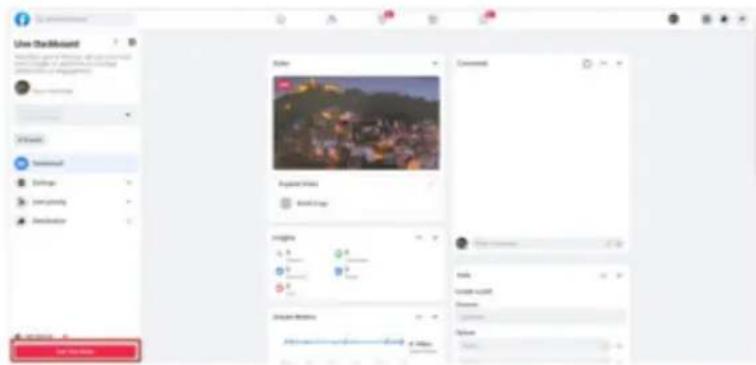

Live Dashboard Now that you're live you can and your new-time insights or add books to increase distribution or engagement. New Your Profile Add up History 4 Friends Dashboard Settings Interactivity Distribution Video Expand Video Event Logo Comments Insights 0 1 2 3 4 5 6 7 8 9 Stream Metrics 1.1Mega Video Editor White a Comment... PoR: Create a poll Question: Question1 Options: Options

16. How to Stream to Youtube

Please see following steps for realizing how to stream to Youtube streaming platform.

Please go to Youtube website www.youtube.com and then click "Create->Go Live".

DataVideo PTC-305T - How to Stream to Youtube - 1

Users will enter "Youtube Live Control Room" page, please click the "START" button from the "Right Now" option.

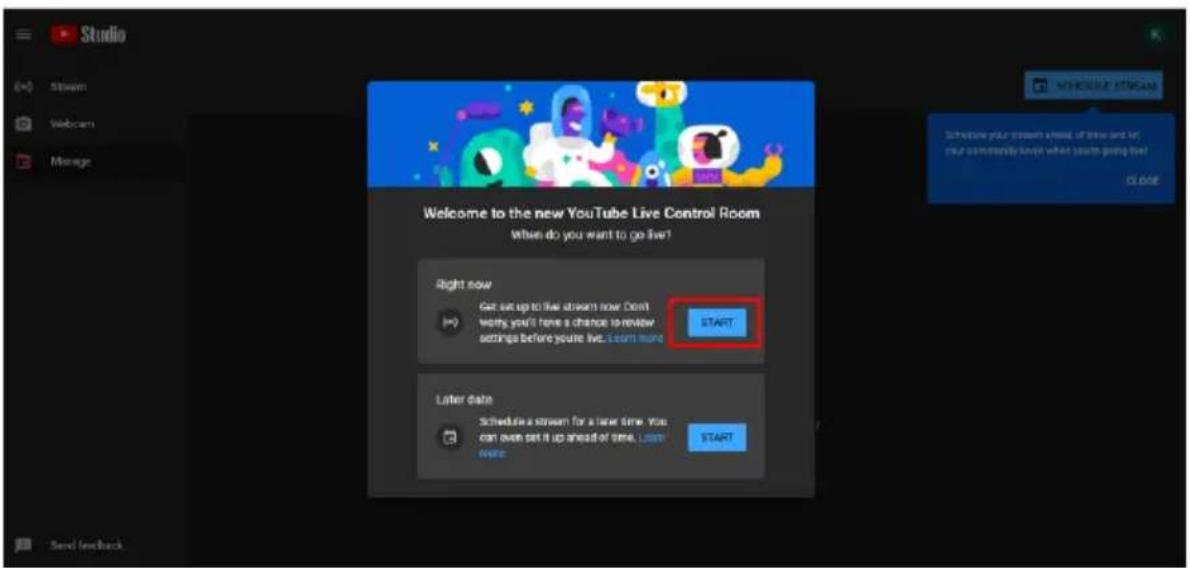

Studio Stream Webcam Manage Welcome to the new YouTube Live Control Room When do you want to go live? Right now Get up to live stream now Don't worry you'll have a chance to review settings before your live. Learn more START Later date Schedule a stream for a later time. You can even set it up ahead of time. Learn START Send feedback

Please click "Go" button from the "Streaming Software" option.
Users will see the main page of the "Youtube Studio". Please click the "EDIT" button for setting detail information of your streaming activity. After you finish filling out those information, please click the "SAVE" button.

Studio Edit settings Details Live Chat Text (used) Test Description This is a text streaming video Visibility Public Made for kids (set for you) Category CANCEL SAVE Connect store Windows will be able to Stream Excellent connections STREAM SETTINGS Stream key Default screen key (Main Preview: 20 remote website.c http://a-trimp.youtube.com/live/27backup=1 COPY Closed capture

Users can see the Stream Key and Stream URL that are provided by the Youtube streaming platform. Please copy the stream key and stream URL and then paste them into the "First Stream MRL" within the "Network" option of the PTC-305T Web UI. Please click "On" and please check the checkboxes of "Audio" and "Video".

Please click the "Apply" button.

Apply

Please reboot the PTC-305T camera and then users can see the streaming is started on the Youtube Live page. If you want to stop the live streaming, please click the "END STREAM" button for stopping the live streaming.

17. How to do the SRT Streaming by the vMix Software

How to install the Vmix Software

Please install the vMix software according to following steps.

At first, please go to vMix official website and then download the vMix 60-day free-trial. This section will use vMix free-trial as an example to demonstrate the operation steps. Please click the "DOWNLOAD FREE TRIAL" button for downloading.

Please double-click the vmix23.exe

DataVideo PTC-305T - How to install the Vmix Software - 2

Please click the "Next" button.

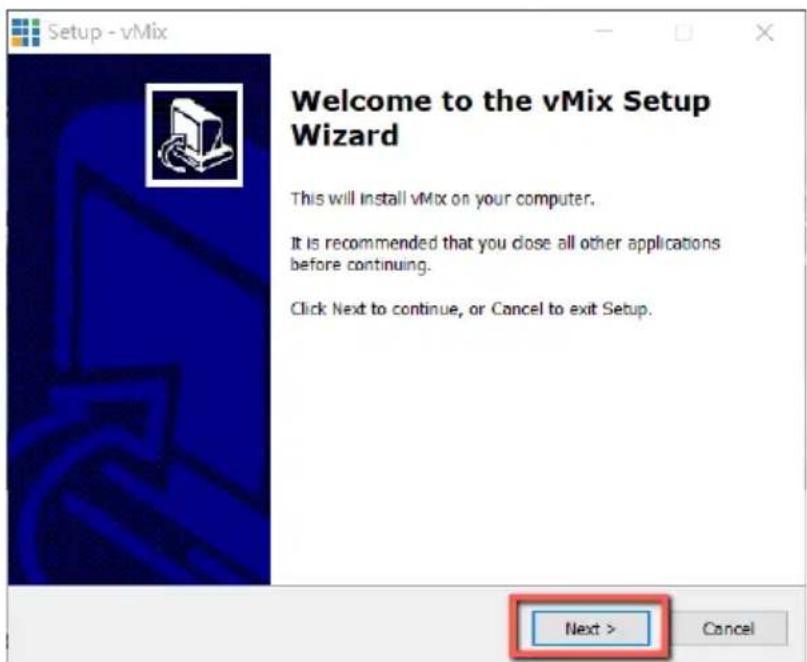

Setup - vMix Welcome to the vMix Setup Wizard This will install vMix on your computer. It is recommended that you close all other applications before continuing. Click Next to continue, or Cancel to exit Setup. Next > Cancel

Please click "I accept the agreement" and then click the "Next" button.

Please click the "Next" button.

$Setup - vMix Select Destination Location Where should vMix be installed? Setup will install vMix into the following folder. To continue, click Next. If you would like to select a different folder, click Browse. C:\Program Files (x86)\vMix Browse... At least 841.3 MB of free disk space is required. < Back Next > Cancel$

6. Please click the "Next" button.

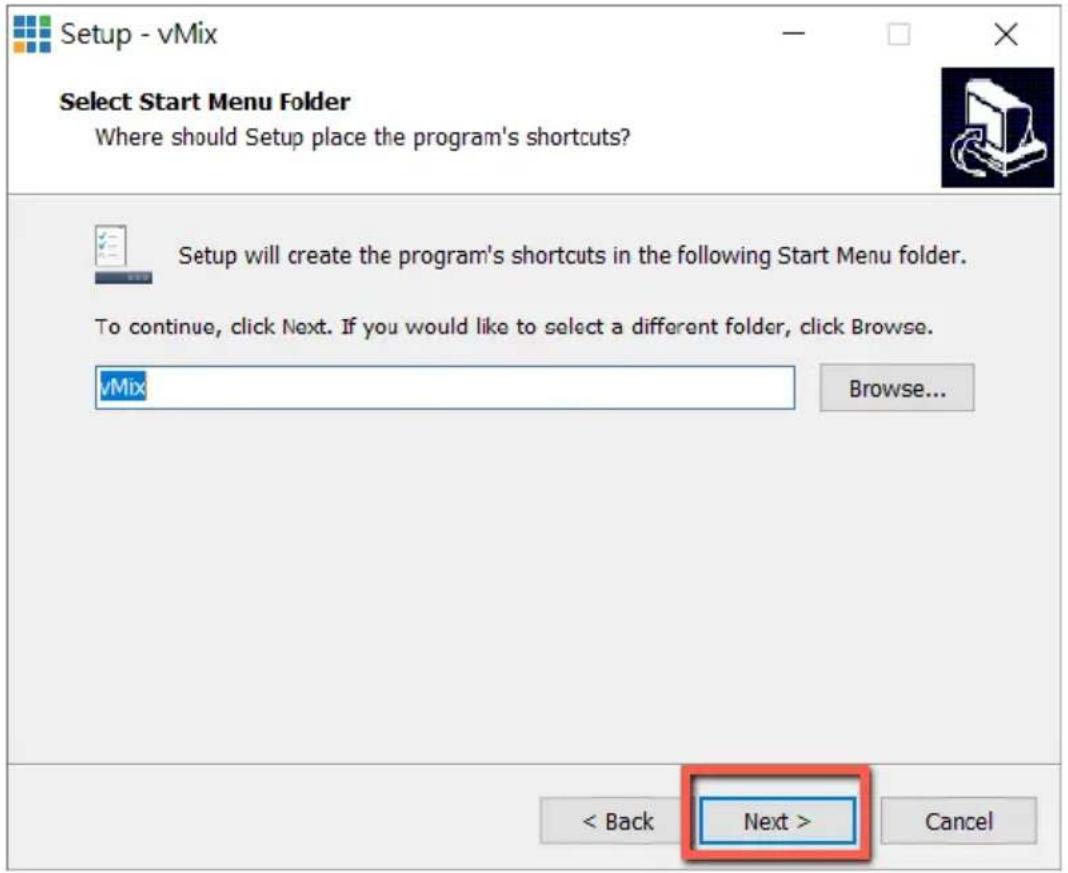

Setup - vMix Select Start Menu Folder Where should Setup place the program's shortcuts? Setup will create the program's shortcuts in the following Start Menu folder. To continue, click Next. If you would like to select a different folder, click Browse. vMix Browse... < Back Next > Cancel

7. Please click the "Next" button.

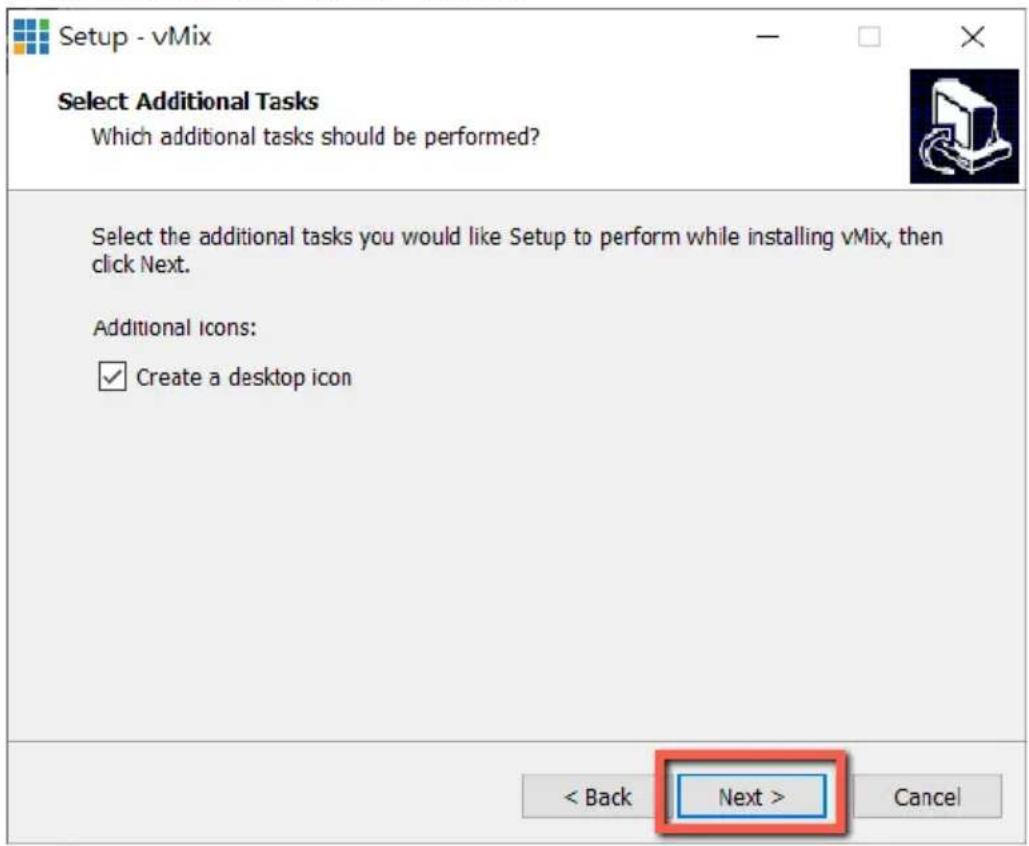

Setup - vMix Select Additional Tasks Which additional tasks should be performed? Select the additional tasks you would like Setup to perform while installing vMix, then click Next. Additional icons: ✓ Create a desktop icon < Back Next > Cancel

8. Please click the "Install" button.

Setup - vMix Select Additional Tasks Which additional tasks should be performed? Select the additional tasks you would like Setup to perform while installing vMix, then click Next. Additional Icons: ✓ Create a desktop icon < Back Next > Cancel

9. The installation will be started.

$Setup - vMix Installing Please wait while Setup installs vMix on your computer. Extracting files... C:\Program Files (x86)\vMix\GT\Textures\roof\Gray.jpg Cancel$

Please click the "Finish" button to finish the installation.

Setup - vMix Completing the vMix Setup Wizard Setup has finished installing vMix on your computer. The application may be launched by selecting the installed icons. Click Finish to exit Setup. □ Install MagicYUV Lossless Codec ✓ Launch vMix Finish

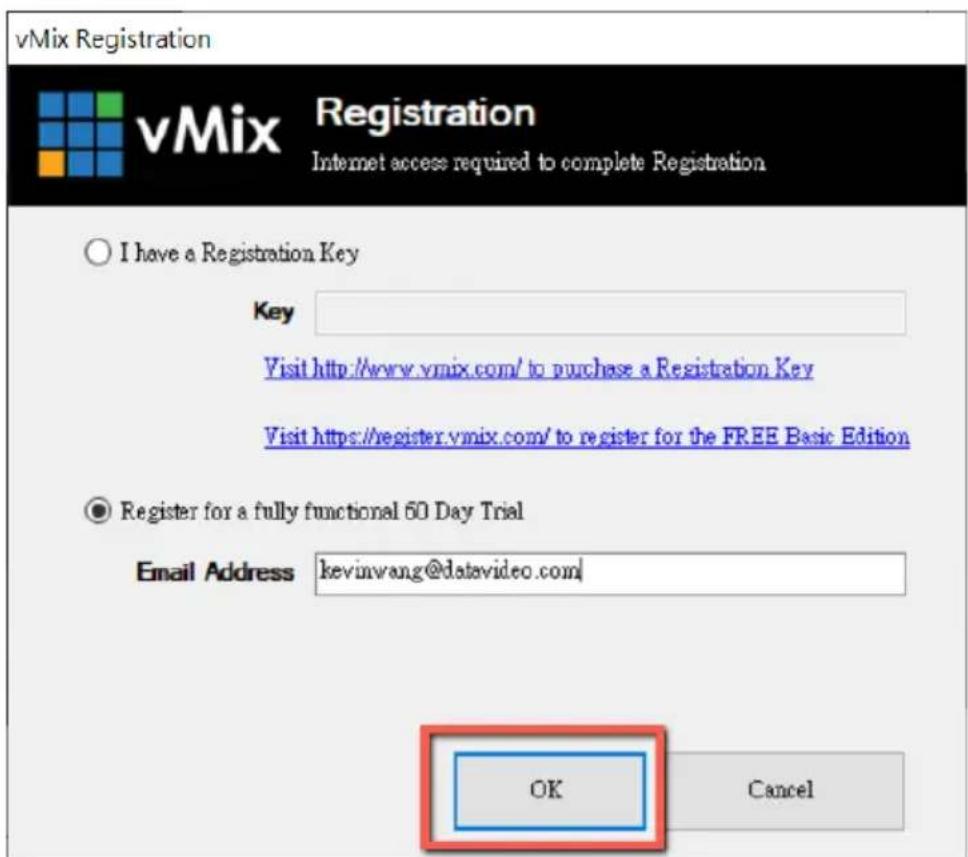

Please select "Register for a fully functional 60 Day Trial" to fill out your Email Address. After that, please click the "OK" button to open the vMix software.

vMix Registration vMix Registration Internet access required to complete Registration ○ I have a Registration Key Key Visit http://www.vmix.com/ to purchase a Registration Key Visit https://register.vmix.com/ to register for the FREE Basic Edition ● Register for a fully functional 60 Day Trial Email Address kevinwang@datevideo.com/ OK Cancel

Please select the initial resolution and frame rate that you want to use and then please click the "OK" button.

vMix Configuration vMix Select a starting configuration for vMix below. These settings can be customised later by clicking the Settings button. HD 1080 29.97p (1920x1080, 29.97 fps) OK

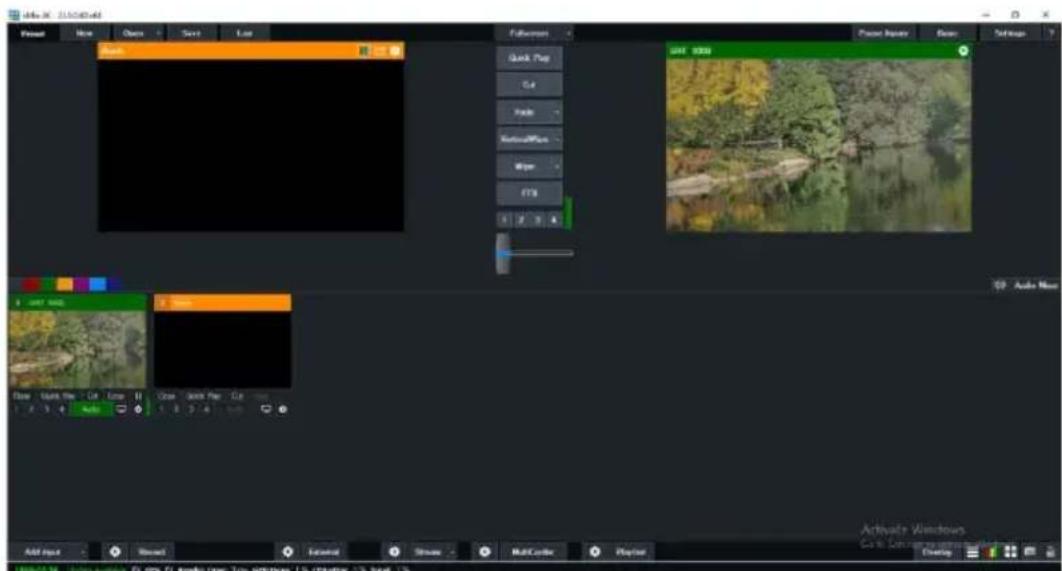

After opening vMix, the software interface is shown as following diagram.

Altium Flash 2040.SZ v84 Preview New Open Save Last Track Quick Play Cut Fade Merge Wipe CubeZone F1B 1 2 3 4 Blank Pause Inputs Basic Settings ? Auto Make Add Input Process External Stream Multi Cambodia PlayOut Creator Altium Flash 2040.SZ v84

How to do the SRT Stream by Using the PTC-305T Camera and vMix Software

There are two modes for the SRT streaming including the Caller Mode and the Listener Mode. Please see following steps for realizing operation steps for the vMix.

If the PTC-305T is set in Listener Mode

At first, please click the "Vmix(x64)" from the Start Menu to open the Vmix software.

vMix vMix (x64) vMix Desktop Capture vMix Diagnostics GT vMix GT Title Designer

After that, you will see the Vmix main interface which is shown in the following diagram.

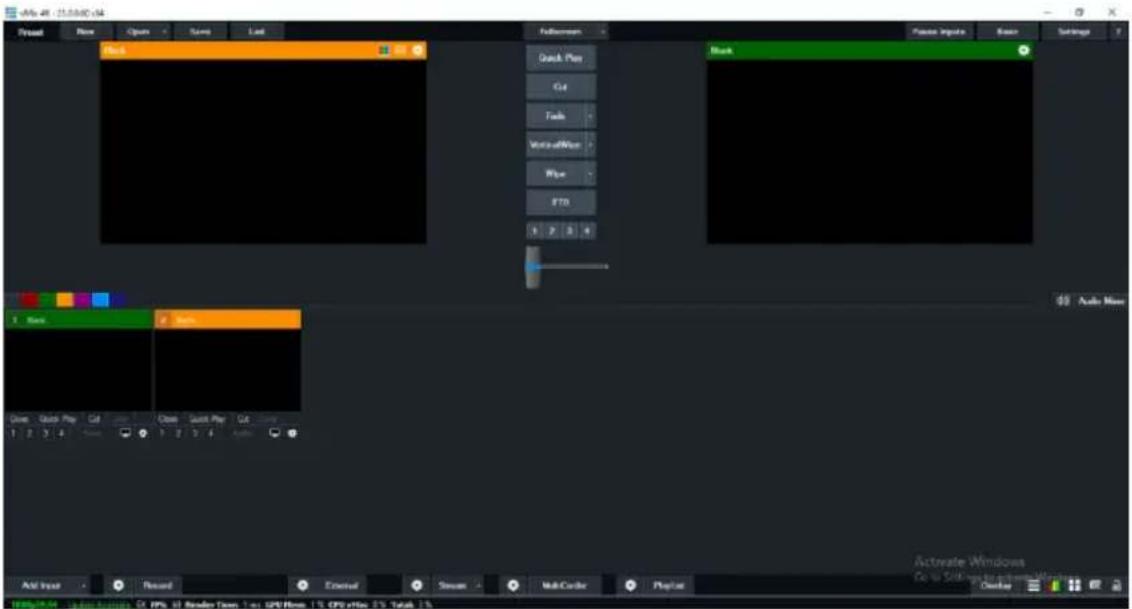

File 48 - [1.0.0.0] x4 Spread Flow Open Save Last Back Add Back Quick Pin Cut Tools Virtual/More Pipe PTD 1 2 3 4 Blank Auto New Start Next Down Quick Play Cat Close Squick Play Cat Close 1 2 3 4 Edit Input Reward External Stream Mid-Center PlayList Activate Windows Go to Settings for the Home Window Device

Please go back to the PTC-305T interface to make sure that the “SRT” option in the SRT Settings is “ON”. Moreover, the default value of the “SRT Port” is “4578”. The “SRT Encryption” drop-down menu allows you to select your desired SRT Encryption way including AES-128, AES-192 and AES-256. The default value of the “SRT Encryption” option is “Off”. In this section, we will take AES-256 as an example. If you need to set an SRT password, please enter your desired SRT password in the “SRT Password” column, it needs a 10-digit or above number. The default SRT Password is “1234567890”. After the setting for the SRT Password is finished, please press the “Apply” button which is located on the bottom side of the Web UI to apply the new setting.

Please go back to the main interface of the Vmix software and then press the "Add Input" button. After that, please select the "More" option from the drop-up menu.

Video Form1 View Options Sales Last Refresh Refresh Mode Add Edit Audio Merge Movie Cable/Session F200 1 2 3 4 Black Color Bars Video Title D10 List Image Photo PowerPoint Audio Mio Add Image Format1 Custom1 Stream1 Multi-Carder PlayList Add Image Select Image Color Add Image Color Add Image Color

After the "Input Select" option is opened, please select the "Stream/SRT" option and then you can see the "Stream/SRT" interface which is shown in the following diagram.

Input Select Video DVD Last Courses HDD / Desktop Capsules Strumar / SRT Image Sequence / Stranger Video Delay Image Photo PowerPrintal Colorer Audio Audio Input Title / XAML Virtual Set Web Browser Video Call Strumar Type: RTSP over USB URL: Buffer: 300 milliseconds Low Latency Mode Clear Number: 1 OK Cancel

Please select the “SRT Caller” option from the “Stream Type” drop-down menu. After that, please enter the default static IP address “192.168.100.100” of the PTC-305T into the “Hostname” column. Moreover, please enter the default SRT port number “4578”, which is provided by PTC-305T web UI’s “SRT Port” column into the “Port” column. After that, please enter your SRT Password which is set in the PTC-305T web UI into the “Passphrase” column.

The default password is “1234567890”. For the “Key Length”, please select “32” from the drop-down menu. After all of the values are entered, please press the “OK” button.

After that, you can see that the image which is shot by the PTC-305T is streamed to the vMix software by the SRT Listener Mode successfully.

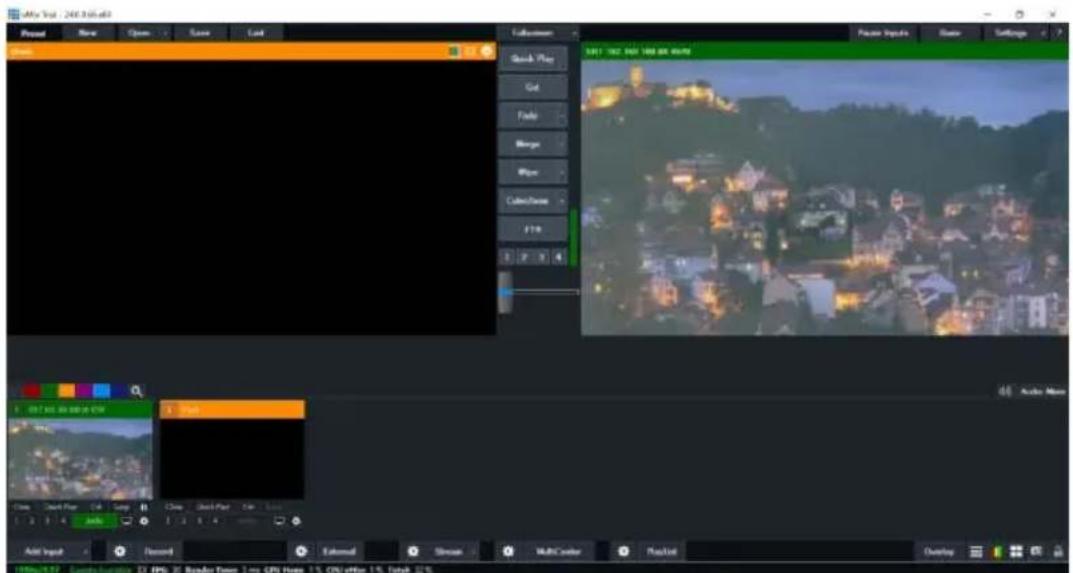

File Edit - 240.365.d8 Project New Open Save Last Refresh Quick Play Get Field Merge View Color/Stone F19 2 3 4 SRT: 102.240.168.00.00 Photo Inputs Name Settings Audio Move Add Input Record External Stream MultiCenter Realtek Overlay Play 3.7.2 Format Display: 22 FPS: 30 Reader Times 3 to GPS Phone 1% GPS office 1% Desktop 22%

If the PTC-305Tis set in Caller Mode

At first, please click the "Vmix(x64)" from the Start Menu to open the Vmix software.

vMix (x64) vMix Desktop Capture vMix Diagnostics

After that, you will see the Vmix main interface which is shown in the following diagram.

$File 48 - 23.01.03.04 Pencil Open Save Last Back Followup Quick Play Cut Fade Vertical/Wiper Wiper FTS 1 2 3 4 Black Power Inputs Basis Settings Audio Move 1 Back 2 Back Close Quick Play Cut Clear Quick Play Cut 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 Add Input Forward External Stream Multi-Carder PlayList Add Users Edit Active Users: C:\EPS\0\Reader Fees\1.pct.GPU Items\1% CPG\@Pro.2% Install.2%$

At first, please go back to the PTC-305T web UI and then please click "ON" from the "SRT" option.

SRT Settings SRT ○ On ○ Off

Please select "Caller" from the "SRT Mode" drop-down menu.

SRT Mode RT Server Listener Caller Listener

Please enter the static IP address of your device which is used to install the vmix software. In this example, it is the static IP address “192.168.100.30” of the PC which is used to install the Vmix software. Please pay attention that

the static IP address of the device must be within the same LAN as the static IP address of the PTC-305T.

SRT Server 192.168.100.30 SRT Port 4578

The SRT port is "4578", which is the default SRT port number of the PTC-305T.
Please select your desired SRT Encryption way from the "SRT Encryption" drop-down menu. In this example, we will take the AES-256 as an example.

SRT Encryption SRT Password dwidth Overhead None None AES-128 AES-192 AES-256

Please enter your desired SRT password in the "SRT Password" option. Please pay attention that the password must be a 10-digit or above number. In this example, we will take "1234567890" as an example.

SRT Encryption AES-256 SRT Password 1234567890

Please press the "Apply" button.

DataVideo PTC-305T - If the PTC-305Tis set in Caller Mode - 8

Please press the "Reboot" button from "System-> Reboot" from the PTC-305Tweb UI.

DataVideo PTC-305T - If the PTC-305Tis set in Caller Mode - 9

Please go back to the Vmix interface, press the "More" option by pressing the "Add Input" option. After that, please select the "Stream/SRT" option. Please select "SRT Listener" from the "SRT Type" option. After that, please enter the default port number "4578" which is provided by the PTC-305T web UI into the "Port" column. Moreover, please enter your SRT password which is set in the PTC-305T web UI into the "Passphrase" column. In this example, we will take "1234567890" as an example. After that, please select "32" from the "Key Length" drop-down menu. If you have an SRT Stream ID which is provided by your cloud streaming platform, please enter your SRT Stream ID

in the "Stream ID" column. After all of them are entered, please press the "OK" button.

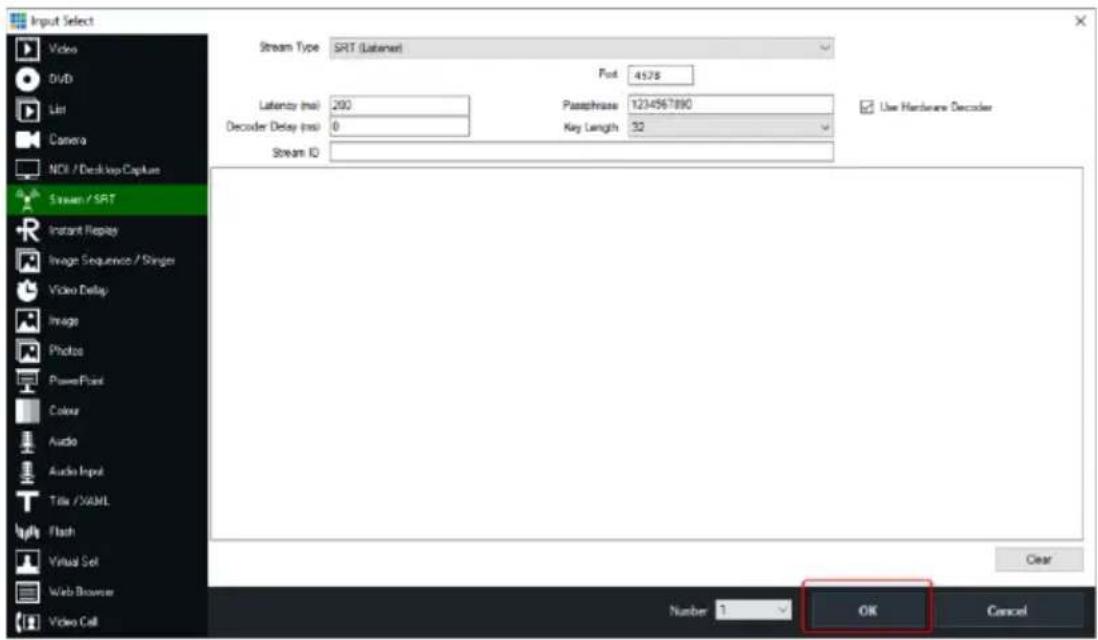

Input Select Video DVD List Camera NDI / Desktop Capture Stream / SRT Instant Replay Image Sequence / Singles Video Delay Image Photo PowerPoint Color Audio Audio Input Tick / XML Flash Virtual Set Web Browser Video Call Stream Type SRT (Latency) Post 41578 Latency (ms) 200 Passphrase 1234567890 Decoder Delay (ms) 0 Key Length 32 Stream ID Use Hardware Decoder Clear Number 1 OK Cancel

You can see that the image which is shot by the PTC-305T is shown in the Vmix software by Caller Mode.

18. Remote Control Port Pinouts

In addition to using the Ethernet port for remote control, you can also connect your PC or any keyboard controllers to the RS-422 remote port to control PTC-305T. Use an Ethernet cable to connect the external RS-422 controller to PTC-305T. You can make your own cable using the pinout information provided in this chapter.

Remote Control Port
1 0 IRID RS-42 MIC IN/ LINE IN 3G-SDI 4K HDMI F/W UPGRADE ONLY DC IN 12V HDBoseT/F datavideo 4K HDBoseT TRACKING PTZ CAMERA PTC-305T 1 ---- 8

The RS-422 pinouts are described below.

RMC-180 Controller(RJ-45 Port)			PTC-305TCamera(RS-422 Port)
GND	1	White/Orange	GND	White/Orange	1 GND
NC	2	Orange		Orange	2 NC
TX-	3	White/Green		White/Green	3 RX-
RX-	4	Blue		Blue	4 TX-
RX+	5	White/Blue		White/Blue	5 TX+
TX+	6	Green		Green	6 RX+
NC	7	White/Brown		White/Brown	7 NC
NC	8	Brown		Brown	8 NC
1/EXT			1/EXT

19 Firmware Update

Datavideo usually releases new firmware containing new features or reported bug fixes from time to time. Customers can either download the firmware as they wish or contact their local dealer or reseller for assistance.

This section outlines the firmware upgrade process which should take approximately few minutes to complete.

The existing settings should persist through the firmware upgrade process, which should not be interrupted once started as this could result in a non-responsive unit.

19.1 Firmware Update by the PTC-305T Firmware Update Tool Requirements

PTC-305T Unit
PC/Laptop
Latest Firmware
Download from: https://www.datavideo.com/product/PTC-305T
Ethernet Cable

Procedure

At first, please confirm that the IP address of your laptop is set within the same LAN as the PTC-305T camera. Please use an Ethernet cable to connect from the RJ-45 Ethernet port of your laptop to the DVIP port which is on the rear panel of the PTC-305T.
Please download the PTC-305Tfirmware

"VXXXDA_Axx.D_Vx.x.xx_xxM_yyyymmdd.img" and firmware update tool "upgrade vx.x" from Datavideo official website.

Please unzip the downloaded firmware and firmware update tool to the hard disk of your laptop.
Please double-click the firmware update tool upgrade.exe

DataVideo PTC-305T - Procedure - 1

upgrade

Please select the LAN IP address which is set by your laptop from the "Interface" drop-down menu. After that, please press the "Search" button.

Interface

乙太網路:192.168.100.5

區域連線* 2:169.254.187.22

區域連線* 4:169.254.183.113

Wi-Fi:192.168.10.113

Users can see that the interface of the firmware update tool is shown as following diagram, please click the searched IP Address.

Please select the "Upgrade" option and then users can see the interface which is shown as following diagram.

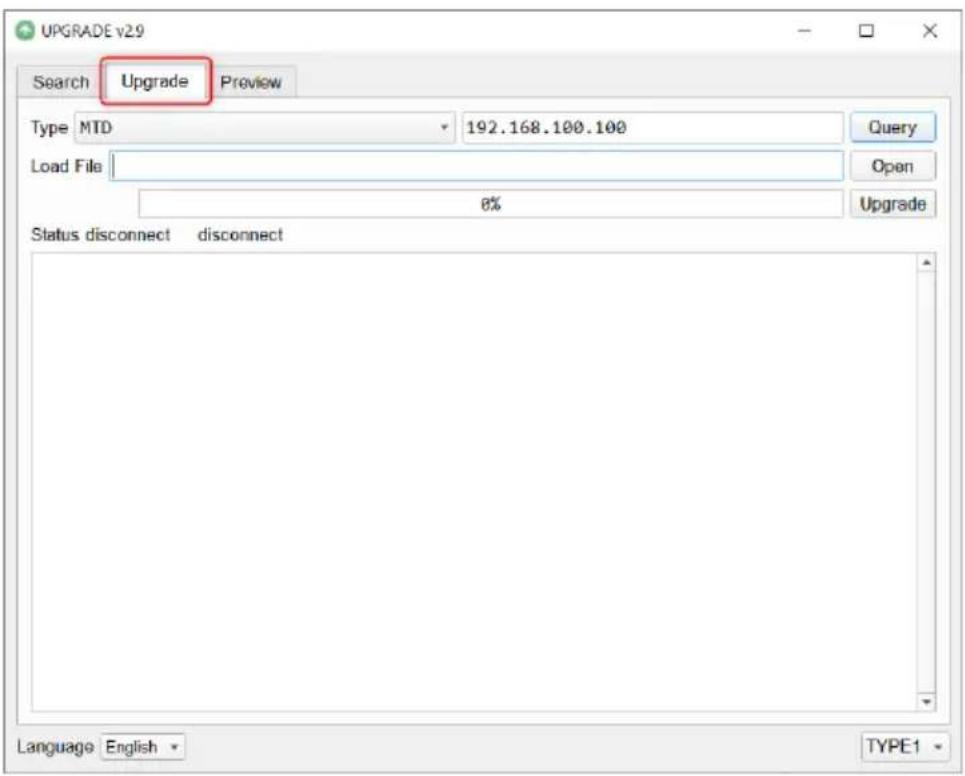

UPGRADE v2.9 Search Upgrade Preview Type MTD 192.168.100.100 Query Load File 8% Upgrade Status disconnect disconnect Language English TYPE1

Please click the "Open" button and select the downloaded latest firmware.

UPGRADE v2.9 Search Upgrade Preview Type MTD 192.168.100.100 Query Load File D:/VX20DA_A10.D_V1.1.35_24M_20230525.img Open 0% Upgrade Status disconnect disconnect Language English TYPE1

Please click the "Upgrade" button for starting the firmware upgrading. At this time, the external connected monitor will show the wording "Upgrading! Please Wait!"

After the firmware upgrading is finished, the PTC-305T camera will reboot automatically, please click the "OK" button and then the firmware upgrade procedure is completed.

UPGRADE v2.9 Search Upgrade Preview Type MTD 192.168.100.100 Query Load File D:/VX20DA_A10.D_V1.1.35_24M_20230525.img Open 100% Upgrade Status disconnect file verify succeed upgrading... Information Upgrade Success OK Language English TYPE1

19.2 Firmware Update by the USB Flash Drive Requirements

PTC-305TUnit
USB 2.0 or USB3.x USB Flash Drive x 1
Laptop
Latest firmware files
Ethernet Cable

Download from: https://www.datavideo.com/product/PTC-305T

Procedure

At first, please format your USB flash drive in FAT32 format.
Please download the latest PTC-305T firmware file from Datavideo official website's PTC-305Tproduct page https://www.datavideo.com/product/PTC-305T and then save it to the hard disk of your laptop.
Please unzip the downloaded firmware file and then save the latest firmware file "VXXXDA_Axx.D_Vx.x.xx_xxM_yyyymmdd.img" into the root directory of your USB flash drive.

DataVideo PTC-305T - Procedure - 1

VX20DA_A10.D_V1.1.35_24M_20230525

Please insert your USB flash drive with the latest firmware file into the "F/W UPGRADE ONLY" USB interface which is located on the rear panel of the PTC-305T.

DataVideo PTC-305T - Procedure - 2

Please press the "MENU" button from the PTC-305T remote controller to open the OSD menu.
Please move down the PTC-305T remote controller's "Microjoystick"

DataVideo PTC-305T - Procedure - 3

to the "Setup" option in the OSD menu.

After the "Setup" option is selected, please press the "Microjoystick"

DataVideo PTC-305T - Procedure - 4

from the PTC-305Tremote controller to enter the "Setup" page.

MENU Exposure Color Image P/T/Z Noise Reduction Setup Communication Setup Infomation Restore Default [Home] Enter [Menu] Exit

DataVideo PTC-305T - Procedure - 6

Please move down the "Microjoystick" of the PTC-305T remote controller to the "USB Upgrade" option in the "Setup" page.

SETUP Language EN HDMI RGB Mode HDMI Video Format 1080P59.94 Audio Select LINE IN SDI-3G Mode LEVEL-A ►USB UPGRADE Off VISCA ID By DIP Audio Channel Stereo ► Select Item ◆ Change Value [Menu] Back

DataVideo PTC-305T - Procedure - 8

Please move the "Microjoystick" to the left side or right side to set the

of the PTC-305T remote controller

Upgrade" option as "On". After

DataVideo PTC-305T - Procedure - 9

that, please press the "Microjoystick" from the PTC-305T remote controller for confirmation. And then the PTC-305T will start the firmware update procedure automatically. During the process of the firmware update procedure, the reminder "Updating! Please Wait!" will be shown on the screen. When the firmware update procedure is done, the PTC-305T will reboot automatically and the firmware update is done successfully.

Note: Please do not turn off your computer during the firmware update process to prevent it from crashing. Moreover, there is a period of time that there is no image that will be shown on the monitor. At this moment, please do not turn off the power of the PTC-305T camera. The camera will reboot automatically after the whole firmware update procedure is done.

SETUP Language EN HDMI RGB Mode HDMI Video Format 1080P59.94 Audio Select LINE IN SDI-3G Mode LEVEL-A USB UPGRADE On VISCA ID By DIP Audio Channel Stereo Select Item Change Value [Menu] Back [Home] OK

Upgraded! Please Wait!

20. Frequently-Asked Questions

This section describes problems that you may encounter while using PTC-305T. If you have any questions, please refer to related sections and follow all suggested solutions. If problem still exists, please contact your distributor or the service center.

No.	Problems	Solutions
1.	What are important points for product maintenance?	1. If the camera will not be used for a long time, please unplug the 12V DC power plug, and remove AC power adapter from AC outlet.2. Use soft cloth or tissue to clean the camera.3. After washing the camera lens, dry it with a soft dry cloth. Use a neutral detergent rather than acidic or corrosive detergents to clean the lens.
2.	There is no output video.	1. Check that your power is properly connected. This is indicated by the power LED.2. After you reboot the camera, please check that whether the camera can do the self-test normally or not.3. Please check that the camera is connected correctly to the external connected monitor.
3.	I have seen image jitter while zooming in or out.	1. Make sure the camera is properly mounted.2. Make sure that machines that could cause vibration are not in proximity of the camera.
4.	There is no image by using the IE browser.	Please go the the VLC website (http://www.videolan.org/vlc) to download the 32-bit VLC media player. After it is installed, the screen will be shown normally when connecting to the camera.
5.	The camera can not be accessed by using the IE browser.	1. Use PC to access the internet to see whether it can operate normally or not. At first, please solve the network failure that is caused by the computer virus until the PC and the camera can ping each other.2. Please remove the Ethernet cable and then connect the PC to the camera directly. After that, please reset the IP address of the PC.
6.	The remote control is not working.	1. Try setting the camera to CAM1 and try again.2. Make sure the remote control's battery is fully charged.3. Check your device working mode.4. Make sure the OSD menu is closed. The remote control cannot be used if the OSD menu is opened.
7.	The serial port is not working properly.	1. Make sure your baud rate and device addresses are correct.2. Check your device working mode.3. Make sure the OSD menu is closed. The remote control cannot be used if the OSD menu is opened.
8.	Can not login to the Web control interface.	1. Please check your Ethernet cable.2. Please check your Ethernet setting such as the IP address.

21. Dimensions

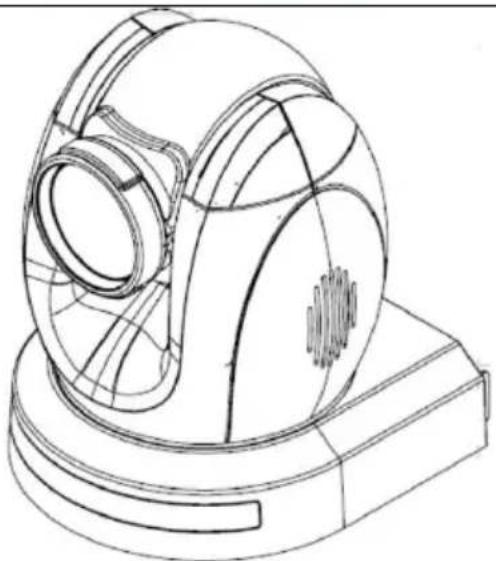

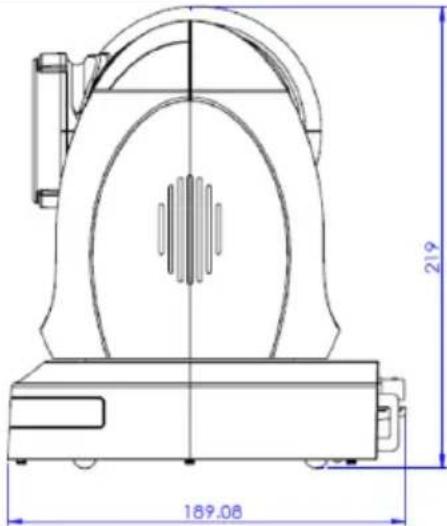

Unit: mm

Specifications

Camera Parameters
Product Name	4K HDBaseT Tracking PTZ Camera
Video Format	2160p60/59.94/50/30/29.97/251080p60/59.94/50/30/29.97/251080i60/59.94/50720p60/59.94/50*2160p60/59.94/50 YUV 4:2:2
Image Sensor	1/1.8" CMOS
Effective Pixels (approx.)	8.51Mega Pixels
S/N Ratio	≥55dB
Min. Illumination	0.5 Lux @ (F1.8, AGC ON)
Electronic Shutter	1/30s ~ 1/10000s
Zoom Ratio	20x Optical Zoom, 16x Digital Zoom
Iris Control	Auto / Manual
Digital Noise Reductions	3D
On-Screen Display (OSD)	English/Simplified Chinese/Traditional Chinese
White Balance	Auto, Indoor, Outdoor, OnePush, Manual, VAR
AGC / Gain Control	Yes
Mirror / Flip Image	Yes
Focus Mode	Auto / Manual
Panning / Tilting Range	Pan: 300 degrees,Tilt: +130 to -15 degrees
Panning / Tilting Speed	Pan: 0.876°/s~43°/sTilt: 0.693°/s ~21.32°/s
Preset	255 Position
Focal Length	20x, f=6.7 to 125 mmF1.58 to F3.95
Field of View	60°
(Horizontal, Wide)
Image Compensation	Back light compensation
Input /Output Interfaces
Video Output	HDMI 2.0 x13G-SDI x110/100/1000M RJ-45 (PoE) x1
Audio Input	3.5 mm x1 (mic in/line in)switch from Web UI
Tally LED	Yes
Lens Filter	N/A
Control Protocol	Pelco-D, Pelco-P,VISCA, VISCA over IP, DVIP
Remote Control Interface	IRWeb GUIRS-422DVIPHDBaseT(RJ-45)/Serial control on Receiver Box: Transmit up to 100m
Video Compression Format	H.264/H.265/MJPEG
Audio Compression Format	AAC
Audio Bitrate	96Kbps, 128Kbps
Streaming Protocols	RTSP, RTMP(S), Onvif, Multicast, SRT
First Stream Supported Resolution	3840x21601920x10801280x7201024x576960x540640x480640x360
Second Stream Supported Resolution	720x480640x360480x270320x240
Video Bitrate	32Kbps ~ 50Mbps (Single Stream)
Video Bitrate Mode	VBR, CBR
Encoding Frame rate	50Hz: 1-50fps60Hz: 1-60fps
POE	IEEE 802.3at
F/W Update	Via Web UI or USB 2.0
IR Control	Yes
Camera Control Unit	RMC-180 series/RMC-300 series/PTZ View Assist APP
Tripod Mount	1/4-20 UNC
Optional Accessories	WM-1/ WM-10/ WM-11
Color	Dark Blue/White
Dimension (LxWxH)	173 (W) x 219 (H) x 189.08 (D) mm
Weight	2.6kg
Operating Temp. Range	0~40 °C
Power	DC 12V 21W

Service & Support

It is our goal to make your products ownership a satisfying experience. Our supporting staff is available to assist you in setting up and operating your system. Please refer to our web site www.datavideo.com for answers to common questions, support requests or contact your local office below.

Please visit our website for latest manual update.

www.datavideo.com/product/PTC-305T

datavideo

www.datavideo.com

DataVideo PTC-305T - datavideo - 1

@DatavideoUSA @DatavideoIndia2016
@DatavideoEMEA @Datavideojapan
@DatavideoTaiwan @DatavideoLatam
@DatavideoAsia @DatavideoBrasil

DataVideo PTC-305T - datavideo - 2

@Datavideo
@Datavideo_EMEA
@Datavideo_Taiwan

DataVideo PTC-305T - datavideo - 3

@DatavideoUSA
@DVTWDVCN

DataVideo PTC-305T - datavideo - 4

@DatavideoUSA
@DatavideoEurope

All the trademarks are the properties of their respective owners.

PTC-305T - Security Camera DataVideo - Free user manual and instructions

Frequently Asked Questions - PTC-305T DataVideo

User questions about PTC-305T DataVideo

USER MANUAL PTC-305T DataVideo

Table of Contents

TABLE OF CONTENTS 2

FCC COMPLIANCE STATEMENT .... 5

WARNINGS AND PRECAUTIONS .... 5

WARRANTY 7

DISPOSAL 8

1. PRODUCT OVERVIEW....9

2. LOCATION AND FUNCTION OF PARTS 10

3. BASIC SETUP 16

4. REMOTE CONTROL AND ON-SCREEN MENU.... 19

5. INSTRUCTION FOR INSTALLATION.... 36

6. NETWORK CONNECTION 42

7. HOW TO USE PTC-305T'S AI AUTO TRACKING 49

8. WEB USER INTERFACE 54

8.2.1 How to Connect the PTC-305T to a Datavideo Switcher after a 60FPS/50FPS Video Streaming (Take the HS-1300 as an example) .....59

9. HOW TO USE THE WEB UI TO SET AND CALL PRESETS 85

Disclaimer of Product and Services

FCC Compliance Statement

Warnings and Precautions

Warranty

Standard Warranty

Three Year Warranty

Disposal

For EU Customers only - WEEE Marking

1. Product Overview

Features

2. Location and Function of Parts

2.1 Camera

2.2 Receiver Box

Front Panel

3. Basic Setup

3.1 Power-On Initialization

3.2 Video Output

- Connect the PTC-305T camera to your PC/Notebook PC by an HBT-16 4K HDBaseT Receiver Box

Note: The default static IP address of the PTC-305T is 192.168.100.100.

4. Remote Control and On-Screen Menu

4.1 Remote Control Functions

4.2 OSD Menu

4.3 Professional Jargon Explanations of the OSD

Menu

5. Instruction for installation

Step 1 – DIP Switch Setting

Step 2 – One End of Retaining Wire

Step 3 – Ceiling Bracket (B)

Step 4 – Ceiling Bracket (A) and Camera

Step 6 – Screw to Fix Camera

Step 7 – Cable Connection

6. Network Connection

datavideo

6.1 DHCP Mode

6.2 Static IP

6.3 DVIP

7. How to Use PTC-305T's AI Auto Tracking

7.1 How to turn on the AI Auto-Tracking Function by the remote controller

7.2 How to turn off the AI Auto-Tracking Function by the remote controller

7.3 How to set the AI Auto-Tracking function by the OSD Menu

7.4 How to set the AI Auto-Tracking (Presenter Mode) by the Web UI

7.5 How to set the AI Auto-Tracking by the Web UI (Zone Mode)

8. Web User Interface

8.1 Live

8.2 Video

8.2.1 How to Connect the PTC-305T to a Datavideo Switcher after a 60FPS/50FPS Video Streaming (Take the HS-1300 as an example)

● Take the adjustment to 1080i59.94 as an example

8.3 AT(Auto-Tracking)

8.4 Image

8.5 Audio

8.6 System

8.7 Network

8.8 Information

8.9 The PTZ Control Area of the Web UI

9. How to Use the Web UI to Set and Call Presets

● How to Set Preset

● How to Recall Preset

10. Quick Setting Area for the Auto-Tracking

11. Control the Camera by the PTZ View Assist App

12. DIP Switch Settings
