Product Type	Portable Modeling Amplifier
Model	Jogg
Brand	Hotone
Dimensions (H x W x D)	5.5 x 12.5 x 7.0 cm
Weight	0.45 kg
Power Supply	9V DC (center negative) or 4 x AA batteries
Output Power	5W RMS
Speaker	3-inch full-range
Input	1/4" instrument jack
Output	1/8" headphone/line out
Effects	Overdrive, Delay, Reverb, Chorus
Controls	Gain, Volume, Tone, Effect Select, Effect Level
Built-in Tuner	Yes, chromatic
Aux Input	1/8" stereo (for backing tracks)
Battery Life	Up to 6 hours (alkaline)
Construction	ABS plastic with metal grille
Warranty	1 year limited
Included Accessories	Power adapter, quick start guide

Frequently Asked Questions - Jogg Hotone

How do I power the Hotone Jogg amplifier?

You can power the Jogg using the included 9V DC adapter (center negative) or with 4 x AA batteries (not included). Alkaline batteries are recommended for best performance.

Can I use headphones with the Jogg?

Yes, connect standard headphones to the 1/8" headphone/line output. The internal speaker will mute when headphones are plugged in.

How many effects does the Jogg have?

The Jogg features four built-in effects: Overdrive, Delay, Reverb, and Chorus. You can select one effect at a time using the Effect Select control.

Is there a built-in tuner?

Yes, the Jogg includes a chromatic tuner. To activate, press and hold the tuner button (if available) or follow the manual. The tuning display shows note and pitch.

Can I connect my phone or MP3 player to play backing tracks?

Absolutely! Use the 1/8" Aux input on the front panel to connect your audio source. Adjust the volume using your device or the Jogg's master volume.

What type of instrument cable do I need?

A standard 1/4" TS instrument cable is required. Plug into the Input jack on the Jogg.

How long do batteries last?

With alkaline AA batteries, you can expect up to 6 hours of continuous play at moderate volume. Battery life varies with usage.

Is the Jogg suitable for recording?

Yes, you can use the headphone/line output to connect to an audio interface or recorder. The output provides a clean line-level signal.

What are the dimensions and weight?

The Jogg measures approximately 5.5 x 12.5 x 7.0 cm and weighs 0.45 kg, making it highly portable.

Does the Jogg have a warranty?

Yes, Hotone provides a 1-year limited warranty against manufacturing defects. Keep your proof of purchase.

USER MANUAL Jogg Hotone

The contents of this manual are subject to change without notice.

CONNECTIONS

HOTONE

PANEL INTRODUCTION

1. IN: 1/4" Mono input connection for guitar or other instrument.
2. OUT L/R: Unbalanced 1/4" TS stereo output connections to amplifiers or other equipment. For mono output, use only the left unbalanced output.
3. XLR OUT: Balanced mono XLR output connections to mixer or audio interface. The output signal is the same as OUT L.
4. LIFT/GND Switch: Turn the switch LIFT to cut off the ground connection of the XLR connectors (Ground Lift) to avoid noise caused by the ground loop. Turned GND, the XLR line will be ground normally.
5. GAIN Knob: Controls the input gain amount up to 12dB.
6. OUTPUT Knob: Controls the overall output volume.
7. Footswitch: Tap to bypass the signal or for direct monitoring. The signal won't be affected by knobs onboard when bypassed. Jogg features buffer bypass switching.

PANEL INTRODUCTION

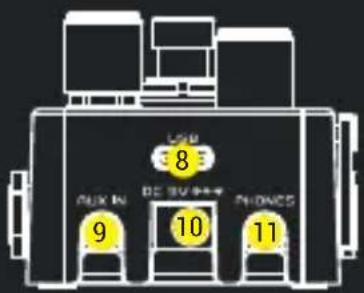

1. USB: USB 2.0 Type-C jack, connects to your computer or other mobile device.

Note:

(1) Jogg can be supplied by USB bus power.
(2) To use Jogg with mobile devices, you need a USB adapter (iOS: Camera Kit, Android: OTG cable) and connect to a 9V DC power supply!
9. AUX IN: 1/8" stereo input for connecting other audio players (won't be affected by knobs onboard).
10. DC 9V: Plug in your power supply here (DC 9V, center negative).
11. PHONES: 1/8" stereo output for connecting headphones.

HOTONE

OVERVIEW

Jogg is a mini-pedal sized audio interface for professional audio performance. The high quality digital audio platform keeps your sound pristine, and versatile I/Os equip you for various performance scenarios. Just connect it to a laptop or mobile device and you're ready to play and record great sounding tracks.

LICENSE INCLUDED

Jogg comes with full versions (PC/Mac/iOS) of our heart pounding VStomp Amp virtual amp software, delivering you organic, studio-grade sound quality and the exact character of legendary amplifiers.

Connect your Jogg to your device, connect your instruments, launch VStomp Amp (or load it in your DAW) and rock out!

FEATURES

● Professional USB audio interface in a mini sized casing
- Advanced digital platform delivers great sound quality and dynamic response
● 24-bit A/D/A conversion, 44.1kHz/48kHz sample rate
- Universal audio interface compatible with PC, Mac, iOS, and Android ^1,2
● Plug 'n' play - No driver needed 3
● GAIN knob provides up to 12dB gain amount
● 1/4" Hi-Z instrument input
● 1/4" stereo outputs
Aux in and headphone output for expanded performance and monitoring
- XLR output takes the pure sound direct to the mixer
● 9V DC or USB power supply

SPECIFICATIONS

Input Impedance: 1MΩ

Output Impedance: 1kΩ

Power Requirement: 9V DC center negative/USB bus power

Current Consumption: 200mA

Dimensions: 101mm (D) x58mm (W) x47mm (H)

Weight: 220g

The FCC regulation warning(for U.S.A.)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) this device may not cause harmful interference,
(2) this device must accept any Interference received, including interference that may cause undesired operation.

1. The mentioned manufacturers and product names are trademarks or registered trademarks of the respective owners, which are in no way associated or affiliated with Hotone Audio.
2. Compatible with some Android devices. For better user experience, we recommend to use with iOS devices due to the diversity and audio performance of Android devices.
3. Requires Windows 10 release 1703 or later on PC (USB Audio 2.0 support is needed).
