DN-10161 - Network card Digitus - Free user manual and instructions

Product Type	Network Interface Card
Model	DN-10161
Brand	Digitus
Interface	PCI Express
Network Standard	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Data Transfer Rate	10/100/1000 Mbps
Connector Type	RJ45
Dimensions (W x H x D)	120 x 20 x 80 mm
Weight	50 g
Power Consumption	1.5 W
Operating System Support	Windows, Linux, macOS
Main Functions	Wired network connectivity, gigabit data transfer, auto-negotiation, Wake-on-LAN support
Compliance	RoHS, FCC, CE
LED Indicators	Link/Activity, Speed
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 70°C
Humidity	10% to 90% (non-condensing)
Package Contents	Network card, low-profile bracket, driver CD, user manual
Maintenance & Cleaning	Keep dry and dust-free; clean with a soft, dry cloth
Safety Precautions	Disconnect power before installation; avoid static discharge
Spare Parts & Repairability	No user-serviceable parts; contact support for replacements
General Information	Designed for desktop computers; plug-and-play installation

Frequently Asked Questions - DN-10161 Digitus

What is the Digitus DN-10161 network card?

The Digitus DN-10161 is a PCI Express Gigabit Ethernet network card that provides high-speed wired network connectivity up to 1000 Mbps for desktop computers.

Is the DN-10161 compatible with Windows 10?

Yes, the DN-10161 supports Windows 10, as well as older versions like Windows 7 and 8. Drivers are included on the CD or can be downloaded from the Digitus website.

How do I install the DN-10161 network card?

Installation is simple: power off your PC, open the case, insert the card into a free PCI Express slot, secure it with a screw, close the case, and power on. Install the drivers from the CD or online.

Can I use the DN-10161 on a Mac?

The card is compatible with macOS systems that have a PCI Express slot. Drivers for macOS are available, but check compatibility with your specific Mac model.

Does the DN-10161 support Wake-on-LAN?

Yes, the DN-10161 supports Wake-on-LAN functionality. You may need to enable it in the operating system and BIOS settings.

What do the LED indicators mean?

The card has two LEDs: Link/Activity (green, blinking indicates activity) and Speed (green for 1000 Mbps, orange for 100/10 Mbps).

Why is my DN-10161 not detected after installation?

Ensure the card is fully seated in the PCI Express slot. Check that the drivers are installed correctly. Also, verify that the card is enabled in the BIOS and device manager.

Can I use the DN-10161 with a low-profile case?

Yes, the package includes a low-profile bracket to fit smaller chassis. Swap the standard bracket with the low-profile one during installation.

What is the maximum cable length for the DN-10161?

For gigabit Ethernet, the maximum cable length using Cat5e or Cat6 cable is 100 meters (328 feet) for reliable performance.

Does the DN-10161 support jumbo frames?

Yes, the DN-10161 supports jumbo frames up to 9k bytes, which can improve performance in certain network configurations. Configure via the driver settings.

USER MANUAL DN-10161 Digitus

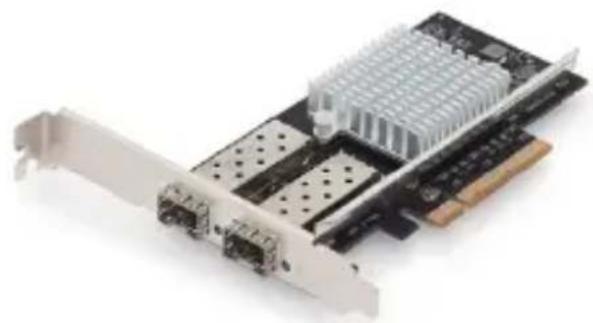

PCIe 10G SFP+ Network Controller Card

User Manual

DN-10161 • DN-10162

Contents:

Chapter 1: Introduction ...... 3

1.1 Product Introduction......3
1.2 Features....3
1.3 Requirements....4
1.4 Package Contents......5

Chapter 2: Getting Started....5

2.1 Hardware Installation .... 5
2.2 Driver Installation ...... 6
2.2.1 Installation for Windows ...... 6
2.2.2 Installation for Linux 8
2.3 Verifying the installation....9
2.3.1 Verifying for Windows....9
2.3.2 Verifying for Linux 10

Chapter 3: Troubleshooting Tips ...... 11

All brand names and trademarks are properties of their respective owners.

Chapter 1: Introduction

1.1 Product Introduction

This PCIe 10G SPF+ Network Card is a cost-effective solution that delivers fast and reliable 10 Gbps network access at longer distances than copper-based networks. Using the SPP+ transceiver of your choice, you can connect your PCI Express-based server or workstation directly to your 10G fiber optic network.

1.2 Features

• Supports common 10GbE SFP+ optical and Direct Attached Copper modules
- EEE (Energy Efficient Ethernet)
- Up to 9K Jumbo Frames
- IP, TCP and UPD checksum offloading (IPv4, IPv6) capabilities

• Designed to meet PCI Express Specification Revision 3.0
• Eight lane (x8) PCI Express compatible with x8 and x16 PCI Express slots
• IEEE 802.1Q Tagged VLAN
• Intel PROSet Utility for Microsoft Device Manager

1.3 Requirements

Hardware

The following system specs are recommended minimum

• PCIe slot: Available 8-Lanes PCI-Express slot gen 2.0 or later
• Processor: Quad Core 3.0GHz or higher
  • RAM: 4GB memory or higher

Software

Operating systems supported (64 bits only)

• Windows 7
• Windows Server 2008 R2

• Windows Server 2012

• Windows 8.1

• Windows Server 2012 R2
• Windows 10
• Linux 2. 6.x or later

1.4 Package Contents

• 1 x PCIe 10G SFP+ Network Card
- 1 x Driver CD
- 1 x User Manual
- 1 x Low Profile Bracket

Chapter 2: Getting Started

2.1 Hardware Installation

1. Turn off the power to your computer.
2. Unplug the power cord and remove your computer's cover.
3. Remove the slot bracket from an available PCIe slot.
4. To install the card, carefully align the card's bus connector

with the selected PCIe slot on the motherboard. Push the board down firmly.

1. Replace the slot bracket's holding screw to secure the card.
2. Secure the computer cover and reconnect the power cord.

2.2 Driver Installation

The following section shows you how to install PCIe 10G SFP+ Network Card driver on different operating systems.

2.2.1 Installation for Windows

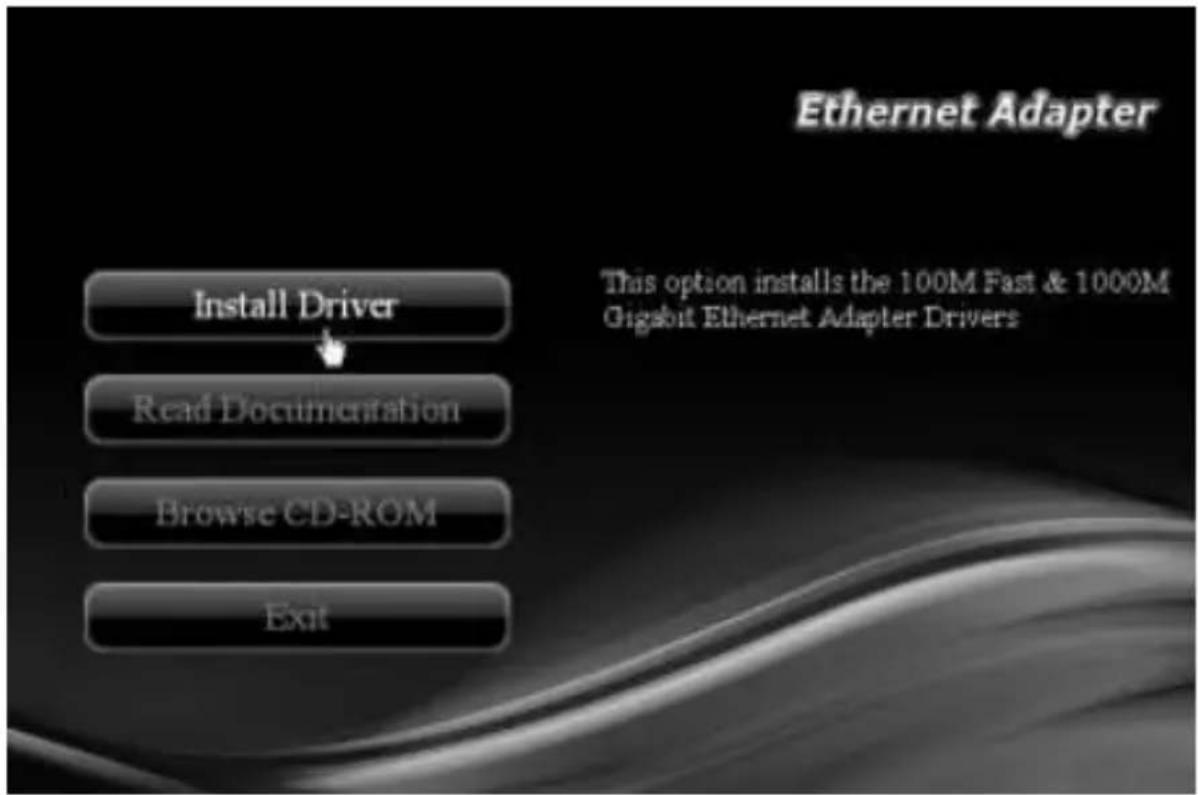

Insert the provided CD into your disk drive. The CD-ROM will start automatically. The following screen will show up and please click “Install Driver”.

*Note: Actual image may vary

Note: If the install program doesn't run automatically, please locate and double-click on the Autorun.exe file in the CD to launch the install program.

Please click "PCIe Dual Port Gigabit" to start the installation.

*Note: Actual image may vary

Follow the instructions on screen to install the driver.

2.2.2 Installation for Linux

1. Insert the provided CD into your CD-ROM drive.
2. Extract the compressed driver source file to a certain directory by the following command: (Please copy the driver file
   "ixgbe-x.x.x.tar.gz" from the CD folder
   “.\Driver\Intel_Dual_Port\Linux” to a certain folder on hard drive)

tar zxf ixgbe-.tar.gz

1. Change to the driver src directory, where is the version number for the driver tar:

# cd ixgbe-/src/

1. Compile the driver module:

# make install

2.3 Verifying the installation

2.3.1 Verifying for Windows

1. Click on the “Device Manager” tab in the Windows Control Panel.

Start > Control Panel > Device Manager

1. Entry “Network adapters” item, and you can read “Intel(R) 82599 10Gigabit Network Connection” in the Device Manager.

Network adapters

2.3.2 Verifying for Linux

1. You can check whether the driver is loading by using

following commands:

# lsmod | grep ixgbe

# ifconfig -a

If there is a device name, ethX, shown on the monitor, the linux driver is load. Then, you can use the following command to activate the ethX.

# ifconfig ethX up, where X=0,1,2,...

Chapter 3: Troubleshooting Tips

- The computer can NOT detect the PCIe Dual Port Gigabit Server Adapter

1. Make sure that the PCI Express card is correctly plugged into the PCI Express slot; if not, turn off the computer and plug it again.
2. If the PCI Express card is plugged in correctly, see if the golden connectors on the card are clean; if not, clean the connector surface.
3. If still NOT, please change another PCI Express slot on your motherboard.
4. Please upgrade your motherboard BIOS to the latest version. If it still not work, contact your motherboard vendor asking the advanced supporting for BIOS updated.
5. The board itself might be defective. You can try another motherboard testing PCIe 10G SFP+ Network Card working or not.

- Computer failed to start after inserting the PCIe 10G SFP+ Network Card Turn off the computer, remove the PCIe Dual Port Gigabit Server Adapter, and try to restart the computer. If the computer starts successfully, it means that the card has not been inserted into the PCI Express slot correctly. Please clean golden figure by rubber firstly, then change another PCI Express slot.

Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address.

www.assmann.com

Assmann Electronic GmbH

Auf dem Schüffel 3

58513 Lüdenscheid

Germany
