GFH267 - Heating GoldAir - Free user manual and instructions

Product Type	Electric Space Heater
Model	GFH267
Brand	GoldAir
Heating Technology	Ceramic
Power Consumption	1500 W
Voltage	220-240 V
Frequency	50/60 Hz
Heat Settings	2 (Low, High) + Fan Only
Thermostat	Adjustable
Safety Features	Overheat Protection, Tip-Over Switch
Dimensions (approx.)	20 x 15 x 25 cm
Weight (approx.)	1.5 kg
Cord Length	1.8 m
Noise Level	< 45 dB
Material	Plastic
Color	White/Black
Warranty	1 Year
Energy Efficiency Class	Class A
Operation	Manual Controls
Portability	Built-in Handle

Frequently Asked Questions - GFH267 GoldAir

How do I set the desired temperature?

Turn the thermostat dial clockwise to increase the temperature and counterclockwise to decrease. The heater will automatically maintain the set temperature.

Can I use the heater in a bathroom?

No, the heater is not designed for damp or wet locations. Keep it away from water and humidity to avoid electric shock.

How often should I clean the heater?

Clean the heater every two weeks during use. Unplug it, let it cool, then use a soft cloth or vacuum to remove dust from the intake and outlet grilles.

Why does the heater turn off suddenly?

This may be due to overheat protection. Ensure the heater is on a stable surface, not covered, and the air vents are unobstructed. If it still shuts off, contact customer support.

What do the power settings mean?

The heater has three modes: Fan Only (no heat), Low Heat (750 W), and High Heat (1500 W). Use the switch to select your preferred level.

Is the heater safe for use around children and pets?

The heater has a tip-over switch that shuts it off if knocked over. However, always supervise children and pets near the heater and keep them at a safe distance.

Can I use an extension cord?

It is not recommended. Plug the heater directly into a wall outlet to avoid overheating the cord. If you must use an extension cord, ensure it is rated for at least 1500 W.

How do I reset the overheat protection?

Unplug the heater, let it cool for 10 minutes, and then plug it back in. The heater should resume normal operation. If not, check for obstructions or contact support.

What should I do if the heater makes unusual noises?

Some noise is normal due to the fan. If you hear rattling or grinding, turn off the heater, unplug it, and inspect for loose parts or debris. Clean if necessary.

Does the heater have a filter that needs replacement?

The heater has a washable dust filter located at the back. Clean it with a soft brush or rinse with water (dry thoroughly before reinserting). No replacement needed.

USER MANUAL GFH267 GoldAir

Abstract pattern of red wavy stripes on black background (no text or symbols)

Operating Instructions

2000W Oscillating Fan Heater

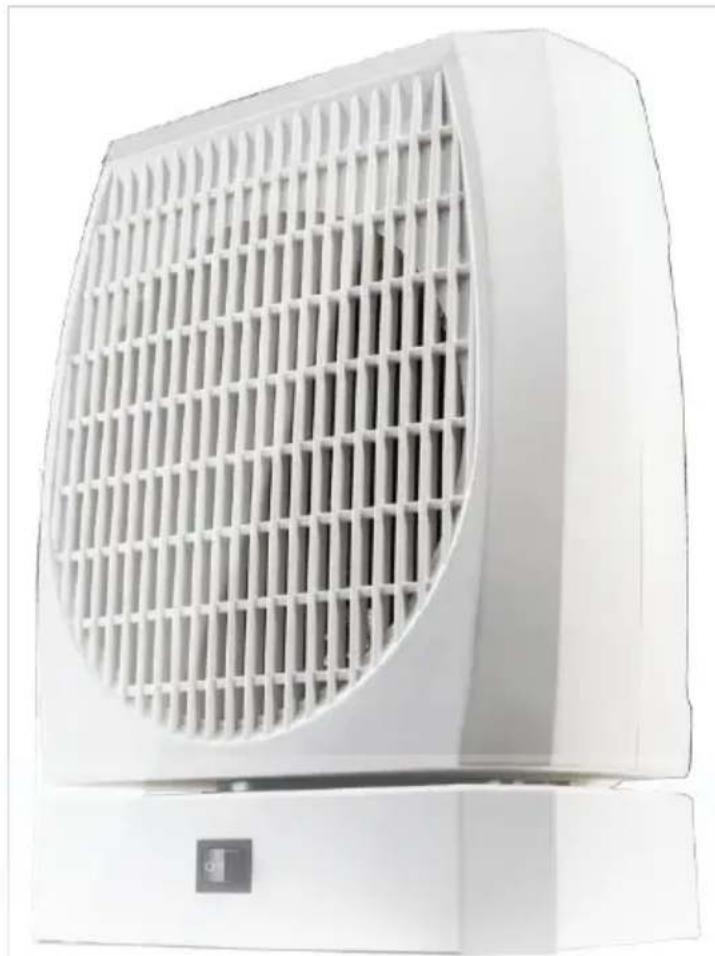

White industrial fan with grid-patterned grille and control panel (no visible text or symbols)

General Care and Safety Guide

YOUR SAFETY IS IMPORTANT TO US. PLEASE ENSURE YOU TAKE NOTE OF THE INSTRUCTIONS AND WARNINGS OUTLINED IN THIS MANUAL.

CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they are supervised or have been given instruction concerning the use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

WARNING: You must not cover this appliance. Covering this appliance presents fire risk and will activate the safety fuse; permanently disabling the unit.

WARNING: Do not use this appliance in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.

WARNING: To reduce the risk of fire, keep textiles, curtains, or any flammable material a minimum distance of 1 metre from the air outlet.

• Use only the voltage specified on the rating label of the appliance.
• Keep all objects at least 1 metre from the front, sides and rear of the appliance.
• This appliance is intended for household use only and not for commercial or industrial use.
• Indoor use only.
• Use this appliance only as described in this manual. Any other use is not recommended by the manufacturer and may cause fire, electric shock or injury.
• Do not use the appliance if it has been dropped or damaged.
• The common cause of overheating is deposits of dust or fluff in the appliance. Ensure these deposits are removed regularly by unplugging the appliance and vacuum cleaning the air vents and grills.

General Care and Safety Guide

• Never use the appliance to dry clothes.

• Always unplug appliance when not in use.

- When the appliance has been unpacked, check it for transport damage and ensure all parts have been delivered. If parts are missing or the appliance has been damaged, contact the Customer Services Team.

- Do not use if there are visible signs of damage to the appliance.

- Do not connect the appliance to mains supply until completely assembled and adjusted.

- Ensure hands are dry before handling the plug or main unit.

- Ensure appliance is on a flat, stable, heat-resistant surface.

- Do not operate with cord set coiled up as a heat build up is likely, which could be sufficient to become a hazard.

- Carry out regular checks of the supply cord to ensure no damage is evident

- Do not operate this appliance with a damaged cord, plug or after the appliance malfunctions or has been dropped or damaged in any manner. Take to a qualified electrical person for examination, electrical service or repair.

- Do not twist, kink or wrap the cord around the appliance, as this may cause the insulation to weaken and split. Always ensure that all cord has been removed from any cord storage area and is unrolled before use.

- It is recommended that this appliance is plugged directly into the wall socket. Power boards are not rated to supply power to high wattage appliances.

- A correctly specified, undamaged extension cord may be used with this appliance provided it is used in a safe manner.

- Do not remove plug from power socket until the appliance has been switched off.

- Do not remove plug from power socket by pulling cord; always grip plug.

- Do not place cord under carpet or cover with rugs or furniture. Arrange the cord so it cannot be tripped over.

- Don't place appliance on bedding or on thick & long carpet where the openings may get blocked.

- Switch off and use handle provided when moving

- Do not place appliance close to radiant heat source.

- Do not insert or allow foreign objects to enter any ventilation or exhaust opening, as this may cause an electric shock, fire or damage to the appliance.

- Do not sit on the appliance.

- Do not use abrasive cleaning products on this appliance. Clean with a damp cloth (not wet) rinsed in hot soapy water only. Always remove plug from the mains supply before cleaning.

- Do not operate in areas where petrol, paint or other flammable liquids are used or stored.

- Do not use this appliance in the immediate surrounds of a bath, a shower, or a swimming pool or other liquids.

General Care and Safety Guide

• The appliance must not be immersed in any liquids.
• There are no user serviceable parts installed in the unit.
- Do not place the unit in wardrobes or other enclosed spaces as this may cause fire hazards.
- This unit is not supposed to be used in or around locations where foodstuffs, works of art or delicate articles of science, etc. are stored.
- If your appliance does not work, or is not working properly, contact the place of purchase or the Customer Services Team.

Operating Your Heater

Always choose a safe location for the heater, keeping in mind the safety precautions outlined. Ensure all packaging has been removed from the unit before use. Please follow the below instructions.

WARNING: In order to avoid overheating or fire, do not cover the heater.

WARNING: Keep all objects at least 1 metre from the front, sides and rear of the appliance.

WARNING: Do not use this heater with a programmer, separate timer, remote-control system or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.

WARNING: Never leave this heater unattended when in use.

WARNING: This heater is not equipped with a device to control the room temperature. Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.

Ensure heater is on a flat, stable, heat-resistant surface.

Once the heater is in a safe operating position and all switches are in the off position, insert the power plug into the mains outlet and switch on.

CAUTION: Ensure the power cord is not tight because if pulled it may partially pull the plug from the socket. A partially inserted plug will overheat the plug and socket and could result in fire.

Operating Your Heater

HEATER CONTROL SWITCH

The control switch positions are:

$$ " 0" = O F F $$

$$ \text { "I" } = \text { Low Heat } $$

$$ \text { "II" } = \text { High Heat } $$

Close-up of a white industrial rotary knob with no visible text or symbols on the knob itself.

Close-up of a white circular knob with a black curved line, no text or symbols visible.

THERMOSTATIC CONTROL

1. Rotate thermostat knob clockwise until you reach the maximum position.
2. When the room reaches a temperature that is comfortable for you, slowly turn the knob anti-clockwise until the heater just turns off (you will hear a click).
3. The heater will now cycle on and off to maintain the comfort level you have set.
4. Take note of this setting position for future use.

OSCILLATION

To operate the Oscillation function press the switch on the front of the heater to the on 'I' position.

Operating Your Heater

SAFETY DEVICES

This appliance has three protection devices:

• Tilt Switch - this will automatically turn the appliance off if the appliance is not in the correct operating position.
• Resettable Thermal Link - this will automatically disconnect the power to the appliance at a pre-set overheat temperature. After cooling down it will reset and power on again. If this occurs, investigate what is causing the appliance to overheat.
• Thermal Fuse - this disconnects the appliance permanently in case of overheating. (It is non resettable).

CAUTION: The appliance generates heat during use. Precautions must be taken to prevent the risk of burns, scalds, fires or other damage to persons.

CARE AND CLEANING

The heater requires regular cleaning to ensure trouble free operation:

• Unplug the heater from the mains supply before cleaning.
- Ensure that the heater has been allowed to cool down completely before cleaning.
- The common cause of overheating is deposits of dust or fluff in the appliance. Ensure these deposits are removed regularly by unplugging the appliance and vacuum cleaning the air vents and grills.
- Use a damp cloth (not wet) to wipe the exterior of the heater to remove dust and dirt.
• Never use solutions such as petrol, thinners or polishing agents.
- Ensure the heater is dry before plugging back into the mains supply.
• Do not attempt to dismantle the heater.
- There are no user serviceable parts. For service or repair, contact an authorised electrical service technician.

PROOF OF PURCHASE

To receive warranty retain receipt as proof of purchase.

SUPPORT AND TECHNICAL ADVICE

Goldair™

Goldair – New Zealand

Goldair – Australia

Monday – Friday 8am-5pm

Monday – Friday 8am-5pm

Phone [phone]

Phone [phone]

Phone [phone]

Phone [phone]

[e-mail]

[e-mail]

Goldair™

Two Year Warranty

Thank you for purchasing this Goldair product. Your product is warranted against faults and manufacture when used in normal domestic use for a period of two years. In non-domestic use Goldair limits the voluntary warranty to three months.

Goldair undertake to repair or replace this product at no charge if found to be defective due to a manufacturing fault during the warranty period.

This warranty excludes damage caused by misuse, neglect, shipping accident, incorrect installation, or work carried out by anyone other than a qualified electrical service technician.

PLEASE KEEP YOUR RECEIPT AS THIS WILL HELP VERIFY YOUR WARRANTY.

The benefits given to you by this warranty are in addition to other rights and remedies available to you under law in relation to the goods or services to which this warranty relates.

In Australia, our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

In New Zealand this warranty is additional to the conditions and guarantees of the Consumers Guarantee Act (1993).

Goldair – New Zealand

CDB Goldair

PO Box 100-707

N.S.M.C

Auckland

Phone [phone]

Phone [phone]

www.goldair.co.nz

Goldair – Australia

CDB Goldair Australia Pty

PO Box 574

South Morang

Victoria, 3752

Phone [phone]

Phone 1300 GOLDAIR (1300 465 324)

www.goldair.com.au

Goldair Two Year Warranty (IMPORTANT: Please complete and retain this warranty card)

Name

Address

Place Of Purchase Date Of Purchase

Name Of Product Model Number

Attach a copy of the purchase receipt to this warranty card

Goldair™

Abstract pattern of red wavy stripes on black background (no text or symbols)

CDB Goldair

New Zealand

PO Box 100707,

North Shore Mail Centre,

Auckland, 0745

www.goldair.co.nz

Australia

PO Box 574,

South Morang,

Victoria, 3752

www.goldair.com.au
