Product Type	Fan Heater
Model	CTH5162
Brand	Heller
Heating Power	2000 W
Voltage	220-240 V ~ 50/60 Hz
Heating Modes	Fan Only, Low Heat (1000 W), High Heat (2000 W)
Thermostat	Adjustable thermostat with auto shut-off
Overheat Protection	Yes
Tip-Over Switch	Yes
Dimensions (H x W x D)	25.0 x 20.0 x 15.0 cm
Weight	1.5 kg
Power Cord Length	1.5 m
Oscillation	Yes, 60° wide angle
Noise Level	< 45 dB on low heat
Housing Material	ABS plastic, fire-resistant
Safety Certification	CE, RoHS
Cleaning Instructions	Unplug and wipe with a dry cloth; do not immerse in water
Maintenance	Clean air intake and outlet regularly
Spare Parts Availability	Contact Heller customer service
Warranty	2 years

Frequently Asked Questions - CTH5162 Heller

How do I clean the heater?

Always unplug the heater first. Use a soft, dry cloth to wipe the exterior. For deeper dirt, a slightly damp cloth can be used, but ensure no moisture enters the openings. Do not use abrasive cleaners.

Why does the heater turn off by itself?

The heater has an overheat protection and tip-over switch. If it turns off, check for blocked air intake/outlet or if it has tipped over. After cooling down, it may restart automatically.

Can I use the heater in a bathroom?

This heater is not rated for bathroom use. It should be kept away from water and moisture. Use only in dry indoor areas.

How to reset the thermal cut-out?

Turn off the heater, unplug it, and let it cool for at least 10 minutes. After that, plug it in and turn it on. The thermal cut-out will reset automatically once the temperature drops.

What is the power consumption?

The heater has two settings: 1000 W (low) and 2000 W (high). In fan-only mode, it consumes less than 30 W. The exact energy use depends on the thermostat.

Is the fan noisy?

The noise level is around 45 dB on low heat and slightly higher on high heat. The oscillation mechanism is silent.

How to set the thermostat?

Rotate the thermostat knob to your desired temperature. The heater will run until the room reaches that temperature, then it will cycle on and off to maintain it.

Can I leave the heater unattended?

It is not recommended to leave the heater unattended for long periods. Always ensure it is on a stable, non-flammable surface and away from curtains or furniture.

What should I do if the heater smells like burning?

New heaters may emit a slight smell during first use due to residue burning off. If the smell persists, turn off immediately, unplug, and check for dust buildup on the heating element. Clean if needed.

How to store the heater in summer?

Clean the heater, allow it to cool completely, and store in a dry, dust-free place. Keep the power cord loosely coiled, and cover with a cloth to prevent dust accumulation.

USER MANUAL CTH5162 Heller

2400W Ceramic Tower Heater

Model: CTH5162

Modern white electric heater with digital display and control buttons (no text or symbols visible)

Read and follow the instrucons in this user manual even if you feel you are familiar with the product, and nd a place to keep it handy for future reference.

For your convenience record the complete model number (located on the product idencaon plate) and the date you received the product, together with your purchase receipt and each to the warranty and service informaon. Retain in the event that warranty service is required.

NOTE: The range of this product (as marked on the product idencaon plate) is based on specific loading tests. Normal use or the use of other recommended aachments may draw significantly less power.

Important Safeguards

When using any electrically powered product, basic safety precautions should always be followed, including the following:

PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT

WARNING!: - to reduce the risk of re, electrical shock or injury to persons or property:

• Carefully read all instrucons before operang your new product for the rst me and save for future reference.
• WARNING: In order to avoid overheang, do not cover the heater.
• Remove and safely discard any packaging material and promoonal labels before using the Heater for the rst me.
• To eliminate a choking hazard for young children, remove and safely discard the protective covered to the plug of this appliance.
• Always operate the product from a power source of the same voltage, frequency and range as indicated on the product idencaon plate.
• Check that the heater is not damaged and in good condition before operang.
• Close supervision is necessary when the product is used by or near children or inrm persons. Do not allow children to use it as a toy.
  • Children should be supervised to ensure they do not play with the appliance.
• Do not operate any product with a damaged cord or plug, or aer the product malfuncons, or is dropped or appears damaged in any way. Return the complete product to the place of purchase for inspecon, repair or replacement.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• This product should not be used in the immediate vicinity of water, such as bathtub, washbowls, basins, showers or swimming pools, or near any vessels containing liquids where the likelihood of immersion or splashing could occur.
• Avoid touching the heater body whilst the heater is on. If the unit needs to be moved, switch o and allow to cool, and only hold the heater by the handle provided.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instrucon concerning use of the appliance by a person responsible for their safety.
• Always turn the unit o before unplugging the power cord. Ensure your hands are completely dry when touching the unit in order to prevent electric shock.
• Ensure the cord is fully extended before use and arrange it so that it does not come in contact with any part of the heater.

• Do not place the heater on bedding or on thick and long pile carpet/rugs where the openings may be blocked.

• Do not use the heater in areas such as garages; where petrol, paint or other ammable substances are used or stored.

• Do not use near or point the heater towards furniture, animals, curtains or other ammable objects. Keep combustible materials such as furniture, bedding and curtains etc at least 1 metre from the front, sides and rear of the heater.
• Do not place the cord under carpet or cover with throw rugs or furniture. Arrange the cord so that it cannot be tripped over.
• Switch o and unplug from the power outlet when not in use, before assembly or disassembling parts and before cleaning. Remove by grasping the plug – do not pull on the cord.
• A common cause of overheang is deposits of u and dust entering the heater. Ensure these deposits are removed regularly by unplugging the heater, allowing it to cool and clean as described in the cleaning and maintenance secon.
• Ensure that no other high waage appliances are plugged into the same power outlet as the Heater, as an overload can occur.
• Avoid the use of an extension cord, as the extension cord may overheat and cause a risk of re.
• Do not use the appliance other than for its intended use.
• Do not use outdoors. FOR INDOOR USE ONLY.
• Do not leave the appliance unaended while switched on.
• Do not place objects on the product or allow objects to obstruct the inlet or outlet openings, or operate in close proximity to walls or curtains, etc. Do not cover the unit when in operaon.
• Do not place in bathrooms, laundries or other ‘wet areas’ otherwise warranty will be voided.
• Do not install the Heater directly below a power outlet.
• The use of aachments or accessories not recommended or sold by the manufacturer or sold by the product distributor may cause personal or property hazards or injuries.
• This product is intended for normal domesc/household use only.
• Use this Heater as described in this manual. Any other uses not recommended by the manufacturer, may cause re, electric shock, or injury to persons and may void the warranty.
• CAUTION: In order to avoid a hazard due to inadvertent reseng of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a mer, or connected to a circuit that is regularly switched on and o by the ulity.
• The installaon of a residual current device (safety switch) is recommended to provide additional safety protecon when using electrical appliances. It is advisable that a safety switch with a rated residual operang current not exceeding 30mA be installed in the electrical circuit supplying the appliance. See your electrician for professional advice.

Positioning the Appliance

This Heater should only be operated a minimum distance of 50cm from walls or any other objects. Posion the heater in a way to opmize air ow, avoid placing the heater in corners and small spaces.

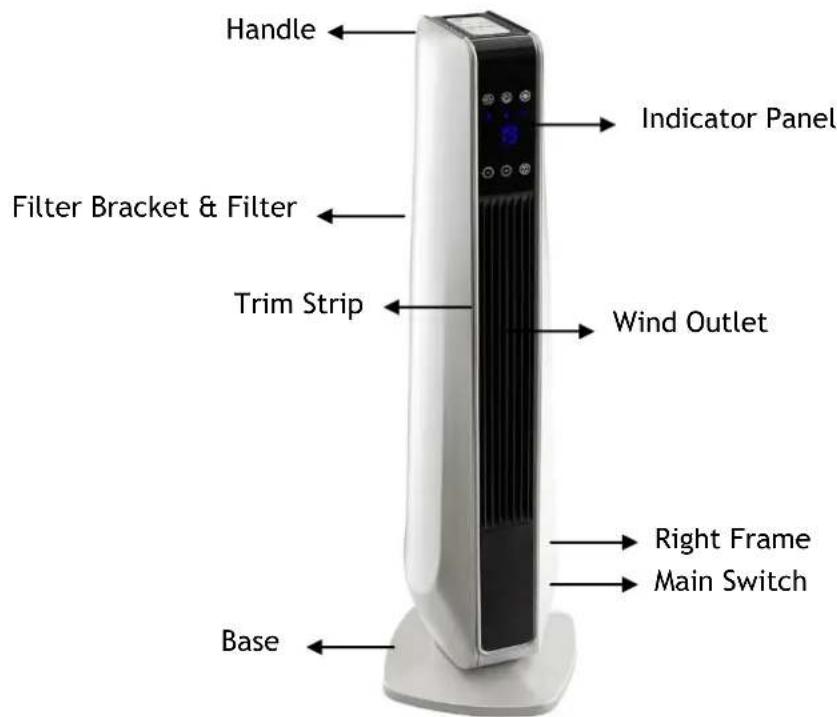

Features

Operating Instructions

1. Carefully remove the heater from the plasc bag and carton.
2. Place the heater on a rm level surface.
3. Ensure the power switch is set to 'O'.
4. Insert the plug into a suitable power outlet and turn the power supply on.
5. Turn the power switch (located at the back of the heater) 'On'. The heater is in standby mode.
6. Turn the heater 'On' by pressing the ON/OFF buon on either the remote or control panel. The heater will begin to operate in fan mode.
7. Press the POWER buon once to operate in 1200W mode, or twice to operate in 2400W.
8. To turn the heater 'O' press the ON/OFF buon. Please note: the unit will take approx 60 seconds to stop blowing out air. Turn the switch o at the back of the unit.

WARNING: Allow the heater to cool down for 30-60 seconds before switching on again and before turning out at the power outlet. This will protect the inner parts.

TIMER FUNCTION:

The mer funcon can be used in any mode. The mer allows you to set the length of me from 1-8 hours. To use the mer, press the mer buon. Each press of the buon increases the me set by 1 hour. The amount of me set will be displayed on the unit, and will count down in 1 hour. If the mer has been set for 8 hours (MAX amount of me) pressing the buon once more will reset the Timer Funcon.

OSCILLATION

1. Press the OSC buon to turn the oscillaon funcon 'On'.
2. Press the OSC buon again to turn the oscillaon funcon 'O'.

OVERHEAT PROTECTION:

This heater is ed with a safety overheat protecon device. If overheang occurs, ensure the appliance is switched 'O' and turn o the power supply. Unplug the appliance and let it cool for 30 minutes. If something is obstrucng the grille, ensure the object is removed. Aer 30 minutes has passed, turn the heater on again as described above.

TIP OVER SWITCH:

This Heater will only work on a rm stable surface. If the Heater is not 100% stable and in an upright posion (vercal), the unit will switch o unl placed in the correct posion.

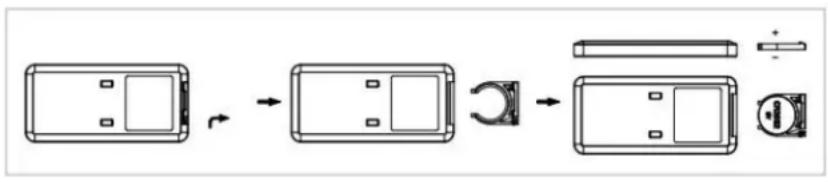

Remote Control Instructions

The remote control uses one buon cells (CR2025 - 3V). We recommend the use of a lithium type baery for longer use.

Note: Please follow baery disposal instrucon on baery packaging, or contact your local council for safe disposal of baeries

WARNING: Do not touch the machine while it is on and ensure the air outlet/inlet is never covered.

Cleaning & Maintenance

1. Wait for the machine to completely cool down before commencing any cleaning.
2. Always disconnect the appliance from the main power outlet before cleaning.
3. Clean the outside surface of the heater with a damp lint free cloth. Never immerse directly in water!
4. Do not use any detergents/solvents or harsh chemical agents/abrasives to clean the heater
5. Ensure the unit is completely dry and nothing is blocking the air inlet/outlet before powering on.

Specifications

Model	Description	Voltage	Frequency	Wattage
CTH5162	2400W Ceramic Tower Heater	220-240V~	50Hz	2400W

Hints & Tips

1. Do not overheat your home, in winter the temperature of a heated room should be between 18-21°C
2. Choose the right size heater for the room that you wish to heat.
3. Zone o the unoccupied rooms by closing doors and curtains to limit heat loss.
4. Use dra stoppers where possible, to keep the cold air from ltering in under doors.
5. Avoid placing items or sing too close to the heater for opmal air ow.

Australian Customer Service

GAF Control (Sales) Pty Ltd

P.O Box 19

Altona North Victoria 3025

Phone: [phone]

Hours: 9am-5pm (EST) Mon-Fri

www.gafcontrol.com.au

*This product may vary slightly to the product illustrated due to ongoing product development.
