V5-E600 - Toilets HAIER - Free user manual and instructions

Product Type	Smart Toilet with Bidet
Dimensions (LxWxH)	680 mm x 380 mm x 500 mm
Weight	25 kg
Power Supply	AC 220-240V, 50/60Hz
Power Consumption	1200 W (max)
Water Pressure Range	0.05 MPa – 0.75 MPa
Water Heating	Instantaneous heater, adjustable temperature
Bidet Functions	Front wash, rear wash, oscillating wash, pulse massage
Drying Function	Warm air drying with adjustable temperature
Seat Heating	Adjustable temperature with safety sensor
Deodorizer	Built-in activated carbon deodorizer
Remote Control	Wireless remote control with LCD display
Flush Type	Dual flush (6L/3L) or automatic flush
Installation Type	Floor-mounted, close-coupled
Material	Ceramic bowl, PP seat cover
Cleaning	Self-cleaning nozzle, easy-remove seat
Safety Features	IPX4 water resistance, leakage protection, overheat protection
Spare Parts	Filter, nozzle, seat cover, remote control, water hose
Reparability	Modular design; user-replaceable parts; professional service recommended

Frequently Asked Questions - V5-E600 HAIER

How do I install the Haier V5-E600 smart toilet?

Ensure the water supply and electrical outlet are within reach. Follow the included installation manual: connect the water hose, mount the toilet to the floor, plug in the power cord, and test all functions. For safety, hire a qualified professional.

How do I clean the bidet nozzles?

The V5-E600 features a self-cleaning nozzle that rinses before and after use. For manual cleaning, activate the nozzle cleaning mode via the remote, then gently wipe with a soft cloth. Do not use abrasive cleaners.

Why is the heated seat not working?

Check if the seat heating function is enabled on the remote control. Ensure the power cord is plugged in and the circuit breaker is on. If the room temperature is very low, allow some time for the heater to warm up.

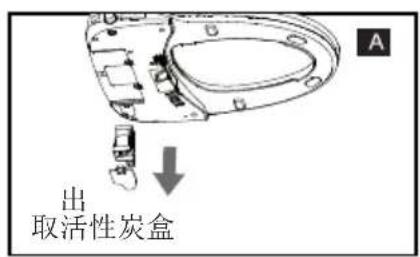

How do I replace the deodorizer filter?

The deodorizer filter is located at the back of the toilet. Turn off the power, open the filter cover, remove the old filter, and insert a new one (model V5-E600-FILTER). Replace every 6-12 months depending on usage.

Can I use the V5-E600 without a remote control?

Yes, the toilet has a side panel with basic buttons for wash, stop, and flush. However, advanced features like temperature adjustment and oscillating wash require the remote.

What should I do if the toilet flushes continuously?

First, check if the flush button is stuck. Then inspect the water level in the tank; if too high, adjust the float. If the issue persists, the flush valve may need replacement. Contact customer support.

Is the Haier V5-E600 suitable for low water pressure?

The toilet requires a minimum water pressure of 0.05 MPa. If your pressure is lower, a booster pump is recommended. Check your water pressure with a gauge before installation.

How do I reset the toilet to factory settings?

Press and hold the Stop and Wash buttons on the side panel simultaneously for 5 seconds. The indicator lights will flash, confirming the reset. Then reconfigure your preferences via the remote.

What spare parts are available for the V5-E600?

Common spare parts include: nozzle assembly, seat cover, remote control, water filter, deodorizer filter, and flush valve. Purchase from Haier authorized dealers.

Can I install a bidet seat on a standard toilet?

The V5-E600 is a complete smart toilet unit, not a separate seat. It requires replacement of the entire toilet. For a standard toilet, consider a standalone bidet attachment instead.

USER MANUAL V5-E600 HAIER

Simple line drawing of a cylindrical object with two segmented ends, no text or symbols present.

Two rectangular metal components with recessed holes, no text or symbols present

Simple line drawing of a U-shaped pipe fitting with two flanged ends (no text or symbols)

Technical line drawing of a toilet housing with 530mm height dimension (no text or symbols)

Technical line drawing of a mechanical component with a 527mm dimension label (no other text or symbols)

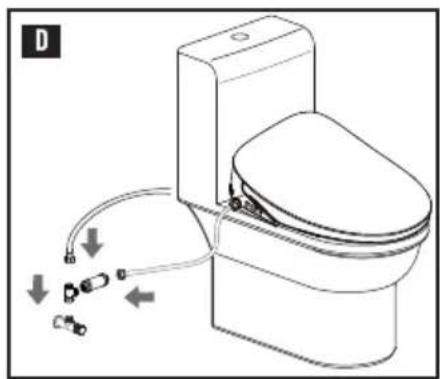

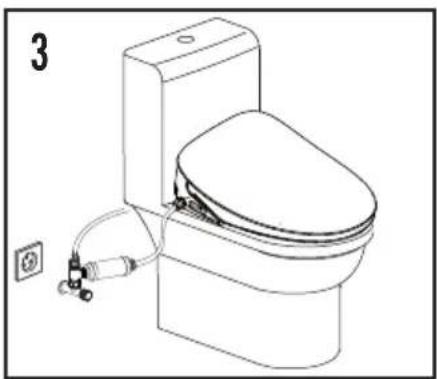

电源、进水连接建议

Four different types of screwdrivers and tools shown in line drawings (no text or labels)

Line drawing of a toilet with a pipe and valve, no text or symbols present

Line drawing of a toilet with a wall-mounted cable and electrical outlet (no text or symbols)

Line drawing of a toilet with a wall-mounted seat and attached electrical outlet (no text or symbols)

Line drawing of a toilet with attached tubing and connector points (no text or symbols)

安装(2)

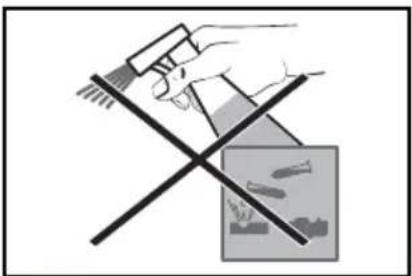

漏电保护测试

着座状态下，按一下进入臀洗模式；

在清洗模式下，再次按下，

进入水压调节模式，共五个档位切换

Illustration of a hand connecting a plug to an electrical outlet with a power switch (no text or symbols)

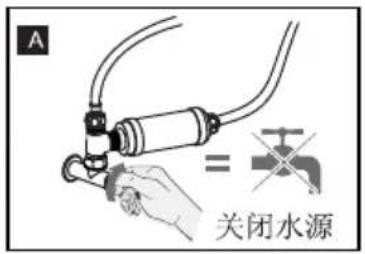

清洗三通过滤网

Simple line drawing of a mechanical or electrical component with no text or symbols

Technical illustration of a valve fitting with a bolt and nut, showing a downward arrow indicating a change (no text or symbols present)

Hand holding a small bowl with a drain faucet above it (no text or symbols)

Mechanical component diagram showing a valve with threaded shaft and nut, plus a separate circular base (no text or symbols)

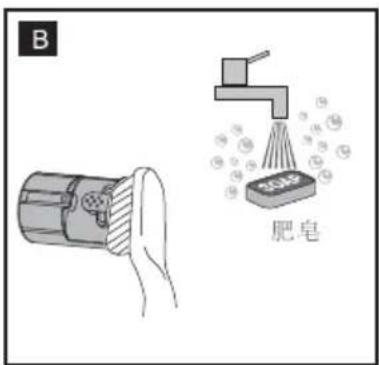

清洗喷嘴头（喷嘴清洁模式下）

Illustration of a hand using a tool to mark a cross over a document (no text or symbols present)

Illustration of a hand holding a pen and ruler with a diagonal line intersecting it, no text or symbols present.

Illustration of a hand holding a pen or tool with a downward arrow, no text or symbols present

Illustration of a hand holding a pen or clip with an arrow indicating motion (no text or symbols)

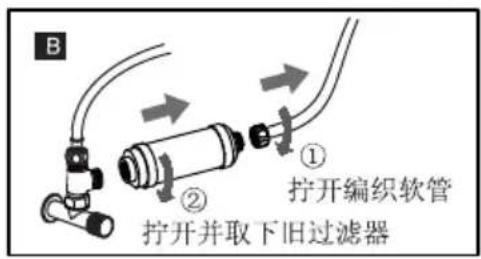

清洗内置过滤器

Diagram showing a hand operating a device with an inset close-up of the tool (no text or symbols present)

Pure mechanical diagram showing a cylindrical component connected to two pipes with no text or symbols

Line drawing of a toilet with visible door and seat assembly (no text or symbols)
