USER MANUAL Virtus Nano 63 Morel

Virtus Nano Carbon Installation Guide

Virtus Nano Carbon

42,62,63

Virtus Nano

Carbon Integra

42,62

Components

MM2, MW6, MXR200.4,

MXR130, MXR250.4i

MT120N

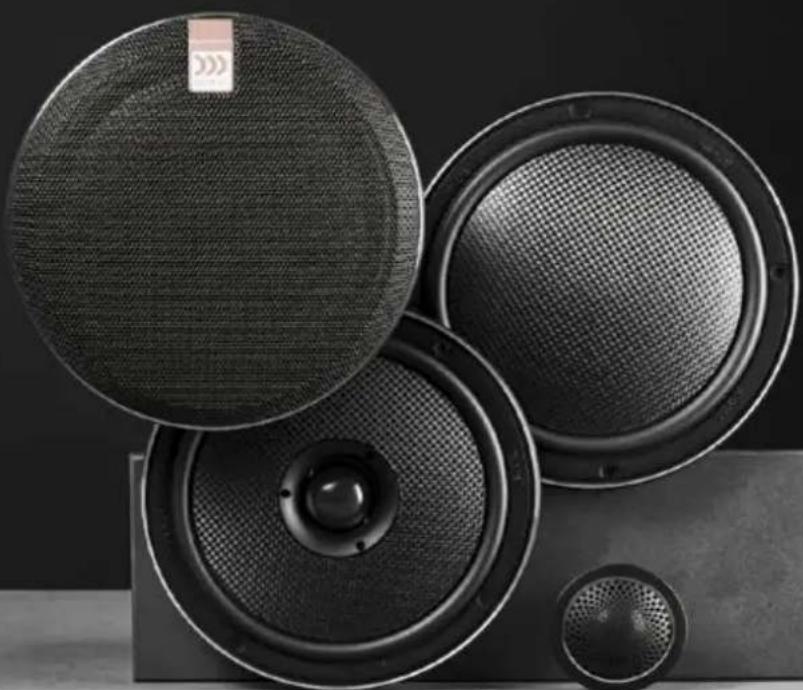

Dear Customer,

Thank you for choosing Morel for your car audio speaker solution.

Morel prides itself on engineering and producing the best high-fidelity speaker systems.

We hope you enjoy your Virtus Nano Carbon speakers for years to come.

If you have any questions, please contact your Morel dealer or Morel support at:

www.morelhifi.com

Black-and-white photo of three large speaker amplifiers with mesh head covers, displayed on a wooden stand (no text or symbols visible)

Virtus Nano Carbon

4", 6.5" Woofer / Integra MT120N Tweeter (in 2-WAY / 3-WAY)

X2 X2

X8 X8

X2 X2 X2

X4

1. 实验原理

X2

MXR 200.4/250.4i Crossover

Technical line drawing of a dual-chamber air vent system with no visible text or symbols

X2 X2

X6 X6

Front view diagram of a device enclosure with labeled components and ports (no readable text or symbols)

X4

MM2 MidrangeMXR 130 Crossover

X2
X2
X8
X8

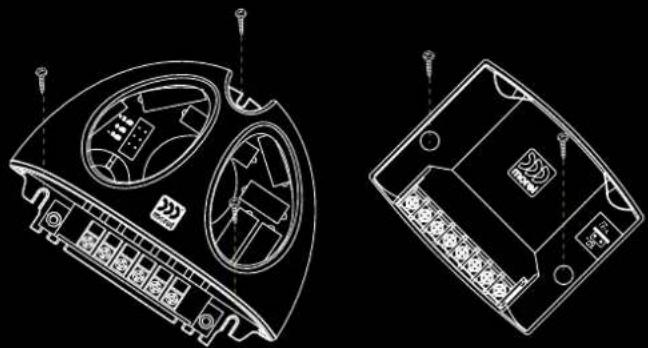

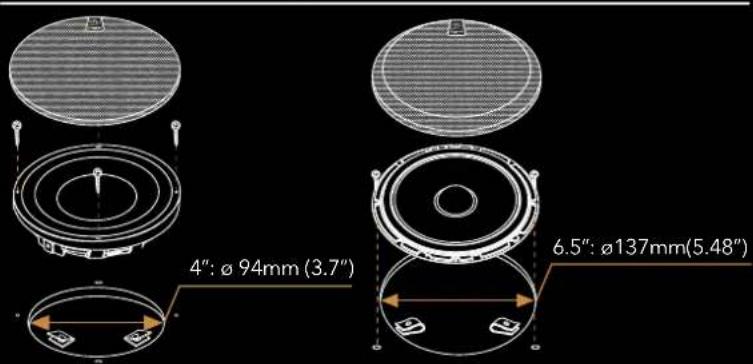

Midrange, Woofer and Tweeter mounting

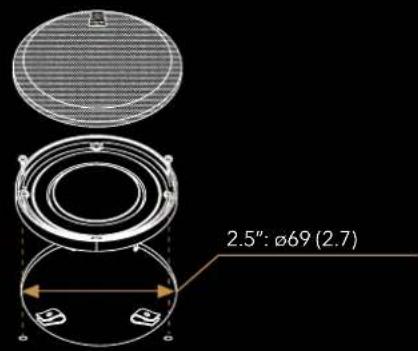

4", 6.5" Woofer / Integra

MT120N Crossover mounting

MM2

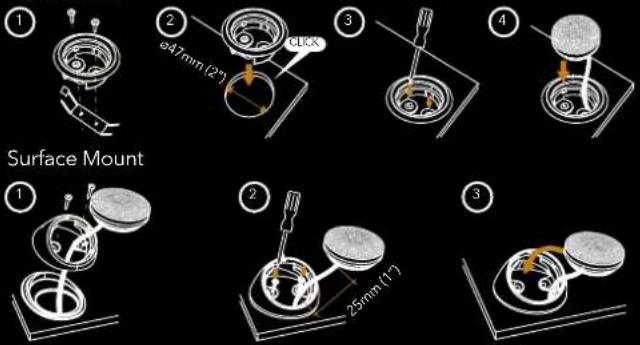

Flush Mount

Technical line drawing of a car dashboard and electrical panel (no text or symbols)

Tweeter, Crossover Mounting

2-WAY System Wiring

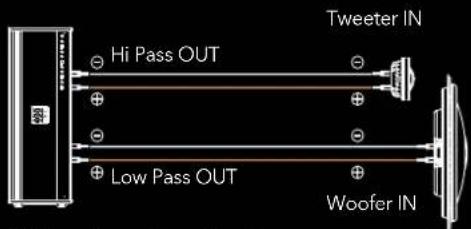

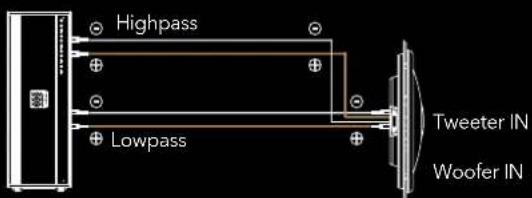

ACTIVE SET UP (Outputs must be filtered)

4-Channel amplifier with active crossovers required

Tweeter HP: 2,500Hz @ 12dB or 24dB slope

Woofer LP: 2,500Hz @ 12dB or 24dB slope

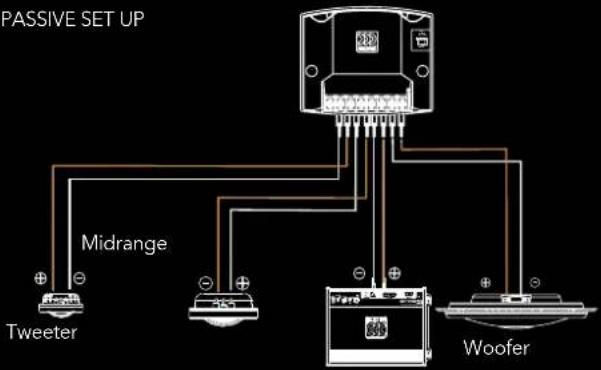

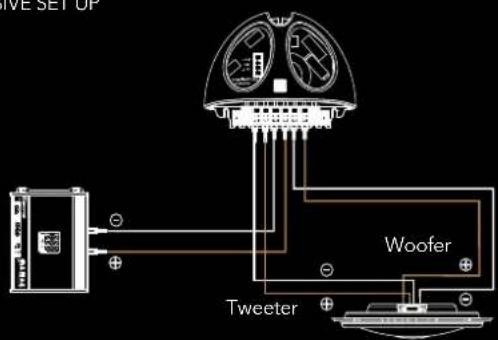

PASSIVE SET UP

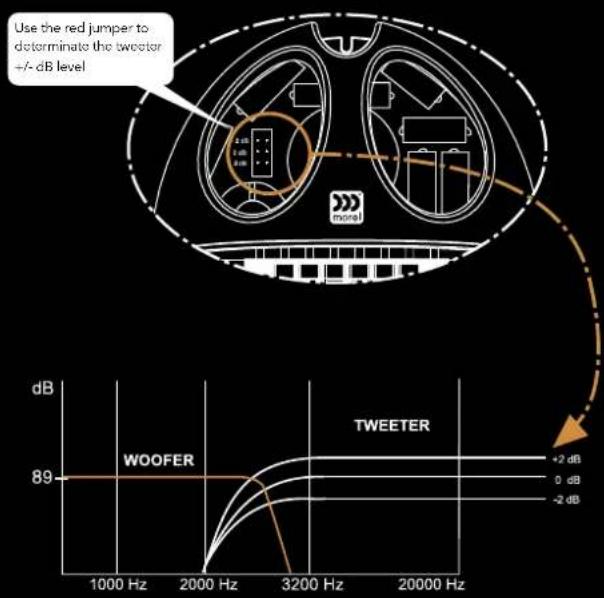

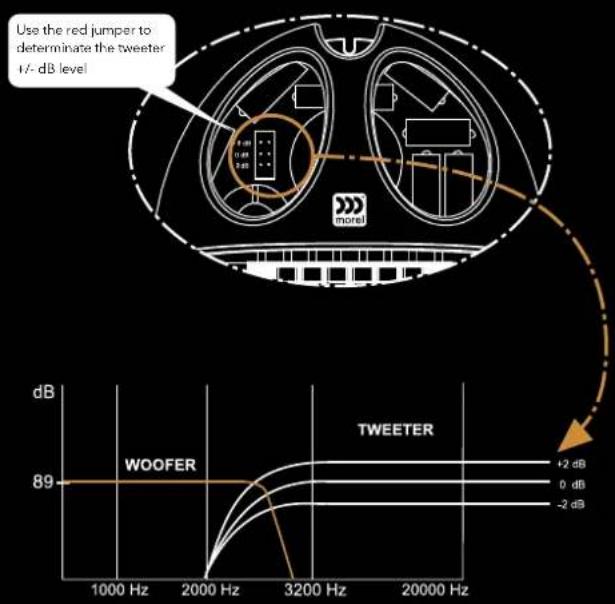

2-WAY System Alignment

Crossover

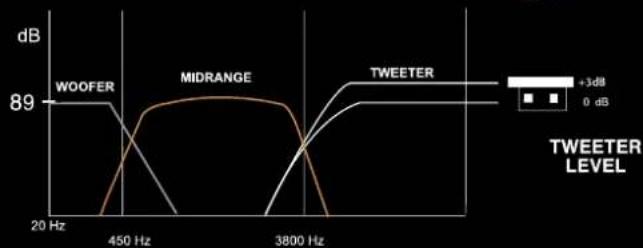

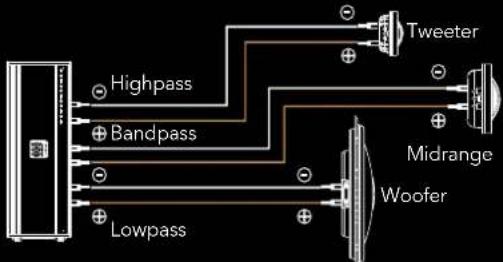

3-WAY System Wiring 3-WAY System Alignment

ACTIVE SET UP (Outputs must be filtered)

6-Channel amplifier with active crossovers required

3-Way Component Systems

Tweeter HP: 2,500Hz @ 12dB slope

Midrange LP: 2,500Hz @ 12dB slope

Midrange HP: 500Hz @ 12dB slope

Woofer LP: 500Hz @ 12dB slope

PASSIVE SET UP

Crossover

Integra System wiring Integra System alignment

ACTIVE SET UP

4-Channel amplifier with active crossovers required

Tweeter HP: 2,500Hz @ 12dB slope

Woofer LP: 2,500Hz @ 12dB slope

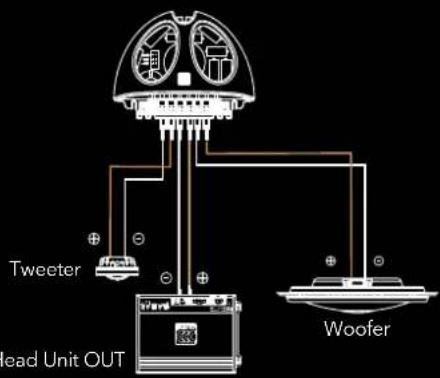

PASSIVE SET UP

Specifications

	MW4	MW6	INTEGRA 4	INTEGRA 6VIRTUS NANO CA
Nominal Impendance (ohm)	4	4	4	4
Power Handling Wrms	90	100	80	100
Max. Trans. Pwr Handling Wrms	300	300	300	300
Sensitivity (2.83 V/1M)	88dB	88dB	87dB	87dB
Frequency response Hz	80-9200	50-5500	90-3800	50-5500
Resonance Freq. Fs Hz 95		68	105	73
Voice Coil Diameter mm (inch)	54 (2.16)	54 (2.16)	54 (2.16)	54(2.16)
Voice Coil Height mm (inch)	9 (0.35)	9.5 (0.4)	7.5 (0.3)	7.5 (0.3)
Voice Coil Type/Former	Aluminium	Aluminium	Aluminium	Aluminium
Voice Coil Wire	Hexatech "Aluminium	Hexatech" Aluminium	Hexatech' Aluminium	Hexatech" aluminium
DC Resistance (ohm) 3		3	3	3
Voice Coil Induct. @1 kHz (mH) 0.12		0.17	0.11	0.17
Magnet System	Neodymium Vented	Neodymium Vented	Neodymium Vented	Neodymium Vented
HE Magnetic Gap Height mm (inch)	4 (0.16)	4 (0.16)	4 (0.16)	4 (0.16)
BL Product/BXL 4.68		3.85	3.87	4.18
Max. Linear Ex/Xmax mm (inch)	±3mm (0.12)	±3mm (0.12)	±1.75mm (0.07)	±3mm (0.12)
Electrical O Factor QES 0,7		0.97	0.775	0.97
QTS 0.6		0.65	0.615	0.73
OMS	4.01	3.57	2.98	3.4
Moving Mass MMS - gr/os	8.57 (0.3)	14 (0.49)	5.84 (0.2)	11.8 (0.41)
Equity. Can Air Load VAS - L (cu.ft.)	1.48 (0.05)	11 (0.38)	0.7 (0.02)	7.5 (0.26)
Effective Piston Area SD sq.cm (sq.inch)	57(8.8)	139(21.545)	35.5(5.5)	116 (17.98)
Cone Type	Carbon Cone	Carbon Cone	Carbon Cone	Carbon Cone
Cone Material	Carbon + Foam Core	Carbon + Foam Core	Carbon + Foam Core	Carbon + Foam Core
Unit Diameter mm(inch)	109 (4.3)	167 (6.5)	109 (4.3)	167 (6.5)
Mounting Depth mm (inch)	17(0.7)	17(0.7)	17(0.7)	17 (0.7)
Mounting Cutout	93 (3.6)	137(5.48)	93 (3.6)	137 (5.48)
Net Weight gr 376		450	383	470

MIDRANGE / TWEETER	MM2	INTEGRA	MT120N
Nominal Impendance (ohm)	4	4	8
Power Handling Wrms	60	90	80
Max. Trans. Pwr Handling Wrms (10ms)	100	180	250
Sensitivity (2,63 V/1M) dB	83	90.5	90
Frequency Response Hz	200-5000	1800-20000	1800-22000
FS Hz	145	1000	1200
Voice Coil Diameter mm (inch) 20 (0.78)		28 (1.125)	28 (1.125)
Voice Coil Former	Kepton	Copper	Aluminium
Voice Coil Wire	Copper	Neodymium	Copper
DC Resistance ohm	3.2	5.2	5.2
Magnet System	Double Magnet Neodymium	Neodymium	Neodymium
Dome Type	Aluminium Formed Dome	AcuflexTM ahand coated soft dome	Acuflex® hand coated soft dome
Dome Material	Aluminium Anodized	Silk	Silk
Unit Diameter mm(inch)	76.7 (3)		43.00 (1.69)
Mounting Depth mm (inch)	9.3 (0.37)		13.2 (0.52)
Mounting Cutout	69 (2.7)		47.00 (2)
Net Weight gr	70		0.07 (0.15)

CROSSOVERS	MXR200.4	MXR130	MXR250.4i
Crossover Point	2200Hz/12dB/6dB W: 800Hz/12dBM: 800Hz/6dB5000Hz/6dBT: 5000Hz/6dB		2200Hz/12dB

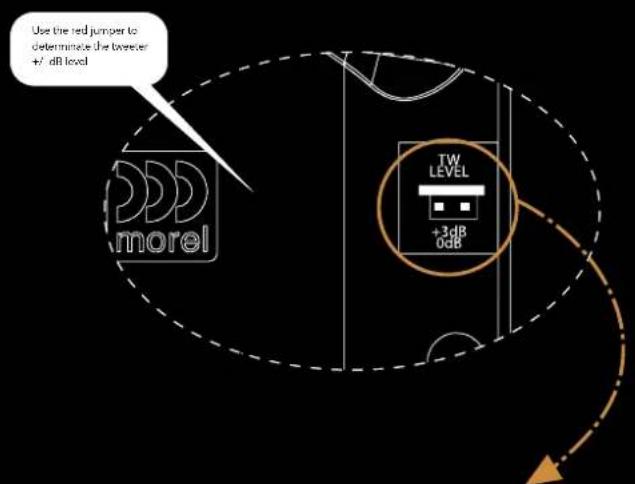

Crossover Controls Tweeter +/- 2dB Tweeter 0/+2dB			Tweeter +/- 2dB
Wiring Options	N/A N/A		N/A

* Morel operates a policy of continuous products design improvement, consequently specifications are subject to alteration without prior notice

Morel, Ness Ziona, 70400 Israel. Morel America, Chandler, AZ, USA

Tel: [phone] Toll free number:1-877-667-3511

Fax: [phone] Fax: [phone]

E-mail: [e-mail] E-mail: [e-mail]

www.morelhifi.com
