Poppy - Stroller Chipolino - Free user manual and instructions

Product Type	Stroller
Brand	Chipolino
Model	Poppy
Dimensions (open)	Approx. 80 x 50 x 100 cm (31.5 x 19.7 x 39.4 in)
Dimensions (folded)	Approx. 30 x 25 x 85 cm (11.8 x 9.8 x 33.5 in)
Weight	Approx. 6.5 kg (14.3 lbs)
Maximum Child Weight	Up to 15 kg (33 lbs)
Age Range	From 6 months to 3 years
Safety Harness	5-point harness with adjustable straps
Brake System	Foot-operated rear brake
Folding Mechanism	One-hand compact folding with auto-lock
Canopy	Adjustable sun canopy with peek-a-boo window
Recline Positions	Multi-position recline (including flat)
Storage Basket	Large under-seat storage basket
Wheels	Front swivel wheels with suspension; rear wheels with brake
Materials	Aluminum frame; polyester fabric
Cleaning Instructions	Wipe frame with damp cloth; hand wash fabric seat cover; air dry
Warranty	2 years against manufacturing defects
Compliance	EN 1888-1:2018 certified

Frequently Asked Questions - Poppy Chipolino

How do I fold the Chipolino Poppy stroller?

To fold, first ensure the brake is engaged and the canopy is closed. Pull the folding trigger located on the handlebar while pushing the handle forward. The stroller will collapse into a compact shape and lock automatically. Use the carry strap for transport.

What is the weight limit for this stroller?

The maximum recommended child weight is 15 kg (33 lbs). Do not exceed this limit to ensure safety and proper function.

How do I clean the fabric seat?

The fabric seat is removable. Hand wash with mild soap and cold water, then air dry. Do not bleach or machine dry. The frame can be wiped with a damp cloth.

Can the stroller be used from birth?

The Chipolino Poppy is suitable from 6 months of age. For newborns, a separate infant car seat adapter or carrycot is required (not included). Check compatibility with your car seat model.

How do I adjust the safety harness?

Slide the shoulder strap anchors up or down through the slots on the seat back. Adjust the crotch strap length by moving the buckle. The harness should fit snugly, with about one finger’s width between the strap and your child.

What is the warranty period?

The stroller comes with a 2-year warranty against manufacturing defects. This does not cover normal wear and tear, misuse, or damage from accidents.

How do I engage the brake?

Press down on the foot brake lever located on the rear axle until it clicks. To release, lift the lever upward. Always lock the brake when the stroller is stationary.

Is the stroller suitable for jogging?

No, this stroller is designed for everyday use on paved surfaces. It is not intended for jogging or rough terrain.

Can I attach a car seat?

Yes, with a compatible car seat adapter (sold separately). The Poppy is compatible with major brands like Maxi-Cosi, Cybex, and Chicco. Refer to the manual for specific models.

What should I do if a part is broken or missing?

Contact Chipolino customer support or the retailer where you purchased the stroller. Provide the model name (Poppy), proof of purchase, and a description of the issue. They will assist with replacement parts or warranty service.

USER MANUAL Poppy Chipolino

IMPORTANT! READ CAREFULLY AND KEEP THIS USER'S MANUAL IN A SAFE PLACE FOR FUTURE REFERENCE!

INSTRUCTION MANUAL FOR BABY STROLLER "POPPY"

This stroller is manufactured according to the requirements of the Product Safety Directive 2001/95/EU of the European Parliament and The Council and with European standards 1888-1:2018+A1:2022 Child use and care articles. Wheeled child conveyances. Part 1: Pushchairs and prams and EN 1888-2:2018 Child care articles - Wheeled child conveyances - Part 2: Pushchairs for children above 15 kg up to 22 kg and the regulations of national legislation.

FOLLOW ALL WARNINGS, INSTRUCTIONS AND RECOMMENDATIONS IN THIS MANUAL IN ORDER TO GUARANTEE THE SAFE USE OF THIS PRODUCT.

CAUTION! WARNINGS!

✿ WARNING! NEVER LEAVE YOUR CHILD UNATTENDED!
✿ WARNING! ALWAYS USE THE RESTRAINT SYSTEM (SAFETY BELTS)!
✿ WARNING! MAKE SURE THAT ALL LOCKING MECHANISMS ARE ENGAGED BEFORE USE.
✿ WARNING! BEFORE EACH USE, CHECK THE STABILITY OF FIXING OF SEPARATE PARTS!
✿ WARNING! MAKE SURE YOUR CHILD IS AT SAFE DISTANCE AWAY FROM THE STROLLER DURING ADJUSTMENTS, FOLDING OR UNFOLDING OF THE STROLLER.

✿ WARNING! DO NOT ALLOW YOUR CHILDREN TO PLAY WITH THE STROLLER!

✿ WARNING! THIS PRODUCT IS NOT SUITABLE FOR RUNNING OR SKATING!

✿ FOR NEWBORN BABY USE THE MOST LYING POSITION OF THE BACKREST OF THE SEAT!

✿ USE THE SITTING POSITION OF THE SEAT UNIT ONLY AFTER CHILD IS LEAST 6 MONTHS OLD! SITING POSITION OF SEAT IS NOT SUITABLE FOR BABIES, WHO ARE AGED LESS THAN 6 MONTHS!

DO NOT LIFT THE STROLLER BY THE FRONT BAR, BECAUSE THIS CAN LEAD TO SERIOUS INJURIES!

KEEP AWAY FROM FIRE!

Use the stroller for a child weighing not more than 22 kg.

- Initial assembly, folding and unfolding to be done only by adult!

❖ Always engage the parking device when the stroller has stopped and is not moving, especially when you place or take out your child from it!

Make sure the safety belts are fastened and fit well to the child before usage.

Do not place an additional mattress in stroller.

- The maximum load for the storage basket is 2 kg.

Do not overload the stroller! Always balance your stroller in a way to keep it stable and prevent the risk of tip-over!

❖ Stroller is intended for use for one child at a time!

Do not use any spare parts or other components, which are not approved by the producer! The producer does not take any responsibility for the safety of the child when you have not used the proper and original spare parts, approved and provided by the producer!

Do not apply any changes or modifications to the stroller's construction! Contact the dealer or an authorized repair service for advice and/or repair instead!

Discharge, if you find worn out or loose joints, damaged or missing parts! There is a risk of injury of the child!

Do not allow children younger than 3 years near the stroller during the assembly or disassembly, in order to prevent the risk of injury or swallowing of small parts!

cStringse strangulation! Do not place additional strings to the product to avoid injuries!

✿ Never use the stroller on stairs or escalators! Use extra care when going up or down a pavement or step!

The packaging of the product must be kept out of the reach of children to avoid the risk of strangulation!

Simple line drawing of a baby in a seatbelt inside a circle (no text or symbols)

Illustration of a woman and a child walking together, no text or symbols present

Line drawing of a person in a stroller inside a circle (no text or symbols)

Illustration of a person pushing a stroller with a child, enclosed in a circle (no text or symbols)

Simple line drawing of a woman pushing a child in a stroller inside a circle (no text or symbols)

PRODUCT FEATURES

This stroller is intended for infants or babies under 4 years of age or weighing up to 22 kg (whichever comes first);
◆ 5-point safety harness system;
◆ Adjustable backrest;
◆ Adjustable canopy;
◆ Adjustable leg rest.

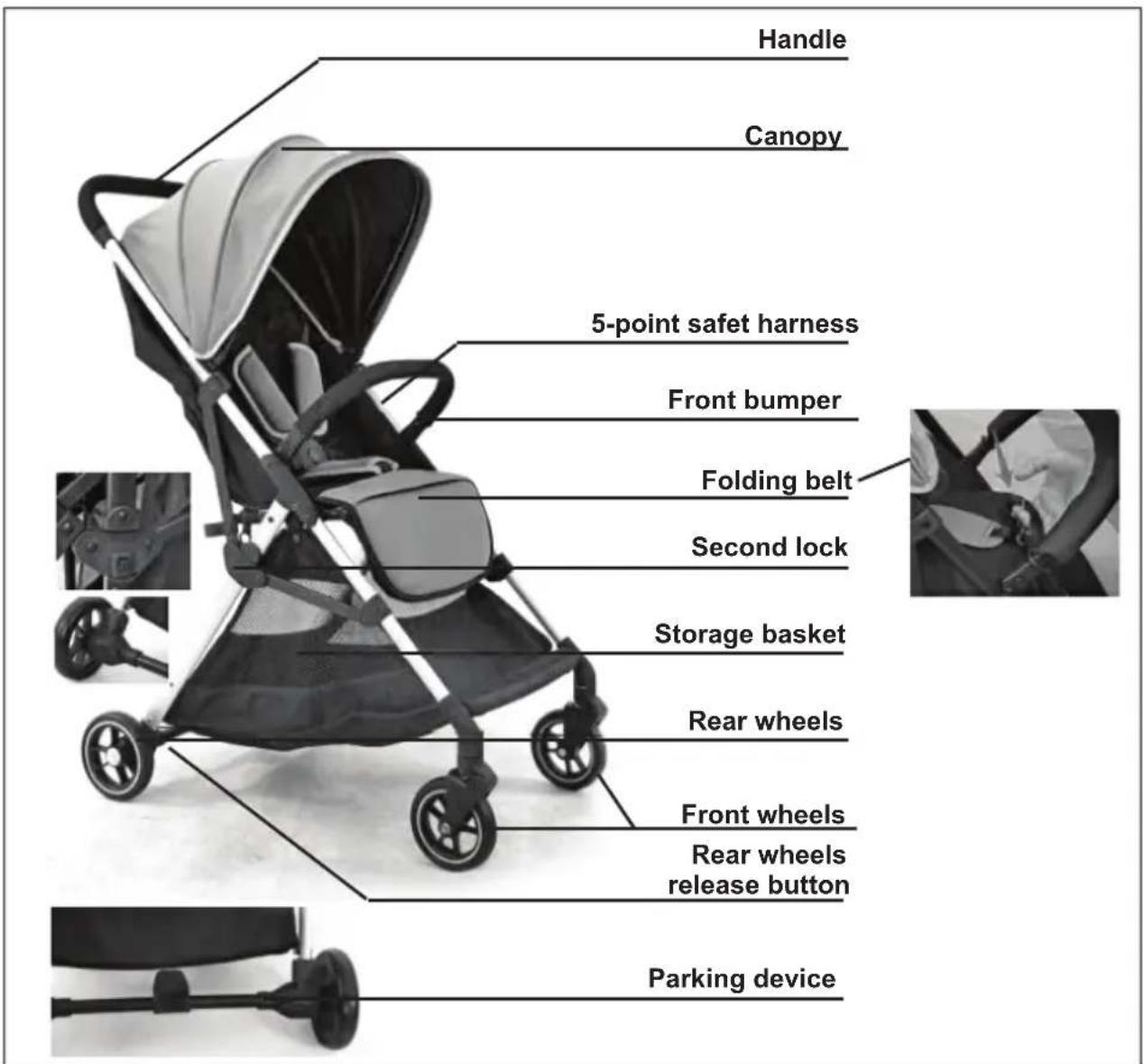

MAIN PARTS

Each box contains:

Front wheel2 pcs	Rear wheel2 pcs	Front bumper1 pc	Frame, set1 pc

ASSEMBLY INSTRUCTIONS AND FUNCTIONS

This stroller is supplied partially assembled. In order to complete the assembly, you do not need any tools.

WARNING! Follow exactly the instructions given and check the pictures.

WARNING! After each operation, make sure that you have followed the instructions correctly and the fixing is stable!

WARNING! In most cases after the completion of an operation you will hear a clicking sound.

The assembly, disassembly and functions are numbered from 1 to 10. Use the operations descriptions given in this manual and their matching picture.

1 – UNFOLDING THE STROLLER

1a – Release the fixing.

1b - Grab the handle and pull it upwards.

1c - When you hear a click sound stroller is unfolded and fixed.

WARNING! Make sure the stroller is fixed in unfolded position before using it!

2 - ASSEMBLY AND REMOVAL OF THE FRONT WHEELS

2a – Install the front wheel with pressure to the opening of front part of the frame.

3b – When the wheel is fixed you will hear a click.

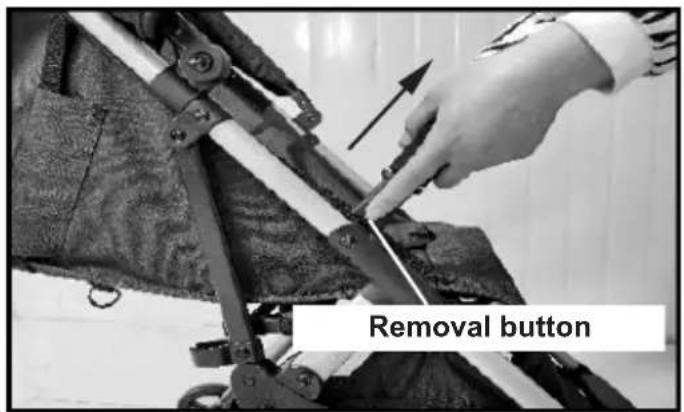

To remove the wheel, press the release button and take the wheel out.

Remark: Front wheels cannot be fixed for straight movement only.

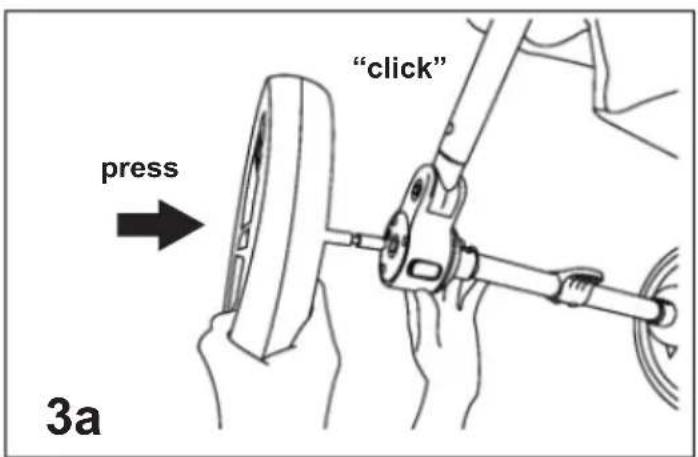

3 - ASSEMBLY AND REMOVAL OF THE REAR WHEELS

4a – Install the rear wheel with pressure to the opening in the rear axle. When the wheel is fixed you will hear a click.

4b - To remove the wheel, press the release button and take the wheel out.

4 - ASSEMBLY AND REMOVAL OF FRONT BUMPER

4a – Place the two ends of the front bumper to the openings in the frame and press until you hear a click.

4b – To remove the bumper press the two buttons at the sides and take it out.

5 – PARKING DEVICE

IMPORTANT! Always activate the parking device while stroller is not in motion in order to avoid sudden sliding and injuries.

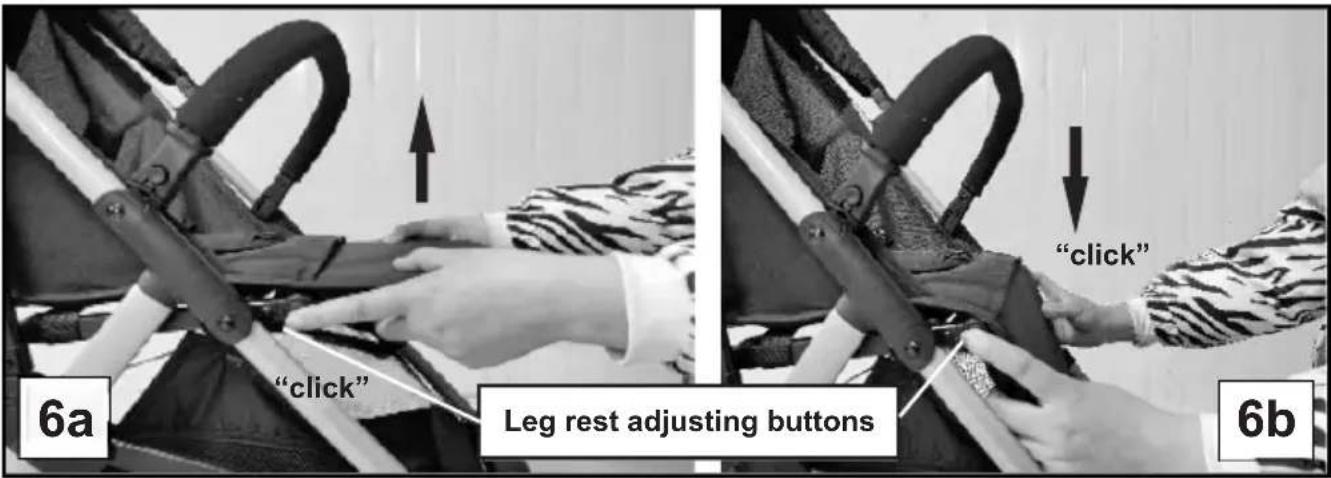

6 - LEG REST

Press simultaneously both buttons on the sides of the leg rest and move it up (6a) or lower it (6b) to your desired position.

When each position is fixed you will hear a click sound.

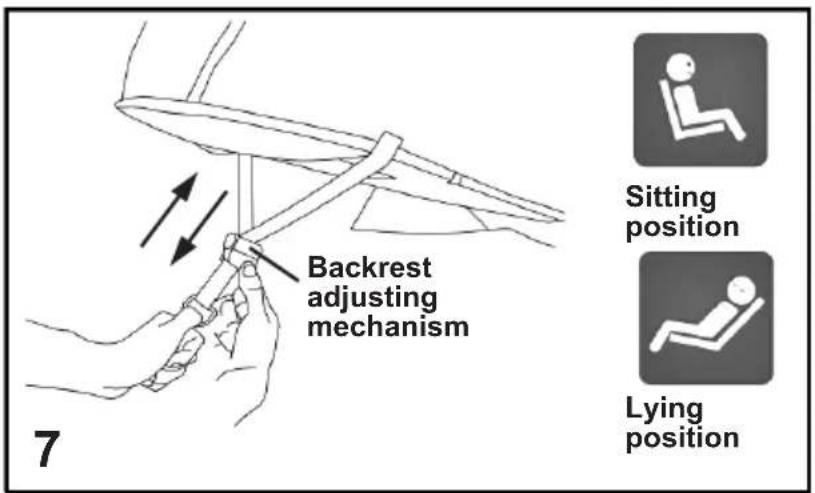

7 - BACKREST RECLINE ADJUSTMENT

Press the button on the mechanism and move downwards or upwards until you reach the required position of the backrest. Release the mechanism to fix the position.

WARNING! BABIES UNDER 6 MONTHS MUST BE PLACED ON THE SEAT ONLY WITH THE BACKREST, ADJUSTED IN THE MOST RECLINED (FLAT) POSITION!

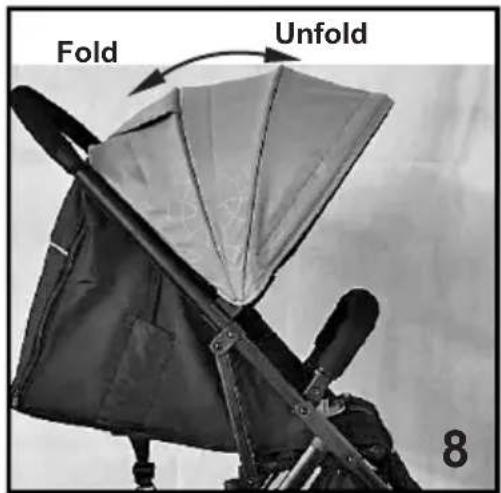

8 - CANOPY FOLDING AND UNFOLDING

Push the canopy with your hand in order to fold it.

Pull out the canopy with your hand in order to unfold it.

9 - RESTRAINT SYSTEM (safety belt)

The safety harness may be adjusted in two positions according to child's height by threading the shoulder belts through the backrest loops.

To unfasten: Press the central buckle and split the belts.

To unfasten: Insert both endings of the belts into the central buckle and press until you hear a click sound.

IMPORTANT! Belts must be snug to child's body and must not be twisted. Adjust the length of the belts accordingly.

WARNING! Periodically check to ensure that the seat belt is securely attached to the stroller frame as well as securely fastened. The belts should not be worn or torn, and plastic buckles and fasteners must be sturdy, free of damage and secure.

ATTENTION! When you use the seat for a newborn baby, first adjust the leg rest to its highest position, unfasten the harness and put the pelst to the sides, covering them with thin pad.

IMPORTANT! Empty the storage basket before folding the stroller.

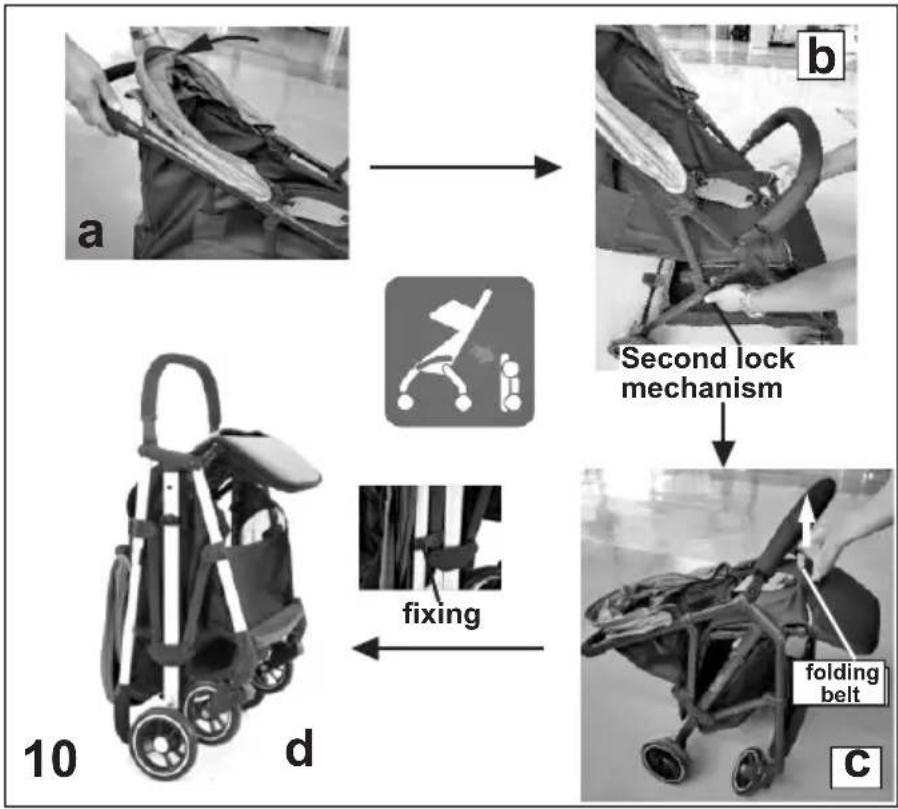

10a - Fold the canopy.

10b – Press the second lock button and at the same time pull the folding belt.

10c - Fold the stroller.

10d – The fixing will lock automatically the folded stroller.

CARE AND MAINTENANCE GUIDELINES

The brakes and wheels wear out faster than other parts. Replace them when necessary.
◆ Regularly oil the moving parts. Use silicone oil or silicone spray for oiling.
- Clean and oil all dirty metal and plastic parts regularly.
- Clean the fabrics, plastic parts and metal parts with damp cotton cloth or sponge and mild soap.
Do not use aggressive detergents, solvents, bleach or spirits to clean your stroller.
❖ Always leave the stroller to fully dry after cleaning before you use it or store it. Mold could form if you keep your stroller moist.
Always store your stroller indoors in clean and dry place. Do not expose to direct environment influence - sun, rain, moisture and high temperature intervals.
Please, contact your authorized dealer for problems connected with the use or repair of this stroller.

Fabric Composition:

Outer: 100% Polyester

Filling: 100% Polyester
